Product Overview

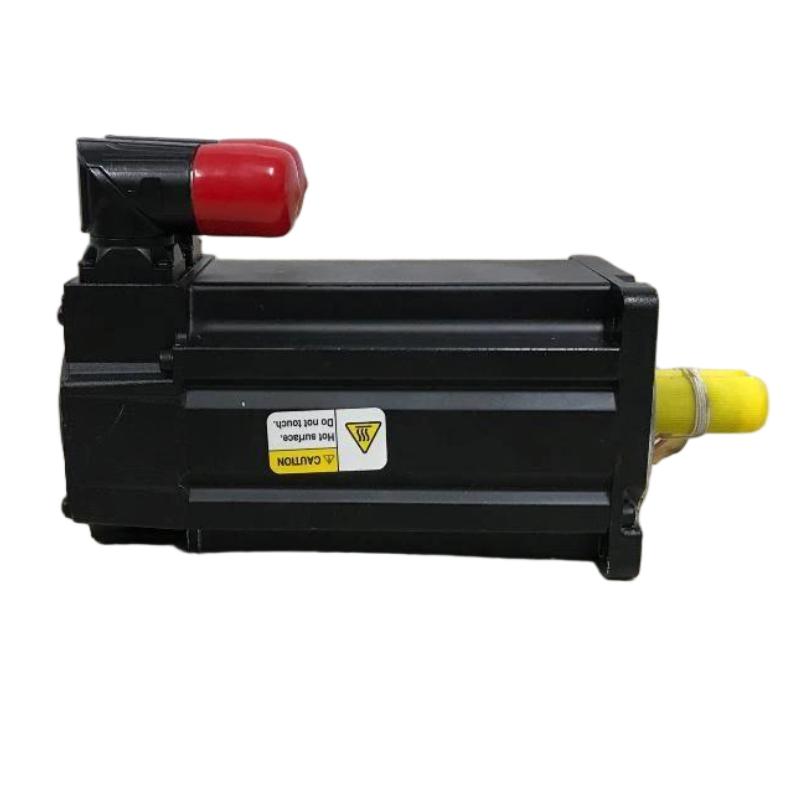

The Allen Bradley MPL-A330F-M-X211 Servo Motor is a premium industrial AC brushless servo motor engineered to deliver high precision, exceptional dynamic response, and long-term reliability for demanding motion control applications. As a member of the Allen Bradley MP-Series (MPL) servo motor family, this model is specifically designed for continuous-duty industrial environments where accurate positioning, smooth motion, and rapid acceleration are essential.
Featuring a compact 63 mm frame size, the MPL-A330F-M-X211 combines high torque density with a lightweight and robust construction, making it ideal for machinery with limited installation space. The motor is designed for seamless integration with Allen Bradley Kinetix servo drive systems, enabling precise closed-loop motion control for advanced automation equipment.
Its rugged design and dependable performance make it suitable for robotics, semiconductor manufacturing, electronic assembly, packaging machinery, precision machine tools, pharmaceutical equipment, material handling systems, and automated production lines where high-performance motion control is required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | MPL-A330F-M-X211 |
| Product Series | MP-Series MPL |
| Product Type | AC Brushless Servo Motor |
| Frame Size | 63 mm |
| Motor Design | Low-Inertia Servo Motor |
| Voltage Class | 230 V AC |
| Cooling Method | Natural Air Cooling |
| Shaft Type | Precision Servo Shaft |
| Mounting | IEC Metric Flange Mount |
| Feedback System | High-Resolution Encoder |
| Protection Class | IP50 (IP66 with optional shaft seal) |
| Weight | 5.44 kg |
| Installation | Industrial Servo Motion Systems |
| Application | High-Precision Motion Control |
Function and Working Principle
The Allen Bradley MPL-A330F-M-X211 servo motor converts electrical energy into accurate rotary motion using a high-performance closed-loop servo control system. During operation, a compatible Allen Bradley Kinetix servo drive continuously monitors encoder feedback and adjusts motor current in real time to achieve precise control of speed, torque, and position.
The motor’s low-inertia rotor enables rapid acceleration and deceleration while maintaining excellent positioning accuracy and smooth motion characteristics. Continuous encoder feedback allows the motion controller to compare the commanded position with the actual shaft position, automatically correcting deviations and ensuring stable operation under varying load conditions.
This operating principle provides numerous performance advantages, including:
- High-speed positioning
- Rapid acceleration and deceleration
- Excellent speed stability
- Precise torque control
- Smooth rotary motion
- Outstanding positioning repeatability
These capabilities make the MPL-A330F-M-X211 suitable for demanding industrial automation systems requiring accurate and reliable motion control.
Role in Industrial Control Systems
Within industrial automation systems, the MPL-A330F-M-X211 functions as the primary motion actuator responsible for converting digital motion commands into controlled mechanical movement.
The servo motor supports a variety of precision motion functions, including:
- Position control
- Speed regulation
- Torque control
- Electronic gearing
- Multi-axis synchronization
- Continuous rotary motion
When integrated with Allen Bradley Kinetix servo drives and Logix controllers, the motor contributes to improved machine accuracy, reduced production cycle times, and increased manufacturing efficiency.
Industrial Applications
The Allen Bradley MPL-A330F-M-X211 is widely used in numerous industrial sectors, including:
- Robotics and Automation
- Packaging Machinery
- Semiconductor Manufacturing
- Electronics Assembly
- Pharmaceutical Equipment
- CNC Machine Tools
- Material Handling Systems
- Conveyor Automation
- Food and Beverage Processing
- Printing Machinery
- Textile Equipment
- Pick-and-Place Systems
- Automated Warehousing
- Precision Manufacturing
- Automotive Production Lines
Its compact 63 mm frame size makes it particularly suitable for machines where installation space is limited while maintaining high-performance motion control.
Installation and System Integration
Proper installation is essential to ensure optimum motor performance and service life.
Recommended installation procedures include:
- Secure the motor using the IEC metric mounting flange.
- Align the shaft accurately with the driven equipment.
- Use precision couplings to minimize mechanical stress.
- Connect power and feedback cables according to system requirements.
- Configure motor parameters within the compatible Kinetix servo drive.
- Verify encoder communication before commissioning.
- Maintain adequate ventilation around the motor.
- Inspect cable routing to reduce electrical interference.
Correct installation improves positioning accuracy, reduces vibration, and enhances overall system reliability.
Compatible System Components
The MPL-A330F-M-X211 is commonly integrated with:
- Allen Bradley Kinetix 300 Servo Drives
- Allen Bradley Kinetix 350 Servo Drives
- Allen Bradley Kinetix 5500 Servo Drives
- Allen Bradley Kinetix 5700 Servo Drives
- Allen Bradley Kinetix 6000 Servo Drives
- Allen Bradley ControlLogix Controllers
- Allen Bradley CompactLogix Controllers
- Allen Bradley GuardLogix Controllers
- MP-Series Motor Power Cables
- MP-Series Feedback Cables
- Motion Interface Modules
- Industrial Planetary Gearboxes
- Servo Couplings
- Motion Control Accessories
Together, these components provide a complete motion control platform capable of delivering accurate positioning, synchronized movement, and reliable industrial automation.
Recommended Alternative Models
Depending on machine requirements, the following Allen Bradley servo motors may also be considered:
| Model | Type | Key Feature | Application |
|---|---|---|---|
| MPL-A330F-M-X221 | AC Servo Motor | Similar Performance Configuration | General Automation |
| MPL-A330P-MJ72AA | AC Servo Motor | 100 mm Frame Size | High-Speed Motion Control |
| MPL-A320P-MJ74AA | AC Servo Motor | Integrated Holding Brake | Precision Automation |
| MPL-B330P-MJ74AA | AC Servo Motor | Higher Voltage Version | Heavy Industrial Equipment |
| MPF-A330F Series | Food Grade Servo Motor | Corrosion-Resistant Construction | Food & Beverage Industry |
Key Advantages
- Compact 63 mm frame size
- High-performance low-inertia design
- Excellent positioning accuracy
- Rapid acceleration and deceleration
- Smooth and stable torque output
- High dynamic response
- Reliable continuous-duty operation
- Compatible with Allen Bradley Kinetix motion systems
- Suitable for demanding industrial automation
- Long service life with minimal maintenance
Technical FAQs
What is the primary function of the MPL-A330F-M-X211?
It provides accurate rotary motion for industrial machinery operating within closed-loop servo control systems.
What industries commonly use this servo motor?
It is widely used in robotics, packaging equipment, semiconductor manufacturing, CNC machinery, pharmaceutical production, and automated assembly systems where high-precision motion control is required.
Is the MPL-A330F-M-X211 suitable for continuous industrial operation?
Yes. It is designed for continuous-duty industrial applications, delivering reliable positioning accuracy and stable motion performance in demanding manufacturing environments.
Conclusion
The Allen Bradley MPL-A330F-M-X211 Servo Motor is a high-performance industrial motion control solution designed to provide exceptional precision, rapid response, and dependable long-term operation. Featuring a compact 63 mm frame size, 230 V AC operation, a high-resolution encoder, and a robust low-inertia design, it delivers outstanding positioning accuracy and smooth motion control across a wide range of industrial applications.
Whether integrated into robotics, packaging systems, semiconductor manufacturing equipment, CNC machinery, or automated production lines, the MPL-A330F-M-X211 provides the performance, reliability, and efficiency required to support modern industrial automation while maximizing machine productivity and operational stability.
