Product Overview

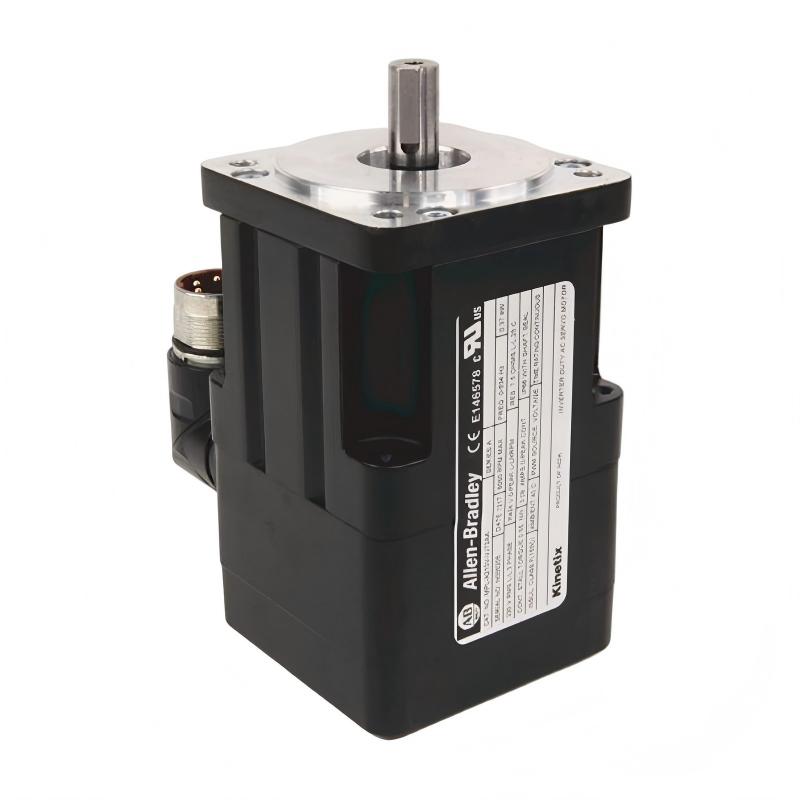

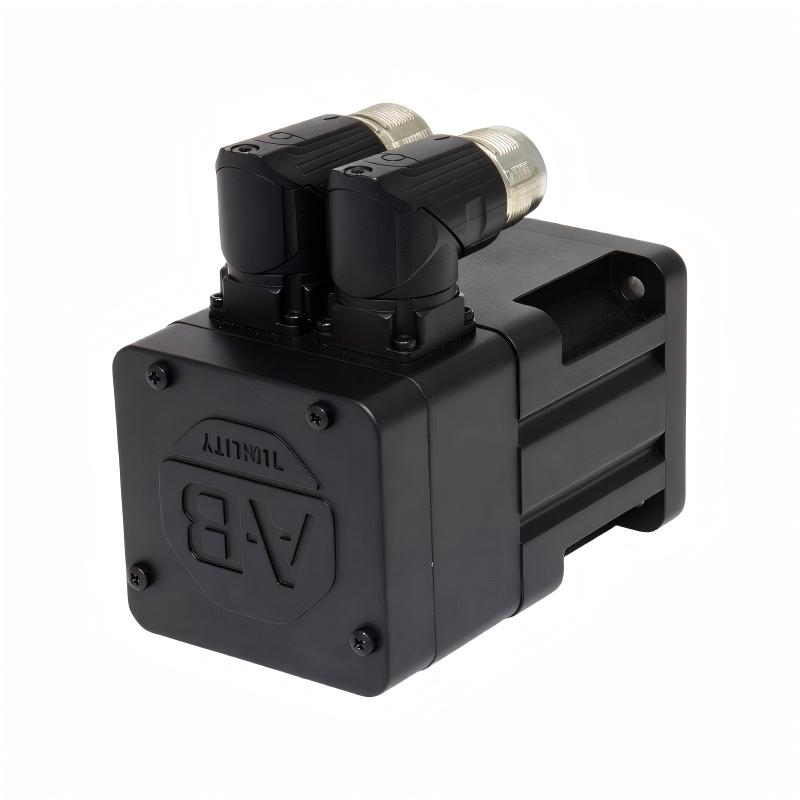

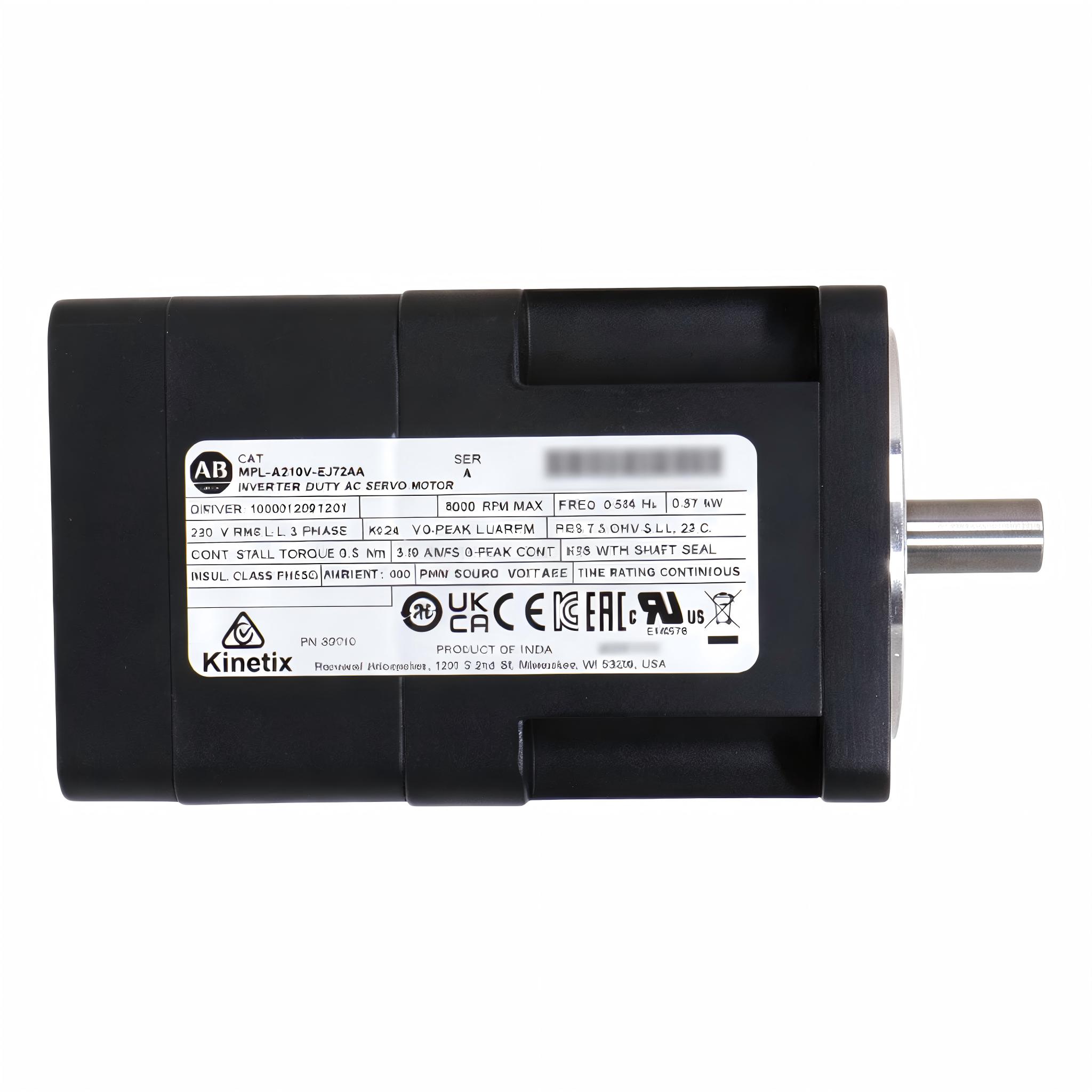

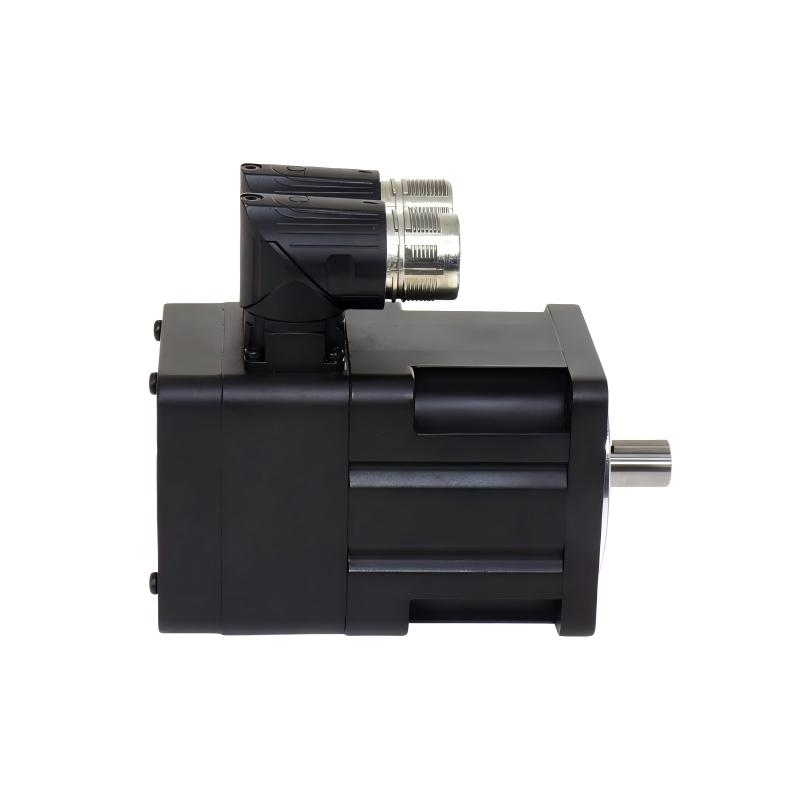

The Allen Bradley MPL-A210V-EJ72AA Servo Motor is a compact, high-performance Kinetix MP-Series MPL low-inertia AC servo motor developed by Rockwell Automation for demanding industrial motion control applications. Designed with a 75 mm frame size and a compact 25.4 mm magnet stack, this servo motor delivers fast acceleration, precise positioning, and smooth torque control, making it an excellent choice for high-speed automation equipment requiring exceptional dynamic performance.
As a member of the Allen-Bradley MP-Series MPL family, the MPL-A210V-EJ72AA is engineered for seamless integration with Kinetix servo drives, enabling highly accurate closed-loop control of speed, torque, and position. This model features a 230 V AC voltage class, an 8000 RPM rated speed, a 25.4 mm magnet stack, a single-turn high-resolution absolute encoder, a keyed shaft extension, a SpeedTEC right-angle 180° rotatable quick-connect connector, and no holding brake. These characteristics make it ideal for applications where rapid response, compact size, and high positioning accuracy are essential.
Its low-inertia permanent magnet rotor minimizes settling time while maximizing positioning repeatability and machine productivity. The compact design simplifies installation inside machinery where available mounting space is limited.
With a 75 mm frame size and an approximate weight of 1.4 kg, the MPL-A210V-EJ72AA is widely used in robotics, packaging machinery, semiconductor equipment, CNC machines, electronics assembly, medical equipment, automated material handling systems, and precision manufacturing lines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model | MPL-A210V-EJ72AA |
| Product Series | Kinetix MP-Series MPL |
| Product Type | AC Servo Motor |
| Motor Type | Low-Inertia Permanent Magnet Servo Motor |
| Voltage Class | 230 V AC |
| Rated Speed | 8000 RPM |
| Continuous Stall Torque | 0.55 Nm |
| Frame Size | 75 mm |
| Magnet Stack Length | 25.4 mm |
| Feedback System | Single-turn High-Resolution Absolute Encoder |
| Shaft Type | Keyed Shaft Extension |
| Brake | No Holding Brake |
| Connector Type | SpeedTEC DIN Connector, Right Angle, 180° Rotatable |
| Mounting Method | IEC Metric Flange Mount |
| Cooling Method | Natural Cooling |
| Protection Class | IP50 Standard (IP66 with optional shaft seal and sealed connectors) |
| Typical Application | Precision Motion Control |
| Weight | Approximately 1.4 kg |
Function and Working Principle
The MPL-A210V-EJ72AA converts electrical energy supplied by a compatible Kinetix servo drive into highly accurate rotary motion while continuously transmitting encoder feedback for closed-loop motion control.
Typical Motion Control Architecture
Motion Controller
↓
Kinetix Servo Drive
↓
Allen Bradley MPL-A210V-EJ72AA Servo Motor
↓
Coupling / Gearbox / Ball Screw
↓
Industrial Equipment
The servo drive continuously compares commanded motion with encoder feedback and dynamically regulates motor current to achieve accurate speed, torque, and positioning.
Its primary functions include:
- Precision positioning
- High-speed rotary motion
- Accurate torque control
- Rapid acceleration and deceleration
- Single-turn absolute encoder feedback
- Smooth speed regulation
- High dynamic response
- Continuous motion monitoring
- Energy-efficient operation
- Reliable continuous-duty performance
The low-inertia rotor enables excellent responsiveness while reducing cycle times in high-speed automation systems.
Role in Industrial Automation Systems
Within industrial automation systems, the MPL-A210V-EJ72AA serves as the precision actuator responsible for converting servo drive commands into controlled mechanical movement.
Typical automation architecture:
PLC / Motion Controller
↓
Kinetix Servo Drive
↓
MPL-A210V-EJ72AA Servo Motor
↓
Mechanical Transmission
↓
Industrial Machine
↓
Production Process
The servo motor delivers repeatable positioning, smooth torque output, and stable motion control to improve production efficiency, positioning accuracy, and machine reliability.
Industrial Applications
Packaging Machinery
Typical applications include:
- Filling machines
- Labeling equipment
- Cartoning systems
- Wrapping machinery
- Pick-and-place units
Robotics
Suitable for:
- Industrial robot joints
- SCARA robots
- Collaborative robots
- Assembly robots
- End-of-arm tooling
CNC Machinery
Frequently installed in:
- CNC machining centers
- Rotary indexing tables
- Precision cutting machines
- Engraving equipment
- Tool changers
Semiconductor and Electronics Manufacturing
Ideal for:
- PCB assembly machines
- Wafer handling equipment
- Electronic inspection systems
- Component placement machines
- Precision positioning stages
Material Handling
Common applications include:
- Conveyor positioning
- Automated warehouses
- Transfer systems
- Sorting equipment
- Palletizing machinery
Medical Equipment
Widely used in:
- Laboratory automation
- Diagnostic equipment
- Pharmaceutical production
- Precision dispensing systems
- Medical manufacturing equipment
Installation and System Integration
Before installation, engineers should verify:
- Compatible Kinetix servo drive selection
- Motion controller compatibility
- Mechanical shaft alignment
- Coupling installation
- Power cable connections
- Encoder feedback cable integrity
- Protective grounding
- Mechanical load compatibility
- Environmental operating conditions
- Servo parameter configuration
Recommended Installation Procedure
- Disconnect system power.
- Securely mount the servo motor.
- Align the motor shaft with the driven mechanism.
- Install the shaft coupling.
- Connect the motor power cable.
- Connect the encoder feedback cable.
- Verify grounding.
- Inspect all electrical connections.
- Restore system power.
- Configure servo parameters.
- Perform servo auto-tuning.
- Verify motor rotation.
- Test positioning accuracy.
- Validate controller communication.
- Complete commissioning.
Proper installation improves positioning accuracy, minimizes vibration, and extends service life.
Compatible System Components
| Component | Function |
|---|---|
| MPL-A210V-EJ72AA | Servo Motor |
| Kinetix Servo Drive | Motion control |
| ControlLogix PLC | Central automation controller |
| CompactLogix PLC | Machine automation |
| Motion Controller | Position and speed control |
| Absolute Encoder Feedback | Closed-loop feedback |
| EtherNet/IP Network | Industrial communication |
| HMI Panel | Operator interface |
| Precision Gearbox | Torque transmission |
| Ball Screw Assembly | Linear motion conversion |
Recommended Alternative Models
| Model | Product Type | Typical Application |
|---|---|---|
| MPL-A210V-EJ72AA | Servo Motor | Single-turn encoder without brake |
| MPL-A210V-EJ74AA | Servo Motor | Single-turn encoder with brake |
| MPL-A210V-HJ72AA | Servo Motor | Incremental encoder |
| MPL-A210V-VJ72AA | Servo Motor | Multi-turn absolute encoder |
| Kinetix VPL Series | Servo Motor | Advanced motion control |
Key Advantages
- Allen Bradley Kinetix MP-Series MPL platform
- Compact 75 mm frame size
- Low-inertia rotor design
- 25.4 mm magnet stack
- 230 V AC operation
- Rated speed of 8000 RPM
- Continuous stall torque of 0.55 Nm
- Single-turn high-resolution absolute encoder
- SpeedTEC quick-connect interface
- Excellent positioning accuracy
- Fast dynamic response
- Approximate weight 1.4 kg
Technical FAQs
What is the Allen Bradley MPL-A210V-EJ72AA?
The MPL-A210V-EJ72AA is a Kinetix MP-Series low-inertia AC servo motor designed for precision industrial motion control applications.
What is its primary function?
Its primary function is to convert commands from a compatible Kinetix servo drive into precise rotary motion with accurate speed, torque, and position control.
Does this model include a holding brake?
No. The MPL-A210V-EJ72AA is supplied without an integrated holding brake.
What is the frame size?
The motor features a 75 mm frame size.
What is the approximate weight?
The motor weighs approximately 1.4 kg.
What type of encoder does this motor use?
It uses a single-turn high-resolution absolute encoder, providing accurate closed-loop position feedback.
Which servo drives are compatible?
The motor is designed for integration with compatible Allen Bradley Kinetix servo drive systems.
Which industries commonly use this servo motor?
It is widely used in robotics, packaging, CNC machining, semiconductor manufacturing, electronics assembly, medical equipment, and automated production systems.
Is the motor suitable for continuous industrial operation?
Yes. Its rugged industrial construction and low-inertia design make it suitable for continuous-duty industrial environments.
What are the advantages of the low-inertia design?
The low-inertia rotor enables faster acceleration and deceleration, shorter positioning times, improved machine responsiveness, higher production efficiency, and excellent motion accuracy.
Conclusion
The Allen Bradley MPL-A210V-EJ72AA Servo Motor is a compact and high-performance motion control solution designed for demanding industrial automation applications. Featuring a 75 mm frame, 25.4 mm magnet stack, 8000 RPM rated speed, 0.55 Nm continuous stall torque, and a single-turn high-resolution absolute encoder, it delivers outstanding positioning accuracy, rapid response, and dependable closed-loop performance.
With a 75 mm frame size and an approximate weight of 1.4 kg, the MPL-A210V-EJ72AA is ideally suited for compact machine designs requiring precision, reliability, and high dynamic performance. When integrated with compatible Kinetix servo drives, ControlLogix PLCs, CompactLogix PLCs, motion controllers, and EtherNet/IP communication networks, it provides accurate motion control, improved productivity, reduced commissioning time, and dependable long-term operation across a wide range of industrial automation applications.
