Product Overview

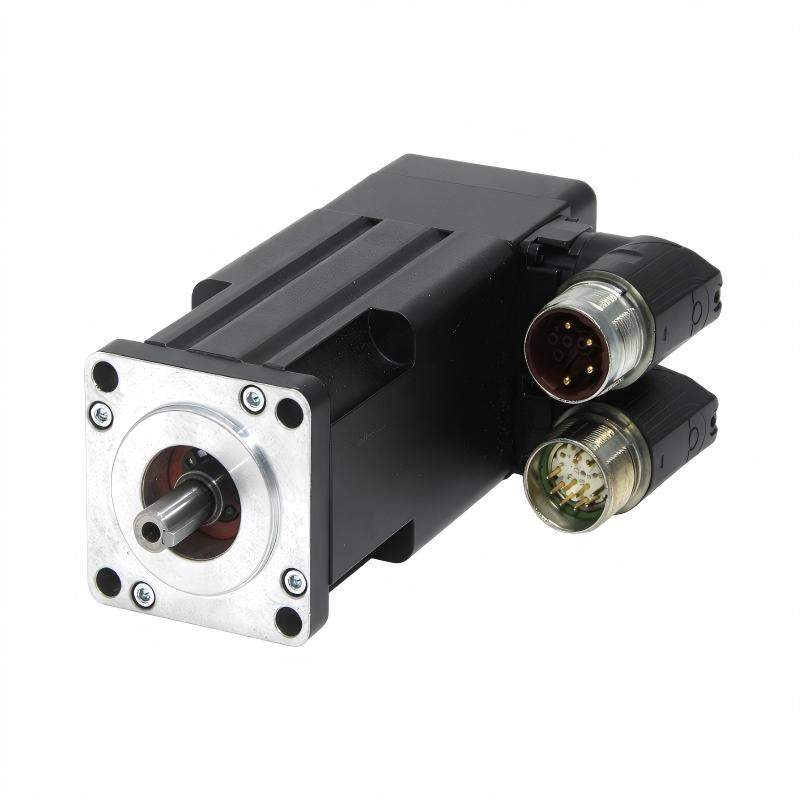

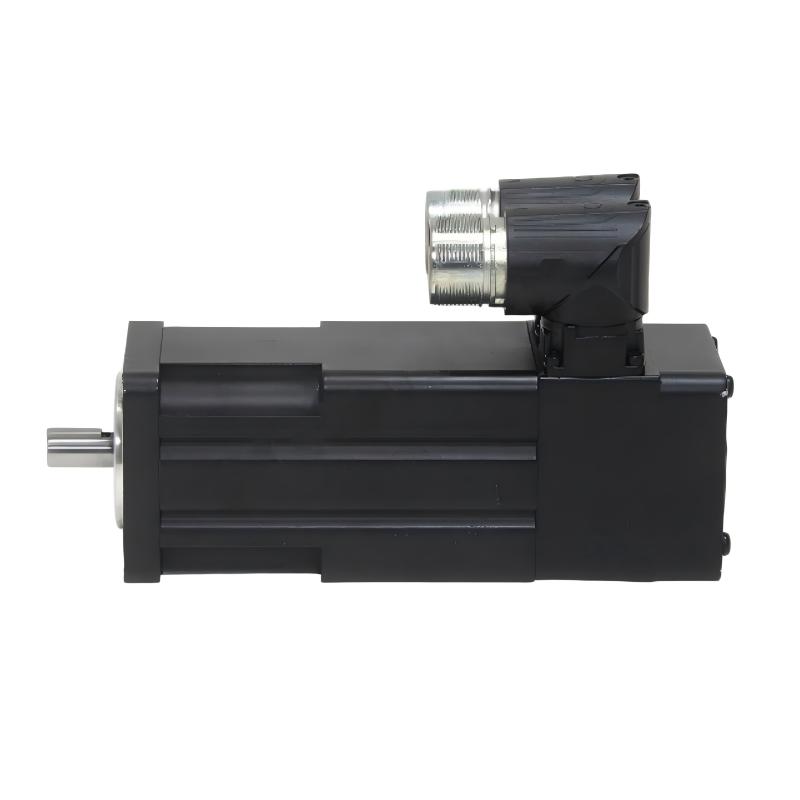

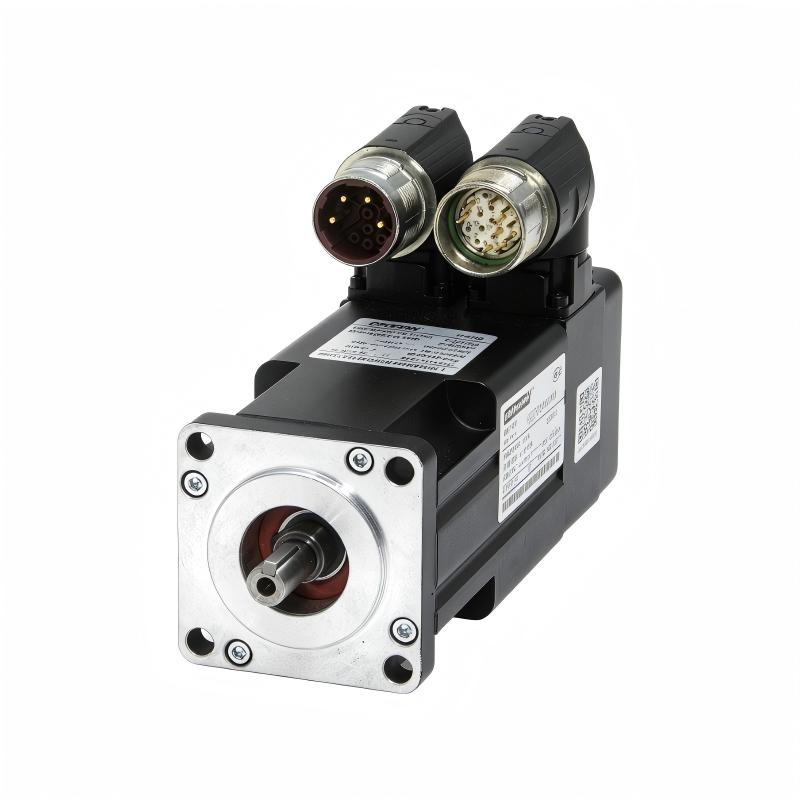

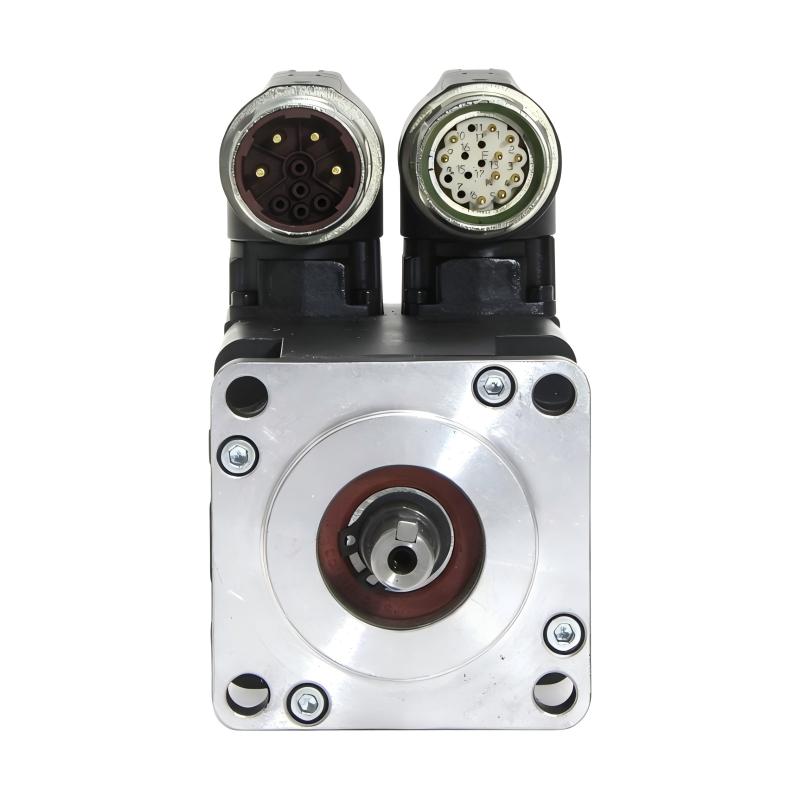

The Allen Bradley MPL-A1530U-HJ74AA Servo Motor is a high-performance Kinetix MP-Series MPL low-inertia AC servo motor engineered by Rockwell Automation for demanding industrial motion control applications. Designed with a 63 mm frame size, this compact servo motor delivers exceptional positioning accuracy, fast acceleration, stable torque output, and outstanding dynamic response, making it ideal for high-speed automation equipment and precision manufacturing systems.
As a member of the Allen-Bradley MP-Series MPL family, the MPL-A1530U-HJ74AA is designed for seamless integration with Kinetix servo drives, providing accurate closed-loop control of speed, torque, and position. This model features a 230 V AC voltage class, a 7000 RPM rated speed, a 76.2 mm magnet stack, a 2000-line incremental encoder, a keyed shaft extension, a SpeedTEC right-angle 180° rotatable quick-connect connector, and an integrated 24 V DC holding brake. These features make it particularly suitable for vertical-axis applications and machinery requiring secure load holding after power removal.
The low-inertia permanent magnet rotor minimizes settling time while maximizing positioning repeatability and machine productivity. Its compact construction allows installation in equipment where mounting space is limited while maintaining reliable long-term operation.
With a 63 mm frame size and an approximate weight of 1.6 kg, the MPL-A1530U-HJ74AA is widely used in robotics, CNC machine tools, packaging machinery, semiconductor manufacturing, electronics assembly, pharmaceutical equipment, automated material handling systems, and precision production lines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model | MPL-A1530U-HJ74AA |
| Product Series | Kinetix MP-Series MPL |
| Product Type | AC Servo Motor |
| Motor Type | Low-Inertia Permanent Magnet Servo Motor |
| Voltage Class | 230 V AC |
| Rated Speed | 7000 RPM |
| Rated Power | 0.39 kW |
| Continuous Torque | 0.9 Nm |
| Peak Torque | 2.8 Nm |
| Frame Size | 63 mm |
| Magnet Stack Length | 76.2 mm |
| Feedback System | 2000-Line Incremental Encoder |
| Shaft Type | Keyed Shaft Extension |
| Brake | Integrated 24 V DC Holding Brake |
| Connector Type | SpeedTEC DIN Connector, Right Angle, 180° Rotatable |
| Mounting Method | IEC Metric Flange Mount |
| Cooling Method | Natural Cooling |
| Protection Class | IP65 (motor housing, excluding shaft seal and connectors) |
| Typical Application | Precision Motion Control |
| Weight | Approximately 1.6 kg |
Function and Working Principle
The MPL-A1530U-HJ74AA converts electrical energy supplied by a compatible Kinetix servo drive into precise rotary motion while continuously transmitting incremental encoder feedback for high-performance closed-loop motion control.
Typical Motion Control Architecture
Motion Controller
↓
Kinetix Servo Drive
↓
Allen Bradley MPL-A1530U-HJ74AA Servo Motor
↓
Gearbox / Ball Screw / Timing Belt
↓
Industrial Equipment
The servo drive continuously compares commanded motion with encoder feedback and dynamically regulates motor current to achieve accurate speed, torque, and positioning.
Its primary functions include:
- Precision positioning
- High-speed rotary motion
- Accurate torque control
- Rapid acceleration and deceleration
- Incremental encoder feedback
- Smooth speed regulation
- High dynamic response
- Integrated 24 V DC holding brake
- Continuous motion monitoring
- Energy-efficient operation
The 76.2 mm magnet stack provides higher torque output while maintaining the fast response characteristics of the MP-Series low-inertia motor design.
Role in Industrial Automation Systems
Within industrial automation systems, the MPL-A1530U-HJ74AA functions as the precision actuator responsible for converting servo drive commands into controlled mechanical movement.
Typical automation architecture:
PLC / Motion Controller
↓
Kinetix Servo Drive
↓
MPL-A1530U-HJ74AA Servo Motor
↓
Gearbox / Ball Screw / Linear Actuator
↓
Industrial Machine
↓
Production Process
The servo motor delivers repeatable positioning, stable torque output, and smooth motion control, improving machine productivity, positioning accuracy, and overall manufacturing efficiency.
Industrial Applications
Packaging Machinery
Typical applications include:
- Filling systems
- Labeling equipment
- Cartoning machines
- Wrapping systems
- Pick-and-place equipment
Robotics
Suitable for:
- Industrial robot joints
- SCARA robots
- Collaborative robots
- Assembly robots
- End-of-arm tooling
CNC Machinery
Frequently installed in:
- CNC machining centers
- Rotary indexing tables
- Precision cutting machines
- Tool changers
- Engraving equipment
Semiconductor and Electronics Manufacturing
Ideal for:
- PCB assembly equipment
- Wafer handling systems
- Electronic inspection machines
- Component placement equipment
- Precision positioning stages
Material Handling
Common applications include:
- Automated warehouses
- Conveyor positioning
- Transfer systems
- Sorting equipment
- Palletizing machinery
Medical and Pharmaceutical Equipment
Widely used in:
- Laboratory automation
- Pharmaceutical production systems
- Diagnostic instruments
- Precision dispensing equipment
- Medical manufacturing machinery
Installation and System Integration
Before installation, engineers should verify:
- Compatible Kinetix servo drive selection
- Motion controller compatibility
- Mechanical shaft alignment
- Coupling installation
- Power cable connections
- Encoder feedback cable integrity
- Holding brake wiring
- Protective grounding
- Mechanical load compatibility
- Environmental operating conditions
- Servo parameter configuration
Recommended Installation Procedure
- Disconnect system power.
- Securely mount the servo motor.
- Align the motor shaft with the driven mechanism.
- Install the shaft coupling.
- Connect the motor power cable.
- Connect the encoder feedback cable.
- Connect the 24 V DC holding brake circuit.
- Verify grounding.
- Inspect all electrical connections.
- Restore system power.
- Configure servo parameters.
- Perform servo auto-tuning.
- Verify brake operation.
- Test positioning accuracy.
- Complete commissioning.
Proper installation improves positioning accuracy, minimizes vibration, and extends equipment service life.
Compatible System Components
| Component | Function |
|---|---|
| MPL-A1530U-HJ74AA | Servo Motor |
| Kinetix Servo Drive | Motion control |
| ControlLogix PLC | Central automation controller |
| CompactLogix PLC | Machine control |
| Motion Controller | Position and speed control |
| Incremental Encoder Feedback | Closed-loop feedback |
| EtherNet/IP Network | Industrial communication |
| HMI Panel | Operator interface |
| Precision Gearbox | Torque transmission |
| Ball Screw Assembly | Linear motion conversion |
Recommended Alternative Models
| Model | Product Type | Typical Application |
|---|---|---|
| MPL-A1530U-HJ74AA | Servo Motor | Incremental encoder with holding brake |
| MPL-A1530U-HJ72AA | Servo Motor | Incremental encoder without brake |
| MPL-A1530U-EJ74AA | Servo Motor | Single-turn absolute encoder with brake |
| MPL-A1530U-VJ74AA | Servo Motor | Multi-turn absolute encoder with brake |
| Kinetix VPL Series | Servo Motor | Advanced industrial motion control |
Key Advantages
- Allen Bradley Kinetix MP-Series MPL platform
- Compact 63 mm frame size
- Larger 76.2 mm magnet stack
- 230 V AC operation
- Rated speed of 7000 RPM
- Rated power of 0.39 kW
- Continuous torque of 0.9 Nm
- Peak torque of 2.8 Nm
- 2000-line incremental encoder
- Integrated 24 V DC holding brake
- SpeedTEC quick-connect interface
- High positioning accuracy
- Approximate weight 1.6 kg
Technical FAQs
What is the Allen Bradley MPL-A1530U-HJ74AA?
The MPL-A1530U-HJ74AA is a Kinetix MP-Series low-inertia AC servo motor designed for precision industrial motion control applications.
What is its primary function?
Its primary function is to convert electrical commands from a compatible Kinetix servo drive into precise rotary motion with accurate speed, torque, and position control.
Does this model include a holding brake?
Yes. The MPL-A1530U-HJ74AA includes an integrated 24 V DC holding brake, making it suitable for vertical-axis and load-holding applications.
What is the frame size?
The motor features a 63 mm frame size.
What is the approximate weight?
The motor weighs approximately 1.6 kg.
What type of feedback system does this motor use?
It utilizes a 2000-line incremental encoder to provide accurate closed-loop motion control.
Which servo drives are compatible?
The motor is designed for integration with compatible Allen Bradley Kinetix servo drive systems.
Which industries commonly use this servo motor?
It is widely used in robotics, CNC machining, packaging machinery, semiconductor manufacturing, electronics assembly, medical equipment, and automated production systems.
Is the motor suitable for continuous industrial operation?
Yes. Its rugged industrial construction and low-inertia design make it suitable for continuous-duty industrial environments.
Is this model still in production?
No. Rockwell Automation has discontinued the MPL-A1530U-HJ74AA, and the recommended replacement is the MPL-A1530U-EJ74AA.
Conclusion
The Allen Bradley MPL-A1530U-HJ74AA Servo Motor is a compact, high-performance motion control solution designed for demanding industrial automation applications. Featuring a 76.2 mm magnet stack, 7000 RPM rated speed, 0.39 kW rated power, 0.9 Nm continuous torque, 2.8 Nm peak torque, a 2000-line incremental encoder, and an integrated 24 V DC holding brake, it delivers exceptional positioning accuracy, rapid response, and dependable closed-loop performance.
With a 63 mm frame size and an approximate weight of 1.6 kg, the MPL-A1530U-HJ74AA is ideally suited for compact machine designs requiring precision, reliability, and high dynamic performance. When integrated with compatible Kinetix servo drives, ControlLogix PLCs, CompactLogix PLCs, motion controllers, and EtherNet/IP communication networks, it provides accurate motion control, increased productivity, and dependable long-term operation across a wide range of industrial automation applications.
