Product Overview

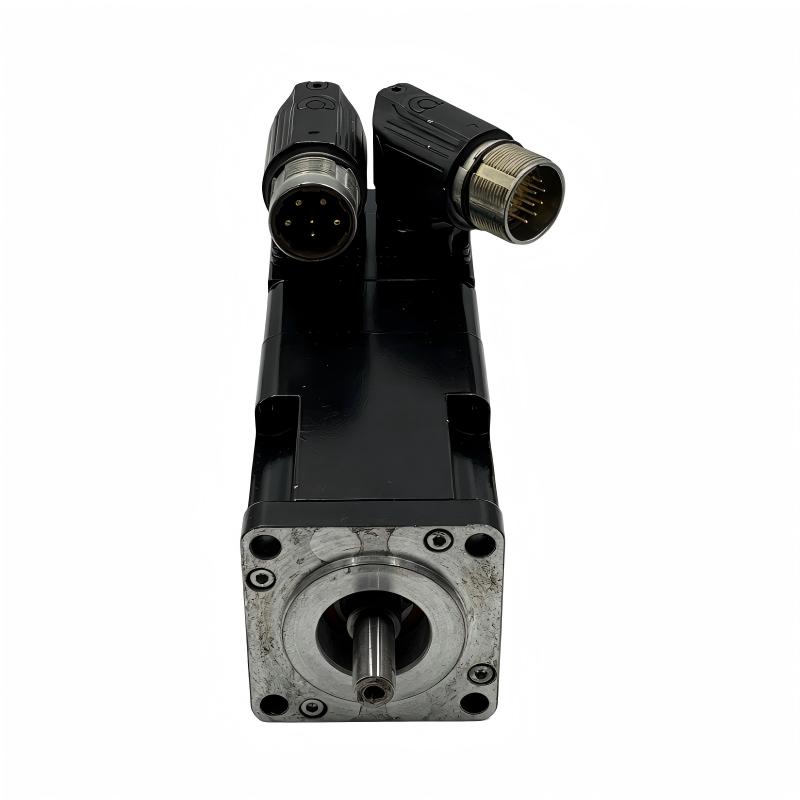

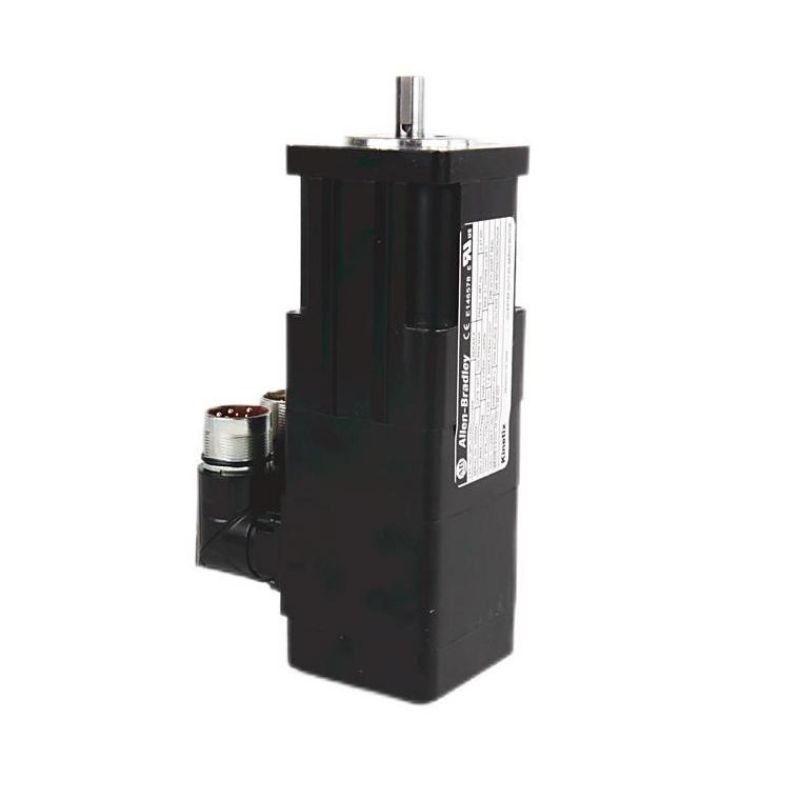

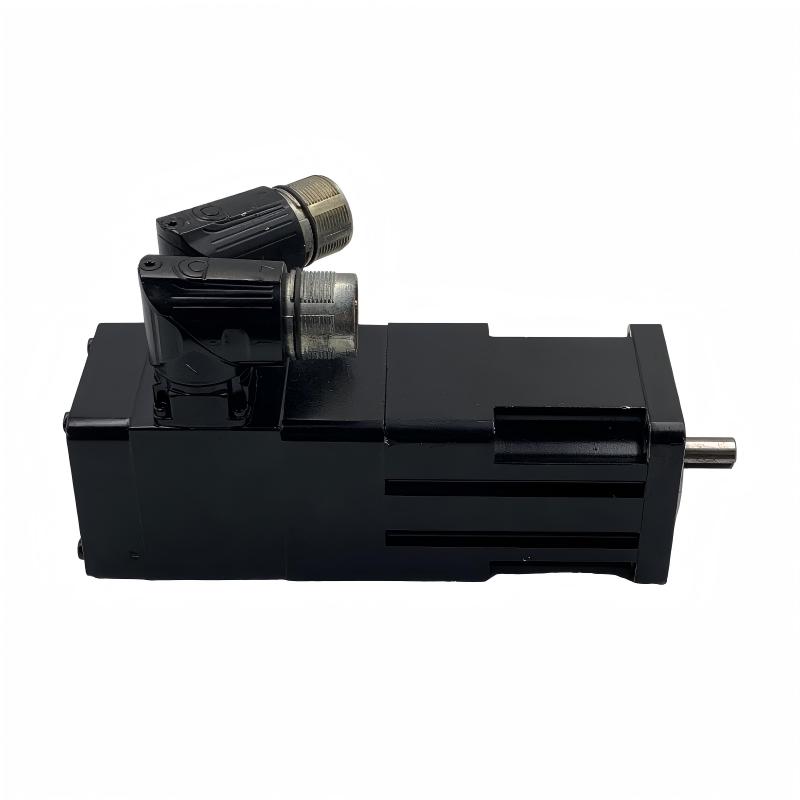

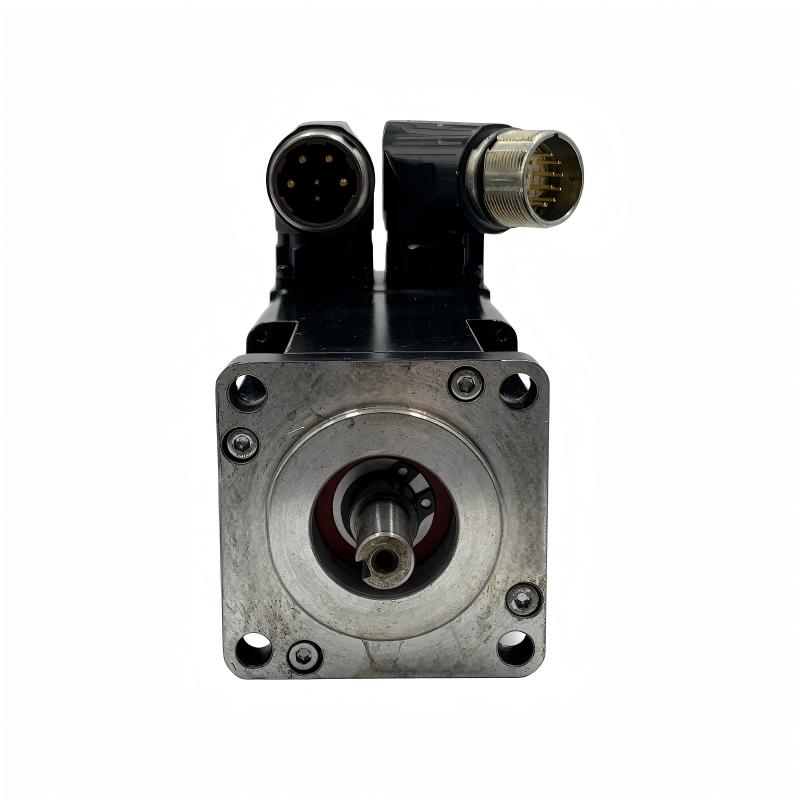

The Allen Bradley MPL-A1520U-VJ74AA Servo Motor is a high-performance Kinetix MP-Series MPL low-inertia AC servo motor developed by Rockwell Automation for demanding industrial motion control applications. Designed with a 63 mm frame size, this compact servo motor delivers exceptional positioning accuracy, rapid acceleration, smooth torque output, and excellent dynamic response, making it ideal for high-speed automation systems and precision manufacturing equipment.
As part of the Allen-Bradley MP-Series MPL family, the MPL-A1520U-VJ74AA is designed for seamless integration with Kinetix servo drives, enabling precise closed-loop control of speed, torque, and position. This model features a 230 V AC voltage class, 7000 RPM rated speed, a 50.8 mm magnet stack, a multi-turn high-resolution absolute encoder (Hiperface), a keyed shaft extension, a SpeedTEC right-angle 180° rotatable quick-connect connector, and an integrated 24 V DC holding brake, making it particularly suitable for vertical-axis and load-holding applications.
Its low-inertia permanent magnet rotor minimizes settling time while maximizing positioning accuracy and machine productivity. The compact mechanical construction simplifies installation in equipment where mounting space is limited while ensuring reliable long-term operation.
With a 63 mm frame size and an approximate weight of 1.2 kg, the MPL-A1520U-VJ74AA is widely used in robotics, CNC machine tools, packaging machinery, semiconductor equipment, electronic assembly systems, medical equipment, textile machinery, automated material handling systems, and precision production lines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model | MPL-A1520U-VJ74AA |
| Product Series | Kinetix MP-Series MPL |
| Product Type | AC Servo Motor |
| Motor Type | Low-Inertia Permanent Magnet Servo Motor |
| Voltage Class | 230 V AC |
| Rated Speed | 7000 RPM |
| Continuous Torque | 0.49 Nm |
| Peak Torque | 1.58 Nm |
| Frame Size | 63 mm |
| Magnet Stack Length | 50.8 mm |
| Feedback System | Multi-turn High-Resolution Absolute Encoder (Hiperface) |
| Shaft Type | Keyed Shaft Extension |
| Brake | Integrated 24 V DC Holding Brake |
| Connector Type | SpeedTEC DIN Connector, Right Angle, 180° Rotatable |
| Mounting Method | IEC Metric Flange Mount |
| Cooling Method | Natural Cooling |
| Typical Application | Precision Motion Control |
| Weight | Approximately 1.2 kg |
Function and Working Principle
The MPL-A1520U-VJ74AA converts electrical energy supplied by a compatible Kinetix servo drive into highly accurate rotary motion while continuously transmitting absolute encoder feedback for closed-loop motion control.
Typical Motion Control Architecture
Motion Controller
↓
Kinetix Servo Drive
↓
Allen Bradley MPL-A1520U-VJ74AA Servo Motor
↓
Mechanical Transmission
↓
Industrial Equipment
The servo drive continuously compares commanded motion with encoder feedback and dynamically adjusts motor current to maintain accurate speed, torque, and positioning.
Its primary functions include:
- Precision positioning
- High-speed rotary motion
- Accurate torque control
- Rapid acceleration and deceleration
- Absolute multi-turn position feedback
- Smooth speed regulation
- High dynamic response
- Integrated 24 V DC holding brake
- Continuous motion monitoring
- Energy-efficient operation
The low-inertia rotor enables excellent responsiveness while maintaining high positioning repeatability.
Role in Industrial Automation Systems
Within industrial automation systems, the MPL-A1520U-VJ74AA functions as the precision actuator responsible for converting servo drive commands into controlled mechanical movement.
Typical automation architecture:
PLC / Motion Controller
↓
Kinetix Servo Drive
↓
MPL-A1520U-VJ74AA Servo Motor
↓
Ball Screw / Gearbox / Timing Belt
↓
Industrial Machine
↓
Production Process
The servo motor delivers accurate positioning, stable torque output, and repeatable motion performance, helping improve machine productivity, reduce cycle times, and enhance product quality.
Industrial Applications
Packaging Machinery
Typical applications include:
- Filling machines
- Cartoning systems
- Labeling equipment
- Wrapping machinery
- Pick-and-place systems
Robotics
Suitable for:
- Articulated robots
- SCARA robots
- Collaborative robots
- Assembly robots
- End-of-arm positioning
CNC Machinery
Frequently installed in:
- CNC machining centers
- Rotary indexing tables
- Precision cutting machines
- Tool changers
- Engraving equipment
Semiconductor and Electronics Manufacturing
Ideal for:
- PCB assembly equipment
- Wafer handling systems
- Electronic assembly machinery
- Inspection systems
- Precision positioning stages
Material Handling
Common applications include:
- Automated warehouses
- Conveyor positioning
- Sorting equipment
- Transfer systems
- Palletizing machinery
Medical Equipment
Widely used in:
- Laboratory automation
- Pharmaceutical manufacturing
- Diagnostic instruments
- Precision dispensing equipment
- Medical assembly systems
Installation and System Integration
Before installation, engineers should verify:
- Compatible Kinetix servo drive selection
- Motion controller configuration
- Shaft alignment
- Mechanical coupling
- Power cable connections
- Encoder feedback cable integrity
- Holding brake wiring
- Protective grounding
- Mechanical load compatibility
- Environmental operating conditions
- Servo parameter configuration
Recommended Installation Procedure
- Disconnect system power.
- Mount the servo motor securely.
- Align the motor shaft with the driven equipment.
- Install the shaft coupling.
- Connect the motor power cable.
- Connect the encoder feedback cable.
- Connect the 24 V DC holding brake.
- Verify grounding.
- Inspect all electrical connections.
- Restore system power.
- Configure servo parameters.
- Tune the control loop.
- Verify brake operation.
- Test positioning accuracy.
- Complete commissioning.
Proper installation improves positioning precision, minimizes vibration, and extends equipment service life.
Compatible System Components
| Component | Function |
|---|---|
| MPL-A1520U-VJ74AA | Servo motor |
| Kinetix Servo Drive | Motion control |
| ControlLogix PLC | Central automation controller |
| CompactLogix PLC | Machine control |
| Motion Controller | Position and speed control |
| Absolute Encoder Feedback | Closed-loop position feedback |
| EtherNet/IP Network | Industrial communication |
| HMI Panel | Operator interface |
| Precision Gearbox | Torque transmission |
| Ball Screw Assembly | Linear motion conversion |
Recommended Alternative Models
| Model | Product Type | Typical Application |
|---|---|---|
| MPL-A1520U-VJ74AA | Servo Motor | Absolute encoder with holding brake |
| MPL-A1520U-VJ72AA | Servo Motor | Absolute encoder without brake |
| MPL-A1520U-EJ74AA | Servo Motor | Single-turn encoder with brake |
| MPL-A1520U-HJ74AA | Servo Motor | Incremental encoder with brake |
| Kinetix VPL Series | Servo Motor | Advanced industrial motion control |
Key Advantages
- Allen Bradley Kinetix MP-Series MPL platform
- Compact 63 mm frame size
- 230 V AC operation
- Low-inertia permanent magnet rotor
- Rated speed of 7000 RPM
- Continuous torque of 0.49 Nm
- Peak torque of 1.58 Nm
- Multi-turn high-resolution absolute encoder
- Integrated 24 V DC holding brake
- SpeedTEC quick-connect interface
- Excellent positioning accuracy
- High dynamic response
- Approximate weight 1.2 kg
Technical FAQs
What is the Allen Bradley MPL-A1520U-VJ74AA?
The MPL-A1520U-VJ74AA is a Kinetix MP-Series low-inertia AC servo motor designed for precision industrial motion control applications.
What is its primary function?
Its primary function is to provide precise rotary motion with accurate speed, torque, and position control when operated with a compatible Kinetix servo drive.
Does this model include a holding brake?
Yes. The MPL-A1520U-VJ74AA includes an integrated 24 V DC holding brake, making it suitable for vertical-axis and load-holding applications.
What is the frame size?
The motor features a 63 mm frame size.
What is the approximate weight?
The motor weighs approximately 1.2 kg.
What type of feedback does this motor provide?
It incorporates a multi-turn high-resolution absolute encoder (Hiperface), allowing the servo system to retain position information across multiple revolutions without requiring a homing cycle after power restoration.
Which servo drives are compatible?
It is designed for integration with compatible Allen Bradley Kinetix servo drives, including Kinetix 5500, Kinetix 5700, Kinetix 6000, Kinetix 6200/6500, and Kinetix 7000 systems.
Which industries commonly use this servo motor?
It is widely used in robotics, packaging machinery, CNC machining, semiconductor manufacturing, electronics assembly, medical equipment, material handling systems, and automated production lines.
Is the motor suitable for continuous industrial operation?
Yes. Its rugged industrial construction and low-inertia design make it suitable for continuous-duty industrial automation applications.
What are the benefits of the multi-turn absolute encoder?
The multi-turn absolute encoder maintains precise position information after power interruptions, reduces machine startup time, eliminates many homing procedures, improves positioning accuracy, and enhances overall machine productivity.
Conclusion
The Allen Bradley MPL-A1520U-VJ74AA Servo Motor is a compact, high-performance motion control solution engineered for demanding industrial automation applications. Featuring a low-inertia permanent magnet rotor, 7000 RPM rated speed, 0.49 Nm continuous torque, 1.58 Nm peak torque, a multi-turn high-resolution absolute encoder, and an integrated 24 V DC holding brake, it delivers exceptional positioning accuracy, rapid response, and dependable closed-loop performance.
