Product Overview

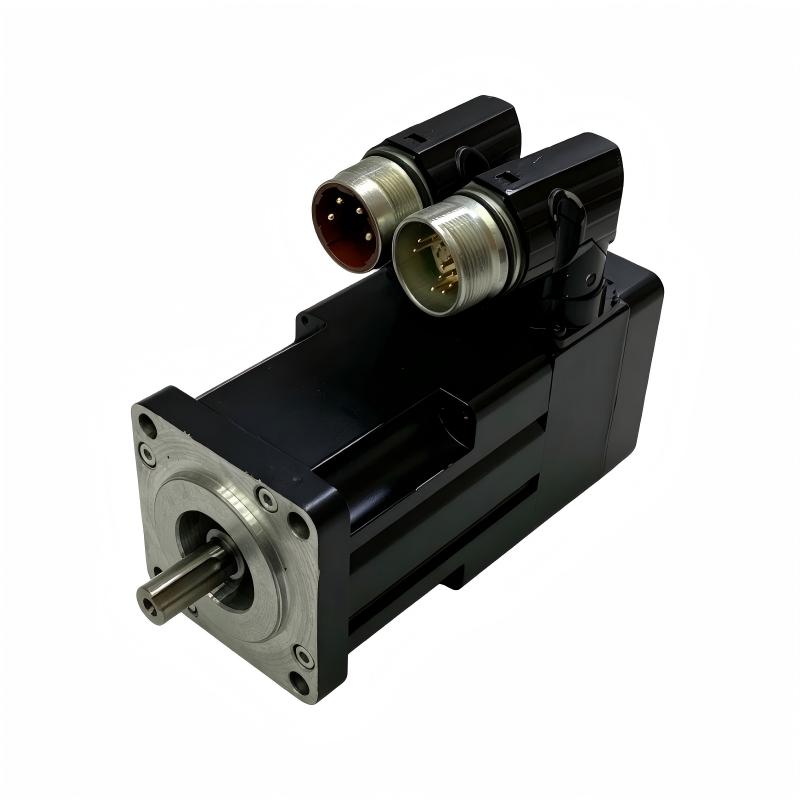

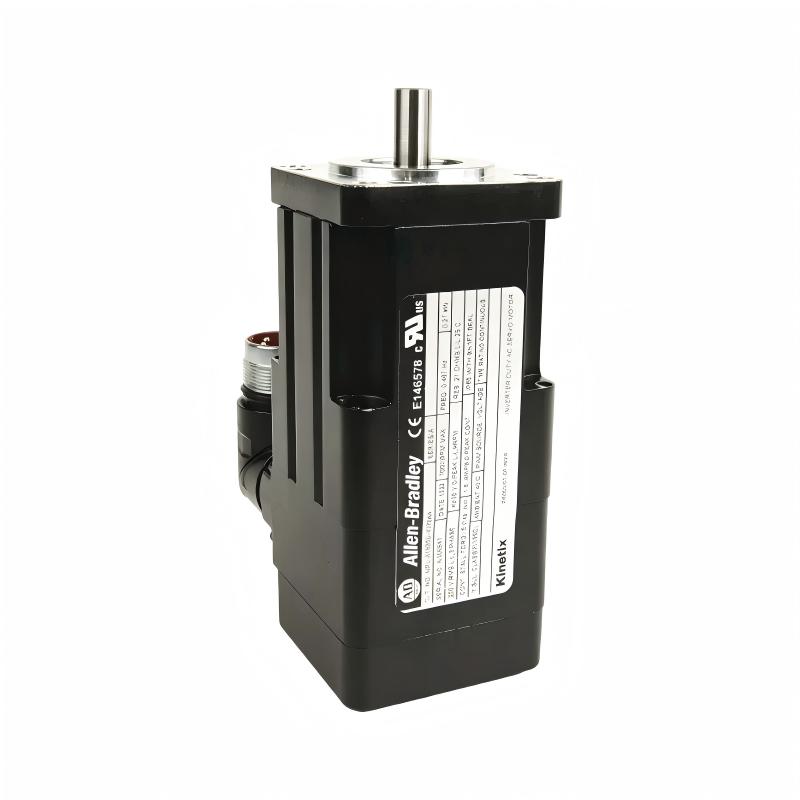

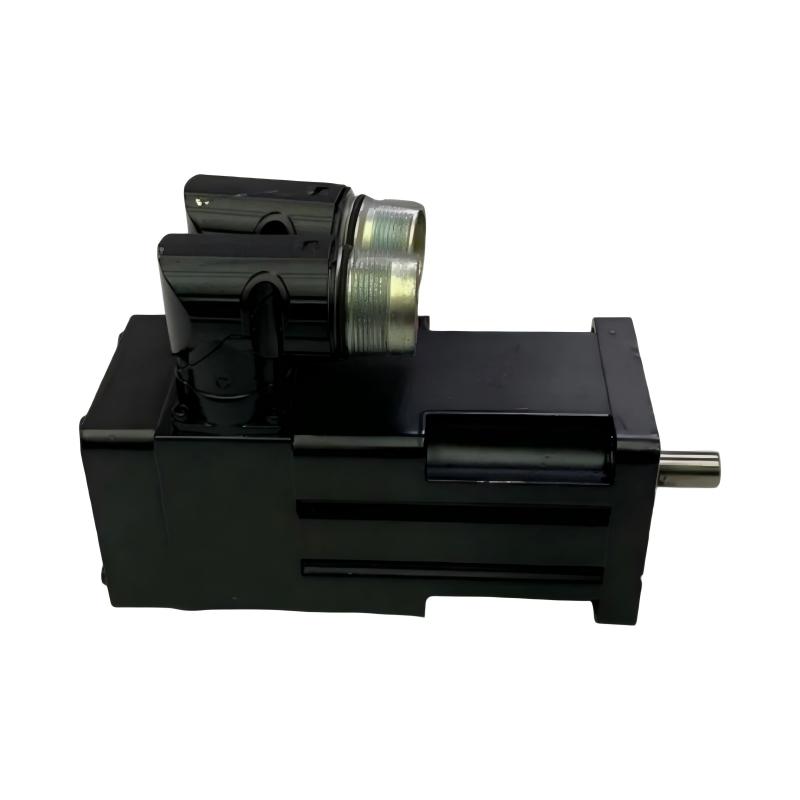

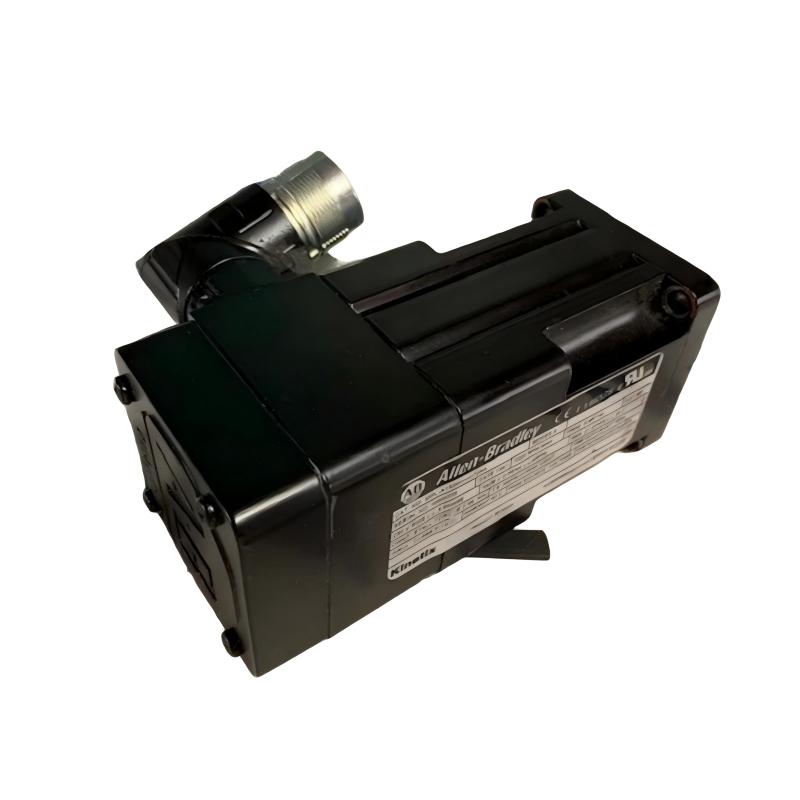

The Allen Bradley MPL-A1520U-VJ72AA Servo Motor is a premium Kinetix MP-Series MPL low-inertia AC servo motor developed by Rockwell Automation for demanding industrial motion control applications. Designed with a 63 mm frame size, this servo motor provides exceptional positioning accuracy, fast acceleration, smooth torque delivery, and excellent dynamic response, making it ideal for high-speed automated machinery and precision manufacturing equipment.
As a member of the Allen-Bradley MP-Series MPL family, the MPL-A1520U-VJ72AA is engineered for seamless integration with Kinetix servo drives, enabling accurate closed-loop control of speed, torque, and position. The motor features a 200/230 V AC voltage class, a 7000 RPM rated speed, a 50.8 mm magnet stack, a 128 Sin/Cos absolute multi-turn Hiperface encoder, a keyed shaft, a SpeedTEC right-angle quick-connect connector, and no holding brake. This configuration is well suited for applications requiring continuous absolute position feedback without the need for a mechanical holding brake.
Its low-inertia permanent magnet rotor minimizes settling time while improving machine responsiveness and production efficiency. The compact mechanical design also allows installation in equipment where cabinet space is limited while maintaining long-term operational reliability.
With a 63 mm frame size and an approximate weight of 1.2 kg, the MPL-A1520U-VJ72AA is widely used in robotics, CNC machinery, packaging equipment, semiconductor manufacturing, electronics assembly, medical equipment, textile machinery, automated material handling systems, and precision production lines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model | MPL-A1520U-VJ72AA |
| Product Series | Kinetix MP-Series MPL |
| Product Type | AC Servo Motor |
| Motor Type | Low-Inertia Permanent Magnet Servo Motor |
| Voltage Class | 200/230 V AC |
| Rated Speed | 7000 RPM |
| Continuous Torque | 0.49 Nm |
| Peak Torque | 1.58 Nm |
| Frame Size | 63 mm |
| Magnet Stack Length | 50.8 mm |
| Feedback System | 128 Sin/Cos Absolute Multi-turn Hiperface Encoder |
| Shaft Type | Keyed Shaft |
| Brake | No Holding Brake |
| Connector Type | SpeedTEC DIN Connector, Right Angle, 180° Rotatable |
| Mounting Method | IEC Metric Flange Mount |
| Cooling Method | Natural Cooling |
| Typical Application | Precision Motion Control |
| Weight | Approximately 1.2 kg |
Function and Working Principle
The MPL-A1520U-VJ72AA converts electrical energy supplied by a compatible Kinetix servo drive into precise rotary motion while continuously transmitting absolute multi-turn encoder feedback for high-performance closed-loop motion control.
Typical Motion Control Architecture
Motion Controller
↓
Kinetix Servo Drive
↓
Allen Bradley MPL-A1520U-VJ72AA Servo Motor
↓
Mechanical Transmission
↓
Industrial Equipment
The servo drive continuously compares commanded motion with encoder feedback and dynamically adjusts motor current to maintain accurate speed, torque, and positioning.
Its primary functions include:
- Precision positioning
- High-speed rotary motion
- Accurate torque control
- Rapid acceleration and deceleration
- Absolute multi-turn position feedback
- Smooth speed regulation
- High dynamic response
- Continuous motion monitoring
- Energy-efficient operation
- Reliable continuous-duty performance
The low-inertia rotor design enables excellent responsiveness while maintaining high positioning repeatability.
Role in Industrial Automation Systems
Within industrial automation systems, the MPL-A1520U-VJ72AA functions as the precision actuator responsible for converting servo drive commands into controlled mechanical movement.
Typical automation architecture:
PLC / Motion Controller
↓
Kinetix Servo Drive
↓
MPL-A1520U-VJ72AA Servo Motor
↓
Ball Screw / Gearbox / Belt Drive
↓
Industrial Machine
↓
Production Process
The servo motor delivers precise positioning, stable torque output, and repeatable motion performance, helping improve machine productivity and product quality.
Industrial Applications
Packaging Machinery
Typical applications include:
- Filling machines
- Cartoning systems
- Labeling equipment
- Wrapping machinery
- Pick-and-place systems
Robotics
Suitable for:
- Articulated robots
- SCARA robots
- Collaborative robots
- Assembly robots
- End-of-arm positioning
CNC Machinery
Frequently installed in:
- CNC machining centers
- Rotary indexing tables
- Precision cutting machines
- Tool changers
- Engraving equipment
Semiconductor and Electronics Manufacturing
Ideal for:
- PCB assembly equipment
- Wafer handling systems
- Electronic assembly machinery
- Inspection systems
- Precision positioning stages
Material Handling
Common applications include:
- Automated warehouses
- Conveyor positioning
- Sorting equipment
- Transfer systems
- Palletizing machinery
Medical Equipment
Widely used in:
- Laboratory automation
- Pharmaceutical manufacturing
- Diagnostic instruments
- Precision dispensing equipment
- Medical assembly systems
Installation and System Integration
Before installation, engineers should verify:
- Compatible Kinetix servo drive selection
- Motion controller configuration
- Shaft alignment
- Mechanical coupling
- Power cable connections
- Encoder feedback cable integrity
- Protective grounding
- Mechanical load compatibility
- Environmental operating conditions
- Servo parameter configuration
Recommended Installation Procedure
- Disconnect system power.
- Mount the servo motor securely.
- Align the motor shaft with the driven equipment.
- Install the shaft coupling.
- Connect the motor power cable.
- Connect the encoder feedback cable.
- Verify grounding.
- Inspect all electrical connections.
- Restore system power.
- Configure servo parameters.
- Tune the control loop.
- Verify motor rotation.
- Test positioning accuracy.
- Complete commissioning.
Proper installation improves positioning precision, minimizes vibration, and extends equipment service life.
Compatible System Components
| Component | Function |
|---|---|
| MPL-A1520U-VJ72AA | Servo motor |
| Kinetix Servo Drive | Motion control |
| ControlLogix PLC | Central automation controller |
| CompactLogix PLC | Machine control |
| Motion Controller | Position and speed control |
| EtherNet/IP Network | Industrial communication |
| Absolute Encoder Feedback | Closed-loop position feedback |
| HMI Panel | Operator interface |
| Precision Gearbox | Torque transmission |
| Ball Screw Assembly | Linear motion conversion |
Recommended Alternative Models
| Model | Product Type | Typical Application |
|---|---|---|
| MPL-A1520U-VJ72AA | Servo Motor | Multi-turn absolute motion control |
| MPL-A1520U-VJ74AA | Servo Motor | Multi-turn encoder with holding brake |
| MPL-A1520U-EJ72AA | Servo Motor | Single-turn absolute encoder |
| MPL-A1520U-HJ72AA | Servo Motor | Incremental encoder applications |
| Kinetix VPL Series | Servo Motor | Advanced industrial motion control |
Key Advantages
- Allen Bradley Kinetix MP-Series MPL platform
- Compact 63 mm frame size
- 200/230 V AC operation
- Low-inertia permanent magnet rotor
- Rated speed of 7000 RPM
- Continuous torque of 0.49 Nm
- Peak torque of 1.58 Nm
- Absolute multi-turn Hiperface encoder
- SpeedTEC quick-connect interface
- Excellent positioning accuracy
- High dynamic response
- Approximate weight 1.2 kg
Technical FAQs
What is the Allen Bradley MPL-A1520U-VJ72AA?
The MPL-A1520U-VJ72AA is a Kinetix MP-Series low-inertia AC servo motor designed for precision industrial motion control applications.
What is its primary function?
Its primary function is to provide precise rotary motion with accurate speed, torque, and position control when operated with a compatible Kinetix servo drive.
Does this model include a holding brake?
No. The MPL-A1520U-VJ72AA is supplied without an integrated holding brake.
What is the frame size?
The motor features a 63 mm frame size.
What is the approximate weight?
The motor weighs approximately 1.2 kg.
What type of feedback does this motor provide?
It incorporates a 128 Sin/Cos absolute multi-turn Hiperface encoder, allowing the servo system to retain accurate position information across multiple revolutions.
Which servo drives are compatible?
It is designed for seamless integration with compatible Allen Bradley Kinetix servo drives, including Kinetix 5500, Kinetix 5700, Kinetix 6000, Kinetix 6200/6500, and Kinetix 7000 platforms.
Which industries commonly use this servo motor?
It is widely used in robotics, packaging machinery, semiconductor manufacturing, CNC machining, electronics assembly, medical equipment, and automated production systems.
Is the motor suitable for continuous industrial operation?
Yes. Its rugged industrial construction and low-inertia design make it suitable for continuous-duty industrial automation applications.
What are the key advantages of the multi-turn encoder?
The absolute multi-turn encoder maintains position information after power interruptions, minimizes homing time, improves positioning accuracy, and enhances overall machine productivity.
Conclusion
The Allen Bradley MPL-A1520U-VJ72AA Servo Motor is a compact, high-performance motion control solution designed for demanding industrial automation applications. Featuring a low-inertia permanent magnet rotor, 7000 RPM rated speed, 0.49 Nm continuous torque, 1.58 Nm peak torque, and a 128 Sin/Cos absolute multi-turn Hiperface encoder, it delivers exceptional positioning accuracy, rapid response, and dependable closed-loop performance.
With a 63 mm frame size and an approximate weight of 1.2 kg, the MPL-A1520U-VJ72AA is ideal for compact machine designs requiring precision, reliability, and dynamic performance. When integrated with compatible Kinetix servo drives, ControlLogix or CompactLogix PLCs, motion controllers, and EtherNet/IP communication networks, it provides accurate motion control, increased productivity, reduced commissioning time, and dependable long-term operation across a broad range of industrial automation applications.
