Product Overview

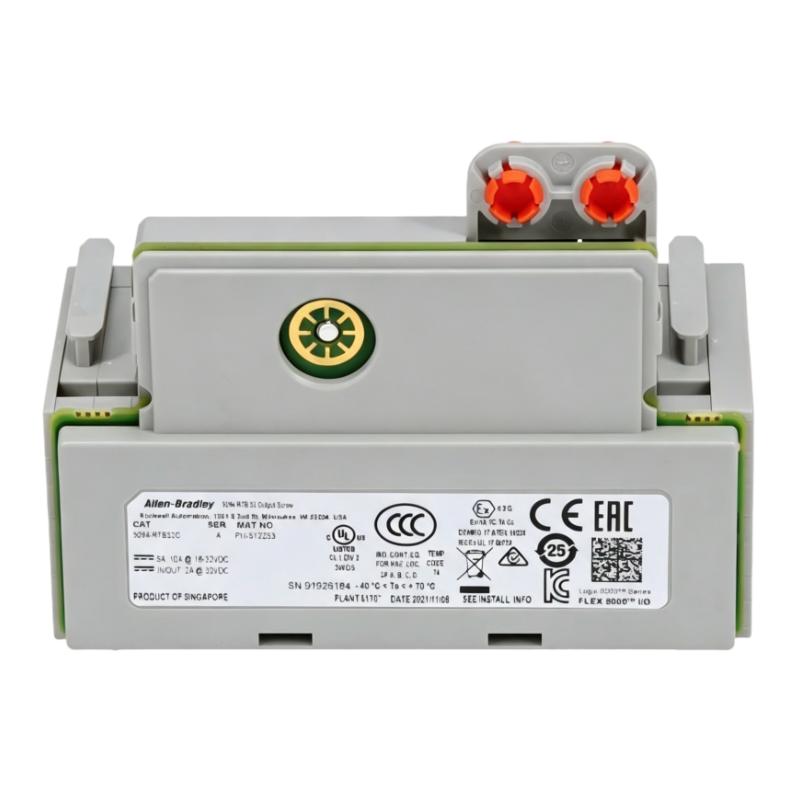

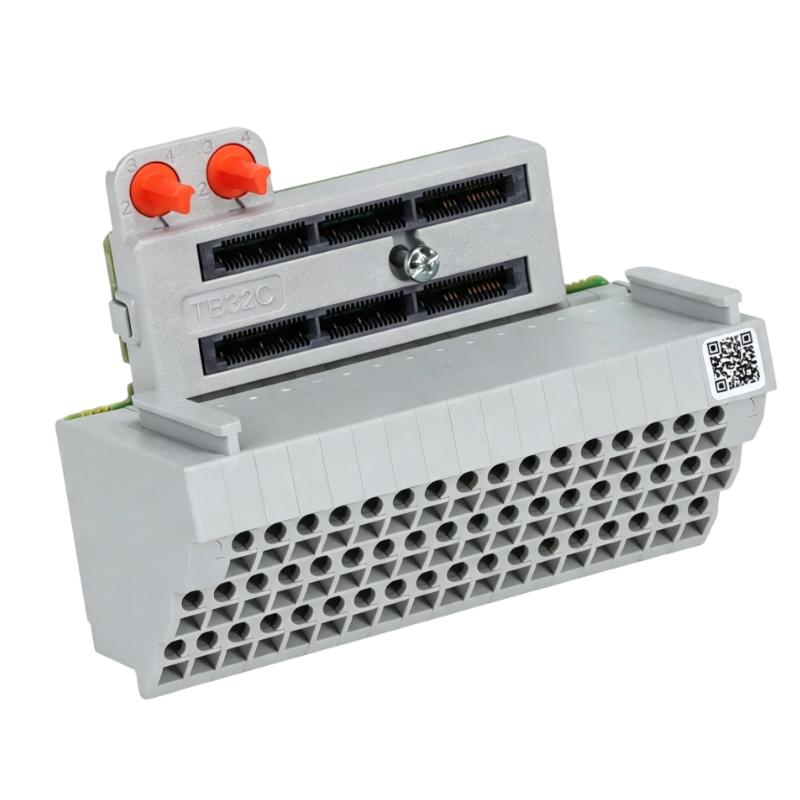

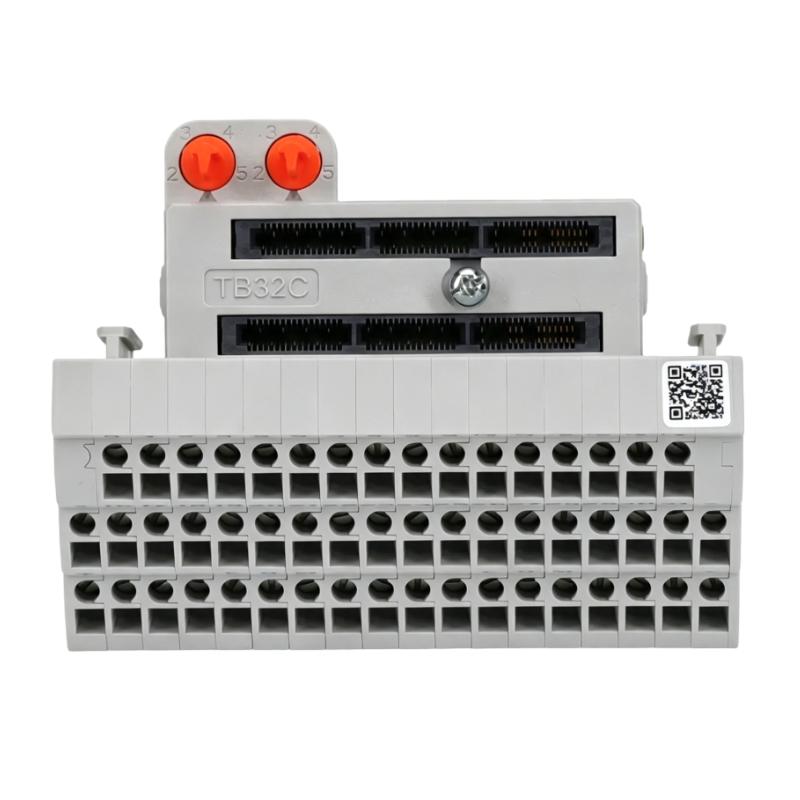

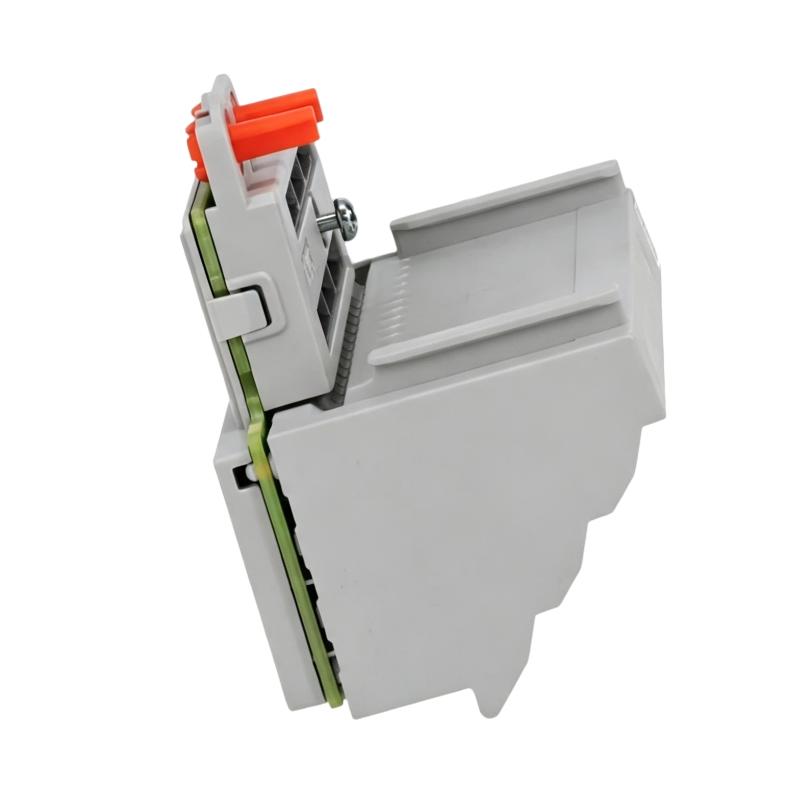

The Allen Bradley 5094-RTB32C FLEX 5000 Removable Terminal Block is a field-wiring termination component used with the FLEX 5000 I/O platform. Unlike an I/O module that processes input or output signals, the removable terminal block provides the physical connection point between field wiring and the corresponding FLEX 5000 I/O hardware.

In an industrial control cabinet, field devices such as sensors, switches, actuators, and other instrumentation must be connected to the I/O system in an organized and serviceable manner. The 5094-RTB32C forms part of this connection layer, helping technicians terminate and manage field conductors at the I/O assembly.

Its removable construction is particularly useful during maintenance because field wiring can remain organized while the terminal interface is serviced or separated from the associated I/O assembly, subject to the applicable FLEX 5000 configuration.

For replacement work, the exact terminal block model should be matched with the corresponding FLEX 5000 I/O hardware. Terminal count, wiring arrangement, module compatibility, and cabinet installation requirements should be verified before replacement.

Technical Specifications

Product Features

The 5094-RTB32C provides the physical termination interface required for compatible FLEX 5000 I/O installations.

Key characteristics include:

• Allen Bradley FLEX 5000 removable terminal block
• Model 5094-RTB32C
• Used as an I/O field-wiring interface
• Provides an organized termination point for field conductors
• Designed for use within a FLEX 5000 I/O architecture
• Removable construction for service and maintenance
• Suitable for industrial control cabinets
• Supports orderly field wiring connections
• Useful for I/O replacement and maintenance work
• Forms part of the connection path between field devices and I/O modules

The terminal block should be regarded as part of the complete I/O assembly. Correct matching with the associated module and wiring configuration is important for reliable field-signal connections.

Working Principle

The 5094-RTB32C does not independently execute PLC logic or process field signals. Its primary purpose is to establish the physical termination point through which field wiring connects to the FLEX 5000 I/O system.

A simplified signal path is:

Field Device → Field Wiring → 5094-RTB32C → FLEX 5000 I/O Module → Controller

Depending on whether the associated I/O module is handling an input or output signal, the direction of the electrical path changes.

For an input application:

Sensor / Switch → Terminal Block → I/O Module → Controller

For an output application:

Controller → I/O Module → Terminal Block → Actuator

The terminal block therefore serves as the physical connection interface while the associated I/O module performs the actual signal processing.

During troubleshooting, this distinction is important. A missing field signal may originate from the field device, wiring, terminal connection, I/O module, or controller rather than from the terminal block alone.

Role in a FLEX 5000 I/O Architecture

The 5094-RTB32C occupies the field termination layer of a FLEX 5000 I/O system.

A simplified architecture is:

Field Device ↔ Wiring ↔ 5094-RTB32C ↔ FLEX 5000 I/O Module ↔ Controller

Its purpose is to make the connection between external field wiring and the I/O module physically accessible and organized.

For maintenance engineers, this provides a practical separation between field wiring and electronic I/O hardware. When an I/O channel stops behaving correctly, technicians can inspect the terminal connection before determining whether the electronic I/O module itself requires replacement.

This is especially useful in control cabinets where numerous field conductors terminate around a compact I/O assembly. Correct conductor identification and terminal positioning are therefore important during both installation and troubleshooting.

Industrial Applications

The actual application depends on the FLEX 5000 I/O module and field devices connected to the terminal assembly.

Installation and Maintenance

Correct identification of the associated I/O hardware is essential before installing the 5094-RTB32C.

Recommended practices include:

• Confirm the complete 5094-RTB32C model.
• Verify compatibility with the associated FLEX 5000 I/O assembly.
• Document existing field-wire positions before removal.
• Label conductors before disconnecting them.
• Check terminal and conductor condition.
• Inspect for loose or damaged connections.
• Verify that conductors are correctly positioned.
• Check for contamination or corrosion around termination points.
• Ensure the terminal block is correctly seated.
• Verify the mechanical connection with the associated I/O hardware.
• Check field wiring continuity where required.
• Restore the system according to the applicable wiring configuration.
• Verify I/O channel operation after installation.
• Record the replacement in the maintenance documentation.

When troubleshooting a channel fault, inspect the terminal connection and field wiring before replacing the electronic I/O module. A loose conductor or poor termination can produce symptoms that resemble an I/O hardware failure.

Related Components

Recommended Related Models

Key Advantages

• Allen Bradley FLEX 5000 removable terminal block.
• Model 5094-RTB32C.
• Provides a dedicated field-wiring termination interface.
• Supports organized connection of field devices.
• Forms part of the FLEX 5000 I/O architecture.
• Removable design supports service and maintenance activities.
• Helps separate field wiring from electronic I/O hardware.
• Suitable for industrial control cabinets.
• Useful for FLEX 5000 I/O replacement and maintenance projects.

Technical FAQs

What is the difference between the 5094-RTB32C and a FLEX 5000 I/O module?

The terminal block primarily provides the physical field-wiring connection, while the I/O module performs the electronic processing of input or output signals. The two components therefore have different functions even though they operate together within the same I/O assembly.

What should be documented before removing an existing 5094-RTB32C?

Field-wire positions, conductor identification, terminal assignments, and the associated I/O hardware should be recorded. Clear documentation reduces the possibility of reversing field connections during reinstallation.

Can a loose terminal connection cause an I/O diagnostic that appears to indicate module failure?

Yes. An intermittent or open field connection can prevent the expected signal from reaching the I/O channel. Before replacing the electronic module, technicians should inspect the field device, wiring, terminal connection, and associated channel.

Why is the removable construction useful during I/O maintenance?

It allows the field termination interface to be handled as a serviceable part of the I/O assembly. This can simplify maintenance work and reduce the need to reorganize an entire group of field conductors when servicing compatible hardware.
