Product Overview

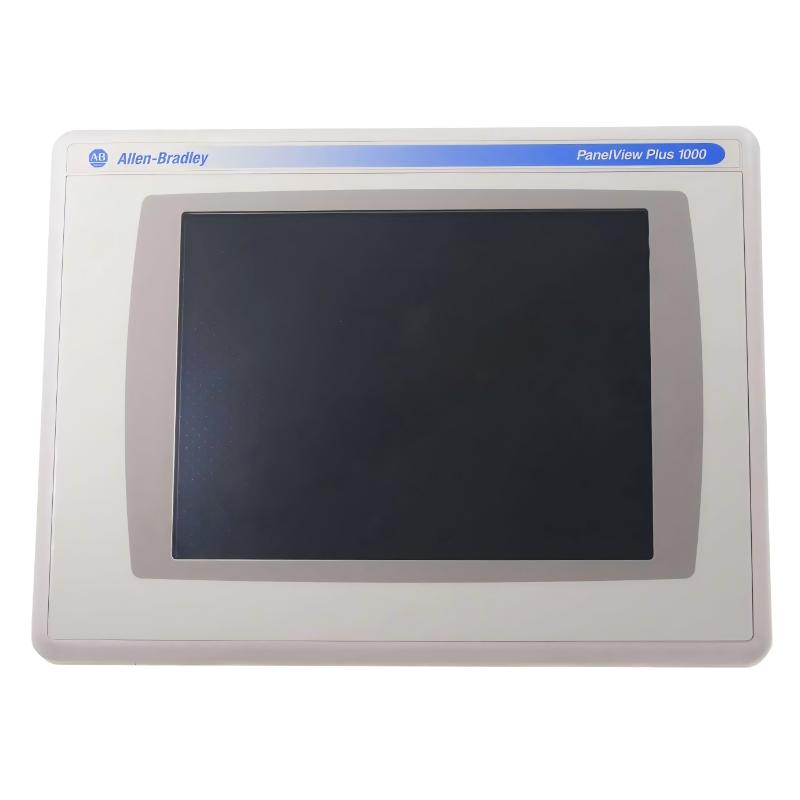

The Allen-Bradley 2711P-T10C4D1 is a PanelView Plus 6/1000 HMI (Human Machine Interface) designed for industrial process visualization and operator control. It features a 10.4-inch color touchscreen that allows operators to monitor, control, and manage PLC-driven systems in real time.
This model is widely used in manufacturing, packaging, chemical processing, utilities, and other automated industries. It provides reliable communication with Rockwell Automation PLCs and supports both EtherNet/IP and serial networks.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Model | 2711P-T10C4D1 |
| Product Type | PanelView Plus 1000 Operator Interface |
| Display Size | 10.4-inch color TFT touchscreen |
| Resolution | 640 × 480 (VGA) |
| Touch Input | Resistive touchscreen |
| Power Supply | 100–240 VAC |

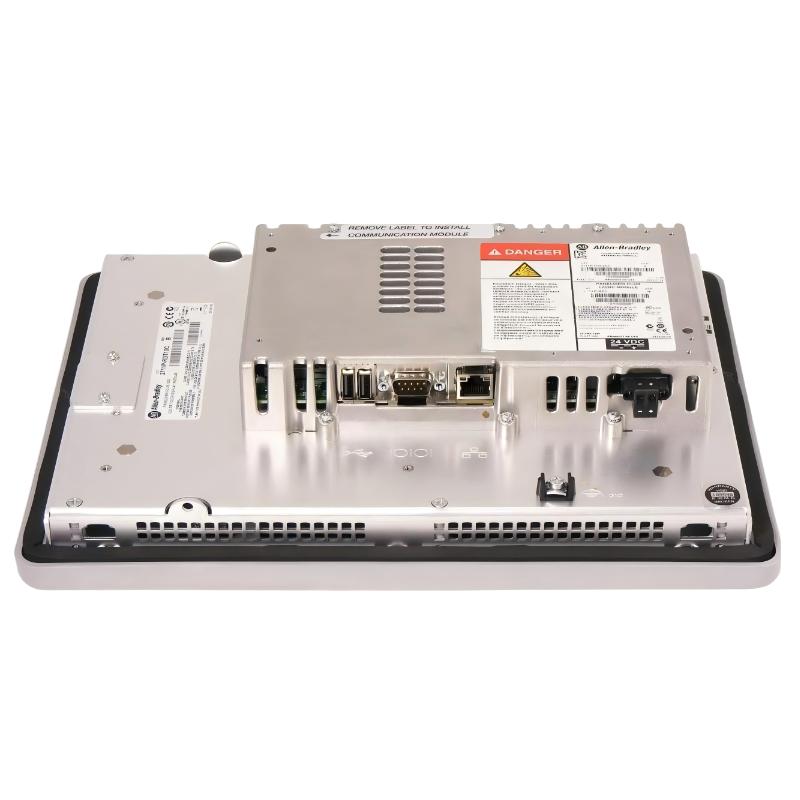

| Communication Ports | EtherNet/IP, RS-232/RS-485, USB |
| Operating System | Windows CE 6.0 |
| Memory | 512 MB RAM / 512 MB Flash |
| Dimensions | 329 × 55 × 248 mm |
| Weight | 2.6 kg |
| Software | FactoryTalk View Machine Edition (ME) runtime |
Function and Working Principle
The PanelView Plus 1000 serves as a graphical interface for operators to control and monitor PLC-controlled industrial processes.
Working Principle
- Connects to PLCs via EtherNet/IP or serial communication.
- Displays real-time process data, including temperatures, pressures, motor speeds, and alarms.
- Operators interact with the touchscreen to:
- Start or stop machines
- Adjust setpoints
- Acknowledge alarms
- Navigate between process screens
- Commands are sent back to the PLC to execute control actions, forming a continuous operator-PLC feedback loop.
Key Features
- 10.4-inch color industrial touchscreen display
- FactoryTalk View Machine Edition (ME) runtime
- Real-time PLC data visualization and control
- Alarm and event logging
- Trend visualization and historical data monitoring
- Recipe and parameter control
- Supports EtherNet/IP and serial networks (RS-232/RS-485)
- Durable industrial design suitable for control cabinet mounting
Industrial Applications
- Manufacturing production lines
- Packaging machinery
- Chemical and petrochemical processing
- Oil and gas operations
- Water and wastewater treatment plants
- Food and beverage production
- Material handling and conveyor systems
- HVAC and building automation
Installation Overview
- Panel-mounted in industrial control cabinets
- Connect to PLCs using EtherNet/IP or serial ports
- Configure HMI screens using FactoryTalk View Studio ME
- Runtime application loaded via USB or Ethernet
- Ensure proper grounding and environmental protection
Compatible Systems
- Allen-Bradley ControlLogix and CompactLogix PLCs
- PowerFlex drives
- FactoryTalk View ME software
- EtherNet/IP and serial industrial networks
Alternative Models
| Model | Description |
|---|---|
| 2711P-T10C4D1 | PanelView Plus 1000 (this model) |
| 2711P-T10C4A8 | Earlier PanelView Plus 6 1000 model |
| 2711P-T10C22D9P | PanelView Plus 7 1000 HMI (modern replacement) |
| PanelView 5500 | Next-generation HMI series |
| 2711P-T7C4D8 | 7-inch variant for smaller displays |
Key Advantages
- Reliable HMI for industrial automation
- Supports multiple communication protocols
- Durable touchscreen suitable for control cabinet mounting
- Full FactoryTalk View ME integration
- Flexible installation and configuration
- Proven long-term performance in industrial environments
Technical FAQs
What is the primary function of this HMI?
To provide operators with a graphical interface to monitor and control PLC-based industrial processes.
Does it directly control machines?
No. It sends commands to a PLC, which performs the control actions.
Which software is used for configuration?
FactoryTalk View Studio Machine Edition (ME).
Can it communicate over multiple networks?
Yes, it supports EtherNet/IP and serial (RS-232/RS-485) connections.
Is it suitable for harsh industrial environments?
Yes, it is designed for panel-mounting in industrial environments.
Conclusion
The Allen-Bradley 2711P-T10C4D1 PanelView Plus 1000 is a robust, reliable HMI that provides real-time operator control and visualization for PLC-driven industrial processes. Its large touchscreen, flexible connectivity, and FactoryTalk View ME compatibility make it ideal for a wide range of industrial automation applications.
