Product Overview

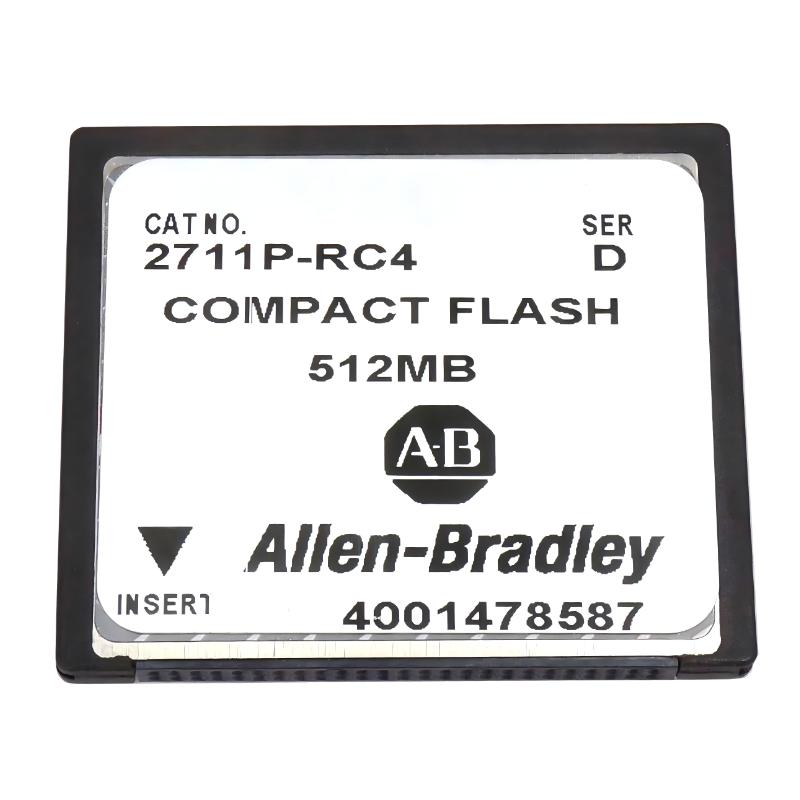

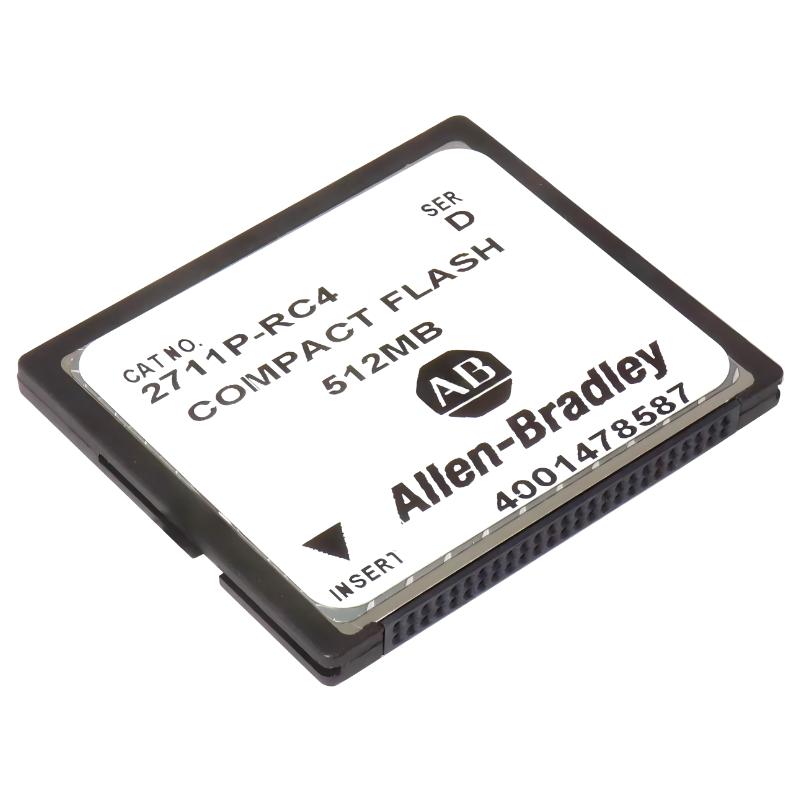

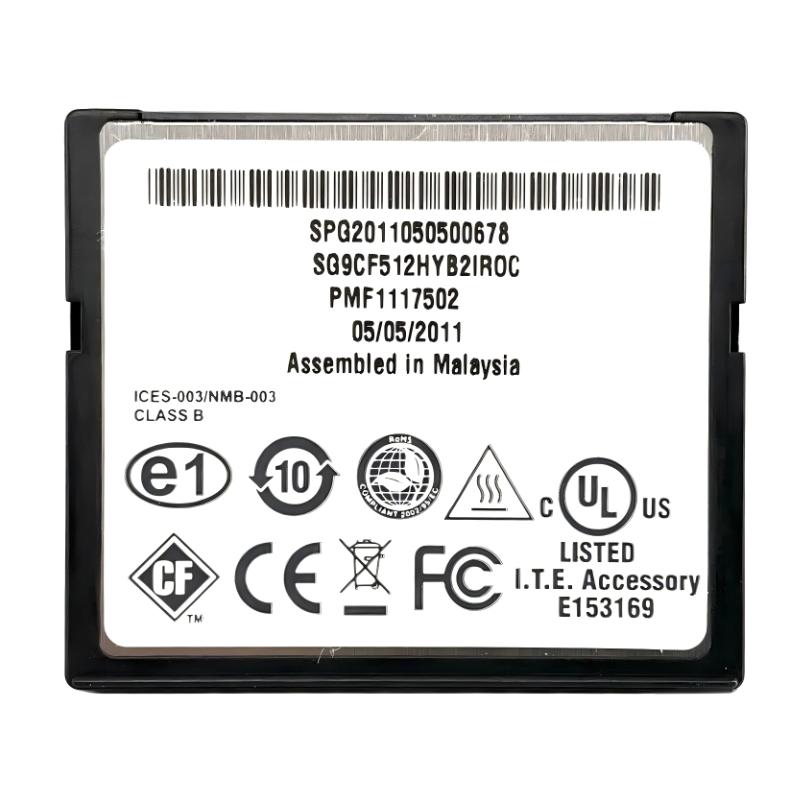

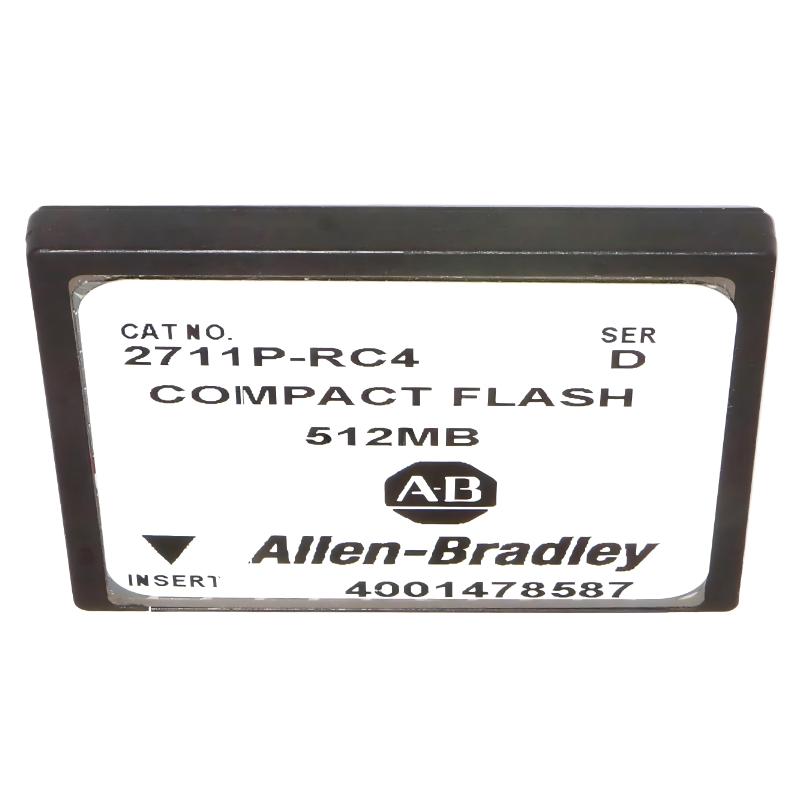

The Allen Bradley 2711P-RC4 is a compact industrial memory card designed for PanelView Plus operator interfaces. It provides additional non-volatile storage for HMI applications, enabling secure storage of system configurations, project files, and historical data.
This memory card is ideal for extending storage capacity in Allen Bradley PanelView Plus 400, 600, and 700 series HMIs, supporting reliable and flexible industrial automation operations.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 2711P-RC4 |
| Product Type | PanelView Plus Memory Card |
| Dimensions | 69 × 3 × 46 mm |
| Weight | 0.02 kg |
| Storage Type | Non-volatile Flash Memory |
| Capacity | Typically 256 MB (varies by variant) |
| Compatible Systems | PanelView Plus 400, 600, 700 series |
| Installation | Inserted into HMI memory card slot |
| Operating Temperature | 0°C to 50°C |
| Environmental Rating | Industrial-grade |
| Function | Project storage, backup, and data logging |
| Reliability | Designed for long-term industrial use |
Function and Working Principle
The 2711P-RC4 memory card is used to expand the storage capabilities of PanelView Plus HMIs.
Core Functions:
- Stores HMI project files and configurations
- Provides backup and recovery for system settings
- Enables offline project transfer between HMIs
- Supports historical data logging and trend storage
- Enhances system redundancy and reliability
Working Principle:
The card is inserted into the memory slot of a PanelView Plus terminal. The HMI reads and writes project data to the card, allowing operators and engineers to backup, restore, or transfer projects without affecting the main system memory.
Role in Industrial Control Systems
This memory card plays a supporting role in industrial automation by:
- Enabling HMI project portability
- Supporting configuration backups for system safety
- Storing historical process data for analysis
- Reducing downtime during system upgrades or replacements
It ensures that critical system data is secure and readily transferable, improving operational efficiency.
Industrial Applications
The 2711P-RC4 is commonly used in:
- Manufacturing automation systems
- Process control HMIs
- Packaging and assembly lines
- Water treatment and utility systems
- Legacy and modern PanelView installations
- System upgrade and maintenance projects
Its small size and reliable operation make it ideal for industrial environments with limited space.
Installation and System Integration
Proper installation ensures correct operation:
- Insert the memory card into the designated HMI slot
- Ensure the card is fully seated and locked in place
- Configure HMI software (FactoryTalk View ME) to use external storage if required
- Avoid removing the card during operation to prevent data corruption
- Compatible with Allen Bradley PanelView Plus 400, 600, and 700 series
Compatible System Components
The 2711P-RC4 works with:
- PanelView Plus 400, 600, 700 series HMIs
- FactoryTalk View ME software
- Allen Bradley PLC systems (CompactLogix, ControlLogix)
- HMI project files and trend data modules
- PanelView Plus expansion and backup accessories
Together, these components enable secure, portable, and reliable HMI storage solutions.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 2711P-RC3 | Memory Card | Smaller capacity | Legacy PanelView HMIs |
| 2711P-RC5 | Memory Card | Larger 512 MB | Advanced storage needs |
| USB Flash Drive | Storage Accessory | Portable HMI storage | Project transfer |
| FactoryTalk View ME Server | Software Module | Network storage backup | Centralized project storage |
| PanelView Plus SD Card | Storage Module | High-speed flash | Extended logging applications |
Key Advantages
- Compact and lightweight design
- Secure storage for HMI project files and system configurations
- Enhances reliability and backup capability for industrial HMIs
- Supports portable project transfer and offline configuration
- Designed for long-term industrial operation
Technical FAQs
Q1: What is the main function of the 2711P-RC4?
It provides additional memory for storing HMI project files, configuration, and historical data.
Q2: Which HMI models is it compatible with?
PanelView Plus 400, 600, and 700 series.
Q3: Is it removable?
Yes, it can be inserted and removed from the HMI memory slot.
Q4: Does it require special software to operate?
No, it integrates directly with FactoryTalk View ME projects.
Q5: Is it suitable for industrial environments?
Yes, it is designed for reliable use in industrial automation systems.
Conclusion
The Allen Bradley 2711P-RC4 PanelView Plus Memory Card is a compact, reliable, and essential storage accessory for industrial HMIs. It ensures secure project storage, supports backup and transfer operations, and enhances the flexibility and reliability of PanelView Plus 400, 600, and 700 series operator interfaces.
Its small form factor, robust construction, and compatibility make it a valuable tool for system integrators, engineers, and maintenance personnel managing industrial control systems.
