Product Overview

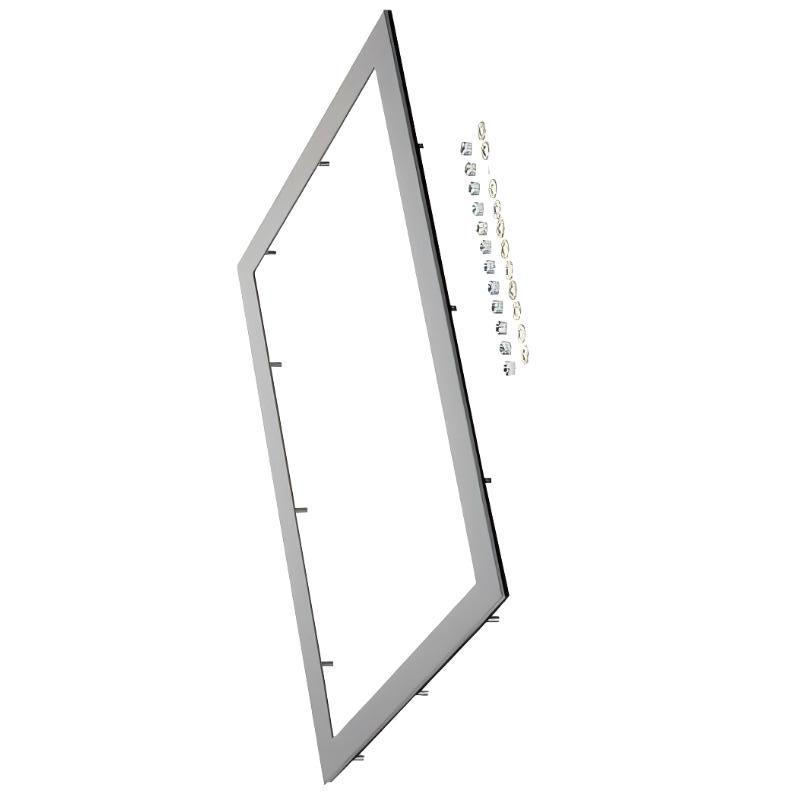

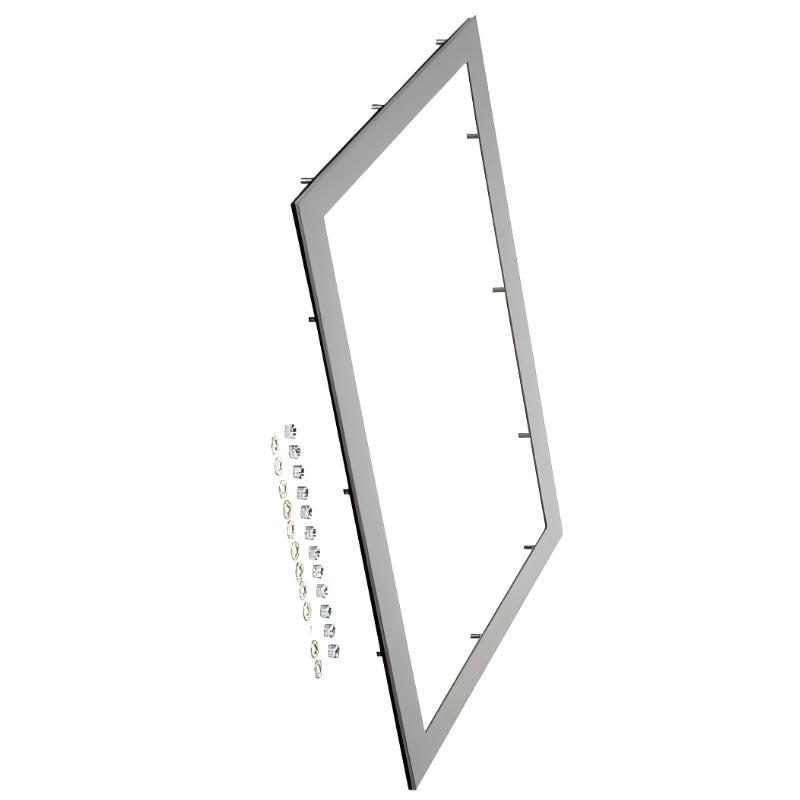

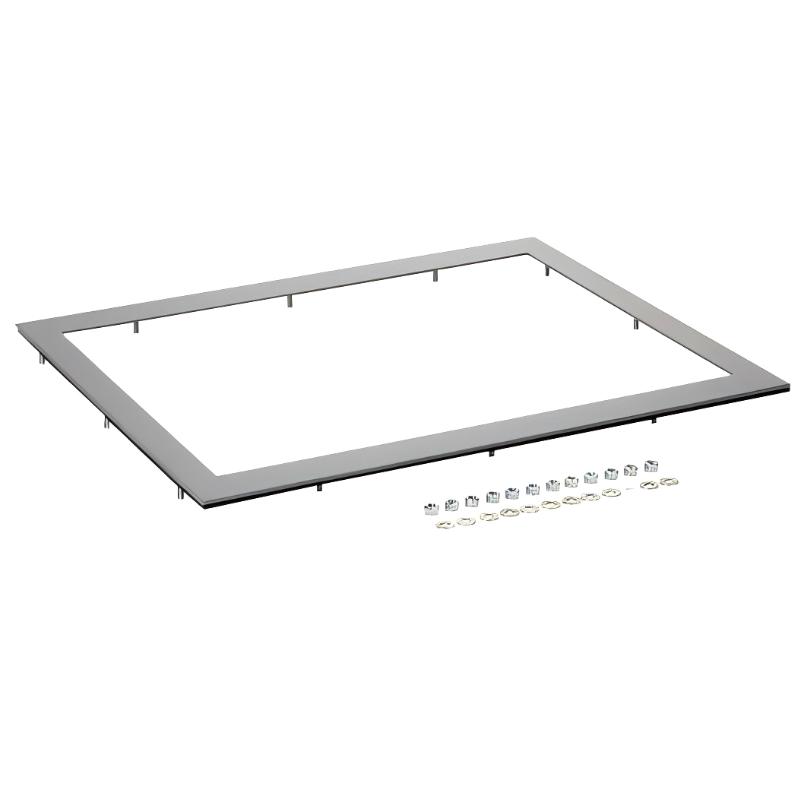

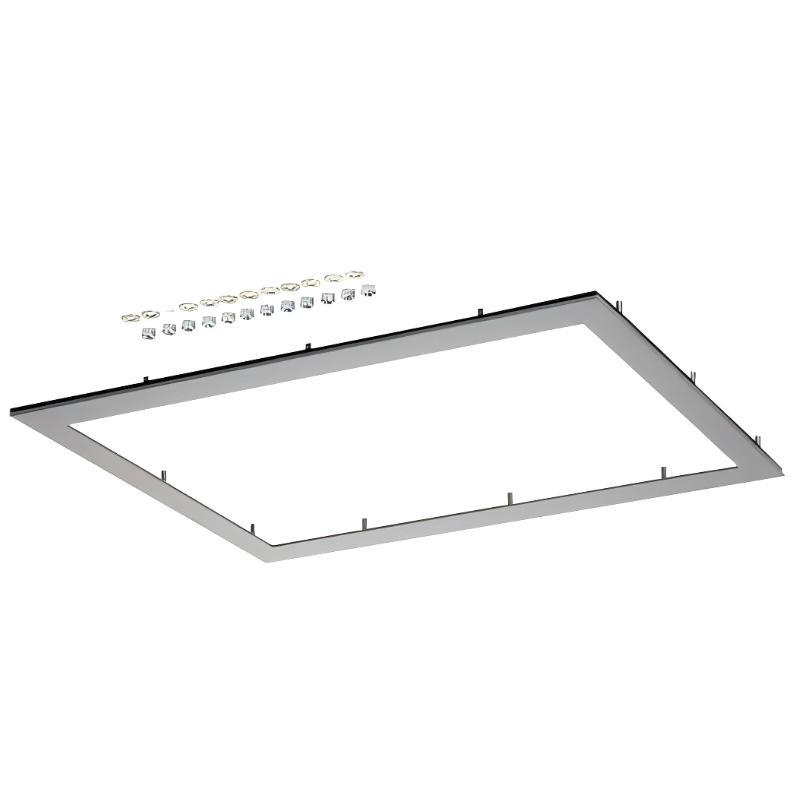

The Allen Bradley 2711P-RAT15 PanelView Plus 1500 Touch Adapter is an industrial mounting and cutout conversion accessory designed for PanelView Plus 1500 terminal systems. It enables mechanical adaptation between different PanelView enclosure cutout standards, allowing existing control panels to be reused or upgraded without full cabinet redesign.
This adapter is widely used in retrofit and system migration projects where PanelView Plus 1500 terminals need to be integrated into PanelView 1200E / 1400E-style panel openings while maintaining proper mechanical alignment and installation stability.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 2711P-RAT15 |
| Product Type | PanelView Plus 1500 Touch Adapter |
| Function | Panel cutout / mounting conversion adapter |
| Compatibility | PanelView Plus 1500 / CE1500 to PanelView 1200E / 1400E opening |
| Dimensions | 441.3 × 374.6 mm |
| Weight | 1.36 kg |
| Material | Industrial-grade mounting metal frame |
| Installation Type | Panel mounting / retrofit installation |
| Application | HMI enclosure adaptation |
| Environment | Industrial control cabinet systems |
| System Role | Mechanical interface accessory |
Function and Working Principle
The 2711P-RAT15 does not process electrical or control signals. Instead, it serves as a mechanical interface adapter.
Core Functions:
- Converts panel cutout dimensions between different HMI generations
- Enables installation of PanelView Plus 1500 into alternative enclosure openings
- Provides mechanical stability and mounting support
- Reduces the need for cabinet redesign or re-machining
- Supports retrofit and upgrade projects in legacy systems
Working Principle:
The adapter is installed between the HMI terminal and the control cabinet panel. It compensates for dimensional differences in cutout geometry, ensuring secure physical mounting and proper alignment of the PanelView display unit within the enclosure.
Role in Industrial Control Systems
This adapter plays a supporting but important role in industrial automation infrastructure by enabling:
- HMI system upgrades without cabinet modification
- Compatibility between different PanelView generations
- Reduced downtime during system retrofits
- Standardized installation across mixed-generation equipment
It ensures mechanical continuity in automation system modernization projects.
Industrial Applications
The 2711P-RAT15 is commonly used in:
- Industrial control panel retrofitting projects
- Manufacturing line HMI upgrades
- Legacy PanelView system maintenance
- OEM control cabinet standardization
- Process automation system modernization
- Industrial equipment refurbishment
Its primary value is in reducing installation complexity during hardware transitions.
Installation and System Integration
Proper installation ensures structural stability and long-term reliability:
- Installed directly into control cabinet front panels
- Used as an intermediate mounting frame for PanelView 1500 terminals
- Secured using standard industrial panel fasteners
- Requires correct alignment with enclosure cutout geometry
- Typically used during HMI replacement or upgrade operations
No electrical configuration is required, as the adapter is purely mechanical.
Compatible System Components
The 2711P-RAT15 is typically used alongside:
- Allen Bradley PanelView Plus 1500 terminals
- PanelView CE1500 series HMIs
- PanelView 1200E / 1400E enclosure systems
- Industrial control cabinet frames
- HMI mounting hardware kits
- Retrofit installation accessories
These components together support flexible HMI system integration.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 2711P-RAAK15 | Adapter Plate | PanelView Plus 7 mounting conversion | Upgrade systems |
| 2711P-RGT15 | Antiglare Overlay | Screen protection accessory | Display enhancement |
| PanelView Mount Kit 1500 Series | Mounting Kit | Full installation support | New installations |
| 2711P-RP8A (Logic Module) | System Module | HMI processing unit | System replacement |
| Custom Cutout Adapter Plates | Retrofit Frame | Flexible sizing support | OEM cabinet adaptation |
Key Advantages
- Enables fast HMI retrofit without cabinet redesign
- Reduces installation downtime in industrial upgrades
- Ensures mechanical compatibility across PanelView generations
- Durable industrial-grade construction
- Supports long-term maintenance of legacy systems
- Improves flexibility in control panel design
Technical FAQs
Q1: What is the main function of 2711P-RAT15?
It is used to adapt panel cutout sizes for installing PanelView Plus 1500 HMIs into different enclosure standards.
Q2: Does it affect electrical performance?
No, it is a purely mechanical mounting accessory.
Q3: Is it still widely used?
Yes, it is commonly used in retrofit and system upgrade projects.
Q4: Can it be used in new installations?
Yes, but it is mainly intended for compatibility and retrofit applications.
Q5: Does it require configuration or programming?
No configuration is required; it is a passive mechanical component.
Conclusion
The Allen Bradley 2711P-RAT15 PanelView Plus 1500 Touch Adapter is a critical mechanical accessory for industrial HMI integration and retrofit projects. By enabling compatibility between different PanelView enclosure standards, it simplifies system upgrades, reduces engineering modifications, and supports efficient modernization of industrial control panels.
Its durability, compatibility, and installation flexibility make it an essential component in legacy automation system maintenance and upgrade strategies.
