Product Overview

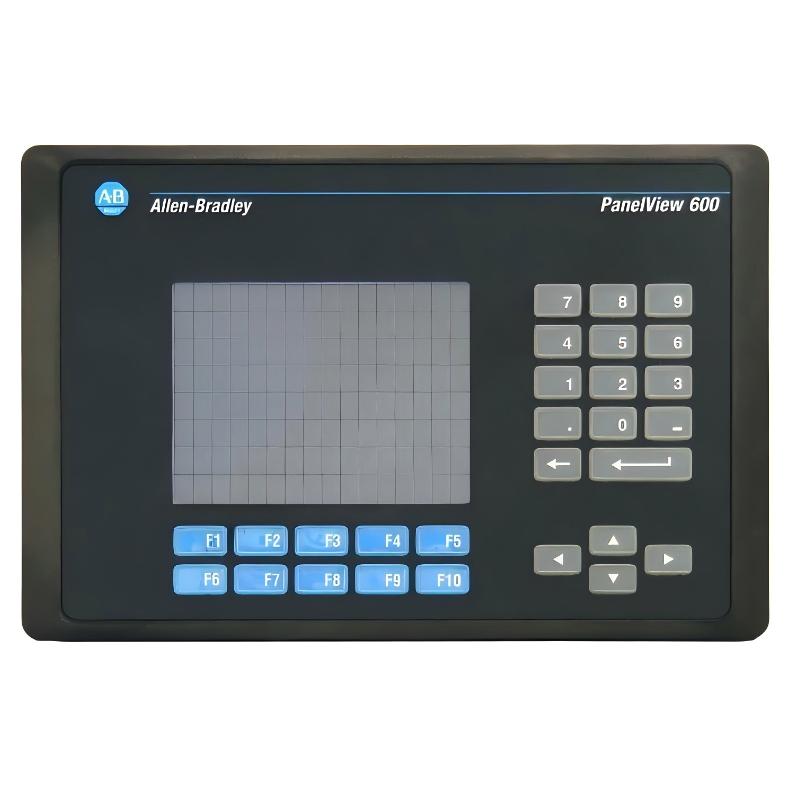

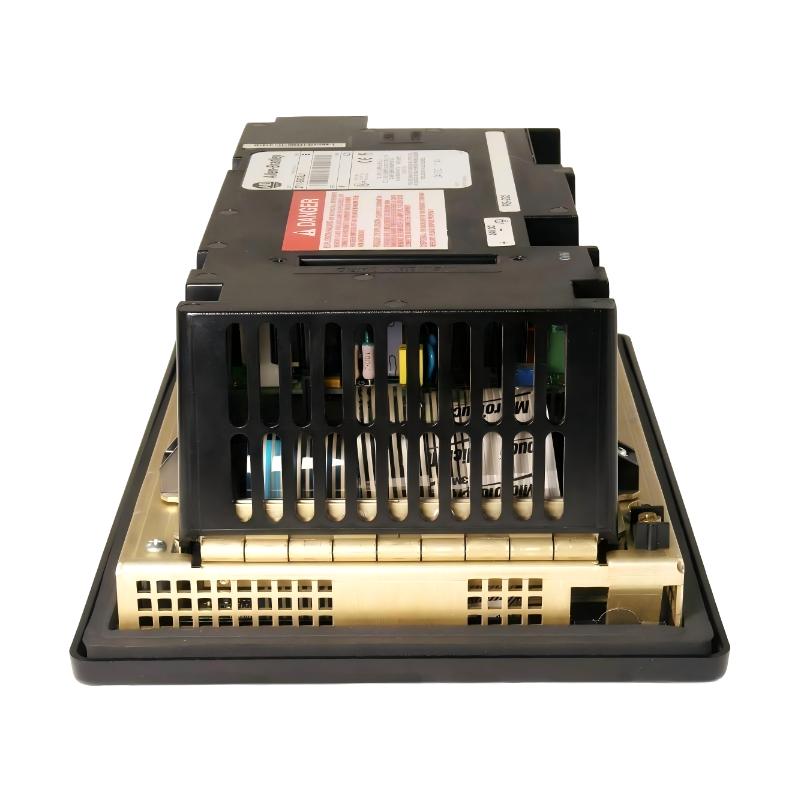

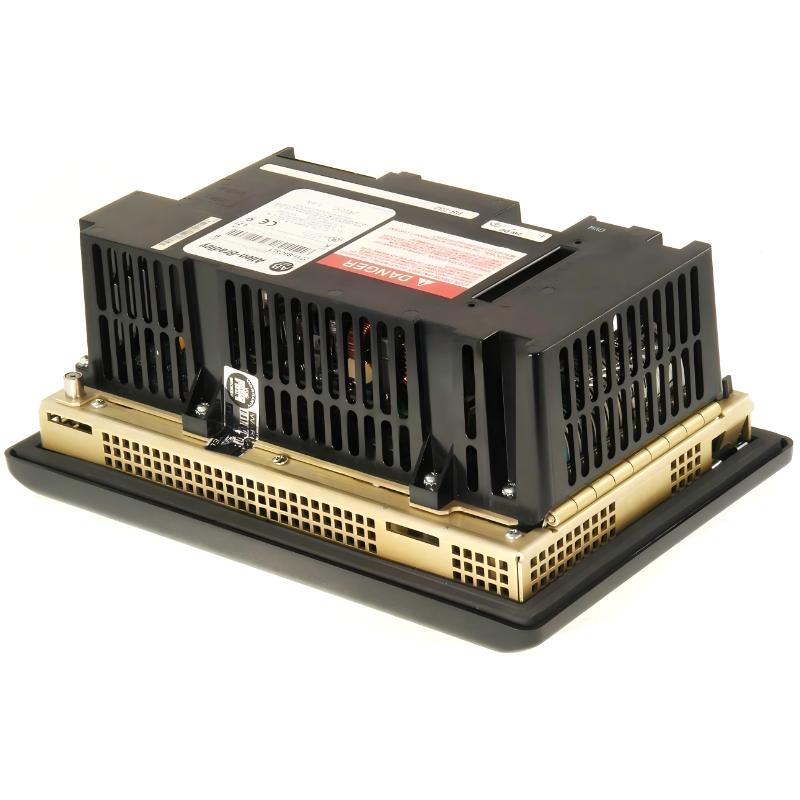

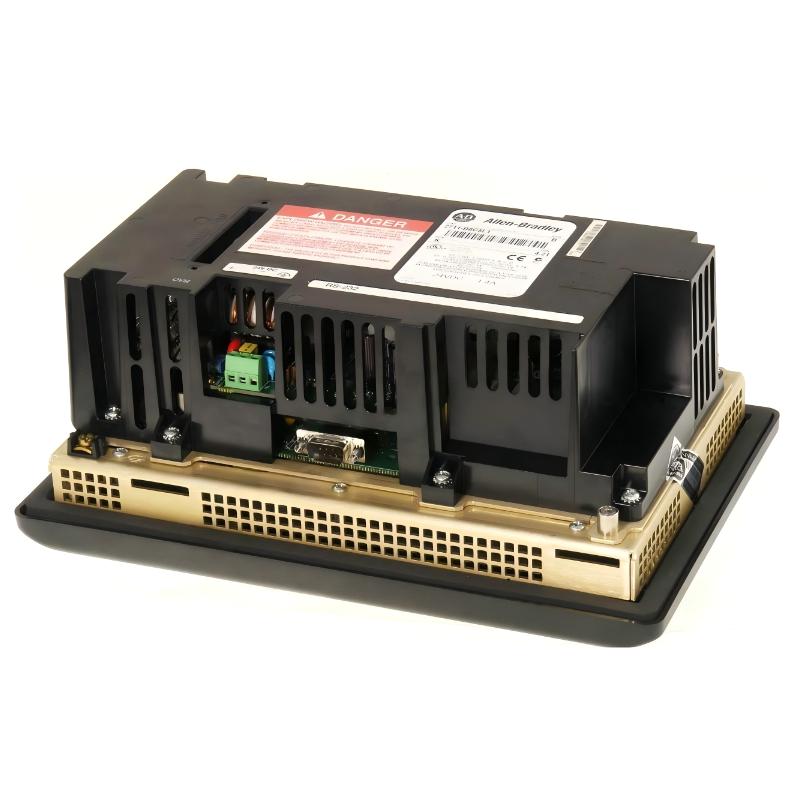

The 2711-B6C5L1 is a PanelView 600 operator interface (HMI) from Allen-Bradley’s PanelView Standard series. It is designed for industrial machine visualization, allowing operators to monitor process data, alarms, and machine status while interacting with PLC systems.
This model is part of the PanelView 600 color display family, supporting keypad and touchscreen input for legacy automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Series | PanelView 600 |
| Model | 2711-B6C5L1 |
| Product Type | Operator Interface (HMI) |
| Display Size | 5.5–6 inch class (approx. 5.7″) |
| Resolution | 320 × 234 pixels |
| Display Type | Color TFT LCD |
| Input Type | Keypad + Touchscreen |
| Communication | RS-232 (DH-485 / DF1 depending configuration) |
| Programming Software | PanelBuilder32 |
| Power Supply | 18–32V DC (typical 24V DC nominal) |
| Memory | ~190 KB runtime / ~240 KB nonvolatile (typical) |
| Installation | Panel mount |
| Dimensions | 290 × 116 × 192 mm |
| Weight | 2 kg |
Function and Working Principle
The 2711-B6C5L1 functions as a human-machine interface between operators and PLC systems.
Its operation includes:
- Displaying real-time machine and process data
- Allowing operator interaction via keypad and touchscreen
- Showing alarms, warnings, and system diagnostics
- Sending commands back to PLC controllers
- Communicating through serial protocols (DF1 / DH-485 depending on setup)
It does not execute control logic itself; all logic resides in the PLC.
Key Features
- Color TFT display with industrial-grade visibility
- Dual input system: keypad + touchscreen
- Supports legacy serial PLC communication
- Compatible with PLC-5 / SLC 500 / MicroLogix systems
- Rugged panel-mounted industrial design
- Designed for PanelBuilder32 runtime applications
Industrial Applications
- Factory automation systems
- Packaging machinery
- Material handling equipment
- Process control systems
- OEM machine interfaces
- Legacy PLC-based production lines
Role in Industrial Systems
This HMI is used to:
- Provide operator visualization of industrial processes
- Enable manual control and parameter adjustment
- Display alarms and system messages
- Serve as the interface layer between human operators and PLC systems
Installation Notes
- Installed in control cabinet front panel cutout
- Requires 24V DC power supply (typical industrial standard)
- Communication configured via RS-232 serial wiring
- Application downloaded using PanelBuilder32 software
- Proper grounding required for noise immunity
Compatible Equipment
- Allen-Bradley PLC-5 systems
- SLC 500 controllers
- MicroLogix PLCs
- Serial DF1 / DH-485 communication networks
- PanelBuilder32 engineering environment
Advantages
- Reliable and widely used legacy HMI platform
- Simple dual-input operation (touch + keypad)
- Strong compatibility with older Allen-Bradley PLC systems
- Durable industrial construction
- Stable long-term operation in harsh environments
Limitations
- Obsolete / legacy product family
- Limited resolution compared to modern HMIs
- Serial communication only (no native Ethernet)
- Requires outdated engineering software
- Difficult replacement and support in modern systems
Conclusion
The Allen-Bradley 2711-B6C5L1 PanelView 600 is a legacy operator interface designed for PLC-based industrial automation systems.
It remains commonly used in existing installations where PanelView Standard infrastructure is still operational, providing reliable but outdated visualization and control capabilities.
