Product Overview

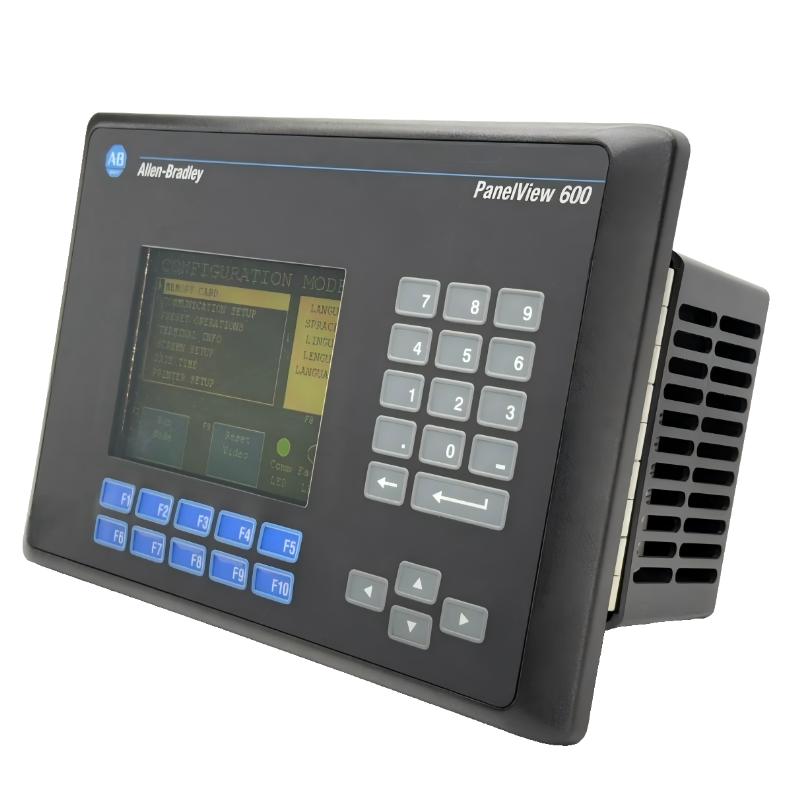

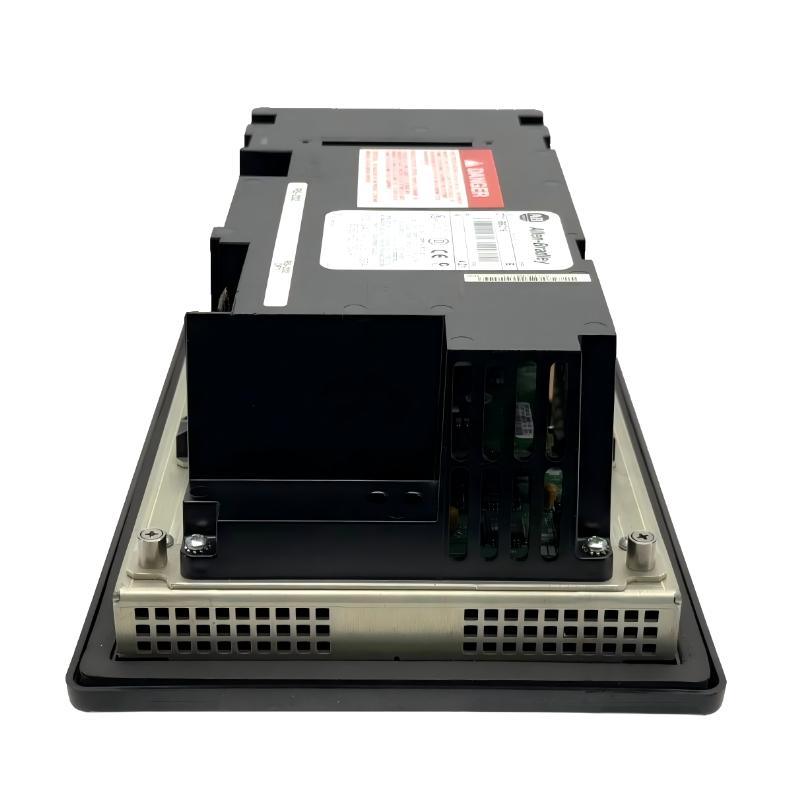

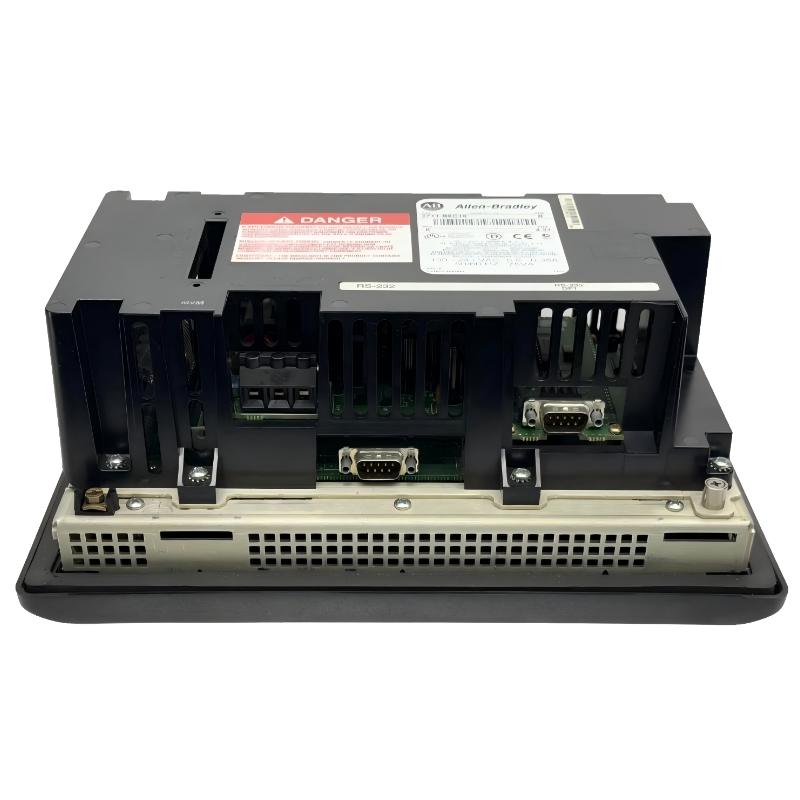

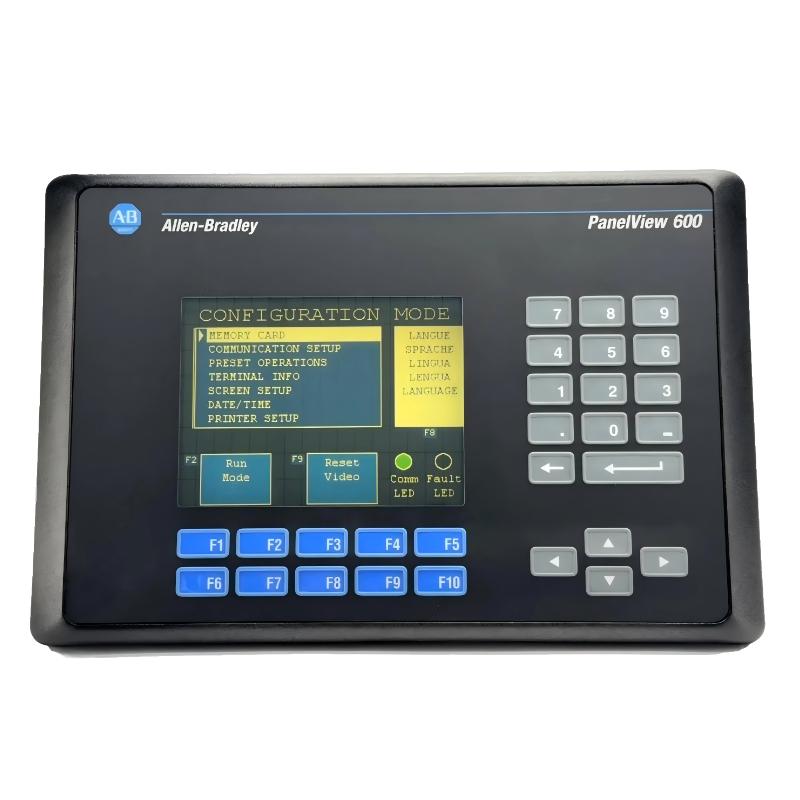

The 2711-B6C16 is a PanelView 600 operator interface (HMI) from Allen-Bradley’s PanelView Standard series. It is designed for machine-level visualization, allowing operators to monitor process values, alarms, and machine status while interacting directly with PLC systems.
This model combines color graphical display, keypad, and touchscreen input, making it suitable for legacy industrial automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Series | PanelView 600 |
| Model | 2711-B6C16 |
| Product Type | Operator Interface (HMI) |
| Display Size | ~5–6 inch class (approx. 5.7″) |
| Display Resolution | 320 × 234 pixels |
| Input Type | Keypad + Touchscreen |
| Communication | RS-232 (DF1), RS-232 Printer/Download |
| Network Support | PLC-5 / SLC 500 / MicroLogix compatible systems |
| Power Supply | 85–264V AC |
| Configuration Software | PanelBuilder32 |
| Memory | ~240 KB application memory |
| Installation | Panel mount |
| Dimensions | 290 × 116 × 192 mm |
| Weight | 2 kg |
Function and Working Principle
The 2711-B6C16 functions as a human-machine interface between operators and PLC systems.
Its operation includes:
- Displaying real-time machine and process data
- Allowing operator input via touchscreen and keypad
- Showing alarms, faults, and system messages
- Sending control commands back to PLC systems
- Communicating through DF1 serial protocol or RS-232 links
It does not perform control logic itself; all logic resides in the connected PLC.
Key Features
- Color display with clear industrial visualization
- Dual input: keypad + touchscreen control
- RS-232 DF1 communication support
- Compatible with legacy Allen-Bradley PLC systems
- Compact and rugged industrial design
- Designed for PanelBuilder32 applications
Industrial Applications
- Factory automation systems
- Packaging machines
- Material handling equipment
- Process control systems
- Legacy PLC-based production lines
- OEM machine operator panels
Role in Industrial Systems
This HMI is used to:
- Provide operator visibility of PLC-controlled processes
- Enable manual control and parameter adjustments
- Display alarms and machine diagnostics
- Serve as the human interface layer in automation systems
It acts purely as a visualization and control interface, not a controller.
Installation Notes
- Panel-mounted in control cabinet front door
- Requires AC power input (wide range supported)
- Communication typically via RS-232 DF1 or DH-485 depending on setup
- Application loaded via PanelBuilder32 software
- Proper grounding required for noise immunity
Compatible Equipment
- Allen-Bradley PLC-5 systems
- SLC 500 controllers
- MicroLogix PLCs
- RS-232 DF1 communication devices
- PanelBuilder32 engineering software
Advantages
- Reliable and widely used legacy HMI platform
- Simple keypad + touchscreen operation
- Strong compatibility with older PLC systems
- Durable industrial-grade design
- Easy machine-level visualization
Limitations
- Obsolete / legacy product family
- Limited resolution compared to modern HMIs
- Serial-based communication (no native Ethernet)
- Requires outdated configuration software
- Increasingly difficult to maintain or replace
Conclusion
The Allen-Bradley 2711-B6C16 PanelView 600 is a legacy operator interface designed for PLC-based industrial systems.
It provides reliable machine visualization and operator control, but is now mainly used in existing installations where PanelView Standard infrastructure is still in operation.
