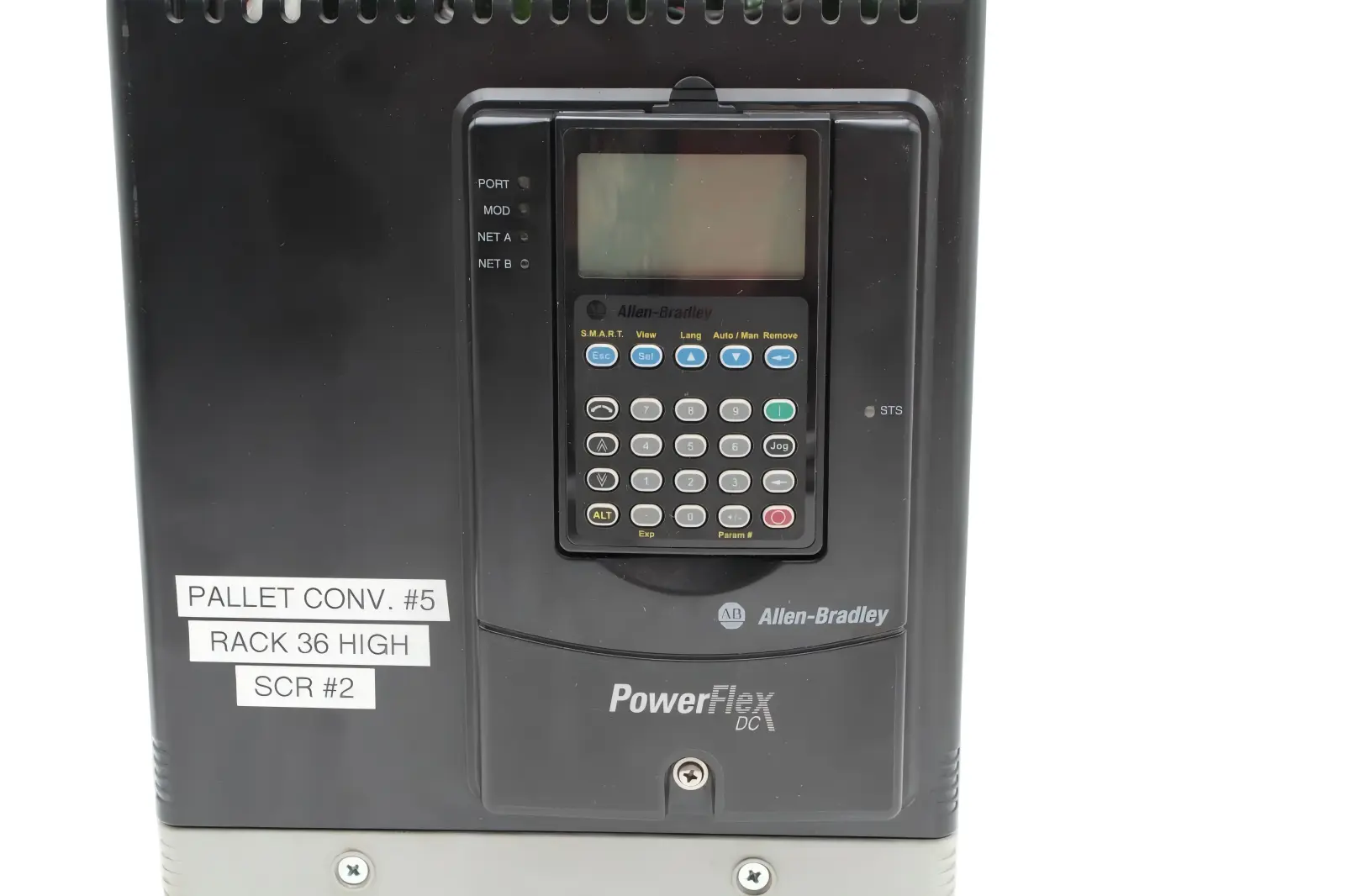

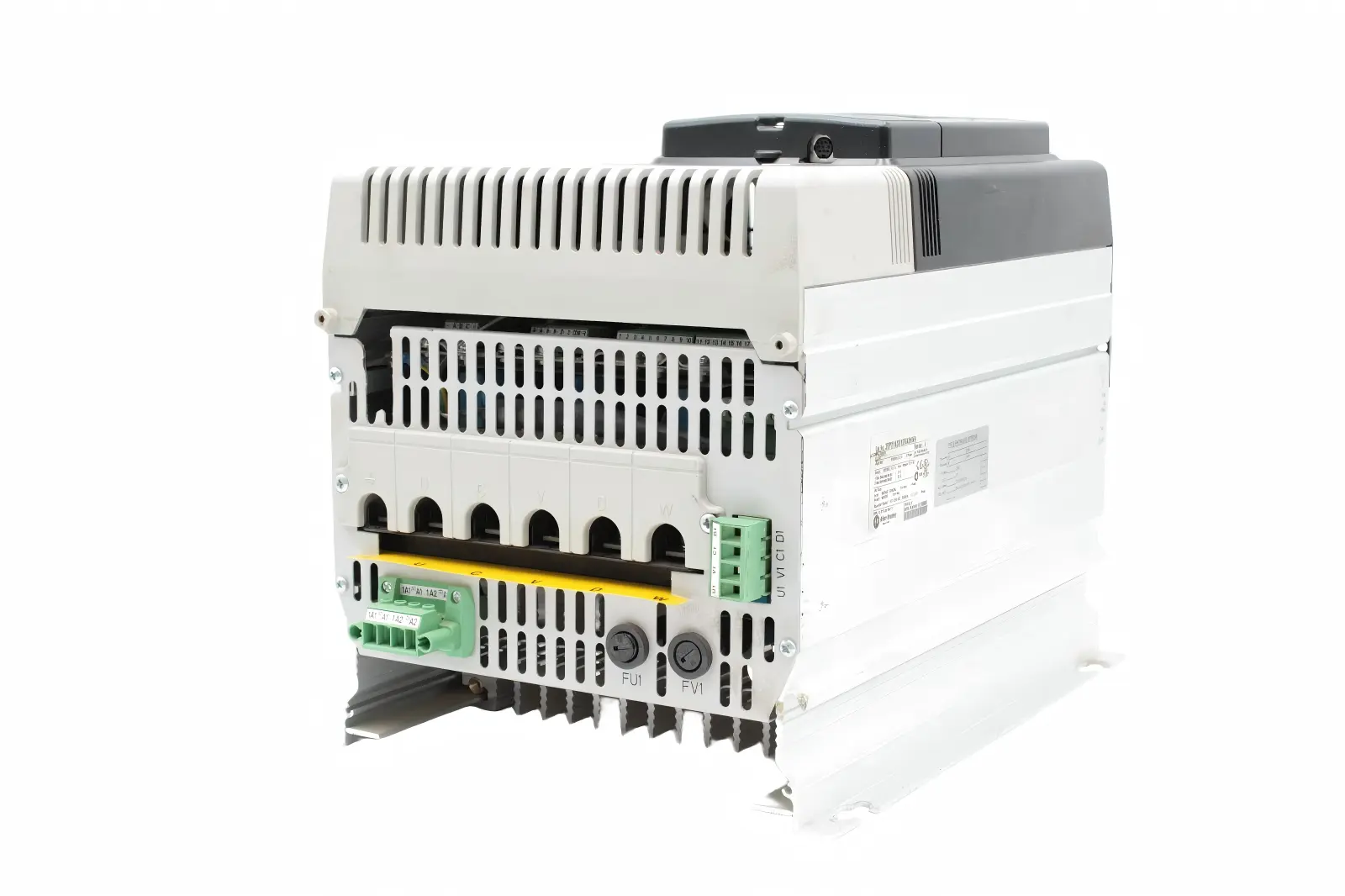

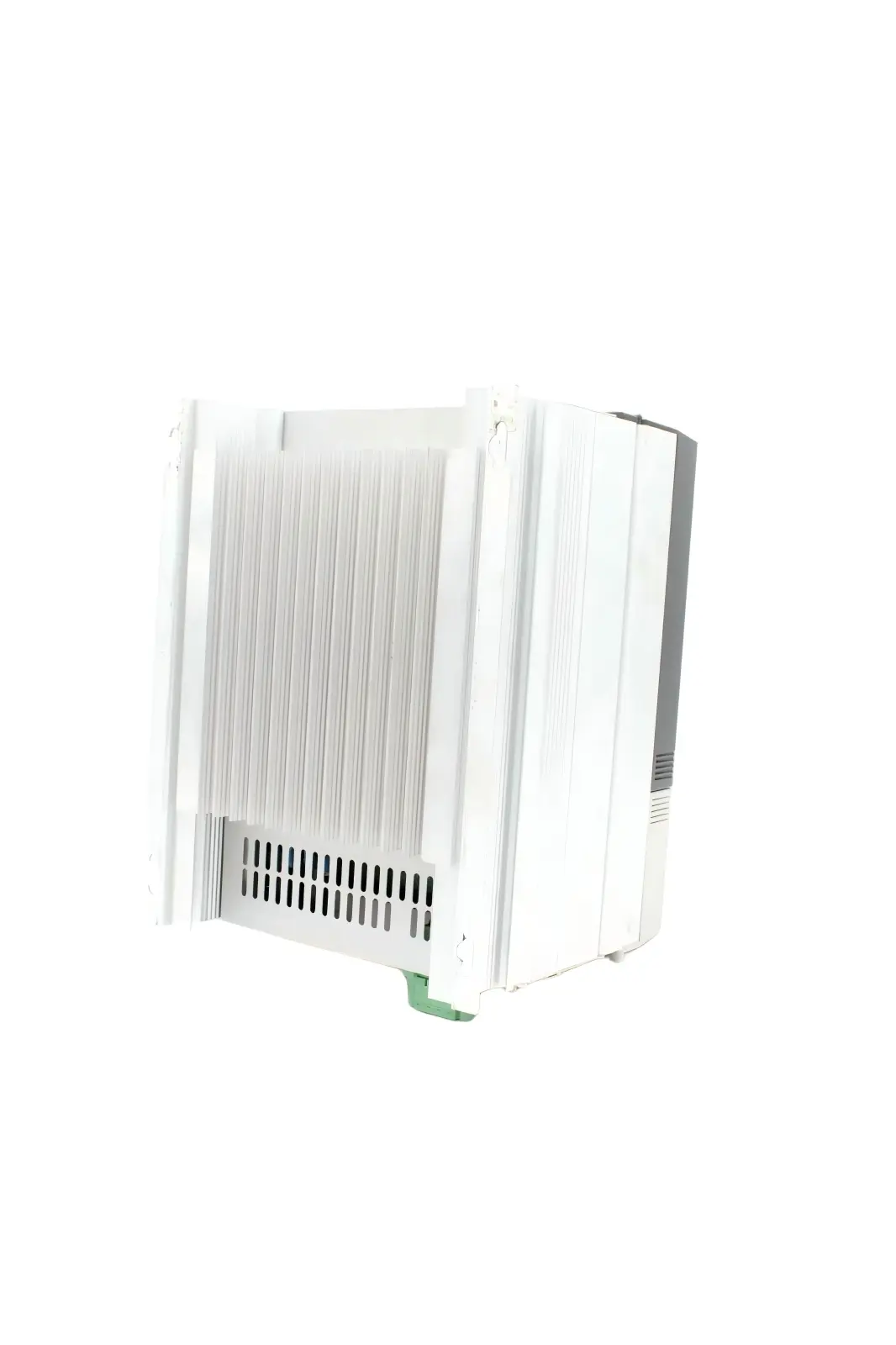

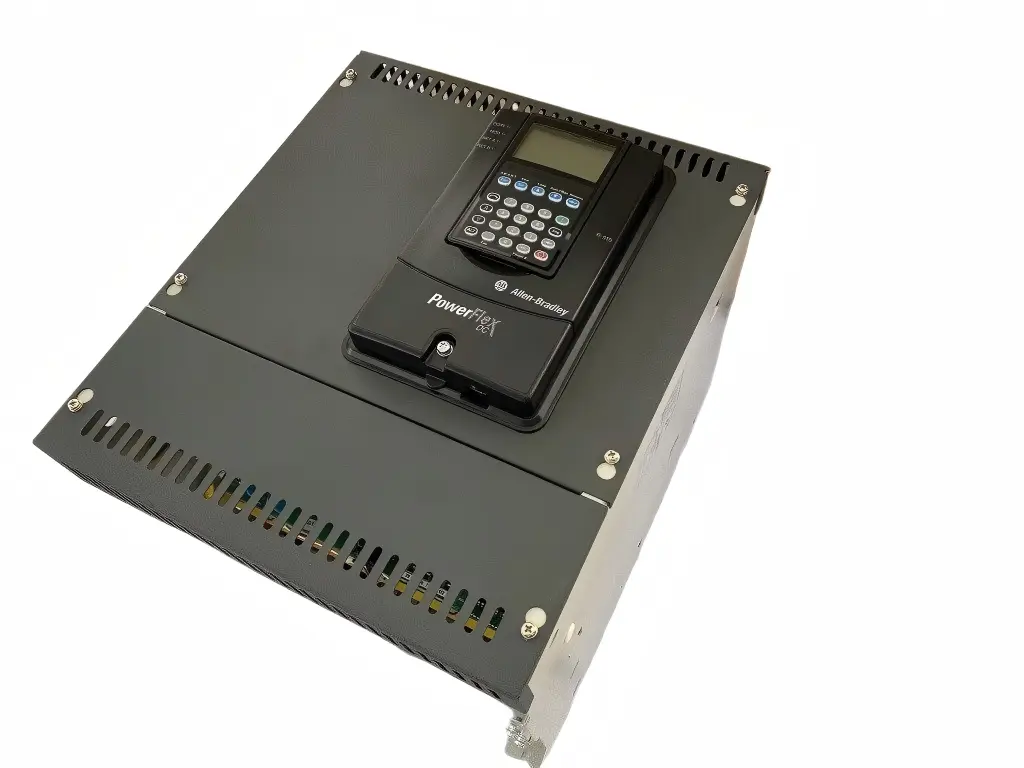

Allen-Bradley 20P21AD010RA0NNN — PowerFlex DC Drive Product Overview, Technical Specifications, Applications, Advantages, and Related Models

1. Product Overview

The 20P21AD010RA0NNN is a PowerFlex DC Drive designed for industrial DC motor speed control and general-purpose DC drive applications.

This model is rated for 480 VAC three-phase input, with a 10 A DC output current rating and a 5 HP / approximately 3.7 kW Normal Duty rating. It is a non-regenerative, two-quadrant DC drive, meaning it is intended primarily for motoring operation in the forward and reverse directions rather than continuous regenerative four-quadrant operation.

The drive uses a 6-pulse input configuration and a regulated field supply arrangement. It is supplied in an IP20, NEMA/UL Type Open enclosure, with a Frame A mechanical configuration and conformal coating.

The specific configuration represented by catalog number 20P21AD010RA0NNN is supplied without a standard HIM operator module and uses a blank plate configuration. It also has no communication module installed as standard.

The product is intended for industrial applications where a conventional DC motor needs controlled starting, stopping, speed regulation, and torque management. It is particularly relevant to machinery that still uses DC motors and requires a dedicated DC drive rather than an AC frequency converter.

The model belongs to the PowerFlex DC Drive series under the Allen-Bradley brand. The broader PowerFlex DC platform covers a wide range of power levels and includes both non-regenerative and regenerative configurations. The 20P21AD010RA0NNN is specifically part of the non-regenerative 380–480 VAC, three-phase drive range.

2. Brand and Product Series

3. Detailed Technical Specifications

The published mechanical reference for this configuration is approximately 11.0 × 15.0 × 11.0 inches, equivalent to about 279 × 381 × 279 mm, with a listed weight of approximately 25 lb / 11.3 kg.

Because enclosure accessories, installation hardware, packaging, and specific production revisions can affect physical measurements, the final cabinet design should use the dimensional drawing for the exact unit being installed.

4. What Is a DC Drive?

The 20P21AD010RA0NNN should not be confused with a conventional AC variable-frequency drive.

An AC VFD normally changes the frequency and voltage supplied to an AC motor. A DC drive works differently. It controls the electrical power delivered to the armature of a DC motor and manages the motor field circuit according to the selected motor and drive configuration.

This type of control is particularly useful for DC motors because the motor speed can be controlled accurately by adjusting armature voltage and related control parameters.

For older production equipment, DC motors can still be valuable because they can provide strong starting torque, a wide speed-control range, and predictable torque characteristics.

The PowerFlex DC platform was developed for precisely this type of industrial requirement.

5. Main Function of the 20P21AD010RA0NNN

The main purpose of this drive is to provide controlled electrical power to a suitable DC motor.

Instead of connecting the motor directly to a fixed DC supply, the drive regulates the motor’s operating conditions.

This provides several important functions:

• Controlled motor starting
• Controlled acceleration
• Controlled deceleration
• Adjustable motor speed
• Motor current regulation
• Torque control
• Forward/reverse motor operation
• Field regulation
• Electronic protection
• Process-oriented speed control
• Integration with industrial control systems

6. Two-Quadrant Operation

One of the most important characteristics of this model is its two-quadrant, non-regenerative configuration.

In practical terms, the drive is designed for motor operation without providing the full regenerative functionality associated with a four-quadrant regenerative DC drive.

This makes the model appropriate for applications where the motor primarily operates as a driving source and where regenerative braking is not a continuous requirement.

For applications with substantial overhauling loads, frequent regenerative braking, or continuous energy return to the supply, a regenerative configuration from the same PowerFlex DC family should be considered instead.

A related regenerative 5 HP model is 20P41AD010RA0NNN, which has the same general 460 V / 10 A / 5 HP class but uses a regenerative configuration.

7. Input and Output Characteristics

The drive is designed for a 380–480 VAC three-phase input system.

The standard selection table places the 20P21AD010RA0NNN at:

• 3.7 kW
• 5 HP
• 10 A DC output
• 460 VAC nominal input
• Non-regenerative configuration

This makes it a relatively small drive within the PowerFlex DC range.

For comparison, the same non-regenerative family includes 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, and higher ratings.

8. Product Applications

8.1 Conveyor Systems

DC motors have historically been widely used in conveyor systems because of their ability to provide adjustable speed and useful starting torque.

The drive can be used to regulate conveyor speed according to the production process.

Typical applications include:

• Belt conveyors
• Roller conveyors
• Material-transfer systems
• Assembly conveyors
• Packaging lines
• Production-line conveyors
• Industrial material handling

8.2 Printing Machinery

Printing equipment can require stable motor speed and controlled acceleration.

The DC drive can provide the motor-control characteristics required for certain legacy printing machines and production equipment.

Possible applications include:

• Printing presses
• Paper-feeding systems
• Web-handling equipment
• Roll drives
• Rewind systems
• Unwind-related machinery

8.3 Textile Machinery

Textile production equipment can require precise speed adjustment and stable motor operation.

DC drives can be useful in existing textile machinery where the original machine architecture was designed around DC motors.

Typical applications include:

• Spinning equipment
• Winding machines
• Textile rollers
• Material feeding systems
• Tension-control machinery

8.4 Material Processing Equipment

The drive can be used for industrial machinery that requires adjustable DC motor speed.

Applications may include:

• Roll drives
• Feed systems
• Material-processing machines
• Production rollers
• Industrial winding equipment

8.5 Machine Tools

Certain older or specialized machine tools use DC motors because of their speed-control characteristics.

The drive can provide controlled operation for suitable DC motor systems used in:

• Machine tools
• Grinding equipment
• Cutting machinery
• Drilling machinery
• Metal-processing equipment

8.6 Fans and Blowers

Where a DC motor is already installed, the drive can provide adjustable speed control.

This can be useful in legacy industrial ventilation equipment and specialized blower systems.

8.7 Pumps

The drive can also be used with suitable DC pump motors where variable speed is required.

The exact suitability depends on motor characteristics, pump torque requirements, starting conditions, and operating speed range.

9. Main Advantages

9.1 Designed Specifically for DC Motors

The biggest advantage is that this is a dedicated DC drive.

For an existing machine equipped with a DC motor, replacing the drive with a completely different motor-control technology may require extensive changes to the motor, wiring, mechanical system, control program, and cabinet.

A DC drive allows the existing DC motor architecture to remain in place.

9.2 10 A Output Rating

The 10 A output rating makes the model suitable for DC motors in the approximately 5 HP class.

The 5 HP / 3.7 kW rating provides a useful capacity for small and medium industrial machinery.

The family selection data identifies the model at 10 A and 3.7 kW / 5 HP for the 460 V input class.

9.3 480 VAC Three-Phase Input

The 380–480 VAC input range makes the drive suitable for common industrial three-phase power systems.

This is useful in plants where 460 VAC is the nominal electrical supply.

9.4 Compact Frame A Design

The Frame A construction keeps the drive relatively compact for its power class.

This is beneficial when replacing an older drive in an existing control cabinet where available space is limited.

The listed mechanical envelope is approximately 279 × 381 × 279 mm.

9.5 Conformal Coating

The specified conformal coating provides an additional level of protection for the electronics against environmental contaminants.

This can be beneficial in industrial environments where dust, humidity, or other airborne contaminants may present additional challenges.

It does not mean that the drive can be installed outdoors or exposed directly to water. The enclosure and environmental requirements must still be respected.

9.6 Regulated Field Supply

The drive platform provides a regulated field-supply architecture.

Proper field control is important because the field circuit has a direct relationship with DC motor performance.

Correct field settings must always be based on the motor nameplate and the motor manufacturer’s requirements.

9.7 Feedback Capability

The PowerFlex DC platform supports feedback options such as DC tachometer and encoder feedback.

This provides the possibility of higher-performance speed regulation when the application requires it.

However, the exact feedback hardware and configuration must be verified for the individual drive installation.

10. Enclosure and Installation

The 20P21AD010RA0NNN uses an IP20 / NEMA/UL Type Open enclosure.

This means the drive is intended for installation inside a suitable electrical cabinet or protected industrial installation rather than direct exposure to outdoor conditions.

The cabinet should provide adequate:

• Ventilation
• Heat dissipation
• Electrical clearance
• Cable clearance
• Protection from conductive dust
• Protection from water
• Protection from excessive humidity
• Access for maintenance

The drive should not be treated as a waterproof product.

11. Human Interface Configuration

This particular catalog number is supplied with a blank plate rather than a standard HIM.

This is an important detail when replacing the unit.

If an existing installation requires local keypad operation, parameter viewing, or local adjustment directly from the front of the drive, the appropriate interface equipment may need to be provided separately.

The absence of a standard HIM also helps explain why this configuration may be attractive for installations where the drive is controlled primarily from a PLC, external control panel, or other supervisory system.

12. Communication Configuration

The model is specified with no communication module as standard.

This does not mean that the broader PowerFlex DC platform lacks industrial communication capabilities.

Instead, it means that this particular catalog configuration does not include an installed communication module.

For a new application, communication requirements should therefore be established before selecting the exact catalog number.

Typical considerations include:

• PLC integration
• Remote parameter control
• Drive status monitoring
• Fault monitoring
• Speed reference
• Start/stop commands
• Process data exchange
• Network diagnostics

13. Detailed Catalog Information

14. Five Recommended Models in the Same Series

The following five models are closely related to the 20P21AD010RA0NNN and are useful when selecting a drive with a different power rating or regenerative capability.

The first four models are non-regenerative models in the same 380–480 VAC three-phase PowerFlex DC family. The 2 HP, 3 HP, 5 HP, 7.5 HP and 10 HP ratings correspond to 4.1 A, 6 A, 10 A, 14 A and 19 A respectively. The 20P41AD010RA0NNN is the closely related regenerative 5 HP model.

Selection note: the dimensions and weights shown for related models are approximate family-level references rather than guaranteed exact shipping dimensions. For a cabinet replacement, the exact dimensional drawing for the selected catalog number should be used.

15. Recommended Same-Series Models Explained

15.1 20P21AD4P1RA0NNN

This is a lower-power member of the same non-regenerative PowerFlex DC family.

It is rated at approximately 2 HP / 1.5 kW with a 4.1 A output rating.

It is suitable when the original 5 HP drive is oversized for the actual motor.

This can be useful for smaller conveyors, small rollers, light-duty material-handling equipment, and other low-power DC motor applications.

15.2 20P21AD6P0RA0NNN

The 20P21AD6P0RA0NNN is rated at approximately 3 HP / 2.2 kW with a 6 A output rating.

It provides an intermediate capacity between the 2 HP and 5 HP models.

This makes it a practical candidate for machinery using smaller DC motors but still requiring the same general PowerFlex DC architecture.

15.3 20P21AD014RA0NNN

The 20P21AD014RA0NNN increases the output capability to approximately 7.5 HP / 5.5 kW, with a 14 A output rating.

It can be considered when the machine load is greater than the 5 HP class.

This is particularly useful when selecting a replacement drive based on actual motor current rather than simply matching the original catalog number.

15.4 20P21AD019RA0NNN

The 20P21AD019RA0NNN is approximately a 10 HP / 7.5 kW model with a 19 A output rating.

It is appropriate for larger DC motors within the same general voltage class.

The higher current capacity makes it suitable for heavier production equipment, larger rollers, conveyors, and material-processing machines.

15.5 20P41AD010RA0NNN

The 20P41AD010RA0NNN is perhaps the most important related model when the application requires regenerative operation.

It retains the approximately 5 HP / 10 A / 460 VAC class but changes the drive architecture from non-regenerative to regenerative.

This makes it more suitable for applications where the motor frequently decelerates an overhauling load or where regeneration is a significant part of the operating cycle.

It should not be selected merely because it has the same current and horsepower rating. The machine’s braking and regeneration requirements must justify the change.

16. Five Popular Models from the Same Brand

When considering a broader modernization strategy, the following models are useful comparison points from the same brand.

These five should not be considered electrically interchangeable.

The first two are DC drive products, while the latter three are AC motor drives. Moving from a DC drive to an AC drive normally requires an AC motor and may also require changes to the machine’s electrical and control architecture.

The comparison is therefore most useful for modernization planning, rather than direct replacement.

17. DC Drive vs. AC Drive

This distinction is particularly important when selecting an alternative.

18. Product Advantages for Existing Machinery

One of the strongest reasons to use this drive is that it can preserve an existing DC motor system.

Many industrial machines have long service lives. A machine may still have a mechanically sound DC motor even though the original electronic drive has become difficult to maintain.

In such situations, using a compatible DC drive can be considerably less disruptive than converting the entire machine to an AC motor system.

This can reduce changes to:

• Motor mounting
• Mechanical couplings
• Gearboxes
• Motor cabling
• Control logic
• Feedback devices
• Speed-control architecture
• Production settings
• Operator procedures

19. Maintenance Advantages

The drive provides a structured parameter-based control system that allows technicians to configure motor operating characteristics according to the application.

For maintenance teams, this can simplify troubleshooting because the drive can provide useful information about operating conditions and faults.

Important maintenance checks include:

• Input voltage
• DC output current
• Motor field current
• Motor armature current
• Cooling airflow
• Cabinet temperature
• Electrical connections
• Feedback wiring
• Motor brushes and commutator
• Field circuit
• Control wiring

20. Application Matching Guide

21. When to Choose the Non-Regenerative Model

The 20P21AD010RA0NNN is a good choice when:

• The motor is a suitable DC motor.
• The motor is approximately 5 HP.
• The required output current is within the 10 A rating.
• The incoming supply is compatible with 380–480 VAC three-phase power.
• Regenerative operation is not required.
• The machine mainly operates in the motoring region.
• A compact Frame A installation is desired.
• No integrated HIM is required.
• No communication module is required in the basic configuration.

22. When to Choose a Regenerative Model Instead

A regenerative drive should be considered when:

• The load frequently drives the motor.
• The machine has significant stored mechanical energy.
• Rapid deceleration is required.
• Regenerative energy needs to be returned to the AC supply.
• The motor frequently changes between motoring and braking.
• The application requires true four-quadrant operation.

Typical examples include certain:

• Winders
• Unwinders
• Hoists
• Elevators
• Test stands
• High-inertia machines
• Tension-control systems

In these applications, selecting a non-regenerative drive simply because the horsepower and current match may result in an unsuitable system.

23. Product Strengths Summary

24. Important Replacement Considerations

When replacing an existing 20P21AD010RA0NNN, do not select a replacement based only on horsepower.

The following parameters should be checked first:

25. Final Product Evaluation

The 20P21AD010RA0NNN is a 5 HP, 10 A, 460 VAC-class non-regenerative DC drive intended for industrial DC motor applications.

Its most important characteristics are the 10 A DC output, 380–480 VAC three-phase input, two-quadrant non-regenerative operation, Frame A construction, IP20 / NEMA/UL Type Open enclosure, conformal coating, regulated field supply, and blank-plate/no-HIM configuration.

It is particularly suitable for existing industrial machines where the DC motor remains mechanically and electrically appropriate and where the objective is to maintain controlled DC motor operation without redesigning the complete machine.

For a straightforward replacement, the closest same-family candidates are the other 20P21AD models with different current and horsepower ratings. For applications requiring regeneration, the corresponding 20P41AD regenerative family should be evaluated.

For modernization, newer AC drive families can provide a more compact physical package and different control/network capabilities, but they are not direct replacements for a DC drive. Converting an existing DC motor system to an AC drive normally requires a compatible AC motor and changes to the electrical and mechanical design.

The 20P21AD010RA0NNN is therefore best viewed as a specialized industrial DC motor-control solution rather than a conventional AC frequency inverter.

For purchasing or engineering replacement purposes, the most important values to verify are 10 A output current, 5 HP / 3.7 kW rating, 460 VAC nominal three-phase input, non-regenerative operation, Frame A, IP20 enclosure, approximately 279 × 381 × 279 mm dimensions, and approximately 11.3 kg weight.
