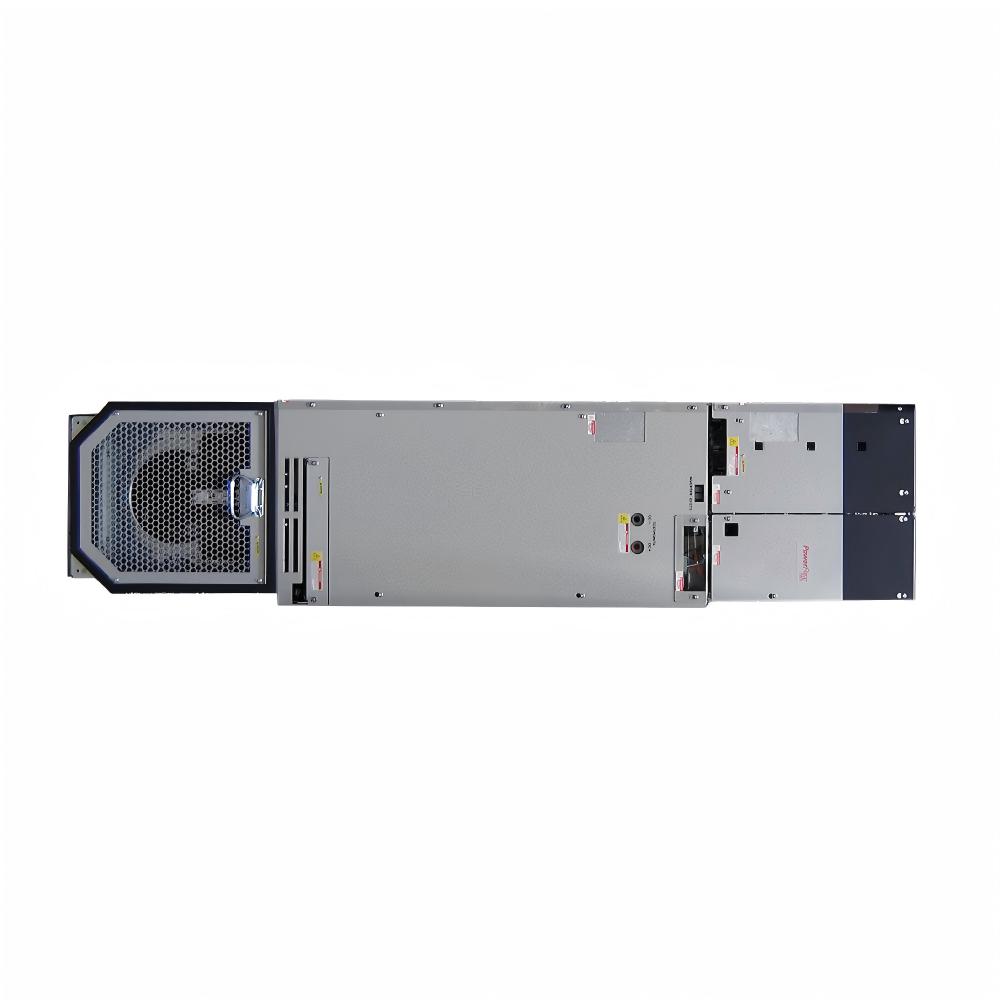

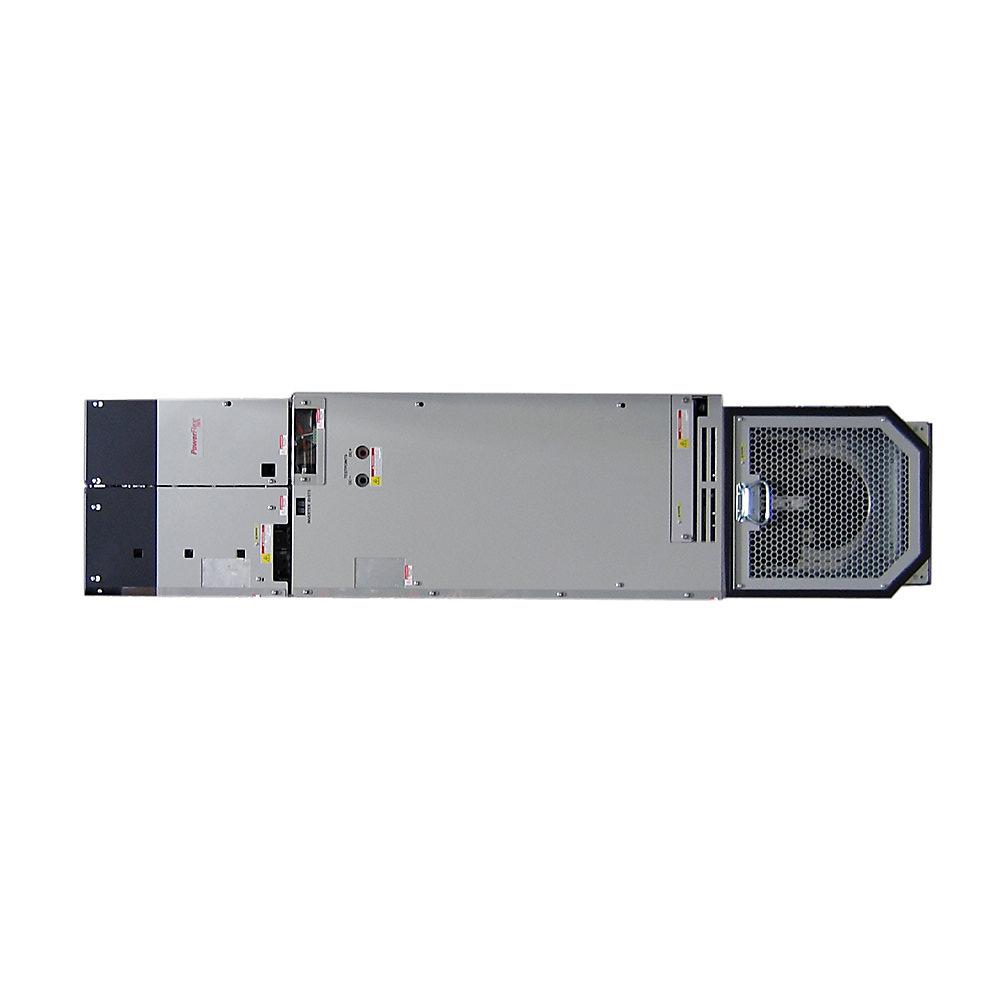

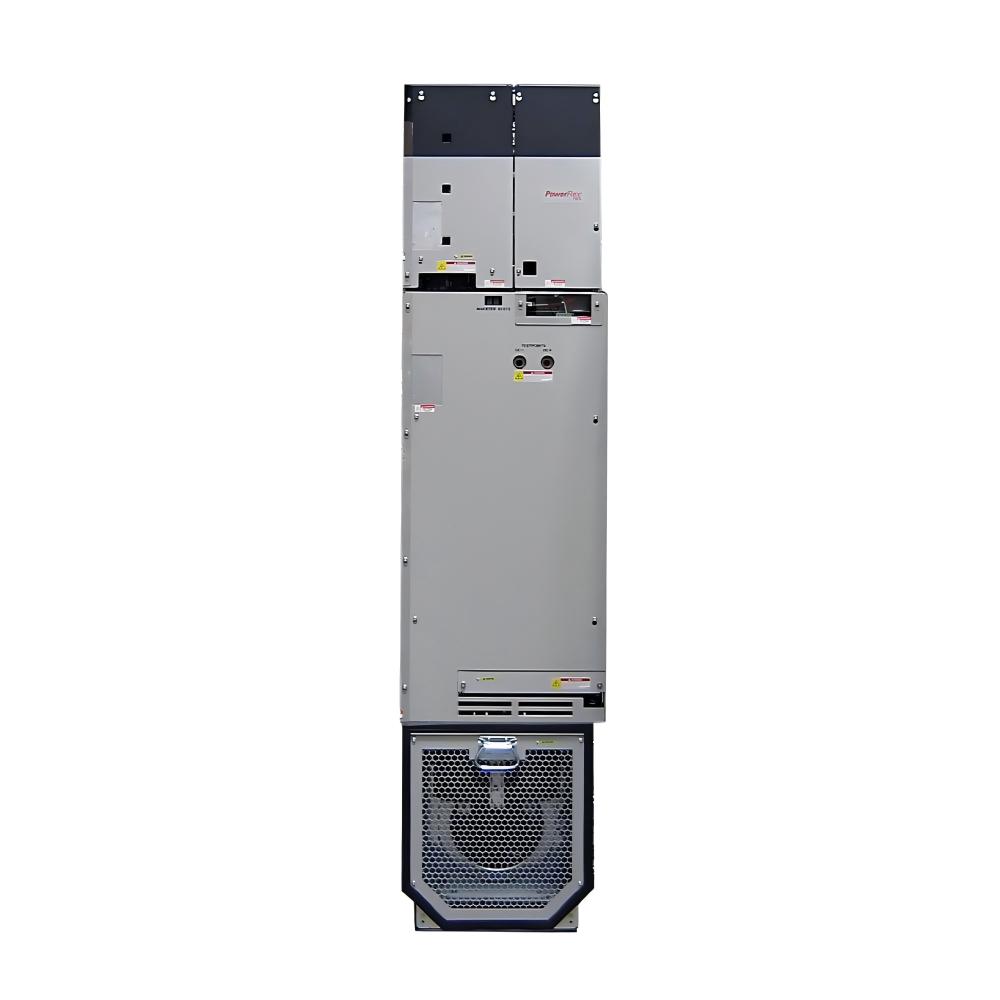

Allen-Bradley 20G1ABC770JN0NNNNN PowerFlex 755 AC Drive — Detailed Product Overview

1. Product Identification

The 20G1ABC770JN0NNNNN is an Allen-Bradley PowerFlex 755 air-cooled AC drive designed for high-power industrial motor control applications.

It belongs to the PowerFlex 750-Series architecture and is configured as a high-power, floor-standing, Frame 8 drive. The unit is intended for applications where conventional compact variable-frequency drives are no longer sufficient because of motor power, current, mechanical load, process control requirements, or continuous-duty operating conditions.

The drive is designed for three-phase AC power systems around the 400 V class and provides a Normal Duty rating of 770 A / 400 kW and a Heavy Duty rating of approximately 642 A / 355 kW.

Its configuration includes an integrated EtherNet/IP interface, air cooling, IP20 / Type 1 enclosure construction, input precharge, filtering with CM jumper configuration, and no built-in dynamic braking function.

2. Basic Product Information

3. Product Description

The 20G1ABC770JN0NNNNN is a high-power PowerFlex 755 AC drive intended for industrial motor applications requiring substantial output current and stable speed, torque, and process control.

The most important characteristic of this model is its high-current capability. With a Normal Duty rating of approximately 770 A and a Normal Duty power rating of 400 kW, it is positioned well above the typical compact-drive range and is suitable for large motors used in demanding industrial systems.

The drive uses a Frame 8 construction and a floor-standing MCC-style configuration. Its 600 mm cabinet depth makes it suitable for large industrial electrical rooms and motor-control lineups where a more substantial enclosure and ventilation arrangement are acceptable.

The air-cooled design uses forced ventilation to remove heat generated by the power semiconductor section during operation. This arrangement is particularly appropriate for large motor-drive installations where high output power results in significant heat generation.

The unit also incorporates an embedded EtherNet/IP communication interface. This allows the drive to be integrated into an industrial control architecture without necessarily requiring a separate external communication gateway.

The 20G1ABC770JN0NNNNN is supplied without a built-in HIM display. This configuration can be useful where the drive is expected to be controlled and monitored primarily through a plant control system, PLC, HMI, SCADA system, or industrial Ethernet network.

4. Detailed Electrical Parameters

5. Mechanical Parameters

For a drive of this power level, the physical installation requirements are considerably different from those of a small wall-mounted VFD. The Frame 8 construction is intended for floor-standing installation, with the drive occupying substantial electrical-room space.

The approximate dimensions of 2102 × 606 × 600 mm and approximate weight of 623 kg should be treated as installation-planning values rather than shipping-package dimensions. Actual shipping weight, auxiliary cabinet arrangements, disconnect equipment, option assemblies, and installation accessories can change the overall footprint and mass.

6. Communication and Control

One of the useful features of the PowerFlex 755 architecture is its ability to operate as part of a larger automation system rather than functioning only as a stand-alone speed controller.

The 20G1ABC770JN0NNNNN includes embedded EtherNet/IP communication. This makes it possible to exchange drive status, command references, speed information, fault information, diagnostic information, and other operating data with a compatible industrial control system.

The communication architecture is particularly useful for plants that already use Ethernet-based automation networks.

7. Product Advantages

7.1 High-Power Motor Control

The biggest advantage of the 20G1ABC770JN0NNNNN is its ability to control large industrial motors.

A 770 A Normal Duty rating and 400 kW Normal Duty power rating place this drive in the high-capacity industrial-drive category. It is suitable for large pumps, fans, conveyors and other machines that require considerably more power than standard small and medium-size VFDs can provide.

For applications with demanding mechanical loads, the Heavy Duty rating of approximately 355 kW provides a substantial operating capability.

7.2 Flexible Motor Control

The PowerFlex 755 platform is designed to support multiple motor-control strategies.

Depending on the application and motor configuration, users can employ V/Hz control, sensorless vector control, or more advanced flux-vector-based control.

This flexibility allows the same drive platform to be used for relatively straightforward variable-speed applications as well as applications where improved torque response and speed regulation are important.

7.3 Built-In EtherNet/IP Connectivity

The integrated EtherNet/IP interface reduces the need for a separate communication interface for standard Ethernet-based industrial control systems.

This is particularly useful in automated production environments where drives are expected to exchange information continuously with PLCs and supervisory systems.

Operators can monitor drive status, command operation, identify faults, and collect operating information through the control network.

7.4 Advanced Diagnostics

Large industrial drives can cause significant production losses if a fault occurs unexpectedly.

The PowerFlex 755 architecture provides diagnostic and protection functions intended to help identify operating problems and abnormal conditions.

This can make troubleshooting easier because drive status, faults and operating conditions can be made available to the automation system.

7.5 Flexible Option Architecture

The PowerFlex 755 uses an option-card architecture that allows communication, feedback, safety and other functions to be expanded according to the application.

Instead of requiring every installation to use exactly the same hardware configuration, the platform allows users to select appropriate options.

This is useful when a plant needs different communication networks, feedback devices, safety functions or specialized control capabilities.

7.6 Suitable for Large Industrial Systems

The Frame 8 construction and high current rating make this model suitable for centralized motor-control installations.

The 600 mm deep MCC-style arrangement can be integrated into larger electrical-room layouts and motor-control systems.

It is therefore better suited to industrial plants than to small standalone machinery where a compact wall-mounted inverter would be more appropriate.

7.7 Suitable for Process Applications

The drive’s combination of PID capability, network connectivity, motor-control flexibility and diagnostic functions makes it suitable for process applications.

For example, pump systems can use speed control to regulate pressure or flow, while fans can use variable speed to maintain airflow requirements.

8. Typical Applications

8.1 Large Pump Systems

The 20G1ABC770JN0NNNNN can be used for large centrifugal and process pumps.

Variable-speed control can reduce unnecessary motor operation at full speed and allow the pump to respond to changing process demand.

Typical examples include:

• Water treatment systems
• Industrial water circulation
• Cooling-water systems
• Process-fluid circulation
• Large-scale pumping stations
• Industrial utility systems

8.2 Large Fan and Blower Systems

Large industrial fans and blowers frequently require substantial motor power.

The drive can regulate motor speed according to ventilation, airflow or process requirements.

Typical applications include:

• Industrial ventilation
• Furnace air systems
• Dust collection
• Process exhaust
• Cooling systems
• Large air-handling systems

8.3 Conveyor Systems

Large conveyors can require high starting torque and stable speed control.

The PowerFlex 755 platform provides control functions that can be useful for conveyors in:

• Mining
• Material handling
• Cement production
• Steel production
• Bulk-material transport
• Manufacturing plants

For demanding conveyor applications, correct motor sizing and control-mode selection are particularly important.

8.4 Compressors

Large compressors can benefit from variable-speed control when the process requires changes in capacity.

The drive can provide controlled motor acceleration, speed regulation and monitoring.

Typical applications include industrial air systems and process-compression equipment.

8.5 Heavy Industrial Machinery

The drive can also be applied to large mechanical systems where motor speed and torque must be controlled precisely.

Potential applications include:

• Material-processing machinery
• Large mixers
• Extrusion systems
• Industrial production lines
• Heavy-duty machinery
• Process equipment

9. Recommended Models from the Same Series or Closely Related Range

The following models are useful comparison candidates when selecting an alternative to the 20G1ABC770JN0NNNNN. The exact suitability depends on voltage, motor power, duty cycle, enclosure, cooling method and required options.

Comparison Table

Important: The comparison models above are intended as selection references within the same PowerFlex 755 high-power family. Their complete catalog numbers can differ by input voltage, enclosure, braking, filtering, HIM, options and other configuration characters. The full ordering code should therefore be checked before substitution.

10. Five Popular Allen-Bradley Models for Comparison

For a broader comparison, the following five models represent commonly selected Allen-Bradley drive families covering different power ranges and application requirements.

Popular-Model Parameter Comparison

11. Why the 20G1ABC770JN0NNNNN Is Different from Smaller Drives

The 20G1ABC770JN0NNNNN should not be considered simply a larger version of a small general-purpose inverter.

Its 400 kW Normal Duty rating and 770 A output current place it in a different class of industrial equipment.

A drive at this power level requires careful consideration of:

• Incoming power capacity
• Short-circuit protection
• Motor cable selection
• Grounding
• Harmonic considerations
• Cabinet ventilation
• Heat dissipation
• Installation clearances
• Motor insulation
• Protective coordination
• Maintenance access
• Emergency-stop architecture
• Safety requirements
• Communication architecture

The physical weight of approximately 623 kg also means that mechanical handling and floor-loading requirements should be considered during installation planning.

12. Installation Considerations

Because the drive is a large Frame 8 unit, installation planning should be completed before the equipment arrives.

The approximately 2102 mm height means that the available electrical-room ceiling height and cabinet transportation route should be checked.

The approximate 600 mm depth also needs to be considered when arranging the MCC or electrical-room layout.

Ventilation is particularly important because the drive dissipates a significant amount of heat during operation.

The forced-air cooling system needs sufficient airflow and appropriate ambient conditions. Filters, cooling fans and ventilation passages should be maintained regularly.

The drive should also be installed in an environment compatible with its IP20 / Type 1 construction. It is not intended to be treated as a fully sealed outdoor drive.

13. Maintenance Advantages

The modular architecture of the PowerFlex 755 family can simplify maintenance compared with completely integrated, non-expandable drive designs.

The drive’s diagnostic functions can help maintenance personnel identify faults and abnormal operating conditions.

For a high-power installation, preventive maintenance should normally include:

14. Product Selection Advantages

From a system-design perspective, the 20G1ABC770JN0NNNNN has several important advantages.

High Output Capacity

The 770 A Normal Duty current rating allows the drive to control very large motors without using multiple smaller drives.

High Motor Power

The 400 kW Normal Duty rating is suitable for large industrial machinery.

Flexible Control

Multiple motor-control strategies allow the drive to be adapted to different mechanical loads.

Industrial Networking

Integrated EtherNet/IP provides a straightforward path to PLC, HMI and SCADA integration.

Expandable Architecture

The option-card structure allows additional functions to be added when required.

Integrated Diagnostics

Monitoring and diagnostic functions can reduce troubleshooting time.

Process Control

PID functions are useful for applications involving pressure, flow, temperature or other process variables.

Large-Plant Compatibility

The Frame 8 floor-standing construction fits applications where high-power drives are installed as part of larger electrical systems.

15. Recommended Application Matching

16. Overall Product Assessment

The 20G1ABC770JN0NNNNN is best understood as a high-power industrial AC drive rather than a general-purpose compact inverter.

Its main strengths are its large motor-power capability, high output current, flexible motor-control functions, embedded EtherNet/IP communication, diagnostic capabilities and expandable architecture.

The 400 kW Normal Duty rating makes it particularly suitable for large industrial motors used in pumps, fans, conveyors, process machinery and other continuous-duty equipment.

The Frame 8, 600 mm deep MCC-style configuration provides a practical arrangement for large electrical installations, while the forced-air cooling system is designed to handle the heat generated by high-power operation.

Its approximately 2102 × 606 × 600 mm physical dimensions and approximately 623 kg weight should be taken seriously during system design, transportation and installation planning.

For applications that require a high-power drive with industrial networking and advanced motor-control capability, this model represents a strong solution within the PowerFlex 755 family.

For smaller motors, however, a smaller PowerFlex model would normally be more economical and easier to install. Conversely, where the motor load exceeds the 400 kW Normal Duty / 355 kW Heavy Duty capability, a higher-current configuration should be evaluated rather than simply operating this drive above its rated capacity.

17. Key Specification Summary

18. Final Recommendation

If the application requires a 400 kW-class motor drive at 400 VAC, the 20G1ABC770JN0NNNNN is a particularly strong candidate within the PowerFlex 755 family.

For applications below this power level, selecting a lower-current PowerFlex 755 configuration can reduce equipment size and installation requirements.

For applications that require substantially higher current, the larger-current PowerFlex 755 configurations should be evaluated.

For general machinery with considerably smaller motors, the PowerFlex 525 or PowerFlex 527 family is generally a more appropriate direction because the equipment is more compact and better matched to lower-power applications.

In practical terms, the 20G1ABC770JN0NNNNN is most suitable when the project prioritizes large motor capacity, reliable speed and torque control, industrial Ethernet connectivity, diagnostics, expandable options and integration into a centralized automation system.
