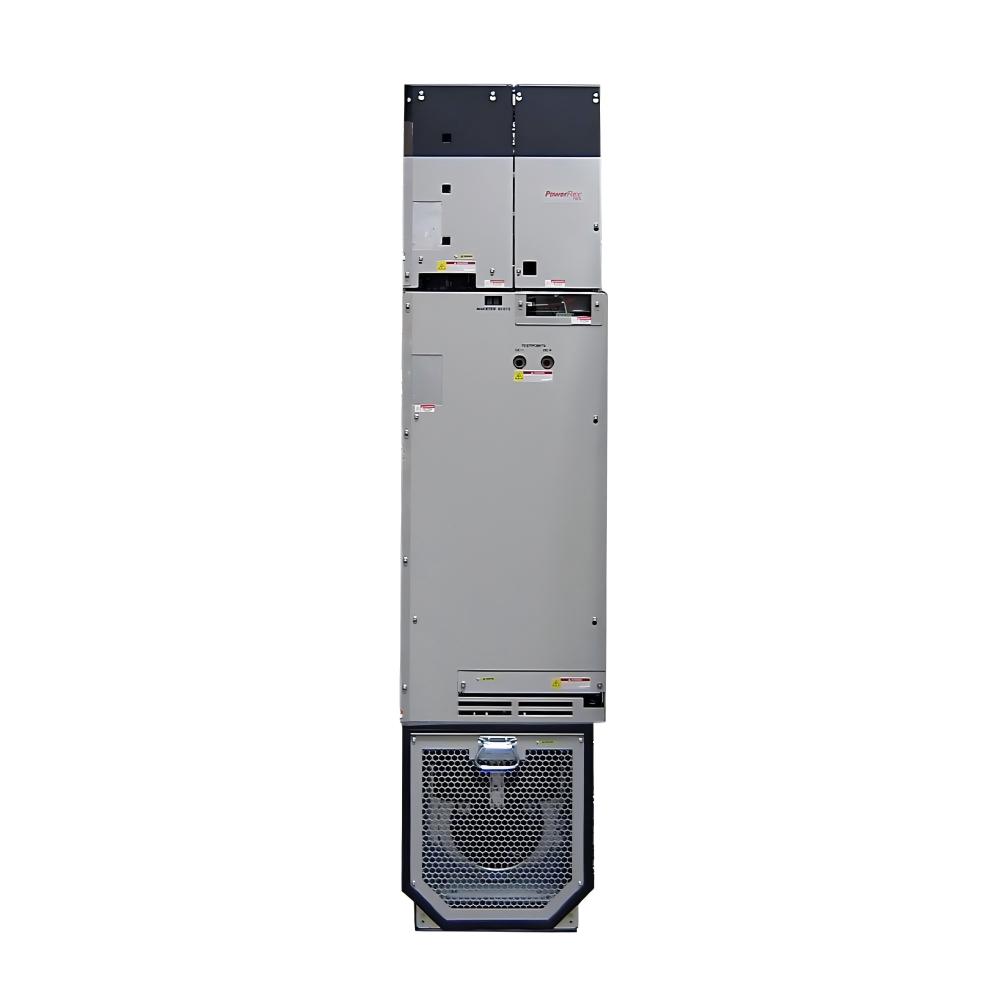

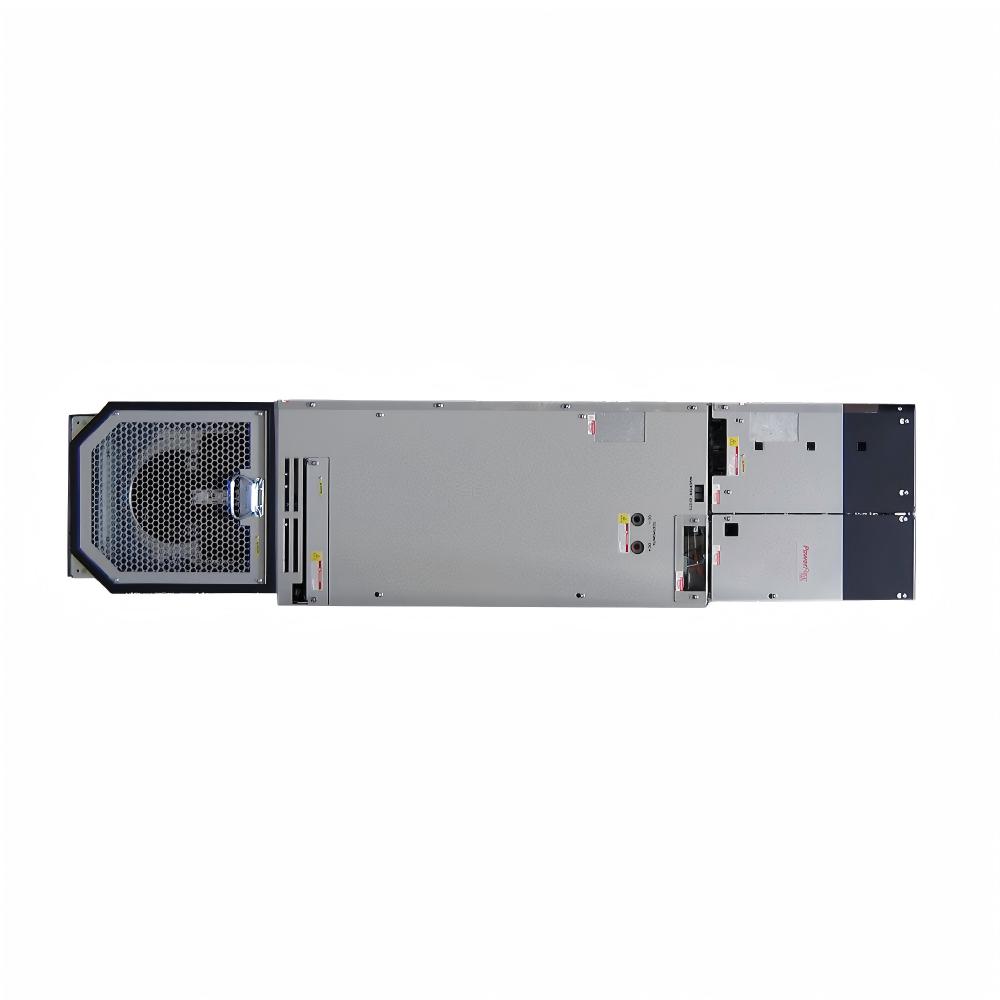

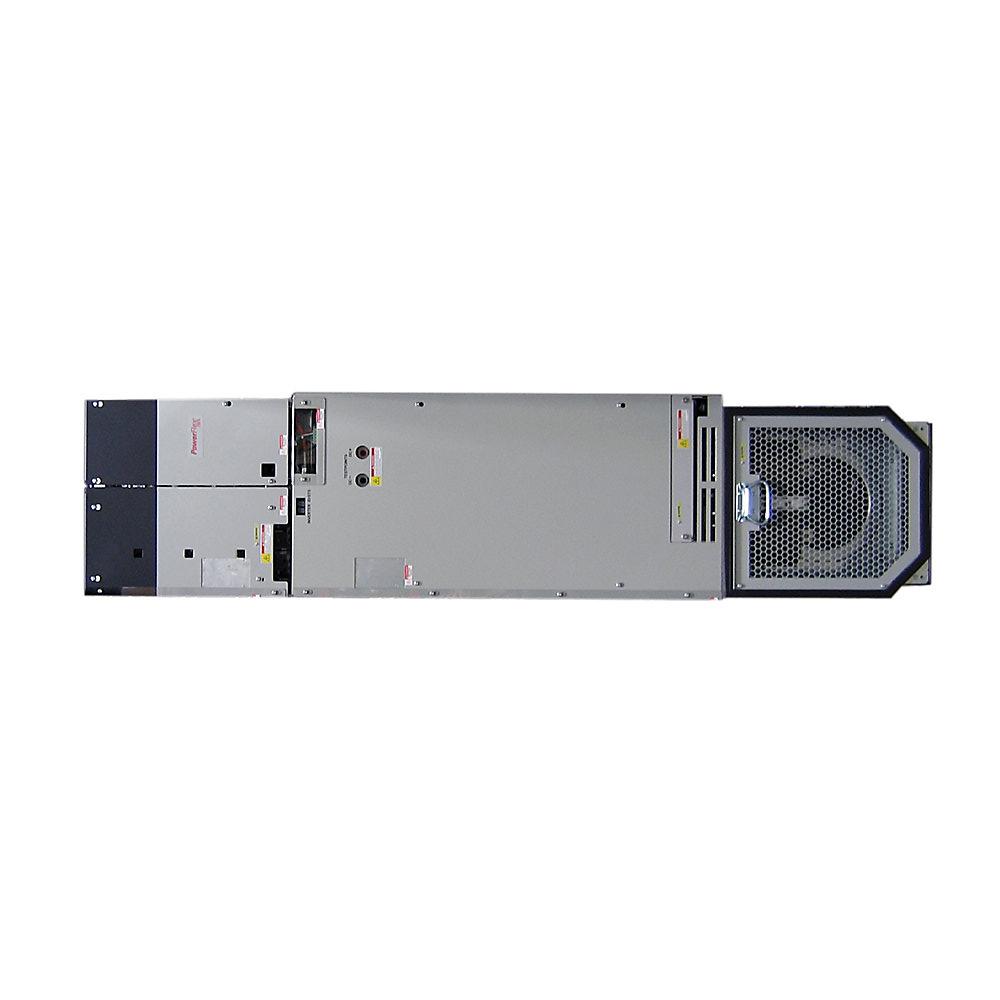

Allen-Bradley 20G14TF415JN0NNNNN PowerFlex 755 AC Drive

1. Product Overview

The Allen-Bradley 20G14TF415JN0NNNNN is a high-power PowerFlex 755 air-cooled AC drive designed for demanding industrial motor-control applications. It belongs to the PowerFlex 750 Series and is configured as a 690 VAC, three-phase, 415 A, Frame 8 drive with a DC input and precharge arrangement.

This configuration is intended for large motors and high-capacity industrial equipment where precise speed regulation, controlled acceleration and deceleration, reliable motor operation, and integration with an industrial automation system are important.

The drive is specified for 400 kW Normal Duty (ND) and 355 kW Heavy Duty (HD) operation at the 415 A class. The same product family also provides higher and lower current ratings, making it possible to select a drive according to motor size, load profile, overload requirements, and installation architecture.

The 20G14TF415JN0NNNNN uses a DC input with precharge rather than being a conventional standalone AC-input configuration. This makes it particularly suitable for DC-bus and common-bus systems where the drive is incorporated into a larger power architecture.

The product is air cooled and uses an open-type construction. Because this is a large Frame 8 drive, installation planning should take into account cabinet arrangement, ventilation, power-cable routing, maintenance access, lifting or rollout requirements, and the available electrical infrastructure.

The product family is also designed to support sophisticated industrial automation architectures, including networked drive control and integration with plant-level control systems.

---

2. Brand and Product Family

Item	Description
Brand	Allen-Bradley
Product Family	PowerFlex 750 Series
Product Series	PowerFlex 755
Product Type	Air-Cooled AC Drive
Catalog Number	20G14TF415JN0NNNNN
Drive Class	High-Power Industrial AC Drive
Installation Type	Open Type
Cooling Method	Forced-Air / Air-Cooled
Frame	Frame 8
Phase	Three Phase
Voltage Class	690 VAC
Current Class	415 A
Input Arrangement	DC Input with Precharge
Normal-Duty Rating	400 kW
Heavy-Duty Rating	355 kW
Dynamic Braking	None
HIM	Blank / No HIM
Filtering	Filtered configuration
CM Capacitor Jumper	Installed
Product Sub-Brand	755 AC Packaged Drive, PowerFlex

The catalog configuration is identified as an air-cooled PowerFlex 755 drive with DC input and precharge, Frame 8 construction, 415 A current rating, 690 VAC three-phase system class, 400 kW Normal Duty capability, and 355 kW Heavy Duty capability.

---

3. Main Technical Parameters

Parameter	Specification
Model	20G14TF415JN0NNNNN
Brand	Allen-Bradley
Series	PowerFlex 755
Product Family	PowerFlex 750 Series
Drive Type	Air-Cooled AC Drive
Rated Voltage Class	690 VAC
Phase	3 Phase
Current Rating	415 A
Normal Duty Output	400 kW
Heavy Duty Output	355 kW
Input Type	DC Input with Precharge
Nominal DC Bus Class	Approximately 932 VDC
Frame Size	Frame 8
Enclosure	Open Type
Cooling	Forced Air / Air Cooled
Dynamic Braking	None
Filtering	Filtered
CM Capacitor Jumper	Installed
HIM	Blank / No HIM
Embedded Network Capability	EtherNet/IP capable configuration
Typical Motor-Control Role	Variable-speed motor control
Mounting	Cabinet / panel installation
Dimensions	Configuration-dependent
Width	Configuration-dependent
Height	Configuration-dependent
Depth	Configuration-dependent
Weight	Configuration-dependent kg
Shipping Weight	Configuration-dependent kg
Recommended Application Class	High-power industrial machinery
Typical Duty	Continuous industrial operation

The 690 VAC figure represents the drive’s voltage class and motor/system application class. The TF configuration is associated with a high-voltage DC-input/common-bus architecture, so it should not be interpreted as a conventional 690 VAC line-input drive without considering the complete system configuration.

---

4. Current and Power Rating

The 415 A rating places the 20G14TF415JN0NNNNN toward the higher-power end of the PowerFlex 755 family.

Its principal ratings are:

Duty Rating	Current	Power
Light Duty	460 A	450 kW
Normal Duty	415 A	400 kW
Heavy Duty	370 A	355 kW

The distinction between Light Duty, Normal Duty, and Heavy Duty is important when selecting a drive. A motor application with relatively stable torque and modest overload requirements may be evaluated against the Normal Duty rating, while applications involving high starting torque, frequent acceleration, heavy material loads, or substantial overload requirements may need to be evaluated against the Heavy Duty rating.

For this reason, the motor nameplate rating alone should not be the only selection criterion. The actual load torque, acceleration profile, overload duration, operating speed range, ambient conditions, and duty cycle should also be considered.

The published 932 VDC common-bus data places the 415JN configuration at 460 A / 450 kW Light Duty, 415 A / 400 kW Normal Duty, and 370 A / 355 kW Heavy Duty.

---

5. Voltage and DC-Bus Configuration

The 20G14TF415JN0NNNNN belongs to the high-voltage 690 VAC / approximately 932 VDC nominal DC-bus class of the PowerFlex 755 family.

One of the most important characteristics of this catalog configuration is its DC input with precharge arrangement.

Instead of treating the drive simply as a standard line-powered AC frequency converter, this type of configuration is particularly useful when several drives are incorporated into a common DC-bus architecture.

A common-bus arrangement can be valuable in large industrial systems because the DC bus can be shared between multiple drive sections, depending on the overall system design.

This architecture is particularly relevant to large machinery and process systems where several high-power motors operate together and where the electrical system has been engineered around a shared DC bus.

Because of the high DC voltage involved, the DC input section, precharge circuit, disconnecting equipment, bus protection, grounding, and discharge requirements must be designed as part of the complete electrical system.

---

6. Frame 8 Construction

The 20G14TF415JN0NNNNN uses a Frame 8 configuration.

Frame 8 is intended for large-power drive applications and is substantially different from the smaller PowerFlex frames typically used for low- and medium-power motors.

The physical installation therefore requires more planning than a compact panel-mounted drive.

Particular attention should be given to:

• Cabinet dimensions.
• Cable entry and termination.
• Airflow clearance.
• Heat dissipation.
• Power-bus arrangement.
• DC-bus wiring.
• Grounding.
• Maintenance clearance.
• Access to cooling components.
• Mechanical handling during installation.

For large Frame 8 through Frame 10 installations, suitable handling equipment or a rollout arrangement may be required during cabinet installation and power-wiring work.

---

7. Dimensions and Weight

Because the exact physical dimensions can depend on the final mechanical configuration, mounting arrangement, option configuration, and packaging method, it is preferable not to insert an estimated measurement into a technical specification table.

Physical Parameter	Specification
Frame	Frame 8
Overall Width	Configuration-dependent
Overall Height	Configuration-dependent
Overall Depth	Configuration-dependent
Mounting Footprint	Configuration-dependent
Clearance Requirements	Configuration-dependent
Installed Weight	Configuration-dependent kg
Shipping Weight	Configuration-dependent kg
Handling Equipment	May be required for Frame 8 installation

For engineering, panel fabrication, transportation, and lifting calculations, the exact dimension drawing and product-specific mechanical documentation should be used rather than relying on a generic Frame 8 estimate.

This approach is especially important for high-power equipment because cabinet depth, cable routing, option assemblies, and mechanical accessories can affect the final installation envelope.

---

8. Input and Precharge Function

The DC In w/ Prchg configuration means that the drive incorporates a precharge arrangement for the DC bus.

Precharge is important in a high-power drive because the DC-link capacitors represent a significant electrical load when initially energized.

A properly designed precharge sequence limits the initial charging current and allows the DC bus to rise in a controlled manner before normal operation.

For a high-power common-bus installation, the precharge function forms part of the overall power-management architecture and should be coordinated with upstream disconnects, fusing, bus protection, and the common DC supply.

This configuration is therefore more appropriate for engineered industrial power systems than for simple plug-and-play motor-control installations.

---

9. Filtering and CM Capacitor Configuration

The J configuration in the catalog number corresponds to the installed filtering and common-mode capacitor jumper configuration.

For the 20G14TF415JN0NNNNN, the specified configuration is Filtered, CM Jumper Installed.

Filtering is important in industrial environments where electromagnetic compatibility, conducted electrical noise, and interaction with other electrical equipment must be controlled.

The final suitability of the filter configuration should still be evaluated against the complete installation, including motor-cable length, cable shielding, grounding, nearby instrumentation, PLC equipment, communication networks, and other sensitive electrical devices.

---

10. Human Interface Module

The catalog configuration is supplied with a blank / no HIM arrangement.

This means the drive does not rely on a permanently installed local operator interface for its normal operation.

For large industrial systems, this can be advantageous when the drive is controlled primarily through a PLC, DCS, SCADA system, network interface, or centralized operator station.

A local interface can still be provided when required by the application, but the final operator-interface arrangement should be considered during system design.

---

11. Dynamic Braking

The 20G14TF415JN0NNNNN is specified with no dynamic braking.

This is an important selection point for applications with substantial regenerative energy.

If the driven load frequently decelerates rapidly, has high inertia, or tends to drive the motor above synchronous operating conditions, the system designer should evaluate whether a braking or regenerative solution is required.

Typical examples that deserve special attention include:

• Large centrifuges.
• High-inertia fans.
• Long conveyors.
• Hoisting systems.
• Large unwinders and winders.
• Rapid cycling machinery.
• Heavy material-handling systems.

The absence of an integrated dynamic-braking configuration does not automatically prevent such applications, but it means the braking-energy strategy must be considered separately.

---

12. Network and Automation Integration

PowerFlex 755 drives are designed for integration into industrial automation architectures.

In applications using EtherNet/IP-based control, the drive can be incorporated into a plant network for purposes such as:

• Start and stop commands.
• Speed reference.
• Torque reference.
• Status monitoring.
• Fault monitoring.
• Parameter access.
• Diagnostic information.
• Drive health monitoring.
• Production data collection.
• Integration with PLC-based control systems.

This is particularly useful in large installations where a drive may be located several hundred meters from the main operator station or where multiple drives must be managed as part of one coordinated production process.

---

13. Product Introduction

The Allen-Bradley 20G14TF415JN0NNNNN PowerFlex 755 is best understood as a high-power industrial drive for applications where a conventional small or medium-size VFD would not provide sufficient current or power capability.

Its 415 A class, 400 kW Normal Duty rating, 355 kW Heavy Duty rating, 690 VAC system class, Frame 8 construction, and DC-input/precharge architecture place it firmly in the large industrial drive category.

The product is especially suitable for large motors used in continuous-process equipment, heavy material handling, mining machinery, large fans, pumps, compressors, conveyors, and other industrial machines.

One of its key strengths is that the PowerFlex 755 platform provides a broad range of drive-control capabilities while allowing the physical drive rating to be selected according to the motor and application requirements.

For an engineering team, this means the drive can be considered not simply as a frequency converter but as one component of a larger motor-control and automation system.

---

14. Main Product Advantages

14.1 High-Power Capability

The 415 A class provides substantial current capacity for large industrial motors.

With a 400 kW Normal Duty rating and 355 kW Heavy Duty rating, the drive is suitable for applications where both high continuous output and significant motor-control capability are required.

---

14.2 Suitable for Common-Bus Systems

The DC-input architecture is a major advantage in engineered systems using a common DC bus.

A common-bus arrangement can simplify the overall electrical architecture of a multi-drive machine and may allow energy to be exchanged between drive sections, depending on the system design.

This can be particularly useful in large production lines where several motors operate together.

---

14.3 Industrial-Grade Frame 8 Construction

The Frame 8 platform is designed for large-power industrial equipment.

The larger frame provides the physical and electrical capacity required for high-current operation while supporting engineered cabinet installations.

---

14.4 Air-Cooled Design

The forced-air cooling system is practical for many industrial installations.

Air cooling avoids the complexity of a liquid-cooling system and can simplify maintenance in plants where conventional industrial ventilation and cabinet cooling infrastructure are already available.

The actual thermal performance still depends on ambient temperature, enclosure design, airflow, installation clearance, and maintenance condition.

---

14.5 Flexible Duty Selection

The separate Light Duty, Normal Duty, and Heavy Duty ratings make the PowerFlex 755 family easier to match to different load profiles.

This is important because two motors with similar horsepower can have very different drive requirements.

A conveyor carrying heavy material, for example, may have significantly different overload requirements from a centrifugal fan.

---

14.6 Industrial Network Integration

The PowerFlex 755 platform is well suited to networked industrial automation.

This allows the drive to become part of the wider control architecture rather than operating as an isolated motor controller.

---

14.7 High-Voltage Industrial Applications

The 690 VAC class makes this product appropriate for applications where large motor power must be transmitted at higher voltage.

Higher-voltage motor systems can reduce current compared with equivalent lower-voltage systems, which can be advantageous for large industrial installations.

---

14.8 Suitable for Large Continuous Processes

The combination of high current, high power, forced-air cooling, and industrial automation compatibility makes this drive particularly appropriate for continuous-process applications.

It can be considered for systems where the motor must run for long periods and where stable speed control is more important than simple on/off operation.

---

15. Typical Applications

15.1 Conveyors

Large conveyors are one of the most natural applications for a high-power PowerFlex 755 drive.

The drive can control conveyor speed smoothly, reduce mechanical shock during starting and stopping, and provide controlled acceleration.

This is useful in mining, aggregate handling, cement plants, ports, warehouses, and heavy manufacturing.

---

15.2 Mining Equipment

Mining applications often require large motors and high torque.

Possible applications include:

• Ore conveyors.
• Crushers.
• Feed systems.
• Large fans.
• Material handling equipment.
• Processing equipment.

The drive’s high-power capability and common-bus architecture make it suitable for engineered mining systems.

---

15.3 Cement Plants

Large cement facilities use high-power motors throughout the production process.

Potential applications include:

• Raw-material conveyors.
• Fans.
• Mills.
• Crushers.
• Material handling systems.
• Process pumps.

The drive’s ability to control motor speed can improve process stability and reduce mechanical stress.

---

15.4 Pumps

Large industrial pumps can benefit from variable-speed control.

Instead of running a motor continuously at full speed and controlling flow primarily through throttling, variable-frequency control can allow motor speed to be adjusted according to process demand.

This can improve process control and, under suitable operating conditions, reduce energy consumption.

---

15.5 Large Fans and Blowers

Large fans frequently operate for long periods.

Speed control can be used to match airflow to actual process demand.

This can be useful in:

• Industrial ventilation.
• Furnace systems.
• Dust collection.
• Process cooling.
• Mining ventilation.
• Cement production.
• Power and utility plants.

---

15.6 Compressors

Large compressors require carefully controlled motor operation.

A high-power drive can provide controlled acceleration and speed adjustment while allowing the compressor to be integrated into an automated process-control system.

---

15.7 Material Handling

The drive can be considered for high-capacity material-handling equipment such as:

• Belt conveyors.
• Bulk material systems.
• Transfer equipment.
• Processing lines.
• Large production machinery.

Precise acceleration and deceleration can reduce stress on mechanical components and transported materials.

---

15.8 Heavy Manufacturing

Large manufacturing machines can use high-power variable-speed drives for applications where fixed-speed motor control would be too restrictive.

The PowerFlex 755 platform is particularly useful when the motor needs to be coordinated with other production equipment.

---

16. Application Selection Considerations

Before selecting the 20G14TF415JN0NNNNN, the following factors should be reviewed.

Selection Item	Recommended Check
Motor Voltage	Confirm compatibility with the 690 VAC motor/system class
Motor Current	Compare motor full-load current with the selected duty rating
Motor Power	Confirm against ND and HD requirements
Load Type	Constant torque, variable torque, or another load profile
Starting Torque	Determine required starting and acceleration torque
Overload	Determine duration and frequency of overload
Speed Range	Confirm required minimum and maximum motor speed
Braking	Determine whether external braking or regeneration is required
DC Bus	Confirm common-bus voltage and system compatibility
Precharge	Verify complete system precharge arrangement
Cooling	Confirm cabinet ventilation and ambient temperature
Cable Length	Evaluate motor-cable effects and EMC requirements
Network	Confirm required industrial communication architecture
Cabinet	Confirm Frame 8 mechanical requirements
Maintenance	Provide sufficient service access
Environment	Check dust, humidity, temperature, vibration, and altitude
Grounding	Confirm the grounding design for the complete installation

---

17. Recommended Same-Series Models

The following models are closely related to the 20G14TF415JN0NNNNN and belong to the same high-power PowerFlex 755 / TF configuration family.

Model	Voltage Class	Current Class	Light Duty	Normal Duty	Heavy Duty	Frame
20G14TF265JN0NNNNN	690 VAC / 932 VDC class	265 A	315 kW	250 kW	200 kW	Frame 8
20G14TF330JN0NNNNN	690 VAC / 932 VDC class	330 A	355 kW	315 kW	250 kW	Frame 8
20G14TF370JN0NNNNN	690 VAC / 932 VDC class	370 A	400 kW	355 kW	300 kW	Frame 8
20G14TF415JN0NNNNN	690 VAC / 932 VDC class	415 A	450 kW	400 kW	355 kW	Frame 8
20G14TF460JN0NNNNN	690 VAC / 932 VDC class	460 A	500 kW	450 kW	375 kW	Frame 8
20G14TF500JN0NNNNN	690 VAC / 932 VDC class	500 A	530 kW	500 kW	400 kW	Frame 8

The published common-bus data confirms the progression from the 265 A through 500 A configurations and their corresponding Light Duty, Normal Duty, and Heavy Duty ratings.

---

18. Same-Series Model Comparison

Model	Current	Normal Duty	Heavy Duty	Typical Position
20G14TF265JN0NNNNN	265 A	250 kW	200 kW	Lower end of this high-power group
20G14TF330JN0NNNNN	330 A	315 kW	250 kW	Medium-high power
20G14TF370JN0NNNNN	370 A	355 kW	300 kW	High power
20G14TF415JN0NNNNN	415 A	400 kW	355 kW	High-power reference model
20G14TF460JN0NNNNN	460 A	450 kW	375 kW	Very high power
20G14TF500JN0NNNNN	500 A	500 kW	400 kW	Highest standard rating in this group

The 20G14TF415JN0NNNNN sits almost in the middle of this particular high-power range, which makes it a practical selection when a 355 kW-class Heavy Duty capacity or approximately 400 kW Normal Duty capacity is required.

---

19. Five Recommended Same-Series or Closely Related Models

1. 20G14TF370JN0NNNNN

This is a logical alternative when the application does not require the full 415 A capacity.

It provides a 370 A current class with approximately 355 kW Normal Duty and 300 kW Heavy Duty capability.

It is particularly useful when the motor is somewhat smaller but the same high-voltage DC-bus architecture is required.

---

2. 20G14TF460JN0NNNNN

This model is suitable when the 415 A configuration is not sufficient.

It increases the current class to 460 A and provides approximately 450 kW Normal Duty capability.

It can be considered for larger motors or applications requiring additional current capacity.

---

3. 20G14TF500JN0NNNNN

This is the largest standard model in the immediate TF group.

It provides approximately 500 kW Normal Duty and 400 kW Heavy Duty capability.

It is appropriate for very large industrial motors where a higher current rating is required.

---

4. 20G14TF330JN0NNNNN

This model is useful where the required motor power is lower but the application still requires the same general 690 VAC / DC-input PowerFlex 755 architecture.

Its 315 kW Normal Duty and 250 kW Heavy Duty ratings make it suitable for a broad range of high-power machinery.

---

5. 20G14TF265JN0NNNNN

This is a lower-capacity option within the same high-power family.

It can be considered when the motor load is below the 330 A and 370 A classes while the system still calls for the same general high-voltage common-bus approach.

---

20. Five Popular Allen-Bradley Models for Comparison

The following models are useful comparison products from the same brand and PowerFlex 755 platform. They are not direct replacements for the 20G14TF415JN0NNNNN; their voltage and power configurations differ.

Model	Series	Voltage Class	Current Class	General Configuration	Typical Application
20G11GD034AA0NNNNN	PowerFlex 755	480 VAC class	34 A	AC-input industrial drive	Pumps, fans, conveyors
20G11GD052AA0NNNNN	PowerFlex 755	480 VAC class	52 A	AC-input industrial drive	Machinery and process equipment
20G11GD077AA0NNNNN	PowerFlex 755	480 VAC class	77 A	AC-input industrial drive	Medium-power industrial systems
20G14TE510JN0NNNNN	PowerFlex 755	600 VAC class	510 A class	High-power DC-input configuration	Large industrial machinery
20G14TD740JN0NNNNN	PowerFlex 755	High-voltage class	740 A class	High-power DC/common-bus configuration	Very large industrial drives

These models are best viewed as comparison points across the broader PowerFlex 755 range rather than as direct one-for-one alternatives.

---

21. Popular Model Selection Comparison

Model	Best Use	Power Level	Voltage Class	Main Advantage
20G11GD034AA0NNNNN	Small/medium industrial machinery	Medium	480 VAC	Compact high-performance drive platform
20G11GD052AA0NNNNN	Medium industrial applications	Medium	480 VAC	Higher current capacity than 34 A class
20G11GD077AA0NNNNN	Medium/high-power machinery	Medium-High	480 VAC	Suitable for larger 480 VAC motors
20G14TE510JN0NNNNN	Large high-voltage equipment	Very High	600 VAC	High-current DC-input architecture
20G14TD740JN0NNNNN	Very large industrial systems	Extremely High	High-voltage class	Large current capacity for demanding applications

---

22. Advantages Compared with Smaller Drives

The 20G14TF415JN0NNNNN has several advantages when compared with smaller variable-frequency drives.

First, it can handle much larger motors without requiring multiple smaller drives to be combined simply to obtain the required current capacity.

Second, the high-voltage architecture can be beneficial in large plants because higher motor-system voltage allows high power to be transmitted with lower current than would be required at a much lower voltage.

Third, the DC-input/common-bus configuration makes it suitable for more sophisticated multi-drive systems.

Fourth, the PowerFlex 755 platform provides a consistent control architecture across a wide range of power ratings, which can simplify standardization across large industrial plants.

---

23. Advantages in Large Industrial Systems

For a large industrial installation, standardization can be as important as raw electrical performance.

Using a PowerFlex 755-based platform across multiple machines can simplify:

• Drive programming.
• Operator training.
• Spare-parts planning.
• Maintenance procedures.
• Parameter management.
• Troubleshooting.
• Network integration.
• PLC integration.
• Preventive maintenance.

A large plant may therefore benefit from using several related PowerFlex 755 configurations rather than mixing completely different drive platforms.

---

24. Maintenance Considerations

Because the 20G14TF415JN0NNNNN is a large air-cooled drive, cooling-system maintenance is important.

Dust accumulation on cooling components can reduce airflow and increase operating temperature.

A maintenance program should therefore consider:

• Cooling fan inspection.
• Airflow inspection.
• Cabinet cleanliness.
• Electrical-terminal inspection.
• DC-bus condition.
• Grounding connections.
• Motor-cable connections.
• Filter condition.
• Environmental temperature.
• Fault history.
• Drive operating hours.
• Network communication status.

The exact maintenance interval should be established according to the application environment rather than using one fixed interval for every installation.

A clean electrical room and a dusty mining environment should not be treated as equivalent operating conditions.

---

25. Installation Considerations

The installation of a Frame 8 drive should be treated as a complete engineering task rather than simply mounting the drive inside a cabinet.

Important considerations include:

1. Adequate cabinet ventilation.
2. Correct power-cable sizing.
3. Appropriate DC-bus protection.
4. Correct grounding.
5. Proper separation between power and control wiring.
6. Adequate clearance around heat-producing components.
7. Correct motor-cable installation.
8. Electromagnetic compatibility.
9. Safe access for maintenance.
10. Proper handling of the large drive assembly.
11. Correct precharge arrangement.
12. Suitable disconnecting and isolation equipment.
13. Verification of the motor nameplate data.
14. Confirmation of the required duty rating.
15. Verification of the complete control-network architecture.

---

26. Recommended Application Matching

Application	Suitability	Main Reason
Large Conveyor	Excellent	High current and controlled acceleration
Mining Conveyor	Excellent	High-power motor control
Cement Process Equipment	Excellent	Suitable for large continuous-duty motors
Large Pump	Excellent	Variable-speed process control
Large Fan	Excellent	Efficient speed regulation
Industrial Blower	Excellent	Continuous high-power operation
Compressor	Very Good	High-power motor speed control
Material Handling	Excellent	Controlled acceleration/deceleration
Heavy Manufacturing Machinery	Excellent	High-power variable-speed operation
High-Inertia Load	Application-dependent	Braking requirements must be evaluated
Regenerative Application	Application-dependent	External regeneration/braking strategy may be required
Small Motor	Not Recommended	Drive is substantially oversized

---

27. Important Difference Between Normal Duty and Heavy Duty

When evaluating the 20G14TF415JN0NNNNN, it is important not to select the drive solely by comparing motor horsepower.

For this model:

Normal Duty: approximately 400 kW

Heavy Duty: approximately 355 kW

The Heavy Duty rating is lower because heavy-duty operation generally requires greater overload capability.

For example, a conveyor with frequent acceleration and a high starting torque requirement may need to be evaluated using the Heavy Duty rating, even if its motor’s nominal power appears to fit within the Normal Duty rating.

The correct selection should therefore consider both the motor’s rated current and the actual mechanical load profile.

---

28. Overall Product Advantages Summary

Advantage	Description
High Current	415 A class
High Power	400 kW Normal Duty
Heavy-Duty Capability	355 kW Heavy Duty
High Voltage	690 VAC system class
DC-Bus Architecture	Designed for DC input/common-bus applications
Precharge	Integrated precharge configuration
Frame 8	Suitable for large industrial installations
Air Cooling	Conventional forced-air thermal management
Filtering	Filtered configuration
CM Jumper	Installed
Automation Integration	Suitable for networked industrial control
Industrial Flexibility	Supports many large-machine applications
Series Compatibility	Multiple related power ratings available
Standardization	Useful for plants using a common PowerFlex platform

---

29. Quick Technical Reference

Item	20G14TF415JN0NNNNN
Brand	Allen-Bradley
Family	PowerFlex 750 Series
Series	PowerFlex 755
Type	Air-Cooled AC Drive
Catalog Number	20G14TF415JN0NNNNN
Voltage	690 VAC class
Phase	3 Phase
Current	415 A
Light Duty	450 kW
Normal Duty	400 kW
Heavy Duty	355 kW
DC Input	Yes
Precharge	Yes
Nominal DC Bus	Approximately 932 VDC
Frame	Frame 8
Cooling	Air Cooled
Enclosure	Open Type
Filtering	Filtered
CM Jumper	Installed
Dynamic Braking	None
HIM	Blank / No HIM
Dimensions	Configuration-dependent
Weight	Configuration-dependent kg
Primary Use	Large industrial motor control

---

30. Final Product Assessment

The Allen-Bradley 20G14TF415JN0NNNNN is a high-capacity PowerFlex 755 drive aimed at large industrial motor applications.

Its 415 A current class, 400 kW Normal Duty rating, 355 kW Heavy Duty rating, 690 VAC class, Frame 8 construction, air-cooled design, and DC-input/precharge architecture make it particularly suitable for large machinery and engineered common-bus systems.

The strongest reason to choose this model is not simply its high horsepower rating. Its real value comes from the combination of high-power motor control, high-voltage operation, common-bus compatibility, industrial automation integration, and the ability to use it as part of a standardized PowerFlex 755 drive architecture.

For conveyors, mining equipment, cement machinery, large pumps, fans, compressors, material-handling systems, and heavy manufacturing equipment, it can provide a robust foundation for variable-speed motor control.

The most important selection checks are the motor’s actual full-load current, duty class, overload requirements, DC-bus voltage, braking requirements, ambient conditions, cabinet cooling, and mechanical installation requirements.

For applications around the 400 kW Normal Duty / 355 kW Heavy Duty range, the 20G14TF415JN0NNNNN is a particularly strong choice within the high-power TF family. If additional capacity is required, the 20G14TF460JN0NNNNN and 20G14TF500JN0NNNNN provide higher current and power levels; if the motor is smaller, the 20G14TF330JN0NNNNN or 20G14TF370JN0NNNNN can provide a more appropriately sized solution.

:::

If you want, I can also turn this into a more sales-oriented English product page, a technical datasheet-style version, or an SEO product description of 3,000–5,000+ words while keeping the same model and parameter structure.
