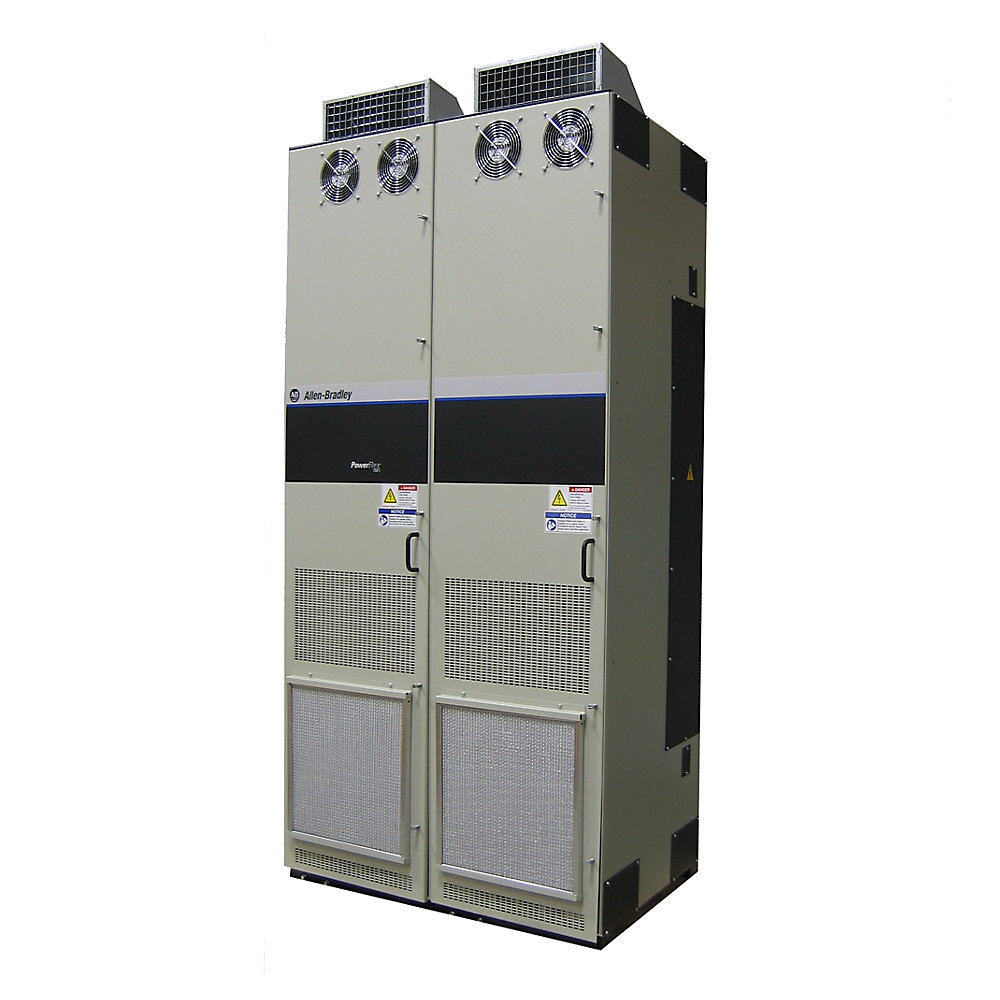

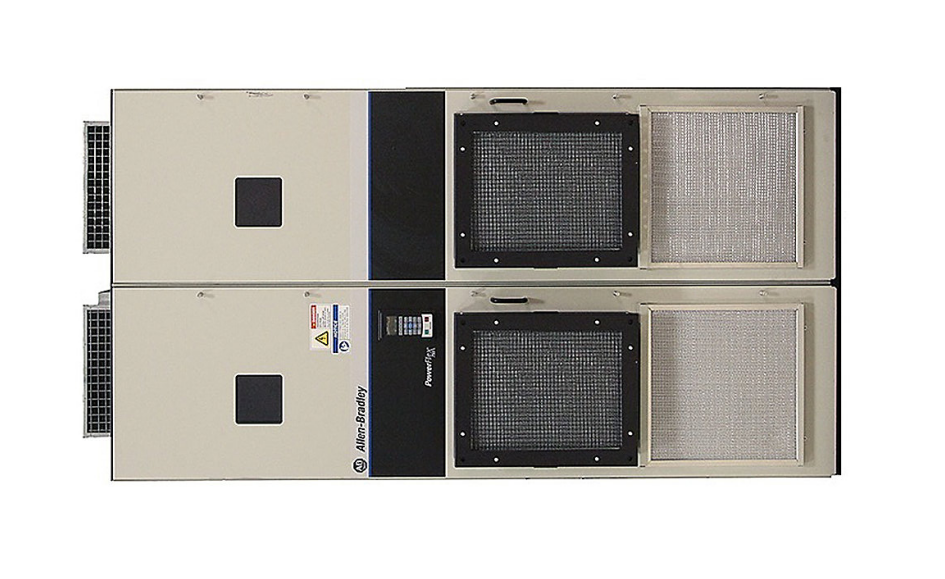

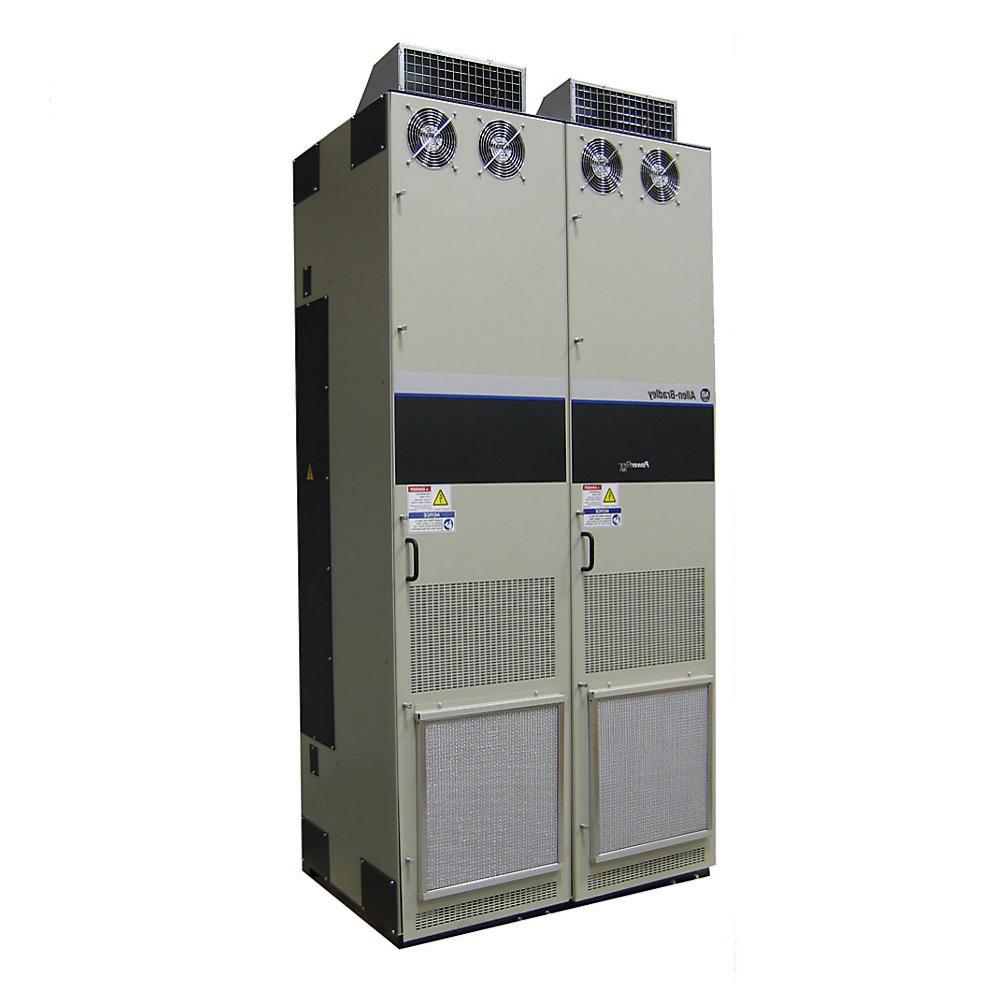

Allen-Bradley 20G11LE760AN0NNNNN – Detailed Product Introduction, Specifications, Applications, Advantages and Related Model Recommendations

1. Product Overview

The 20G11LE760AN0NNNNN is a high-power variable frequency AC drive from the Allen-Bradley PowerFlex 755 series. It is designed for demanding industrial motor-control applications where high output power, precise speed regulation, reliable operation and integration with modern industrial control systems are required.

This model is an air-cooled PowerFlex 755 AC drive with a three-phase 600 VAC input class and a rated output current of 760 A. Its power rating reaches approximately 900 HP under Light Duty (LD), 800 HP under Normal Duty (ND) and 700 HP under Heavy Duty (HD).

The drive uses an 800 mm deep MCC-style enclosure configuration, with a Frame 9 power structure. It is configured for AC input with precharge and DC terminals, includes an EMC filtering configuration, and uses a Type 1 / IP20 enclosure arrangement.

The model is particularly suitable for large industrial motors and high-power machinery where a conventional small or medium-size inverter would not provide sufficient current capacity.

It belongs to the PowerFlex 755 family, which is designed around modularity, flexible control, network integration and advanced motor-control functions.

---

2. Basic Product Identification

Item	Specification
Brand	Allen-Bradley
Product Series	PowerFlex 755
Product Family	PowerFlex 750-Series AC Drives
Model	20G11LE760AN0NNNNN
Product Type	Air-Cooled AC Variable Frequency Drive
Drive Type	High-Power Industrial AC Drive
Input Type	AC input with precharge and DC terminals
Voltage Class	600 VAC, 3-phase
Rated Output Current	760 A
Light Duty Rating	900 HP
Normal Duty Rating	800 HP
Heavy Duty Rating	700 HP
Frame	Frame 9
Cooling	Forced-air / air cooled
Enclosure	Type 1 / IP20
Installation Style	800 mm deep MCC-style configuration
EMC Filter	Filtered configuration
Dynamic Braking	None in the specified configuration
Communication	Embedded EtherNet/IP
HIM	Blank / no HIM in the specified configuration
DC Terminals	Included
Typical Application	Large industrial motor control
Product Category	Variable Frequency Drive / AC Drive

---

3. Product Description

The 20G11LE760AN0NNNNN is intended to control large three-phase AC motors by regulating the frequency and voltage supplied to the motor.

Instead of operating a motor continuously at full speed, the drive allows the motor’s operating speed and torque to be adjusted according to the actual requirements of the machine.

For large pumps, fans, compressors, conveyors, mixers, crushers and other heavy industrial equipment, this type of control can provide considerably more flexibility than direct-on-line motor starting.

The 760 A current rating places this model in the high-capacity range of industrial AC drives. The model is therefore not primarily intended for small machines or compact control panels. It is better suited to large industrial systems where substantial motor power is required.

The PowerFlex 755 architecture also allows the drive to be integrated into a larger automation system. Embedded EtherNet/IP provides a practical connection to an industrial control network, allowing operating data, commands, alarms and drive status to be exchanged with the supervisory control system.

---

4. Detailed Technical Parameters

The following table summarizes the principal technical characteristics of the specified model.

Parameter	Specification
Model	20G11LE760AN0NNNNN
Brand	Allen-Bradley
Series	PowerFlex 755
Drive Category	AC Variable Frequency Drive
Input Voltage Class	600 VAC
Phase	3-phase
Input Configuration	AC input with precharge
DC Bus Terminals	Yes
Rated Output Current	760 A
Light Duty Power	900 HP
Normal Duty Power	800 HP
Heavy Duty Power	700 HP
Approx. LD Power	671 kW
Approx. ND Power	597 kW
Approx. HD Power	522 kW
Frame Size	Frame 9
Cooling Method	Forced air / air cooled
Enclosure Rating	Type 1 / IP20
Installation Depth	800 mm
Installation Style	MCC-style
EMC Filtering	Filtered
CM Jumper	Removed in the specified AN configuration
Dynamic Braking	None
Communication	Embedded EtherNet/IP
Human Interface Module	None / blank configuration
Motor Type	Primarily three-phase AC motors
Control Application	Variable speed and torque control
Installation Environment	Industrial indoor applications
Approx. Overall Dimension	Approximately 800 mm deep; overall width and height depend on the associated cabinet/package configuration
Weight	Approximately 450 kg for the large-frame drive/package configuration; actual shipping/installed weight can vary with cabinet and option configuration
Mounting	Industrial cabinet / MCC-style installation
Typical Motor Range	Up to approximately 900 HP LD
Primary Function	Motor speed, torque and acceleration control

Important dimensional note: the 20G11LE760AN0NNNNN is a large-frame industrial drive rather than a small standalone wall-mounted inverter. The stated 800 mm dimension refers to the deep MCC-style configuration. The complete packaged unit can have additional width and height depending on the enclosure, wiring bay, disconnect/protection equipment and other selected options. For mechanical installation, the actual dimensional drawing for the exact cabinet configuration should be used.

Important weight note: the weight of a large PowerFlex 755 installation can change substantially depending on the enclosure, wiring bay, input protection, disconnect equipment and other accessories. The approximately 450 kg figure should therefore be treated as a practical reference value rather than a universal shipping weight for every configuration.

---

5. Understanding the Model Number

The catalog number 20G11LE760AN0NNNNN contains configuration information describing the drive’s electrical and mechanical characteristics.

Model Section	Meaning
20G	PowerFlex 755 AC Drive family
11	Product/configuration identifier
L	600 VAC class
E	Large-frame enclosure/application configuration
760	760 A output-current class
A	Specific configuration option
N	Option selection
0	Option/configuration position
NNNNN	Additional option selections

The most important part for identifying the electrical capacity is the 760 designation, which corresponds to the 760 A output-current class.

The 600 VAC class and Frame 9 configuration indicate that this is a substantial industrial drive designed for high-power motor applications.

---

6. Product Series – PowerFlex 755

The PowerFlex 755 is part of the PowerFlex 750-Series family of industrial AC drives.

The series is designed for applications requiring more than simple motor starting and stopping. It is intended for systems where speed control, torque control, feedback, network communication, machine integration and flexible configuration are important.

A major characteristic of the PowerFlex 755 family is its modular architecture.

Depending on the application, the drive can be configured with different feedback, communication, I/O and control options.

This makes the series appropriate for many different types of industrial machinery.

The 20G11LE760AN0NNNNN represents the high-power end of this product concept, with a 760 A output rating and very high motor-power capability.

---

7. Main Product Functions

7.1 Variable Speed Control

The primary function of the drive is to control the speed of an AC motor.

Instead of supplying the motor with a fixed-frequency power supply continuously, the drive modifies the electrical output according to the required operating speed.

This is particularly valuable in applications where the machine does not need to operate at full speed all the time.

For example, a pump may require only 60% of its maximum operating speed during part of the production process. A properly selected variable frequency drive can reduce the motor operating speed accordingly.

---

7.2 Motor Torque Control

The PowerFlex 755 platform can be used for applications requiring substantial torque control.

This is important for conveyors, hoists, processing machinery, mixers, crushers and other equipment where maintaining motor torque is important to the production process.

The 760 A capacity gives this particular model the electrical capability to support very large motors.

---

7.3 Controlled Acceleration and Deceleration

The drive can provide controlled motor acceleration and deceleration instead of allowing the motor to start or stop abruptly.

This can reduce mechanical stress on:

• Motor shafts
• Gearboxes
• Couplings
• Conveyor belts
• Pumps
• Fans
• Machine structures

Controlled acceleration can also help reduce the electrical and mechanical impact associated with large motor starting.

---

7.4 Industrial Network Integration

The specified configuration includes embedded EtherNet/IP capability.

This allows the drive to participate in an industrial automation network and exchange information with control equipment.

Typical information can include:

• Start/stop commands
• Speed references
• Current
• Frequency
• Drive status
• Fault information
• Warning information
• Motor operating conditions
• Diagnostic information

This makes the drive suitable for larger automated production systems rather than isolated motor-control applications.

---

8. Product Applications

The 20G11LE760AN0NNNNN is most appropriate for high-power industrial equipment.

8.1 Pumps

Large industrial pumps are one of the major applications for high-power variable frequency drives.

The drive can regulate pump speed according to process requirements.

Typical applications include:

• Water treatment
• Industrial water circulation
• Cooling-water systems
• Process pumps
• Mining water systems
• Chemical processing
• Power-generation auxiliary systems

Variable speed control can also help reduce unnecessary energy consumption when the process does not require maximum flow.

---

8.2 Fans and Blowers

Large fans and blowers can require hundreds of horsepower.

Typical applications include:

• Industrial ventilation
• Furnace systems
• Cement production
• Steel processing
• Mining ventilation
• Dust collection
• Process-air systems
• Large HVAC installations

The drive allows fan speed to be adjusted according to actual airflow requirements.

---

8.3 Conveyors

Large conveyors frequently require controlled acceleration and substantial torque.

Applications include:

• Mining conveyors
• Bulk-material handling
• Cement plants
• Ports
• Aggregate processing
• Warehousing
• Heavy manufacturing

The high current capability of the 760 A model makes it suitable for large conveyor drive systems.

---

8.4 Crushers

Mining and aggregate equipment can generate high mechanical loads.

Crushers can require high starting torque and substantial continuous motor power.

A high-power drive can provide controlled motor operation and can help integrate the crusher motor into a broader automated control system.

---

8.5 Mixers and Process Equipment

Large industrial mixers may require significant torque, especially during startup or when material viscosity changes.

Potential applications include:

• Chemical processing
• Cement
• Food processing
• Minerals processing
• Pulp and paper
• General process industries

---

8.6 Compressors

Large compressors can also benefit from variable speed control.

The drive can regulate motor speed according to system demand, allowing the compressor to operate more flexibly than a simple fixed-speed arrangement.

---

8.7 Material Handling

High-power material-handling equipment may require controlled speed and torque.

Examples include:

• Bulk handling systems
• Ship loading systems
• Industrial lifting machinery
• Large conveyor systems
• Processing lines

---

9. Major Product Advantages

9.1 Very High Power Capability

The biggest advantage of the 20G11LE760AN0NNNNN is its high electrical capacity.

With a 760 A output rating and a maximum listed Light Duty rating of approximately 900 HP, it is designed for very large industrial motors.

This allows one drive platform to handle applications that would be outside the practical range of smaller drives.

---

9.2 Flexible Motor Control

The PowerFlex 755 platform is designed for applications requiring more sophisticated motor control than simple speed adjustment.

This makes it suitable for machinery where speed, torque and process performance need to be coordinated.

---

9.3 Embedded EtherNet/IP

The embedded EtherNet/IP interface is an important advantage for automated production environments.

It reduces the need for a separate communication interface for many common industrial network applications.

The drive can therefore become part of a larger automation architecture.

---

9.4 Modular Architecture

The PowerFlex 755 family uses a modular approach.

This allows different applications to use different combinations of control, feedback and communication functions.

For large industrial installations, this flexibility can simplify the standardization of drive technology across multiple machines.

---

9.5 Suitable for Large Industrial Systems

The 800 mm deep MCC-style configuration makes the model particularly suitable for industrial electrical rooms and large motor-control installations.

It is not designed as a compact consumer-style inverter.

Instead, it is intended to become part of a structured industrial electrical system.

---

9.6 Controlled Starting and Stopping

Large motors can create significant mechanical stress when started directly.

Using a variable frequency drive allows acceleration and deceleration profiles to be controlled.

This can help improve machine operation and reduce unnecessary mechanical shock.

---

9.7 Potential Energy Savings

For variable-torque applications such as pumps and fans, reducing motor speed can significantly reduce power demand compared with continuously operating the motor at full speed.

The actual energy savings depend on:

• Motor efficiency
• Load profile
• Operating hours
• Required flow
• Required pressure
• System design
• Control strategy

Therefore, energy savings should be calculated according to the actual application rather than assumed solely from the drive model.

---

10. Recommended Related Models – Same Series

The following five models are closely related to the 20G11LE760AN0NNNNN and belong to the PowerFlex 755 family. They are useful alternatives when different current capacities, configurations or protection arrangements are required.

Model	Series	Voltage Class	Output Current	LD Rating	ND Rating	HD Rating	Enclosure / Configuration	Approx. Size	Weight
20G11LE630AN0NNNNN	PowerFlex 755	600 VAC	630 A	800 HP	700 HP	600 HP	Type 1 / IP20, 800 mm MCC style	800 mm deep class	Approx. 400 kg*
20G11LE710AN0NNNNN	PowerFlex 755	600 VAC	710 A	800 HP	710 HP	590 HP	Type 1 / IP20, 800 mm MCC style	800 mm deep class	Approx. 430 kg*
20G11LE760JN0NNNNN	PowerFlex 755	600 VAC	760 A	900 HP	800 HP	700 HP	Type 1 / IP20, 800 mm MCC style	800 mm deep class	Approx. 450 kg*
20G11LE765AN0NNNNN	PowerFlex 755	600 VAC	765 A	850 kW class	750 kW class	630 kW class	Type 1 / IP20, 800 mm MCC style	800 mm deep class	Approx. 450 kg*
20G11JE760AN0NNNNN	PowerFlex 755	600 VAC	760 A	900 HP	800 HP	700 HP	Type 12 / IP54, 800 mm MCC style	800 mm deep class	Approx. 500 kg*

*Weight is an approximate engineering reference. Exact installed/shipping weight can vary with enclosure, wiring bay, disconnect/protection equipment, options and cabinet configuration.

10.1 20G11LE630AN0NNNNN

This model is a logical choice when the required motor power is lower than the 760 A model.

Its 630 A current rating provides a substantial reduction in capacity while maintaining the general PowerFlex 755 architecture.

It can be considered for large pumps, fans, conveyors and process machinery where approximately 600–800 HP-class capability is sufficient.

---

10.2 20G11LE710AN0NNNNN

The 710 A version sits relatively close to the 760 A model.

It can be useful when the actual motor current falls below the 760 A requirement and a slightly lower-rated drive is preferred.

This can be a practical option for standardizing a plant around the same PowerFlex 755 family while selecting the drive according to actual motor requirements.

---

10.3 20G11LE760JN0NNNNN

This model is one of the closest alternatives to the specified 20G11LE760AN0NNNNN.

The principal electrical capacity remains in the 760 A / 600 VAC class, while the catalog configuration differs in option coding.

For replacement or modernization projects, this type of model is especially relevant because the same basic power class and PowerFlex 755 platform are retained.

---

10.4 20G11LE765AN0NNNNN

The 765 A version provides a slightly higher current capacity than the 760 A model.

This can be considered where the application is close to the upper current limit of the 760 A version and additional current capacity is required.

It remains within the same general PowerFlex 755 high-power family.

---

10.5 20G11JE760AN0NNNNN

This is a particularly interesting alternative because the current and voltage class are similar, while the enclosure configuration is different.

The J/E configuration is associated with a Type 12 / IP54 MCC-style arrangement, providing a more enclosed configuration than the Type 1 / IP20 version.

This may be considered for applications where environmental protection and enclosure characteristics are more important.

---

11. Five Popular Models from the Same Brand

The following models are widely recognizable Allen-Bradley industrial automation products and can be considered when building a broader motor-control and automation portfolio.

Model	Product Family	Main Function	Voltage / Capacity	Typical Application	Approx. Size	Weight
25B-D010N104	PowerFlex 525	Compact AC Drive	480 VAC class, approx. 10 A	Small and medium motors	Compact	Approx. 3–5 kg*
20G11LE760AN0NNNNN	PowerFlex 755	High-Power AC Drive	600 VAC, 760 A	Large industrial motors	800 mm deep class	Approx. 450 kg*
25C-D017N114	PowerFlex 527	Compact AC Drive	480 VAC class	Machine automation	Compact	Approx. 3–6 kg*
20F11ND077AA0NNNNN	PowerFlex 753	Industrial AC Drive	480 VAC class, high-power range	Pumps, fans, conveyors and machinery	Frame-dependent	Approx. 10–100+ kg*
700-HLT1Z24	Industrial Control Components	Control / switching component	Application-dependent	Industrial control panels	Compact	Approx. 0.2–1 kg*

*Approximate reference values only. Exact dimensions and weight depend on frame, enclosure, option modules and configuration. The models above are intended as product-family references rather than direct electrical substitutes for the 20G11LE760AN0NNNNN.

---

12. Product Comparison

The following comparison makes the position of the 20G11LE760AN0NNNNN within the related PowerFlex family easier to understand.

Model	Current	Voltage Class	LD Power	ND Power	HD Power	Enclosure	Approx. Depth	Approx. Weight
20G11LE630AN0NNNNN	630 A	600 VAC	800 HP	700 HP	600 HP	Type 1 / IP20	800 mm	~400 kg
20G11LE710AN0NNNNN	710 A	600 VAC	800 HP	710 HP	590 HP	Type 1 / IP20	800 mm	~430 kg
20G11LE760AN0NNNNN	760 A	600 VAC	900 HP	800 HP	700 HP	Type 1 / IP20	800 mm	~450 kg
20G11LE760JN0NNNNN	760 A	600 VAC	900 HP	800 HP	700 HP	Type 1 / IP20	800 mm	~450 kg
20G11LE765AN0NNNNN	765 A	600 VAC	850 kW class	750 kW class	630 kW class	Type 1 / IP20	800 mm	~450 kg
20G11JE760AN0NNNNN	760 A	600 VAC	900 HP	800 HP	700 HP	Type 12 / IP54	800 mm	~500 kg

---

13. Selection Guide

Selecting between these models should not be based only on horsepower.

The most important parameters are:

1. Motor nameplate voltage
2. Motor full-load current
3. Required overload capacity
4. Normal Duty or Heavy Duty operating conditions
5. Starting torque requirement
6. Required acceleration and deceleration time
7. Environmental conditions
8. Enclosure requirements
9. Cooling requirements
10. Communication requirements
11. Feedback requirements
12. Dynamic braking requirements
13. Available electrical supply
14. Short-circuit protection requirements
15. Cabinet and installation dimensions

For a 760 A drive, the actual motor current should always be checked against the drive’s applicable duty rating.

A motor’s horsepower alone is not sufficient for final drive selection.

---

14. Why the 20G11LE760AN0NNNNN Is Suitable for Heavy Industrial Applications

The combination of 600 VAC, 760 A, Frame 9, high horsepower capability and PowerFlex 755 architecture makes this model particularly suitable for large industrial motor systems.

It provides a solution where the motor needs more than basic start/stop control.

For example, a large conveyor may need to start smoothly, accelerate gradually, maintain a controlled operating speed and communicate operating conditions to the plant control system.

A large pump may need its speed adjusted according to process demand.

A large fan may need variable airflow control.

A crusher may need high torque during heavy loading.

A large process machine may need the motor speed to follow a production recipe.

These are the types of applications where a high-power PowerFlex 755 drive becomes particularly valuable.

---

15. Advantages for System Integrators

For system integrators, one of the main advantages of using a PowerFlex 755 platform is the ability to standardize drive technology across different machine sizes.

A plant can use smaller models for low-power motors and larger models such as the 20G11LE760AN0NNNNN for major equipment while maintaining a consistent drive-family concept.

This can simplify:

• Engineering
• Operator training
• Maintenance
• Spare-parts planning
• Network integration
• Troubleshooting
• Control-system development

The embedded industrial communication capability is also useful when the drive needs to become part of a larger automation system.

---

16. Advantages for Maintenance

A large industrial drive represents a significant investment, so maintainability is an important consideration.

The PowerFlex 755 platform is designed around a modular industrial architecture.

Depending on configuration, different components and option modules can be handled separately rather than treating the entire drive system as a single indivisible component.

For maintenance departments, this can help with:

• Troubleshooting
• Drive diagnostics
• Fault identification
• Replacement planning
• Spare-parts management
• Preventive maintenance
• System modernization

For a 760 A installation, however, maintenance work must be performed by appropriately qualified personnel because the drive operates at high electrical power levels.

---

17. Practical Application Example

Consider a large industrial water pump driven by an approximately 700–800 HP motor.

If the pump is operated directly at full speed, the motor can consume substantial electrical power even when the process does not require maximum flow.

With a properly engineered variable frequency drive system, the motor speed can be adjusted according to process demand.

The 20G11LE760AN0NNNNN can provide the necessary current capacity for a motor in this high-power range while allowing the control system to regulate operating conditions.

The result can be improved process control and, depending on the pump/system characteristics, lower energy consumption during reduced-load operation.

---

18. Installation Considerations

Because this is a large industrial drive, installation should be planned carefully.

The electrical installation should consider:

• Input voltage
• Input current
• Short-circuit rating
• Upstream protection
• Grounding
• Cable size
• Motor cable length
• EMC requirements
• Heat dissipation
• Cabinet ventilation
• Ambient temperature
• Altitude
• Motor insulation
• Control wiring
• Network wiring

Mechanical installation should consider the large enclosure dimensions.

The 800 mm depth is especially important when planning the electrical-room layout.

Adequate clearance should also be provided for ventilation, inspection and maintenance.

---

19. Overall Product Advantages at a Glance

Advantage	Description
High current capacity	760 A output rating for large industrial motors
High power capability	Up to approximately 900 HP LD
600 VAC class	Suitable for high-voltage industrial motor systems
PowerFlex 755 platform	Advanced industrial AC-drive architecture
EtherNet/IP	Convenient integration into industrial automation networks
Air cooling	Suitable for large industrial installations
Modular design	Flexible configuration and maintenance
Controlled acceleration	Helps reduce mechanical shock
Controlled deceleration	Provides smoother machine stopping
Variable speed	Allows motor speed to match process demand
Torque control	Suitable for demanding mechanical loads
Industrial enclosure	Type 1 / IP20 MCC-style configuration
High-power applications	Suitable for pumps, fans, conveyors and heavy machinery

---

20. Recommended Models by Application

Application	Recommended Model	Reason
Large pump	20G11LE760AN0NNNNN	High current and high-power capability
Large fan	20G11LE630AN0NNNNN	Suitable for high-power variable-torque applications
Large conveyor	20G11LE710AN0NNNNN	Strong current capacity with PowerFlex 755 architecture
Heavy-duty process machine	20G11LE760JN0NNNNN	Same high-power class with alternative configuration
More demanding high-current system	20G11LE765AN0NNNNN	Slightly higher current capability
Environment requiring more enclosure protection	20G11JE760AN0NNNNN	Type 12 / IP54 configuration
Small/medium industrial machine	25B-D010N104	Compact PowerFlex solution
General industrial drive	20F11ND077AA0NNNNN	PowerFlex 753 family alternative

---

21. Final Assessment

The 20G11LE760AN0NNNNN is a high-capacity industrial AC variable frequency drive designed for large motor applications.

Its key specifications — 600 VAC, three-phase input class, 760 A output current, 900 HP Light Duty capability, 800 HP Normal Duty capability, 700 HP Heavy Duty capability, Frame 9, air cooling, 800 mm MCC-style depth and embedded EtherNet/IP — place it firmly in the high-power industrial drive category.

Its strongest characteristics are its high current capacity, large motor capability, industrial network integration, flexible PowerFlex 755 architecture and suitability for demanding continuous-duty applications.

For large pumps, fans, conveyors, compressors, crushers, mixers, process machinery and bulk-material handling equipment, it provides a powerful platform for variable-speed motor control.

When selecting an alternative, the closest candidates are generally other PowerFlex 755 models with similar voltage class and frame size. The 20G11LE710AN0NNNNN, 20G11LE760JN0NNNNN, 20G11LE765AN0NNNNN, 20G11LE630AN0NNNNN and 20G11JE760AN0NNNNN are particularly relevant depending on current capacity, enclosure and configuration requirements.

For a direct replacement or procurement decision, the most important items to compare are output current, duty rating, voltage, enclosure, dimensions, weight, communication configuration, braking requirements and cabinet arrangement rather than horsepower alone.

In summary, the 20G11LE760AN0NNNNN can be regarded as a large-frame, high-current PowerFlex 755 industrial AC drive intended for demanding motor-control applications where reliable variable-speed operation and integration with an industrial automation system are required.
