Product Overview

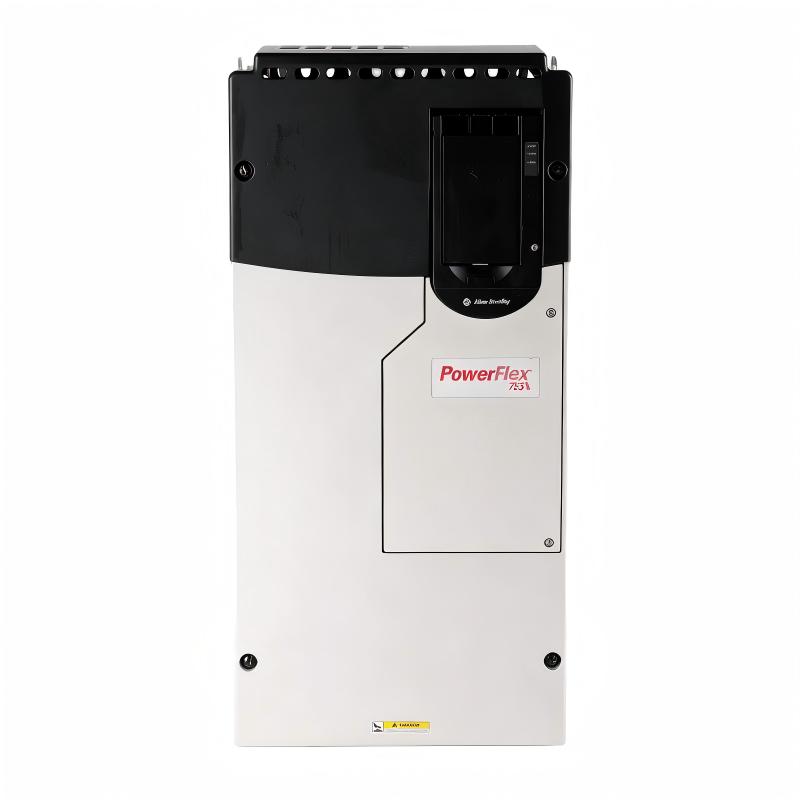

The Allen Bradley 20F1AND248AN0NNNNN PowerFlex 753 AC Drive is a high-capacity Variable Frequency Drive (VFD) designed to provide accurate speed regulation, outstanding torque performance, and intelligent motor protection for demanding industrial automation applications. As a member of the advanced PowerFlex 753 family, this drive combines high-speed processing, sensorless vector control, integrated diagnostics, modular communication capabilities, and flexible programming to maximize equipment efficiency and system reliability.
The 20F1AND248AN0NNNNN converts fixed-frequency three-phase AC input power into adjustable voltage and frequency output, enabling industrial motors to operate at the precise speed required by changing production demands. This advanced control technology minimizes energy consumption, reduces mechanical stress during acceleration and deceleration, improves production quality, and extends the service life of motors and driven equipment.
Built for continuous-duty industrial environments, the PowerFlex 753 platform incorporates predictive diagnostics, programmable I/O, embedded safety support, and seamless integration with Allen Bradley PLCs and industrial Ethernet networks. These features simplify commissioning, improve maintenance efficiency, and reduce unplanned downtime.
With dimensions of 665.5 × 308 × 346.4 mm and an approximate weight of 38.6 kg, the drive is designed for cabinet-mounted installations requiring reliable medium- and high-power motor control.
Typical applications include conveyors, pumps, compressors, fans, mixers, extruders, packaging machinery, HVAC systems, mining equipment, water treatment plants, material handling systems, and automated manufacturing lines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Product Series | PowerFlex 753 |
| Model | 20F1AND248AN0NNNNN |
| Product Type | AC Drive / Variable Frequency Drive |
| Primary Function | Variable Speed Motor Control |
| Motor Control Method | Sensorless Vector Control / Vector Control |
| Input Supply | Three-Phase AC |
| Output Frequency | Adjustable Variable Frequency |
| Cooling Method | Forced Air Cooling |
| Mounting Method | Panel / Cabinet Mount |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Communication | Supports EtherNet/IP and Optional Industrial Networks |
| Protection Features | Overload, Overvoltage, Undervoltage, Ground Fault, Short Circuit, and Overtemperature Protection |
| Diagnostics | Integrated Intelligent Diagnostics |
| Dimensions | 665.5 × 308 × 346.4 mm |
| Weight | Approximately 38.6 kg |
| Typical Application | Industrial Variable Speed Motor Control |
Function and Working Principle
The 20F1AND248AN0NNNNN regulates motor speed and torque by converting fixed-frequency AC input into adjustable voltage and frequency output using advanced IGBT inverter technology.
Typical Power Flow
Three-Phase AC Supply
↓
Rectifier
↓
DC Bus
↓
IGBT Inverter
↓
20F1AND248AN0NNNNN PowerFlex 753 AC Drive
↓
Three-Phase AC Motor
↓
Industrial Equipment
During operation, the drive continuously monitors motor load, process conditions, and electrical parameters to optimize performance.
Primary functions include:
- Precise variable speed control
- High starting torque
- Sensorless vector motor control
- Smooth acceleration and deceleration
- Soft start and soft stop
- PID process regulation
- Automatic energy optimization
- Continuous motor protection
- Intelligent fault diagnostics
- Industrial communication integration
The advanced control algorithms maximize equipment performance while reducing energy consumption and mechanical wear.
Role in Industrial Control Systems
Within industrial automation systems, the 20F1AND248AN0NNNNN serves as the intelligent motor controller between PLC systems and industrial machinery.
Typical automation architecture:
Industrial PLC
↓
20F1AND248AN0NNNNN PowerFlex 753 AC Drive
↓
Three-Phase AC Motor
↓
Industrial Equipment
↓
Production Process
The drive executes PLC control commands with high precision while supplying real-time diagnostics and operational feedback to improve overall system reliability.
Industrial Applications
Manufacturing Automation
Typical applications include:
- Automated assembly lines
- CNC machining centers
- Robotic manufacturing systems
- Packaging machinery
- Industrial processing equipment
Conveyor Systems
Suitable for:
- Material handling
- Distribution centers
- Warehouse automation
- Airport baggage handling
- Logistics systems
Pumps and Water Treatment
Frequently installed in:
- Municipal water systems
- Wastewater treatment plants
- Booster pump stations
- Irrigation systems
- Chemical dosing equipment
Fans and HVAC Systems
Ideal for:
- Air handling units
- Ventilation systems
- Cooling towers
- Industrial exhaust equipment
- Environmental control systems
Mining and Heavy Industry
Widely used for:
- Crushers
- Conveyors
- Ore processing equipment
- Ventilation systems
- Heavy industrial machinery
Food and Beverage Processing
Typical applications include:
- Mixing systems
- Filling equipment
- Bottling lines
- Conveyor systems
- Packaging machinery
Installation and System Integration
Before installation, engineers should verify:
- Input voltage compatibility
- Motor nameplate specifications
- Cabinet ventilation
- Protective grounding
- Cable sizing
- Control wiring
- Communication settings
- Environmental operating conditions
- Protective devices
- Commissioning procedures
Recommended Installation Procedure
- Disconnect all electrical power.
- Mount the drive securely inside the control cabinet.
- Connect the incoming three-phase power supply.
- Connect the motor output terminals.
- Connect the protective earth conductor.
- Complete all control wiring.
- Configure communication parameters.
- Verify electrical connections.
- Restore system power.
- Enter motor parameters.
- Configure operating settings.
- Test motor rotation.
- Verify protection functions.
- Complete commissioning.
- Save parameter configuration.
Proper installation ensures reliable performance, high operating efficiency, and long equipment service life.
Compatible System Components
| Component | Function |
|---|---|
| Allen Bradley ControlLogix PLC | Machine automation controller |
| Allen Bradley CompactLogix PLC | Integrated automation control |
| 20F1AND248AN0NNNNN | Variable frequency drive |
| Three-Phase AC Motor | Mechanical drive |
| PanelView HMI | Operator interface |
| Circuit Breaker | Electrical protection |
| Contactor | Power isolation |
| Braking Resistor | Dynamic braking |
| EtherNet/IP Network | Industrial communication |
| Industrial Sensors | Process monitoring |
| Industrial Power Supply | System power |
Recommended Alternative Models
| Model | Product Type | Typical Application |
|---|---|---|
| 20F1AND248AN0NNNNN | PowerFlex 753 AC Drive | High-capacity industrial motor control |
| 20F1AND186AA0NNNNN | PowerFlex 753 AC Drive | Medium-power industrial automation |
| 20F1AND302AA0NNNNN | PowerFlex 753 AC Drive | Heavy-duty motor applications |
| 20G1AND248AA0NNNNN | PowerFlex 755 AC Drive | Advanced process automation |
| 20BD156A3ANNANC1 | PowerFlex 700 AC Drive | General industrial variable speed control |
Key Advantages
- Advanced PowerFlex 753 drive platform
- High-performance sensorless vector control
- Excellent speed and torque regulation
- Smooth acceleration and deceleration
- High energy efficiency
- Integrated intelligent diagnostics
- Comprehensive motor protection
- Flexible industrial networking support
- Easy commissioning and maintenance
- Rugged industrial construction
- Dimensions 665.5 × 308 × 346.4 mm
- Approximate weight 38.6 kg
Technical FAQs
What is the Allen Bradley 20F1AND248AN0NNNNN?
The 20F1AND248AN0NNNNN is a PowerFlex 753 AC Drive designed for precise variable-speed control of industrial three-phase AC motors.
What is its primary function?
Its primary function is to regulate motor speed and torque by converting fixed-frequency AC input into adjustable voltage and frequency output.
What are the physical dimensions?
The drive measures 665.5 × 308 × 346.4 mm.
What is the approximate weight?
The drive weighs approximately 38.6 kg.
Which motors are compatible?
It is compatible with industrial three-phase AC induction motors used in manufacturing, pumping, conveying, ventilation, mining, and process automation.
Which industries commonly use this drive?
It is widely used in manufacturing, mining, water treatment, HVAC, food and beverage processing, logistics, chemical processing, power generation, and other industrial automation sectors.
Does the drive improve energy efficiency?
Yes. By automatically matching motor speed to process demand, it significantly reduces energy consumption while improving machine productivity.
Does the drive include protection functions?
Yes. It incorporates overload, overvoltage, undervoltage, ground fault, short-circuit, and overtemperature protection together with advanced diagnostic capabilities.
Can the drive integrate with PLC systems?
Yes. The PowerFlex 753 platform supports seamless integration with Allen Bradley PLCs, EtherNet/IP networks, HMIs, and modern industrial automation systems.
Where is this drive typically installed?
It is commonly installed inside industrial control cabinets for conveyors, pumps, compressors, fans, mixers, packaging machinery, and other motor-driven industrial equipment.
Conclusion
The Allen Bradley 20F1AND248AN0NNNNN PowerFlex 753 AC Drive is a reliable, intelligent, and energy-efficient motor control solution for demanding industrial automation applications. Featuring advanced vector control technology, integrated diagnostics, comprehensive protection functions, and flexible communication capabilities, it delivers precise motor control, improved production efficiency, and dependable long-term operation.
With dimensions of 665.5 × 308 × 346.4 mm and an approximate weight of 38.6 kg, the 20F1AND248AN0NNNNN is ideally suited for cabinet-mounted industrial installations. When integrated with compatible Allen Bradley PLCs, HMIs, EtherNet/IP networks, and three-phase AC motors, it provides stable, efficient, and highly reliable performance across a broad range of industrial environments.
