Product Overview

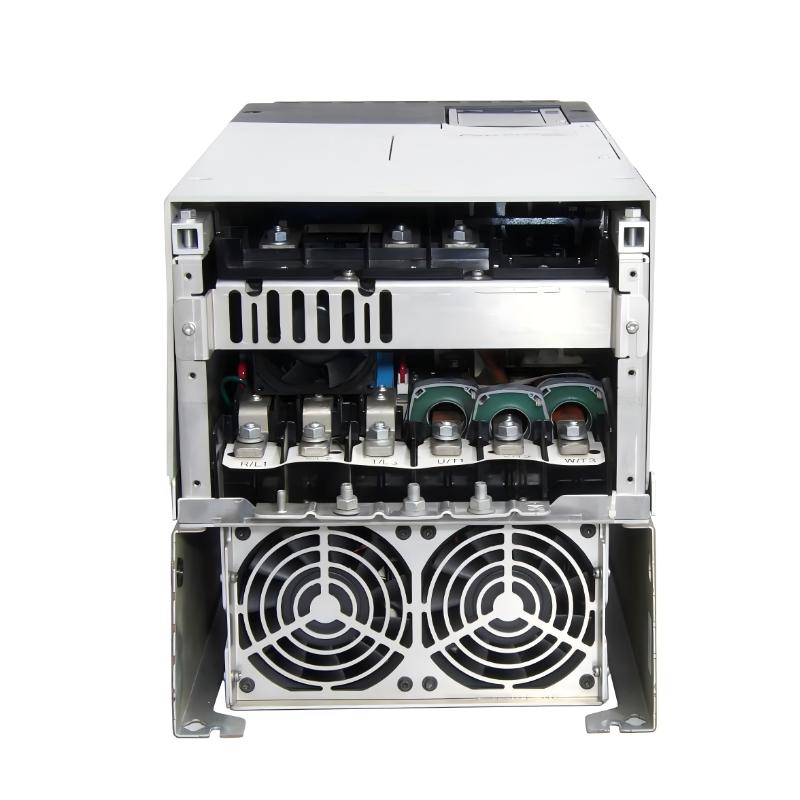

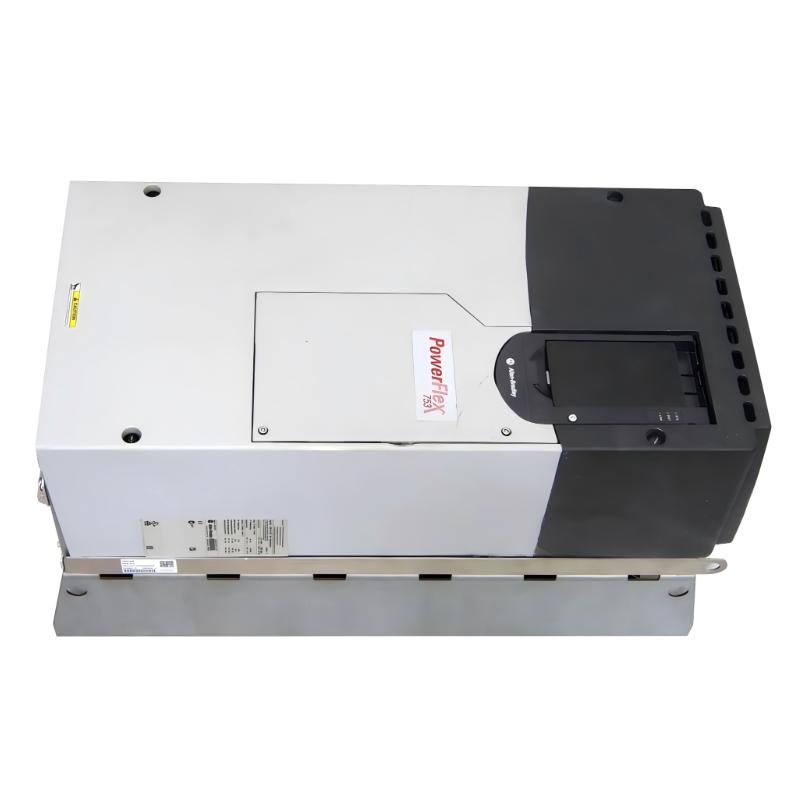

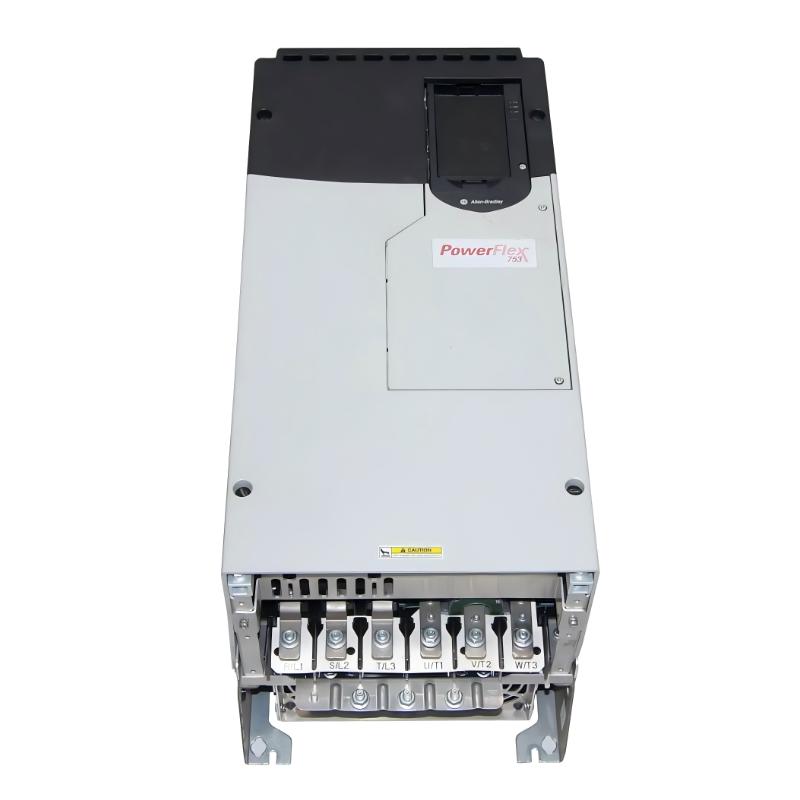

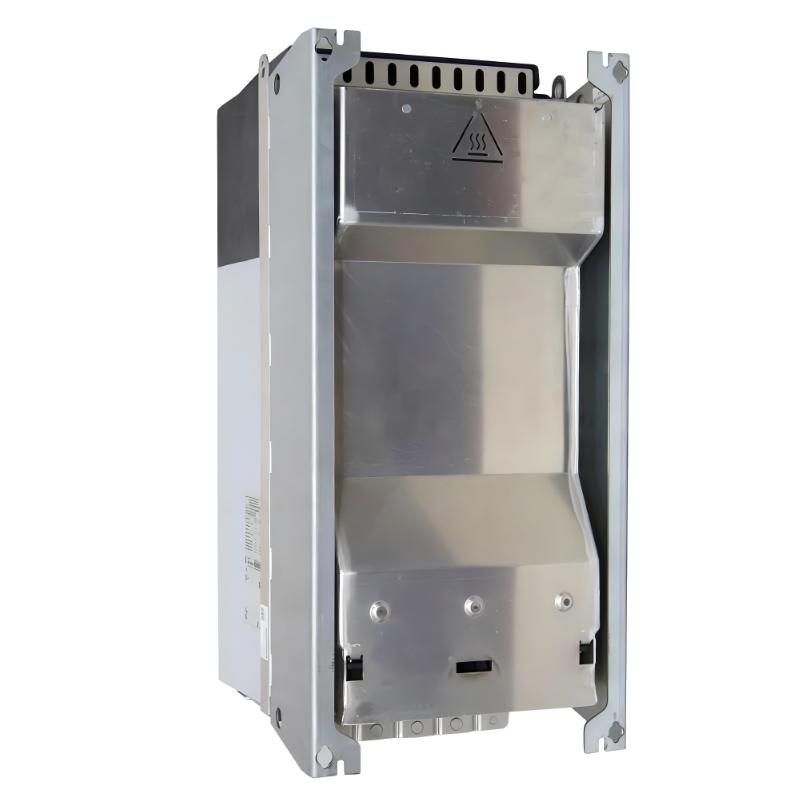

The Allen Bradley 20F1ANC367JN0NNNNN PowerFlex 753 AC Drive is a high-power, air-cooled variable frequency drive designed for industrial AC motor control. It belongs to the PowerFlex 753 family and is intended for applications requiring adjustable motor speed, controlled acceleration and deceleration, motor protection, process coordination, and integration with PLC-based automation systems.

The exact catalog number 20F1ANC367JN0NNNNN is identified as a PowerFlex 753 drive with embedded I/O, forced-air cooling, AC input with precharge, no DC terminals, filtered input, CM jumper installed, no dynamic-braking transistor, and no HIM. Its electrical configuration is 400 VAC, three-phase, 367 A, 200 kW normal duty, 160 kW heavy duty, Frame 7.

The supplied physical dimensions are 881.5 × 349.6 × 430 mm, and the supplied weight is 48 kg. These dimensions make cabinet planning especially important. Installation must provide enough room for the drive itself as well as power cables, control wiring, cooling airflow, maintenance access, and safe removal.

The drive is appropriate for large industrial motor applications such as conveyors, pumps, fans, blowers, process equipment, material-handling machinery, production lines, and other motor-driven systems.

---

Product Identification

Parameter	Specification
Manufacturer	Allen Bradley / Rockwell Automation
Product Family	PowerFlex 753
Catalog Number	20F1ANC367JN0NNNNN
Product Type	PowerFlex 753 AC Drive
Cooling	Forced Air / Air Cooled
Input Voltage	400 VAC
Input Phase	3 Phase
Rated Current	367 A
Normal-Duty Rating	200 kW
Heavy-Duty Rating	160 kW
Frame Size	Frame 7
Input Configuration	AC Input with Precharge
DC Terminals	None
Dynamic Braking	None
Filtering	Filtered
CM Jumper	Installed
Embedded I/O	Yes
HIM	Blank / No HIM
Enclosure	IP20/IP00, NEMA/UL Open Type
Dimensions	881.5 × 349.6 × 430 mm
Weight	48 kg

Rockwell Automation identifies the exact catalog number as an active PowerFlex 753 configuration with 367 A output, 200 kW normal duty, 160 kW heavy duty, 400 VAC three-phase input, Frame 7, forced-air cooling, embedded I/O, and no internal dynamic-braking transistor.

---

Technical Specifications

Technical Item	Specification
Brand	Allen Bradley
Series	PowerFlex 753
Model	20F1ANC367JN0NNNNN
Drive Type	AC Variable Frequency Drive
Input Voltage	400 VAC
Input Phase	3 Phase
Output Current	367 A
Normal Duty	200 kW
Heavy Duty	160 kW
Frame	7
Cooling	Forced Air
Input Type	AC Input with Precharge
DC Terminals	No
Dynamic Braking Transistor	No
Filtering	Filtered
CM Jumper	Installed
Embedded I/O	Yes
HIM	No HIM
Enclosure	IP20/IP00 Open Type
Height	881.5 mm
Width	349.6 mm
Depth	430 mm
Weight	48 kg

The manufacturer description confirms the 367 A, 200 kW normal-duty, 160 kW heavy-duty, 400 VAC three-phase, Frame 7 configuration. The physical dimensions and 48 kg weight supplied for this product are consistent with published technical data for this Frame 7 configuration.

---

Understanding the 20F1ANC367JN0NNNNN

The catalog number identifies a specific PowerFlex 753 configuration rather than simply a generic 753 drive.

Important characteristics include:

• PowerFlex 753
• 400 VAC
• Three-phase
• 367 A
• 200 kW normal duty
• 160 kW heavy duty
• Frame 7
• Forced-air cooling
• Embedded I/O
• AC input with precharge
• No DC terminals
• Filtered configuration
• CM jumper installed
• No dynamic-braking transistor
• No HIM

These details matter when selecting a replacement.

A drive with similar dimensions but a different voltage, current, duty rating, braking configuration, or input arrangement should not automatically be considered interchangeable.

---

What Is the Allen Bradley 20F1ANC367JN0NNNNN?

The 20F1ANC367JN0NNNNN is a high-power adjustable-speed AC drive used to control industrial motors.

Its primary purpose is to regulate how electrical energy is supplied to an AC motor.

A simplified power system is:

Three-Phase AC Supply

↓

PowerFlex 753

↓

Controlled AC Output

↓

AC Motor

↓

Mechanical Load

The drive receives control instructions from the automation system.

For example:

PLC

↓

Start / Stop / Speed Command

↓

PowerFlex 753

↓

Motor

This arrangement allows machine-level control and motor-level control to work together.

---

Working Principle

The basic operation of an AC drive involves converting the incoming AC supply into a controlled electrical output.

A simplified sequence is:

AC Input

↓

Input Power Stage

↓

DC Bus

↓

Power Switching Stage

↓

Variable-Frequency AC Output

↓

Motor

By regulating the output supplied to the motor, the drive can control motor speed and torque behavior.

This provides advantages over simply connecting a motor directly to a fixed-frequency supply.

The drive can support:

• Controlled acceleration
• Controlled deceleration
• Variable-speed operation
• Process speed regulation
• Motor protection
• Machine sequencing
• PLC integration
• Diagnostic monitoring

The actual control method depends on the application, motor characteristics, and configured drive parameters.

---

367 A Current Rating

The exact catalog configuration is identified as a 367 A PowerFlex 753.

This places the drive in a high-capacity industrial motor-control category.

Current selection should always consider more than the nominal motor power.

Engineers should evaluate:

• Motor full-load current
• Motor voltage
• Duty classification
• Load inertia
• Acceleration requirements
• Deceleration requirements
• Overload requirements
• Ambient temperature
• Installation conditions
• Process loading

Correct current selection helps prevent unnecessary overload trips and provides appropriate operating margin.

---

200 kW Normal Duty and 160 kW Heavy Duty

The model is identified with:

200 kW Normal Duty

and

160 kW Heavy Duty.

These two ratings should not be treated as interchangeable.

The correct duty classification depends on the actual motor and application.

Normal-duty applications may have less demanding overload requirements, while heavy-duty applications may involve greater starting torque, higher overload demand, or more demanding operating cycles.

Before selecting this drive for a motor, verify:

• Motor rated power
• Motor rated current
• Required overload
• Starting torque
• Acceleration time
• Load inertia
• Operating cycle
• Ambient temperature

---

Frame 7 Construction

The 20F1ANC367JN0NNNNN is a Frame 7 PowerFlex 753 configuration.

The larger frame size is associated with the drive’s high-power electrical capacity.

The supplied dimensions are:

881.5 × 349.6 × 430 mm

and the supplied weight is:

48 kg.

This means the mechanical design should be considered carefully.

The mounting structure should account for:

• Drive weight
• Cabinet vibration
• Cable forces
• Maintenance access
• Installation handling
• Cooling requirements

---

Industrial Applications

Conveyor Systems

Large conveyors often require substantial motor power and controlled starting.

The PowerFlex 753 can regulate conveyor speed and coordinate motor operation with other equipment.

Typical applications include:

• Bulk-material conveyors
• Production conveyors
• Packaging conveyors
• Transfer systems
• Warehouse handling equipment

---

Pumping Systems

Variable-speed motor control can be useful in industrial pumping systems.

Applications include:

• Process pumps
• Cooling pumps
• Water systems
• Circulation systems
• Industrial fluid handling

The drive can allow motor speed to follow process requirements.

---

Fans and Blowers

Large fans and blowers can require substantial motor power.

Variable-speed operation allows airflow to be adjusted according to process demand.

---

Material Handling

Large material-handling systems can benefit from controlled acceleration, speed regulation, and coordinated stopping.

Applications include:

• Conveyors
• Transfer machinery
• Processing lines
• Automated handling systems
• Large rotating equipment

---

Manufacturing Machinery

The drive can be used in manufacturing systems requiring precise and repeatable motor operation.

---

Process Equipment

Process machinery often requires motor speed to change according to production conditions.

The PowerFlex 753 can serve as the motor-control layer between the automation controller and the mechanical process.

---

Role in an Automation System

A typical industrial architecture can be arranged as:

HMI

↓

PLC

↓

Industrial Network / I/O

↓

PowerFlex 753

↓

AC Motor

↓

Machine

The PLC can manage:

• Machine sequencing
• Interlocks
• Start/stop logic
• Speed commands
• Production coordination

The PowerFlex 753 manages:

• Motor operation
• Speed regulation
• Acceleration
• Deceleration
• Drive protection
• Drive diagnostics

The HMI can provide:

• Operator commands
• Drive status
• Speed information
• Fault information
• Maintenance information

---

Installation Guide

1. Verify the Catalog Number

Before installation, confirm:

20F1ANC367JN0NNNNN

Check the product label and compare it with the electrical drawings.

Do not substitute another PowerFlex 753 model simply because it has a similar appearance.

---

2. Inspect the Drive

Before mounting, inspect the unit for:

• Physical damage
• Damaged terminals
• Cracked components
• Corrosion
• Moisture
• Contamination
• Loose hardware
• Signs of overheating

Any abnormal condition should be investigated before energization.

---

3. Verify Cabinet Space

The supplied dimensions are:

881.5 × 349.6 × 430 mm

The cabinet should provide additional room for:

• Power cables
• Motor cables
• Control wiring
• Communication cables
• Grounding
• Cooling
• Maintenance
• Component removal

Do not design the enclosure around the drive’s dimensions alone.

---

4. Plan for the 48 kg Weight

The supplied weight is:

48 kg

The mounting surface must be strong enough to safely support the drive.

During installation, use suitable mechanical handling procedures.

The drive should not be supported by:

• Motor cables
• Control cables
• Communication cables

---

5. Prepare Cabinet Cooling

The exact model uses forced-air cooling.

Therefore, cabinet thermal management is an important part of installation.

Check:

• Ambient temperature
• Airflow
• Cooling fans
• Ventilation
• Air passages
• Dust accumulation
• Nearby heat sources

If multiple drives or high-power components are installed in one enclosure, consider the total heat load.

---

6. Establish Grounding

Connect protective grounding according to the approved electrical design.

Grounding helps provide:

• Personnel protection
• Equipment protection
• Noise control
• Electrical stability

Check the grounding connection before energization.

---

7. Verify Incoming Power

The exact catalog configuration is designed for:

400 VAC, three-phase input.

Before connecting power, verify:

• Supply voltage
• Phase
• Frequency
• Protective devices
• Disconnect
• Cable size
• Terminal connections
• Grounding

Never assume that a replacement drive has the same electrical input simply because the frame size is identical.

---

8. Connect Motor Wiring

Connect the motor according to the approved wiring diagram.

Check:

• Phase conductors
• Motor grounding
• Cable insulation
• Terminal tightness
• Cable routing
• Motor condition

Incorrect motor wiring can cause excessive current, incorrect rotation, protective trips, or abnormal motor behavior.

---

9. Connect Control Wiring

Depending on the system architecture, connections may include:

• Start
• Stop
• Enable
• Digital inputs
• Digital outputs
• Analog signals
• PLC signals
• Interlocks
• Fault feedback

Verify every connection against the machine electrical drawings.

---

10. Connect Communication

If the drive communicates with a PLC or other controller, verify:

• Network hardware
• Communication wiring
• Addressing
• Drive configuration
• Controller configuration
• Data mapping
• Status feedback
• Fault information

---

11. Separate Power and Signal Cables

Where practical, route high-power cables separately from:

• Analog signals
• Communication cables
• Feedback cables
• Low-level control wiring

This can help reduce electrical interference.

---

Pre-Commissioning Checklist

Item	Check
Catalog Number	20F1ANC367JN0NNNNN
Input	400 VAC, 3 Phase
Current	367 A
Normal Duty	200 kW
Heavy Duty	160 kW
Frame	7
Dimensions	881.5 × 349.6 × 430 mm
Weight	48 kg
Cooling	Forced Air
Grounding	Verified
Motor Wiring	Verified
Power Wiring	Verified
Control Wiring	Verified
Communication	Verified
Cabinet Cooling	Verified
Protective Equipment	Verified

---

Commissioning Procedure

Step 1 — Perform Final Inspection

Verify:

• Power wiring
• Motor wiring
• Grounding
• Control wiring
• Communication
• Cabinet cooling
• Mechanical mounting

Remove tools and foreign objects from the installation area.

---

Step 2 — Record Motor Nameplate Data

Record:

• Rated voltage
• Rated current
• Rated frequency
• Motor power
• Rated speed
• Connection type

---

Step 3 — Enter Motor Parameters

Configure the drive with the correct motor data.

Incorrect parameters can produce:

• Excessive current
• Poor acceleration
• Unstable operation
• Motor overheating
• Protective trips

---

Step 4 — Configure Command Source

Determine whether the drive will receive commands from:

• PLC
• Hardwired I/O
• Communication
• Local control
• Other automation equipment

---

Step 5 — Configure Speed Reference

Confirm:

• Reference source
• Scaling
• Minimum speed
• Maximum speed
• PLC mapping
• Communication mapping

---

Step 6 — Set Acceleration

Configure an acceleration time appropriate for the motor and mechanical load.

Very short acceleration times can create excessive current demand.

---

Step 7 — Set Deceleration

Configure deceleration according to the machine’s inertia and stopping requirements.

High-inertia equipment can produce regenerative energy during deceleration.

---

Step 8 — Perform a Controlled Start

Start the motor at a controlled speed.

Observe:

• Rotation
• Current
• Speed
• Noise
• Vibration
• Drive status

---

Step 9 — Increase Speed Gradually

Increase the operating speed while monitoring the drive and motor.

---

Step 10 — Apply Mechanical Load

Apply the process load gradually.

Monitor:

• Motor current
• Drive status
• Motor temperature
• Vibration
• Process response

---

Step 11 — Test PLC Operation

Verify:

• Start command
• Stop command
• Speed command
• Drive status
• Fault feedback
• Communication
• Interlocks

---

Step 12 — Save the Configuration

After successful commissioning, create a backup of the final validated parameters.

This backup can significantly reduce downtime during future replacement or troubleshooting.

---

Troubleshooting Guide

Fault 1 — Drive Does Not Power Up

Possible causes:

• Incoming power absent
• Disconnect open
• Protective device open
• Incorrect wiring
• Power-system problem
• Internal drive fault

Use the following sequence:

Power Source → Protection → Disconnect → Wiring → Drive

---

Fault 2 — Drive Powers Up but Motor Does Not Start

Check:

• Start command
• Command source
• Enable condition
• Active fault
• Interlock
• Speed reference
• Motor wiring

A useful diagnostic path is:

PLC → Command Source → Drive → Motor

---

Fault 3 — Overcurrent During Acceleration

Possible causes:

• Acceleration too short
• Excessive load
• High inertia
• Mechanical obstruction
• Incorrect motor parameters
• Motor fault

Compare no-load and loaded operation.

---

Fault 4 — Overcurrent During Normal Operation

Possible causes:

• Process overload
• Mechanical friction
• Motor problem
• Incorrect motor configuration
• Mechanical obstruction
• Excessive production load

Monitor motor current over time rather than checking only during the fault.

---

Fault 5 — Overvoltage During Deceleration

Possible causes:

• Excessive regenerative energy
• Deceleration too short
• High-inertia load
• Unsuitable braking arrangement

The exact 20F1ANC367JN0NNNNN configuration has no internal dynamic-braking transistor.

Therefore, high-inertia applications and frequent stopping cycles should receive special attention during system design.

---

Fault 6 — Drive Overheats

Possible causes:

• Poor cabinet ventilation
• Blocked airflow
• Cooling fan problem
• Excessive ambient temperature
• Dust accumulation
• Continuous overload
• Nearby heat source

Check the entire cabinet thermal environment.

---

Fault 7 — Motor Runs Too Slowly

Possible causes:

• Incorrect speed reference
• Reference scaling problem
• Incorrect motor parameters
• PLC programming issue
• Communication problem
• Incorrect control source

Compare commanded speed with the actual reference received by the drive.

---

Fault 8 — Motor Speed Fluctuates

Possible causes:

• Unstable command signal
• Communication problem
• Incorrect parameters
• Feedback issue
• Variable mechanical load

Trace:

Reference → Drive → Motor → Mechanical Load

---

Fault 9 — Excessive Motor Vibration

Potential causes:

• Motor imbalance
• Bearing wear
• Coupling problem
• Mechanical misalignment
• Resonance
• Incorrect mounting

Do not automatically assume the drive is defective.

---

Fault 10 — Communication Failure

Possible causes:

• Damaged cable
• Loose connector
• Incorrect addressing
• Network configuration problem
• PLC configuration problem
• Electrical interference
• Communication hardware problem

Begin with the physical network and then verify configuration.

---

Fault 11 — PLC Cannot Control the Drive

Check:

• Command source
• PLC logic
• Communication configuration
• Enable status
• Interlocks
• Speed-reference source

If local control works but PLC control does not, the problem may be in the control architecture rather than the power section.

---

Fault 12 — Drive Trips When Load Is Applied

Possible causes:

• Excessive mechanical load
• Motor overload
• Mechanical obstruction
• Incorrect acceleration
• Incorrect motor data
• Mechanical transmission problem

Compare current before and after applying the load.

---

Fault 13 — Drive Trips After Several Hours

Possible causes:

• Thermal accumulation
• Insufficient cabinet cooling
• Cooling-system degradation
• Continuous overload
• High ambient temperature
• Motor overheating

Record the operating conditions immediately before the trip.

---

Fault 14 — Unexpected Motor Direction

Potential causes:

• Incorrect motor wiring
• Incorrect command configuration
• PLC logic issue
• Incorrect machine configuration

Always bring the machine to a safe state before correcting direction-related problems.

---

Systematic Diagnostic Workflow

For intermittent or complex faults, follow a structured sequence:

1. Incoming Power

↓

2. Drive Status

↓

3. Fault History

↓

4. Motor Parameters

↓

5. Command Source

↓

6. Speed Reference

↓

7. Motor Wiring

↓

8. Motor Condition

↓

9. Cooling System

↓

10. Communication

↓

11. PLC Logic

↓

12. Mechanical Load

This method helps distinguish between electrical, control, communication, thermal, motor, and mechanical problems.

---

Preventive Maintenance

Drive Inspection

Inspect the drive periodically for:

• Dust
• Dirt
• Moisture
• Physical damage
• Loose connections
• Discoloration
• Signs of overheating
• Airflow obstruction

---

Cooling Maintenance

Because this configuration uses forced-air cooling, cooling performance should be monitored regularly.

Check:

• Cooling fans
• Air passages
• Cabinet ventilation
• Temperature
• Dust
• Airflow

A gradual increase in operating temperature may indicate a developing cooling problem.

---

Electrical Maintenance

Inspect:

• Input terminals
• Motor terminals
• Grounding
• Control wiring
• Communication wiring

Look for:

• Loose connections
• Discoloration
• Heat damage
• Insulation deterioration
• Mechanical damage

---

Motor Maintenance

Monitor:

• Current
• Temperature
• Vibration
• Noise
• Bearing condition
• Mechanical loading

An abnormal current increase may be caused by the motor or mechanical system rather than the drive itself.

---

Configuration Maintenance

Maintain current backups of:

• Drive parameters
• Motor data
• Command source
• Speed reference
• Communication settings
• PLC-related settings

A reliable parameter backup can shorten recovery time after a drive replacement.

---

Preventive Maintenance Checklist

Area	Maintenance Action
Drive	Inspect physical condition
Cabinet	Check cleanliness
Cooling	Inspect airflow and fans
Input Power	Inspect terminals
Motor Wiring	Inspect cables
Grounding	Verify connection
Motor	Monitor current and temperature
Mechanical System	Monitor vibration
Communication	Verify stable operation
Fault History	Review recurring faults
Parameters	Maintain backup
Cabinet Temperature	Monitor periodically

---

Drive Replacement Procedure

Step 1 — Back Up Parameters

Save the existing drive configuration whenever possible.

Record application-specific settings and motor information.

---

Step 2 — Document All Connections

Identify:

• Incoming power
• Motor wiring
• Ground
• Control wiring
• Communication
• Feedback
• Auxiliary wiring

---

Step 3 — Stop the Machine

Bring the machine to a safe state.

Address stored mechanical energy and process hazards according to the site’s approved safety procedure.

---

Step 4 — Isolate Electrical Power

Disconnect the power supply using the approved isolation procedure.

Allow the appropriate discharge period and verify the safe electrical condition before accessing the equipment.

---

Step 5 — Remove the Existing Drive

Disconnect all wiring and remove the drive from the mounting structure.

The supplied weight is 48 kg, so suitable lifting and handling equipment should be considered.

---

Step 6 — Inspect the Cabinet

Before installing the replacement, inspect:

• Mounting structure
• Fasteners
• Power cables
• Motor cables
• Grounding
• Cooling
• Adjacent equipment

---

Step 7 — Install the Replacement

Secure the 20F1ANC367JN0NNNNN to the designated mounting structure.

Verify mechanical stability.

---

Step 8 — Reconnect Wiring

Reconnect:

• Incoming power
• Motor
• Ground
• Control
• Communication
• Feedback where applicable

---

Step 9 — Restore Configuration

Restore the validated drive configuration.

---

Step 10 — Verify Motor Data

Confirm that the restored motor data matches the installed motor.

---

Step 11 — Perform Controlled Testing

Test:

• Start
• Stop
• Direction
• Speed
• Current
• Drive status
• Vibration
• Noise

---

Step 12 — Test Automation

Verify:

• PLC start
• PLC stop
• Speed command
• Drive status
• Fault feedback
• Communication
• Interlocks

---

Step 13 — Return to Production

Gradually introduce operating speed and mechanical load while monitoring the system.

---

Compatible System Components

Component	Typical Function
PLC	Machine logic
HMI	Operator interface
I/O Modules	Hardwired control
Communication Interface	Network integration
Feedback Module	Speed or motion feedback
AC Motor	Mechanical power
Circuit Protection	Electrical protection
Disconnect	Power isolation
Sensors	Process feedback
Braking Equipment	Controlled stopping where required
Control Cabinet	Equipment protection

The actual component combination should be determined by the complete machine architecture.

---

Recommended Related PowerFlex 753 Models

Model	Product Type	Selection Consideration
20F1ANC205JN0NNNNN	PowerFlex 753 AC Drive	Lower power/current application
20F1ANC260JN0NNNNN	PowerFlex 753 AC Drive	260 A class application
20F1ANC302JN0NNNNN	PowerFlex 753 AC Drive	High-capacity application
20F1ANC367JN0NNNNN	PowerFlex 753 AC Drive	367 A / 200 kW ND configuration
Other PowerFlex 753 Models	PowerFlex 753 AC Drive	Select according to voltage, current, duty and braking requirements

When replacing a PowerFlex 753, compare the complete catalog configuration rather than selecting a model only because its dimensions appear similar.

---

Key Advantages

• Allen Bradley PowerFlex 753 platform
• High-power industrial AC drive
• 367 A current class
• 200 kW normal-duty rating
• 160 kW heavy-duty rating
• 400 VAC three-phase configuration
• Frame 7 construction
• Forced-air cooling
• Embedded I/O
• AC input with precharge
• No DC terminals
• Filtered input configuration
• CM jumper installed
• No internal dynamic-braking transistor
• No HIM configuration
• IP20/IP00 open-type design
• Suitable for PLC-based automation
• Suitable for large motor applications
• Suitable for conveyors and material handling
• Suitable for pumps, fans and process equipment
• Dimensions of 881.5 × 349.6 × 430 mm
• Supplied weight of 48 kg

The electrical characteristics of the exact catalog number are confirmed by the manufacturer and technical data.

---

Technical FAQs

What is Allen Bradley 20F1ANC367JN0NNNNN?

It is an Allen Bradley PowerFlex 753 AC Drive designed for high-power industrial AC motor control.

What is the rated current?

The exact configuration is rated at 367 A.

What is the normal-duty power rating?

The normal-duty rating is 200 kW.

What is the heavy-duty rating?

The heavy-duty rating is 160 kW.

What is the input voltage?

The drive is configured for 400 VAC, three-phase input.

What is the frame size?

The drive uses Frame 7 construction.

What are the dimensions?

The supplied dimensions are:

881.5 × 349.6 × 430 mm

Published technical data also lists the Frame 7 dimensions as approximately 881.5 mm high, 430 mm wide, and 349.6 mm deep.

What is the weight?

The supplied weight is:

48 kg

Technical data for this configuration also lists a 48 kg weight.

Does the drive have embedded I/O?

Yes. The exact configuration includes embedded I/O.

Does it use forced-air cooling?

Yes. The 20F1ANC367JN0NNNNN is identified as a forced-air/air-cooled PowerFlex 753 configuration.

Does this model include a dynamic-braking transistor?

No. The exact 20F1ANC367JN0NNNNN configuration is listed without a dynamic-braking transistor.

Does it include a HIM?

No. The catalog configuration is specified as Blank / No HIM.

Does it have DC terminals?

No. The configuration is identified as AC input with precharge and no DC terminals.

Why is the absence of a braking transistor important?

Applications involving high-inertia loads or frequent deceleration can generate regenerative energy. Because this configuration does not include an internal dynamic-braking transistor, the braking strategy should be considered during application engineering.

Why does the drive trip during acceleration?

Possible causes include excessive acceleration demand, high inertia, mechanical obstruction, incorrect motor data, motor problems, or excessive load.

Why does the drive trip during deceleration?

Possible causes include excessive regenerative energy, high-inertia loads, or an unsuitable deceleration profile.

Why does the drive overheat?

Check cabinet ventilation, forced-air cooling, ambient temperature, airflow, dust accumulation, and continuous loading.

Can the drive communicate with a PLC?

Yes. The PowerFlex 753 platform is designed for integration with industrial automation systems using suitable I/O and communication configurations.

What should be checked before replacing this drive?

Check:

• Catalog number
• Input voltage
• Phase
• Current
• Normal-duty rating
• Heavy-duty rating
• Frame
• Braking configuration
• Filtering
• I/O
• Cooling
• Enclosure
• Communication requirements

---

Conclusion

The Allen Bradley 20F1ANC367JN0NNNNN PowerFlex 753 AC Drive is a high-capacity industrial variable frequency drive designed for large AC motor applications. Its exact configuration is identified as 400 VAC, three-phase, 367 A, 200 kW normal duty, 160 kW heavy duty, Frame 7, with forced-air cooling, embedded I/O, AC input with precharge, filtered input, and no internal dynamic-braking transistor.

The supplied physical dimensions are 881.5 × 349.6 × 430 mm, with a weight of 48 kg. These physical characteristics should be considered carefully when designing or modifying an industrial control cabinet. Mounting strength, cable-routing space, cooling, service access, and safe handling are all important considerations.

During installation, engineers should verify the exact catalog number and confirm the electrical configuration before connecting power. Motor wiring, grounding, protective devices, control signals, PLC communication, and cabinet cooling should all be checked before commissioning.

Commissioning should be performed progressively. Correct motor nameplate data should be entered first, followed by command-source and speed-reference configuration. The motor should then be tested under controlled conditions before increasing speed and applying the full mechanical load.

For troubleshooting, the drive should be evaluated as part of the complete automation system. Problems can originate in the incoming power supply, PLC, communication network, drive parameters, motor, cooling system, or mechanical load. A structured diagnostic sequence can prevent unnecessary drive replacement.

The absence of an internal dynamic-braking transistor is particularly important for applications involving high-inertia loads or frequent stopping. Such applications should receive appropriate attention during system engineering and braking-system selection.

Preventive maintenance should include inspection of cooling airflow, electrical connections, cabinet conditions, motor current, motor temperature, vibration, communication, and fault history. Maintaining a current parameter backup also makes future drive replacement significantly easier.

With appropriate electrical design, mechanical installation, thermal management, commissioning, and preventive maintenance, the Allen Bradley 20F1ANC367JN0NNNNN PowerFlex 753 AC Drive can serve as a robust motor-control platform for large industrial automation systems.
