Product Overview

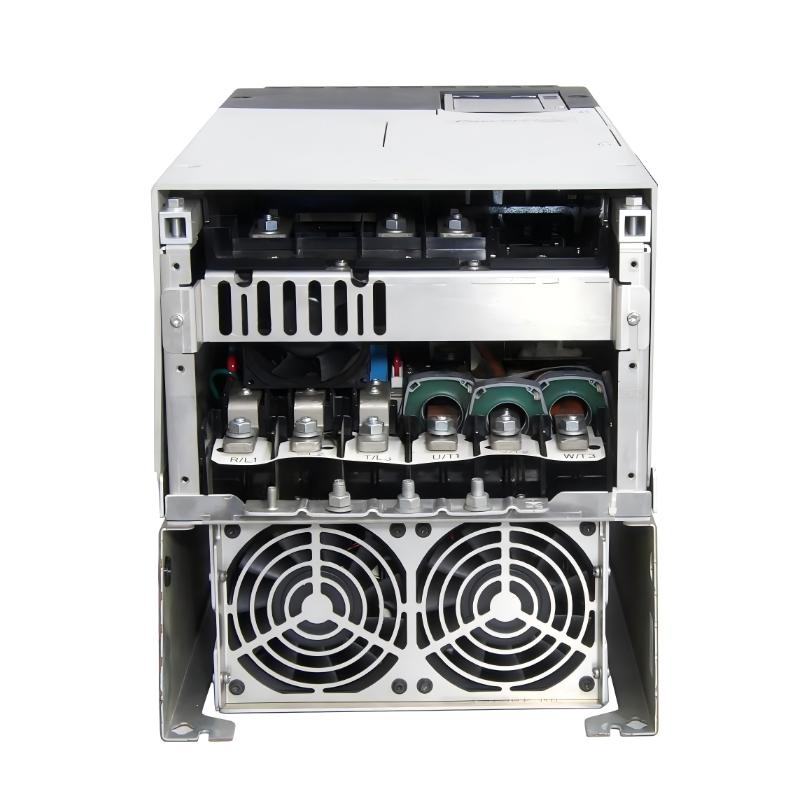

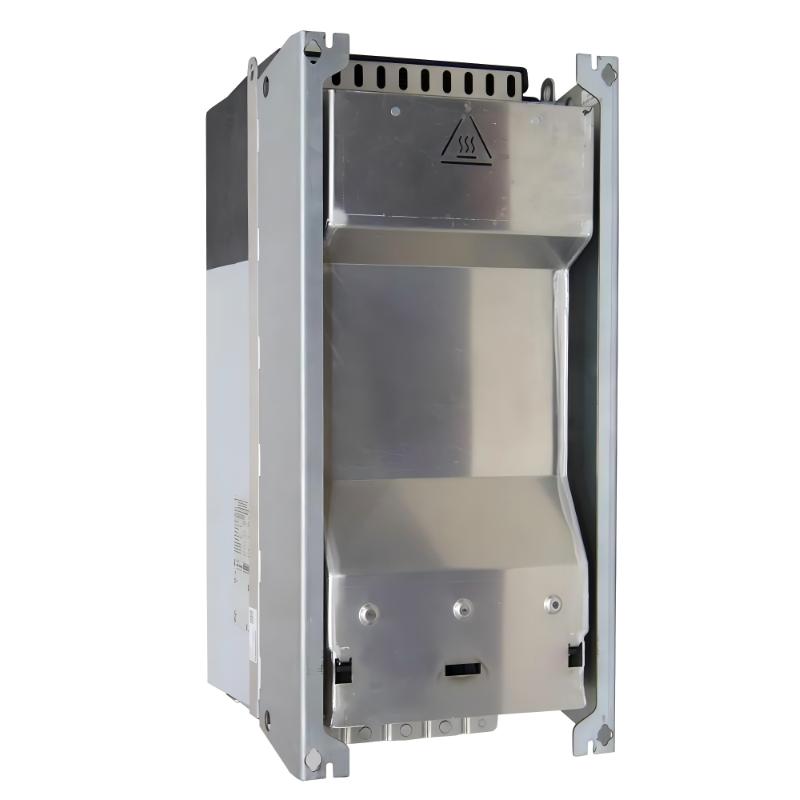

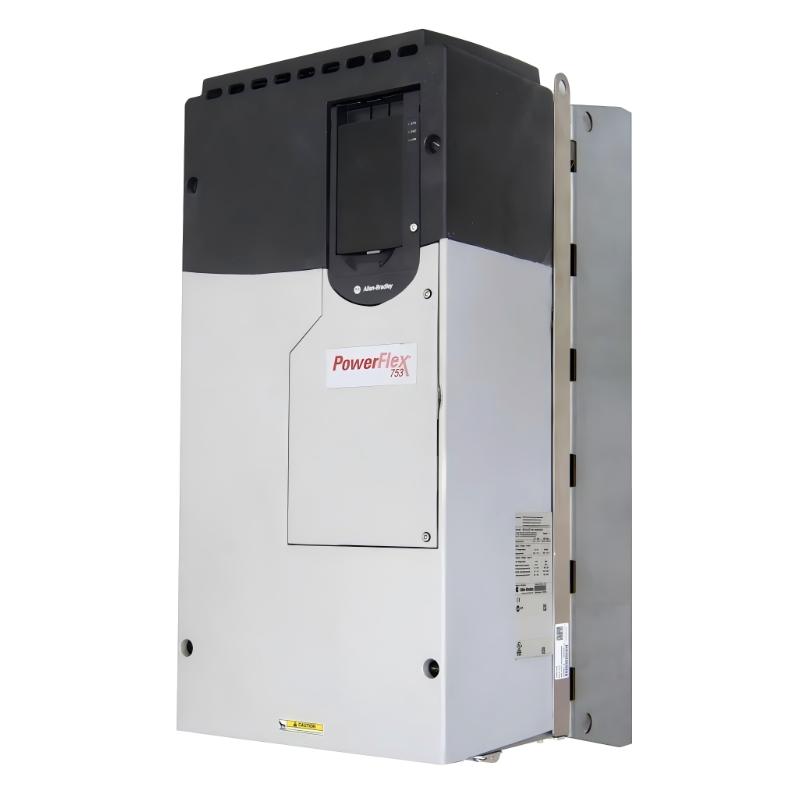

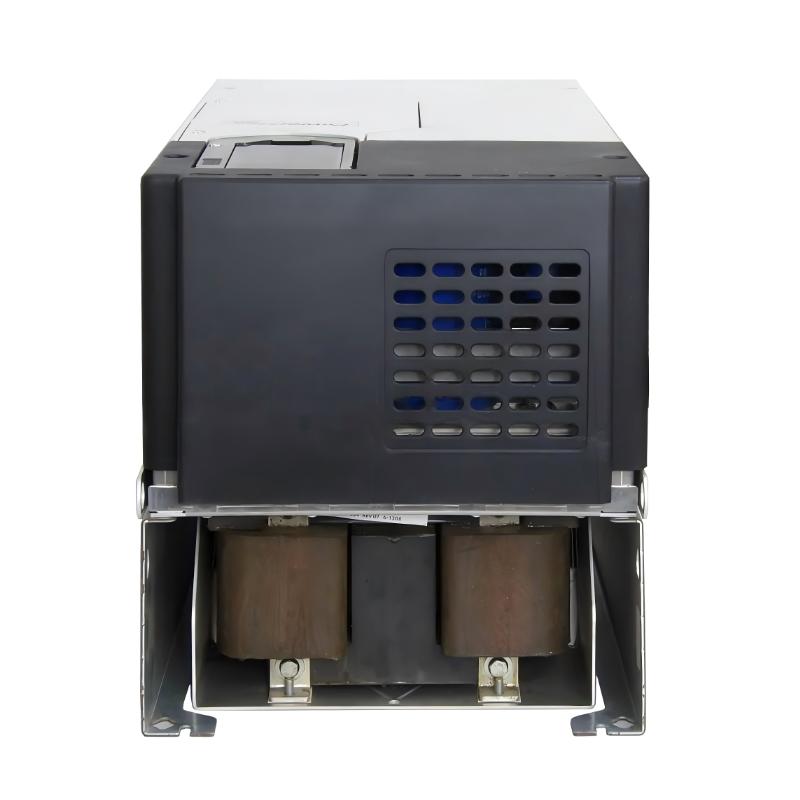

The Allen Bradley 20F1ANC260JN0NNNNN PowerFlex 753 AC Drive is a high-capacity industrial variable frequency drive designed for adjustable-speed control of three-phase AC motors. It is part of the PowerFlex 753 family and is intended for general-purpose industrial automation, manufacturing machinery, conveyors, pumps, fans, process equipment, and other motor-driven systems.

For this exact catalog number, the identified configuration is a 400 VAC, three-phase, 260 A PowerFlex 753 with 132 kW normal-duty and 110 kW heavy-duty ratings. It uses forced-air cooling, embedded I/O, AC input with precharge, no DC terminals, filtered input, Frame 6 construction, IP20/IP00 open-type protection, and no HIM. The configuration also has no internal dynamic-braking transistor.

The physical dimensions supplied for this product are 665.5 × 308 × 346.4 mm, with a listed weight of 38.6 kg. These dimensions and weight are important considerations for control-cabinet design, mounting, transportation, installation, service access, and replacement.

The PowerFlex 753 is designed to sit between the plant electrical supply and the motor while communicating with a higher-level control system such as a PLC. This allows machine logic and motor control to operate as coordinated parts of the same automation architecture.

---

Product Identification

Parameter	Specification
Manufacturer	Allen Bradley / Rockwell Automation
Product Family	PowerFlex 753
Catalog Number	20F1ANC260JN0NNNNN
Product Type	PowerFlex 753 AC Drive
Drive Type	Air-Cooled AC Variable Frequency Drive
Input Voltage	400 VAC
Input Phase	3 Phase
Rated Current	260 A
Normal-Duty Rating	132 kW
Heavy-Duty Rating	110 kW
Frame Size	Frame 6
Input Type	AC Input with Precharge
DC Terminals	None
Cooling	Forced Air
Embedded I/O	Yes
Filtering	Filtered
CM Jumper	Installed
Dynamic Braking Transistor	None
HIM	Blank / No HIM
Enclosure	IP20/IP00, NEMA/UL Open Type
Dimensions	665.5 × 308 × 346.4 mm
Weight	38.6 kg

The electrical configuration above is based on the identified catalog number. The dimensions and weight are retained from the product information supplied for this listing. Rockwell Automation identifies the model as a 260 A, 400 VAC, three-phase, Frame 6 PowerFlex 753 with 132 kW normal-duty and 110 kW heavy-duty ratings.

---

Technical Specifications

Technical Item	Specification
Brand	Allen Bradley
Series	PowerFlex 753
Model	20F1ANC260JN0NNNNN
AC Input	400 VAC, 3 Phase
Output Current	260 A
Normal-Duty Power	132 kW
Heavy-Duty Power	110 kW
Frame	6
Cooling Method	Forced Air
Input Configuration	AC Input with Precharge
DC Terminals	No
Dynamic Braking	No Internal Braking Transistor
EMC Filtering	Yes
CM Jumper	Installed
Embedded I/O	Yes
HIM	Not Included
Enclosure	IP20/IP00, Open Type
Height	665.5 mm
Width	308 mm
Depth	346.4 mm
Weight	38.6 kg

The manufacturer currently lists the catalog number as an active PowerFlex 753 product and describes this configuration as 260 A, 132 kW normal duty, 110 kW heavy duty, 400 VAC, three-phase, Frame 6, forced air cooled, and without a dynamic-braking transistor.

---

Understanding the 20F1ANC260JN0NNNNN Configuration

The catalog number contains configuration information that distinguishes this drive from other PowerFlex 753 variants.

The important characteristics include:

• PowerFlex 753 platform
• 400 VAC
• Three-phase input
• 260 A current class
• 132 kW normal-duty rating
• 110 kW heavy-duty rating
• Frame 6
• Forced-air cooling
• Embedded I/O
• AC input with precharge
• No DC terminals
• Filtered configuration
• CM jumper installed
• No internal dynamic-braking transistor
• Blank/no HIM configuration

This means that the model should not simply be treated as interchangeable with another PowerFlex 753 that has the same external dimensions. Electrical ratings and configuration options must be checked before replacement.

---

What Is the Allen Bradley 20F1ANC260JN0NNNNN?

The 20F1ANC260JN0NNNNN is a large industrial AC drive used to regulate the operation of AC motors.

A simplified power path is:

Three-Phase AC Supply

↓

PowerFlex 753

↓

Variable-Frequency AC Output

↓

AC Motor

↓

Mechanical Load

The control path can operate in parallel:

PLC / Automation Controller

↓

Run / Stop / Speed Commands

↓

PowerFlex 753

↓

Motor

The controller determines what the machine should do, while the drive manages the electrical conditions required to operate the motor.

---

Working Principle

An AC drive converts incoming electrical power into a controlled output suitable for the motor.

The general process is:

AC Input

↓

Input Power Stage

↓

DC Bus

↓

Power Switching

↓

Variable AC Output

↓

Motor

By controlling the output characteristics, the drive can regulate motor speed and provide controlled acceleration and deceleration.

This is particularly useful in applications where the motor must not simply run at one fixed speed.

Examples include:

• Variable-speed conveyors
• Pumping systems
• Industrial fans
• Blowers
• Process machinery
• Production equipment
• Material-handling systems
• Large automated machines

---

132 kW Normal Duty and 110 kW Heavy Duty

One of the important characteristics of this model is its duty classification.

The identified configuration is specified as:

132 kW Normal Duty

and

110 kW Heavy Duty.

The correct rating should be selected according to the actual motor and application.

A motor-drive selection should not be based solely on the motor’s nominal kW value. Engineers should also consider:

• Motor current
• Starting requirements
• Load inertia
• Overload requirements
• Acceleration time
• Deceleration time
• Operating cycle
• Ambient temperature
• Cooling conditions
• Process requirements

For applications with demanding overload or torque requirements, the heavy-duty rating is particularly important.

---

260 A Current Class

The catalog number identifies a 260 A PowerFlex 753 configuration.

This makes the model suitable for relatively large industrial motor-control applications.

The current rating should be evaluated together with:

• Motor full-load current
• Duty classification
• Ambient conditions
• Installation method
• Cable selection
• Protective equipment
• Motor operating mode

Correct drive sizing helps prevent unnecessary overload trips and improves system reliability.

---

Industrial Applications

Conveyor Systems

Large conveyors can require significant motor power, particularly in bulk-material handling and continuous-production environments.

The drive can regulate conveyor speed and coordinate motor operation with upstream and downstream machinery.

Pumps

Variable-speed pump applications can benefit from controlled motor operation.

The drive can be integrated with process control systems where pump speed changes according to process demand.

Fans and Blowers

Industrial ventilation and process-air systems frequently require adjustable motor speed.

The drive can provide controlled operation rather than requiring the motor to operate continuously at maximum speed.

Material Handling

Large material-handling systems can use variable-speed drives to control:

• Conveyors
• Hoists
• Transfer systems
• Processing equipment
• Automated transport machinery

Manufacturing Equipment

The PowerFlex 753 can be incorporated into automated machinery where controlled motor speed and acceleration are required.

Process Machinery

Applications involving mixers, rotating equipment, production machinery, and other motor-driven processes can use adjustable-speed control.

---

Role in Industrial Automation

The drive can operate as the motor-control layer of a larger automation system.

A typical architecture is:

HMI

↓

PLC

↓

Industrial Network / I/O

↓

PowerFlex 753

↓

AC Motor

↓

Machine

The PLC can handle:

• Sequence control
• Interlocks
• Start/stop logic
• Speed commands
• Production coordination

The drive handles:

• Motor operation
• Speed regulation
• Acceleration
• Deceleration
• Drive protection
• Motor-related diagnostics

This separation of control responsibilities makes the system easier to organize and troubleshoot.

---

Installation Guide

1. Confirm the Catalog Number

Before installation, verify:

Allen Bradley 20F1ANC260JN0NNNNN

Do not assume that another PowerFlex 753 with a similar appearance has the same electrical configuration.

Confirm the approved machine documentation and drive identification.

---

2. Inspect the Drive

Before mounting, inspect the drive for:

• Physical damage
• Cracked components
• Damaged terminals
• Loose hardware
• Corrosion
• Moisture
• Contamination
• Signs of overheating

If damage is discovered, investigate the condition before energization.

---

3. Check the Physical Installation Area

The supplied dimensions are:

665.5 × 308 × 346.4 mm

Cabinet space should account for more than the drive’s basic dimensions.

Allow space for:

• Power cables
• Motor cables
• Control cables
• Communication wiring
• Cooling airflow
• Maintenance
• Inspection
• Component removal

Avoid positioning other major heat-producing devices immediately beside the drive.

---

4. Consider the Drive Weight

The supplied weight is:

38.6 kg

The mounting structure must be capable of safely supporting this weight.

During installation or replacement, use appropriate mechanical handling equipment and procedures.

Do not use electrical cables to support the drive.

---

5. Prepare the Cabinet

The drive uses forced-air cooling, so cabinet thermal design is important.

Check:

• Cabinet airflow
• Cooling capacity
• Ambient temperature
• Ventilation
• Air passages
• Dust accumulation
• Heat sources

A poorly designed cabinet can cause thermal problems even when the drive itself is functioning normally.

---

6. Mount the Drive

Secure the drive to the designated mounting surface.

Check:

• Mounting alignment
• Fastener condition
• Mechanical stability
• Cabinet strength
• Clearance
• Vibration

The installation should remain mechanically stable during continuous operation.

---

7. Establish Grounding

Connect protective grounding according to the approved electrical design.

Grounding contributes to:

• Personnel safety
• Equipment protection
• Noise control
• System stability

---

8. Connect Incoming Power

Connect the three-phase AC supply according to the approved wiring documentation.

Before energizing, verify:

• Voltage
• Phase sequence where applicable
• Protective equipment
• Terminal connections
• Grounding
• Cable size
• Cable routing

The exact drive configuration uses a 400 VAC three-phase input with precharge.

---

9. Connect the Motor

Connect the motor according to the approved machine wiring diagram.

Inspect:

• Phase connections
• Motor grounding
• Cable insulation
• Terminal tightness
• Motor condition
• Cable routing

---

10. Connect Control Wiring

Depending on the application, control connections may include:

• Start
• Stop
• Enable
• Digital inputs
• Digital outputs
• Analog signals
• PLC connections
• Communication
• Feedback

The exact terminal arrangement should always be checked against the appropriate documentation for the installed configuration.

---

11. Plan Communication

The PowerFlex 753 platform supports integration into industrial automation networks through suitable communication options.

Depending on the machine architecture, communication can be used for:

• Start/stop commands
• Speed reference
• Status
• Fault information
• Diagnostic data
• Parameter management

Communication wiring should be separated from high-power conductors where practical.

---

Pre-Commissioning Checklist

Item	Required Check
Catalog Number	20F1ANC260JN0NNNNN
Input Voltage	400 VAC
Input Phase	3 Phase
Current Class	260 A
Normal Duty	132 kW
Heavy Duty	110 kW
Frame	6
Dimensions	665.5 × 308 × 346.4 mm
Weight	38.6 kg
Grounding	Verified
Motor Wiring	Verified
Power Wiring	Verified
Cooling	Adequate
Control Wiring	Verified
Communication	Verified
Cabinet	Suitable

---

Commissioning Procedure

Step 1 — Perform Final Inspection

Verify that the installation is complete.

Check power wiring, motor wiring, grounding, control wiring, cabinet structure, and cooling.

---

Step 2 — Record Motor Data

Obtain motor nameplate information such as:

• Voltage
• Current
• Frequency
• Power
• Speed
• Motor connection

---

Step 3 — Configure the Motor

Enter the correct motor data into the drive.

Incorrect motor information can result in poor motor performance, excessive current, unstable operation, or protective trips.

---

Step 4 — Configure the Command Source

Determine whether the drive will receive commands through:

• Hardwired I/O
• PLC
• Communication network
• Local configuration
• Other control equipment

---

Step 5 — Configure the Speed Reference

Select the appropriate source for the speed command.

Verify scaling and signal behavior before starting the motor.

---

Step 6 — Configure Acceleration

Set an acceleration profile appropriate for the mechanical load.

Avoid using an unnecessarily aggressive acceleration time.

---

Step 7 — Configure Deceleration

Set the stopping behavior according to the mechanical characteristics of the machine.

High-inertia loads require special consideration because the motor can return energy toward the drive during deceleration.

---

Step 8 — Perform a Low-Speed Test

Run the motor at a controlled low speed.

Check:

• Rotation direction
• Current
• Speed
• Noise
• Vibration
• Drive status

---

Step 9 — Increase Speed Gradually

Increase speed while monitoring motor and drive behavior.

---

Step 10 — Apply the Mechanical Load

Introduce the load gradually.

Monitor:

• Motor current
• Drive status
• Motor temperature
• Vibration
• Mechanical response

---

Step 11 — Test Automation

Verify:

• PLC start command
• PLC stop command
• Speed reference
• Drive status
• Fault feedback
• Communication

---

Step 12 — Save the Configuration

Once commissioning is complete, save a validated backup of the drive parameters.

---

Troubleshooting Guide

Problem 1 — Drive Has No Power

Possible causes:

• No incoming AC supply
• Open circuit protection
• Incorrect wiring
• Disconnect open
• Wiring fault
• Internal drive problem

Recommended sequence

Power Source → Protection → Disconnect → Wiring → Drive

---

Problem 2 — Drive Powers Up but Motor Does Not Start

Check:

• Run command
• Command source
• Enable condition
• Active faults
• Interlocks
• Speed reference
• Motor wiring

A useful diagnostic path is:

PLC → Command Source → Drive → Motor

---

Problem 3 — Overcurrent During Startup

Possible causes:

• Acceleration too short
• Excessive mechanical inertia
• Mechanical obstruction
• Incorrect motor data
• Motor fault
• Excessive load

Check the mechanical system as well as the drive configuration.

---

Problem 4 — Overcurrent During Continuous Operation

Possible causes:

• Process overload
• Mechanical friction
• Motor problem
• Incorrect motor parameters
• Mechanical obstruction
• Excessive production load

Compare current behavior with normal operating data.

---

Problem 5 — Overvoltage During Stopping

Potential causes include:

• Excessive regenerative energy
• Deceleration time too short
• High-inertia load
• Braking arrangement unsuitable for the machine

The exact 20F1ANC260JN0NNNNN configuration is specified without an internal dynamic-braking transistor.

Therefore, applications with significant regenerative energy should receive particular attention during engineering and commissioning.

---

Problem 6 — Drive Overheats

Potential causes:

• Insufficient cabinet cooling
• Blocked airflow
• Cooling fan problem
• High ambient temperature
• Dust contamination
• Excessive load
• Poor cabinet thermal design

Because this configuration uses forced-air cooling, cooling performance should be included in regular maintenance.

---

Problem 7 — Motor Speed Is Incorrect

Possible causes:

• Incorrect speed reference
• Scaling error
• Incorrect motor parameters
• PLC logic problem
• Communication problem
• Incorrect control configuration

Compare the commanded value with the actual reference received by the drive.

---

Problem 8 — Motor Speed Is Unstable

Possible causes:

• Unstable command signal
• Communication problems
• Incorrect parameters
• Feedback issue
• Variable mechanical load

Trace the problem through:

Reference → Drive → Motor → Mechanical Load

---

Problem 9 — Motor Vibrates Excessively

Potential causes:

• Motor imbalance
• Bearing problem
• Coupling problem
• Mechanical resonance
• Incorrect mounting
• Incorrect motor configuration

Inspect the complete mechanical system rather than immediately replacing the drive.

---

Problem 10 — Communication Failure

Possible causes:

• Damaged network cable
• Loose connection
• Incorrect configuration
• Electrical interference
• PLC configuration problem
• Network hardware failure

Begin with the physical communication path.

---

Problem 11 — PLC Cannot Start the Drive

If local or alternate control works but PLC control does not, investigate:

• Command source
• PLC logic
• Communication configuration
• Drive enable
• Interlocks
• Speed-reference source

This can often distinguish a drive hardware problem from a control-system problem.

---

Problem 12 — Drive Trips When the Machine Is Loaded

Potential causes:

• Excessive mechanical load
• Motor overload
• Mechanical obstruction
• Incorrect acceleration
• Incorrect motor configuration
• Process problem

Compare unloaded and loaded current measurements.

---

Problem 13 — Drive Trips After Long Operation

Possible causes:

• Thermal accumulation
• Poor ventilation
• Cooling fan degradation
• Continuous overload
• High ambient temperature
• Motor overheating

Record operating conditions immediately before the trip.

---

Systematic Diagnostic Workflow

For difficult or intermittent problems, use this sequence:

Incoming Power

↓

Drive Status

↓

Fault History

↓

Motor Parameters

↓

Command Source

↓

Speed Reference

↓

Motor Wiring

↓

Motor Condition

↓

Cooling System

↓

Communication

↓

PLC Logic

↓

Mechanical Load

This approach reduces unnecessary component replacement and helps identify whether the problem originates in the drive, controller, motor, network, or machine.

---

Preventive Maintenance

Drive Inspection

Inspect the drive regularly for:

• Dust
• Moisture
• Physical damage
• Loose connections
• Discoloration
• Overheating
• Cooling obstruction

---

Cooling System

The drive uses forced-air cooling.

Check:

• Cooling fan operation
• Airflow
• Ventilation
• Cabinet temperature
• Dust accumulation
• Air passages

Restricted airflow can increase internal temperature and contribute to protective trips.

---

Electrical Maintenance

Inspect:

• Incoming power connections
• Motor terminals
• Grounding
• Control wiring
• Communication cables
• Protective equipment

Look for:

• Loose connections
• Discoloration
• Heat damage
• Insulation deterioration
• Mechanical damage

---

Motor Maintenance

Monitor:

• Current
• Temperature
• Vibration
• Noise
• Bearing condition
• Mechanical load

An increase in current or vibration can indicate developing motor or mechanical problems.

---

Configuration Maintenance

Maintain backups of:

• Drive parameters
• Motor data
• Command-source settings
• Speed-reference settings
• Communication configuration
• PLC-related settings

Parameter backups are particularly valuable during emergency drive replacement.

---

Preventive Maintenance Checklist

Area	Maintenance Action
Drive	Inspect physical condition
Cabinet	Check cleanliness
Cooling	Check airflow and fans
Input Power	Inspect connections
Motor Wiring	Inspect cables and terminals
Grounding	Verify connection
Motor	Monitor current and temperature
Mechanical System	Monitor vibration
Communication	Verify stability
Fault History	Review recurring events
Parameters	Maintain backup
Cabinet Temperature	Monitor regularly

---

Drive Replacement Guide

Step 1 — Back Up Parameters

Save the existing configuration before removing the drive whenever possible.

---

Step 2 — Document Connections

Record:

• Input power
• Motor wiring
• Ground
• Control signals
• Communication
• Feedback wiring

---

Step 3 — Stop the Machine

Bring the equipment to a safe condition.

---

Step 4 — Isolate Power

Disconnect electrical power according to the approved site safety procedure.

Allow the required discharge period and verify the safe electrical condition before accessing the drive.

---

Step 5 — Remove the Existing Drive

Disconnect wiring and remove the drive from its mounting position.

The supplied weight is 38.6 kg, so suitable mechanical support should be used.

---

Step 6 — Inspect the Cabinet

Before installing the replacement, inspect:

• Mounting plate
• Fasteners
• Cable condition
• Grounding
• Cooling
• Adjacent components

---

Step 7 — Install the Replacement

Secure the 20F1ANC260JN0NNNNN in the designated position.

---

Step 8 — Reconnect Wiring

Reconnect:

• Incoming power
• Motor
• Ground
• Control
• Communication
• Feedback where applicable

---

Step 9 — Restore Parameters

Restore the validated configuration.

---

Step 10 — Verify Motor Data

Confirm that the configured motor data matches the actual installed motor.

---

Step 11 — Perform Controlled Testing

Check:

• Direction
• Start
• Stop
• Speed
• Current
• Drive status
• Vibration
• Noise

---

Step 12 — Test PLC Integration

Verify commands, feedback, status information, and communication.

---

Step 13 — Return to Production

Gradually increase load and speed while monitoring drive and motor behavior.

---

Compatible System Components

Component	Typical Function
PLC	Machine logic and sequencing
HMI	Operator interface
I/O Modules	Hardwired control
Communication Module	Network integration
Feedback Module	Speed or position feedback
Circuit Protection	Electrical protection
Disconnect	Power isolation
AC Motor	Mechanical power source
Sensors	Process feedback
Braking Equipment	Controlled stopping where required
Control Cabinet	Environmental and mechanical protection

The actual component selection should be based on the complete machine design.

---

Recommended Related PowerFlex 753 Configurations

Model	Product Type	Typical Selection Consideration
20F1ANC170JN0NNNNN	PowerFlex 753 AC Drive	Lower current/power application
20F1ANC205JN0NNNNN	PowerFlex 753 AC Drive	Higher-current application
20F1ANC260JN0NNNNN	PowerFlex 753 AC Drive	260 A / 132 kW ND configuration
Other PowerFlex 753 Models	PowerFlex 753 AC Drive	Select according to voltage, current, duty, braking and enclosure requirements

The related model should never be selected solely by physical appearance. Voltage class, current, duty rating, braking configuration, enclosure, filtering, and other catalog-number options must be verified before substitution.

---

Key Advantages

• PowerFlex 753 industrial AC drive platform
• 400 VAC three-phase configuration
• 260 A current class
• 132 kW normal-duty rating
• 110 kW heavy-duty rating
• Frame 6 construction
• Forced-air cooling
• Embedded I/O
• AC input with precharge
• No DC terminals
• Filtered configuration
• CM jumper installed
• IP20/IP00 open-type enclosure
• No HIM configuration
• No internal dynamic-braking transistor
• Suitable for PLC-based automation
• Suitable for large industrial motor applications
• Dimensions of 665.5 × 308 × 346.4 mm
• Supplied weight of 38.6 kg

The exact electrical configuration is documented for catalog number 20F1ANC260JN0NNNNN.

---

Technical FAQs

What is Allen Bradley 20F1ANC260JN0NNNNN?

It is a PowerFlex 753 AC Drive configured for 400 VAC three-phase operation and a 260 A current class.

What is the normal-duty power rating?

The identified configuration has a 132 kW normal-duty rating.

What is the heavy-duty power rating?

The identified configuration has a 110 kW heavy-duty rating.

What is the input voltage?

The model is specified for 400 VAC, three-phase input.

What is the current rating?

The catalog configuration is identified as 260 A.

What are the dimensions?

The supplied dimensions are:

665.5 × 308 × 346.4 mm

What is the weight?

The supplied product weight is:

38.6 kg

What type of cooling does it use?

The configuration uses forced-air cooling.

Does this model have embedded I/O?

Yes. The exact catalog configuration is specified with embedded I/O.

Does it have a built-in HIM?

The identified configuration is specified as Blank / No HIM.

Does the drive have an internal dynamic-braking transistor?

No. The exact configuration is specified without an internal dynamic-braking transistor.

Why is the lack of an internal braking transistor important?

Applications involving high-inertia loads or frequent regenerative braking should be engineered carefully because the drive configuration does not include an internal dynamic-braking transistor.

Why does the drive trip during acceleration?

Potential causes include excessive load, short acceleration time, incorrect motor parameters, mechanical obstruction, or motor problems.

Why does the drive trip during deceleration?

Possible causes include excessive regenerative energy, high mechanical inertia, or an unsuitable deceleration profile.

Why does the drive overheat?

Check cabinet temperature, cooling airflow, fan operation, dust accumulation, load level, and ventilation.

Can this drive be integrated with a PLC?

Yes. The PowerFlex 753 family is designed for industrial automation integration through embedded I/O and available communication options.

What should be checked before replacing this drive with another PowerFlex 753?

Check:

• Voltage
• Current
• Normal-duty rating
• Heavy-duty rating
• Frame size
• Braking configuration
• Input configuration
• Filtering
• Enclosure
• I/O
• Communication requirements

---

Conclusion

The Allen Bradley 20F1ANC260JN0NNNNN PowerFlex 753 AC Drive is a high-power industrial variable frequency drive configured for 400 VAC three-phase input, 260 A current class, 132 kW normal-duty operation, and 110 kW heavy-duty operation. It uses Frame 6 construction, forced-air cooling, embedded I/O, AC input with precharge, filtered input, and an IP20/IP00 open-type configuration. The exact catalog configuration does not include an internal dynamic-braking transistor or HIM.

The supplied physical specifications are 665.5 × 308 × 346.4 mm and 38.6 kg. These characteristics make proper cabinet design, structural mounting, thermal management, cable routing, and maintenance access important parts of the installation process.

During installation, engineers should first verify the exact catalog number and electrical requirements. The 400 VAC three-phase supply, motor rating, current requirements, protective equipment, grounding, control wiring, communication system, and cabinet cooling should all be checked before commissioning.

During startup, correct motor data and command-source configuration are critical. A controlled low-speed test should be performed before applying the complete mechanical load. Motor direction, current, speed response, acceleration, deceleration, communication, and machine behavior should be verified progressively.

For troubleshooting, technicians should evaluate the entire automation system rather than immediately assuming that the PowerFlex 753 itself has failed. Incoming power, control commands, PLC logic, communication, motor wiring, mechanical load, cooling, and configuration can all create symptoms that resemble drive faults.

Because the 20F1ANC260JN0NNNNN does not include an internal dynamic-braking transistor, applications involving substantial regenerative energy should receive particular attention during system engineering and commissioning.

Regular preventive maintenance should include inspection of cooling airflow, cabinet temperature, electrical connections, motor condition, communication, fault history, and parameter backups. When replacement is required, backing up the configuration and documenting all connections before removal can significantly reduce downtime.

With correct installation, commissioning, preventive maintenance, and systematic troubleshooting, the Allen Bradley 20F1ANC260JN0NNNNN PowerFlex 753 AC Drive can provide reliable variable-speed control for large industrial motors and demanding automation applications.
