Product Overview

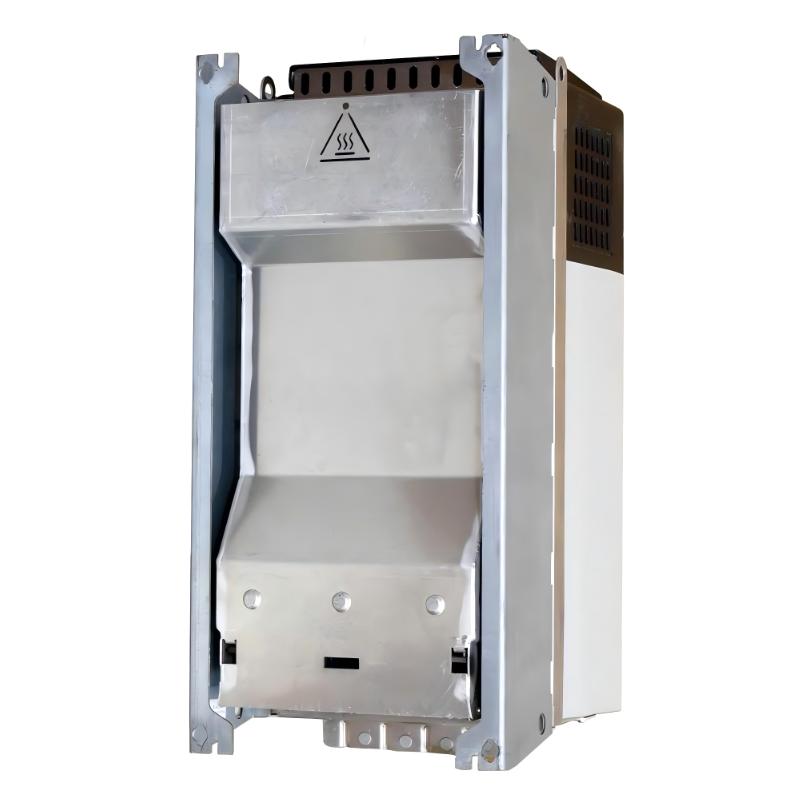

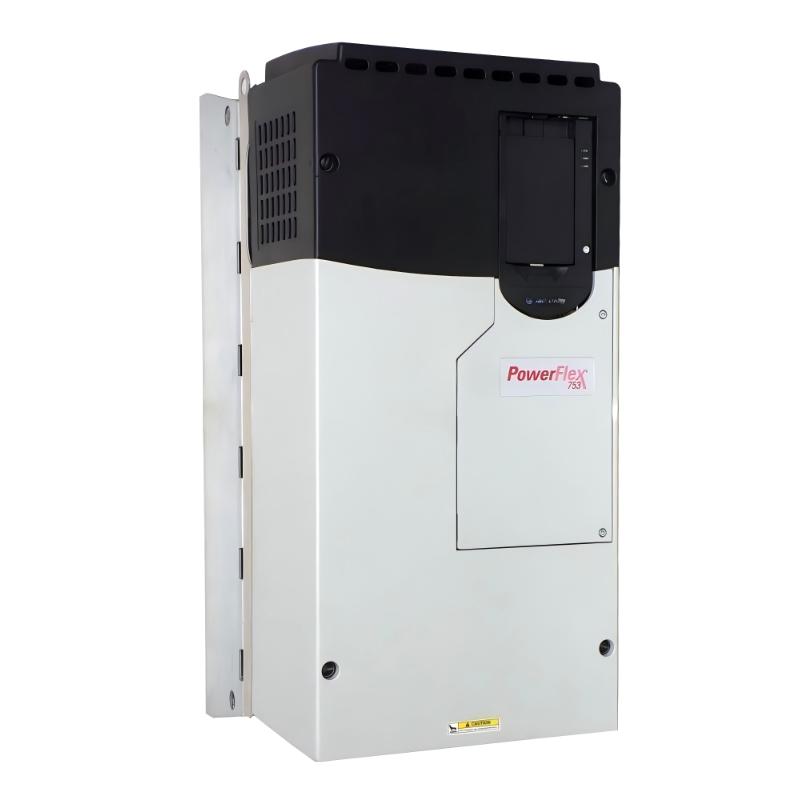

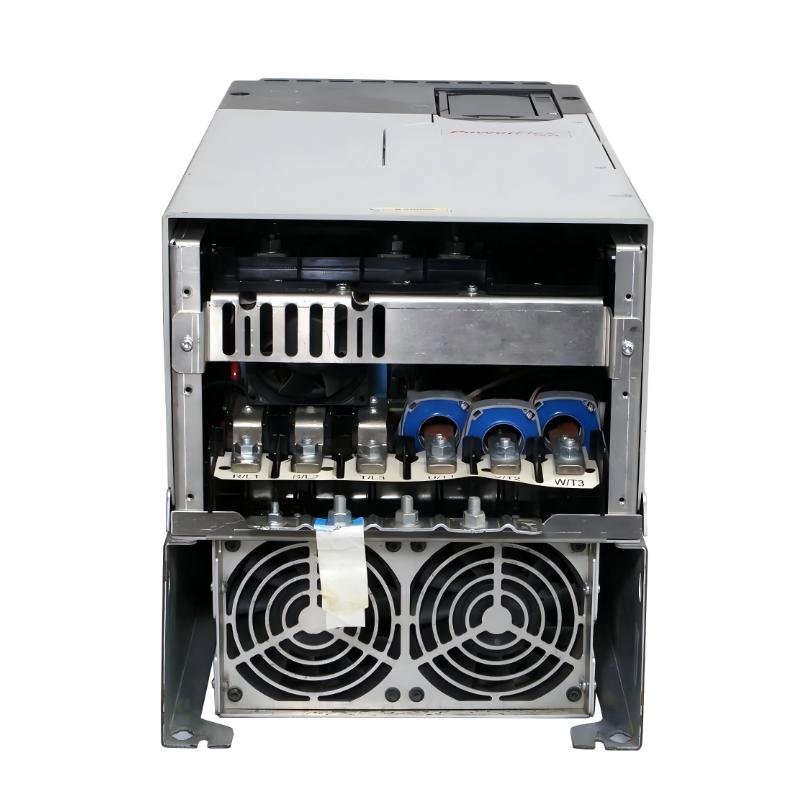

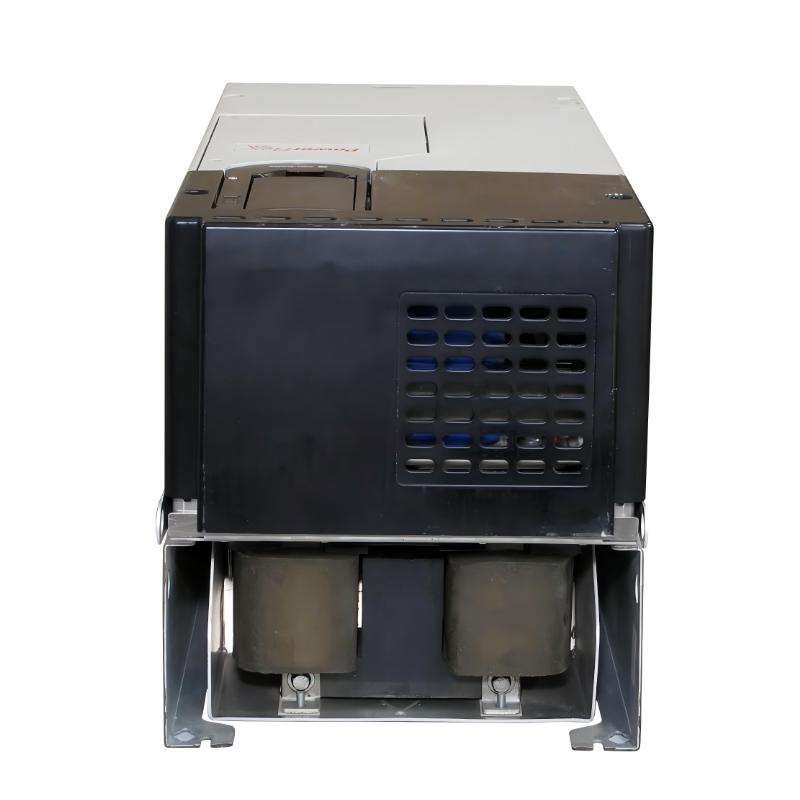

The Allen Bradley 20F1ANC205JN0NNNNN PowerFlex 753 AC Drive is an industrial variable-speed drive designed for controlling AC motors in automated production equipment, process machinery, material-handling systems, conveyors, pumps, fans, and other motor-driven industrial applications.

As a member of the PowerFlex 753 family, the drive functions as an important interface between an industrial electrical supply, an AC motor, and the automation control system. Instead of operating a motor only at a fixed electrical frequency, an AC drive allows the motor’s operating speed and acceleration behavior to be managed according to the requirements of the machine.

The supplied dimensions for the 20F1ANC205JN0NNNNN are 665.5 × 308 × 346.4 mm, with a specified weight of 38.6 kg. These physical characteristics should be considered carefully during cabinet design, mounting, transportation, installation, replacement, and maintenance.

The drive can be integrated into PLC-based automation systems through hardwired control, communication interfaces, and suitable option modules. Depending on the application, it can support coordinated motor operation, controlled acceleration and deceleration, speed regulation, operating-status monitoring, and diagnostic functions.

This guide provides a practical technical reference for product identification, installation, commissioning, troubleshooting, preventive maintenance, and replacement of the Allen Bradley 20F1ANC205JN0NNNNN PowerFlex 753 AC Drive.

---

Product Identification

Parameter	Specification
Manufacturer	Allen Bradley
Product Family	PowerFlex 753
Catalog Number	20F1ANC205JN0NNNNN
Product Type	PowerFlex 753 AC Drive
Main Function	Adjustable-Speed AC Motor Control
Application	Industrial Automation
Installation	Industrial Control Cabinet
Dimensions	665.5 × 308 × 346.4 mm
Weight	38.6 kg
System Role	Variable-Speed Motor Drive
Control Architecture	PLC / Hardwired / Network-Based Control

---

Technical Specifications

Technical Item	Specification
Brand	Allen Bradley
Series	PowerFlex 753
Model	20F1ANC205JN0NNNNN
Device Type	AC Variable-Speed Drive
Primary Function	AC Motor Speed and Torque Control
Dimensions	665.5 × 308 × 346.4 mm
Weight	38.6 kg
Installation Environment	Industrial Control Cabinet
Application	Industrial Motor Control
Control Integration	PLC, I/O, Communication and Automation Systems
Cooling Consideration	Appropriate cabinet thermal management required
Maintenance	Parameter backup, electrical inspection and cooling inspection

The dimensions and weight in this table are based on the product information supplied for this model.

---

What Is the Allen Bradley 20F1ANC205JN0NNNNN?

The 20F1ANC205JN0NNNNN is an Allen Bradley PowerFlex 753 AC Drive intended for industrial motor-control applications.

An AC drive is normally installed between the electrical power system and the motor:

Industrial AC Power

↓

PowerFlex 753 AC Drive

↓

Controlled Electrical Output

↓

AC Motor

↓

Mechanical Load

The drive can also form part of the machine’s control architecture:

PLC / Controller

↓

Run Command / Speed Reference

↓

PowerFlex 753

↓

Motor

This arrangement allows the PLC or automation controller to manage the machine sequence while the PowerFlex drive manages motor operation.

For example, a PLC may determine when a conveyor should start and what production speed is required. The PowerFlex drive receives the corresponding command and controls the motor according to its configured operating parameters.

---

Working Principle

The basic operation of an AC variable-speed drive can be represented by the following sequence:

AC Input

↓

Input Power Conversion

↓

DC Bus

↓

Electronic Switching

↓

Controlled AC Output

↓

Motor

The drive controls the electrical output supplied to the motor according to the selected operating mode and configured parameters.

During startup, the drive can control acceleration so that the motor does not immediately transition from zero speed to full operating speed. During stopping, it can manage deceleration according to the requirements of the application.

This type of control is particularly useful where the mechanical system requires:

• Controlled startup
• Controlled stopping
• Variable operating speed
• Reduced mechanical shock
• Process speed adjustment
• Coordinated operation
• Improved production control

---

Role in an Industrial Control System

The PowerFlex 753 can serve as the motor-control layer between an automation controller and an industrial motor.

A typical architecture is:

HMI

↓

PLC

↓

Control Network / I/O

↓

PowerFlex 753

↓

AC Motor

↓

Mechanical Equipment

The PLC handles machine logic, sequencing, interlocks, and production commands.

The drive manages the motor-control process.

The HMI can provide operators with information such as:

• Motor status
• Speed command
• Operating condition
• Fault status
• Drive alarms
• Production parameters

Depending on the selected system architecture, drive information can be transferred between the drive and the automation controller.

---

Typical Industrial Applications

The 20F1ANC205JN0NNNNN PowerFlex 753 can be used in a broad range of industrial motor applications.

Typical examples include:

Conveyor Systems

The drive can be used to regulate conveyor motor speed according to production requirements.

Material Handling

Automated material-transfer equipment can use variable-speed motor control to coordinate movement with other machinery.

Pumps

Variable-speed control can allow pump operation to be adjusted according to process demand.

Fans and Blowers

Speed regulation can be used to match airflow requirements to the production process.

Manufacturing Equipment

The drive can be integrated into automated manufacturing machinery where motor speed needs to be controlled.

Process Machinery

Mixers, rotating equipment, and other process machinery can use controlled motor operation.

Packaging Systems

Variable-speed drives can coordinate machine movement with production cycles.

Industrial HVAC

Motor speed can be adjusted according to ventilation and process requirements.

The actual suitability of the drive for a particular application should always be evaluated against the motor, load, electrical system, environmental conditions, and machine-control requirements.

---

System Integration

A typical installation can include the following components:

Component	Function
AC Power Source	Provides electrical power
PowerFlex 753	Controls motor operation
AC Motor	Converts electrical energy into mechanical output
PLC	Executes machine control logic
HMI	Provides operator interface
I/O Modules	Provide hardwired signals
Communication Network	Transfers control and status data
Circuit Protection	Protects electrical equipment
Disconnect	Provides electrical isolation
Feedback Device	Provides speed or motion information where required
Mechanical Load	Performs the actual production process

The exact system architecture depends on the application.

---

Installation Guide

1. Verify the Product Identification

Before installation, confirm the catalog number:

20F1ANC205JN0NNNNN

Check the identification against the approved machine documentation.

This step is important because PowerFlex 753 products can have different configurations and options even when their external appearance is similar.

---

2. Inspect the Drive Before Installation

Perform a visual inspection before mounting the drive.

Check for:

• Physical damage
• Cracked housing
• Damaged terminals
• Loose hardware
• Corrosion
• Moisture
• Signs of overheating
• Damaged mounting points
• Contamination

Do not energize equipment that has suffered visible damage until its condition has been evaluated.

---

3. Plan Cabinet Space

The specified dimensions are:

665.5 × 308 × 346.4 mm

These dimensions should be treated as the basic equipment envelope.

The actual cabinet space required may be greater because technicians also need room for:

• Power cable routing
• Motor cable routing
• Control wiring
• Communication cables
• Cooling airflow
• Terminal access
• Inspection
• Maintenance
• Replacement
• Safe handling

Avoid placing unrelated heat-generating equipment directly around the drive.

---

4. Consider the 38.6 kg Weight

The specified weight is:

38.6 kg

This is a substantial mechanical load.

The cabinet mounting plate and supporting structure should be capable of securely supporting the drive.

During installation and replacement, appropriate lifting or mechanical support should be used. Do not use connected electrical cables as a means of supporting or moving the drive.

---

5. Check Cabinet Structural Strength

Before mounting the drive, inspect the cabinet structure.

Verify:

• Mounting plate strength
• Mounting-hole alignment
• Fastener condition
• Cabinet frame strength
• Vibration conditions
• Service access
• Cable-routing space

A stable mechanical installation helps reduce vibration-related stress on electrical connections.

---

6. Plan Thermal Management

The drive produces heat during operation.

The cabinet should provide adequate thermal management, including appropriate:

• Air circulation
• Ventilation
• Cooling
• Heat dissipation
• Internal clearance

Cooling passages should remain unobstructed.

Dust accumulation should also be controlled because excessive contamination can restrict airflow and increase operating temperature.

---

7. Establish Protective Grounding

Connect the drive and associated equipment to the appropriate protective grounding system.

Proper grounding is important for:

• Personnel protection
• Equipment protection
• Electrical noise management
• Control-system stability
• Communication reliability

Grounding should be completed according to the approved electrical design.

---

8. Connect Incoming Power

Connect incoming power according to the machine’s electrical drawings.

Before energizing, verify:

• Correct supply
• Correct phase connections
• Protective equipment
• Terminal connections
• Grounding
• Cable routing

All electrical work should be performed under the site’s approved electrical safety procedures.

---

9. Connect the Motor

Connect the motor according to the approved wiring diagram.

Inspect:

• Motor phase wiring
• Cable insulation
• Terminal tightness
• Motor grounding
• Cable routing
• Motor condition

A motor connection problem can produce symptoms that may initially appear to be drive faults.

---

10. Connect Control Wiring

Depending on the machine architecture, the drive can be connected to:

• Start commands
• Stop commands
• Enable signals
• Digital inputs
• Digital outputs
• Analog references
• Speed commands
• Communication systems
• Feedback devices

Always verify terminal assignments against the actual machine drawings.

---

11. Separate Power and Signal Wiring

Where practical, route high-power motor and input cables separately from sensitive:

• Analog signals
• Communication cables
• Feedback wiring
• Low-level control signals

Good cable management can reduce electromagnetic interference and make troubleshooting easier.

---

Pre-Energization Checklist

Inspection Item	Verification
Catalog Number	20F1ANC205JN0NNNNN
Dimensions	665.5 × 308 × 346.4 mm
Weight	38.6 kg
Mounting	Secure
Input Wiring	Correct
Motor Wiring	Correct
Grounding	Connected
Control Wiring	Correct
Communication	Correct
Cooling	Adequate
Cabinet	Suitable
Protective Equipment	Installed
Motor	Ready

---

Commissioning Procedure

Step 1 — Complete a Final Installation Inspection

Confirm that mechanical and electrical installation has been completed.

Inspect all accessible connections before applying power.

---

Step 2 — Verify Motor Information

Collect the motor nameplate information required for configuration.

Typical information includes:

• Motor voltage
• Motor current
• Motor frequency
• Motor power
• Motor speed
• Motor connection

Correct motor data is essential for reliable drive operation.

---

Step 3 — Configure the Drive

Enter the required motor and application parameters according to the machine design.

Do not copy motor parameters from another machine unless the motor and application are genuinely compatible.

---

Step 4 — Select the Command Source

Determine whether commands will originate from:

• Local operation
• Hardwired I/O
• PLC
• Industrial communication
• Other automation equipment

Incorrect command-source configuration is a common reason for a drive appearing to be unable to start.

---

Step 5 — Configure the Speed Reference

Determine how the drive receives its speed command.

Possible sources depend on the application and installed configuration.

---

Step 6 — Configure Acceleration

Set an acceleration profile appropriate for:

• Motor characteristics
• Mechanical inertia
• Load requirements
• Production cycle
• Machine limitations

An excessively aggressive acceleration profile can increase current demand and cause protective trips.

---

Step 7 — Configure Deceleration

Set a deceleration profile suitable for the machine.

Large or high-inertia loads may require special consideration during stopping because mechanical energy can be transferred back toward the drive.

---

Step 8 — Perform a Controlled Motor Test

Run the motor under controlled conditions.

Verify:

• Correct direction
• Current behavior
• Speed response
• Drive status
• Abnormal noise
• Abnormal vibration

Do not immediately place the machine into full production.

---

Step 9 — Gradually Increase Speed

Increase the operating speed while monitoring:

• Motor current
• Drive status
• Motor vibration
• Motor temperature
• Mechanical response

---

Step 10 — Introduce the Mechanical Load

Apply the load progressively.

Observe whether current and motor response remain consistent with expected machine behavior.

---

Step 11 — Test PLC Operation

Verify:

• Start command
• Stop command
• Speed reference
• Status feedback
• Fault indication
• Communication

---

Step 12 — Back Up the Final Configuration

Once commissioning is successful, save the final working parameter set.

This backup can significantly reduce downtime during future troubleshooting or drive replacement.

---

Troubleshooting Guide

Problem 1 — Drive Does Not Power Up

Possible causes include:

• No incoming power
• Open protective device
• Incorrect input wiring
• Incorrect isolation state
• Grounding problem
• Internal drive problem

Diagnostic Sequence

Incoming Power → Protective Device → Input Wiring → Grounding → Drive Status

Do not repeatedly reset the equipment without determining why power is missing.

---

Problem 2 — Drive Powers Up but Motor Does Not Start

Possible causes:

• No run command
• Incorrect command source
• Drive disabled
• Active fault
• Machine interlock
• Incorrect speed reference
• Motor wiring problem

Check the complete command chain:

PLC / Control System → Command → Drive → Motor

---

Problem 3 — Overcurrent During Acceleration

Possible causes:

• Acceleration time too short
• Excessive mechanical load
• Mechanical obstruction
• Incorrect motor parameters
• Motor fault
• Mechanical transmission problem

Start by checking whether the motor and mechanical load are operating normally.

---

Problem 4 — Overcurrent During Normal Running

Possible causes:

• Process overload
• Excessive friction
• Mechanical obstruction
• Motor fault
• Incorrect drive configuration
• Unexpected increase in production load

Compare current readings with known normal operating conditions.

---

Problem 5 — Overvoltage During Deceleration

Possible causes:

• Deceleration time too short
• High-inertia mechanical load
• Regenerative energy
• Braking arrangement not suitable for the application

Review the machine’s stopping requirements before simply increasing or decreasing parameters.

---

Problem 6 — Drive Overheats

Possible causes:

• Poor cabinet ventilation
• Blocked airflow
• Excessive ambient temperature
• Dust accumulation
• Excessive motor load
• Cooling system problem

Inspect the complete thermal environment.

Check:

• Cabinet temperature
• Airflow
• Cooling equipment
• Drive loading
• Motor current
• Dust accumulation

---

Problem 7 — Motor Runs at the Wrong Speed

Possible causes:

• Incorrect speed reference
• Incorrect scaling
• Incorrect motor parameters
• Incorrect command source
• PLC programming problem
• Communication issue

Compare the commanded reference with the actual value received by the drive.

---

Problem 8 — Motor Speed Fluctuates

Possible causes:

• Unstable reference signal
• Communication instability
• Incorrect control parameters
• Feedback problem
• Variable mechanical load

Determine whether the speed fluctuation originates from:

Control → Drive → Motor → Mechanical Load

---

Problem 9 — Excessive Motor Vibration

Possible causes:

• Motor imbalance
• Poor mounting
• Bearing wear
• Coupling problem
• Mechanical resonance
• Incorrect motor configuration
• Electrical interference

Do not assume vibration is caused by the drive alone.

Inspect the entire mechanical transmission.

---

Problem 10 — Communication Failure

Possible causes:

• Damaged cable
• Loose connector
• Incorrect communication configuration
• Electrical interference
• Network hardware problem
• PLC configuration issue

Start by checking the physical communication path.

---

Problem 11 — Local Operation Works but PLC Control Fails

Possible causes:

• Incorrect command source
• PLC logic issue
• Communication failure
• Incorrect network configuration
• Incorrect speed-reference source
• Interlock condition

A useful diagnostic path is:

PLC → Network / I/O → Drive Command → Drive Status → Motor

---

Problem 12 — Drive Trips When Mechanical Load Is Applied

Possible causes:

• Mechanical overload
• Motor overload
• Excessive acceleration
• Mechanical obstruction
• Process load increase
• Incorrect motor configuration

Compare no-load and loaded operating conditions.

---

Problem 13 — Motor Runs in the Wrong Direction

Possible causes:

• Incorrect motor wiring
• Incorrect control configuration
• PLC logic issue
• Incorrect machine setup

Stop the machine before making direction-related corrections.

---

Problem 14 — Drive Trips After Extended Operation

Possible causes:

• Excessive temperature
• Poor ventilation
• Cooling obstruction
• Long-term overload
• Motor overheating
• Loose or intermittent electrical connection

Record the operating conditions immediately before the trip.

---

Advanced Diagnostic Workflow

For intermittent or recurring faults, use a structured approach:

1. Incoming Power

↓

2. Drive Status

↓

3. Fault History

↓

4. Motor Parameters

↓

5. Command Source

↓

6. Speed Reference

↓

7. Motor Wiring

↓

8. Motor Condition

↓

9. Cooling System

↓

10. Mechanical Load

↓

11. Communication

↓

12. PLC Logic

This workflow helps distinguish between electrical, configuration, communication, motor, thermal, and mechanical problems.

---

Preventive Maintenance

Drive Inspection

Inspect the drive periodically for:

• Dust
• Contamination
• Physical damage
• Loose connections
• Signs of overheating
• Cooling obstruction

---

Cabinet Inspection

Monitor:

• Internal temperature
• Airflow
• Dust
• Moisture
• Ventilation
• Nearby heat-producing equipment

---

Electrical Inspection

Check:

• Input terminals
• Motor terminals
• Ground connections
• Control wiring
• Communication wiring

Any abnormal discoloration, overheating, looseness, or physical damage should be investigated.

---

Motor Inspection

Monitor:

• Motor current
• Motor temperature
• Vibration
• Noise
• Mechanical loading

Changes in motor behavior can provide an early indication of developing problems.

---

Parameter Management

Maintain current backups of:

• Drive parameters
• Motor information
• Command-source configuration
• Speed-reference settings
• Communication settings
• Relevant PLC configuration

A current parameter backup can substantially simplify replacement and troubleshooting.

---

Preventive Maintenance Checklist

Inspection Area	Recommended Action
Drive Housing	Inspect for damage and contamination
Mounting	Verify mechanical security
Input Connections	Inspect terminals and cables
Motor Connections	Inspect terminals and insulation
Grounding	Verify connection
Cooling	Keep airflow unobstructed
Cabinet	Monitor temperature and cleanliness
Motor Current	Check for abnormal increases
Motor Temperature	Monitor operating condition
Vibration	Monitor changes
Communication	Verify stable operation
Fault History	Review recurring faults
Parameters	Maintain current backup

---

Drive Replacement Procedure

Step 1 — Back Up the Existing Configuration

Before removing the drive, save the current configuration whenever possible.

Record the operating parameters and application-specific settings.

---

Step 2 — Document Wiring

Clearly identify:

• Incoming power
• Motor connections
• Grounding
• Control wiring
• Communication wiring
• Feedback connections

Good documentation reduces the risk of wiring errors during replacement.

---

Step 3 — Stop the Machine

Bring the equipment to a safe and controlled condition.

---

Step 4 — Isolate Electrical Power

Disconnect electrical power according to the site’s approved electrical safety procedure.

Allow the required discharge period and verify the appropriate safe electrical condition before accessing power connections.

---

Step 5 — Remove the Existing Drive

Disconnect the wiring and remove the drive from the cabinet.

The specified weight is 38.6 kg, so suitable mechanical handling and support should be used.

---

Step 6 — Inspect the Installation Area

Before installing the replacement, inspect:

• Mounting plate
• Fasteners
• Cabinet structure
• Power cables
• Motor cables
• Grounding
• Cooling
• Adjacent components

---

Step 7 — Install the Replacement Drive

Install the 20F1ANC205JN0NNNNN securely in the designated location.

Verify that the mounting structure supports the complete drive weight.

---

Step 8 — Reconnect Wiring

Reconnect:

• Incoming power
• Motor wiring
• Grounding
• Control wiring
• Communication
• Feedback wiring where applicable

---

Step 9 — Restore Configuration

Load or manually restore the validated drive configuration.

---

Step 10 — Verify Motor Parameters

Confirm that the drive configuration matches the actual motor installed on the machine.

---

Step 11 — Perform Controlled Testing

Test:

• Motor direction
• Start and stop
• Speed response
• Motor current
• Drive status
• Vibration
• Noise

---

Step 12 — Verify PLC Communication

Confirm that the PLC can send commands and receive the required drive status information.

---

Step 13 — Perform Loaded Testing

Gradually return the machine to normal operating conditions.

Monitor the drive and motor during the first production cycle.

---

Compatible System Components

The PowerFlex 753 can form part of a larger industrial automation system containing:

Component	Typical Function
PLC	Machine sequencing and logic
HMI	Operator monitoring and control
I/O Modules	Hardwired field signals
Communication Module	Industrial network integration
Feedback Module	Speed or motion feedback
Circuit Protection	Electrical protection
Disconnect	Power isolation
AC Motor	Mechanical power generation
Braking Equipment	Controlled stopping where required
Sensors	Process feedback
Control Cabinet	Equipment protection and organization

The exact combination should be determined by the machine’s electrical and control design.

---

Key Advantages

• PowerFlex 753 industrial AC drive platform
• Designed for adjustable-speed AC motor control
• Suitable for PLC-based industrial automation
• Suitable for process and manufacturing machinery
• Supports controlled acceleration and deceleration
• Can be integrated with industrial communication systems
• Suitable for material-handling applications
• Suitable for pumps, fans, conveyors, and process equipment
• Large industrial drive configuration
• Specified dimensions of 665.5 × 308 × 346.4 mm
• Specified weight of 38.6 kg
• Suitable for industrial control cabinet installation
• Provides centralized motor-control and diagnostic functionality

---

Frequently Asked Questions

What is the Allen Bradley 20F1ANC205JN0NNNNN?

The 20F1ANC205JN0NNNNN is an Allen Bradley PowerFlex 753 AC Drive designed for adjustable-speed control of AC motors in industrial automation systems.

What are the specified dimensions?

The supplied dimensions are:

665.5 × 308 × 346.4 mm

What is the specified weight?

The supplied weight is:

38.6 kg

Why is cabinet planning important for this drive?

The drive has a relatively large physical envelope and substantial weight. The cabinet must provide sufficient mounting strength, cable-routing space, cooling, and service access.

What should be checked before installation?

Verify the catalog number, electrical design, motor compatibility, cabinet dimensions, mounting structure, grounding, power wiring, motor wiring, control connections, and cooling arrangement.

Why does the motor not start even though the drive is powered?

Check the run command, command source, enable conditions, active faults, speed reference, interlocks, and motor wiring.

What causes an overcurrent fault during acceleration?

Potential causes include excessive load, acceleration that is too aggressive, mechanical obstruction, incorrect motor parameters, or motor problems.

What causes overvoltage during deceleration?

A high-inertia load can return energy toward the drive during deceleration. An unsuitable stopping profile or braking arrangement may contribute to an overvoltage condition.

Why does the drive overheat?

Possible causes include inadequate cabinet cooling, blocked airflow, high ambient temperature, contamination, excessive load, or cooling-system problems.

Why is the motor speed unstable?

Investigate the speed-reference signal, communication, drive parameters, feedback, and mechanical load.

What should be saved before replacing the drive?

Save the drive parameters, motor information, command-source settings, speed-reference configuration, communication settings, and relevant PLC configuration.

Does the 38.6 kg weight affect replacement?

Yes. Appropriate mechanical handling and support should be planned for installation and removal because the specified drive weight is 38.6 kg.

---

Conclusion

The Allen Bradley 20F1ANC205JN0NNNNN PowerFlex 753 AC Drive is an industrial adjustable-speed drive designed to provide controlled AC motor operation within automated machinery, production lines, process systems, material-handling equipment, and other industrial applications.

The supplied physical specifications are 665.5 × 308 × 346.4 mm and 38.6 kg. These dimensions and weight should be incorporated into cabinet design, mounting arrangements, transportation planning, maintenance access, and drive replacement procedures.

Successful installation begins with accurate product identification and verification of the electrical and mechanical requirements. The cabinet should provide sufficient structural support and appropriate thermal management. Incoming power, motor wiring, grounding, control wiring, and communication connections should all be checked before energization.

During commissioning, correct motor data and command-source configuration are essential. The drive should be tested progressively, beginning with controlled motor operation and then moving toward normal mechanical loading. Motor direction, current, speed response, acceleration, deceleration, communication, and machine behavior should all be verified before full production operation.

When troubleshooting the 20F1ANC205JN0NNNNN, technicians should evaluate the entire drive system rather than assuming that every abnormal condition originates inside the drive. Incoming power, control signals, configuration, communication, motor wiring, motor condition, cooling, and mechanical loading can all produce similar symptoms.

Preventive maintenance should focus on cabinet temperature, cooling, electrical connections, motor performance, communication stability, fault history, and configuration backups. Regular inspection can identify developing problems before they result in unexpected production downtime.

For replacement work, parameter backup and wiring documentation are particularly valuable. Because the drive weighs approximately 38.6 kg, safe mechanical handling should also be incorporated into the replacement plan.

With correct installation, commissioning, maintenance, and systematic troubleshooting, the Allen Bradley 20F1ANC205JN0NNNNN PowerFlex 753 AC Drive can provide dependable variable-speed motor control for demanding industrial automation applications.
