Product Overview

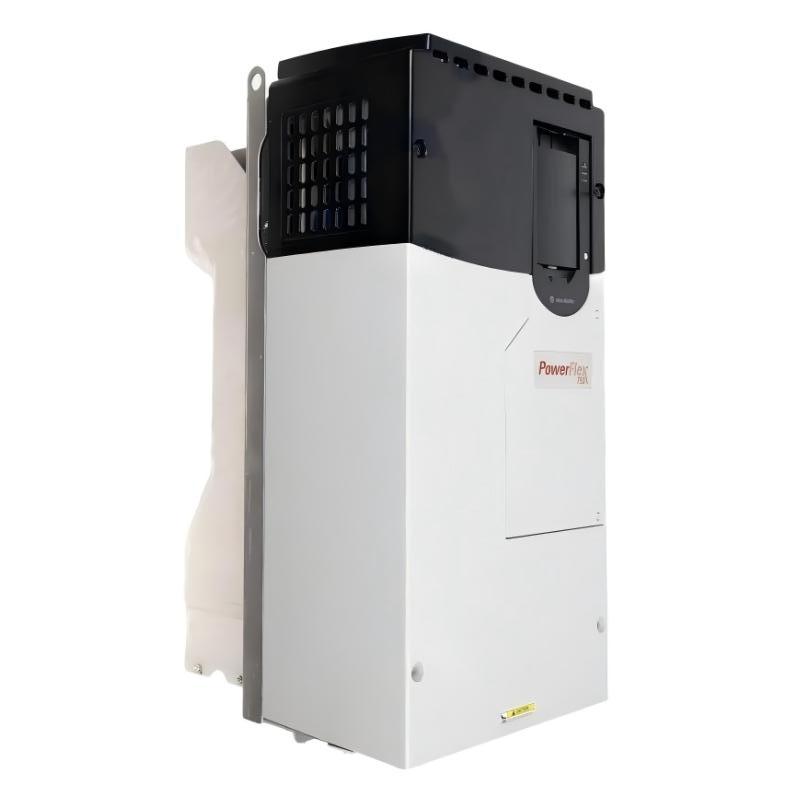

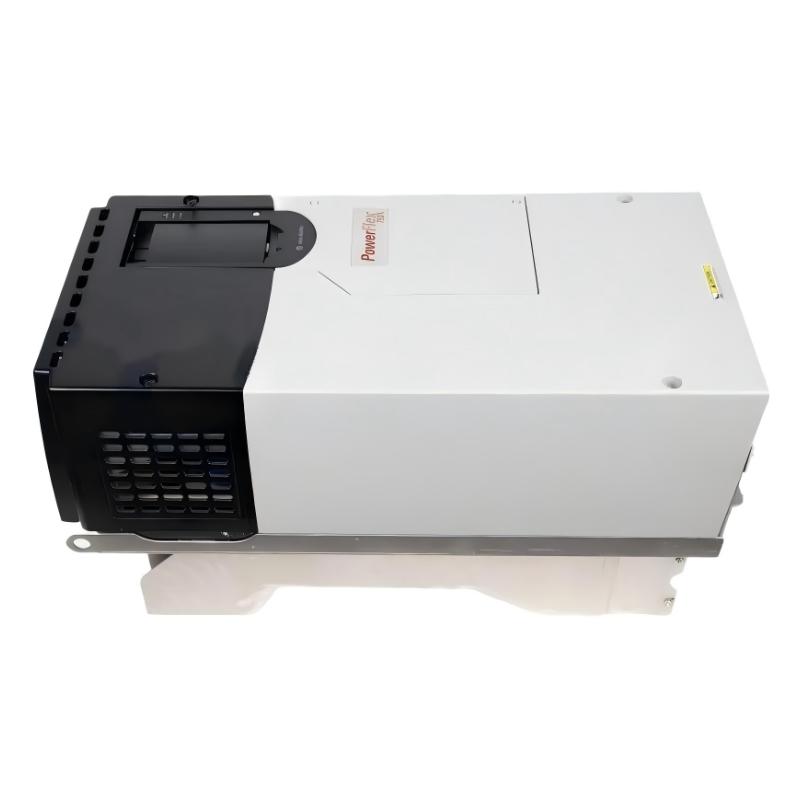

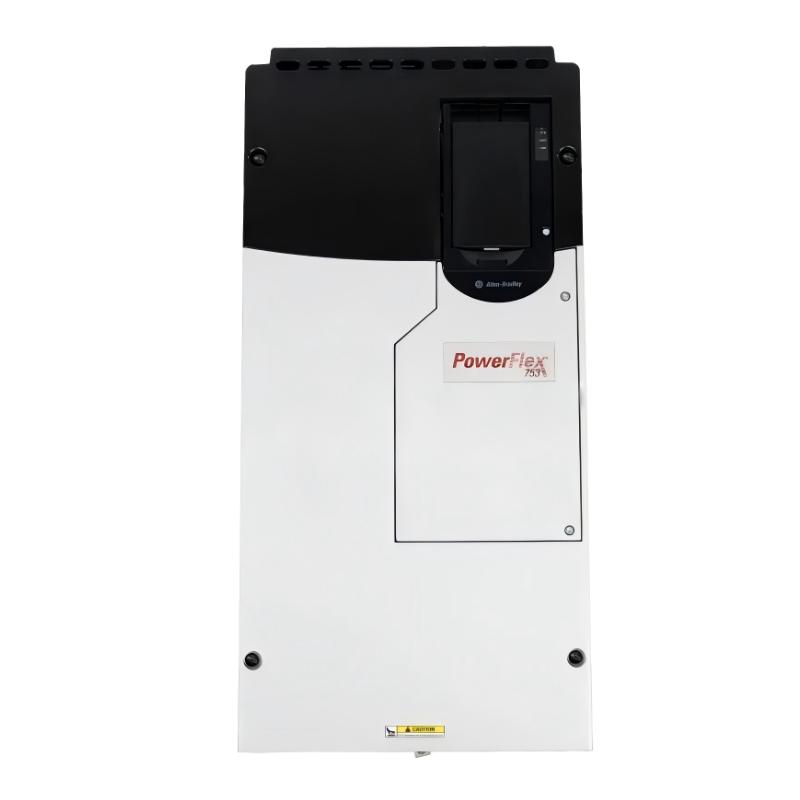

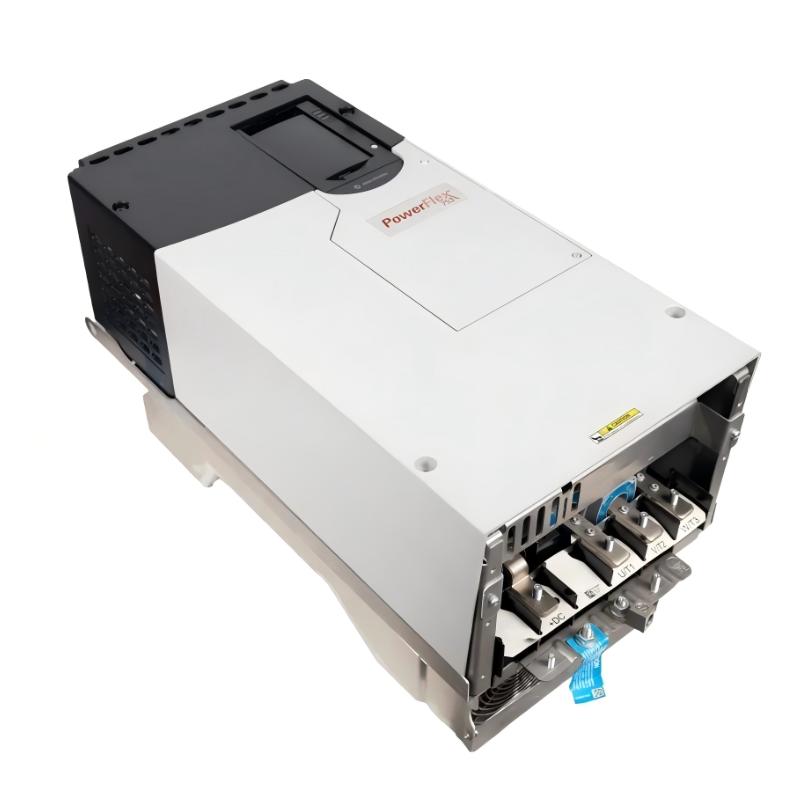

The Allen Bradley 20F14NC205JA0NNNNN PowerFlex 753 AC Drive is an industrial variable-frequency drive designed for adjustable-speed control of AC motors in demanding automation and process environments. It can serve as the motor-control interface between an industrial power supply, automation controller, and motor-driven mechanical equipment.

Variable-speed drives are used when a motor needs more flexible operation than direct connection to a fixed-frequency power source can provide. By controlling motor operating conditions, the drive can support controlled acceleration, deceleration, speed regulation, and coordinated operation with the machine control system.

The specified dimensions of the 20F14NC205JA0NNNNN are 665.5 × 308 × 346.4 mm, with a specified weight of approximately 38.6 kg. Its comparatively large physical size and weight should be considered during cabinet design, transportation, mounting, servicing, and replacement.

The drive can be incorporated into systems such as heavy-duty conveyors, pumps, fans, process equipment, material-handling machinery, and automated production systems. Proper installation requires attention to mechanical support, electrical isolation, grounding, power wiring, motor wiring, control connections, cooling, and commissioning.

This technical guide provides a practical reference for installation, startup, fault diagnosis, preventive maintenance, and drive replacement.

---

Product Identification

Parameter	Specification
Manufacturer	Allen Bradley
Product Family	PowerFlex 753
Model	20F14NC205JA0NNNNN
Product Type	PowerFlex 753 AC Drive
Main Function	Adjustable-Speed AC Motor Control
Dimensions	665.5 × 308 × 346.4 mm
Weight	Approximately 38.6 kg
Application	Industrial Motor Control
Installation	Industrial Control Cabinet
System Role	Variable-Speed Motor Drive

---

Technical Specifications

Technical Item	Specification
Brand	Allen Bradley
Series	PowerFlex 753
Catalog Number	20F14NC205JA0NNNNN
Device Type	AC Drive
Primary Function	Variable-Speed AC Motor Control
Height	665.5 mm
Width	308 mm
Depth	346.4 mm
Weight	Approximately 38.6 kg
Application	Industrial Automation
Installation Environment	Industrial Control Cabinet
Control Application	AC Motor Speed Regulation

---

What Is the Allen Bradley 20F14NC205JA0NNNNN?

The 20F14NC205JA0NNNNN is a PowerFlex 753 AC drive used to regulate the operation of AC motors in industrial systems.

The drive performs two important functions within an automated machine:

1. It converts and controls electrical power supplied to the motor.
2. It processes operating commands and configured parameters that determine motor behavior.

A simplified system architecture is:

Industrial Power Supply

↓

PowerFlex 753

↓

Controlled Motor Output

↓

AC Motor

↓

Mechanical Load

The control system may communicate with the drive to issue start/stop commands, speed references, and other operating instructions.

---

Operating Principle

The basic operation of an AC drive can be represented as:

AC Input

↓

Power Conversion

↓

DC Bus

↓

Electronic Switching

↓

Controlled AC Output

↓

Motor

The drive controls the motor output according to the configured operating parameters.

This allows the motor to accelerate gradually instead of immediately reaching operating speed. Similarly, the drive can control the stopping process according to the selected deceleration profile.

The result is a more flexible motor-control system suitable for automated industrial equipment.

---

Role in an Industrial Control System

The PowerFlex 753 normally operates as part of a larger control architecture.

A simplified system is:

PLC

↓

Run Command / Speed Reference

↓

PowerFlex 753

↓

AC Motor

↓

Mechanical Equipment

The PLC manages the overall process sequence. The drive manages motor operation, while sensors and other field devices provide process feedback.

Depending on the machine design, the drive may communicate operating status, diagnostic information, and other data back to the control system.

---

Typical Industrial Applications

The 20F14NC205JA0NNNNN PowerFlex 753 can be considered for a wide range of industrial motor applications, including:

• Heavy-duty conveyor systems
• Material-handling equipment
• Pumps
• Fans
• Blowers
• Process machinery
• Production lines
• Packaging equipment
• Industrial mixers
• Automated manufacturing equipment
• Machine tools
• Large mechanical drive systems
• Industrial HVAC equipment
• Process automation systems

The final application should be evaluated according to motor ratings, load characteristics, environmental conditions, and control requirements.

---

System Integration

A typical system can include:

Component	Function
Incoming AC Supply	Provides electrical power
PowerFlex 753	Regulates motor operation
AC Motor	Produces mechanical output
PLC	Executes machine logic
HMI	Provides operator interface
Communication Network	Transfers control and status information
Circuit Protection	Protects the electrical system
Disconnect	Provides electrical isolation
Feedback Device	Provides speed or motion feedback where required
Mechanical Load	Performs the production process

The actual wiring and architecture should follow the approved machine design.

---

Installation Guide

1. Verify the Drive Model

Before installation, confirm:

Allen Bradley 20F14NC205JA0NNNNN

Check the catalog number against the machine electrical documentation and project requirements.

---

2. Inspect the Drive Before Mounting

Check the drive for:

• Physical damage
• Cracked housing
• Damaged terminals
• Loose components
• Corrosion
• Moisture
• Signs of overheating
• Damaged mounting points

Do not install visibly damaged equipment without first determining whether it is safe for use.

---

3. Plan Cabinet Space

The specified dimensions are:

665.5 × 308 × 346.4 mm

Cabinet planning should account for the complete physical envelope rather than only the drive body.

Provide adequate space for:

• Mounting hardware
• Power cables
• Motor cables
• Control wiring
• Communication cables
• Cooling airflow
• Maintenance access
• Inspection
• Safe handling during service

Avoid placing unnecessary heat-generating components immediately adjacent to the drive.

---

4. Consider Mechanical Handling

The specified weight is approximately:

38.6 kg

This is substantially heavier than smaller drive configurations.

During installation and replacement, appropriate mechanical handling equipment and sufficient personnel should be used according to the site’s safety procedures.

The mounting structure should be capable of securely supporting the drive without excessive vibration or movement.

---

5. Verify Cabinet Ventilation

The drive generates heat during operation.

The cabinet should provide appropriate:

• Airflow
• Heat dissipation
• Ventilation
• Cooling capacity
• Internal clearance

Do not obstruct cooling paths with cables or other equipment.

Excessive temperature can contribute to premature component aging and intermittent faults.

---

6. Establish Protective Grounding

Connect the drive and associated equipment to the appropriate protective grounding system.

Proper grounding helps provide:

• Personnel protection
• Electrical noise management
• Stable equipment operation
• Improved shielding effectiveness
• Reduced communication interference

---

7. Connect Incoming Power

Connect the incoming electrical supply according to the approved electrical drawings.

Before energizing, verify:

• Correct power source
• Correct phase connections
• Correct protective devices
• Proper grounding
• Secure terminals
• Appropriate cable routing

---

8. Connect the Motor

Connect the motor conductors to the drive’s output connections according to the electrical design.

Inspect:

• Phase connections
• Cable insulation
• Terminal tightness
• Motor grounding
• Cable routing
• Mechanical condition of the motor

---

9. Connect Control Wiring

Depending on the application, control wiring can include:

• Start command
• Stop command
• Enable
• Digital inputs
• Digital outputs
• Analog signals
• Speed reference
• Communication
• Feedback signals

Use the approved system wiring diagram for terminal assignments.

---

10. Separate Power and Signal Cables

Where practical, route high-power cables separately from sensitive control and communication cables.

This can help minimize electromagnetic interference and simplify troubleshooting.

---

11. Complete a Pre-Power Inspection

Before applying power, check:

Item	Verification
Drive Mounting	Secure
Incoming Power	Correct
Motor Wiring	Correct
Grounding	Connected
Control Wiring	Correct
Communication	Connected
Cooling	Adequate
Cabinet	Suitable
Motor	Ready
Protective Devices	Correct

---

Commissioning Procedure

Step 1 — Apply Power

Energize the drive according to the approved commissioning procedure.

Step 2 — Check Drive Status

Confirm that the drive initializes correctly and does not display an unexpected fault.

Step 3 — Enter Motor Data

Configure the required motor parameters using the actual motor nameplate information.

Step 4 — Configure the Command Source

Determine whether motor commands will come from:

• Local control
• Hardwired inputs
• PLC
• Communication network
• Other automation equipment

Step 5 — Configure the Speed Reference

Select the required source for the speed command.

Step 6 — Configure Acceleration

Set an acceleration profile appropriate for the motor and mechanical load.

Step 7 — Configure Deceleration

Set a suitable deceleration profile.

Step 8 — Verify Motor Direction

Perform a controlled low-speed test before operating the machine at full speed.

Step 9 — Monitor Current

Observe motor current during acceleration and steady-state operation.

Step 10 — Test the Mechanical System

Verify that the connected equipment operates correctly.

Step 11 — Test PLC Communication

If the drive is controlled remotely, confirm communication and command transfer.

Step 12 — Save the Final Configuration

Back up the successfully commissioned parameters.

---

Troubleshooting Guide

Problem 1 — Drive Does Not Power Up

Possible causes:

• Incoming power is missing
• Protective device is open
• Incorrect power wiring
• Grounding problem
• Internal drive fault

Diagnostic Sequence

Check:

Power Source → Protection → Input Wiring → Grounding → Drive Status

---

Problem 2 — Drive Is Powered but Motor Does Not Start

Possible causes:

• No run command
• Incorrect command source
• Drive disabled
• Active fault
• Interlock
• Motor wiring problem

Verify that the command path is complete.

---

Problem 3 — Overcurrent During Acceleration

Possible causes:

• Acceleration time too short
• Excessive mechanical load
• Mechanical obstruction
• Incorrect motor configuration
• Motor fault

Inspect the mechanical load before repeatedly resetting the drive.

---

Problem 4 — Overcurrent During Normal Operation

Possible causes:

• Mechanical overload
• Process load increase
• Excessive friction
• Motor problem
• Incorrect configuration

Compare the operating current with normal machine conditions.

---

Problem 5 — Overvoltage During Deceleration

Possible causes:

• Deceleration time too short
• High-inertia mechanical load
• Regenerative energy
• Braking configuration problem

Review the deceleration profile and braking system.

---

Problem 6 — Motor Overheats

Possible causes:

• Excessive load
• Poor ventilation
• Prolonged low-speed operation
• Incorrect motor data
• Mechanical problems

Inspect motor current, temperature, ventilation, and mechanical loading.

---

Problem 7 — Motor Speed Is Incorrect

Possible causes:

• Incorrect speed reference
• Incorrect scaling
• Incorrect command source
• Incorrect motor parameters
• Feedback problem

Compare the requested speed with the actual motor response.

---

Problem 8 — Motor Speed Fluctuates

Possible causes:

• Unstable reference signal
• Communication problem
• Incorrect control parameters
• Feedback problem
• Variable mechanical load

Determine whether the variation originates from the control system or mechanical equipment.

---

Problem 9 — Excessive Vibration

Possible causes:

• Mechanical imbalance
• Poor motor mounting
• Bearing problems
• Mechanical resonance
• Incorrect drive configuration
• Electrical interference

Check both the drive and mechanical system.

---

Problem 10 — Communication Is Intermittent

Possible causes:

• Loose connector
• Damaged cable
• Incorrect network settings
• Electrical interference
• Network equipment problem

Begin troubleshooting at the physical layer before changing software configuration.

---

Problem 11 — Local Control Works but PLC Control Does Not

Possible causes:

• Incorrect command source
• PLC communication failure
• Incorrect network configuration
• Incorrect speed-reference selection
• PLC logic problem

Trace:

PLC → Network → Drive → Command → Motor

---

Problem 12 — Drive Trips When Load Is Applied

Possible causes:

• Excessive mechanical load
• Motor overload
• Mechanical obstruction
• Incorrect acceleration
• Process-related load increase

Compare unloaded and loaded motor operation.

---

Problem 13 — Motor Rotates in the Wrong Direction

Possible causes:

• Incorrect motor wiring
• Incorrect control configuration
• PLC logic issue
• Application setup problem

Stop the machine before correcting the direction.

---

Problem 14 — Drive Trips After Long Operating Periods

Possible causes:

• Excessive cabinet temperature
• Insufficient ventilation
• Cooling obstruction
• Long-term overload
• Motor overheating
• Intermittent electrical connection

Record operating temperature, motor current, and machine load when the fault occurs.

---

Advanced Diagnostic Workflow

For recurring or difficult faults, use a structured diagnostic sequence:

1. Incoming Power

↓

2. Drive Status

↓

3. Fault History

↓

4. Drive Parameters

↓

5. Command Source

↓

6. Speed Reference

↓

7. Motor Wiring

↓

8. Motor Condition

↓

9. Mechanical Load

↓

10. Communication

↓

11. PLC Logic

This approach helps identify whether the fault originates in the power system, drive configuration, motor, communication network, or mechanical equipment.

---

Preventive Maintenance

Drive Inspection

Inspect periodically for:

• Dust accumulation
• Contamination
• Physical damage
• Loose connections
• Overheating
• Cooling obstruction

Cabinet Inspection

Monitor:

• Temperature
• Airflow
• Dust
• Moisture
• Ventilation
• Nearby heat sources

Electrical Inspection

Check:

• Input terminals
• Motor terminals
• Ground connections
• Control wiring
• Communication connections

Motor Inspection

Monitor:

• Motor current
• Motor temperature
• Vibration
• Noise
• Mechanical load

Configuration Management

Maintain current backups of:

• Drive parameters
• Motor information
• Communication settings
• Command configuration
• Speed-reference configuration
• Relevant PLC settings

---

Preventive Maintenance Checklist

Inspection Area	Recommended Action
Drive Housing	Inspect for damage and contamination
Mounting	Verify mechanical security
Input Connections	Check wiring and terminals
Motor Connections	Check cable and terminal condition
Grounding	Verify grounding
Cooling	Keep airflow paths unobstructed
Cabinet Temperature	Monitor operating conditions
Motor Current	Watch for abnormal increases
Motor Temperature	Monitor during operation
Vibration	Check for changes
Communication	Verify stable operation
Fault History	Review recurring faults
Parameters	Maintain current backups

---

Replacement Procedure

Step 1 — Back Up Configuration

Save the existing drive parameters and application configuration.

Step 2 — Document Connections

Record:

• Incoming power
• Motor output
• Ground
• Control wiring
• Communication connections
• Feedback wiring

Step 3 — Stop the Machine

Bring the machine to a safe and stable condition.

Step 4 — Isolate Electrical Power

Disconnect the electrical supply using the approved site safety procedure.

Allow the required discharge period and verify the appropriate safe electrical condition before accessing power connections.

Step 5 — Remove the Existing Drive

Disconnect the wiring and remove the drive from its mounting location.

Because the specified weight is approximately 38.6 kg, appropriate lifting and handling equipment should be considered.

Step 6 — Inspect the Cabinet

Check:

• Mounting structure
• Mounting hardware
• Cable condition
• Grounding
• Ventilation
• Adjacent equipment

Step 7 — Install the Replacement

Secure the replacement 20F14NC205JA0NNNNN in the designated position.

Step 8 — Reconnect Wiring

Reconnect all required:

• Power connections
• Motor connections
• Grounding
• Control wiring
• Communication
• Feedback connections

Step 9 — Restore Parameters

Load the validated configuration.

Step 10 — Verify Motor Data

Confirm that the configured motor information corresponds to the installed motor.

Step 11 — Perform Low-Speed Testing

Verify:

• Motor direction
• Current
• Drive status
• Motor response
• Abnormal vibration

Step 12 — Test Communication

Confirm PLC or network control.

Step 13 — Perform a Loaded Test

Gradually return the machine to normal production conditions.

---

Key Advantages

• PowerFlex 753 industrial AC drive platform
• Designed for adjustable-speed AC motor applications
• Suitable for industrial automation systems
• Supports controlled motor acceleration and deceleration
• Suitable for process and material-handling applications
• Can integrate into PLC-based control architectures
• Specified dimensions of 665.5 × 308 × 346.4 mm
• Approximately 38.6 kg specified weight
• Suitable for industrial cabinet installations
• Provides centralized motor-control and diagnostic functionality

---

Frequently Asked Questions

What is the Allen Bradley 20F14NC205JA0NNNNN?

It is a PowerFlex 753 AC Drive designed for adjustable-speed control of AC motors in industrial automation systems.

What are the specified dimensions?

The dimensions are:

665.5 × 308 × 346.4 mm

How much does the drive weigh?

The specified weight is approximately:

38.6 kg

Why is cabinet planning important for this drive?

The drive has a relatively large physical envelope and substantial weight. The cabinet must provide sufficient mounting strength, clearance, cable-routing space, cooling, and maintenance access.

Why does the drive trip during acceleration?

Possible causes include excessive load, insufficient acceleration time, incorrect motor configuration, mechanical obstruction, or motor problems.

Why can the drive trip during deceleration?

A high-inertia load can return energy to the drive during deceleration. An unsuitable deceleration profile or braking arrangement can result in an overvoltage condition.

Why does the motor not respond to a PLC command?

Check the PLC output, communication network, drive command source, speed-reference source, drive enable state, and active interlocks.

What should be checked if the drive overheats?

Check cabinet temperature, ventilation, cooling paths, dust accumulation, motor load, and operating conditions.

What should be backed up before replacing the drive?

Back up the drive parameters, motor configuration, command source, speed-reference configuration, communication settings, and relevant PLC settings.

Does the 38.6 kg weight affect replacement work?

Yes. The unit should be handled using appropriate lifting and mechanical-support procedures to prevent equipment damage and personnel injury.

---

Conclusion

The Allen Bradley 20F14NC205JA0NNNNN PowerFlex 753 AC Drive is an industrial adjustable-speed drive intended for AC motor control in automation, manufacturing, material handling, and process applications. Its specified dimensions of 665.5 × 308 × 346.4 mm and weight of approximately 38.6 kg make mechanical support, cabinet layout, ventilation, and safe handling particularly important considerations during installation.

The drive serves as an interface between the industrial electrical supply, automation controller, AC motor, and mechanical load. Correct installation requires careful attention to incoming power, motor wiring, protective grounding, control signals, communication, cabinet cooling, and parameter configuration.

Commissioning should be performed systematically. Motor information should be verified first, followed by command-source and speed-reference configuration. Controlled low-speed operation should then be used to confirm motor direction, current, acceleration, deceleration, communication, and mechanical response before full-load operation.

When troubleshooting the 20F14NC205JA0NNNNN, technicians should avoid assuming that every motor fault originates inside the drive. A structured investigation should examine power quality, drive status, parameters, command signals, communication, motor wiring, motor condition, mechanical loading, and thermal conditions.

Preventive maintenance is equally important. Regular inspection of cooling paths, cabinet conditions, electrical connections, motor performance, communication, and fault history can help identify developing problems before they cause production interruptions.

With proper installation, configuration, commissioning, maintenance, and fault diagnosis, the Allen Bradley 20F14NC205JA0NNNNN PowerFlex 753 AC Drive can provide dependable variable-speed motor control for demanding industrial automation applications.
