20F11GD077JA0NNNNN — Detailed Product Overview, Technical Parameters, Applications and Related Models

1. Product Introduction

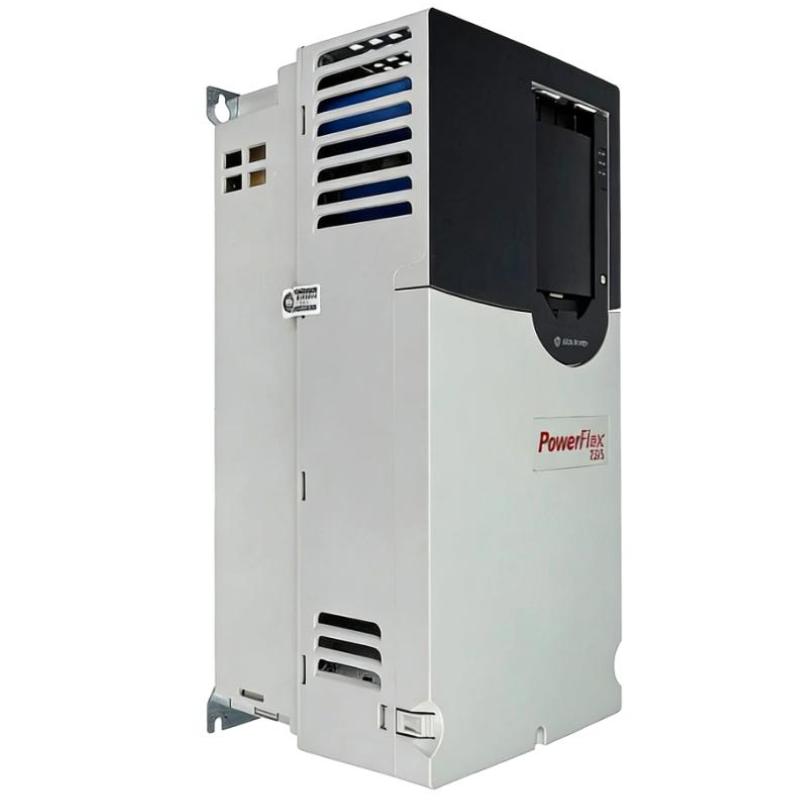

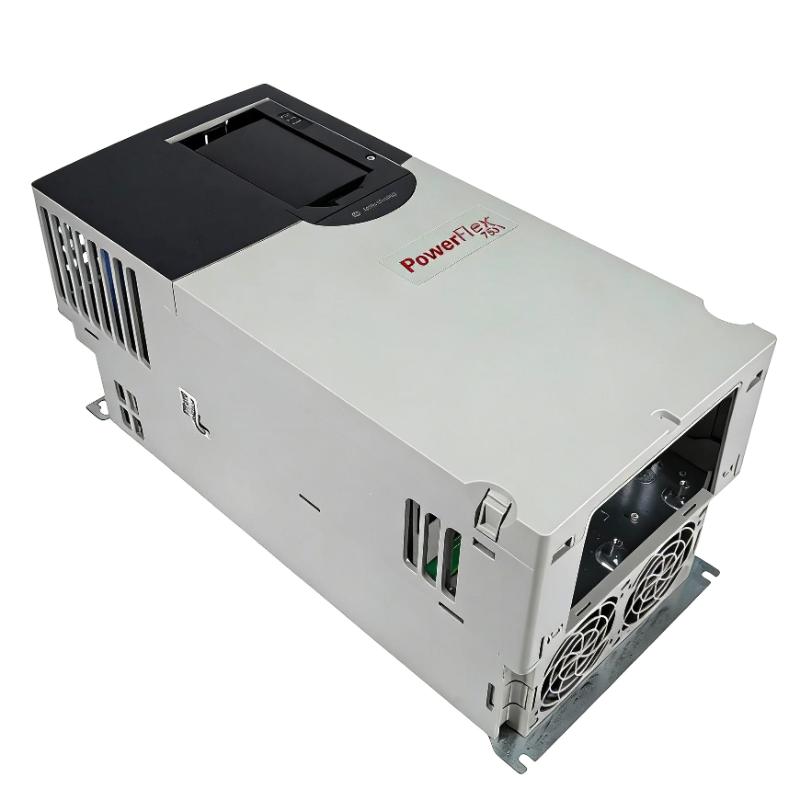

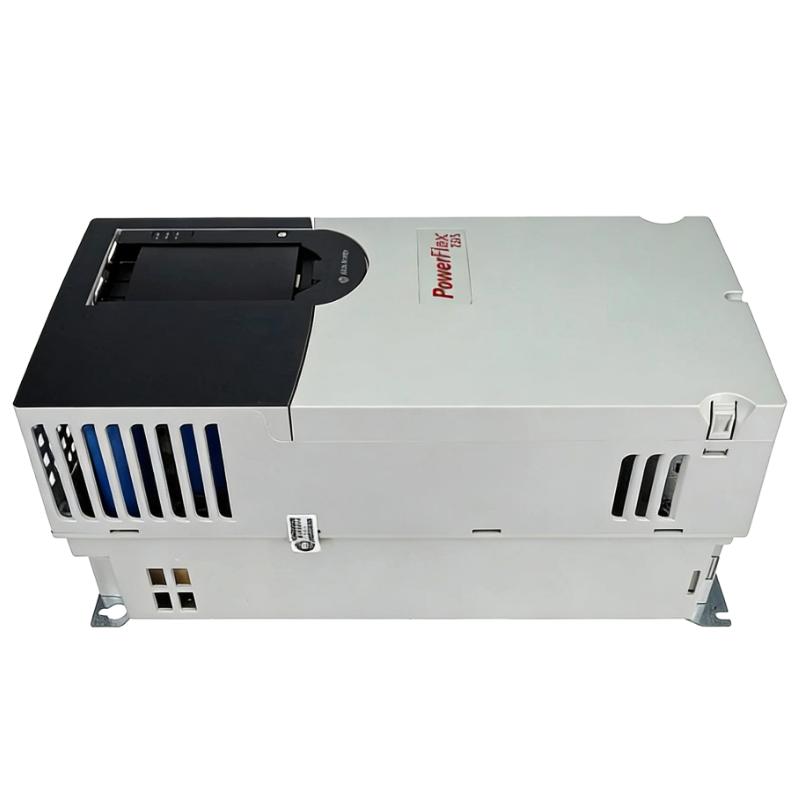

The 20F11GD077JA0NNNNN is a high-performance industrial AC drive in the PowerFlex 753 series.

It is designed for demanding motor-control applications where reliable variable-speed operation, substantial overload capability, dynamic braking, embedded I/O, enclosure protection, and flexible control functions are required.

This particular configuration is rated for 480 VAC, three-phase input, with a 77 A output-current rating, 60 HP normal-duty capacity, and 50 HP heavy-duty capacity. It uses a Frame 5 mechanical configuration and an IP54 / NEMA Type 12 enclosure. The drive is air-cooled and includes an internal dynamic-braking transistor.

The configuration also includes embedded I/O, standard protection, an AC input with DC terminals, EMC filtering with the common-mode jumper installed, and a blank front interface without a HIM.

The combination of a 77 A output rating and 60 HP normal-duty capacity places this model in the medium-to-large industrial drive category.

It is suitable for applications such as conveyors, pumps, fans, compressors, mixers, material-handling equipment, process machinery, and other industrial systems that require controlled motor speed and torque.

---

2. Brand and Product Series

Category	Specification
Brand	Allen-Bradley
Product family	PowerFlex
Product series	PowerFlex 753
Catalog family	20F
Product type	Air-cooled AC drive
Complete model	20F11GD077JA0NNNNN
Voltage class	480 VAC
Input	3-phase AC
Output current	77 A
Normal-duty rating	60 HP
Heavy-duty rating	50 HP
Frame	5
Enclosure	IP54 / NEMA Type 12
Cooling	Forced air
Input configuration	AC input with DC terminals
Dynamic braking	Internal DB transistor
EMC configuration	Filtered, CM jumper installed
Human interface	Blank / no HIM
I/O	Embedded I/O
Protection level	Standard protection

The exact product configuration is identified as a PowerFlex 753 AC Drive with Embedded I/O, 480 VAC, 77 A, 60 HP normal duty, 50 HP heavy duty, Frame 5, IP54/NEMA Type 12, filtered, with a dynamic-braking transistor.

---

3. Basic Model Identification

The complete catalog number is:

20F11GD077JA0NNNNN

The first part of the catalog number identifies the PowerFlex 753 family.

The 077 portion corresponds to the 77 A output-current class.

The G enclosure designation identifies the IP54 / NEMA Type 12 configuration.

The J option specifies the installed filtering/common-mode configuration.

The A following this section identifies the internal dynamic-braking transistor configuration.

The remaining characters indicate additional configuration selections, including the absence of a HIM and other option positions.

For maintenance and replacement work, the complete catalog number should always be recorded.

A 77 A PowerFlex 753 drive with a different enclosure, input arrangement, filtering configuration, braking option, or interface option should not automatically be considered an identical replacement.

---

4. Main Technical Parameters

Parameter	Specification
Model	20F11GD077JA0NNNNN
Brand	Allen-Bradley
Series	PowerFlex 753
Catalog family	20F
Product type	AC variable-frequency drive
Input voltage	480 VAC
Input phase	3-phase
Input frequency	50/60 Hz class
Input configuration	AC input with DC terminals
Continuous output current	77 A
Normal-duty output current	77 A
Heavy-duty output current	65 A
Normal-duty motor rating	60 HP
Heavy-duty motor rating	50 HP
Normal-duty power	Approx. 45 kW
Heavy-duty power	Approx. 37 kW
Normal-duty 1-minute overload	84.7 A
Normal-duty 3-second overload	116 A
Heavy-duty 1-minute overload	97.5 A
Heavy-duty 3-second overload	116 A
Frame	5
Enclosure	IP54
NEMA enclosure	NEMA Type 12
Cooling	Forced air
Dynamic braking	Internal DB transistor
EMC filtering	Filtered
Common-mode jumper	Installed
Embedded I/O	Yes
HIM	Blank / no HIM
Input DC terminals	Yes
Output	3-phase motor output
Application class	Industrial motor control
Approx. height	647.0 mm
Approx. width	348.0 mm
Approx. depth	220.1 mm
Approx. dimensions	647.0 × 348.0 × 220.1 mm
Approx. weight	20.4 kg
Mounting frame	Frame 5
Enclosure cooling	Air cooled
Installation type	Wall-mounted / cabinet installation

The exact product description confirms the 480 VAC three-phase rating, 77 A current, 60 HP normal-duty rating, 50 HP heavy-duty rating, Frame 5, IP54/NEMA Type 12 enclosure, embedded I/O, filtering, and internal dynamic-braking transistor.

---

5. Output Current and Motor Capacity

The most important electrical specification is the 77 A normal-duty output rating.

The drive is rated for:

Duty Classification	Continuous Current	1-Minute Current	3-Second Current	Motor Rating
Normal Duty	77 A	84.7 A	116 A	60 HP
Heavy Duty	65 A	97.5 A	116 A	50 HP

These ratings are particularly useful when evaluating a machine with varying load conditions.

The normal-duty rating provides the higher continuous motor capacity.

The heavy-duty rating uses a lower continuous current rating but provides substantial short-term overload capacity.

For applications with repeated acceleration, high starting torque, shock loads, or frequent load changes, the heavy-duty rating should be evaluated carefully rather than selecting the drive only according to horsepower.

---

6. 480 VAC Three-Phase Input

The 20F11GD077JA0NNNNN is designed for a 480 VAC three-phase industrial power system.

This makes it suitable for many North American and international industrial electrical systems.

The 480 VAC class is commonly encountered in:

• Manufacturing plants.
• Process facilities.
• Material-handling systems.
• Water-treatment facilities.
• HVAC systems.
• Industrial pumping systems.
• Machine-building applications.
• Production lines.

The exact incoming supply must always be checked against the drive’s permitted voltage range and the installation’s electrical protection requirements.

---

7. AC Input with DC Terminals

This configuration has an AC input with DC terminals.

This is an important feature because it provides access to the DC bus.

The DC terminals can be useful in applications where:

• Multiple drives share DC-bus power.
• Regenerative energy needs to be managed.
• A common DC-bus architecture is used.
• External braking equipment is part of the system.
• The machine designer needs DC-bus access.

The presence of DC terminals does not by itself mean that the drive can be connected to another DC source without engineering verification.

The complete DC-bus voltage, current, pre-charge, protection, isolation, and system architecture must be evaluated.

---

8. Dynamic Braking

One of the strongest features of this particular configuration is the internal dynamic-braking transistor.

The catalog configuration specifically identifies DB Transistor as the dynamic-braking option.

This allows the drive to work with an external braking resistor.

Dynamic braking is useful when a motor-driven machine needs to slow down more quickly than the natural deceleration of the load would allow.

Typical applications include:

• Conveyors.
• Centrifuges.
• Rollers.
• Mixers.
• Fans with high inertia.
• Unwinders.
• Winders.
• Material-handling machinery.
• Machine tools.

During deceleration, mechanical energy can flow back into the DC bus.

The braking circuit can dissipate this energy through an appropriately selected external resistor.

---

9. Dynamic-Braking Advantage

The internal braking transistor simplifies the overall system architecture compared with a drive that requires a completely separate braking chopper.

The resistor itself is still an external component.

The resistor must be selected according to:

• Motor power.
• Load inertia.
• Maximum operating speed.
• Deceleration time.
• Number of braking events.
• Duty cycle.
• Required stopping time.
• Allowable resistor temperature.

For high-inertia machinery, dynamic-braking calculations should be completed before commissioning.

---

10. IP54 / NEMA Type 12 Enclosure

The 20F11GD077JA0NNNNN is an IP54 / NEMA Type 12 configuration.

This is an important advantage compared with an open-type drive.

The enclosure provides increased protection against dust and water ingress compared with an open chassis design.

It can be useful in industrial environments such as:

• Manufacturing floors.
• Pump rooms.
• Process plants.
• Material-handling areas.
• Mechanical equipment rooms.
• Industrial production areas.

However, IP54/NEMA Type 12 does not mean the drive can be exposed to every environmental condition.

Corrosive gases, conductive contamination, excessive moisture, chemical vapors, and high ambient temperatures still need to be considered.

---

11. Physical Dimensions

The approximate dimensions for the Frame 5 IP54/NEMA Type 12 configuration are:

Mechanical Parameter	Specification
Model	20F11GD077JA0NNNNN
Frame	5
Height	647.0 mm
Width	348.0 mm
Depth	220.1 mm
Overall size	Approx. 647.0 × 348.0 × 220.1 mm
Weight	Approx. 20.4 kg
Enclosure	IP54 / NEMA Type 12
Cooling	Forced air
Mounting	Wall mount / panel installation

The published Frame 5 IP54 dimensions are approximately 647.0 mm high, 348.0 mm wide, and 220.1 mm deep, with an approximate weight of 20.4 kg.

The weight is approximately 20.4 kg for the Frame 5 enclosure configuration.

When designing a cabinet, additional space should be allowed for wiring, airflow, service access, and associated protection equipment.

---

12. Cooling System

The drive uses forced-air cooling.

At 77 A output capacity, the drive can generate a significant amount of heat under high load.

The cooling system should therefore remain clean and unobstructed.

Important maintenance items include:

• Cooling fan condition.
• Air inlet cleanliness.
• Air outlet clearance.
• Cabinet ventilation.
• Ambient temperature.
• Internal contamination.
• Fan operating hours.

A blocked airflow path can cause thermal stress and may result in drive faults or reduced service life.

---

13. Embedded I/O

The model includes embedded I/O.

This means the drive can provide local machine-control interfaces without requiring every basic control signal to be handled by external hardware.

Depending on the application configuration, embedded I/O can be used for:

• Start commands.
• Stop commands.
• Direction commands.
• Speed references.
• Run status.
• Fault status.
• Interlocks.
• Analog process references.
• External sensors.

This can simplify machine wiring.

---

14. Human Interface Configuration

The model is specified with Blank (No HIM).

This means the catalog configuration does not include a standard mounted human-interface module.

For maintenance personnel, this is important because drive configuration and troubleshooting may require an external interface or suitable communication method.

The absence of a HIM does not mean the drive lacks parameterization capability.

It simply means that a front-mounted HIM is not included in this particular catalog configuration.

---

15. EMC Filtering

The model is configured as:

Filtered, CM Jumper Installed.

This is part of the catalog description for the exact drive.

EMC filtering is useful in installations where electrical noise must be controlled.

High-frequency switching from an AC drive can produce conducted and radiated electrical noise.

A properly configured EMC system helps reduce interference with:

• PLC systems.
• Sensors.
• Encoders.
• Communication networks.
• Instrumentation.
• Analog signals.
• Other variable-frequency drives.

Good cable routing and grounding remain important even when an EMC filter is installed.

---

16. Standard Protection

The exact configuration is identified as having standard protection and forced-air cooling.

The drive’s protection functions can include monitoring for:

• Overcurrent.
• Overvoltage.
• Undervoltage.
• Ground fault.
• Motor overload.
• Heat-sink temperature.
• Electronic motor protection.
• Communication faults.
• Input power abnormalities.

The exact protection behavior depends on the parameter configuration and operating conditions.

---

17. Motor Overload Protection

Electronic motor overload protection is especially important in industrial applications.

The drive can monitor motor current and compare it with the programmed motor characteristics.

This helps protect the motor against prolonged excessive current.

Proper motor data should be entered during commissioning.

Important motor parameters normally include:

• Nameplate voltage.
• Nameplate current.
• Nameplate frequency.
• Rated speed.
• Motor power.
• Motor power factor.
• Motor efficiency.
• Motor control mode.

Accurate motor data improves drive performance and protection.

---

18. Typical Applications

Application	Suitability	Main Benefit
Conveyor	Excellent	Speed control and dynamic braking
Pump	Excellent	Variable-speed operation
Fan	Excellent	Adjustable airflow
Blower	Excellent	Controlled process airflow
Mixer	Very good	Torque control
Compressor	Very good	Controlled motor speed
Roller	Excellent	Speed and braking control
Winder	Very good	Tension and torque management
Unwinder	Very good	Controlled deceleration
Centrifuge	Very good	Dynamic braking
Material handling	Excellent	Controlled acceleration
Production machinery	Excellent	Flexible motor control
HVAC equipment	Excellent	Variable-speed operation
Machine tools	Good	Speed regulation
High-inertia equipment	Very good	Dynamic braking capability

---

19. Conveyor Applications

Conveyor systems are one of the most practical applications for this drive.

A conveyor motor often needs controlled acceleration to prevent:

• Belt shock.
• Gearbox shock.
• Coupling stress.
• Product movement.
• Mechanical vibration.
• Excessive starting current.

The 77 A drive capacity gives the system enough electrical capacity for substantial motors.

The internal braking transistor is particularly useful when the conveyor needs controlled deceleration.

---

20. Pump Applications

Variable-speed pump control can be used to adjust process flow or pressure.

Typical applications include:

• Water circulation.
• Cooling-water systems.
• Process pumps.
• Transfer pumps.
• Booster systems.
• Industrial fluid handling.

The drive can provide smoother starting than direct-on-line motor starting.

Speed can be adjusted according to the process requirement.

This can improve process control and, in suitable pump systems, reduce energy consumption.

---

21. Fan and Blower Applications

Fans and blowers frequently operate at varying process loads.

A variable-speed drive can allow the motor to run only as fast as required.

Potential applications include:

• Industrial ventilation.
• Exhaust systems.
• Dust collection.
• Process ventilation.
• Cooling equipment.
• Combustion-air systems.
• Large HVAC equipment.

The 480 VAC three-phase configuration makes this drive suitable for many industrial fan installations.

---

22. Mixer Applications

Mixers can place variable torque demands on the motor.

A mixer may require:

• High starting torque.
• Controlled acceleration.
• Stable low-speed operation.
• Controlled stopping.
• Overload capability.
• Repeated acceleration cycles.

The 20F11GD077JA0NNNNN can be appropriate for this type of machinery when the motor current and mechanical load fall within its ratings.

---

23. Winder and Unwinder Applications

Winding systems can require controlled torque and speed.

The drive’s advanced control functions can be useful in applications where the process depends on predictable motor behavior.

Typical examples include:

• Cable winding.
• Film processing.
• Paper handling.
• Textile machinery.
• Metal strip handling.
• Material converting.

Dynamic braking can also be useful during deceleration.

However, tension-control systems often require application-specific tuning and, in some cases, feedback devices.

---

24. High-Inertia Machinery

High-inertia machines are a particularly important application.

When a large rotating load decelerates, stored mechanical energy returns to the DC bus.

Without adequate energy management, DC-bus voltage can rise.

The internal dynamic-braking transistor allows the drive to work with an external braking resistor to dissipate this energy.

Potential applications include:

• Large fans.
• Centrifuges.
• Rollers.
• Flywheel-driven equipment.
• Heavy conveyors.
• High-speed rotating machinery.

---

25. Product Advantages

25.1 77 A Output Capacity

The 77 A rating provides substantial motor-control capacity for industrial machinery.

It is large enough for many 60 HP normal-duty applications while remaining physically smaller than the larger Frame 6 and Frame 7 configurations.

---

25.2 60 HP Normal-Duty Rating

The 60 HP normal-duty rating makes this model suitable for many medium-to-large industrial motors.

It is a practical choice for equipment that does not require the larger current capacity of the 96 A or 125 A models.

---

25.3 50 HP Heavy-Duty Rating

The 50 HP heavy-duty rating gives the drive additional flexibility for machines with more demanding overload requirements.

This can be valuable for conveyors, mixers, material handling, and other variable-load equipment.

---

25.4 Internal Dynamic-Braking Transistor

The internal DB transistor is one of the most useful features of this configuration.

It allows an external braking resistor to be integrated into the system.

This can improve stopping performance for high-inertia loads.

---

25.5 IP54 / NEMA Type 12 Enclosure

The IP54 enclosure provides substantially more environmental protection than an open-frame configuration.

This makes the drive easier to integrate into industrial areas where dust and incidental moisture are concerns.

---

25.6 Embedded I/O

Embedded I/O can reduce the amount of external interface hardware required.

This can simplify:

• Control-panel wiring.
• Machine integration.
• Start/stop circuits.
• Status monitoring.
• Analog control.

---

25.7 EMC Filtering

The filtered configuration helps address electromagnetic compatibility requirements.

This is particularly useful in installations containing sensitive instrumentation and communication systems.

---

25.8 AC Input with DC Terminals

The DC terminals provide additional flexibility for systems that need access to the drive’s DC bus.

This can be useful in common-bus or braking-related applications.

---

26. Product Limitations

The drive also has several limitations that should be considered.

First, the model is designed for a 480 VAC three-phase system and is not a universal-voltage drive.

Second, the 77 A rating does not mean that every 60 HP motor is automatically compatible.

Third, the IP54 enclosure improves environmental protection but does not eliminate the need for appropriate environmental control.

Fourth, dynamic braking still requires correct external resistor selection.

Fifth, this configuration is supplied without a HIM.

Finally, the PowerFlex 753 family is now a legacy platform in terms of lifecycle planning, so new installations should consider long-term support and replacement strategy.

---

27. Dimensions and Weight Reference

Frame / Enclosure	Height	Width	Depth	Approx. Weight
Frame 2 IP54	543.2 mm	215.3 mm	222.2 mm	7.8 kg
Frame 3 IP54	551.0 mm	268.0 mm	220.1 mm	11.8 kg
Frame 4 IP54	571.0 mm	300.0 mm	220.1 mm	13.6 kg
Frame 5 IP54	647.0 mm	348.0 mm	220.1 mm	20.4 kg
Frame 6 IP54	1298.3 mm	609.4 mm	464.7 mm	Approx. 91 kg
Frame 7 IP54	1614.0 mm	609.4 mm	464.7 mm	Approx. 162 kg

The 20F11GD077JA0NNNNN is a Frame 5 IP54 configuration, so the relevant physical specification is approximately 647.0 × 348.0 × 220.1 mm and 20.4 kg. (rockwellautomation.com)

The larger-frame dimensions are useful when comparing related models.

---

28. Five Same-Series Recommended Models

The following models are close alternatives within the PowerFlex 753 480 VAC three-phase family.

Model	Continuous Current ND	1-Minute ND	3-Second ND	Normal Duty	Heavy Duty	Frame	Dimensions	Weight (kg)
20F11GD052JA0NNNNN	52 A	57.2 A	78 A	40 HP	30 HP	4	571 × 300 × 220.1 mm	13.6
20F11GD065JA0NNNNN	65 A	71.5 A	97.5 A	50 HP	40 HP	5	647 × 348 × 220.1 mm	20.4
20F11GD077JA0NNNNN	77 A	84.7 A	116 A	60 HP	50 HP	5	647 × 348 × 220.1 mm	20.4
20F11GD096JN0NNNNN	96 A	106 A	144 A	75 HP	60 HP	6	1298.3 × 609.4 × 464.7 mm	Approx. 91
20F1AGD125JN0NNNNN	125 A	138 A	188 A	100 HP	75 HP	6	1298.3 × 609.4 × 464.7 mm	Approx. 91

The 480 VAC PowerFlex 753 rating table identifies the 52 A, 65 A, 77 A, 96 A, and 125 A capacity classes and their associated normal-duty/heavy-duty ratings.

The frame-based dimensions and weights are published for the PowerFlex 753 enclosure configurations.

---

29. Same-Series Model Comparison

Model	Current Class	Normal Duty	Heavy Duty	Frame	Relative Size	Best Application
20F11GD052JA0NNNNN	52 A	40 HP	30 HP	4	Medium	Pumps and fans
20F11GD065JA0NNNNN	65 A	50 HP	40 HP	5	Medium-large	Conveyors and pumps
20F11GD077JA0NNNNN	77 A	60 HP	50 HP	5	Medium-large	General industrial machinery
20F11GD096JN0NNNNN	96 A	75 HP	60 HP	6	Large	Large pumps/conveyors
20F1AGD125JN0NNNNN	125 A	100 HP	75 HP	6	Large	Heavy industrial machinery

The 20F11GD077JA0NNNNN sits almost exactly in the middle of this selection.

It provides more capacity than the 52 A and 65 A versions while remaining smaller than the Frame 6 96 A and 125 A configurations.

---

30. Five Related Same-Series Models by Application

Model	Current	ND Motor Rating	HD Motor Rating	Frame	Dimensions	Weight (kg)	Recommended Application
20F11GD052JA0NNNNN	52 A	40 HP	30 HP	4	571 × 300 × 220.1 mm	13.6	Pumps, fans
20F11GD065JA0NNNNN	65 A	50 HP	40 HP	5	647 × 348 × 220.1 mm	20.4	HVAC, conveyors
20F11GD077JA0NNNNN	77 A	60 HP	50 HP	5	647 × 348 × 220.1 mm	20.4	General industrial machinery
20F11GD096JN0NNNNN	96 A	75 HP	60 HP	6	1298.3 × 609.4 × 464.7 mm	Approx. 91	Large conveyors
20F1AGD125JN0NNNNN	125 A	100 HP	75 HP	6	1298.3 × 609.4 × 464.7 mm	Approx. 91	Heavy process machinery

---

31. Five Related Models from the Same Brand

For a broader product comparison, the following are representative industrial drive models from the same brand.

Model	Product Series	Voltage Class	Current / Power Class	Typical Application	Frame / Size	Dimensions	Weight (kg)
20F11GD065JA0NNNNN	PowerFlex 753	480 VAC	65 A / 50 HP ND	Pumps, fans, conveyors	Frame 5	647 × 348 × 220.1 mm	20.4
20F11GD077JA0NNNNN	PowerFlex 753	480 VAC	77 A / 60 HP ND	General industrial drives	Frame 5	647 × 348 × 220.1 mm	20.4
20F11GD096JN0NNNNN	PowerFlex 753	480 VAC	96 A / 75 HP ND	Large conveyors	Frame 6	1298.3 × 609.4 × 464.7 mm	Approx. 91
20G11GD077JA0NNNNN	PowerFlex 755	480 VAC	77 A / 60 HP ND	Advanced machine control	Frame 5	Frame-dependent	Approx. 20–21
20G11FD077JA0NNNNN	PowerFlex 755	480 VAC	77 A / 60 HP ND	Flange-mount applications	Frame 5	Frame-dependent	Approx. 20

The 753 and 755 families share a common broad platform philosophy but are not identical products.

The PowerFlex 755 generally provides a broader range of advanced control and application features, making it attractive where more sophisticated machine control is required.

---

32. Five Popular Same-Brand Model Families

The following are representative commonly encountered industrial drive models and families rather than a formal sales ranking.

Model	Series	Voltage	Current / Power	Typical Use	Enclosure / Frame	Dimensions	Weight (kg)
20F11GD077JA0NNNNN	PowerFlex 753	480 VAC	77 A / 60 HP ND	General industrial machinery	IP54, Frame 5	647 × 348 × 220.1 mm	20.4
20F11GD065JA0NNNNN	PowerFlex 753	480 VAC	65 A / 50 HP ND	Pumps and conveyors	IP54, Frame 5	647 × 348 × 220.1 mm	20.4
20G11GD077JA0NNNNN	PowerFlex 755	480 VAC	77 A / 60 HP ND	Advanced machine control	IP54, Frame 5	Frame-dependent	Approx. 20
20G11GD065JA0NNNNN	PowerFlex 755	480 VAC	65 A / 50 HP ND	Process and machine control	IP54, Frame 5	Frame-dependent	Approx. 20
20F11FD065JA0NNNNN	PowerFlex 753	480 VAC	65 A / 50 HP ND	Flange-mounted machinery	Frame 5	Frame-dependent	Approx. 20

The PowerFlex 753 rating tables show the 65 A and 77 A classes at 480 VAC, with 50 HP and 60 HP normal-duty ratings respectively.

---

33. Selection Guide

Motor Requirement	Recommended Model Class
Up to 30 HP ND	20F11GD052 or smaller
Around 40 HP ND	20F11GD052
Around 50 HP ND	20F11GD065
Around 60 HP ND	20F11GD077
Around 75 HP ND	20F11GD096
Around 100 HP ND	20F1AGD125
Heavy-duty 30–40 HP	52–65 A class
Heavy-duty 50 HP	77 A class
High-inertia 50 HP machine	77 A class with braking analysis
High-inertia 60 HP machine	Evaluate 96 A class depending on duty

---

34. Advantages for Industrial Automation

The 20F11GD077JA0NNNNN is not simply a motor-speed controller.

It can become part of the machine-control architecture.

The drive can participate in:

• Motor start/stop control.
• Speed reference generation.
• Acceleration control.
• Deceleration control.
• Dynamic braking.
• Motor protection.
• Fault monitoring.
• Analog process control.
• Digital machine interlocks.
• Networked automation.

This makes it appropriate for machinery where the drive needs to perform more than simple frequency conversion.

---

35. Advantages for Cabinet Installation

The IP54/NEMA Type 12 construction can simplify installation compared with an open-frame drive.

The enclosure provides a more complete physical package.

For an industrial cabinet or machinery enclosure, this can reduce the amount of additional environmental protection required.

However, the enclosure should still have appropriate ventilation and thermal management.

The drive’s approximate 647 × 348 × 220.1 mm dimensions should be considered together with wiring and maintenance clearances.

---

36. Advantages of the Frame 5 Design

Frame 5 provides a useful compromise between electrical capacity and physical size.

The 77 A model uses the same general Frame 5 physical envelope as the 65 A configuration.

This can simplify equipment standardization.

For a machine builder, having several power ratings in the same frame size can be useful because the mechanical cabinet layout may remain similar when the motor rating changes.

---

37. Maintenance Recommendations

A practical maintenance program should include:

1. Inspect the cooling fan.
2. Check ventilation openings.
3. Inspect for dust accumulation.
4. Check power terminals.
5. Inspect DC-bus connections.
6. Check motor output terminals.
7. Inspect grounding.
8. Check dynamic-braking connections.
9. Inspect the braking resistor.
10. Review fault history.
11. Check control wiring.
12. Inspect communication connections.
13. Verify motor parameters.
14. Back up drive parameters.
15. Record the complete catalog number.
16. Record installed option modules.

The braking resistor deserves particular attention in applications involving frequent deceleration.

Repeated braking can generate considerable heat.

---

38. Dynamic-Braking Maintenance

A dynamic-braking system should be checked periodically.

Important items include:

Item	Inspection Requirement
Braking transistor	Check drive status and faults
Braking resistor	Check physical condition
Resistor temperature	Check during heavy-duty operation
Resistor wiring	Check terminals and insulation
DC-bus voltage	Monitor during deceleration
Deceleration time	Confirm correct setting
Number of braking cycles	Review application duty
Cooling	Ensure resistor heat is dissipated

If the resistor is repeatedly overheating, the issue may not be the drive itself.

The braking resistor may simply be undersized for the actual mechanical energy being regenerated.

---

39. Installation Considerations

Before installing the drive, verify:

• Supply voltage.
• Supply phase configuration.
• Motor voltage.
• Motor current.
• Motor power.
• Grounding.
• Input protection.
• Output cable size.
• Dynamic-braking resistor.
• Control wiring.
• Network wiring.
• Ambient temperature.
• Cabinet ventilation.
• Mounting dimensions.
• Service access.
• Clearance around the cooling path.

The drive should not be installed solely on the basis of the motor horsepower.

---

40. Motor Cable Considerations

High-power PWM switching places electrical stress on the motor cable and motor insulation.

The installation should consider:

• Cable voltage rating.
• Current rating.
• Cable length.
• Shielding.
• Grounding.
• Common-mode currents.
• Motor insulation.
• EMC requirements.
• Cable routing.

Power cables and low-level instrumentation cables should be routed appropriately to minimize interference.

---

41. Replacement Considerations

When replacing a 20F11GD077JA0NNNNN, the following items should be matched carefully.

Parameter	Importance
480 VAC input	Critical
Three-phase supply	Critical
77 A output	Critical
60 HP normal duty	Critical
50 HP heavy duty	Critical
Frame 5	Important
IP54/NEMA Type 12	Important
Dynamic-braking transistor	Critical if braking is used
EMC filter	Important
CM jumper configuration	Important
DC terminals	Important
Embedded I/O	Important
HIM configuration	Important
Communication options	Critical if networked
Physical dimensions	Critical
Weight	Important
Cooling	Critical

A replacement with the same 77 A rating but a different enclosure or option configuration may require mechanical or electrical modifications.

---

42. Product Lifecycle Consideration

The broader PowerFlex 753 air-cooled drive family has a lifecycle history that should be considered when planning new installations.

For existing machinery, the exact catalog number remains important because it defines the installed configuration.

For new equipment, the engineering team should evaluate the currently supported drive platform and the long-term availability of replacement components.

A modern replacement can provide advantages such as:

• Newer communications.
• Improved diagnostics.
• Easier integration.
• Current software support.
• Better lifecycle availability.

However, migration may require changes to the machine program and control architecture.

---

43. Comparison with Smaller Models

Feature	20F11GD052JA0NNNNN	20F11GD065JA0NNNNN	20F11GD077JA0NNNNN
Output current	52 A	65 A	77 A
Normal duty	40 HP	50 HP	60 HP
Heavy duty	30 HP	40 HP	50 HP
Frame	4	5	5
Enclosure	IP54	IP54	IP54
Dimensions	571 × 300 × 220.1 mm	647 × 348 × 220.1 mm	647 × 348 × 220.1 mm
Weight	13.6 kg	20.4 kg	20.4 kg
Dynamic braking	Configuration-dependent	Configuration-dependent	Internal DB transistor
Best use	Medium machinery	Medium-large machinery	Large medium-voltage-class industrial motor applications

The 77 A model provides a significant increase in current capacity over the 65 A version without moving to the substantially larger Frame 6 package.

---

44. Comparison with Larger Models

Feature	20F11GD077JA0NNNNN	20F11GD096JN0NNNNN	20F1AGD125JN0NNNNN
Output current ND	77 A	96 A	125 A
Normal duty	60 HP	75 HP	100 HP
Heavy duty	50 HP	60 HP	75 HP
Frame	5	6	6
Approx. height	647 mm	1298.3 mm	1298.3 mm
Approx. width	348 mm	609.4 mm	609.4 mm
Approx. depth	220.1 mm	464.7 mm	464.7 mm
Approx. weight	20.4 kg	91 kg	91 kg
Main advantage	Compact high-current package	Higher power capacity	Very high motor capacity

This comparison shows one of the major advantages of the 77 A model.

It provides a relatively high power rating while remaining within the smaller Frame 5 enclosure.

---

45. Overall Advantages

Advantage	Explanation
77 A output	Suitable for substantial industrial motors
60 HP ND	Good capacity for general-duty applications
50 HP HD	Useful for more demanding loads
IP54	Better environmental protection
NEMA Type 12	Suitable for industrial enclosure environments
Dynamic braking	Supports controlled high-energy deceleration
Embedded I/O	Simplifies machine integration
DC terminals	Useful for common-bus/braking architectures
EMC filtering	Helps manage electrical interference
Frame 5	Good balance between capacity and size
Air cooling	Practical industrial cooling arrangement
PowerFlex 753 architecture	Flexible industrial control platform

---

46. Final Technical Summary

Parameter	Final Specification
Model	20F11GD077JA0NNNNN
Brand	Allen-Bradley
Series	PowerFlex 753
Catalog family	20F
Product type	AC variable-frequency drive
Input voltage	480 VAC
Input phases	3
Input type	AC input with DC terminals
Output current	77 A
Normal-duty current	77 A
Heavy-duty current	65 A
Normal-duty motor rating	60 HP
Heavy-duty motor rating	50 HP
Normal-duty 1-minute overload	84.7 A
Normal-duty 3-second overload	116 A
Heavy-duty 1-minute overload	97.5 A
Heavy-duty 3-second overload	116 A
Frame	5
Enclosure	IP54
NEMA rating	Type 12
Cooling	Forced air
Dynamic braking	Internal DB transistor
EMC filtering	Filtered
Common-mode jumper	Installed
Embedded I/O	Yes
HIM	Blank / no HIM
Height	647.0 mm
Width	348.0 mm
Depth	220.1 mm
Dimensions	Approx. 647.0 × 348.0 × 220.1 mm
Weight	Approx. 20.4 kg
Main application	Industrial motor control
Best motor class	Up to 60 HP normal duty
Braking application	Suitable with properly selected external resistor

---

47. Final Assessment

The 20F11GD077JA0NNNNN is a capable industrial drive for applications requiring a relatively high motor current while maintaining a practical Frame 5 physical size.

Its 77 A output rating and 60 HP normal-duty capacity make it suitable for a wide range of industrial machinery.

The 50 HP heavy-duty rating gives additional flexibility where the machine experiences higher mechanical loading or repeated overload conditions.

The IP54 / NEMA Type 12 enclosure is another major advantage.

Compared with an open-frame drive, the enclosed construction provides better protection against dust and incidental moisture and can make integration into industrial machinery more straightforward.

The internal dynamic-braking transistor is particularly valuable for machines that need controlled deceleration.

When connected to an appropriately sized external braking resistor, it can help manage regenerative energy during stopping.

This makes the drive especially attractive for conveyors, rollers, winders, centrifuges, high-inertia fans, and other machines where stopping performance matters.

The embedded I/O is also useful.

It allows the drive to become part of the machine-control system without necessarily requiring extensive additional interface hardware.

The AC input with DC terminals adds flexibility for systems using common DC-bus arrangements or external braking equipment.

The EMC filtering and common-mode configuration are useful for industrial environments where electrical noise needs to be controlled.

From a mechanical perspective, the Frame 5 package is relatively compact for a 60 HP-class industrial drive.

The approximate dimensions are 647.0 mm high × 348.0 mm wide × 220.1 mm deep, with an approximate weight of 20.4 kg.

For installation planning, the drive should therefore be treated as a substantial industrial component rather than a small panel-mounted VFD.

Overall, the 20F11GD077JA0NNNNN can be summarized as a 480 VAC, three-phase, 77 A, 60 HP normal-duty, 50 HP heavy-duty PowerFlex 753 AC drive with IP54/NEMA Type 12 protection, embedded I/O, EMC filtering, DC terminals, forced-air cooling, and an internal dynamic-braking transistor.

Its strongest practical advantages are the combination of high output capacity, compact Frame 5 construction, environmental protection, dynamic braking, embedded I/O, and flexible industrial motor-control capability.

For a 60 HP-class industrial machine where controlled speed, controlled acceleration, and braking performance are important, this configuration is a strong fit.

For replacement work, the complete catalog number should be matched rather than selecting another drive based only on the 77 A rating.

The input voltage, enclosure, braking configuration, filtering, DC terminals, I/O, HIM arrangement, communications, dimensions, and motor-duty requirements should all be checked before installation.
