20BR535U0ANNNND1 — Detailed Product Introduction and Technical Guide

1. Product Overview

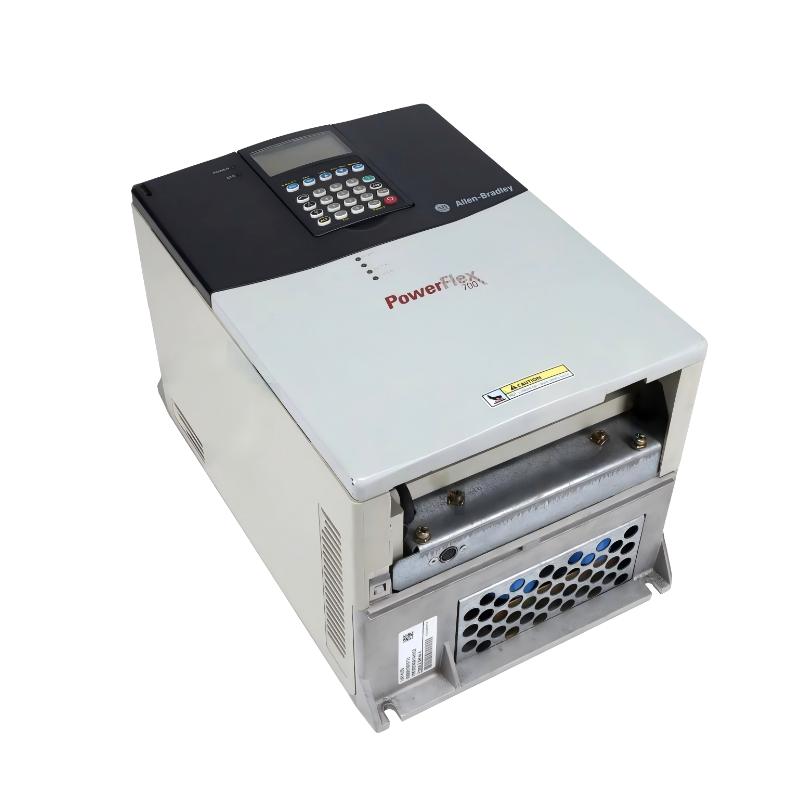

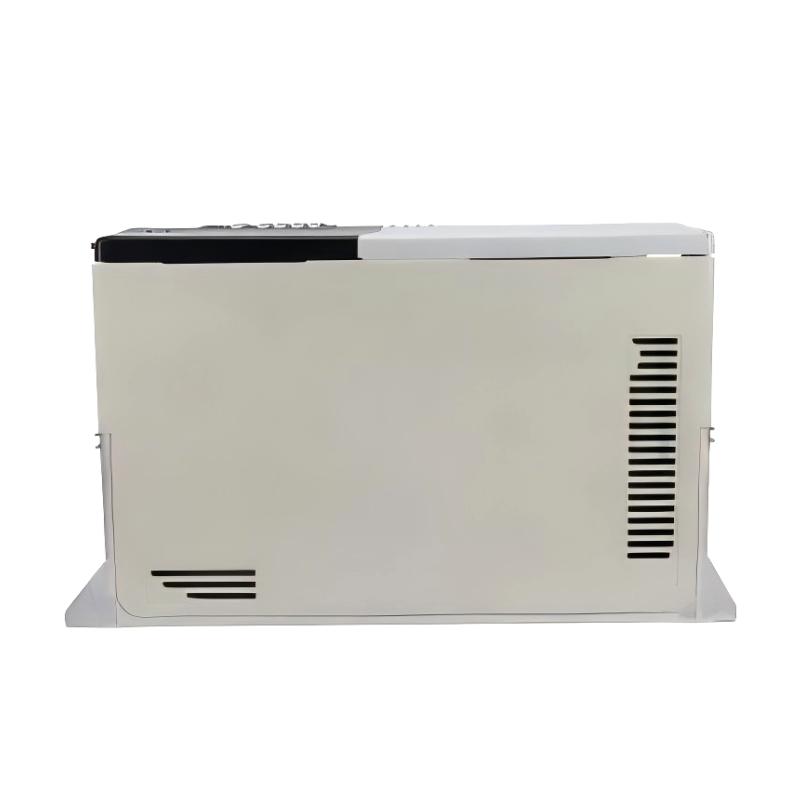

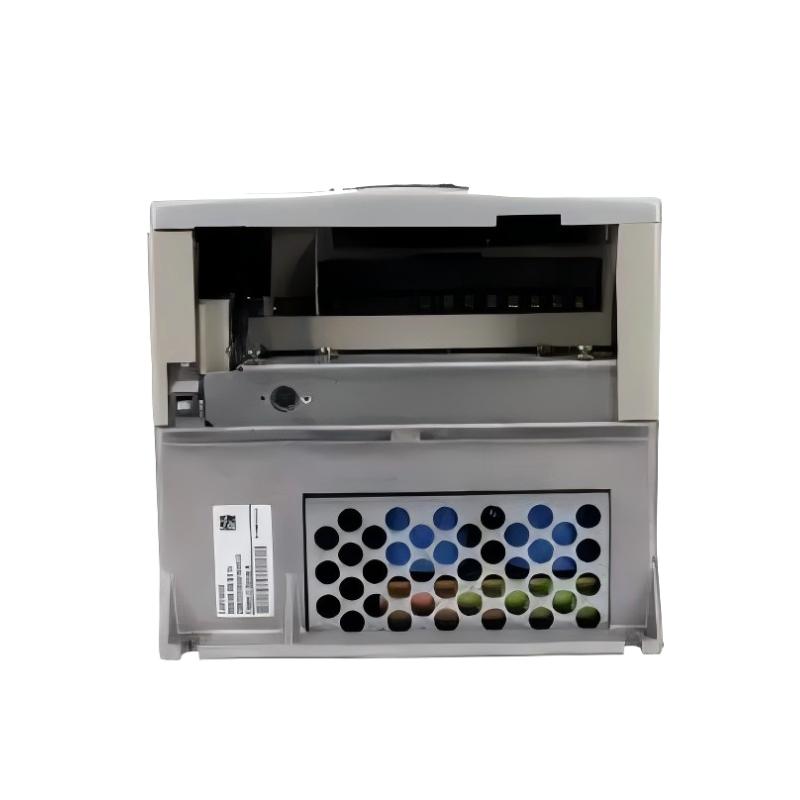

The 20BR535U0ANNNND1 is a high-power AC variable frequency drive belonging to the PowerFlex 700, 20B series. It is designed for large industrial motor-control applications where high current capacity, reliable speed regulation, controlled acceleration and strong motor-control performance are required.

This model is a 535 A high-capacity drive with a normal-duty motor rating of approximately 450 HP and a heavy-duty motor rating of approximately 400 HP. It is therefore intended for large motors and demanding industrial machinery rather than small or general-purpose motor applications.

One of the key differences between 20BR535U0ANNNND1 and the closely related 20BR535U0ANNNND0 is the feedback configuration. The D1 version is equipped for a standard encoder feedback interface, while the D0 version is configured without feedback.

This makes the D1 version particularly useful for applications where motor speed information must be monitored or controlled more precisely.

The drive uses a 650 VDC input class, includes a pre-charge arrangement, and uses an IP00 roll-in construction. It is intended to be installed as part of a properly engineered electrical cabinet or motor-control system.

The model is also associated with a Frame 8 high-power mechanical configuration, making cabinet planning, cooling, cable routing, lifting and service access important parts of the installation design.

---

2. Product Identification

Parameter	Specification
Model	20BR535U0ANNNND1
Brand	Allen-Bradley
Product family	PowerFlex 700
Series	20B
Product type	AC variable frequency drive
Drive category	High-power industrial AC drive
Rated current	535 A
Normal-duty rating	450 HP
Heavy-duty rating	400 HP
Input DC voltage class	650 VDC
Pre-charge	Included
Frame	Frame 8
Enclosure construction	IP00
Mechanical construction	Roll-in
HIM	Blank cover / no installed HIM
Brake IGBT	Not included
Drive-mounted braking resistor	Not included
Communication module	No communication module in the stated configuration
Control	Vector control
I/O	115/120 VAC I/O class
Feedback	Standard encoder feedback
Encoder supply/interface	5 V / 12 V class
Conformal coating	Included
Intended installation	Industrial cabinet / electrical enclosure
Typical motor size	Large industrial motors
Application class	Heavy industrial motor control

---

3. Detailed Interpretation of the Model Number

The complete catalog number 20BR535U0ANNNND1 contains information about the electrical and mechanical configuration of the drive.

The 20B designation identifies the PowerFlex 700 20B family.

The 535 portion corresponds to the approximately 535 A current class. This is the most important electrical characteristic when evaluating the drive for a particular motor.

The U0 configuration is associated with the IP00 roll-in style of construction.

The A and subsequent configuration characters define the particular options associated with the drive, including the control, I/O and feedback arrangement.

The final D1 configuration is especially important because it indicates the encoder-feedback version.

This means that two drives with almost identical catalog numbers can have different control capabilities. For example, the D0 and D1 versions should not automatically be considered electrically and functionally identical simply because both are 535 A drives.

When replacing an existing drive, the complete catalog number should therefore be checked instead of selecting a replacement based only on horsepower.

---

4. Main Technical Parameters

Technical Parameter	20BR535U0ANNNND1
Model	20BR535U0ANNNND1
Rated output current	535 A
Normal-duty motor rating	450 HP
Heavy-duty motor rating	400 HP
DC input voltage class	650 VDC
Frame size	Frame 8
Construction	IP00 roll-in
Control method	Vector control
I/O voltage	115/120 VAC class
Feedback	Standard encoder
Encoder feedback	5 V / 12 V class
HIM	Blank cover / no HIM
Communication module	None in standard configuration
Brake IGBT	None
Drive-mounted brake resistor	None
Pre-charge	Yes
Conformal coating	Yes
Installation	Cabinet-integrated
Motor type	Industrial AC motor
Application type	High-power variable-speed motor control

---

5. Electrical Performance

The most important characteristic of the 20BR535U0ANNNND1 is its 535 A output-current capability.

For high-power drives, current rating is often more important than horsepower alone. The actual motor current depends on motor efficiency, power factor, voltage, operating conditions and motor design.

The approximately 450 HP normal-duty rating gives an indication of the intended motor size under normal-duty operating conditions.

For applications with more demanding overload conditions, the heavy-duty rating is approximately 400 HP.

This distinction is important when selecting a drive for conveyors, crushers, mixers, compressors and other loads that may require significant starting or overload torque.

A motor with a nominal horsepower that appears suitable on paper may still require a larger drive if its full-load current is high or if the application requires frequent overload operation.

---

6. Encoder Feedback Function

The D1 configuration is one of the most important characteristics of this particular model.

Unlike the no-feedback configuration, the 20BR535U0ANNNND1 supports standard encoder feedback.

An encoder provides the drive with information about actual motor shaft speed and, depending on the encoder arrangement and control strategy, direction and position-related information.

This can improve speed regulation in applications where the motor must maintain a stable speed even when the mechanical load changes.

Encoder feedback can be particularly useful for:

• Large conveyors.
• Hoists and lifting equipment.
• Material handling.
• High-inertia machinery.
• Low-speed applications.
• Process machinery requiring tighter speed regulation.
• Machinery with rapidly changing loads.
• Applications where slip compensation alone is not sufficient.
• Industrial machines where accurate motor-speed control is important.

The encoder installation itself requires careful attention to cable shielding, grounding, encoder voltage, pulse compatibility, wiring distance and electrical noise.

---

7. Product Introduction

The 20BR535U0ANNNND1 is a large industrial AC drive designed to regulate the speed and torque of high-power motors.

Instead of connecting a large motor directly to a fixed-frequency power supply and allowing it to operate at essentially one speed, a variable frequency drive can adjust motor operating frequency and voltage to control the motor according to process requirements.

This provides greater flexibility in industrial machinery.

For example, a large conveyor does not necessarily need to operate at maximum speed throughout an entire production cycle. A pump may not require full flow continuously. A fan may only need maximum airflow during certain production conditions.

By controlling motor speed, the drive can allow the motor and mechanical equipment to operate closer to actual process requirements.

For a high-power motor, controlled acceleration and deceleration can also reduce mechanical stress.

This is particularly valuable for large gearboxes, belts, couplings, shafts, pumps, fans and other equipment connected to the motor.

---

8. Main Product Advantages

8.1 Very High Current Capacity

The 535 A rating makes this drive suitable for large industrial motors.

It is designed for applications where the current requirement is far beyond the practical range of compact variable frequency drives.

This gives it a strong position in large conveyor, pump, fan, process and material-handling applications.

---

8.2 Encoder Feedback Capability

The encoder-feedback configuration is one of the main advantages of the D1 model.

By receiving actual motor-speed information, the control system can achieve more accurate speed regulation than a basic open-loop arrangement.

This is useful when process performance depends on maintaining a stable motor speed.

---

8.3 Vector Control

Vector control provides more advanced motor regulation than simple V/Hz operation.

It can provide better torque response and improved speed regulation when correctly configured for the motor and application.

This is particularly useful in industrial machinery where load conditions can change significantly during operation.

---

8.4 Controlled Motor Starting

Large motors can draw substantial current and generate significant mechanical shock when started directly from the power line.

A VFD can accelerate the motor according to a programmed ramp.

This provides a much more controlled transition from standstill to operating speed.

The result can be reduced mechanical stress on:

• Gearboxes.
• Couplings.
• Belts.
• Shafts.
• Bearings.
• Pumps.
• Fans.
• Conveyors.

---

8.5 Controlled Deceleration

The drive can also control the motor during stopping.

This can help prevent abrupt mechanical loading.

However, the exact braking requirements must be evaluated carefully because the stated configuration does not include a drive-mounted braking resistor or brake IGBT.

Applications requiring rapid stopping of very high-inertia loads may therefore require an appropriately engineered external braking solution or a different drive configuration.

---

8.6 Cabinet Integration

The IP00 roll-in construction allows the drive to be integrated into a larger industrial electrical cabinet.

This approach is common for large motor-control systems where the complete installation includes:

• Main disconnects.
• Circuit protection.
• Contactors.
• Fuses.
• Busbars.
• Control transformers.
• PLC equipment.
• Communication equipment.
• Cooling equipment.
• Motor protection.
• Drive equipment.

The drive is therefore best viewed as one major component within a larger engineered electrical system.

---

8.7 Conformal-Coated Construction

Conformal coating provides additional protection for electronic components against certain environmental influences.

This can be beneficial in industrial environments where humidity, dust and contamination are greater concerns.

It should not be interpreted as meaning that the drive itself is suitable for exposed installation. Because the basic construction is IP00, appropriate cabinet protection remains necessary.

---

9. Typical Applications

9.1 Large Conveyor Systems

Large conveyors are one of the most suitable application areas for this type of drive.

The drive can provide controlled acceleration, adjustable operating speed and controlled stopping.

Encoder feedback can also be valuable where precise conveyor speed is required.

Typical applications include bulk-material handling, mining, ports, manufacturing and large warehouse systems.

---

9.2 Mining Machinery

Large motors are widely used in mining and mineral-processing systems.

The 535 A capacity makes this drive suitable for high-power applications such as conveyors, material handling and certain processing machines.

Mining applications require careful consideration of dust, temperature, enclosure design, motor cable length and mechanical load characteristics.

---

9.3 Large Pumps

The drive can be used for high-power pump systems where variable-speed operation is required.

Reducing pump speed can reduce flow and, depending on the pump system, can significantly reduce the energy required by the motor.

Applications may include:

• Industrial water systems.
• Process-water circulation.
• Cooling-water systems.
• Water treatment.
• Large-scale industrial pumping.
• Manufacturing utilities.

---

9.4 Large Fans and Blowers

Industrial fans and blowers can consume substantial amounts of power.

A variable frequency drive allows airflow to be adjusted by changing motor speed.

This can be useful for ventilation, exhaust, combustion-air systems and process air systems.

---

9.5 Compressors

Large compressors can require significant motor power.

The drive can provide controlled acceleration and speed regulation where the compressor design supports variable-speed operation.

Compressor applications should always be evaluated against the compressor manufacturer’s minimum-speed, maximum-speed, lubrication and cooling requirements.

---

9.6 Material-Handling Equipment

Large material-handling systems often benefit from controlled acceleration and speed regulation.

Encoder feedback can be especially useful where accurate speed tracking is important.

---

9.7 Industrial Process Equipment

The drive can also be used with large mixers, processing machinery and other high-power rotating equipment.

The ability to adjust motor speed can provide process flexibility and improve control over the mechanical system.

---

10. Dimensions and Weight

The 20BR535U0ANNNND1 is a Frame 8, IP00 roll-in high-power drive.

Because of this construction, the actual installation dimensions should be taken from the applicable mechanical arrangement rather than estimated from horsepower alone.

The drive may be incorporated into a larger cabinet, and the final installed dimensions can therefore depend on cabinet layout, busbar arrangement, cable entry, cooling arrangement and associated electrical equipment.

A commonly listed product weight for this catalog number is approximately 32 lb, equivalent to about 14.5 kg. Because this figure can represent a listed product/shipping value rather than the complete installed cabinet assembly, it should not be used as the sole basis for lifting or cabinet structural calculations.

Mechanical Parameter	Specification / Engineering Information
Model	20BR535U0ANNNND1
Frame	Frame 8
Enclosure	IP00
Mechanical type	Roll-in
Width	Large-frame construction; verify exact mechanical drawing
Height	Large-frame construction; verify exact mechanical drawing
Depth	Large-frame construction; verify exact mechanical drawing
Listed weight	Approximately 32 lb
Weight (kg)	Approximately 14.5 kg
Cabinet installation	Required
Mounting arrangement	Roll-in / cabinet-integrated
Ventilation	High-power thermal management required
Cable clearance	Must be provided according to installation arrangement
Service clearance	Required
Lifting	Verify actual assembly weight before handling
Cabinet structure	Must support the actual installed assembly

For a new cabinet design, the mechanical drawing for the exact drive assembly should always take priority over a general catalog weight or approximate dimensional value.

---

11. Key Technical Parameter Table

Parameter Category	Detailed Specification
Model	20BR535U0ANNNND1
Brand	Allen-Bradley
Product family	PowerFlex 700
Series	20B
Drive type	AC variable frequency drive
Output current	535 A
Normal-duty rating	450 HP
Heavy-duty rating	400 HP
DC input class	650 VDC
Frame	Frame 8
Enclosure	IP00
Mechanical design	Roll-in
Control	Vector control
I/O	115/120 VAC class
Feedback	Standard encoder
Encoder interface	5 V / 12 V class
HIM	Blank cover
Communication module	None
Brake IGBT	None
Drive-mounted braking resistor	None
Pre-charge	Yes
Conformal coating	Yes
Width	Verify exact Frame 8 mechanical drawing
Height	Verify exact Frame 8 mechanical drawing
Depth	Verify exact Frame 8 mechanical drawing
Weight	Approx. 14.5 kg listed value
Installation	Electrical cabinet
Application	High-power industrial motor control

---

12. Five Same-Series or Closely Related Models

The following five models are useful when comparing the 20BR535U0ANNNND1 with other configurations in the same high-power family.

Model	Series	Current	Normal Duty	Heavy Duty	Feedback	Construction	Dimensions	Weight (kg)
20BR535U0ANNNND0	PowerFlex 700 / 20B	535 A	450 HP	400 HP	No feedback	IP00 roll-in	Frame 8; verify exact drawing	Approx. 14.5*
20BR535U0ANNNND1	PowerFlex 700 / 20B	535 A	450 HP	400 HP	Standard encoder	IP00 roll-in	Frame 8; verify exact drawing	Approx. 14.5*
20BR535U0NNNNND0	PowerFlex 700 / 20B	535 A	450 HP	400 HP	No feedback	IP00 roll-in	Frame 8; verify exact drawing	Configuration-dependent
20BR535N0ANNNND0	PowerFlex 700 / 20B	535 A	450 HP	400 HP	No feedback	High-power configuration	Frame 8; verify exact drawing	Configuration-dependent
20BR535V0NNNNND0	PowerFlex 700 / 20B	535 A	450 HP	400 HP	No feedback	High-power configuration	Frame 8; verify exact drawing	Configuration-dependent

* The approximately 14.5 kg value should be treated as a listed product weight rather than a complete cabinet-system weight.

---

13. Comparison of the Related 535 A Models

Model	Current	Motor Rating	Feedback	Main Difference	Best Use
20BR535U0ANNNND0	535 A	450 HP ND / 400 HP HD	None	Similar high-power configuration without encoder	Applications where encoder feedback is unnecessary
20BR535U0ANNNND1	535 A	450 HP ND / 400 HP HD	Standard encoder	Encoder-feedback version	Precise speed-control applications
20BR535U0NNNNND0	535 A	450 HP ND / 400 HP HD	None	Alternate catalog configuration	General high-power motor control
20BR535N0ANNNND0	535 A	450 HP ND / 400 HP HD	None	Different configuration coding	Cabinet-engineered applications
20BR535V0NNNNND0	535 A	450 HP ND / 400 HP HD	None	Alternate high-power configuration	Large industrial motor systems

The 20BR535U0ANNNND1 is the most attractive choice among these when encoder feedback is part of the control requirement.

If encoder feedback is unnecessary, the 20BR535U0ANNNND0 may be a more straightforward configuration.

---

14. Five Popular or Widely Used Related Models from the Same Brand

The following models represent useful alternatives or related products for different motor-power ranges. They should not be considered automatic replacements for the 535 A drive.

Model	Product Family	Approx. Current Class	Typical Motor/Application Class	Feedback / Control	Dimensions	Weight (kg)
20BR365U0ANNNND0	PowerFlex 700 / 20B	365 A	High-power industrial motor	Vector control	Large frame; verify exact drawing	Configuration-dependent
20BR248A0AYNANC0	PowerFlex 700 / 20B	248 A class	Large industrial motor	Vector / configurable	Large frame; verify exact drawing	Configuration-dependent
20BR156A0ANNANC0	PowerFlex 700 / 20B	156 A class	Medium/high-power motor	Vector control	Frame-dependent	Configuration-dependent
20BR125A3ANNANC0	PowerFlex 700 / 20B	125 A class	Industrial motor applications	Vector control	Frame-dependent	Configuration-dependent
20BW142A0ANNANC0	PowerFlex 700 / 20B	142 A class	Industrial motor control	Vector control	Frame-dependent	Configuration-dependent

These models cover lower current ranges than the 535 A unit and therefore should only be selected after checking the motor full-load current and overload requirements.

---

15. Application Selection Table

Application	20BR535U0ANNNND1 Suitability	Main Benefit
Large conveyor	Excellent	Controlled acceleration and encoder-based speed regulation
Mining conveyor	Excellent	High-current capacity and industrial construction
Large pump	Excellent	Variable-speed process control
Large fan	Excellent	Adjustable airflow
Large blower	Excellent	Speed control and controlled starting
Heavy material handling	Excellent	High motor capacity and speed regulation
Large mixer	Suitable	Adjustable motor speed
Compressor	Suitable with engineering review	Controlled acceleration and speed
Crusher	Suitable with engineering review	High-power motor control
Large process machine	Suitable	Flexible motor-speed control
Small pump	Oversized	Much more capacity than required
Small fan	Oversized	More economical smaller drive available
Servo positioning	Not the preferred category	Servo technology is normally more appropriate

---

16. Advantages for Conveyor Applications

Conveyor systems can place significant mechanical demands on the drive and motor.

During startup, the motor must accelerate the conveyor belt, gearbox, rollers and transported material.

Direct starting can result in high current and considerable mechanical shock.

The 20BR535U0ANNNND1 can provide a controlled acceleration profile.

Encoder feedback adds another advantage because the controller can monitor actual motor speed rather than relying solely on calculated motor behavior.

For long conveyors, this can be useful when maintaining stable speed is important for production throughput.

It can also help coordinate several pieces of equipment within a larger material-handling system.

---

17. Advantages for Pump Applications

Pumping systems frequently operate under changing flow requirements.

A fixed-speed motor may continue operating at maximum speed even when the process does not require maximum flow.

A VFD can reduce motor speed according to the process requirement.

For centrifugal pumps, this can provide substantial operating flexibility and may reduce energy consumption when the hydraulic system is suitable for variable-speed control.

The drive also provides controlled motor acceleration, reducing the abrupt starting behavior associated with direct-on-line motor starting.

---

18. Advantages for Fan and Blower Applications

Fans and blowers are often controlled by adjusting motor speed.

When airflow requirements change, the drive can adjust motor speed instead of relying exclusively on mechanical dampers.

This can provide more direct control over the motor-driven process.

For large ventilation and process-air systems, the 535 A capacity allows the drive to handle substantial motor loads.

---

19. Advantages for Heavy Industrial Machinery

Heavy machinery often has high inertia.

Starting a large rotating load requires considerable torque.

Stopping the same load can also produce significant regenerative energy.

The 20BR535U0ANNNND1 can therefore provide a more controlled operating profile than a simple motor starter.

However, braking requirements must be carefully evaluated.

Because this particular configuration does not include a built-in brake IGBT or drive-mounted braking resistor, high-inertia applications requiring rapid stopping may need additional braking equipment or another drive configuration.

---

20. Installation Requirements

A drive of this size requires significantly more engineering attention than a small industrial inverter.

The following areas should be considered before installation:

Installation Item	Importance
Incoming power protection	Essential
Disconnecting equipment	Essential
Short-circuit protection	Essential
Grounding	Essential
Cabinet construction	Essential
Cooling and ventilation	Essential
Motor cable sizing	Essential
Encoder cable routing	Very important
Encoder shielding	Very important
Control wiring	Important
Motor insulation	Important
Harmonic considerations	Important
EMC considerations	Important
Cabinet temperature	Important
Service clearance	Important
Mechanical support	Important
Braking requirements	Important
Motor overload	Essential
Application duty cycle	Essential

---

21. Encoder Installation Considerations

Because the D1 configuration includes encoder feedback, encoder wiring becomes part of the overall system design.

Encoder cables should be routed carefully to reduce interference from high-current motor cables.

The encoder power supply must be compatible with the selected encoder.

The encoder output format must also be compatible with the drive’s feedback interface.

Shielding and grounding should be designed consistently with the overall cabinet grounding strategy.

Poor encoder wiring can lead to unstable speed feedback, intermittent faults, inaccurate speed regulation and unnecessary troubleshooting.

For this reason, the encoder should be regarded as part of the drive-control system rather than simply as an additional sensor.

---

22. Difference Between 20BR535U0ANNNND0 and 20BR535U0ANNNND1

Feature	20BR535U0ANNNND0	20BR535U0ANNNND1
Current	535 A	535 A
Normal-duty rating	450 HP	450 HP
Heavy-duty rating	400 HP	400 HP
Series	PowerFlex 700 / 20B	PowerFlex 700 / 20B
Frame	Frame 8	Frame 8
Construction	IP00 roll-in	IP00 roll-in
Control	Vector	Vector
I/O	115/120 VAC class	115/120 VAC class
Encoder	No	Standard encoder
Communication module	None	None
HIM	Blank cover	Blank cover
Brake IGBT	None	None
Drive-mounted resistor	None	None
Conformal coating	Yes	Yes
Primary advantage	Simpler no-feedback configuration	Improved speed-feedback capability

The two models are therefore very closely related.

The major practical difference is the feedback capability.

If the existing machine uses an encoder, the D1 configuration is particularly relevant.

If the existing machine operates without encoder feedback, changing from D0 to D1 may provide additional functionality but should not be assumed to be a simple plug-and-play replacement without checking the complete control configuration.

---

23. Recommended Selection by Application

Application Requirement	Recommended Configuration
Basic large-motor speed control	20B-series high-power configuration
No encoder required	20BR535U0ANNNND0
Encoder required	20BR535U0ANNNND1
Very large conveyor	20BR535U0ANNNND1
Precise speed regulation	20BR535U0ANNNND1
Large pump	20BR535U0ANNNND0 or D1 depending on feedback requirement
Large fan	D0 may be sufficient if no feedback is required
High-inertia machine	D1 can be useful, but braking design must be evaluated
Rapid stopping	Requires separate braking evaluation
Cabinet-integrated drive	20B IP00 roll-in configurations
Lower-power motor	Consider lower-current 20B models

---

24. Product Strengths in Practical Terms

From an engineering point of view, the 20BR535U0ANNNND1 combines several useful characteristics in one high-power package.

First, its 535 A current capacity allows it to control very large industrial motors.

Second, the 450 HP normal-duty rating makes it suitable for high-power production equipment.

Third, the standard encoder feedback gives it an advantage in applications where actual motor speed needs to be monitored.

Fourth, the vector-control architecture provides a more advanced control platform than a basic scalar inverter.

Fifth, the IP00 roll-in design makes it suitable for integration into engineered industrial cabinets.

Sixth, the conformal-coated construction provides additional protection for the electronic assemblies in demanding industrial environments.

Together, these features make the model particularly suitable for large-scale industrial motor-control systems.

---

25. Important Limitations

The drive’s high capacity is also a reason why it may not be appropriate for smaller machines.

Using a 535 A drive on a small motor can result in unnecessary equipment cost, larger cabinet requirements and more complicated installation.

The IP00 construction also means that the drive requires appropriate enclosure protection.

The lack of an integrated brake IGBT and drive-mounted braking resistor is another limitation for applications involving rapid deceleration or large regenerative loads.

The communication configuration should also be checked before purchase because the stated configuration does not include a communication module.

Finally, the encoder interface is an advantage only when the encoder is properly selected, installed and configured.

---

26. Overall Product Assessment

Category	Assessment
Power capacity	Excellent
Large-motor suitability	Excellent
Encoder feedback capability	Excellent
Vector control	Excellent
Conveyor applications	Excellent
Pump applications	Excellent
Fan applications	Excellent
Heavy material handling	Excellent
Cabinet integration	Excellent
Compact installation	Not suitable
Small motor applications	Not recommended
Rapid braking without additional equipment	Limited
No-feedback applications	D0 version may be more appropriate
Precision speed applications	Very suitable

---

27. Final Summary

The 20BR535U0ANNNND1 is a high-power PowerFlex 700 20B-series AC variable frequency drive designed for large industrial motors and demanding variable-speed applications.

Its principal electrical specification is a 535 A current rating, with approximately 450 HP normal-duty and 400 HP heavy-duty motor capability.

The drive uses a 650 VDC input class, Frame 8 construction, IP00 roll-in mechanical design, vector control and 115/120 VAC-class I/O.

Its most notable feature compared with the closely related D0 configuration is the inclusion of standard encoder feedback, with a 5 V / 12 V-class encoder interface.

This makes the model particularly attractive for conveyors, material-handling machinery, large pumps, fans, blowers and other equipment where stable and accurate motor-speed control is important.

The IP00 roll-in construction means that the drive should be integrated into an appropriately engineered electrical cabinet. Cabinet ventilation, heat dissipation, grounding, power protection, cable routing, service clearance and mechanical support all need to be considered.

For conveyor and material-handling systems, encoder feedback can provide better speed regulation.

For pump and fan systems, variable-speed operation can provide useful process control and may offer energy-saving opportunities where the hydraulic or airflow system is suitable.

For high-inertia machinery, the controlled acceleration and deceleration capabilities are useful, but braking requirements must be analyzed separately because this configuration does not include a built-in brake IGBT or drive-mounted braking resistor.

Among the closely related models, 20BR535U0ANNNND0 is the most direct comparison because it shares the same 535 A, 450 HP and 400 HP duty ratings but does not use the standard encoder-feedback configuration.

The 20BR535U0ANNNND1 is therefore best suited to installations where the motor-control system benefits from actual shaft-speed feedback.

For replacement work, the safest approach is to compare the complete catalog number, motor full-load current, voltage, duty cycle, feedback requirements, braking requirements, I/O arrangement, communication requirements, enclosure construction and cabinet dimensions before selecting the replacement.

Overall, the 20BR535U0ANNNND1 can be regarded as a high-capacity, cabinet-integrated industrial AC drive for large motors, with encoder-feedback capability and vector-based motor control. It is particularly appropriate for heavy industrial equipment where high current, controlled acceleration, variable speed and improved speed regulation are important.
