Product Overview

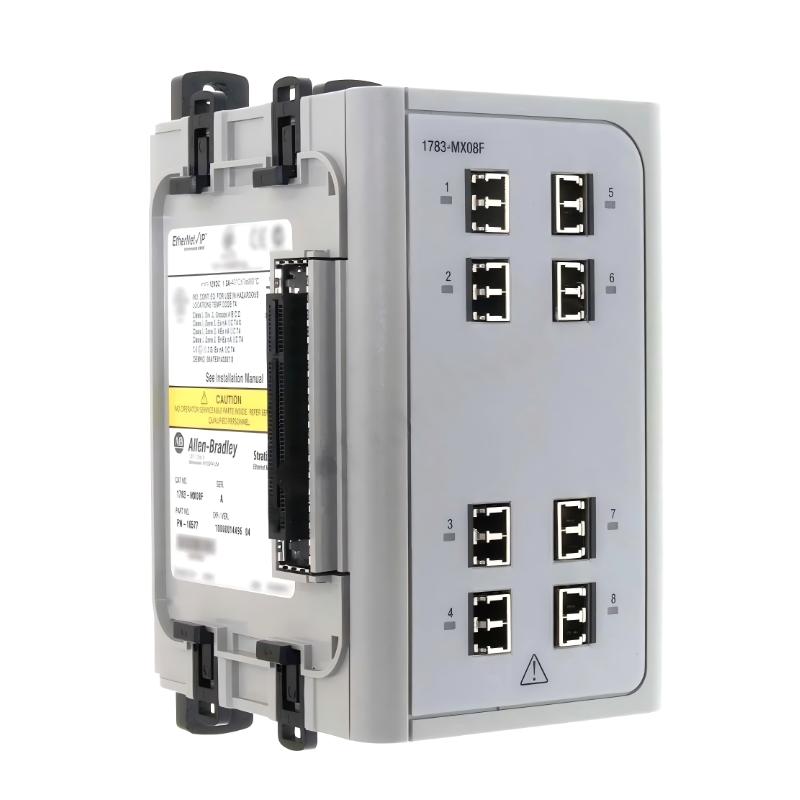

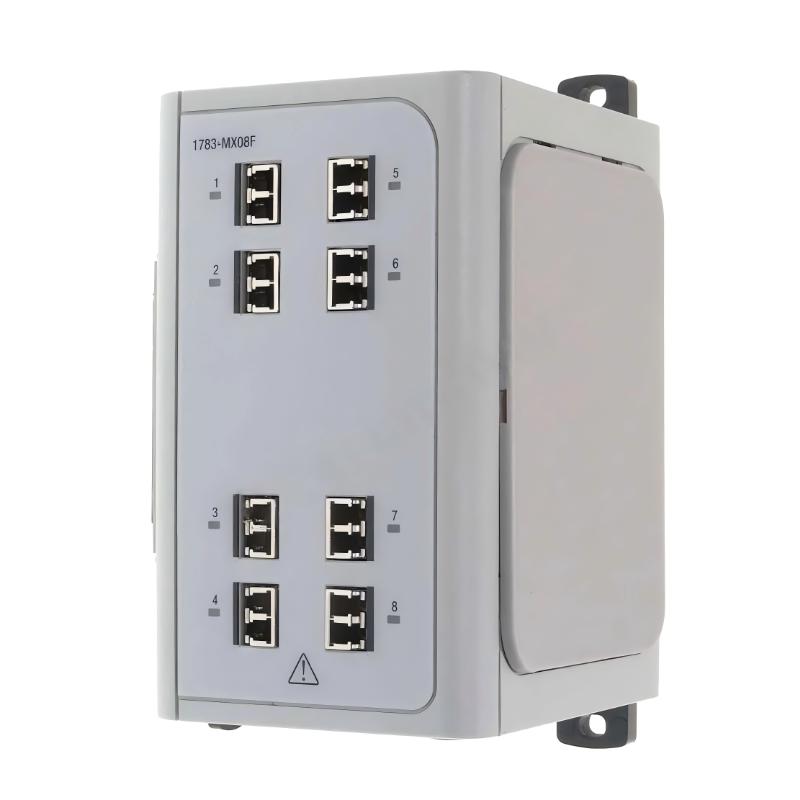

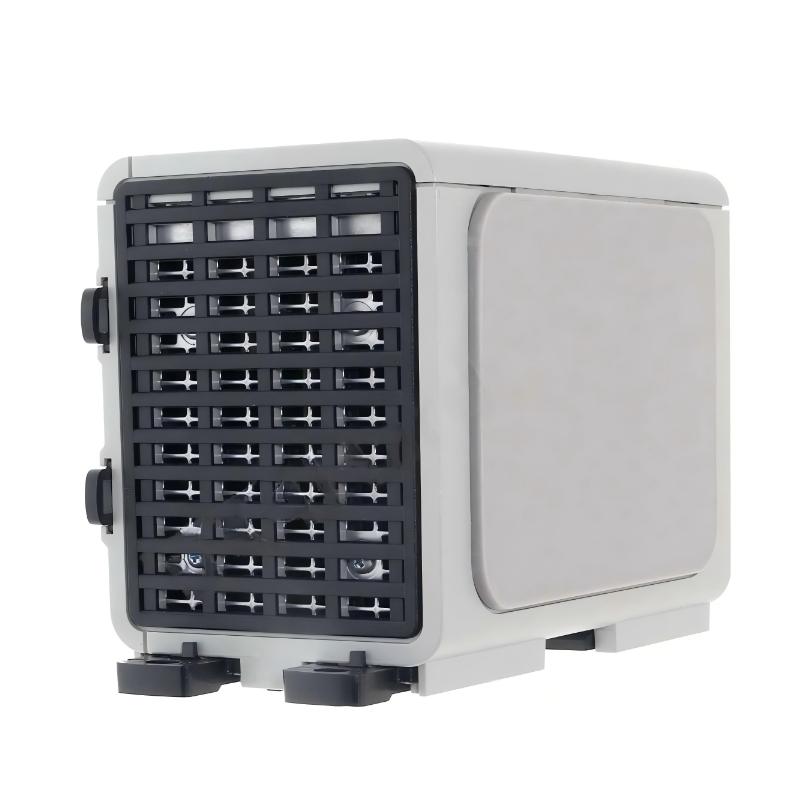

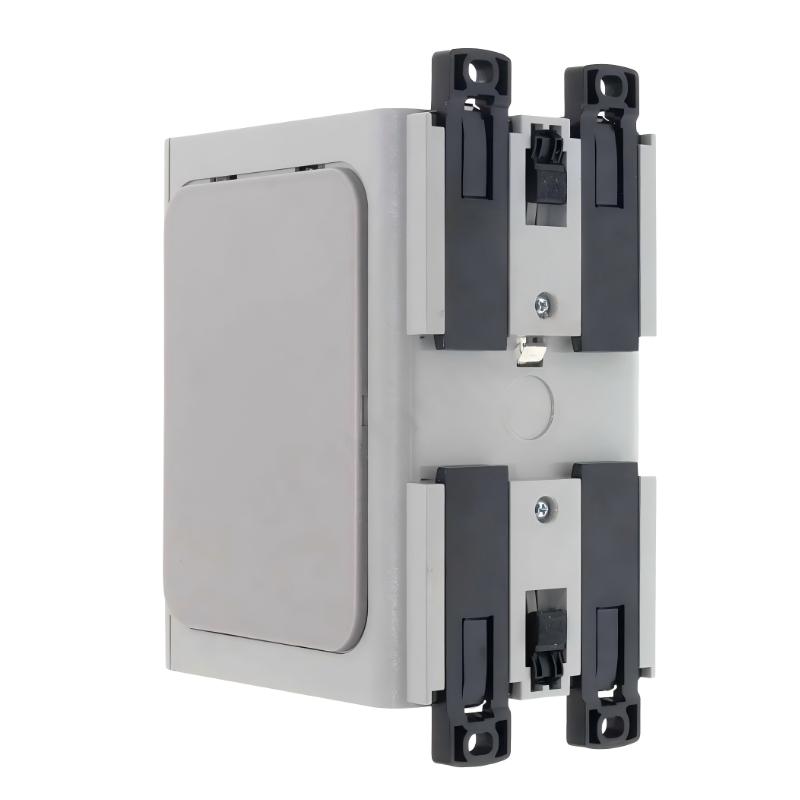

The Allen Bradley 1783-MX08F is a fiber expansion module for the Stratix 8000 managed Ethernet switch family. It adds eight 100BASE-FX fiber-optic Ethernet ports to a compatible Stratix 8000 or Stratix 8300 switch, making it suitable for industrial networks that need fiber connections between distributed equipment.
The module is useful when network segments extend beyond the practical range of copper Ethernet or when fiber is preferred for communication between control cabinets, production areas, and other network locations. Its eight-port configuration allows multiple fiber links to be incorporated into the same switching architecture.
The 1783-MX08F uses LC fiber-optic connectors and operates at 100 Mbps in full-duplex mode. It supports graded-index multimode fiber with a maximum specified cable length of 2000 m, making it particularly suitable for distributed Fast Ethernet networks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen Bradley |
| Product Model | 1783-MX08F |
| Product Family | Stratix 8000 |
| Product Type | Fiber 8-Port Expansion Module |
| Expansion Configuration | 8-Port Fiber |
| Fiber Interface | 100BASE-FX |
| Number of Fiber Ports | 8 |
| Ethernet Data Rate | 100 Mbps |
| Connecting Mode | Full-duplex |
| Optical Wavelength | 1310 nm |
| Optical Cable Type | Graded-index multimode fiber |
| Maximum Optical Cable Length | 2000 m |
| Connector Type | IEC 61754-20 LC connector |
| Dimensions | 148 × 98.1 × 117.5 mm |
| Weight | 0.9 kg |
| Lifecycle Status | Discontinued |
Product Features
- Eight 100BASE-FX fiber-optic Ethernet ports.
- Supports 100 Mbps Ethernet communication.
- Operates in full-duplex mode.
- Uses LC fiber-optic connectors.
- Supports graded-index multimode fiber.
- Maximum specified optical cable length of 2000 m.
- 1310 nm optical wavelength.
- Provides fiber connectivity for Stratix 8000 and Stratix 8300 switching systems.
- Suitable for distributed industrial Ethernet networks.
- Allows multiple fiber network segments to be connected through one expansion module.
Working Principle
The 1783-MX08F operates as an expansion module attached to a compatible Stratix 8000 or Stratix 8300 managed Ethernet switch. Its eight 100BASE-FX ports provide additional fiber-based Ethernet interfaces within the switching architecture.
Each fiber port uses an LC connector and communicates at 100 Mbps in full-duplex mode. A compatible multimode fiber connection carries Ethernet data between the expansion module and another network device, such as a remote industrial switch.
For a factory network, the module can be installed in one control cabinet while a fiber link runs to another cabinet or production area. This arrangement allows network communication to extend across the facility without relying on a copper Ethernet connection between the two locations.
Role in a Stratix 8000 Industrial Ethernet Control Architecture
| System Layer | Typical Equipment | Role of the 1783-MX08F |
|---|---|---|
| Control Layer | PLCs and industrial controllers | Extends the Ethernet infrastructure to distributed network areas |
| Switching Layer | Stratix 8000 managed switch | Provides the host platform for the fiber expansion module |
| Fiber Backbone Layer | Multimode fiber links | Connects remote network segments |
| Distribution Layer | Industrial Ethernet switches | Provides communication between separated control areas |
| Automation Layer | I/O, HMIs, drives, and controllers | Extends network access through fiber-connected segments |
| Plant Network Layer | Factory Ethernet infrastructure | Supports communication across distributed network locations |
Industrial Applications
| Application | Typical Use |
|---|---|
| Distributed Control Cabinets | Linking separate cabinets through fiber Ethernet |
| Manufacturing Plants | Connecting network segments between production areas |
| Machine Lines | Extending communication between separated machine sections |
| Factory Ethernet Backbones | Providing fiber links between industrial switches |
| Large Industrial Facilities | Connecting network equipment across extended distances |
| Electrical and Control Systems | Reducing dependence on long copper Ethernet runs |
Installation and Maintenance
- Verify the host switch
Confirm that the intended Stratix 8000 or Stratix 8300 system supports the 1783-MX08F expansion module. - Confirm the fiber architecture
Check that the network requires 100BASE-FX fiber connectivity rather than copper or SFP-based interfaces. - Inspect the module
Check the module housing and LC interfaces for damage before installation. - Install the expansion module before energizing the system
Follow the applicable Stratix installation procedure when adding or reconfiguring expansion modules. - Check the fiber type
Use the appropriate graded-index multimode fiber for the intended connection. - Inspect LC connectors
Keep optical connectors clean and protected from dust and contamination. - Check the optical link arrangement
Confirm that the fiber path, connected equipment, and port assignments match the network design. - Verify transmission distance
Make sure the planned fiber run remains within the applicable optical cable length and link-budget limits. - Check link status
Verify the corresponding port indications after the network is powered. - Test network communication
Confirm communication between the Stratix switch and the connected remote network equipment. - Inspect fiber connections during maintenance
Check connectors, patch cables, and fiber routing for damage or excessive bending. - Document the fiber network
Record the connected ports, remote equipment, fiber routes, and any changes made during maintenance.
Compatible System Components
| Component | Function |
|---|---|
| Stratix 8000 Managed Ethernet Switch | Provides the host switching platform |
| Stratix 8300 Managed Ethernet Switch | Provides a compatible switching platform |
| Multimode Fiber Cabling | Carries 100BASE-FX Ethernet communication |
| LC Fiber Connectors | Provides the optical connection interface |
| Industrial Ethernet Switches | Connect remote network segments |
| Allen Bradley PLCs | Provide machine and process control |
| Ethernet Distributed I/O | Connect remote automation I/O |
| Industrial HMIs | Provide operator interface and visualization |
Recommended Related Models
| Model | Product Family / Application |
|---|---|
| Allen Bradley 1783-MX08T | Stratix 8000 8-port copper expansion module |
| Allen Bradley 1783-MX04S | Stratix 8000 4-port SFP expansion module |
| Allen Bradley 1783-MX08S | Stratix 8000 8-port SFP expansion module |
| Allen Bradley 1783-MX04E | Stratix 8000 4-port PoE expansion module |
| Allen Bradley 1783-MS10T | Stratix 8000 managed Ethernet switch |
Key Advantages
- Adds eight fiber-optic Ethernet ports to a compatible Stratix 8000 or Stratix 8300 system.
- Supports 100BASE-FX communication at 100 Mbps.
- Provides full-duplex fiber communication.
- Supports multimode fiber connections up to the specified maximum distance.
- Uses LC connectors for industrial fiber network connections.
- Suitable for distributed control cabinets and factory network segments.
- Provides an established fiber expansion option for legacy Stratix 8000 installations.
Technical FAQs
What type of fiber connection does the 1783-MX08F use?
The 1783-MX08F provides eight 100BASE-FX fiber-optic Ethernet ports with IEC 61754-20 LC connectors. It is intended for graded-index multimode fiber connections.
How far can a fiber link from the 1783-MX08F extend?
The specified maximum optical cable length is 2000 m when using graded-index multimode fiber. The actual usable distance also depends on the fiber characteristics and optical link budget.
What is the difference between the 1783-MX08F and 1783-MX08S?
The 1783-MX08F has eight integrated 100BASE-FX fiber-optic ports, while the 1783-MX08S provides eight SFP slots. The 1783-MX08F therefore uses a fixed 100BASE-FX fiber interface, whereas the SFP-based model allows the interface to be determined by the installed compatible SFP modules.
Is the 1783-MX08F still a current Stratix 8000 product?
The 1783-MX08F has been discontinued by Allen Bradley/Rockwell Automation. It is therefore primarily relevant to existing Stratix 8000 installations, replacement requirements, and maintenance of legacy industrial Ethernet systems.
