Product Overview

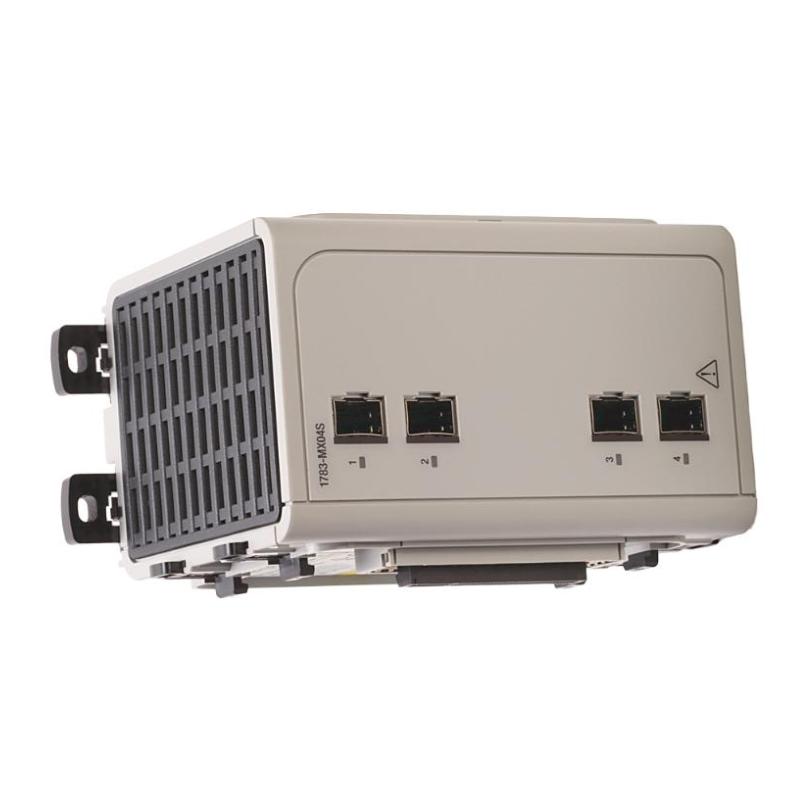

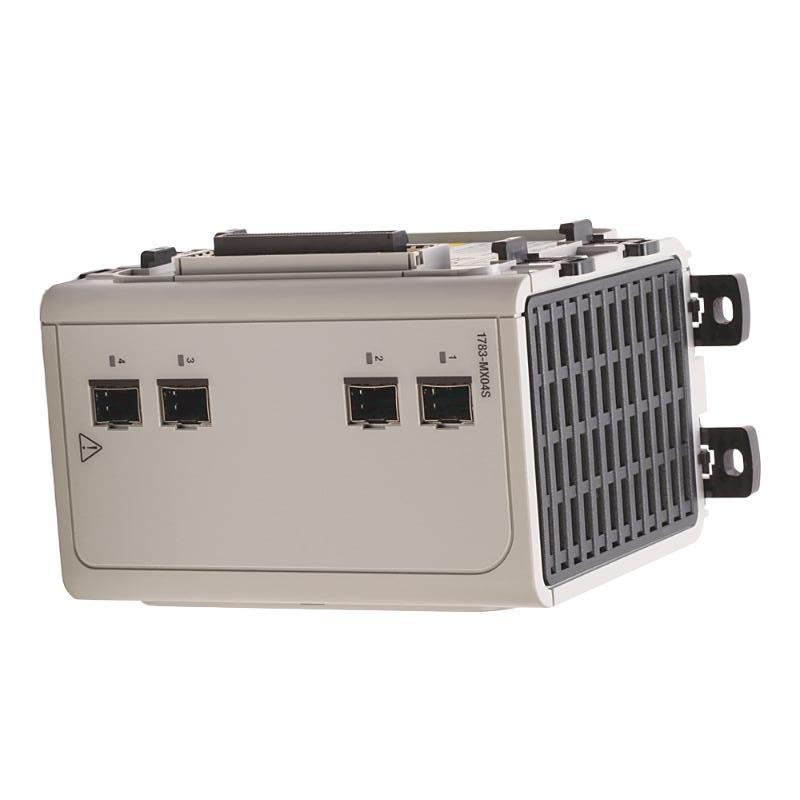

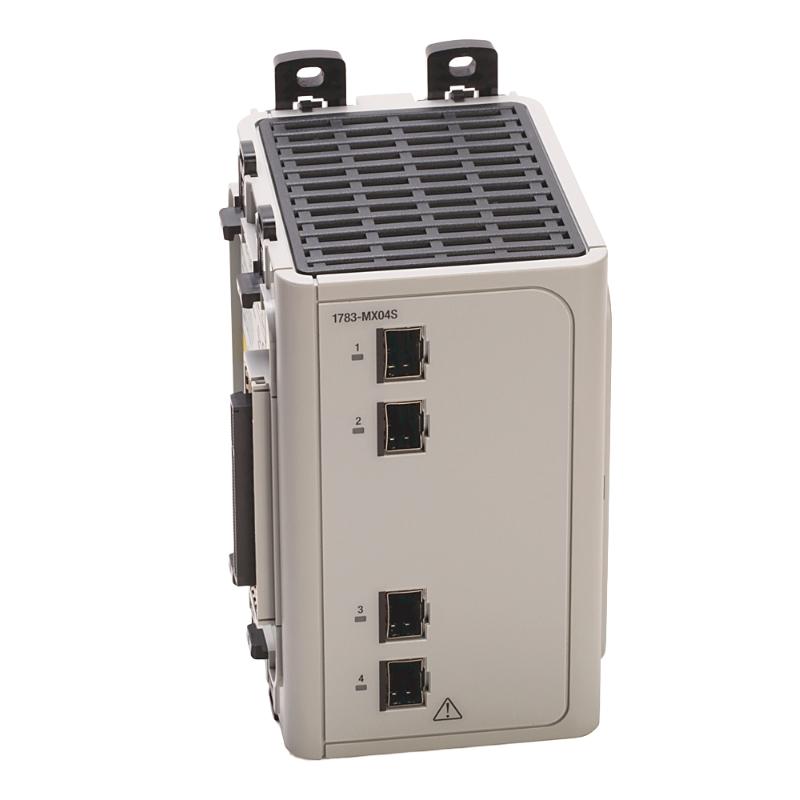

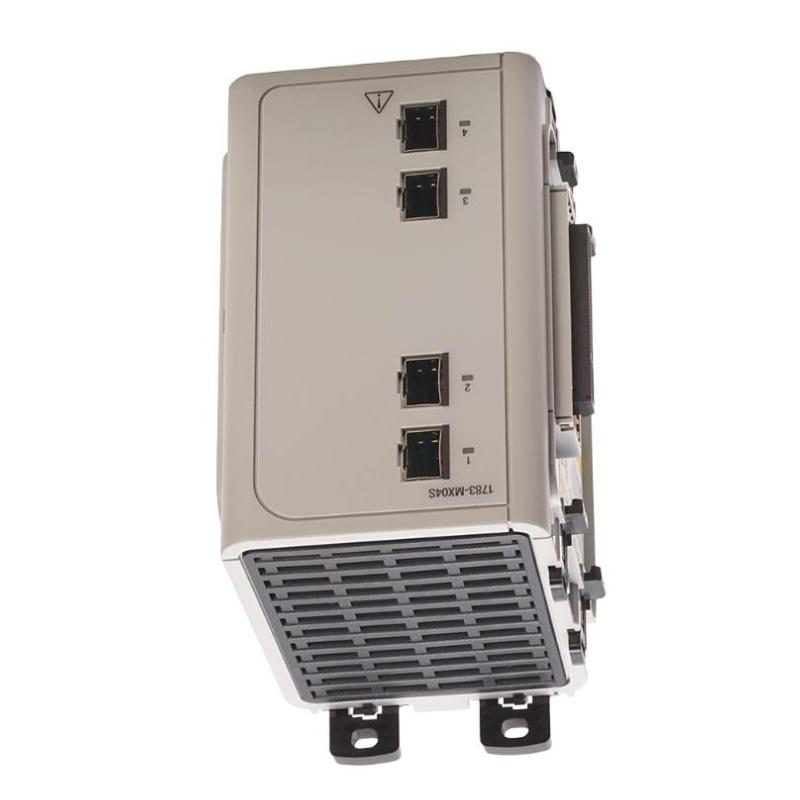

The Allen Bradley 1783-MX04S is a four-port SFP expansion module for the Stratix 8000 managed Ethernet switch family. It is used to extend a compatible Stratix 8000 switch with additional SFP-based network interfaces where the network architecture requires fiber or other supported SFP connectivity.
The module is suited to industrial Ethernet installations that need to connect equipment across longer distances or between network areas using fiber-based links. It can be useful in manufacturing facilities, distributed control systems, and plant networks where copper Ethernet alone is not sufficient for the required network topology.
The four SFP interfaces give engineers additional options for integrating uplinks, remote network segments, or other compatible Ethernet equipment into the Stratix 8000 switching architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen Bradley |
| Product Model | 1783-MX04S |
| Product Family | Stratix 8000 |
| Product Type | SFP Expansion Module |
| Expansion Configuration | 4-Port |
| Interface Type | SFP |
| Network Application | Industrial Ethernet |
| Module Function | Fiber / SFP Network Expansion |
| Host Platform | Stratix 8000 Managed Ethernet Switch |
| System Role | Network Interface Expansion |
| Typical Application | Industrial Ethernet Networks |
| Installation | Industrial Control Cabinet |
| Dimensions | 148 × 98.1 × 117.5 mm |
| Weight | 0.9 kg |
Product Features
- Four-port SFP expansion configuration for the Stratix 8000 platform.
- Adds SFP-based network connectivity to a compatible managed Ethernet switch.
- Suitable for fiber-based industrial Ethernet connections.
- Useful for network segments where extended transmission distance is required.
- Supports expansion of an existing Stratix 8000 switching architecture.
- Suitable for industrial control systems, manufacturing networks, and distributed automation installations.
- Provides an alternative to copper-only expansion modules.
- Can be used for network uplinks and connections between distributed network areas.
Working Principle
The 1783-MX04S operates as an expansion module within a compatible Stratix 8000 managed Ethernet switch. Its four SFP interfaces provide additional network connection points for supported SFP-based links.
An appropriate SFP transceiver and corresponding network medium can be selected according to the requirements of the network. This allows the expansion module to participate in fiber-based Ethernet links between the Stratix 8000 system and remote network equipment.
In a distributed factory network, for example, an SFP connection can be used to link different control areas or network cabinets where a copper connection would not provide the required distance or installation arrangement.
Role in a Stratix 8000 Industrial Ethernet Control Architecture
| System Layer | Typical Equipment | Role of the 1783-MX04S |
|---|---|---|
| Control Layer | PLCs and industrial controllers | Extends Ethernet infrastructure for the control network |
| Switching Layer | Stratix 8000 managed switch | Hosts the SFP expansion module |
| Backbone Layer | Fiber Ethernet links | Provides additional network connections between network areas |
| Distribution Layer | Remote switches and network cabinets | Connects distributed Ethernet segments |
| Automation Layer | I/O, HMIs, drives, and controllers | Provides network access through the expanded architecture |
| Plant Network Layer | Industrial Ethernet infrastructure | Supports communication between distributed network sections |
Industrial Applications
| Application | Typical Use |
|---|---|
| Factory Backbone Networks | Connecting distributed Ethernet network sections |
| Manufacturing Plants | Linking control cabinets and production areas |
| Distributed Control Systems | Connecting remote network equipment through SFP links |
| Large Machine Lines | Extending communication between separated machine sections |
| Control Cabinets | Providing fiber-based uplink or network expansion |
| Industrial Ethernet Networks | Supporting longer-distance network connections |
Installation and Maintenance
- Verify the host switch
Confirm that the intended Stratix 8000 switch supports the required expansion configuration. - Check the SFP requirement
Determine the required SFP type and network medium before installation. - Inspect the module
Check the module housing and SFP interfaces for visible damage. - Inspect SFP transceivers
Confirm that the selected transceivers are suitable for the intended network application. - Prepare the cabinet
Ensure adequate space and suitable environmental conditions are available. - Install the module correctly
Follow the applicable Stratix 8000 installation procedure when mounting the expansion module. - Install the SFP interfaces carefully
Make sure each transceiver is fully seated before connecting the network medium. - Check fiber connections
Keep fiber connectors clean and protect them from dust or contamination. - Verify port assignments
Confirm that each SFP connection corresponds to the intended network segment. - Check link status
Verify the link indications after the switch and connected network equipment are powered. - Monitor network communication
Investigate intermittent links, unexpected disconnections, or communication errors. - Inspect during scheduled maintenance
Check the module, SFP transceivers, and network connections as part of routine cabinet maintenance.
Compatible System Components
| Component | Function |
|---|---|
| Stratix 8000 Managed Ethernet Switch | Provides the host switching platform |
| Compatible SFP Transceivers | Provide the optical or supported SFP interface |
| Fiber Ethernet Cabling | Connects distributed network equipment |
| Industrial Ethernet Switches | Connect remote network segments |
| Allen Bradley PLCs | Provide machine and process control |
| Ethernet Distributed I/O | Connect remote I/O devices |
| Industrial HMIs | Provide operator interface and visualization |
Recommended Related Models
| Model | Product Family / Application |
|---|---|
| Allen Bradley 1783-MX04E | Stratix 8000 4-Port PoE Expansion Module |
| Allen Bradley 1783-MX04T | Stratix 8000 expansion module |
| Allen Bradley 1783-MX08S | Stratix 8000 SFP expansion module |
| Allen Bradley 1783-MX08E | Stratix 8000 PoE expansion module |
| Allen Bradley 1783-MS10T2S | Stratix 8000 managed Ethernet switch with copper and SFP interfaces |
Key Advantages
- Adds four SFP interfaces to a compatible Stratix 8000 system.
- Supports fiber-based industrial Ethernet network expansion.
- Suitable for longer-distance connections between network areas.
- Useful for distributed control cabinets and plant network backbones.
- Provides an alternative to copper Ethernet expansion.
- Keeps the additional interfaces within the Stratix 8000 switching architecture.
Technical FAQs
Why would the 1783-MX04S be used instead of a copper expansion module?
The 1783-MX04S is intended for applications requiring SFP-based network connections. It is particularly useful when network sections are separated by longer distances or when fiber-based communication is preferred for the industrial network architecture.
Does the 1783-MX04S itself determine the fiber type?
The module provides SFP interfaces, while the specific transmission characteristics depend on the compatible SFP transceiver and network medium selected for the application. The transceiver should therefore be matched to the required distance and network configuration.
Can the four SFP ports be used for connections between different control cabinets?
Yes, SFP-based connections can be used to connect distributed network cabinets or network segments when the selected SFP transceivers and cabling are appropriate for the installation.
What should be checked when an SFP link does not come up?
Check that the SFP transceivers are correctly installed and compatible with the intended network configuration, then inspect the fiber or other SFP connection for contamination, damage, incorrect pairing, or an unsuitable connection arrangement. The switch configuration and link status should also be checked.
