Product Overview

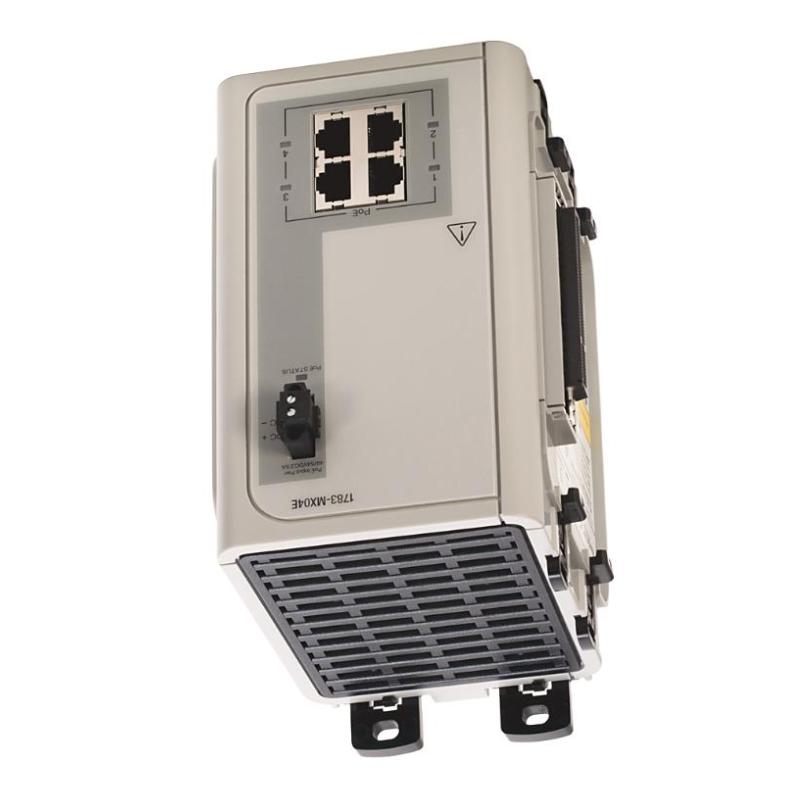

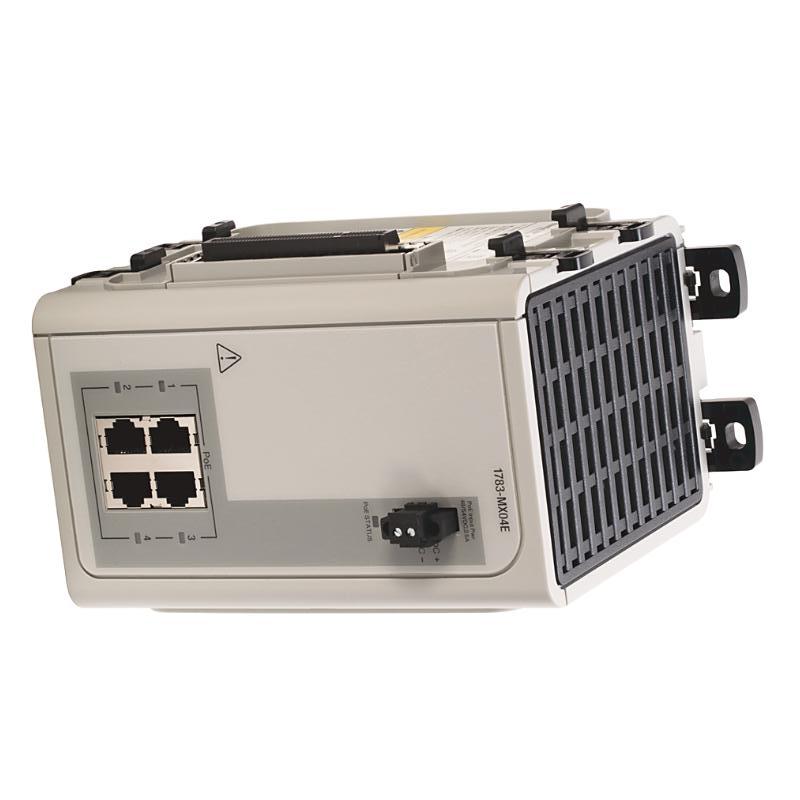

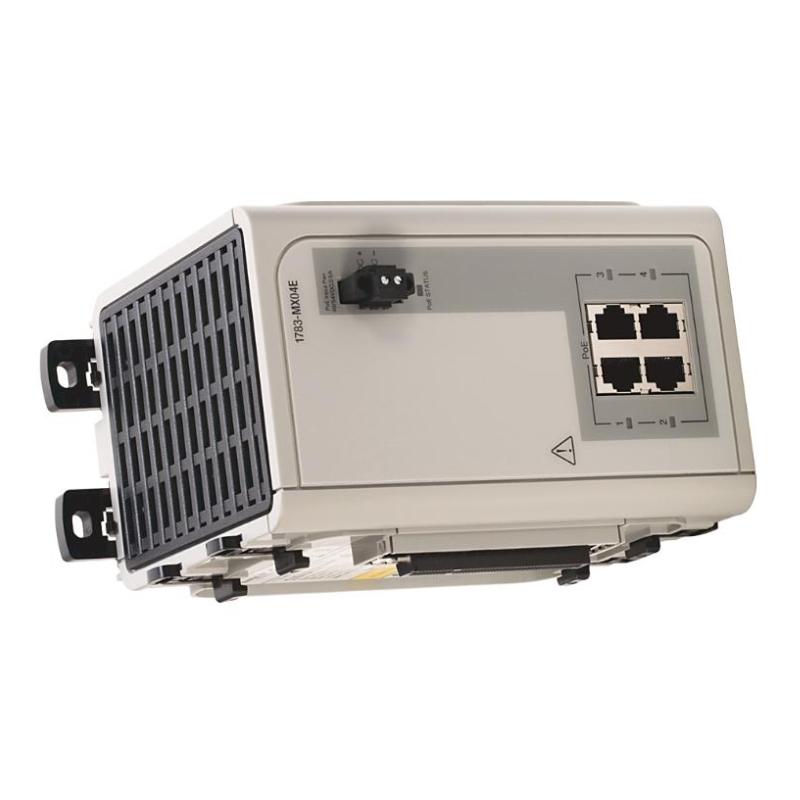

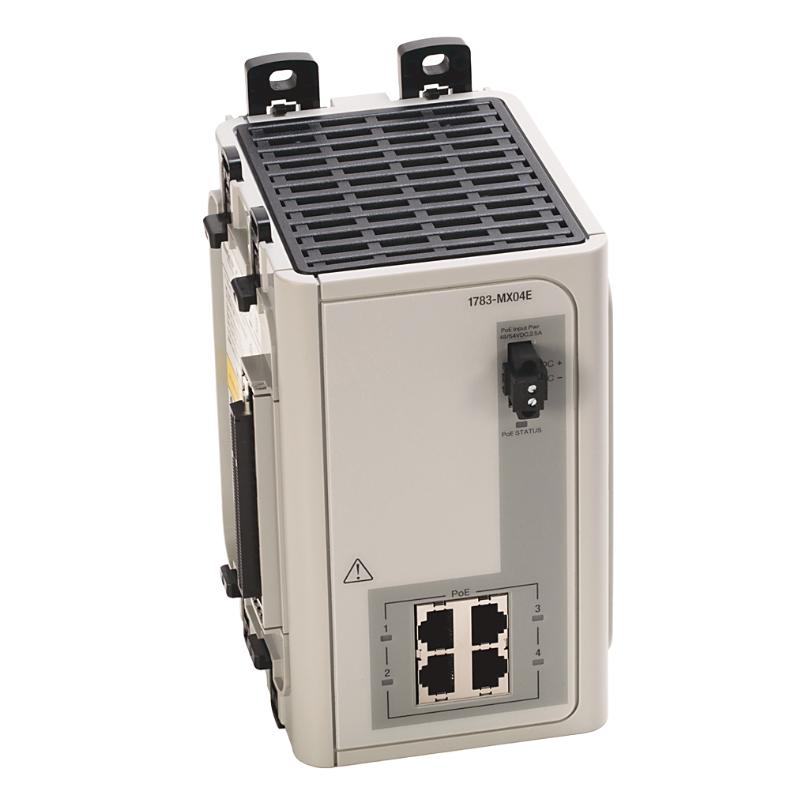

The Allen Bradley 1783-MX04E is a four-port PoE expansion module for the Stratix 8000 industrial managed Ethernet switch family. It is used to extend the connectivity and power-delivery capability of a compatible Stratix 8000 switch when additional PoE-enabled network devices need to be integrated into the industrial network.
The module is particularly useful for control cabinets and industrial Ethernet systems that include powered network devices. Instead of requiring a separate power arrangement for every compatible device, PoE allows network communication and electrical power to be delivered through the Ethernet connection.
Typical applications can include industrial access points, network cameras, and other compatible PoE devices where both network connectivity and power are required from the switching infrastructure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen Bradley |
| Product Model | 1783-MX04E |
| Product Family | Stratix 8000 |
| Product Type | PoE Expansion Module |
| Expansion Configuration | 4-Port |
| PoE Function | Power over Ethernet |
| Network Application | Industrial Ethernet |
| Module Function | Network and PoE Expansion |
| Host Platform | Stratix 8000 Managed Ethernet Switch |
| System Role | Ethernet Interface and Power Expansion |
| Typical Application | Industrial Automation Networks |
| Installation | Industrial Control Cabinet |
| Dimensions | 148 × 98.1 × 117.5 mm |
| Weight | 0.9 kg |
Product Features
- Four-port PoE expansion configuration for the Stratix 8000 platform.
- Combines Ethernet connectivity with power delivery for compatible PoE devices.
- Extends the capabilities of a compatible Stratix 8000 managed Ethernet switch.
- Suitable for industrial networks requiring powered Ethernet devices.
- Helps reduce the need for separate power wiring at connected PoE equipment.
- Can be used in control cabinets and distributed industrial Ethernet installations.
- Suitable for network architectures containing both standard Ethernet devices and PoE-powered equipment.
Working Principle
The 1783-MX04E operates as an expansion module within the Stratix 8000 switching architecture. It adds four PoE-capable network connections to the compatible host switch.
A compatible PoE device connected to one of these ports can receive network communication and electrical power through the Ethernet connection. This allows the switching system to handle both data communication and power delivery through the same network connection.
In an industrial installation, the module can be used where powered network equipment needs to be located away from the main control cabinet or where separate local power connections would complicate the installation. The exact power requirements and device compatibility should be checked when planning the PoE network.
Role in a Stratix 8000 Industrial Ethernet Control Architecture
| System Layer | Typical Equipment | Role of the 1783-MX04E |
|---|---|---|
| Control Layer | PLCs and industrial controllers | Provides expanded Ethernet infrastructure |
| Network Layer | Stratix 8000 managed switch | Hosts the PoE expansion module |
| PoE Device Layer | Compatible PoE equipment | Supplies network connectivity and power |
| Monitoring Layer | Network cameras and access points | Supports powered Ethernet connections |
| Field Network Layer | Industrial Ethernet devices | Extends network access within the installation |
| Cabinet Infrastructure | Ethernet and power distribution | Reduces separate power wiring for compatible PoE devices |
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Surveillance | Connecting compatible PoE network cameras |
| Wireless Industrial Networks | Providing Ethernet connectivity and power to compatible access points |
| Manufacturing Cells | Connecting powered network equipment around production areas |
| Control Cabinets | Adding PoE capability to an existing Stratix 8000 switching system |
| Factory Networks | Extending network infrastructure to PoE-enabled devices |
| Distributed Equipment | Supplying both communication and power through Ethernet cabling |
Installation and Maintenance
- Verify the host switch
Confirm that the Stratix 8000 switch supports the intended expansion module configuration. - Check the PoE requirement
Determine whether the connected equipment requires PoE before assigning a port. - Inspect the module
Check the housing, connectors, and mounting surfaces for damage before installation. - Prepare the cabinet
Make sure there is adequate space for the switch and expansion assembly. - Install the module correctly
Follow the applicable Stratix 8000 installation procedure when mounting the expansion module. - Check Ethernet cabling
Inspect cables and connectors before connecting powered network equipment. - Verify connected devices
Confirm that each PoE device is compatible with the available PoE function. - Check power requirements
Make sure the planned PoE load is within the capabilities of the switching system. - Verify network links
Confirm communication with connected PoE devices after system startup. - Monitor PoE operation
Investigate unexpected device shutdowns, link loss, or power-related faults. - Inspect cables periodically
Check Ethernet cables for mechanical damage, loose connections, and contamination. - Review the PoE configuration
Update network documentation when PoE devices are added, removed, or moved between ports.
Compatible System Components
| Component | Function |
|---|---|
| Stratix 8000 Managed Ethernet Switch | Provides the host switching platform |
| Stratix 8000 Expansion Modules | Extend network interfaces and switch functionality |
| Allen Bradley PLCs | Provide machine and process control |
| Industrial Ethernet Devices | Connect automation equipment to the network |
| PoE Network Cameras | Receive network communication and power through Ethernet |
| Compatible Wireless Access Points | Receive network connectivity and power through PoE |
| Industrial Ethernet Cabling | Carries network data and PoE power |
Recommended Related Models
| Model | Product Family / Application |
|---|---|
| Allen Bradley 1783-MX04T | Stratix 8000 expansion module |
| Allen Bradley 1783-MX08T | Stratix 8000 expansion module |
| Allen Bradley 1783-MX08E | Stratix 8000 PoE expansion module |
| Allen Bradley 1783-MS10T | Stratix 8000 managed Ethernet switch |
| Allen Bradley 1783-MS10T2S | Stratix 8000 managed Ethernet switch with copper and SFP interfaces |
Key Advantages
- Adds four PoE-capable network connections to the Stratix 8000 platform.
- Combines network communication and power delivery through Ethernet.
- Reduces the need for separate power connections for compatible PoE devices.
- Suitable for industrial surveillance and wireless network applications.
- Integrates PoE functionality into an existing managed Ethernet architecture.
- Useful for distributed network equipment that requires both power and data.
Technical FAQs
What type of devices can be connected through the 1783-MX04E?
The module is intended for compatible PoE-enabled network equipment. Typical examples include industrial wireless access points, network cameras, and other devices that can receive power through Ethernet.
What is the main benefit of using PoE with the Stratix 8000 platform?
PoE allows compatible equipment to receive electrical power and network communication through the same Ethernet connection. This can simplify wiring when network devices are installed away from a convenient local power source.
Can all Ethernet devices connected to the 1783-MX04E receive PoE power?
No. PoE power is intended for compatible powered devices. Standard Ethernet equipment that does not use PoE should not be assumed to require or accept power from the expansion ports.
What should be checked before connecting multiple PoE devices?
The connected devices, PoE requirements, available system power capacity, Ethernet cabling, and overall switch configuration should be checked before commissioning. The combined PoE demand should be considered when several powered devices are connected at the same time.
