Product Overview

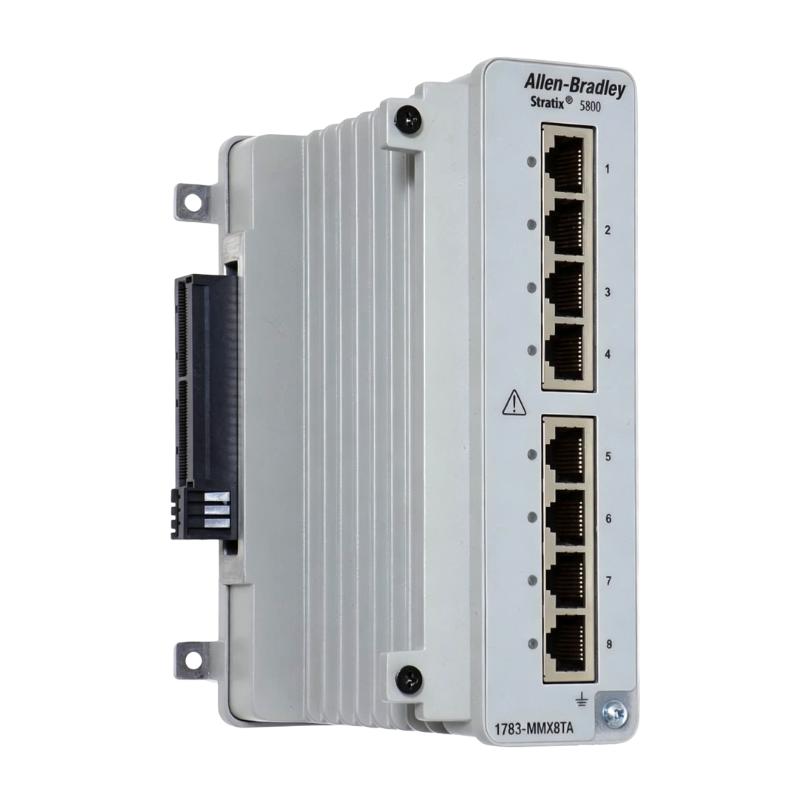

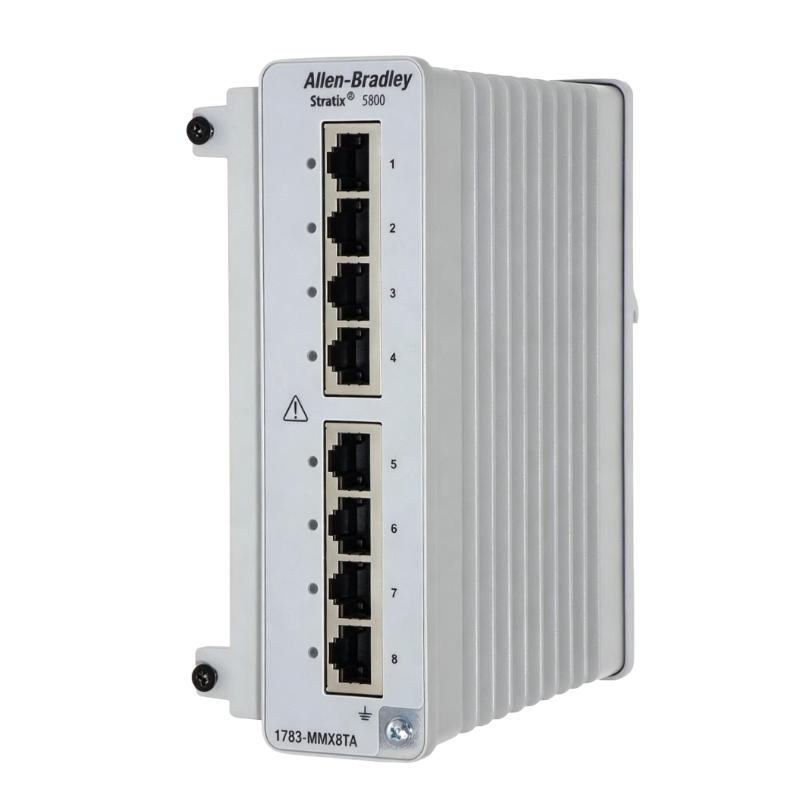

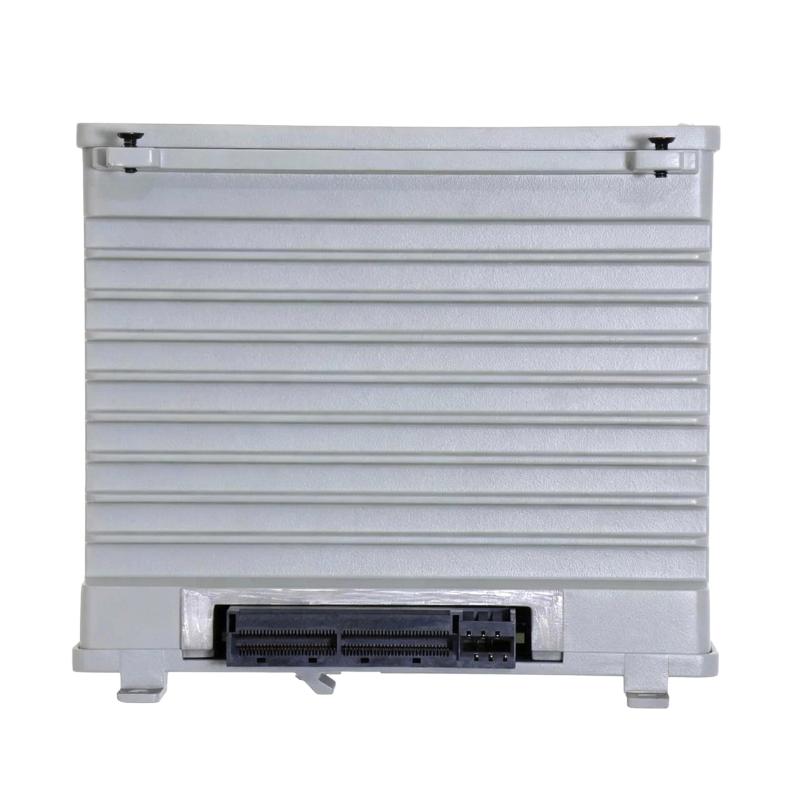

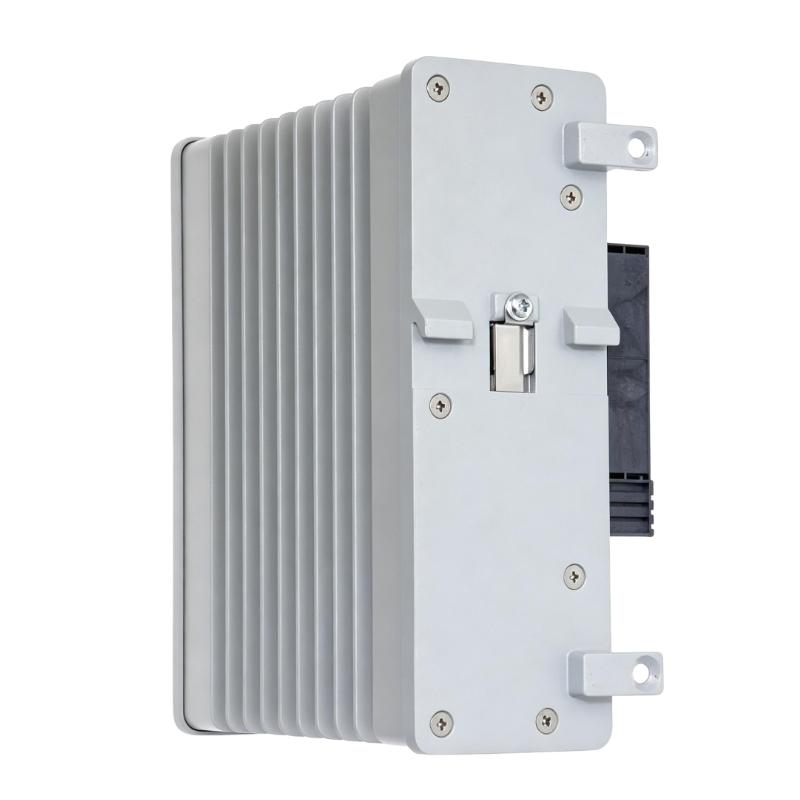

The Allen Bradley 1783-MMX8TA is an advanced expansion module for the Stratix 5800 industrial Ethernet switch platform. It adds eight copper Ethernet interfaces to a compatible expandable switch and is intended for applications that need additional network connectivity together with the advanced capabilities of the Stratix 5800 expansion architecture.
The module is suited to industrial control cabinets, machine networks, and manufacturing cells where multiple PLCs, distributed I/O stations, HMIs, drives, and other Ethernet devices need to share the same switching infrastructure.
Compared with the basic 1783-MMX8T expansion module, the 1783-MMX8TA is the advanced copper expansion option. This makes it a suitable choice when the network requirements go beyond simply adding additional copper Ethernet ports.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen Bradley |
| Product Model | 1783-MMX8TA |
| Product Family | Stratix 5800 |
| Product Type | Expansion Module |
| Expansion Type | Advanced Expansion |
| Ethernet Ports | 8 |
| Interface Type | Copper Ethernet |
| Network Application | Industrial Ethernet |
| Module Function | Network Interface Expansion |
| Host Platform | Stratix 5800 Expandable Switch |
| System Role | Advanced Ethernet Expansion |
| Typical Application | Industrial Automation Networks |
| Dimensions | 152.4 × 66 × 151.6 mm |
| Weight | 0.9 kg |
Product Features
- Eight-port copper Ethernet expansion configuration.
- Advanced expansion functionality for the Stratix 5800 platform.
- Adds network connection capacity to a compatible expandable switch.
- Suitable for PLC, distributed I/O, HMI, drive, and other Ethernet-based equipment.
- Designed for industrial control and machine-level Ethernet networks.
- Keeps additional network interfaces within the Stratix 5800 switching architecture.
- Provides an advanced alternative to the basic 1783-MMX8T expansion module.
- Suitable for applications where both additional copper connectivity and advanced expansion functions are required.
Working Principle
The 1783-MMX8TA operates as an expansion module within a Stratix 5800 expandable switch. The host switch supplies the primary switching architecture, while the module extends the available copper Ethernet connectivity.
When automation equipment is connected to the expansion interfaces, Ethernet traffic is handled through the Stratix 5800 switching system. This allows additional controllers, I/O stations, HMIs, drives, and other network devices to become part of the same industrial Ethernet infrastructure.
The advanced expansion configuration is intended for networks where the requirements are more demanding than simple port expansion. Selection of the 1783-MMX8TA therefore depends on the required network interfaces and advanced functions of the overall Stratix 5800 architecture.
Role in a Stratix 5800 Industrial Ethernet Control Architecture
| System Layer | Typical Equipment | Role of the 1783-MMX8TA |
|---|---|---|
| Control Layer | Allen Bradley PLCs and controllers | Adds Ethernet connectivity for control equipment |
| I/O Layer | Ethernet distributed I/O | Provides additional network connection points |
| Drive Layer | Ethernet-connected drives | Connects networked motor-control equipment |
| HMI Layer | Industrial operator terminals | Adds interfaces for operator stations |
| Switching Layer | Stratix 5800 expandable switch | Hosts the advanced expansion module |
| Network Layer | Industrial Ethernet infrastructure | Extends the switching architecture for larger networks |
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Automation | Expanding Ethernet connectivity for controllers, I/O, HMIs, and drives |
| Manufacturing Cells | Adding network interfaces to growing automation systems |
| Packaging Systems | Connecting multiple Ethernet-based machine components |
| Material Handling | Supporting networked controllers and distributed equipment |
| Control Cabinets | Increasing copper Ethernet capacity within a modular switch system |
| Industrial Ethernet Networks | Extending a Stratix 5800 network where advanced expansion functions are required |
Installation and Maintenance
- Verify the host platform
Confirm that the intended switch is a compatible Stratix 5800 expandable platform. - Confirm the module type
Verify that an advanced copper expansion module is required for the planned network. - Inspect the module
Check the housing, connectors, and mounting surfaces for visible damage. - Prepare the control cabinet
Ensure sufficient installation space is available around the switch assembly. - Install the expansion module
Follow the applicable Stratix 5800 installation procedure when mounting the module. - Check copper Ethernet cabling
Inspect cables and connectors before connecting automation equipment. - Label each connection
Identify connected PLCs, I/O stations, HMIs, drives, and other devices for easier troubleshooting. - Verify the network configuration
Make sure the planned device connections match the intended Stratix 5800 architecture. - Check link status
Verify network link indications after powering the system. - Test device communication
Confirm communication between connected automation devices and the control system. - Inspect connections during maintenance
Check Ethernet connectors and cables for looseness, contamination, and physical damage. - Document network changes
Update the network configuration records when devices or expansion connections are changed.
Compatible System Components
| Component | Function |
|---|---|
| Stratix 5800 Expandable Switch | Provides the main switching platform |
| Stratix 5800 Expansion Modules | Extend the network interface and switching architecture |
| Allen Bradley PLCs | Provide machine and process control |
| Ethernet Distributed I/O | Connect remote I/O devices |
| Ethernet Drives | Provide networked motor control |
| Industrial HMIs | Provide operator interface and visualization |
| Industrial Ethernet Cabling | Connects networked automation equipment |
Recommended Related Models
| Model | Product Family / Application |
|---|---|
| Allen Bradley 1783-MMX8T | Stratix 5800 basic copper expansion module |
| Allen Bradley 1783-MMX8TA | Stratix 5800 advanced copper expansion module |
| Allen Bradley 1783-MMX8S | Stratix 5800 basic SFP expansion module |
| Allen Bradley 1783-MMX8SA | Stratix 5800 advanced SFP expansion module |
| Allen Bradley 1783-MMX6T2S | Stratix 5800 mixed copper and SFP expansion module |
Key Advantages
- Adds eight copper Ethernet interfaces to the Stratix 5800 platform.
- Combines additional network connectivity with advanced expansion capability.
- Suitable for larger industrial Ethernet control architectures.
- Supports additional PLC, I/O, HMI, drive, and machine-device connections.
- Keeps network expansion within the Stratix 5800 platform.
- Provides an advanced alternative to the basic copper expansion configuration.
Technical FAQs
When should the 1783-MMX8TA be selected instead of the 1783-MMX8T?
The 1783-MMX8T is the basic copper expansion option, while the 1783-MMX8TA is the advanced copper expansion model. The 1783-MMX8TA should be considered when the Stratix 5800 network requires the additional capabilities associated with the advanced expansion configuration.
Does the 1783-MMX8TA expand the Stratix 5800 system with copper or fiber interfaces?
The 1783-MMX8TA is the copper expansion option. It is intended for systems where the additional network devices can be connected through copper Ethernet interfaces rather than SFP-based interfaces.
What type of automation equipment can be connected through the 1783-MMX8TA?
The expansion interfaces can be used within industrial Ethernet architectures containing PLCs, distributed I/O, HMIs, drives, and other networked automation equipment, provided the overall network configuration and host switch support the intended arrangement.
Is the 1783-MMX8TA a standalone Ethernet switch?
No. The 1783-MMX8TA is an expansion module for the Stratix 5800 platform. It works as part of a compatible expandable switch architecture rather than functioning as an independent standalone switch.
