Product Overview

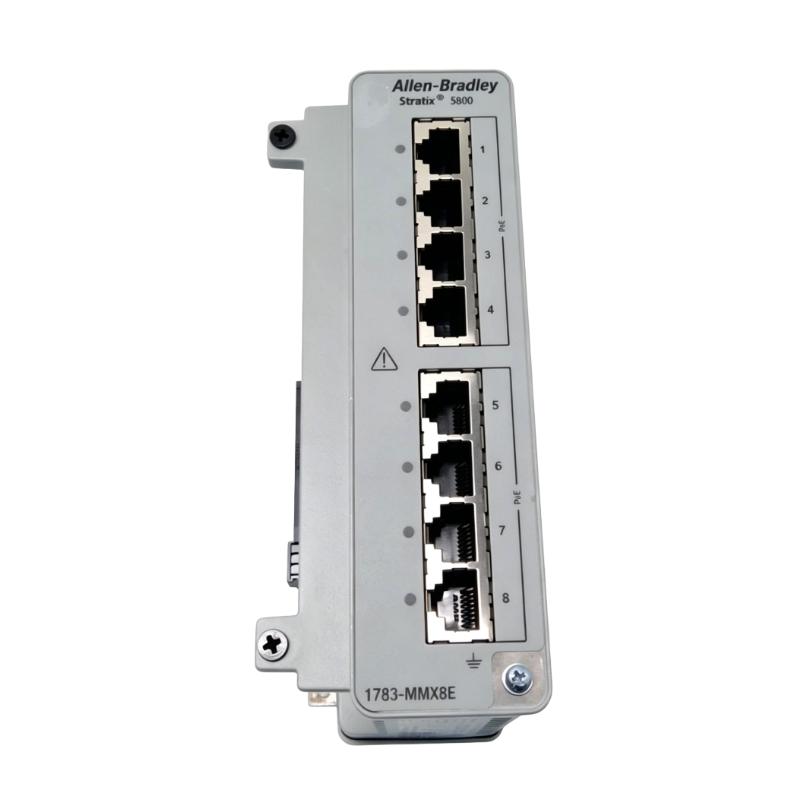

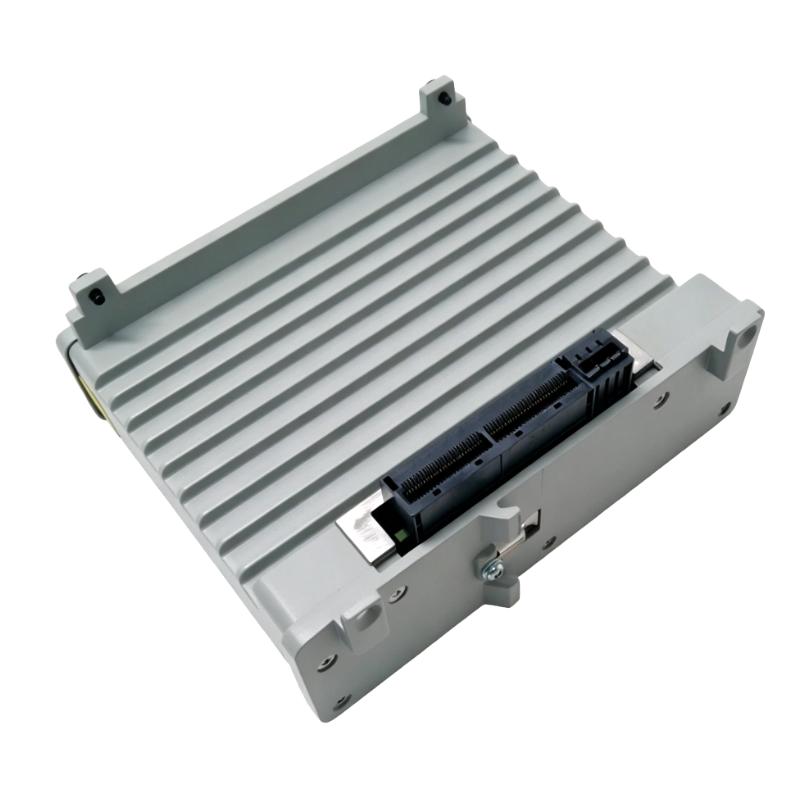

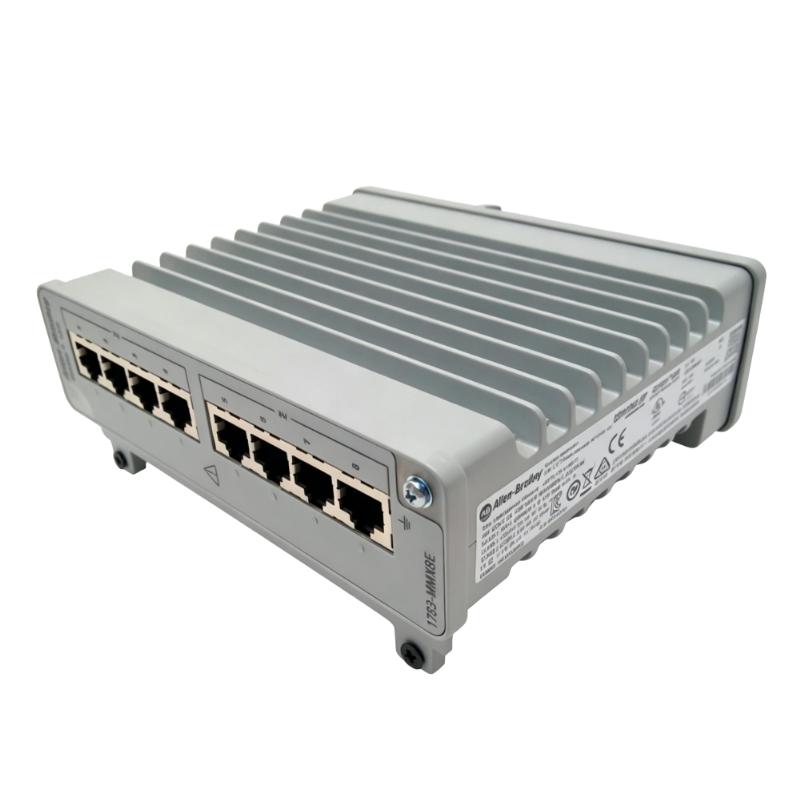

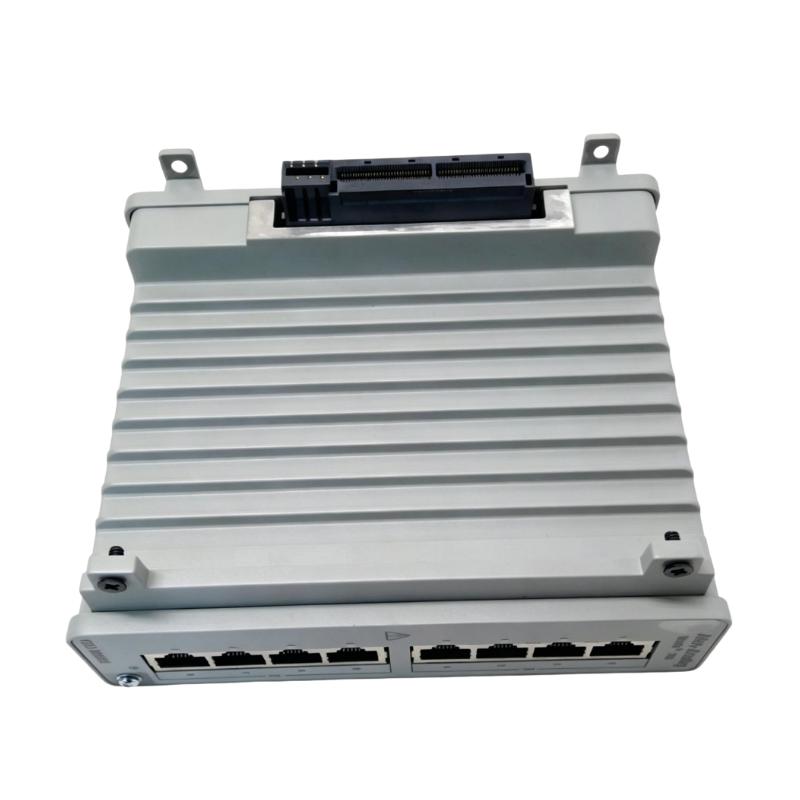

The Allen Bradley 1783-MMX8E is a Stratix 5800 expansion module used to extend the network connectivity of a compatible industrial Ethernet switching platform. It belongs to the Stratix 5800 network infrastructure and is intended for installations where the existing switching arrangement needs additional connectivity for Ethernet-based automation equipment.
In an industrial automation network, PLCs, remote I/O, drives, HMIs, engineering stations, and intelligent devices may all depend on a common Ethernet infrastructure. An expansion module allows the switching architecture to accommodate additional network connections while maintaining the existing Stratix 5800-based network arrangement.
The 1783-MMX8E is suitable for machine networks, manufacturing cells, process-control systems, and plant-floor Ethernet installations. It can also be used as part of network expansion and modernization work where additional connectivity is required within an established industrial networking architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Product Model | 1783-MMX8E |
| Product Type | Expansion Module |
| Product Family | Stratix 5800 |
| Series | Stratix 5800 |
| Module Type | Network Expansion Module |
| Primary Function | Industrial Ethernet Network Expansion |
| System Role | Network Infrastructure |
| Application | Industrial Automation Networking |
| Network Integration | Compatible Stratix 5800 Switching Platform |
| System Function | Extends Network Interface Capability |
| Installation | Industrial Control Cabinet / Network Equipment |
| Dimensions | 152.4 × 66 × 151.6 mm |
| Weight | 0.9 kg |
Product Features
- Stratix 5800 expansion module for industrial Ethernet infrastructure
- Extends network connectivity within a compatible Stratix 5800 switching architecture
- Supports expansion of established industrial Ethernet networks
- Suitable for machine-level and plant-floor automation networks
- Provides additional network interface capacity within the switching platform
- Useful for integrating additional Ethernet-connected automation devices
- Suitable for control cabinets and industrial networking installations
- Supports network expansion during automation modernization projects
- Integrates with the Allen Bradley Stratix industrial networking platform
- Functions as network infrastructure rather than a PLC, controller, or I/O processing module
Working Principle
The 1783-MMX8E operates as an expansion component within a compatible Stratix 5800 switching architecture. After integration with the host switching platform, it contributes additional network connectivity to the industrial Ethernet system.
Automation equipment communicates through the switching infrastructure. A controller can exchange data with remote I/O, drives, HMIs, and other Ethernet-enabled devices, while the Stratix network infrastructure manages the movement of Ethernet traffic between connected equipment.
Automation Devices → Ethernet Connections → Stratix 5800 Switching Platform → 1783-MMX8E → Industrial Network
The expansion module does not execute PLC programs or process field signals. Its role is to extend the communication infrastructure supporting the automation system.
When the network is expanded, the module should be considered together with the host switch, network topology, Ethernet cabling, connected equipment, and configuration. Communication should be verified across the affected devices after installation before the expanded network is returned to normal operation.
Role in an Allen Bradley Stratix 5800 Industrial Ethernet Control Architecture
The 1783-MMX8E occupies the network expansion layer of a Stratix 5800 industrial Ethernet architecture. It works with the compatible switching platform to extend network connectivity while controllers, I/O systems, drives, HMIs, and other automation devices perform their respective functions.
| System Layer | Typical Component | Function |
|---|---|---|
| Supervisory Layer | HMI / SCADA System | Provides operator visualization and supervisory functions |
| Control Layer | Allen Bradley PLC / Controller | Executes machine or process control logic |
| Network Infrastructure | Stratix 5800 Managed Switch | Manages Ethernet communication between connected devices |
| Network Expansion | 1783-MMX8E | Extends the connectivity capability of the switching architecture |
| I/O Layer | Ethernet-Based Remote I/O | Exchanges field data with the control system |
| Motion Layer | Ethernet-Connected Drive | Communicates motion and drive information |
| Device Layer | Networked Instruments / Devices | Exchanges process and equipment information |
| Field Process | Industrial Machinery | Performs the controlled production or process operation |
Industrial Applications
| Application | Expansion Module Role |
|---|---|
| Factory Automation | Extends Ethernet infrastructure for networked automation equipment |
| Machine Networks | Supports additional connectivity within automated production cells |
| Packaging Machinery | Integrates additional Ethernet-connected machine equipment |
| Material Handling | Expands communication infrastructure across automated handling systems |
| Manufacturing Lines | Accommodates additional networked stations and control equipment |
| Process Automation | Supports expansion of industrial Ethernet communication infrastructure |
| Plant Network Expansion | Adds connectivity within an established Stratix 5800 architecture |
| Automation Modernization | Supports network upgrades while retaining compatible switching infrastructure |
Installation and Maintenance
- Verify host compatibility — Confirm that the 1783-MMX8E is compatible with the intended Stratix 5800 switching platform before installation.
- Review the network topology — Identify where the expansion module will be incorporated into the existing industrial Ethernet architecture.
- Isolate the equipment as required — Follow the applicable electrical and network maintenance procedures before installation or replacement.
- Inspect the module — Check the housing and accessible interfaces for visible damage, contamination, or other installation concerns.
- Inspect the host switch — Verify that the associated Stratix 5800 switching platform is suitable for the planned network expansion.
- Install the module correctly — Follow the applicable installation procedure and ensure the expansion module is securely installed.
- Verify the module interface — Confirm that the expansion module is properly engaged with the compatible switching platform.
- Check Ethernet cabling — Verify that network cables are connected to the intended interfaces and routed without unnecessary mechanical stress.
- Review network configuration — Compare the switch and network settings with the approved network design before commissioning.
- Test connected equipment — Verify communication between the expanded switching infrastructure and controllers, I/O systems, drives, HMIs, and other Ethernet devices.
- Monitor network operation — Check for communication interruptions, interface faults, configuration problems, or unexpected network behavior during commissioning.
- Update network records — Document the installed module, host switch, network connections, and relevant configuration information for future maintenance.
Related Components
| Component | Function |
|---|---|
| Allen Bradley Stratix 5800 Managed Switch | Provides the host industrial Ethernet switching platform |
| Industrial Ethernet Cable | Provides physical network connections between automation devices |
| Allen Bradley PLC / Controller | Executes machine or process control logic |
| Ethernet-Based Remote I/O | Exchanges field data with the control system |
| Allen Bradley HMI | Provides operator visualization and equipment status |
| Ethernet-Connected Servo Drive | Exchanges motion and drive information through the industrial network |
| Networked Automation Devices | Provide process, equipment, and diagnostic information |
| Industrial Control Cabinet | Houses the network and automation infrastructure |
Recommended Related Models
| Model | Product Type | Typical Relationship |
|---|---|---|
| Allen Bradley 1783-MMS10R | Stratix 5800 Managed Switch | Associated Stratix 5800 switching platform |
| Allen Bradley 1783-MMX6T2S | Stratix 5800 Expansion Module | Related Stratix 5800 expansion configuration |
| Allen Bradley 1783-MMX16E | Stratix 5800 Expansion Module | Related Stratix 5800 expansion model |
| Allen Bradley 1783-MMX16T | Stratix 5800 Expansion Module | Related Stratix 5800 expansion model |
| Allen Bradley 1783-MMX14T2S | Stratix 5800 Expansion Module | Related Stratix 5800 expansion configuration |
Key Advantages
- Extends network connectivity within a compatible Stratix 5800 architecture
- Supports expansion of industrial Ethernet infrastructure
- Integrates with Allen Bradley Stratix network systems
- Suitable for machine and plant-floor automation networks
- Useful for network expansion and modernization projects
- Supports additional Ethernet-connected automation equipment
- Functions as a dedicated network infrastructure component
Technical FAQs
What is the purpose of the Allen Bradley 1783-MMX8E?
The 1783-MMX8E is a Stratix 5800 expansion module used to extend network connectivity within a compatible switching architecture. It supports industrial Ethernet infrastructure rather than executing PLC control logic or processing field I/O.
Is the 1783-MMX8E a standalone managed Ethernet switch?
The 1783-MMX8E should be treated as an expansion component of the compatible Stratix 5800 switching platform rather than assumed to function as an independent managed switch. Compatibility with the host platform should be verified before installation.
What should be checked before installing the 1783-MMX8E?
The host Stratix 5800 switching platform, module compatibility, physical installation arrangement, Ethernet cabling, network topology, and configuration should all be reviewed. The planned expansion should also match the existing network documentation.
How should the network be checked after installing the expansion module?
Start by verifying the physical module connection and Ethernet cabling. Then confirm communication between the switching infrastructure and connected controllers, remote I/O, drives, HMIs, and other network devices. Any communication issue should be traced through the physical connection, interface, and network configuration layers.
