Allen Bradley 1747-M13 Detailed Product Introduction and Technical Specifications
Product Overview

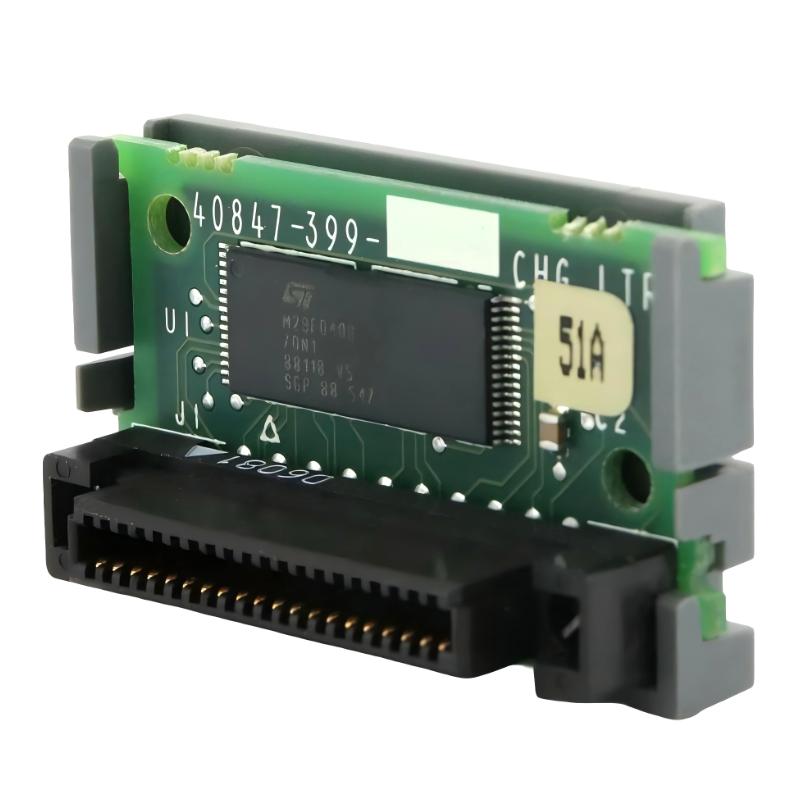

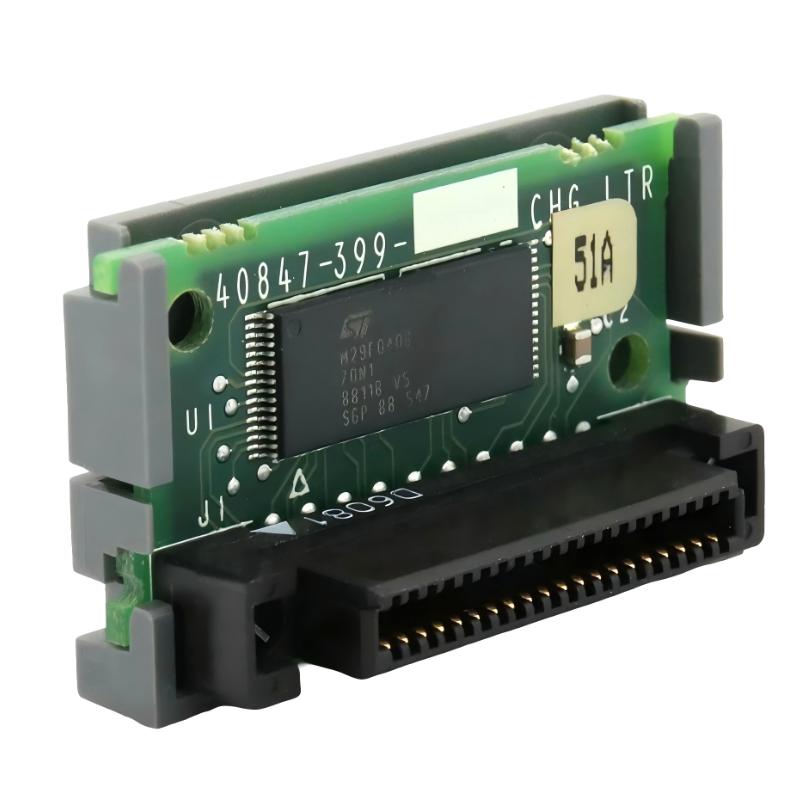

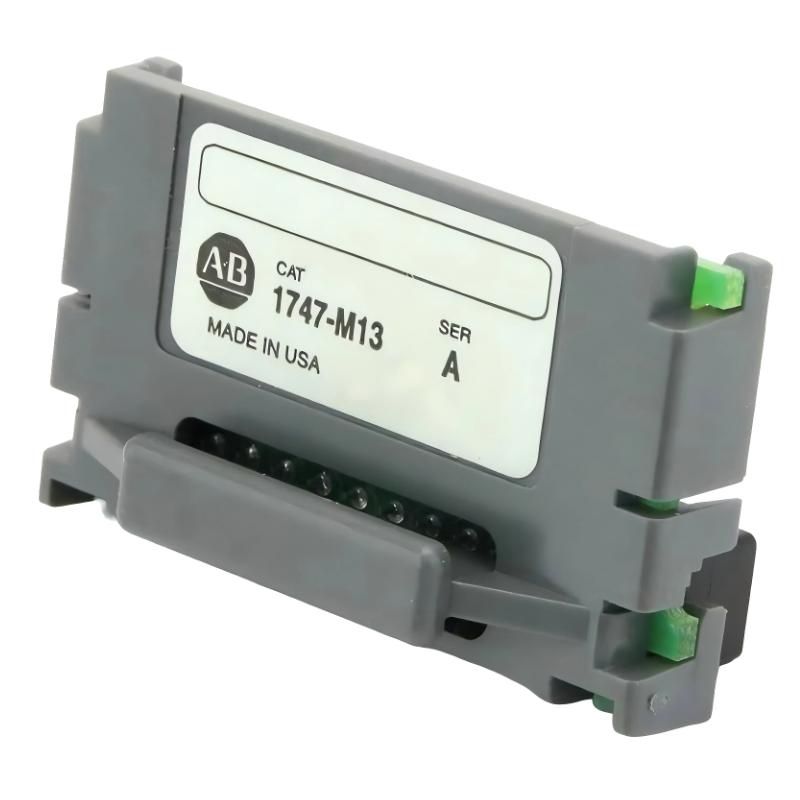

The Allen Bradley 1747-M13 is a high-capacity EEPROM/Flash memory module designed for the SLC 500 programmable logic controller platform. It is used to store PLC programs and system data in a non-volatile format, ensuring that automation logic is preserved even during power loss or controller replacement.
This module is widely used in industrial automation systems that require reliable program backup, fast recovery, and long-term data retention.
Compared with smaller SLC memory modules such as 1747-M1 or 1747-M11, the 1747-M13 provides significantly larger storage capacity and broader compatibility with higher-end SLC processors such as SLC 5/03, SLC 5/04, and SLC 5/05 systems.
It is especially common in legacy industrial systems where long lifecycle stability and program portability are required.
Brand Information
| Item | Details |
|---|---|
| Brand | Allen Bradley |
| Product Model | 1747-M13 |
| Product Type | Memory Module |
| Product Family | SLC 500 Series |
| Series | SLC Memory Expansion / Flash Backup Modules |
| Main Function | PLC Program and Data Storage |
| Storage Technology | EEPROM / Flash Memory |
| Installation Type | Plug-in module |
Product Series Introduction
SLC 500 System Overview
The SLC 500 system is a modular PLC automation platform designed for industrial control applications.
It consists of CPU modules, I/O modules, communication modules, and memory modules installed in a rack-based architecture.
The system is widely used in manufacturing, process control, packaging, and logistics automation due to its reliability and long operational life.
The 1747-M13 belongs to the advanced memory expansion family used in SLC systems to support program backup and system recovery functions.
Detailed Technical Specifications of 1747-M13
| Parameter | Specification |
|---|---|
| Model | 1747-M13 |
| Product Type | EEPROM / Flash Memory Module |
| Memory Capacity | 32K words (typical for SLC 5/03–5/05 compatibility) |
| Storage Type | Non-volatile EEPROM / Flash |
| Function | Program and data backup storage |
| Compatible Controllers | SLC 5/03, SLC 5/04, SLC 5/05 |
| System Compatibility | SLC 500 modular systems |
| Data Retention | Long-term non-volatile storage |
| Write Cycles | High endurance (industrial-grade EEPROM) |
| Programming Function | Program upload/download storage |
| Backup Function | Full PLC program retention |
| Installation Method | Plug-in memory slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% non-condensing |
| Shock Resistance | Industrial standard |
| Vibration Resistance | IEC industrial level |
| Dimensions | ~7 × 6 × 1 cm |
| Weight (kg) | ~0.05–0.18 kg depending on revision |
Product Features
1. High-Capacity Non-Volatile Memory
The 1747-M13 provides significantly larger storage compared to basic SLC memory modules.
It supports complete PLC program storage, ensuring reliable backup for complex automation systems.
2. Flash-Based Data Retention
The module uses non-volatile EEPROM/Flash technology, meaning data is retained without battery dependency.
This improves system reliability and reduces maintenance requirements.
3. Multi-Controller Compatibility
It is compatible with SLC 5/03, 5/04, and 5/05 processors, making it a flexible solution for multiple system configurations.
4. Fast Program Recovery
The module allows quick program restoration during controller replacement or system recovery.
This reduces downtime in industrial production environments.
5. Industrial-Grade Durability
Designed for harsh industrial environments with resistance to vibration, temperature variation, and electrical noise.
Product Applications
PLC Program Backup Systems
Used to store and restore PLC control programs in industrial automation systems.
Manufacturing Equipment
Ensures stable program retention in production machinery and automated lines.
System Migration and Maintenance
Supports transferring programs between controllers during upgrades or replacements.
Process Automation Systems
Used in chemical, oil & gas, and continuous process industries for control logic storage.
Legacy SLC 500 Installations
Widely used in existing industrial systems still operating SLC controllers.
Product Advantages
| Advantage | Description |
|---|---|
| Large Memory Capacity | Supports complex automation programs |
| Non-Volatile Storage | No data loss without power |
| Wide Compatibility | Works with multiple SLC CPUs |
| Fast Recovery Function | Reduces downtime |
| Industrial Reliability | Stable in harsh environments |
| No Battery Required | Lower maintenance cost |
| Easy Installation | Plug-in module design |
| Long Service Life | Designed for industrial longevity |
Recommended Models from Same Series or Related Series
| Model | Product Type | Main Function | Application | Dimensions | Weight (kg) |
|---|---|---|---|---|---|
| 1747-M0 | Memory Module | Basic EEPROM storage | Small PLC systems | ~5 × 2.5 × 2.5 cm | ~0.09 kg |
| 1747-M1 | EEPROM Module | Program backup | SLC 5/01–5/02 systems | ~5 × 2.5 × 2.5 cm | ~0.11 kg |
| 1747-M11 | EEPROM Module | Enhanced backup | SLC systems | ~5 × 2.5 × 2.5 cm | ~0.10 kg |
| 1747-M13 | Flash Module | High-capacity storage | SLC 5/03–5/05 systems | ~7 × 6 × 1 cm | ~0.05–0.18 kg |
| 1747-BA | Battery Module | Memory power backup | CPU retention support | ~3 × 2 × 1 cm | ~0.02 kg |
Recommended Popular Models from Same Brand
| Model | Product Category | Main Features | Application Area | Dimensions | Weight (kg) |
|---|---|---|---|---|---|
| 1747-L541 | CPU Module | SLC 5/04 processor | Large automation systems | 25 × 17 × 6 cm | 0.45 kg |
| 1747-L542 | CPU Module | High-performance CPU | Distributed control systems | 25 × 16.6 × 5.9 cm | 0.40 kg |
| 1747-L551 | CPU Module | Ethernet-enabled CPU | Networked automation | 25 × 16.5 × 5.6 cm | 0.42 kg |
| 1756-EN2TR | Ethernet Module | Dual Ethernet/IP ports | Industrial networking | 14 × 11 × 8 cm | 0.45 kg |
| 1769-L33ER | Compact PLC | Built-in Ethernet/IP | Machine automation | 18 × 12 × 9 cm | 0.92 kg |
System Role in Industrial Automation
The 1747-M13 serves as a high-capacity program and data storage module in SLC 500 systems.
It ensures that PLC programs can be safely stored, transferred, and restored across controllers.
It is especially important in complex automation environments where system recovery speed and data integrity are critical.
Installation and Maintenance Characteristics
The module is installed directly into the PLC memory slot.
It requires no configuration for basic operation.
Maintenance is minimal due to solid-state design and long-life storage technology.
Replacement is typically only required in case of hardware failure or system upgrade.
Industrial Reliability
The 1747-M13 is widely used in industrial environments due to its strong data retention and compatibility across multiple SLC generations.
It remains a key memory solution in legacy automation systems worldwide.
Its durability and non-volatile storage make it suitable for long-term industrial operation.
Summary
The Allen Bradley 1747-M13 is a high-capacity memory module designed for SLC 500 PLC systems.
It provides reliable non-volatile storage for automation programs, supporting fast recovery and system stability.
Its wide compatibility, durability, and strong storage capability make it a critical component in industrial control environments.
