Allen Bradley 1747-L542 Detailed Product Introduction and Technical Specifications
Product Overview

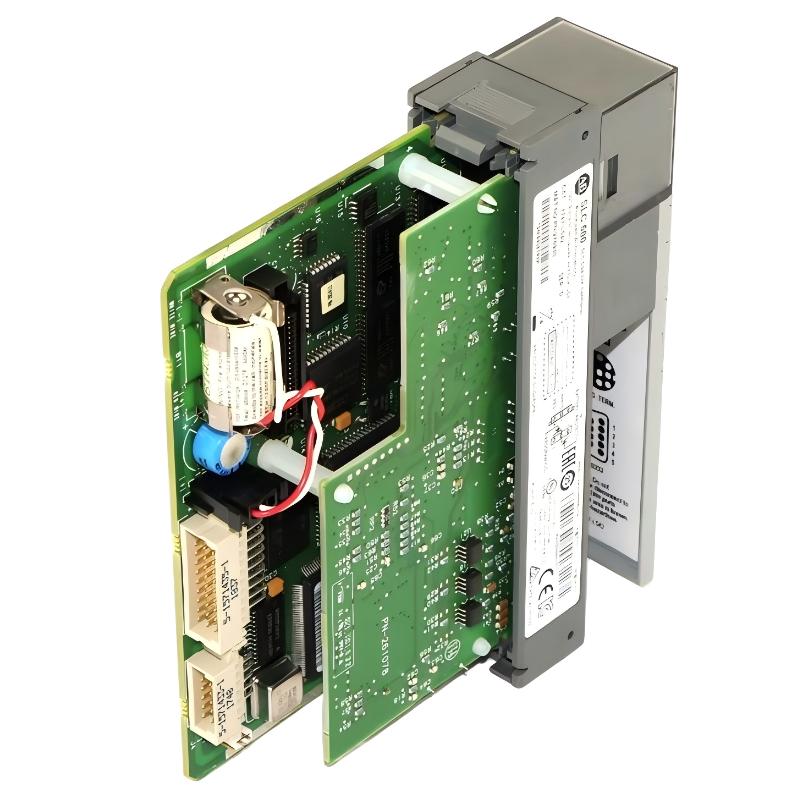

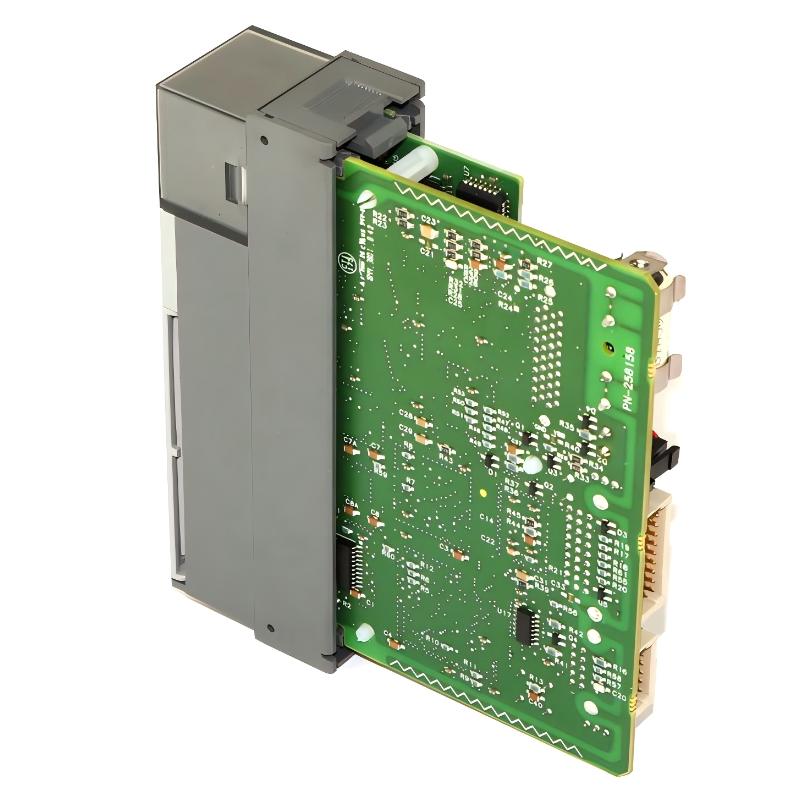

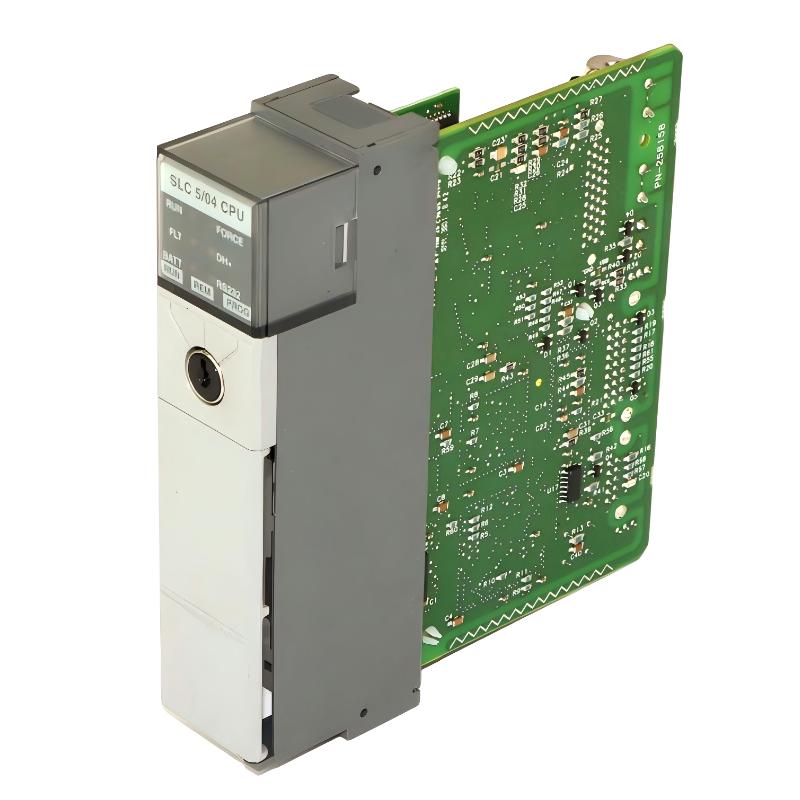

The Allen Bradley 1747-L542 is a SLC 5/04 series programmable logic controller CPU module used in the SLC 500 industrial automation platform. It is one of the most widely deployed high-performance processors in the SLC family, designed for applications that require fast processing speed, large memory capacity, and advanced industrial communication functions.
This model is commonly applied in medium-to-large automation systems such as manufacturing lines, process control systems, packaging equipment, and distributed industrial control networks.
Compared with earlier SLC 5/03 models, the 1747-L542 introduces significantly improved processing speed and supports the Data Highway Plus (DH+) network, making it suitable for multi-controller communication environments and complex automation structures.
Brand Information
| Item | Details |
|---|---|
| Brand | Allen Bradley |
| Product Model | 1747-L542 |
| Product Type | PLC CPU Module |
| Product Family | SLC 500 Series |
| Series | SLC 5/04 Controller Series |
| Main Function | Central Processing Unit for Industrial Control |
| Communication | DH+ / RS-232 |
| Installation Type | Rack-mounted CPU Module |
Product Series Introduction
SLC 500 Series Overview
The SLC 500 series is a modular PLC system designed for industrial automation and machine control applications.
It supports flexible system architecture with CPU modules, I/O modules, communication modules, and power supplies installed in rack-based configurations.
The system is widely used in manufacturing, process industries, logistics automation, and packaging systems due to its reliability, scalability, and long lifecycle.
The 1747-L542 belongs to the SLC 5/04 CPU family, which provides higher performance and advanced communication capabilities compared to SLC 5/03 controllers.
Detailed Technical Specifications of 1747-L542
| Parameter | Specification |
|---|---|
| Model | 1747-L542 |
| Processor Type | SLC 5/04 CPU |
| User Memory | 32K words |
| Program Memory | Up to 32 KB battery-backed RAM |
| Instruction Execution Speed | ~0.9 ms / K instruction |
| I/O Scan Time | ~0.225 ms |
| Maximum I/O Capacity | 4096 inputs / 4096 outputs |
| Analog I/O Support | Up to 480 channels |
| Maximum I/O Chassis | 3 chassis |
| Maximum Slot Capacity | 30 slots |
| Communication Ports | DH+, RS-232 |
| Communication Protocols | DF1, DH-485, ASCII, Modbus RTU |
| Backplane Current (5V DC) | 1.0 A |
| Backplane Current (24V DC) | 200 mA |
| Memory Type | Battery-backed RAM |
| Backup Memory | EEPROM / Flash module support |
| Battery Type | 1747-BA |
| Power Supply Compatibility | 1746-P1 to 1746-P7 |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% non-condensing |
| Shock Resistance | 30G operating |
| Vibration Resistance | Industrial standard |
| Dimensions | 25 × 16.6 × 5.9 cm |
| Weight (kg) | 0.30–0.45 kg (typical depending on revision) |
Product Features
1. High-Speed Processing Performance
The 1747-L542 delivers fast instruction execution with approximately 0.9 ms per K scan time.
This makes it suitable for real-time industrial control systems requiring fast response and deterministic behavior.
2. Large Memory Capacity
With 32K words of user memory, the controller supports complex automation programs and large-scale control logic structures.
This allows it to handle advanced sequencing, data processing, and multi-machine coordination tasks.
3. DH+ Industrial Network Communication
The controller supports Data Highway Plus (DH+) communication, enabling high-speed networking between PLC systems.
This makes it suitable for distributed control architectures and multi-controller synchronization.
4. RS-232 Communication Interface
The RS-232 port allows direct connection to programming terminals, HMIs, and industrial devices.
It also supports multiple communication protocols for system integration.
5. High I/O Expansion Capability
The system supports up to 4096 digital I/O points and 480 analog channels.
This enables deployment in large-scale automation systems with extensive field device connections.
6. Stable Real-Time Control
The CPU ensures deterministic scan cycles, maintaining consistent execution timing in industrial environments.
This is essential for synchronized machine operation and process control.
7. Reliable Memory Backup
Battery-backed RAM ensures program retention during power loss.
This guarantees fast system recovery without reprogramming.
Product Applications
Manufacturing Automation
Used in large production lines requiring coordinated machine control and sequencing operations.
Process Control Systems
Applied in chemical plants, water treatment systems, and industrial monitoring environments.
Packaging and Assembly Systems
Controls high-speed packaging, labeling, and automated assembly operations.
Material Handling Systems
Manages conveyor networks, warehouse logistics, and sorting systems.
Distributed Control Systems
Used in multi-controller industrial architectures connected via DH+ networks.
Product Advantages
| Advantage | Description |
|---|---|
| High Processing Speed | Fast scan cycle improves system responsiveness |
| Large Memory Capacity | Supports complex automation programs |
| Advanced Communication | DH+ network enables distributed control |
| High I/O Scalability | Suitable for large industrial systems |
| Stable Real-Time Operation | Deterministic execution performance |
| Battery Backup Protection | Prevents data loss during power failure |
| Strong System Compatibility | Works within SLC 500 architecture |
| Industrial Durability | Long operational lifecycle |
Recommended Models from the Same Series or Related Series
| Model | Product Type | Main Function | Application | Dimensions | Weight (kg) |
|---|---|---|---|---|---|
| 1747-L531 | CPU Module | SLC 5/03 high-speed CPU | Medium automation | 25 × 16.6 × 5.9 cm | 0.48 kg |
| 1747-L532 | CPU Module | Advanced SLC 5/03 CPU | Industrial systems | 25 × 16.6 × 5.9 cm | 0.34 kg |
| 1747-L541 | CPU Module | SLC 5/04 controller | Large systems | 25 × 17 × 6 cm | 0.45 kg |
| 1747-L542 | CPU Module | High-performance SLC 5/04 | Distributed control | 25 × 16.6 × 5.9 cm | 0.30–0.45 kg |
| 1747-L553 | CPU Module | Advanced network CPU | Complex automation | 21 × 17 × 18 cm | 2.10 kg |
Recommended Popular Models from Same Brand
| Model | Product Category | Main Features | Application Area | Dimensions | Weight (kg) |
|---|---|---|---|---|---|
| 1756-EN2TR | Ethernet Module | Dual Ethernet/IP ports | Industrial networking | 14 × 11 × 8 cm | 0.45 kg |
| 1769-L33ER | Compact PLC | Built-in Ethernet/IP | Machine automation | 18 × 12 × 9 cm | 0.92 kg |
| 1756-IB16 | Digital Input Module | 16-channel input | Factory systems | 15 × 11 × 6 cm | 0.30 kg |
| 1769-IF8 | Analog Input Module | 8-channel analog input | Process control | 12 × 9 × 5 cm | 0.35 kg |
| 1783-US8T | Industrial Switch | Managed Ethernet switch | Network systems | 16 × 12 × 5 cm | 0.80 kg |
System Role in Industrial Automation
The 1747-L542 serves as a central processing unit in SLC 500 PLC systems.
It executes control logic, manages I/O modules, and coordinates communication across DH+ networks.
Its high memory capacity and fast scan speed make it suitable for complex and distributed industrial automation systems.
Installation and Maintenance Characteristics
The CPU is installed in a standard SLC 500 rack system together with power supply and I/O modules.
LED indicators provide real-time status monitoring such as run, fault, battery, and communication status.
Maintenance is simplified due to modular design and stable hardware architecture.
Battery replacement ensures long-term program retention capability.
Industrial Reliability
The 1747-L542 is widely used in industrial environments due to its stable performance and strong communication capabilities.
It remains one of the most common processors in SLC 500-based automation systems worldwide.
Its rugged design ensures continuous operation in harsh industrial conditions.
Summary
The Allen Bradley 1747-L542 is a high-performance SLC 5/04 PLC CPU designed for medium-to-large industrial automation systems.
It provides 32K memory capacity, fast scan performance, and advanced DH+ communication capabilities.
Its stability, scalability, and industrial durability make it a key controller in distributed and legacy automation environments.
