Allen-Bradley 1746-NO8V Detailed Technical Overview

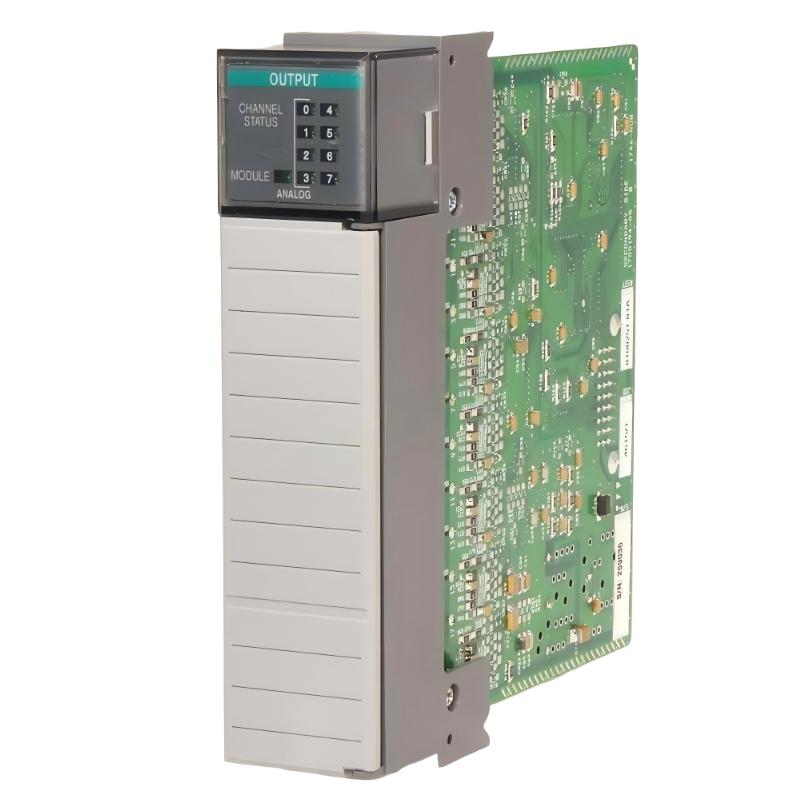

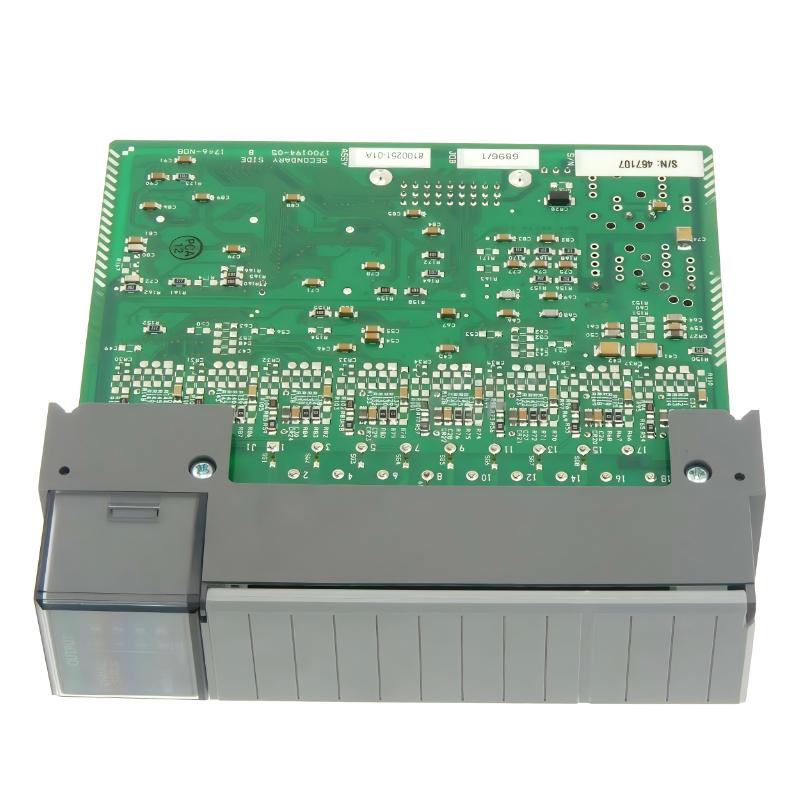

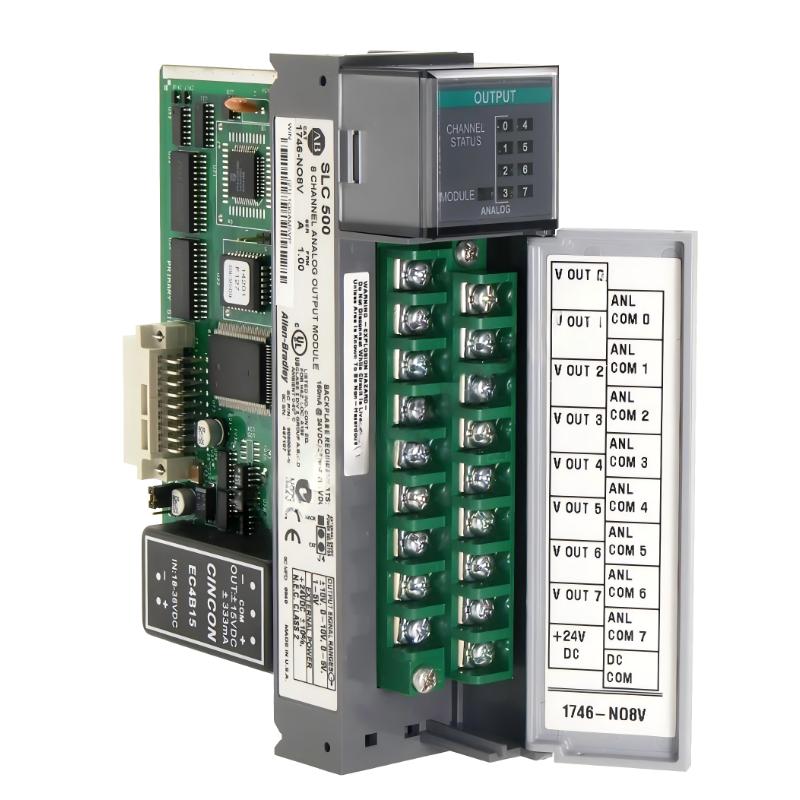

1. Product Overview
The Allen-Bradley 1746-NO8V is an 8-channel analog voltage output module used in the SLC 500 PLC system. It converts digital control signals from the processor into precise analog voltage outputs for industrial field devices.
Each of the eight channels operates independently and can be configured for standard industrial voltage ranges such as ±10 V, 0–10 V, 0–5 V, or 1–5 V depending on system requirements. This makes it suitable for controlling devices that rely on voltage input signals.
The module is widely used in process automation systems where smooth and accurate voltage control is required.
2. Brand Information
- Brand: Allen-Bradley
- Industry: Industrial automation and control systems
- Product Type: Analog voltage output module
The brand is known for robust PLC hardware designed for long-term industrial use with stable performance and strong system compatibility.
3. Product Series
- Series: SLC 500
- Category: Analog output module
- Module Type: Voltage output module
The SLC 500 system is a modular PLC architecture. The 1746-NO8V is designed to provide multiple analog voltage outputs in a single slot, optimizing system density and performance.
4. Technical Parameters
Core Specifications Table
| Parameter | Value |
|---|---|
| Model | 1746-NO8V |
| Module Type | Analog Voltage Output |
| Series | SLC 500 |
| Number of Channels | 8 |
| Output Signal Type | Voltage |
| Output Range | ±10.25 V DC (configurable ranges) |
| Supported Ranges | 0–5 V / 1–5 V / 0–10 V / ±10 V |
| Resolution | 16-bit |
| Output Coding | ±32,767 counts |
| Accuracy | ±0.1% (25°C), ±0.2% (60°C) |
| Conversion Method | R-2R DAC network |
| Channel Update Time | ~5–10 ms (all channels) |
| Step Response | ~1 ms |
| Load Resistance | ≥1 kΩ |
| Backplane Current (5V) | 120 mA |
| Backplane Current (24V) | 160 mA |
| Isolation | 500 V DC / 1500 V AC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (mm) | 145 × 35 × 140 |
| Weight (kg) | 0.85 kg |
5. Product Functions and Applications
Functional Description
- Converts PLC digital output values into analog voltage signals
- Provides precise voltage control for field devices
- Supports multiple voltage ranges per configuration
- Ensures stable signal output for continuous process control
- Enables smooth adjustment of industrial actuators
Typical Applications
- Process control systems (pressure, flow, temperature regulation)
- Motor speed and positioning systems
- Valve and damper control systems
- Industrial automation production lines
- Testing and calibration systems requiring voltage control
6. Product Advantages
1. High Channel Density
Eight independent channels allow efficient use of PLC chassis space.
2. Flexible Voltage Output
Multiple selectable voltage ranges support different industrial devices.
3. High Precision
16-bit resolution ensures smooth and accurate signal output.
4. Fast Response
Rapid update time allows real-time process control.
5. Stable Industrial Operation
Designed for continuous use in harsh environments with strong reliability.
7. Recommended Models (Same Series or Related)
SLC 500 Series Related Modules
| Model | Type | Channels | Signal Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1746-NO4I | Analog Output | 4 | Current (0–20 mA) | 145 × 35 × 140 | 0.32 |
| 1746-NO4V | Analog Output | 4 | Voltage | 145 × 35 × 140 | 0.33 |
| 1746-NI8 | Analog Input | 8 | Voltage / Current | 145 × 35 × 140 | 0.34 |
| 1746-NI16I | Analog Input | 16 | Current | 145 × 35 × 140 | 0.36 |
| 1746-NIO4I | Analog I/O | 2 In / 2 Out | Current | 145 × 35 × 140 | 0.35 |
