Allen-Bradley 1746-N2B Comprehensive Technical Description

1. Product Overview

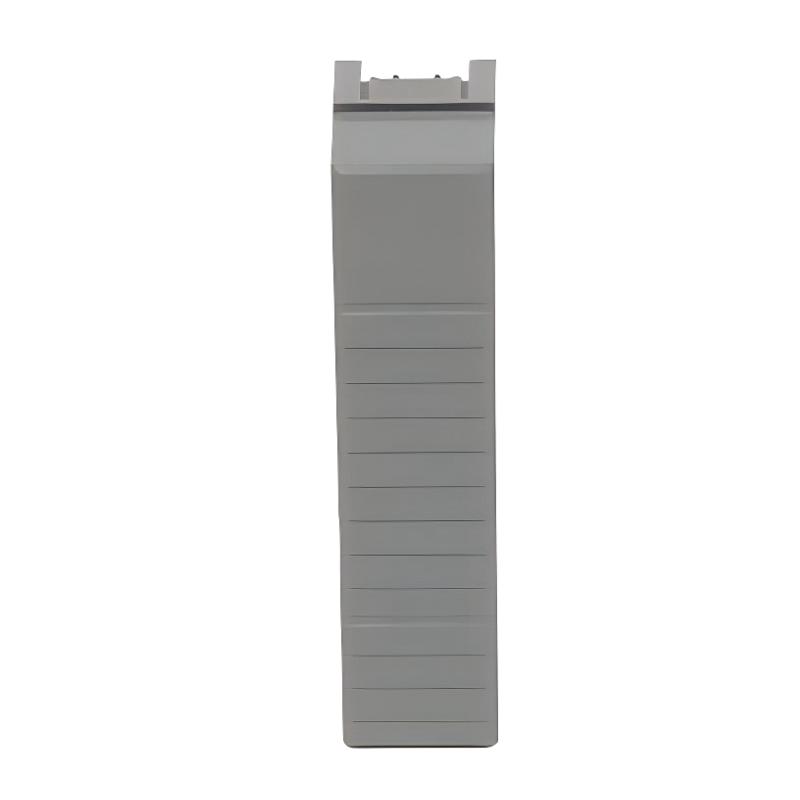

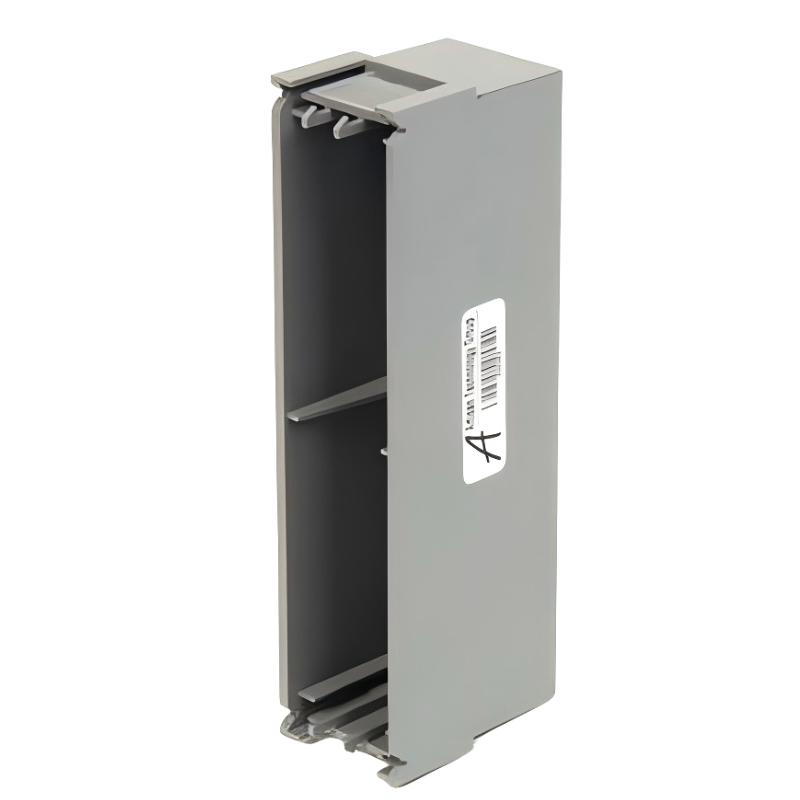

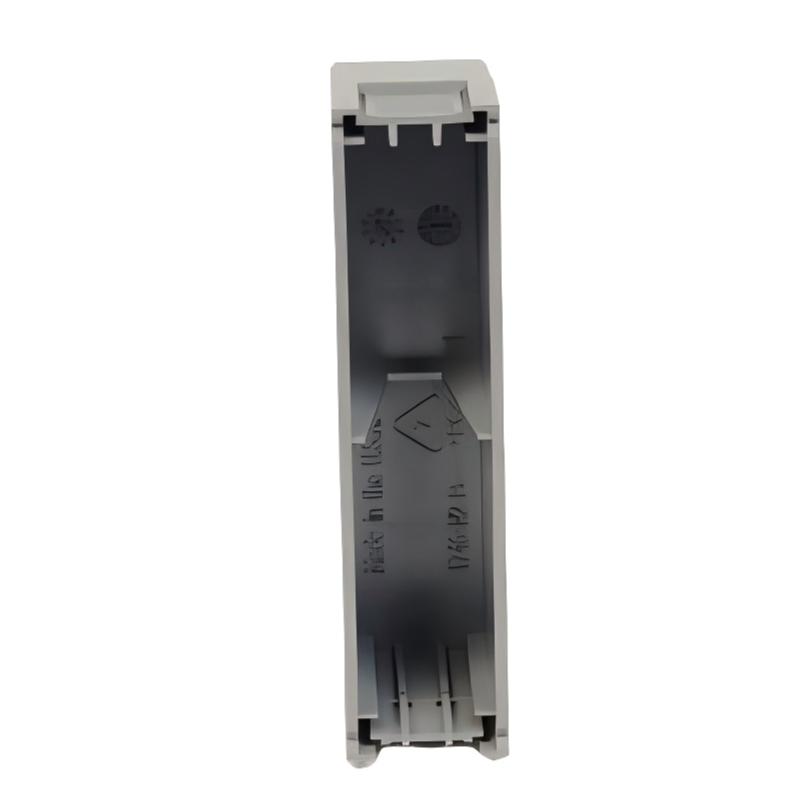

The Allen-Bradley 1746-N2B is a slot filler module designed for use in modular PLC systems within the SLC 500 platform. It is installed into unused slots of a chassis to maintain physical integrity and environmental protection.

Unlike active modules that handle input/output signals or control logic, this unit performs a passive yet essential role. It helps ensure that the system remains protected from dust, debris, and accidental contact, especially in industrial environments where contamination can lead to failures.

The “N2B” variant is typically associated with a black housing design, distinguishing it visually from earlier filler models, while maintaining the same functional purpose.

2. Brand Information

• Brand: Allen-Bradley
• Industry: Industrial automation and PLC systems
• Product Type: Control system accessory

This brand is widely used in industrial automation due to its reliability, modular architecture, and long service life in demanding environments.

3. Product Series

• Series: SLC 500
• Category: PLC accessory module
• Function Type: Slot filler / blank module

The SLC 500 series is a modular PLC system where users can install processors, I/O modules, and communication units into a chassis. The 1746-N2B is designed to occupy empty slots, maintaining system consistency and readiness for expansion.

4. Technical Parameters

Core Specifications Table

5. Product Functions and Applications

Functional Description

• Covers and seals unused module slots
• Prevents ingress of dust, oil mist, and particles
• Protects backplane connectors from exposure
• Helps maintain proper airflow inside the chassis
• Reduces risk of accidental short circuits

Application Scenarios

• Industrial automation control cabinets
• Manufacturing production lines
• Equipment with reserved expansion slots
• Maintenance of legacy PLC systems
• Harsh environments with airborne contaminants

6. Product Advantages

1. Enhanced Environmental Protection

The module acts as a barrier, protecting internal electronic components from dust and contaminants that may affect system performance.

2. Improved System Reliability

By shielding unused slots, it reduces the likelihood of electrical faults and physical damage.

3. Consistent Mechanical Design

Fully matches the size and structure of standard SLC 500 modules, ensuring seamless integration.

4. Easy Installation and Removal

No wiring or configuration required—simply insert into an empty slot.

5. Cost-Effective Maintenance Solution

A simple component that can significantly extend the life of a PLC system by preventing avoidable damage.
