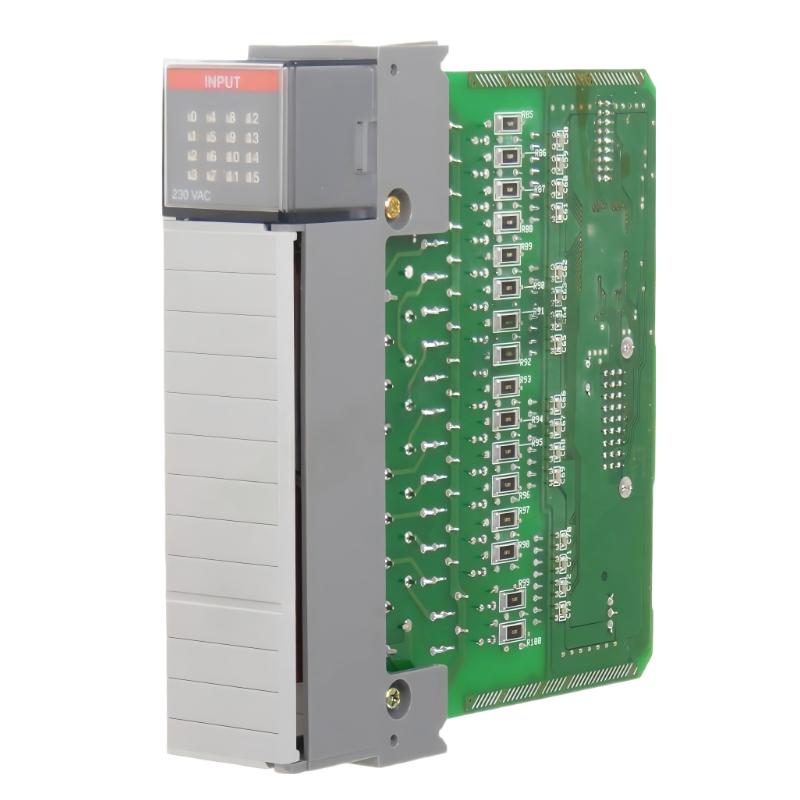

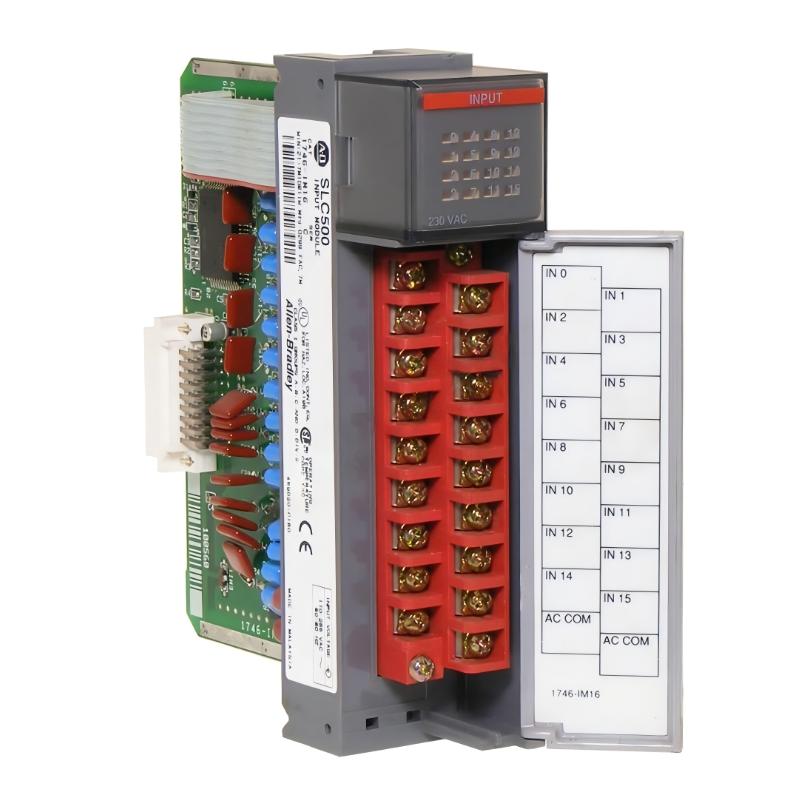

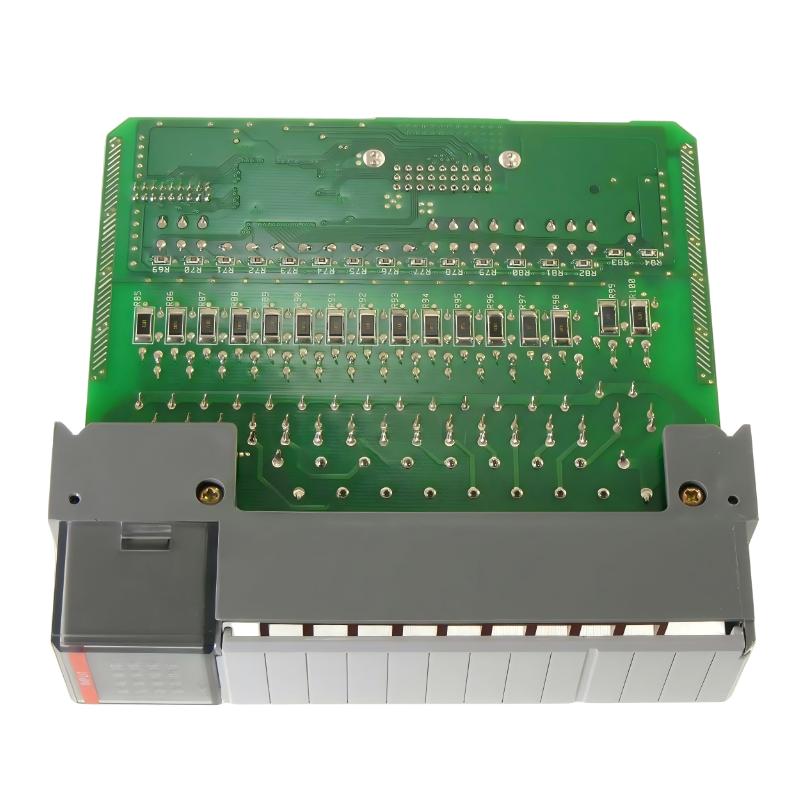

Allen Bradley 1746-IM16 — Comprehensive Technical Overview
1. Product Introduction
The Allen Bradley 1746-IM16 is a digital AC input module designed for modular PLC systems, specifically intended for medium-voltage AC signal detection. It is used to interface field devices such as push buttons, limit switches, and control relays that operate at lower AC voltage levels compared to standard 120V modules.
This module provides 16 discrete input channels and is optimized for applications using 220–240V AC input signals. It converts field-level AC signals into logic signals that can be processed by the controller, ensuring accurate monitoring of machine and process conditions.
Installed in a chassis-based system, the 1746-IM16 communicates with the processor via the backplane, offering reliable signal transmission and integration into industrial automation systems.
2. Brand and Series
- Brand: Allen-Bradley
- Series: SLC 500 Series
- Product Type: Digital AC Input Module
The SLC 500 series is a modular automation platform widely used in industrial control. The 1746-IM16 extends its capabilities by supporting medium-voltage AC input applications.
3. Product Parameters
Below is a detailed and structured parameter table for the 1746-IM16:
| Parameter | Specification |
|---|---|
| Model | 1746-IM16 |
| Product Type | Digital AC Input Module |
| Series | SLC 500 |
| Number of Inputs | 16 channels |
| Input Voltage Range | 170–265 V AC |
| Nominal Voltage | 240 V AC |
| Input Frequency | 47–63 Hz |
| Input Current | approx. 7 mA per channel |
| Signal Delay (ON) | approx. 10–20 ms |
| Signal Delay (OFF) | approx. 20–30 ms |
| Input Grouping | 2 groups of 8 |
| Isolation | Optical isolation (field to backplane) |
| Isolation Voltage | 1500 V AC |
| Backplane Current (5V) | approx. 90 mA |
| Backplane Current (24V) | 0 mA |
| Power Dissipation | approx. 0.3 W per channel |
| Status Indicators | LED per input |
| Wiring | Terminal block |
| Mounting | SLC chassis slot |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | approx. 145 × 171 × 130 mm |
| Weight kg（ ） | 0.38 kg |
4. Product Applications
The 1746-IM16 is widely used in industrial automation systems where medium-voltage AC signals must be monitored:
- Industrial equipment using 220–240V AC control signals
- Push button and control panel input detection
- Limit switch and relay monitoring
- Machine status feedback systems
- Conveyor and material handling systems
- Packaging and assembly lines
- Process control systems with AC input devices
It is particularly suitable for regions and systems where 240V AC is the standard control voltage.
5. Product Advantages
Wide voltage compatibility
Supports 220–240V AC signals, making it suitable for international applications.
High channel density
Provides 16 input channels in one module, improving system efficiency.
Reliable AC signal processing
Ensures stable detection of AC signals in industrial environments.
Electrical isolation
Protects the controller from voltage spikes and electrical noise.
Clear diagnostics
LED indicators provide immediate visual feedback for each input.
Easy integration
Fully compatible with modular PLC systems for flexible installation.
6. Recommended Models (Same Series or Related)
Below are 5 related models within the same SLC 500 series or similar I/O category:
| Model | Series | Function | Power | Dimensions (mm) | Weight kg（ ） |
|---|---|---|---|---|---|
| 1746-IA16 | SLC 500 | 16-point AC input (120V) | 120V AC | 145 × 171 × 130 | 0.35 |
| 1746-IA8 | SLC 500 | 8-point AC input module | 120V AC | 145 × 171 × 130 | 0.30 |
| 1746-IB16 | SLC 500 | 16-point DC input module | 24V DC | 249 × 166 × 55 | 0.39 |
| 1746-OA16 | SLC 500 | 16-point AC output module | 120/240V AC | 145 × 171 × 130 | 0.40 |
| 1746-A10 | SLC 500 | 10-slot chassis | External | 483 × 171 × 145 | 2.2 |
These modules are typically combined to create complete input/output systems in industrial automation projects.
7. Recommended Popular Models (Same Brand)
Below are 5 widely used models from the same brand in industrial automation systems:
| Model | Product Type | Key Function | Power | Dimensions (mm) | Weight kg（ ） |
|---|---|---|---|---|---|
| 1747-L551 | PLC CPU | Modular controller | 24V DC | 145 × 140 × 130 | 0.95 |
| 1756-L73 | PLC Processor | High-performance control | 24V DC | 145 × 140 × 130 | 0.90 |
| 1769-L33ER | Compact PLC | Integrated automation control | 24V DC | 118 × 87 × 87 | 0.50 |
| 1734-IB8 | I/O Module | Digital input module | 24V DC | 56 × 12 × 75 | 0.12 |
| 1756-OB16E | Digital Output Module | 16-point output | 24V DC | 137 × 140 × 130 | 0.40 |
