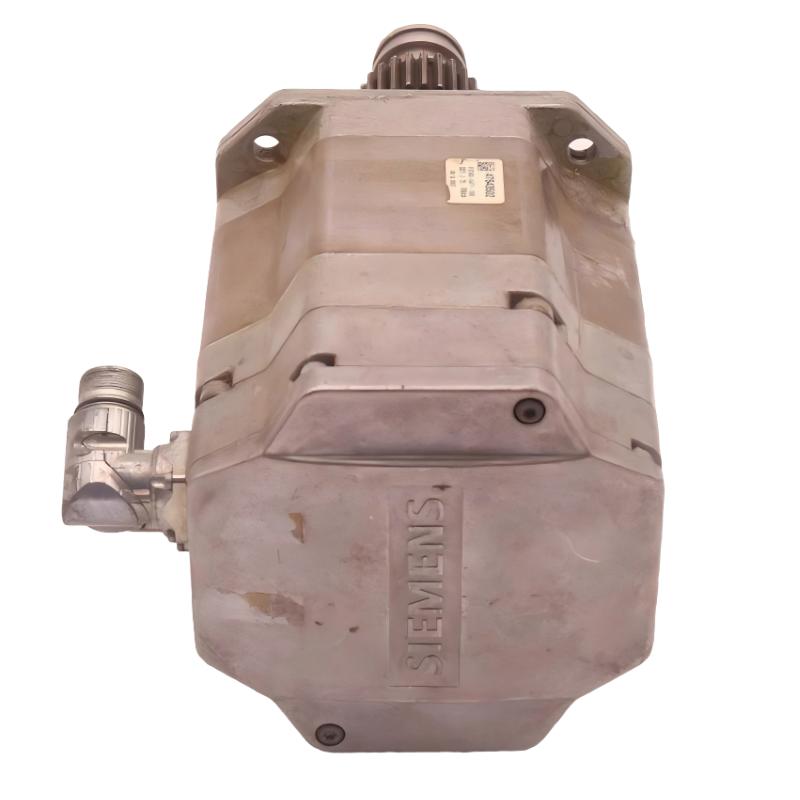

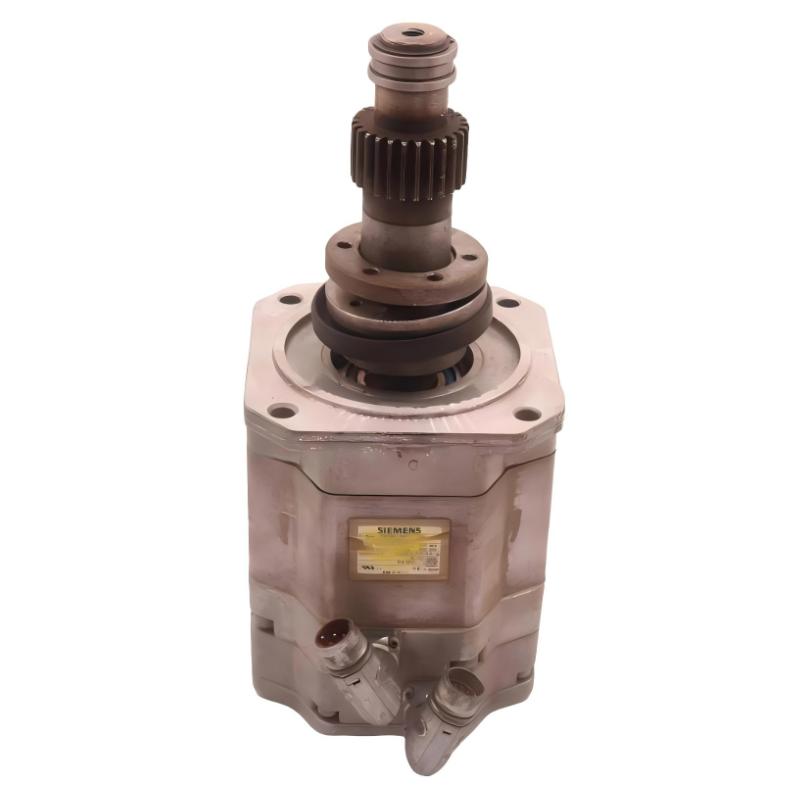

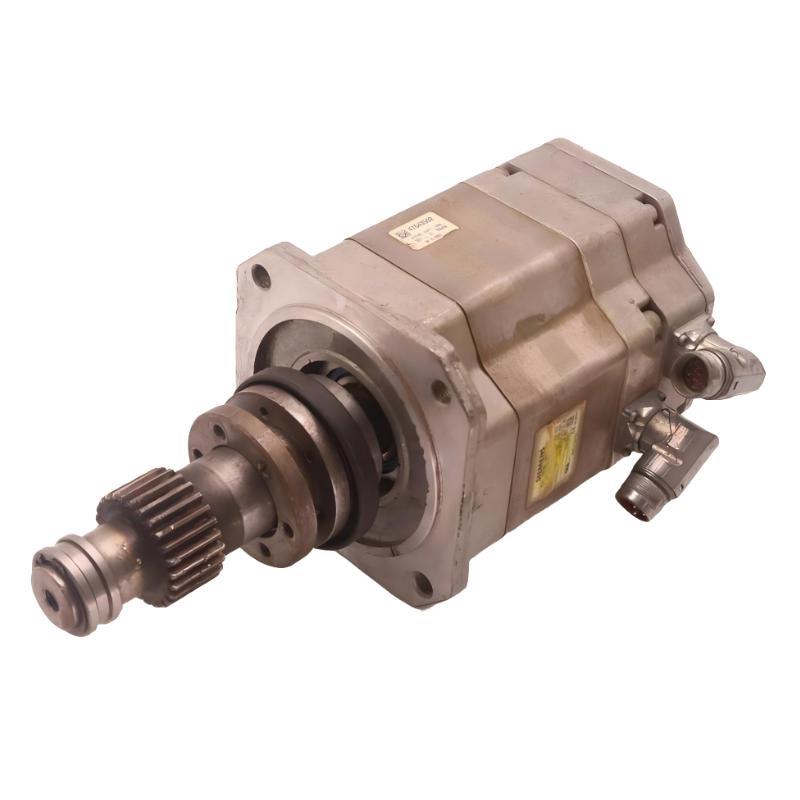

Siemens 1FK7083-5AF71-1SG0 Servo Motor: Product Overview, Technical Parameters, Applications, Advantages, and Related Models

1. Product Overview

The Siemens 1FK7083-5AF71-1SG0 is a model in the SIMOTICS S 1FK7 family of industrial synchronous servo motors. This family is designed for precision motion-control applications in which accurate positioning, controlled speed, repeatable movement, and reliable integration with automation equipment are important.

Servo motors are used in machinery that must respond to changing motion commands rather than simply run continuously at a fixed speed. Typical tasks include accelerating and decelerating at defined rates, moving to a programmed position, synchronizing with other machine axes, and maintaining consistent movement throughout a production cycle.

The 1FK7 family is used in industrial applications such as automated assembly equipment, machine tools, packaging systems, feeding mechanisms, and positioning units. The suitability of any individual motor depends on its rated torque, operating speed, feedback system, mechanical configuration, and compatibility with the selected servo drive.

The complete model number is essential when identifying the correct motor. Models with similar 1FK7083-5AF71 designations can differ in encoder technology, shaft design, holding brake, protection rating, and connector arrangement. For the exact 1FK7083-5AF71-1SG0, the nameplate and matching product specification should be used to confirm any model-specific details that are not established below.

2. Brand and Product Series

The SIMOTICS S 1FK7 series is intended for motion-control applications where the machine needs consistent and controllable movement. In a typical installation, the motor is connected to a servo drive that regulates its electrical operation according to commands from a motion controller.

The motor should be selected as part of the complete system rather than as an isolated component. Drive compatibility, mechanical load, operating cycle, cooling conditions, and feedback requirements all affect the final performance.

3. Detailed Technical Parameters

The 1FK7083-5AF71-1SG0 is a compact synchronous servo motor with a nominal operating point of 3.3 kW and 3,000 rpm. Its distinguishing configuration is a multi-pole resolver, a plain shaft, no holding brake, and IP64 protection. Unlike certain related versions, this configuration uses a resolver without a DRIVE-CLiQ interface.

3.1 General and performance specifications

3.2 Electrical characteristics

These figures describe the motor configuration and its associated operating characteristics. The actual usable operating range depends on the selected drive, supply conditions, load profile, ambient temperature, and control parameters.

3.3 Mechanical and environmental specifications

Dimension and weight note: The 80 mm shaft height and approximately 14.0 kg net weight are useful identification references. However, the complete external dimensions cannot be reliably represented by the shaft height alone. For machine installation or replacement, use the exact drawing to confirm flange diameter, mounting-hole pattern, shaft diameter, shaft extension, overall length, and connector clearance.

4. Product Introduction

The Siemens 1FK7083-5AF71-1SG0 is designed for industrial motion-control applications in which a machine needs predictable, controllable rotary movement. Its permanent-magnet synchronous design allows a compatible servo drive to regulate motor speed and torque in response to the requirements of the machine.

Unlike a motor intended mainly for continuous operation at a fixed speed, a servo motor is typically used in applications with changing motion commands. It may accelerate, decelerate, stop at a defined position, or reverse direction repeatedly during a production cycle.

The resolver is an important part of this model’s configuration. It provides rotor-position feedback to a compatible drive, allowing the control system to regulate motor operation. Because this model uses a multi-pole resolver without a DRIVE-CLiQ interface, its feedback arrangement should not be confused with related 1FK7 variants that use digital encoders and DRIVE-CLiQ.

This distinction is particularly important when replacing a motor in an existing machine. A motor with similar power, torque, and mechanical dimensions may still be unsuitable if the feedback system does not match the installed drive and control architecture.

The motor’s plain shaft provides a smooth shaft-end configuration for compatible couplings. This arrangement can be suitable for clamping couplings and other mechanical connections designed for a plain shaft. Correct coupling selection and shaft alignment are essential to avoid excessive radial or axial loading on the motor bearings.

The motor does not include a holding brake. This makes it necessary to consider how the driven mechanism will remain stationary when the motor is no longer producing active torque. If the application involves a vertical axis or a load that could move under gravity, an appropriate external holding arrangement or other suitable safety measure may be required.

The natural-cooling design also needs to be considered when evaluating continuous operation. The motor must be installed in an environment where heat can dissipate adequately. Applications with frequent acceleration, high torque, or prolonged low-speed operation should be assessed using the complete duty cycle rather than nominal power alone.

5. Main Product Advantages

5.1 Reliable resolver-based feedback

The multi-pole resolver provides rotor-position feedback for compatible servo drives. Resolver-based systems are used in industrial motion-control applications where reliable feedback and suitable integration with the drive are essential.

Correct feedback compatibility is particularly important in replacement applications. The resolver type, wiring, drive support, and commissioning parameters should all match the intended configuration.

5.2 Useful rated torque

The motor has a rated torque of 10.5 Nm at the specified 100 K temperature-rise condition and a static torque reference of 16 Nm at 100 K.

These figures provide a useful basis for assessing the motor for rotary positioning and controlled-motion tasks. The required operating torque must still be calculated from the load, transmission ratio, friction, acceleration, and operating cycle.

5.3 Compact installation

The 1FK7 Compact motor design is intended for industrial machinery where available mounting space matters. Its compact construction can help equipment designers integrate a servo axis into an existing mechanical assembly.

The shaft height of 80 mm provides a useful initial reference when comparing motor frames, but final compatibility requires the exact flange and shaft dimensions.

5.4 Controlled dynamic movement

When paired with a suitable servo drive, the motor can support controlled acceleration, deceleration, and changes in speed. This is useful for machines that move between programmed positions or need to coordinate several mechanical axes.

The actual dynamic response depends on the motor’s torque capability, drive current, load inertia, controller tuning, and mechanical stiffness.

5.5 Plain-shaft flexibility

The plain-shaft design can simplify integration into mechanisms that use compatible clamping couplings. It may be useful when a smooth shaft connection is preferred over a fitted-key arrangement.

The coupling must be selected according to shaft diameter, transmitted torque, alignment, and the mechanical demands of the application. A suitable coupling does not eliminate the need to control bearing loads and shaft misalignment.

5.6 Industrial protection

The IP64 protection rating is intended for industrial applications where protection against dust ingress and water splashing is required within the limits of that rating.

The motor should not be assumed suitable for direct high-pressure washing or other demanding wet environments without checking the complete installation requirements. Connectors, cables, mounting surfaces, and environmental conditions must also be considered.

5.7 Natural cooling and straightforward installation

Natural cooling avoids the need for a separate motor-cooling fan in the identified configuration. This can simplify the motor installation, provided the application stays within the permitted thermal operating range.

Adequate clearance and heat dissipation are still important. High duty cycles or prolonged operation at elevated torque may require a detailed thermal assessment.

6. Typical Product Applications

6.1 CNC machinery and machine tools

The motor can be considered for machine axes and rotary mechanisms that require controlled movement. Typical tasks include positioning a mechanism, operating a feed axis, or controlling a rotary assembly.

Selection should be based on the load torque, transmission ratio, positioning requirements, and required acceleration profile. Mechanical stiffness and the control system also affect the accuracy achieved by the complete machine.

6.2 Automated assembly equipment

Automated assembly systems often require components to be transferred, aligned, or positioned repeatedly. Servo motors can drive indexing mechanisms, rotary tables, transfer units, and feeding assemblies.

A resolver-based motor can be suitable when its feedback configuration is supported by the installed drive system. The motor should be evaluated against the machine’s cycle time, load inertia, and positioning requirements.

6.3 Packaging machinery

Packaging equipment often uses controlled movement to coordinate feeding, cutting, sealing, and positioning operations.

The motor may be suitable for rotary mechanisms or other controlled-motion tasks where its rated torque and speed meet the application requirements. High-speed packaging cycles require careful assessment of acceleration, peak current, and heat generation.

6.4 Material-handling systems

Selected material-handling mechanisms use servo motors for controlled rotation, positioning, and synchronization. Examples include feed rollers, transfer mechanisms, rotary positioning assemblies, and other machine components.

If the driven mechanism must remain stationary when power is removed, the absence of an integrated holding brake must be considered. The machine may require a separate holding mechanism or another appropriate solution.

6.5 Rotary indexing and positioning equipment

Rotary indexing systems move between predetermined positions and pause while another operation takes place. Servo control can help coordinate these movements and maintain a repeatable operating sequence.

The achievable positioning performance depends on the complete system, including feedback, drive configuration, mechanical transmission, load inertia, and control parameters.

6.6 Special-purpose machinery

The motor may also be considered for dedicated industrial machines, feeding systems, winding mechanisms, and other equipment that needs controlled rotary motion.

Its suitability depends on the actual operating profile. Continuous torque demand, cycle frequency, acceleration, mechanical loading, and thermal limits should be evaluated before final selection.

7. Five Related Models from the Same Series

The following models are related 1FK7083-5AF71 variants. They offer comparison points for different feedback arrangements, shaft configurations, and brake options.

The figures in this table are reference specifications for the related motor configurations. Exact protection ratings, encoder details, shaft dimensions, and mechanical dimensions should be checked against the complete model number.

How to choose among the related models

– For resolver-based feedback: The 1SG0 and 1SB3 are useful comparison candidates. The 1SG0 has a plain shaft and no holding brake, while the 1SB3 uses a fitted-key shaft and includes a holding brake.

– For incremental feedback: The 1AG0 or 1DG3 may be worth considering, depending on the drive’s supported feedback interface.

– For absolute position feedback: The 1AG5 and 1FG5 offer alternative absolute-encoder configurations. Their resolution and interface should be compared with the control system’s requirements.

– For a holding-brake application: Confirm the brake-equipped variant and verify its holding capability against the mechanical load.

– For a direct replacement: Match the full ordering code, feedback system, shaft design, mounting dimensions, and protection rating before ordering.

8. Five Other Siemens Servo Motor Models to Consider

The following models provide additional comparison options from the broader servo-motor range. They should be treated as candidates for technical evaluation rather than guaranteed drop-in replacements.

The models above do not necessarily have the same power rating, torque, feedback interface, or dimensions as the 1SG0. Their complete ordering codes should be checked before they are considered for a replacement or a new machine design.

A larger motor is not automatically a better choice. Correct sizing depends on the load torque, acceleration profile, duty cycle, mechanical transmission, feedback requirements, and compatible drive.

9. Installation and Maintenance Considerations

9.1 Drive and feedback compatibility

The 1SG0 uses a multi-pole resolver without a DRIVE-CLiQ interface. Before installation, confirm that the servo drive supports this feedback arrangement and that the correct wiring and motor parameters are available.

A motor with a similar power rating but a different feedback interface may require different hardware or commissioning procedures.

9.2 Mechanical mounting

Confirm the mounting flange, bolt pattern, shaft diameter, shaft extension, coupling arrangement, and overall length from the exact drawing.

The plain shaft must be paired with a compatible mechanical connection. Incorrect alignment or excessive radial and axial loads can reduce bearing life and affect machine accuracy.

9.3 Thermal management

Natural cooling requires sufficient heat dissipation through the motor housing and surrounding installation. Check the operating temperature, continuous torque, cycle frequency, and duration of high-load operation.

Where the motor frequently accelerates or reverses, calculate the complete duty cycle rather than relying on the nominal power rating.

9.4 Holding and stopping requirements

The 1SG0 does not have an integrated holding brake. If the machine must hold a position when motor torque is unavailable, assess whether an external brake, mechanical lock, or other suitable holding solution is necessary.

For vertical axes and gravity-loaded mechanisms, the required holding and safety arrangements must be determined from the machine design.

9.5 Routine inspection

Regular maintenance should include checking mounting hardware, coupling alignment, cable condition, connectors, and signs of overheating or contamination. Any abnormal vibration or noise should be investigated before continued operation.

The resolver feedback system and drive parameters should also be checked if the machine develops positioning errors or irregular motion.

10. Overall Product Evaluation

The Siemens 1FK7083-5AF71-1SG0 is a compact synchronous servo motor designed for industrial motion-control applications. Its principal characteristics include a nominal operating point of 3.3 kW at 3,000 rpm, rated torque of 10.5 Nm, multi-pole resolver feedback, a plain shaft, no holding brake, natural cooling, and IP64 protection.

Its main strengths are its compact construction, suitability for controlled rotary motion, resolver-based feedback, and compatibility with appropriately configured servo systems. It can be considered for machine axes, automated production equipment, indexing mechanisms, and other applications that require repeatable movement.

The most important selection criteria are the feedback interface, mechanical fit, required torque, duty cycle, and whether the machine needs to hold its position after power is removed. Because this model has no integrated holding brake, applications with vertical or gravity-loaded mechanisms require particular attention.

For a replacement project, the exact ordering code should be checked carefully. Similar 1FK7 motors may share a frame family while differing in encoder technology, brake configuration, shaft geometry, and protection rating.

Before purchasing or installing the motor, confirm its complete dimensions and weight against the exact mechanical drawing and product specification. The 80 mm shaft height and approximately 14.0 kg net weight are useful reference values, but the drawing should determine the final mounting and clearance requirements.
