Siemens 1FK7083-5AF71-1AH0 Servo Motor — Product Description, Technical Parameters, Applications, Advantages, and Related Models

1. Product Introduction

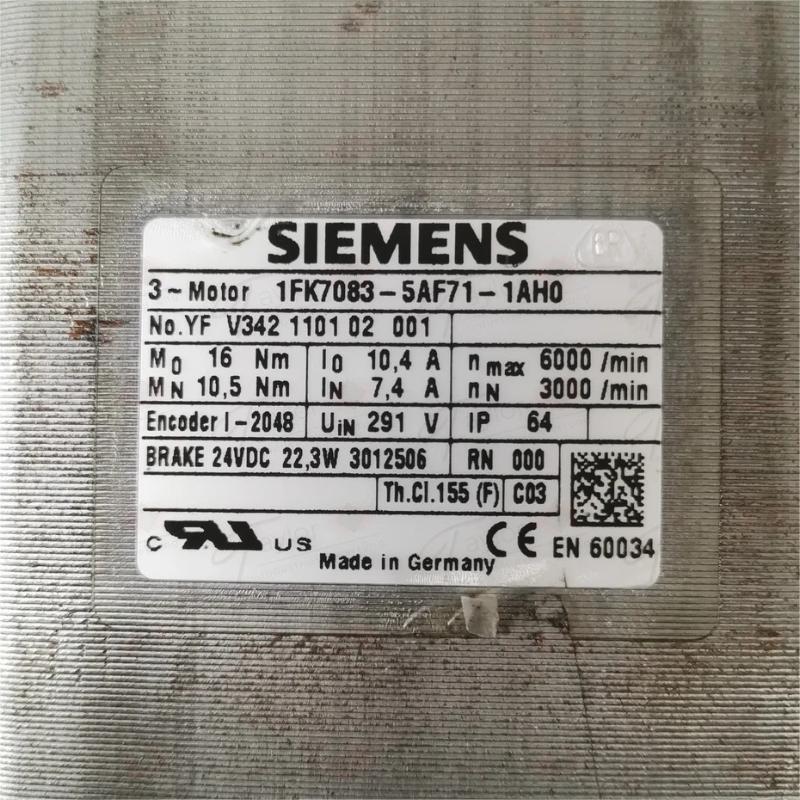

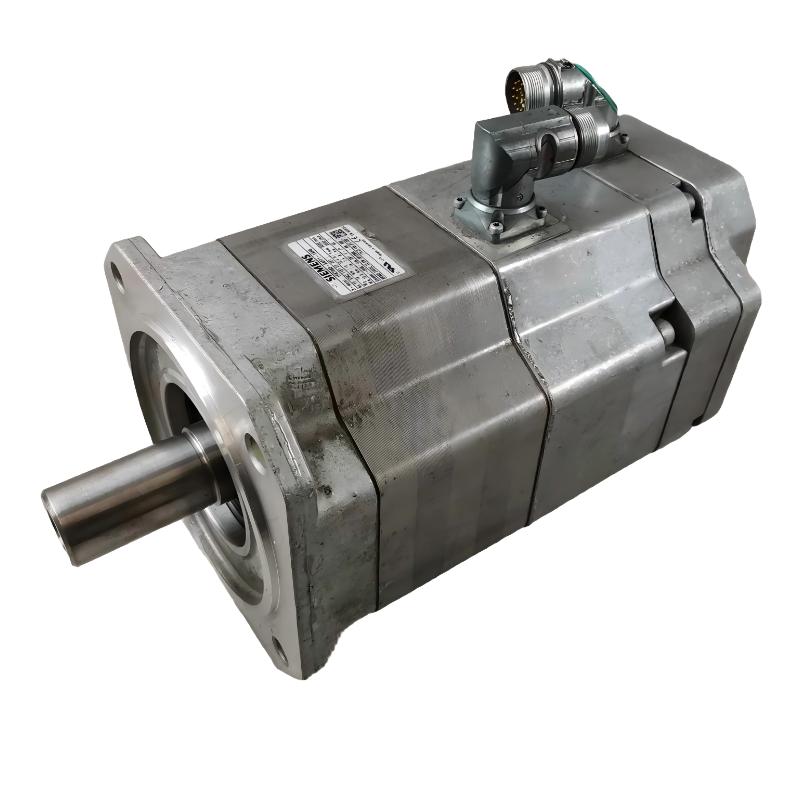

The Siemens 1FK7083-5AF71-1AH0 is a permanent-magnet synchronous servo motor belonging to the SIMOTICS S 1FK7 Compact series. It is designed for industrial motion-control applications that require controlled rotation, repeatable positioning, stable torque output, and reliable performance in automated production equipment.

The motor has an optimum operating power of 3.3 kW and a rated speed of 3,000 rpm. Its rated torque is 10.5 Nm, while its specified static torque at a 100 K temperature rise is 16 Nm. These characteristics make it suitable for a range of industrial machine axes, provided the required load, acceleration, speed, and operating cycle fall within the motor’s permitted limits.

A key feature of this model is its integrated holding brake. Compared with a similar motor without a brake, this configuration can provide a means of holding a stationary axis when the brake is correctly engaged. This is particularly relevant to machine designs that require a motor-mounted holding function. The brake is intended for holding rather than routine dynamic stopping, unless the application and brake specifications explicitly permit the required stopping duty.

The motor uses an incremental SIN/COS encoder with a 1 Vpp signal interface and 2,048 signal periods per revolution. It has a plain shaft, natural cooling, an IP64 protection rating, and power and signal connectors that can be rotated through the specified range to accommodate different installation arrangements.

When selecting this model for a new machine or replacing an existing motor, the complete order number should be checked carefully. Models with similar designations can have different feedback systems, shaft configurations, holding-brake options, and protection ratings.

2. Brand, Product Family, and Series

2.1 Siemens brand

Siemens is the brand associated with this motor. Its industrial motion-control product range includes motors and drive components used in manufacturing equipment, packaging machinery, automated assembly systems, material-handling installations, and other industrial applications.

This motor is intended to operate as part of a compatible servo system. The drive regulates current and motor movement according to control commands, while the encoder provides feedback about the motor’s rotation. The controller and drive must be configured correctly for the motor’s electrical and feedback characteristics.

2.2 SIMOTICS S product family

SIMOTICS S is the product family associated with synchronous servo motors used in controlled-motion applications. These motors are commonly selected for axes that must follow programmed speed, position, or torque commands.

The performance of a servo system depends on more than the motor’s rated power. The load inertia, mechanical transmission, drive capability, feedback system, control tuning, and operating environment all influence the result.

2.3 1FK7 Compact series

The 1FK7 Compact series is designed for industrial machinery where a relatively compact motor must deliver controlled motion and useful torque.

The 1FK7083-5AF71-1AH0 belongs to the 80 mm shaft-height class and includes a holding brake. This brake-equipped configuration may be appropriate when the machine requires a motor-mounted holding function, but its suitability depends on the actual load and the brake’s specified holding capacity.

3. Detailed Technical Parameters

3.1 Electrical and performance specifications

The electrical data provide a basis for selecting a compatible drive and calculating the motor’s operating range. The rated values describe the motor under specified conditions, while maximum current and maximum torque are limiting values rather than continuous operating ratings.

Actual performance depends on the drive, load profile, ambient temperature, cooling conditions, and duration of high-torque operation. The final application should be checked against the full motor and drive specifications.

3.2 Mechanical specifications

The motor’s plain shaft is designed for a compatible coupling or transmission arrangement. Before installation, confirm the shaft diameter, shaft length, coupling fit, flange dimensions, and permissible radial and axial loads.

The holding brake is an important difference between this model and otherwise similar brake-free configurations. Its operation must be compatible with the machine’s control and safety design.

3.3 Encoder and feedback specifications

The incremental encoder supplies feedback that allows a compatible drive to regulate motor movement. Because it is an incremental rather than an absolute encoder, the control system may need to establish a reference position after power-up, depending on the machine’s design.

The encoder’s signal-period specification should not be confused with the positioning accuracy of the complete machine. Final accuracy also depends on the drive’s signal processing, mechanical transmission, backlash, stiffness, and control tuning.

3.4 Holding-brake specifications

A holding brake can be useful when an axis must remain stationary while the motor is not actively producing torque. However, it should not automatically be treated as a safety-rated brake or as suitable for repeated emergency stopping.

For vertical axes and gravity-loaded mechanisms, engineers should check the brake’s rated holding torque, the load torque at the motor shaft, transmission ratio, brake-release behavior, and the consequences of loss of power.

3.5 Dimensions and weight

The dimensions above are approximate envelope figures for the relevant motor-frame arrangement. They are intended for preliminary space planning, not for final machining or mounting work. The exact drawing should be used to confirm flange geometry, mounting-hole positions, shaft dimensions, connector clearance, and overall length.

The approximately 16.5 kg figure refers to the brake-equipped motor. Packaging, cables, couplings, mounting adapters, and other accessories may increase the total weight of the delivered or installed assembly.

4. Product Characteristics and Operating Principle

4.1 Permanent-magnet synchronous motor design

The motor uses permanent magnets in the rotor and a controlled stator magnetic field to produce rotational torque. A compatible servo drive regulates the motor current to achieve the required movement.

This construction is well suited to controlled motion because the drive can adjust the motor’s output in response to commands and feedback.

4.2 Closed-loop motion control

The incremental encoder provides feedback to the drive. The drive uses this information to regulate speed and track commanded movement.

With suitable drive configuration and mechanical design, the system can support repeatable positioning, controlled acceleration, and coordinated movement between machine axes.

4.3 Integrated holding function

The integrated holding brake allows the motor shaft to be held when the brake is engaged, within the brake’s rated limits.

This is particularly relevant for machines where an axis must remain in position when the motor is not actively generating torque. The brake does not replace proper machine safety engineering, and its capacity must be checked against the actual load.

4.4 Natural cooling

Natural cooling reduces the need for additional motor cooling equipment. It can simplify the machine layout and reduce the number of auxiliary components.

The installation must still provide adequate heat dissipation. High ambient temperature, poor ventilation, repeated acceleration, and sustained heavy loads can affect the motor’s permissible operating capability.

5. Main Advantages of the 1FK7083-5AF71-1AH0

5.1 Integrated holding brake

The built-in holding brake is one of the main distinguishing features of this model. It can help maintain a stationary shaft when the motor is not actively driving the load.

This can be valuable in automated machinery that needs to hold an axis between operating cycles or prevent unwanted movement under defined conditions. The required brake torque and release arrangement must be verified for the application.

5.2 Compact construction

The motor belongs to the 1FK7 Compact series and uses an 80 mm shaft-height class. Its relatively compact construction can be helpful where machine space is limited or where a replacement must fit into an established mechanical arrangement.

The exact dimensions still need to be checked before replacement because the brake affects the overall motor envelope.

5.3 Useful torque and speed capability

The motor has a rated torque of 10.5 Nm and a rated speed of 3,000 rpm. These characteristics make it a candidate for industrial machine axes requiring controlled movement and useful torque within a compact frame.

The maximum torque figure should only be used within the specified operating limits. For continuous-duty applications, the motor’s thermal rating and the drive’s current capability are equally important.

5.4 Feedback-based control

The incremental SIN/COS encoder supports closed-loop motion control when used with a compatible drive.

This allows the control system to monitor the motor’s movement and adjust its output to follow speed and position commands. The final performance depends on the complete motion-control system, not just the encoder.

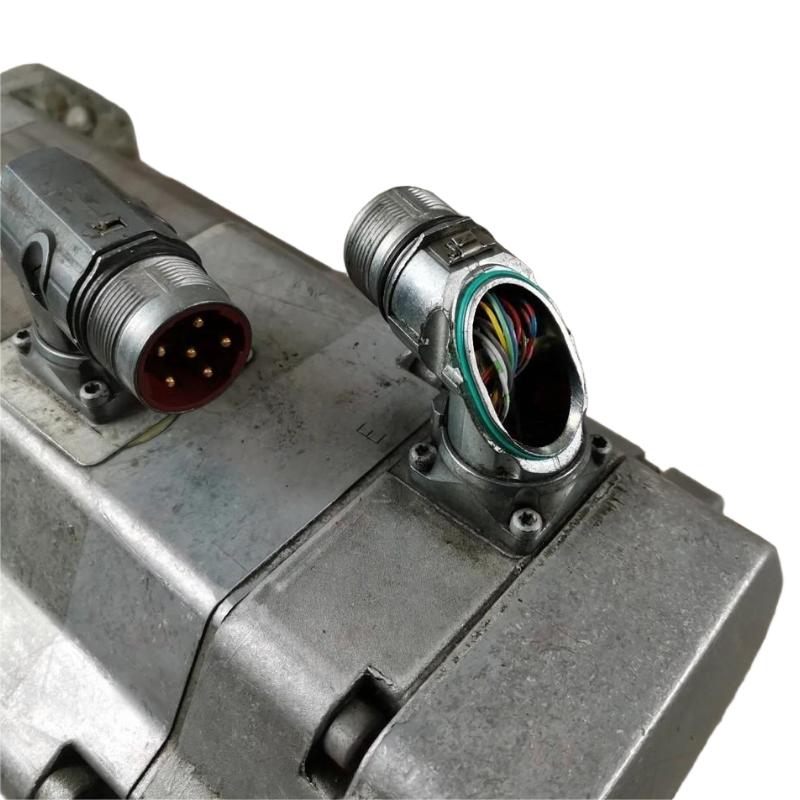

5.5 Flexible connector arrangement

The power and signal connectors can be rotated through the specified range. This provides flexibility when the motor is installed close to other equipment or in a machine with limited cable-routing space.

Careful cable routing can reduce mechanical stress on connectors and make maintenance access easier.

5.6 Integrated temperature monitoring

The KTY84 winding temperature sensor provides temperature information for compatible monitoring and drive arrangements.

When properly configured, temperature monitoring can help identify abnormal operating conditions and support appropriate protective responses.

5.7 Suitable for established machine designs

Where an existing machine uses the same motor configuration, retaining the matching model can reduce the need to redesign the mounting arrangement, feedback wiring, and drive setup.

However, the complete order number and nameplate must be checked. A related model with a different encoder, brake, shaft, or protection rating may require additional engineering changes.

6. Typical Applications

6.1 Automated assembly machines

Assembly machinery often requires components to be moved to repeatable positions before a tool performs an operation. The motor can drive compatible positioning mechanisms, transfer units, or indexing axes.

The holding brake may be useful where the axis must remain stationary during part loading, unloading, or a machine pause. Whether the brake is necessary depends on the mechanical arrangement and the consequences of movement when torque is removed.

6.2 Packaging equipment

Packaging machines frequently combine feeding, cutting, sealing, indexing, and transfer mechanisms. A servo motor can regulate an individual mechanism while the controller coordinates its movement with the rest of the machine.

The motor must be sized for both the steady operating load and the repeated acceleration and deceleration demands of the production cycle.

6.3 Machine tools and positioning systems

The motor can be considered for suitable positioning or feed mechanisms driven through a compatible coupling, ball screw, or transmission.

Mechanical backlash, coupling stiffness, screw characteristics, and machine geometry influence the final positioning performance. The motor’s encoder specification alone does not establish the accuracy of the complete machine axis.

6.4 Vertical or gravity-loaded axes

The integrated holding brake may be useful in applications where an axis must remain stationary when the motor is not actively driving it.

Before using the motor in a vertical axis, the designer must confirm that the brake’s holding capacity is sufficient for the load and that the complete machine has the required protective measures. The brake should not be assumed to provide a safety function without the appropriate assessment.

7. Five Related Models from the Same 1FK7 Compact Series

The following models are relevant comparison candidates because they share the 1FK7 Compact family or have closely related mechanical and performance characteristics.

Exact electrical ratings, dimensions, and weights can differ according to the complete order number. Where a value is not confirmed for the exact variant, it is marked for verification rather than presented as a guaranteed specification.

7.1 1FK7083-5AF71-1AG0

This model is a useful comparison for applications that do not require a motor-mounted holding brake. Its listed operating characteristics and incremental feedback arrangement are similar to those of the target model.

It may be considered where the machine has a separate mechanical holding arrangement or does not need a brake. It is not equivalent to the target model in braking capability.

7.2 1FK7083-5AF71-1AG5

This configuration uses absolute feedback rather than the target model’s incremental encoder. It may be worth evaluating when the control system requires absolute position information.

Before selecting it, confirm that the drive and controller support the specified encoder, and check the machine’s position-recovery and commissioning requirements.

7.3 1FK7083-5AF71-1DG3

This model is a candidate for control systems using the specified DRIVE-CLiQ feedback arrangement.

The interface and drive compatibility must be checked carefully. It should not be substituted for an incremental SIN/COS configuration without confirming the controller and feedback requirements.

7.4 1FK7083-5AF71-1SB3

This variant has resolver feedback, a keyed shaft, and a holding brake. It may be considered where these mechanical and feedback characteristics suit the machine.

The shaft interface differs from the target model’s plain shaft. Coupling compatibility and brake specifications should be confirmed before any replacement decision.

7.5 1FK7083-5AF71-1EH0

This model is another brake-equipped alternative, but it uses absolute EnDat feedback rather than incremental SIN/COS feedback.

It may be suitable for a system designed around the specified absolute encoder interface. Verify the exact performance rating, encoder configuration, brake characteristics, and mounting dimensions before choosing it.

8. Five Additional Siemens Motor Models to Consider

These additional models broaden the comparison to other motor configurations and related servo families. They are candidates for technical evaluation, not guaranteed drop-in replacements for the 1FK7083-5AF71-1AH0.

The 1FK7080 models may be worth considering if a related motor configuration or a smaller frame is required. The 1FK7063 is a potential option for applications with lower power or torque demands, provided the actual load calculations support the choice.

The 1FT6086 belongs to a different servo motor family. It should be evaluated as a separate engineering option rather than assumed to have the same dimensions, drive requirements, or feedback interface as the 1FK7 Compact series.

For all five models, confirm the complete order number before using any preliminary information for purchasing or machine design.

9. Installation and Selection Considerations

9.1 Drive and encoder compatibility

The servo drive must support the motor’s current requirements and incremental SIN/COS encoder interface. The temperature sensor and brake connections must also be compatible with the selected drive and control architecture.

Check the motor’s complete order number, drive configuration, feedback wiring, and brake-control requirements before commissioning.

9.2 Torque and duty-cycle calculations

The rated torque of 10.5 Nm provides a useful starting point, but the motor’s actual load varies throughout the operating cycle.

The design calculation should include:

• Acceleration and deceleration torque.

• Steady running torque.

• External forces and friction.

• Load and rotor inertia.

• Transmission ratio and mechanical efficiency.

• Peak torque duration.

• Continuous thermal loading.

The drive’s current limits and the motor’s thermal characteristics must be considered together.

9.3 Holding-brake selection

The integrated brake is intended to hold the shaft when engaged, within its rated limits. It should not automatically be treated as a brake for repeated dynamic stopping or as a safety-rated device.

For vertical axes, the designer should calculate the load torque at the motor shaft and confirm that the brake’s rated holding torque is adequate. The machine must also be assessed for foreseeable loss-of-power and control-failure conditions.

9.4 Cooling and protection rating

Natural cooling simplifies the motor installation, but adequate heat dissipation remains essential. Avoid placing the motor in an enclosure where heat can accumulate beyond the permitted operating conditions.

IP64 provides protection against dust ingress and water splashing under specified test conditions. It does not mean the motor is suitable for immersion or high-pressure washing.

9.5 Mechanical installation

Before mounting the motor, confirm the flange dimensions, bolt pattern, shaft dimensions, coupling fit, and connector clearance against the exact mechanical drawing.

Incorrect alignment can result in excessive bearing loads, vibration, coupling wear, and reduced service life. The brake-equipped motor’s additional length and weight should also be included in the machine’s mounting and handling plans.

10. Purchasing and Replacement Checklist

• Confirm the complete model number: 1FK7083-5AF71-1AH0.
• Confirm the rated speed of 3,000 rpm and optimum operating power of 3.3 kW.
• Check that the rated torque of 10.5 Nm meets the load requirement.
• Confirm the incremental SIN/COS 1 Vpp encoder interface.
• Verify the servo drive’s electrical and feedback compatibility.
• Confirm that the plain shaft matches the existing coupling.
• Verify the holding-brake requirements and control wiring.
• Confirm the IP64 protection rating is suitable for the environment.
• Check the flange, shaft, connector, and overall dimensions using the exact drawing.
• Allow for the approximate 16.5 kg motor weight when planning handling and mounting.
• Confirm adequate natural-cooling conditions.
• Verify the exact motor variant and lifecycle availability before planning a long-term replacement strategy.

11. Overall Product Assessment

The Siemens 1FK7083-5AF71-1AH0 is a compact, permanent-magnet synchronous servo motor designed for industrial motion-control applications. Its 3.3 kW optimum operating power, 3,000 rpm rated speed, 10.5 Nm rated torque, incremental SIN/COS encoder, natural cooling, and integrated holding brake make it a useful candidate for compatible automated machinery.

Its principal advantage over a similar brake-free configuration is the integrated holding function. This can be valuable in machine axes that must remain stationary when the motor is not actively driving the load. The brake’s capacity and operating requirements must still be verified against the actual application.

Potential applications include automated assembly equipment, packaging machinery, positioning systems, suitable machine-tool axes, and material-handling mechanisms.

The main selection points are the encoder interface, brake capacity, mechanical dimensions, protection rating, and compatibility with the servo drive. These details matter as much as the motor’s nominal power when choosing a replacement or designing a new machine.

For a replacement project, matching the complete order number and verifying the nameplate, drive configuration, and mechanical drawing are essential. For a new design, the motor should be selected only after calculating the load torque, speed, acceleration, inertia, duty cycle, and holding requirements.
