Siemens 1FK7083-5AF71-1KH5 Servo Motor: Technical Specifications, Product Overview, Applications, Advantages, and Related Models

1. Product Overview

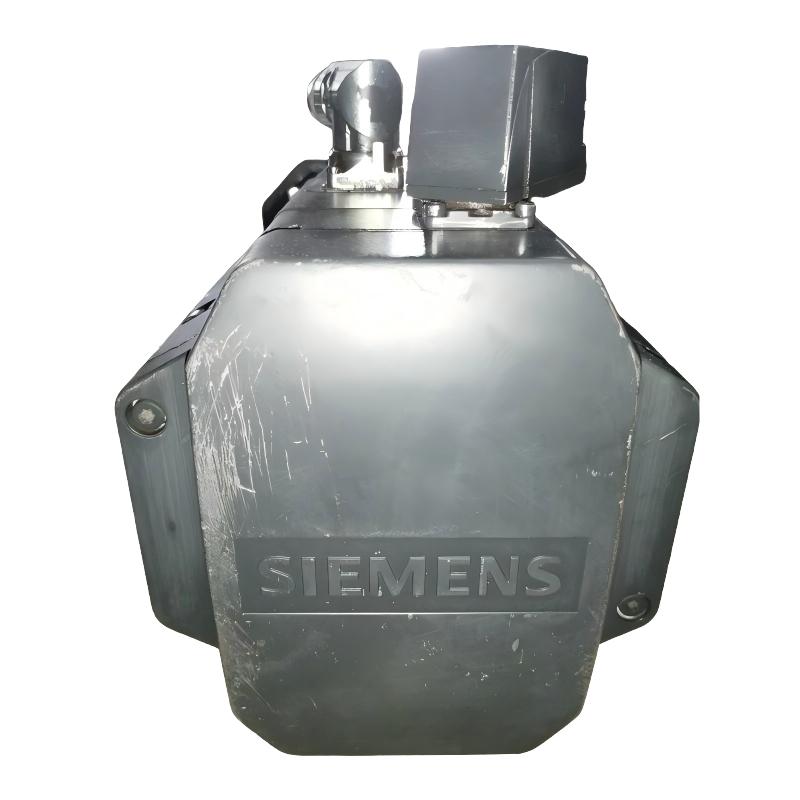

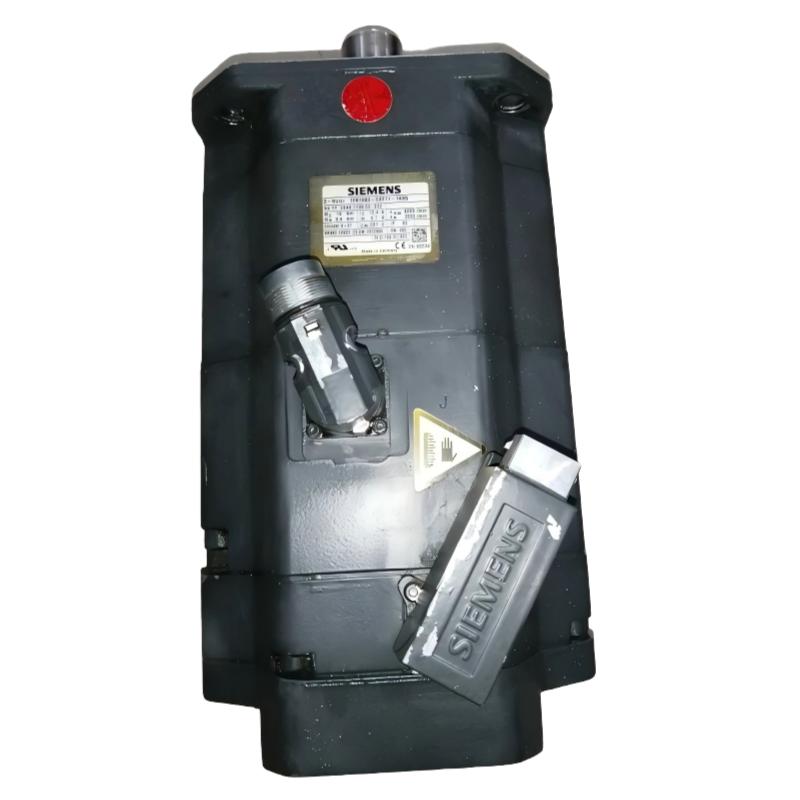

The Siemens 1FK7083-5AF71-1KH5 is a model designation associated with the SIMOTICS S 1FK7 family of industrial synchronous servo motors. This motor family is intended for precision motion-control applications that require controlled rotational movement, repeatable positioning, and reliable integration with industrial automation equipment.

Servo motors are commonly used in machinery where the motor must do more than rotate continuously at a fixed speed. They may need to accelerate quickly, stop at a specific position, reverse direction, or synchronize their movement with other machine axes. When correctly matched with a compatible servo drive and controller, a servo motor can provide the controlled movement required for these tasks.

The complete ordering code is important when selecting this motor. Closely related 1FK7 variants can differ in feedback technology, shaft configuration, holding brake, connector arrangement, protection rating, and electrical characteristics. The suffix 1KH5 should therefore be verified against the motor nameplate and matching product specification before treating the unit as interchangeable with another model.

The following description provides a structured technical overview, application guidance, and comparison tables. Where exact data for the complete 1KH5 ordering code cannot be established confidently, the specification is marked for confirmation rather than presented as a guaranteed value.

2. Brand and Product Series

The SIMOTICS S 1FK7 series is designed for motion-control tasks where consistent movement and accurate regulation are important. Depending on the complete motor configuration, a unit may be used in machine axes, indexing systems, feeding mechanisms, positioning assemblies, and automated production equipment.

A successful installation depends on matching the motor to the complete drive system. Rated power alone is not sufficient to determine compatibility. Feedback interfaces, current requirements, mechanical dimensions, shaft arrangement, and the operating duty cycle must also be considered.

4. Detailed Technical Specifications

The 1FK7083-5AF71-1KH5 is a compact synchronous servo motor with a nominal operating point of 3.3 kW and 3,000 rpm. Its defining configuration includes a basic absolute encoder with 32 signal periods per revolution, a DRIVE-CLiQ interface, a plain shaft, and a holding brake.

The absolute encoder configuration is specified with a 10% performance reduction associated with the encoder. This must be considered when evaluating the motor’s available performance and matching it to the application.

Important: The overall dimensions above are an approximate reference, not a verified dimensional drawing for the exact 1KH5 motor. The mounting flange, shaft extension, overall length, and connector clearance should be checked against the actual unit before installation. Likewise, family-level electrical figures should not replace the complete model’s motor data.

4.1 Mechanical specifications

Mechanical compatibility should be established by comparing the actual mounting drawing rather than relying on the shared frame designation. In particular, the plain shaft on this model differs from variants that use a fitted key.

4.2 Electrical and performance characteristics

When calculating the motor’s usable torque, do not assume that the family maximum torque can be maintained continuously. The permissible operating point depends on current limits, thermal conditions, the encoder configuration, the connected drive, and the mechanical load.

5. Product Introduction

The Siemens 1FK7083-5AF71-1KH5 is designed for applications that need controlled rotary motion and reliable positioning. Its permanent-magnet synchronous motor construction makes it suitable for integration into servo systems where the drive regulates the motor according to commands from a machine controller.

The motor’s basic absolute encoder is an important part of its configuration. An absolute feedback system can provide position information without relying solely on incremental pulse counting after startup. The exact behavior at power-up and the position data available to the controller depend on the encoder implementation and compatible drive system.

The DRIVE-CLiQ interface is intended for integration with compatible motion-control equipment. Correct feedback compatibility is essential: a motor with a similar frame size and power rating may still be unsuitable if its encoder interface or configuration does not match the existing drive.

Another distinguishing feature is the holding brake. This can be useful when a machine needs to retain a mechanical position while the motor is not actively producing torque. However, the brake’s suitability depends on the load, mechanical arrangement, and permitted operating conditions. A holding brake should not automatically be treated as a service brake for repeated dynamic stopping.

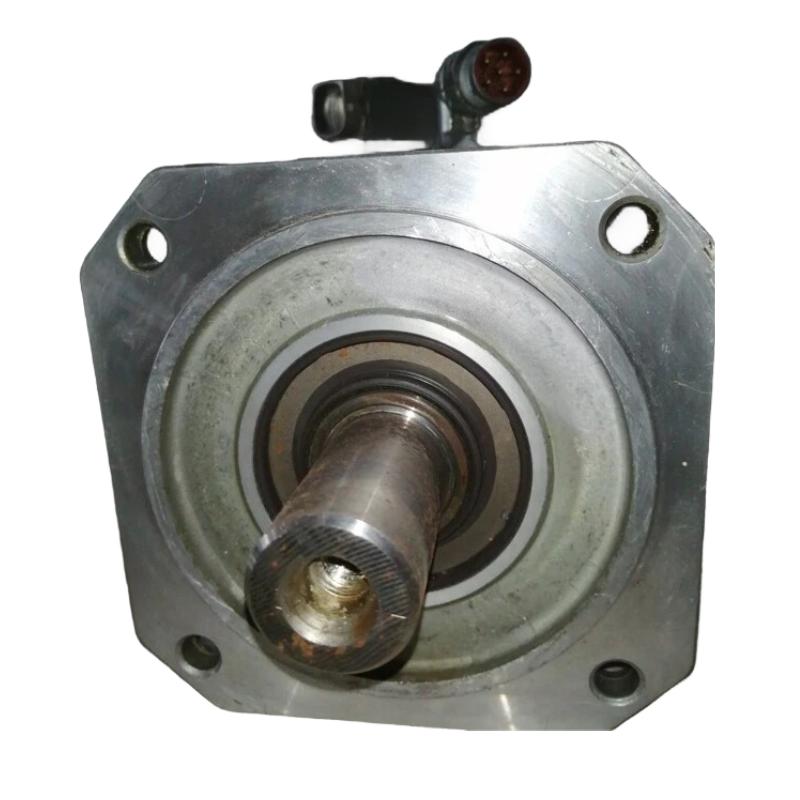

The motor’s plain shaft provides a smooth shaft-end arrangement for compatible couplings and other mechanical connections. This can be advantageous where the machine design uses a clamping coupling or another shaft connection intended for a plain shaft. The coupling must be selected to suit the shaft diameter, torque, alignment, and expected dynamic loads.

Natural cooling keeps the motor design relatively straightforward, but the available continuous torque depends on heat dissipation. For applications with frequent acceleration, deceleration, or prolonged high torque, the duty cycle should be evaluated carefully.

Overall, the 1FK7083-5AF71-1KH5 is intended to function as part of a complete motion-control system. Its actual performance depends on the drive, controller, feedback configuration, load, mechanical transmission, and installation environment.

6. Product Advantages

6.1 Absolute position feedback

The basic absolute encoder provides position-related feedback for compatible control systems. This is useful in applications where position information is important during commissioning and normal machine operation.

The 32 signal periods per revolution specification should not be confused with the effective position resolution of the complete control system. Signal periods, interpolated resolution, and the position information available to the drive are different concepts.

6.2 Integrated holding brake

The holding brake is useful in applications where a stationary motor must help retain the position of a mechanism when active motor torque is unavailable.

It can simplify the design of certain machine axes, but its holding torque and operating conditions must be verified. Where gravity or a suspended load is involved, the complete machine must be assessed for safe load retention.

6.3 Compact motor construction

The 1FK7 Compact design is intended for industrial machinery where installation space matters. A compact motor can help equipment designers arrange multiple machine axes without making the drive assembly unnecessarily large.

The exact footprint should still be checked before ordering, especially when replacing an existing motor in a machine with fixed mounting points.

6.4 Controlled acceleration and deceleration

When paired with a suitable servo drive, the motor can support controlled changes in speed and direction. This is valuable for indexing, feeding, positioning, and synchronized motion.

Actual acceleration capability depends on motor torque, drive current, inertia, transmission characteristics, and the mechanical limits of the machine.

6.5 Industrial protection characteristics

The specified IP65 motor protection and IP67 drive-end flange protection can support installation in industrial environments where dust and water exposure need to be managed.

These ratings do not eliminate the need for correct connector installation, cable sealing, and environmental assessment. The entire assembly must be suitable for the operating conditions.

6.6 Plain-shaft connection flexibility

A plain shaft can be convenient when the machine uses a compatible clamping coupling or another shaft connection designed for a smooth shaft end.

The coupling must be correctly sized and aligned. Excessive radial or axial loading can damage the motor bearings, even when the coupling fits the shaft.

6.7 Integration with compatible motion-control systems

The DRIVE-CLiQ interface allows the motor to be considered for compatible control architectures. Using the correct motor identification data and drive configuration is essential to obtain the expected control behavior.

This is particularly important for replacement applications, where an incorrect feedback variant can cause commissioning difficulties even if the motor’s mechanical size appears suitable.

7. Product Applications

7.1 CNC machinery and machine tools

The motor can be considered for machine axes and rotary positioning assemblies that require controlled movement. Typical tasks include positioning a mechanism, moving a feed axis, or controlling a rotary assembly.

The selection should account for the load’s inertia, transmission ratio, positioning requirements, and the acceleration profile required by the machining cycle.

7.2 Automated assembly equipment

Automated assembly machines often need components to be moved into repeatable positions. A servo motor may drive indexing tables, transfer mechanisms, rotary stations, or feeding assemblies.

The holding brake can be useful where the machine design requires position retention during a stopped condition, provided the brake is correctly sized for the load.

7.3 Packaging machinery

Packaging systems may require synchronized movement between feeding, cutting, sealing, and positioning operations. Servo motors can provide controlled motion for these processes.

For high-speed packaging equipment, attention should be paid to cycle frequency, acceleration, peak current, and heat generation. The motor should be selected according to the full operating cycle rather than nominal power alone.

7.4 Material-handling systems

Servo motors can be used in selected material-handling mechanisms that require accurate positioning, controlled rotation, or synchronized movement.

If the mechanism carries a vertical or gravity-loaded component, the holding requirements must be assessed independently. A holding brake should not be assumed to provide every safety function required by the machine.

7.5 Rotary indexing and positioning tables

Rotary tables often require a mechanism to move to a specified angle, stop, and remain stationary while another machine operation takes place.

A servo motor can support this kind of operating sequence when the motor, transmission, feedback system, and controller are correctly matched. The required positioning performance depends on the complete mechanical assembly, not solely on the encoder.

7.6 Specialized industrial machinery

The motor may also be considered for winding equipment, precision feeding systems, dedicated automation machines, and other industrial mechanisms that require controlled rotary motion.

Suitability depends on the actual torque demand, operating speed, duty cycle, mechanical loads, and compatibility with the intended drive system.

8. Five Related Models from the Same Series

The following models provide comparison points within the same 1FK7083-5AF71 family. Their configurations vary, so they should not be treated as direct replacements without checking the complete specifications.

The dimensions in this table are approximate comparison references for the motor family and should not be used as certified mounting dimensions. The exact shaft arrangement and brake configuration may change the motor’s overall length and weight.

Related-model selection guidance

– For a plain-shaft motor with a holding brake: The 1KH5 configuration is the relevant starting point. The 1KB5 is a comparison candidate where a fitted-key shaft is acceptable.

– For a motor without a holding brake: The 1UG5 or 1AG5 may be worth evaluating, depending on the required feedback system.

– For resolver-based feedback: Compare the 1UG5 and 1SB3 configurations, paying particular attention to the shaft and brake differences.

– For incremental feedback: The 1DG3 may be worth considering if the existing drive and controller support the specified feedback arrangement.

– For absolute position feedback: Compare the 1KH5 and 1AG5 configurations, ensuring that the required resolution and interface match the intended application.

9. Five Other Siemens Servo Motor Models to Consider

The following models provide additional comparison options from the broader servo-motor range. They are candidates for evaluation, not confirmed direct replacements for the 1KH5.

For these additional models, the complete ordering code is needed before reliable numerical ratings can be assigned. Exact power, rated torque, rated current, speed limits, dimensions, and weight must be checked for the specific variant.

The smaller-frame and larger-frame candidates should not be selected based on physical size alone. A correct choice requires a load calculation and a review of drive compatibility, feedback, inertia, and duty cycle.

10. Installation and Maintenance Considerations

10.1 Electrical compatibility

Confirm that the intended servo drive supports the motor’s electrical characteristics and DRIVE-CLiQ feedback interface. Check the current limits, motor identification data, connector pin assignments, and required drive parameters.

10.2 Mechanical installation

Check the mounting flange, bolt pattern, shaft diameter, shaft extension, coupling arrangement, and total installation clearance. A plain shaft and a fitted-key shaft are not mechanically interchangeable without an appropriate coupling arrangement.

10.3 Brake operation

Verify the brake’s rated holding capability and permitted switching conditions. The brake must be suitable for the mechanical load and intended operating sequence.

Where a vertical load is involved, the machine design should account for the consequences of loss of power and any additional safety requirements.

10.4 Thermal management

Natural cooling depends on the motor’s installation environment. Keep the motor within its permitted ambient temperature and operating limits, and evaluate whether the duty cycle produces excessive heating.

Repeated high-torque operation, rapid reversals, and prolonged low-speed operation may require particular attention.

10.5 Feedback commissioning

Use the correct motor data when commissioning the drive. Confirm the feedback type and interface before attempting to operate the motor.

A motor that is mechanically compatible may still require a different drive configuration if its feedback system differs from the original unit.

10.6 Routine inspection

During maintenance, inspect the motor mounting, shaft coupling, connectors, cable routing, and signs of overheating or contamination. If the motor includes a holding brake, its function should be checked according to the applicable maintenance procedure.

11. Final Product Evaluation

The Siemens 1FK7083-5AF71-1KH5 is a compact synchronous servo motor configuration intended for industrial motion-control applications. Its main identifying features are the 3.30 kW nominal operating point, 3,000 rpm operating speed, basic absolute encoder with 32 signal periods per revolution, DRIVE-CLiQ interface, plain shaft, holding brake, and IP65 protection with IP67 protection at the drive-end flange.

The combination of controlled servo operation, absolute feedback, and a holding brake makes it a candidate for positioning systems and automated machinery that require repeatable movement and position retention under suitable conditions.

For a replacement project, the most important checks are feedback compatibility, shaft geometry, mounting dimensions, brake requirements, and the exact motor data. Similar 1FK7 models can share a frame family while differing in important electrical and mechanical details.

Dimensions and weight should be confirmed before purchase or installation. The approximate 194 × 129 × 162 mm envelope and 16.5 kg weight provided here are comparison references; the matching drawing and specification for the exact 1FK7083-5AF71-1KH5 unit should be used for final engineering decisions.
