Allen Bradley 1746-IG16 — Comprehensive Technical Overview

1. Product Introduction

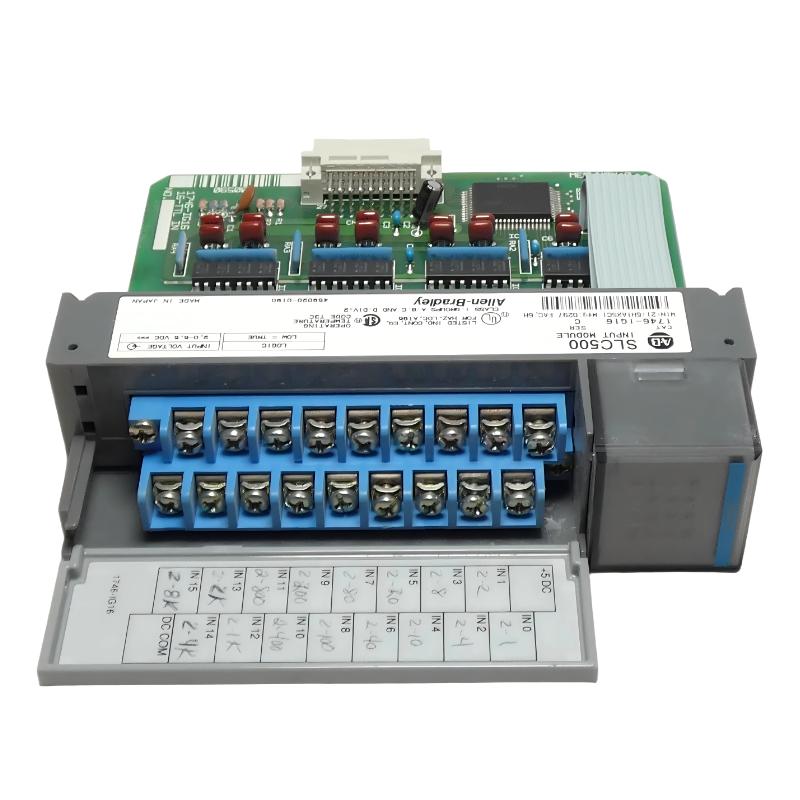

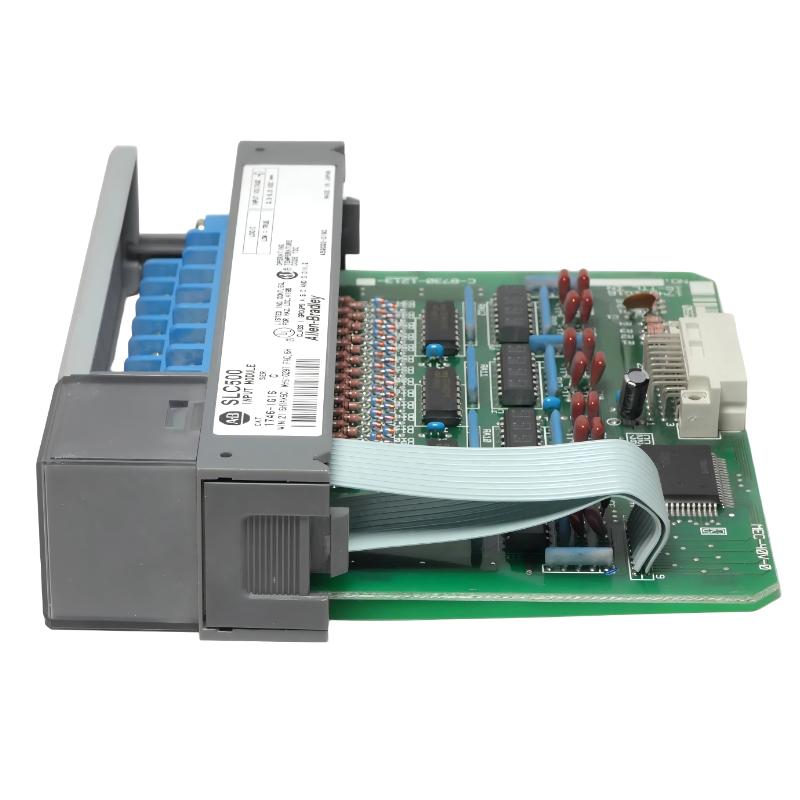

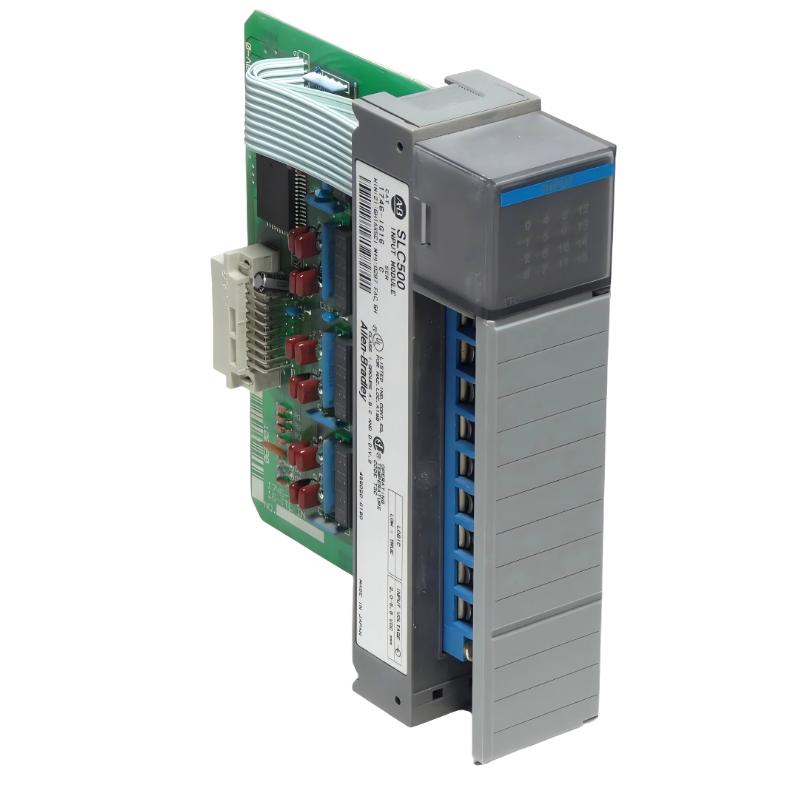

The Allen Bradley 1746-IG16 is a specialized digital DC input module designed for low-voltage signal acquisition in modular PLC systems. Unlike standard 24V DC input modules, this model is built specifically for TTL (Transistor-Transistor Logic) level signals, making it suitable for high-speed and low-voltage digital interfacing.

It provides 16 input channels and operates within a narrow voltage range around 5V DC. This makes it ideal for applications where signals come from electronic devices such as encoders, counters, or other logic-level outputs rather than traditional industrial sensors.

The module installs into a chassis and communicates with the controller via the backplane, ensuring reliable and high-speed data transfer. Its fast response time and precision signal handling make it suitable for applications where timing accuracy is important.

2. Brand and Series

• Brand: Allen-Bradley
• Series: SLC 500 Series
• Product Type: Digital DC Input Module (TTL, Sourcing)

The SLC 500 series is a modular control platform used across many industrial sectors. The 1746-IG16 expands its capabilities by supporting TTL-level signal processing, which is not typically handled by standard input modules.

3. Product Parameters

Below is a detailed and structured parameter table for the 1746-IG16:

4. Product Applications

The 1746-IG16 is typically used in applications requiring low-voltage digital signal processing and fast response times:

• TTL-level signal acquisition
• Encoder and counter input systems
• High-speed digital electronics interfacing
• BCD (Binary-Coded Decimal) signal input
• Packaging and labeling machines
• Semiconductor and electronics manufacturing equipment
• Motion control signal monitoring

It is particularly useful where standard 24V input modules are not suitable due to voltage or speed limitations.

5. Product Advantages

TTL signal compatibility
Designed specifically for 5V DC logic signals, enabling integration with electronic devices.

High-speed response
Extremely fast signal detection (sub-millisecond), ideal for time-critical applications.

High channel density
Provides 16 input channels in a single module, improving system efficiency.

Reliable signal integrity
Ensures stable processing of low-voltage signals without interference.

Electrical isolation
Protects the PLC system from electrical disturbances.

Flexible integration
Fits seamlessly into modular PLC systems alongside standard I/O modules.

6. Recommended Models (Same Series or Related)

Below are 5 related models within the same SLC 500 series or similar I/O category:

These modules can be combined to build complete control systems that include both standard and high-speed signal processing.

7. Recommended Popular Models (Same Brand)

Below are 5 widely used models from the same brand in industrial automation systems:
