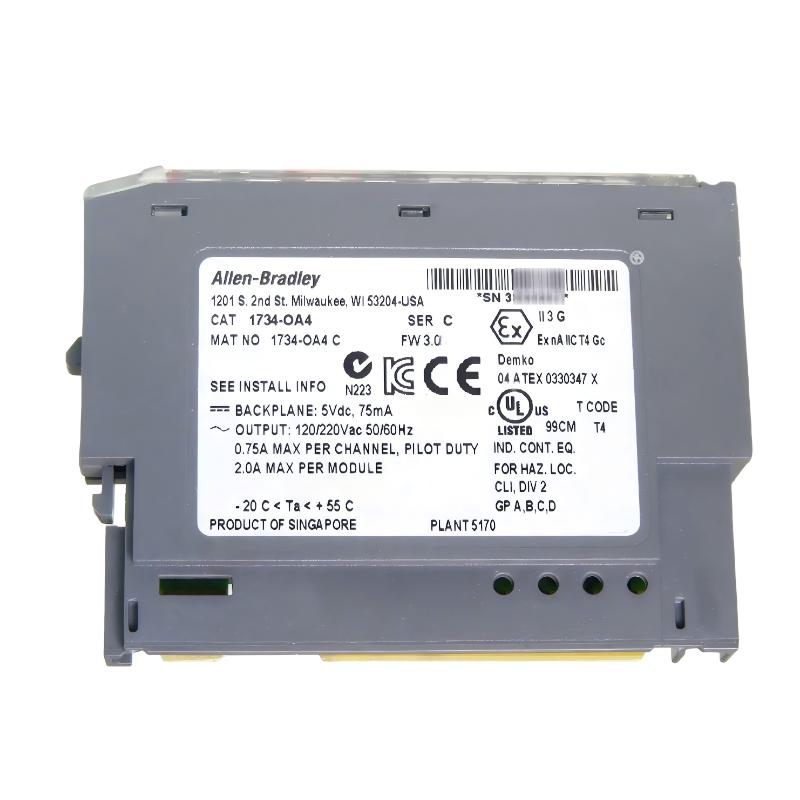

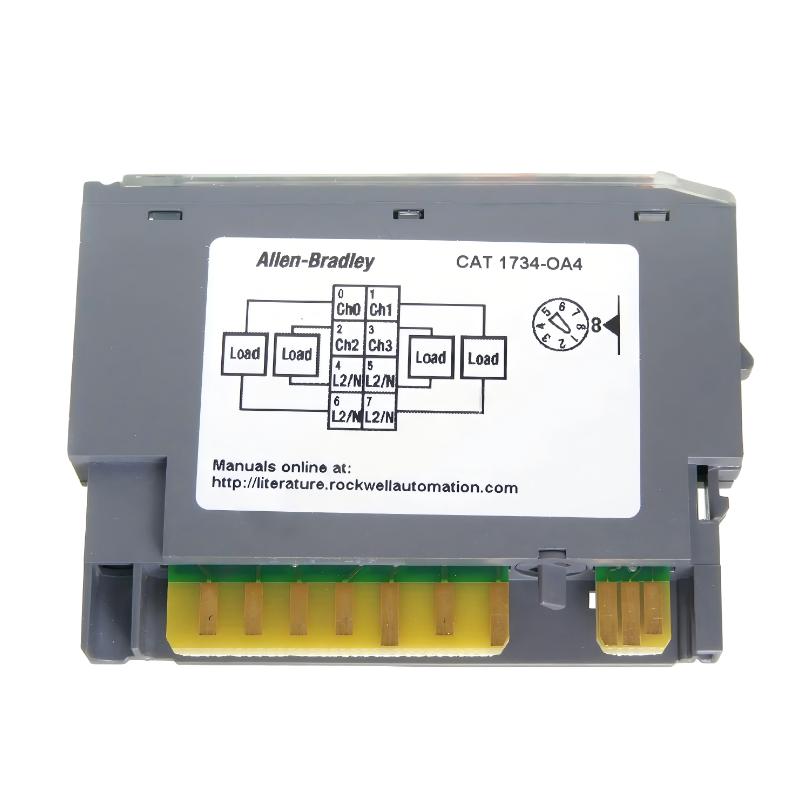

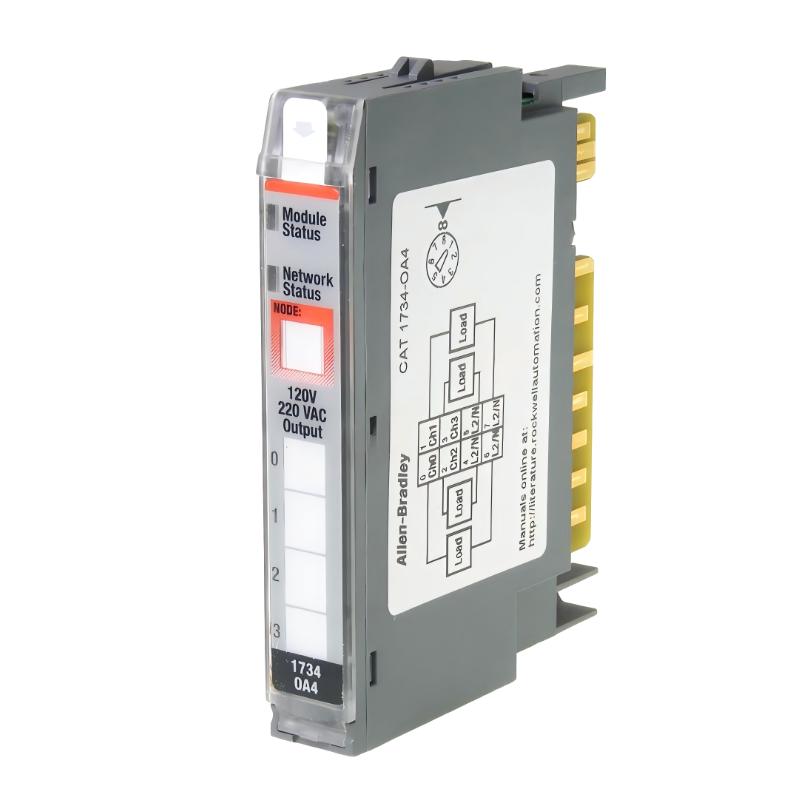

Allen Bradley 1734-OA4 Detailed Technical Overview

1. Product Overview

The Allen Bradley 1734-OA4 is a compact AC digital output module designed for distributed I/O systems in industrial automation environments. It is part of a modular architecture that allows users to build flexible and scalable control systems by combining different I/O modules based on actual needs.

This model provides 4 AC output channels, doubling the capacity of smaller variants while maintaining the same compact form factor. It is mainly used to control AC-powered field devices such as relays, contactors, indicator lamps, and small actuators.

The module is designed for DIN rail mounting and is typically installed inside control cabinets, where space efficiency and reliability are critical.

2. Brand and Series

• Brand: Allen Bradley
• Series: 1734 Series
• Platform: POINT I/O
• Module Type: Digital AC Output Module

The POINT I/O platform is known for its distributed structure, allowing I/O to be placed closer to field devices. This reduces wiring complexity and improves system efficiency in modern automation layouts.

3. Technical Specifications

Parameter Table

4. Product Features

The 1734-OA4 is designed with a balance of performance and simplicity, making it suitable for a wide range of industrial scenarios.

• Compact and narrow housing for space-saving installation
• Increased output density with 4 channels in a single module
• Fast installation via standard DIN rail mounting
• Modular design for flexible system expansion
• Reliable AC switching capability
• Compatible with distributed I/O communication adapters

These features make it practical for both small control panels and larger distributed systems.

5. Product Applications

The module is widely used in industrial environments where AC outputs are required to control field devices.

Typical applications include:

• Automated production lines
• Conveyor and sorting systems
• Packaging and labeling machines
• Industrial control panels
• Motor starter and relay control
• Lighting and alarm systems

It is especially useful in applications where multiple AC loads need to be controlled within a limited space.

6. Product Advantages

Higher Channel Density

Compared to lower-channel modules, it provides more outputs without increasing panel space.

Space Efficiency

Slim design allows dense installation in compact cabinets.

System Flexibility

Works within a modular I/O system, allowing easy expansion or modification.

Reliable Operation

Stable switching performance ensures consistent operation of connected devices.

Easy Maintenance

Individual module replacement reduces downtime and simplifies troubleshooting.

7. Recommended Models (Same Series or Related)

POINT I/O Series Models

These modules can be freely combined within the same distributed I/O node, allowing mixed input/output configurations.
