Product Overview

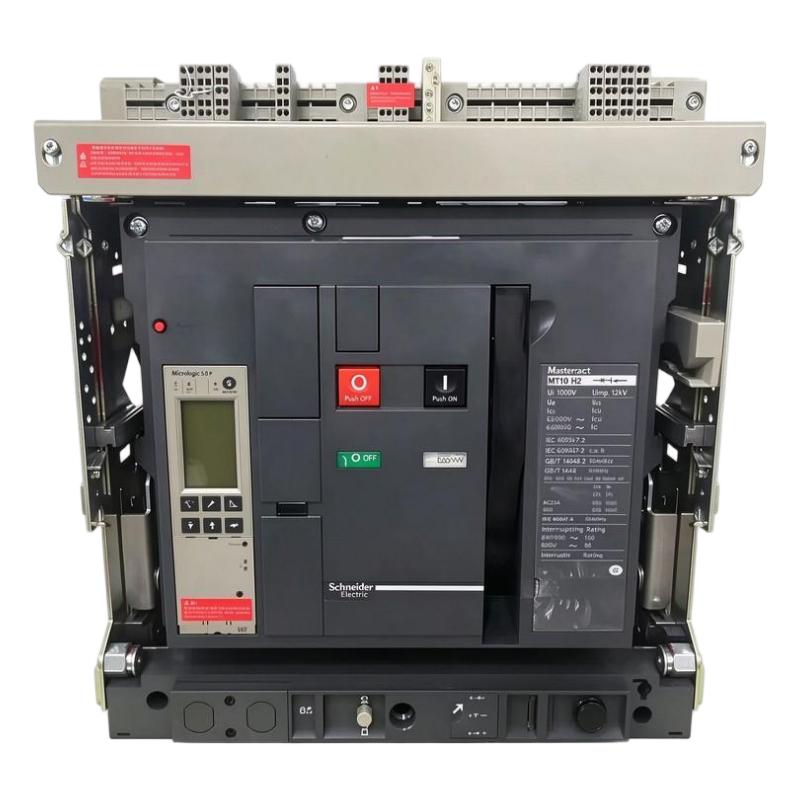

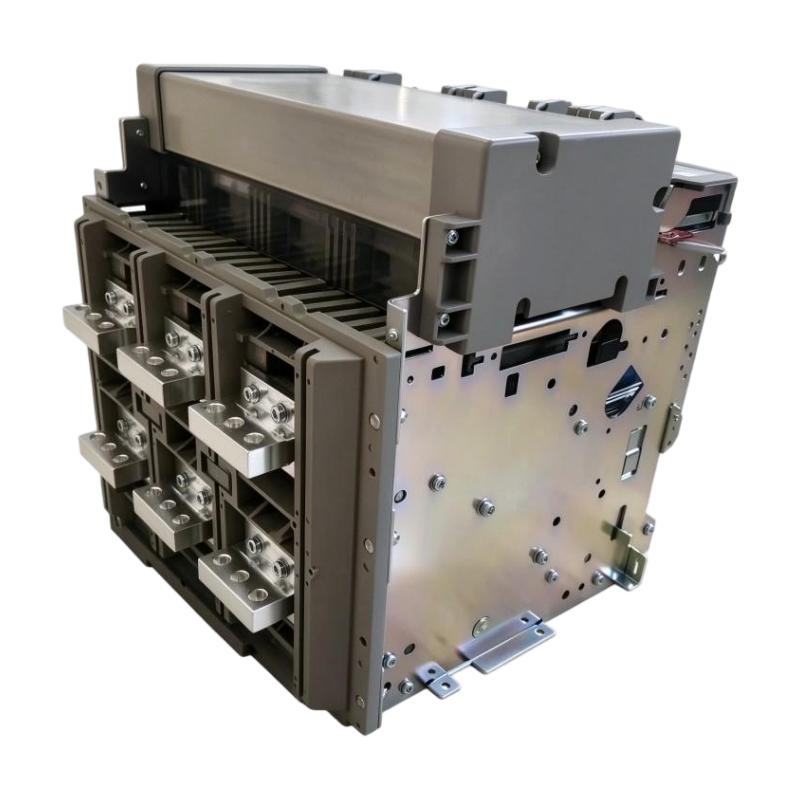

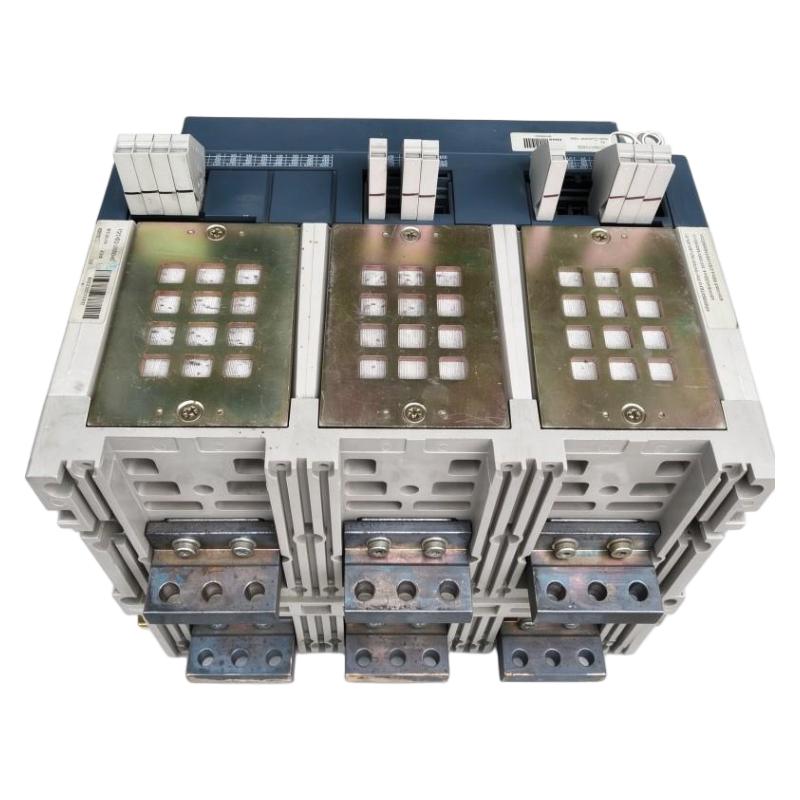

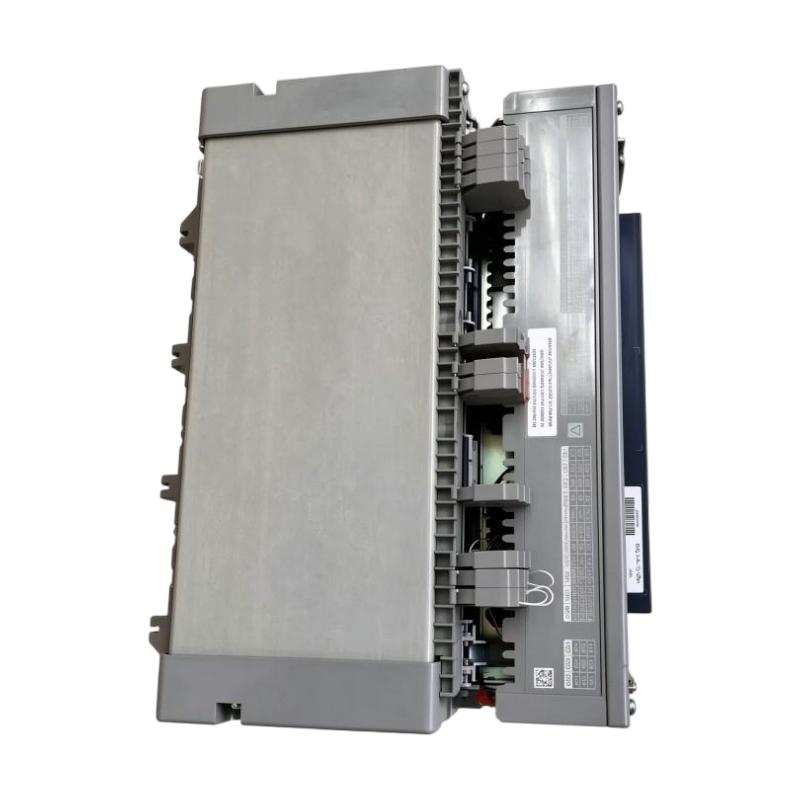

The Schneider Electric MT10H2 Circuit Breaker is associated with the MasterPact family of low-voltage air circuit breakers used in industrial power distribution and electrical protection systems. Air circuit breakers are designed to protect electrical installations against abnormal current conditions, including overloads and short circuits, when equipped and configured with the appropriate protection unit.

In large industrial facilities, circuit breakers play an important role in protecting incoming power supplies, distribution switchboards, busbars, transformers, and major electrical loads. They also provide a means of switching and isolating electrical circuits for operation and maintenance, subject to the device’s specified capabilities and applicable safety procedures.

The supplied product dimensions are 352 × 422 × 297 mm, with a listed weight of 50 kg. These dimensions and weight match published data for a Schneider Electric MasterPact NW10H2 three-pole, fixed circuit-breaker frame rated at 1000 A and without a control unit. However, MT10H2 and NW10H2 should not be assumed to be identical catalog numbers. The complete model identification, trip-unit configuration, and mounting arrangement must be checked against the actual equipment nameplate before purchasing a replacement.

A circuit breaker of this class is generally used in applications where high current capacity, short-circuit interruption, and coordinated electrical protection are essential. Its final suitability depends on the rated operating voltage, available fault current, required breaking capacity, protection settings, and characteristics of the overall distribution system.

Technical Specifications

Important: The electrical ratings in this table describe the matching NW10H2 reference configuration, not a verified specification for every device identified as MT10H2. Confirm the full catalog number and installed trip unit before using these values for equipment selection or protection design.

Function and Working Principle

A circuit breaker is designed to interrupt an electrical circuit when the current or other monitored conditions exceed defined limits. In industrial power distribution, the protection system must respond appropriately to overloads and short circuits while coordinating with upstream and downstream protective devices.

1. Overload Protection

An overload occurs when a circuit carries more current than intended for a sustained period. If not cleared, excessive current can cause conductors, busbars, and connected equipment to overheat.

When fitted with a suitable protection unit, an air circuit breaker can detect overload conditions and initiate a trip according to the configured protection characteristics. The precise pickup current and time delay depend on the installed trip unit and its settings.

2. Short-Circuit Protection

A short circuit can produce very high fault currents in a short period. The circuit breaker must be capable of interrupting the prospective fault current at the relevant system voltage.

The breaking capacity is therefore a critical selection parameter. A reference rating such as 100 kA at 440 V AC must be interpreted in accordance with the applicable manufacturer documentation and cannot automatically be applied at every operating voltage.

3. Switching and Isolation

Circuit breakers are used to connect or disconnect electrical circuits and, where the device is suitable for isolation, to support maintenance procedures.

The operating mechanism may be manual or use additional operating accessories, depending on the installed configuration. Safe maintenance still requires the correct isolation procedure, verification that the circuit is de-energized, and compliance with site safety requirements.

4. Protection Coordination

In a distribution network, several protective devices may be installed in series. Their settings need to be coordinated so that a fault is cleared by the appropriate breaker whenever possible.

Coordination can help limit unnecessary interruptions to unaffected sections of a facility. It requires consideration of the trip-unit characteristics, short-circuit levels, selectivity requirements, and the complete upstream and downstream protection arrangement.

5. Arc Interruption

When a circuit breaker opens under load or fault conditions, an electrical arc may form between separating contacts. An air circuit breaker uses its designed contact and arc-extinguishing arrangement to interrupt the current safely within its rated capability.

The ability to interrupt a fault depends on the breaker design, voltage, fault-current level, and condition of the device. A breaker should never be used beyond its documented ratings.

Role in Industrial Control and Power Distribution Systems

The MT10H2 designation is relevant to applications requiring substantial low-voltage current capacity. In a typical industrial electrical installation, the breaker forms part of the power distribution and protection system rather than acting as a PLC or motor-control module.

Main Incoming Power Protection

Large facilities often use a main circuit breaker at the incoming supply or a major distribution section. A suitably rated air circuit breaker can provide switching and fault protection for the relevant section of the installation.

The final design must account for the transformer capacity, prospective short-circuit current, grounding arrangement, and protection coordination.

Distribution Switchboards

Industrial switchboards distribute electrical power to production lines, motors, control panels, and auxiliary systems. Circuit breakers help protect individual distribution sections and support controlled isolation when required.

The breaker must be matched to the switchboard’s busbar ratings, mounting arrangement, connection design, and fault withstand requirements.

Integration with Monitoring Systems

Some circuit-breaker configurations support auxiliary contacts, status indication, remote operation, or electrical monitoring accessories. These functions depend on the installed hardware and should not be assumed to be included with a basic breaker frame.

Where a PLC, supervisory control system, or energy-management platform monitors breaker status, engineers must confirm the available contacts, communication accessories, and electrical interface requirements.

Protection of Major Electrical Loads

A suitably selected air circuit breaker may be used to protect distribution circuits supplying industrial equipment, subject to the complete protection design. It does not replace the need for appropriately rated downstream protection, motor overload protection, or equipment-specific protective devices.

Industrial Applications

1. Manufacturing Facilities

Manufacturing plants require reliable electrical distribution for production lines, machine tools, material-handling equipment, and auxiliary systems. Large air circuit breakers may be used at incoming supplies or major distribution points where high current capacity and fault interruption are required.

2. Industrial Power Distribution Rooms

Main distribution boards and switchboards often use air circuit breakers to protect sections of a low-voltage power network. The breaker must be selected according to rated current, voltage, fault level, and the system’s coordination requirements.

3. Data Centers and Critical Facilities

Data centers and other facilities with significant electrical loads require carefully engineered distribution protection. Circuit breakers may be part of the incoming supply and distribution architecture, helping isolate faults and support maintenance.

Protection settings and operating arrangements must be coordinated with the facility’s redundancy and continuity requirements. A circuit breaker alone does not guarantee uninterrupted power.

4. Commercial and Infrastructure Buildings

Large commercial buildings, transportation facilities, and infrastructure installations may use air circuit breakers in main switchboards and high-capacity distribution sections.

The specific device must meet the installation’s electrical ratings and applicable standards. Environmental conditions, maintenance access, and switching procedures must also be considered.

5. Industrial Utilities

Utility areas within factories may contain large pumps, compressors, HVAC equipment, and other substantial electrical loads. Air circuit breakers can provide upstream protection for suitable distribution circuits supplying this equipment.

The protection design must account for starting currents, load characteristics, cable ratings, and the fault current available at the installation point.

Installation and System Integration

Proper installation is essential for electrical safety, protection performance, and reliable service.

1. Verify the Complete Model

Before installation or replacement, inspect the device nameplate and verify the complete catalog number. Do not rely on the abbreviated MT10H2 designation alone if the equipment documentation identifies a different MasterPact model.

Confirm the rated current, number of poles, voltage class, breaking capacity, trip-unit type, and fixed or withdrawable mounting arrangement.

2. Confirm Switchboard Compatibility

The supplied dimensions are 352 × 422 × 297 mm. Published data for the NW10H2 reference configuration lists the same dimensions.

Nevertheless, dimensional compatibility does not establish electrical or mechanical interchangeability. Check the mounting points, terminal arrangement, busbar connections, phase spacing, clearances, and any chassis or cradle requirements before fitting the breaker into an existing switchboard.

3. Check Rated Current and Fault Levels

The reference NW10H2 configuration is rated at 1000 A. The selected breaker must be suitable for the expected continuous load and the prospective short-circuit current at the installation point.

The breaking capacity must be verified at the actual system voltage. An apparently suitable current rating is insufficient if the device’s fault-interruption capability does not meet the installation’s requirements.

4. Verify the Trip Unit

The trip unit determines the available protection functions and adjustment ranges. A breaker frame supplied without a control unit may require a compatible protection unit before it can perform the intended protection functions.

Verify the exact trip-unit model, sensor rating where applicable, available settings, and compatibility with the breaker frame. Protection settings should be established by qualified personnel based on the electrical study and applicable requirements.

5. Inspect Connections and Mechanical Condition

Before commissioning, inspect the breaker contacts and terminals as permitted by the manufacturer’s maintenance procedures. Check mounting security, connection integrity, operating mechanism condition, and the condition of any accessories.

Electrical connections must be tightened using the manufacturer’s specified torque values. Improper connections can lead to excessive heating, equipment damage, or unsafe operation.

6. Commission and Test

Commissioning should include the checks and tests required by the applicable manufacturer instructions and site procedures. Depending on the configuration, this may include mechanical operation, trip-unit verification, auxiliary-contact checks, and protection testing.

Document the final protection settings and test results. Do not return the equipment to service if the breaker configuration, operating mechanism, or protective functions cannot be verified.

Compatible System Components

The following components may be relevant to a complete power distribution installation. Their compatibility depends on the actual breaker model and the installed configuration.

The components listed above are not necessarily included with the MT10H2 product listing. Verify the supplied bill of materials and the manufacturer’s accessory documentation.

Alternative Models and Replacement Considerations

When replacing an older or unidentified MasterPact circuit breaker, select a replacement according to the electrical and mechanical requirements rather than the model name alone.

Before ordering a replacement, compare:

• Full manufacturer catalog number.
• Rated current and operational voltage.
• Number of poles and mounting configuration.
• Ultimate and service short-circuit breaking capacities.
• Trip-unit type and protection settings.
• Busbar and terminal connection arrangement.
• Mechanical interlocks and operating accessories.
• Auxiliary contacts and remote-control functions.
• Overall dimensions and switchboard clearances.
• Required standards and certification.

A breaker with a similar frame size or current rating is not automatically a safe replacement. Mechanical fit, fault-interruption capability, and protection coordination must all be confirmed.

Key Advantages

High-Current Distribution Capability

The matching NW10H2 reference configuration has a rated current of 1000 A, making it relevant to appropriately designed high-capacity low-voltage distribution systems.

Short-Circuit Protection

When correctly configured and selected for the installation’s fault level, an air circuit breaker can interrupt abnormal currents to help protect electrical equipment and distribution infrastructure.

Support for Electrical Isolation

A suitable breaker can provide a means of switching and isolating a circuit, subject to the device’s specifications and the site’s safe-isolation procedures.

Integration into Industrial Switchboards

MasterPact-family breakers are designed for use in engineered power distribution assemblies. Correct selection allows the breaker to form part of a coordinated electrical protection system.

Configurable Protection Architecture

The protection functions available depend on the installed trip unit and accessories. This makes verification of the exact configuration particularly important when sourcing replacement equipment.

Maintainability

A well-documented installation with recorded protection settings and inspection history can help maintenance teams identify faults, plan servicing, and reduce the risk of incorrect replacement.

Technical FAQs

1. What is the Schneider Electric MT10H2 Circuit Breaker?

It is a circuit-breaker model designation associated with Schneider Electric MasterPact equipment. The complete catalog number should be verified because published data matching the supplied dimensions corresponds to the NW10H2 reference configuration.

2. What are the dimensions of this circuit breaker?

The supplied dimensions are 352 × 422 × 297 mm. These match published dimensions for the MasterPact NW10H2 reference configuration. Verify the actual unit before designing the switchboard or planning replacement work.

3. What is the weight of the breaker?

The supplied listing weight is 50 kg, matching the published net weight for the NW10H2 reference configuration described above.

4. What is the rated current?

The matching NW10H2 reference configuration is rated at 1000 A. Do not assume this rating applies to every product described as MT10H2 without checking the nameplate.

5. What is the breaking capacity?

The NW10H2 reference configuration has a published ultimate short-circuit breaking capacity of 100 kA at 440 V AC. The applicable rating must be verified at the actual system voltage and against the manufacturer’s documentation.

6. Does the circuit breaker include a trip unit?

The reference configuration described in the matching manufacturer listing is supplied without a control unit. The actual device must be inspected to establish whether a trip unit is installed or needs to be sourced separately.

7. Can it be integrated with a PLC?

Potentially, if the actual breaker configuration includes compatible auxiliary contacts, status accessories, or communication equipment. PLC integration depends on the installed accessories and the control-system design.

8. Can the MT10H2 be replaced directly with an NW10H2?

Not solely on the basis of matching dimensions. Confirm the complete catalog numbers, electrical ratings, mounting arrangements, protection unit, accessories, and switchboard connections before considering a direct replacement.

9. What should be checked when purchasing a used breaker?

Verify the nameplate, complete model number, rated current, voltage class, breaking capacity, trip-unit configuration, mechanical condition, and available test records. Confirm whether the unit includes required accessories and establish the supplier’s warranty and return conditions.

10. What maintenance does an air circuit breaker require?

Maintenance depends on the model, duty, environment, and manufacturer’s schedule. Typical tasks may include inspecting the operating mechanism and connections, checking accessories, reviewing trip-unit settings, and performing the required functional or protection tests. Maintenance must be carried out by qualified personnel using the specified procedures.

Procurement and Maintenance Recommendations

When sourcing a Schneider Electric MT10H2 circuit breaker, begin by confirming the complete catalog number from the device nameplate. Because the supplied dimensions and weight match the NW10H2 reference configuration, it is particularly important to distinguish between the product designation in the listing and the exact model installed in the switchboard.

Before ordering, request clear photographs of the nameplate, front panel, terminals, and installed trip unit. Confirm the number of poles, rated current, voltage, breaking capacity, mounting type, and included accessories. For used or refurbished units, request available inspection and functional-test records.

For replacement projects, review the switchboard drawings and protection-coordination study. Confirm that the replacement fits mechanically and satisfies the electrical requirements of the installation. Do not select a breaker based only on the frame size or the 1000 A rating.

During routine maintenance, follow the manufacturer’s inspection and testing requirements. Record protection settings, inspection findings, and any replaced accessories. Ensure that the device is safely isolated before servicing and that the breaker is returned to operation only after the required checks have been completed.

Conclusion

The Schneider Electric MT10H2 Circuit Breaker is listed for industrial power distribution applications, with supplied dimensions of 352 × 422 × 297 mm and a weight of 50 kg. Published manufacturer data matching these dimensions describes the MasterPact NW10H2, a 1000 A, three-pole, fixed circuit-breaker frame with a specified H2 breaking-performance class.

Because the abbreviated model designation may not uniquely establish the exact configuration, the nameplate and full catalog number should be verified before procurement or replacement. Careful assessment of the rated current, fault-interruption capability, trip unit, mounting arrangement, and switchboard compatibility is essential for safe and reliable operation.
