Product Overview

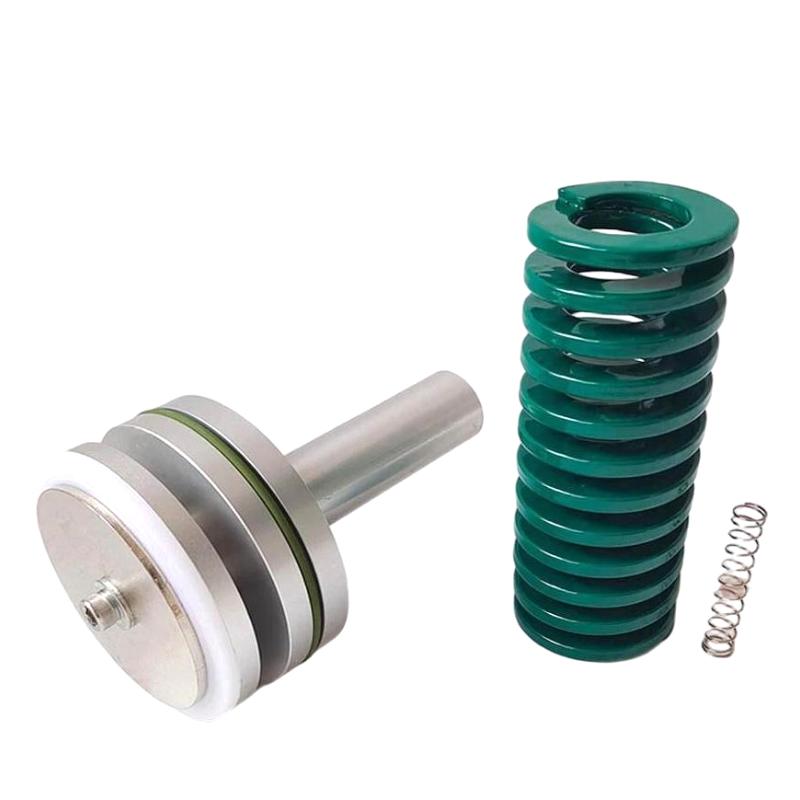

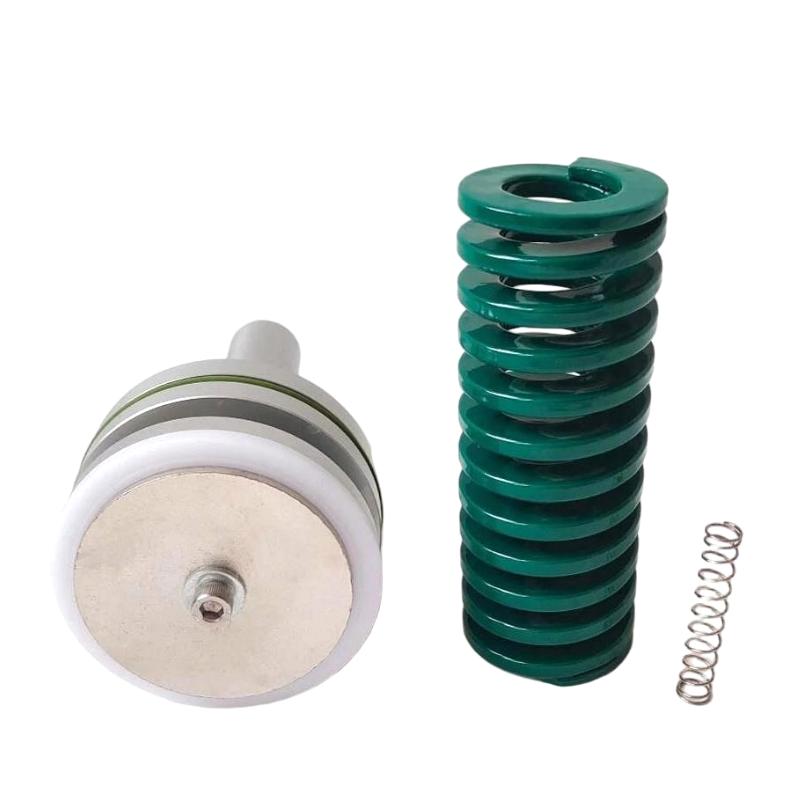

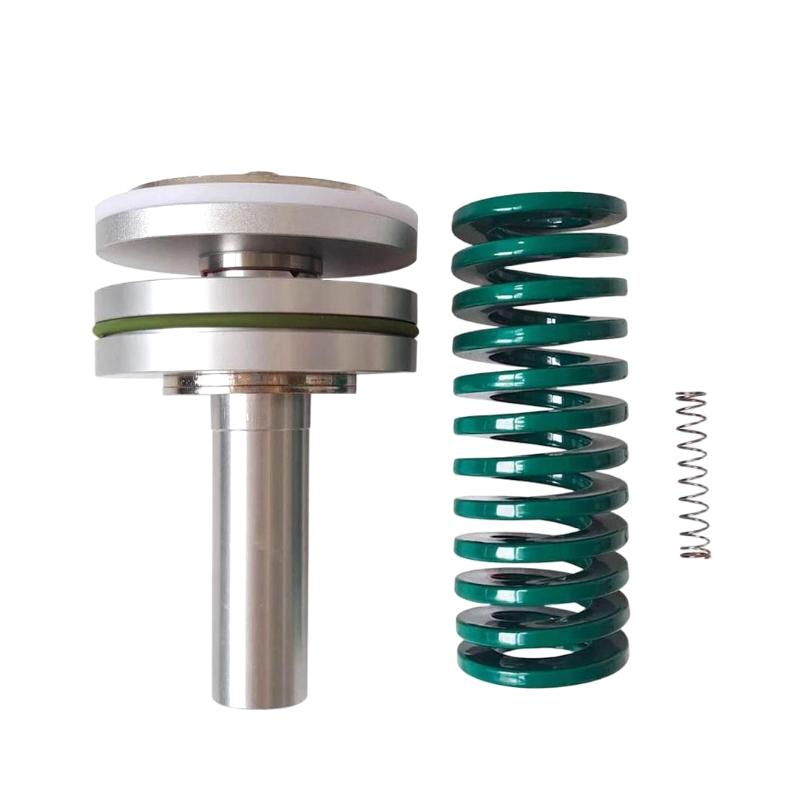

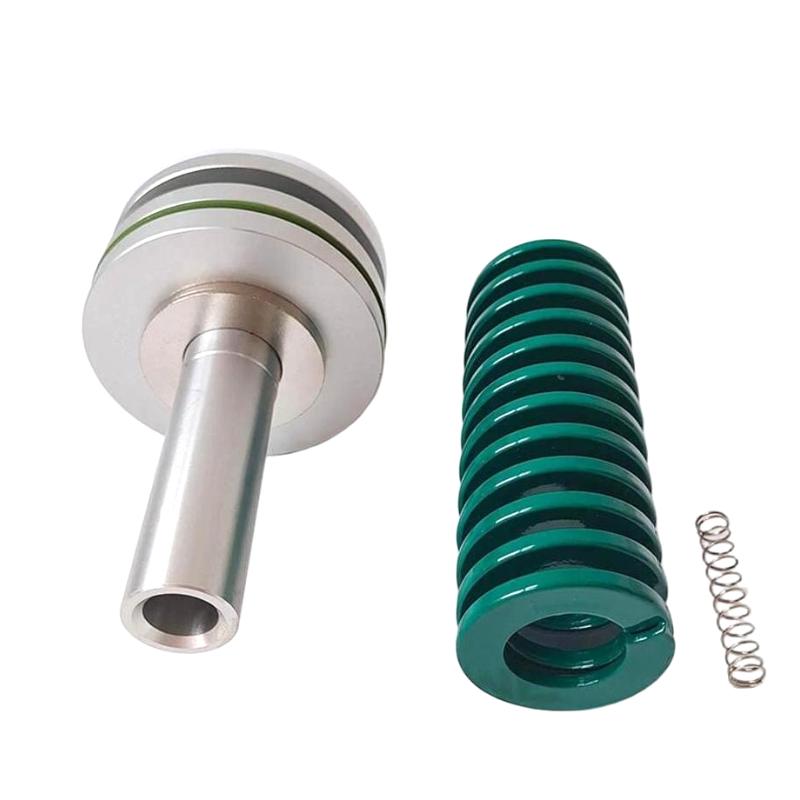

The Ingersoll Rand 47556186001 99289894 Minimum Pressure Check Valve Repair Kit is a service replacement kit designed for maintenance of compatible Ingersoll Rand rotary screw air compressor minimum pressure valve assemblies. This component plays an important role in managing internal pressure and supporting the correct flow of compressed air through the compressor system.

In a rotary screw air compressor, the minimum pressure valve helps maintain sufficient pressure within the oil sump or air-oil separator vessel during startup. Maintaining this pressure supports oil circulation and helps the compressor establish appropriate operating conditions. Once the required opening conditions are reached, the valve permits compressed air to flow toward the downstream air system.

The minimum pressure valve also performs a check-valve function that helps limit reverse airflow from the compressed-air network into the compressor. If the valve becomes worn, contaminated, or damaged, the compressor may experience pressure-related faults, unstable operation, or air leakage.

A repair kit provides replacement parts for servicing the valve assembly without necessarily replacing the complete valve unit. The exact contents depend on the manufacturer’s kit specification and should be confirmed before maintenance begins.

The product is identified by the numbers 47556186001 and 99289894 in the supplied listing. When ordering, buyers should confirm whether both numbers apply to the same assembly or whether one represents a related reference or catalog identifier. Correct identification is especially important when maintaining industrial compressors with different valve configurations.

Technical Specifications

Dimensions and weight are supplied listing data and should be checked against the actual product. Confirm the complete part number, kit contents, and compressor compatibility before installation.

Function and Working Principle

The minimum pressure check valve is part of the compressor’s internal pressure-management arrangement. Its operation affects startup conditions, compressed-air delivery, and the prevention of unwanted reverse flow.

1. Maintaining Minimum Internal Pressure

During startup, the compressor needs to establish appropriate internal pressure before delivering compressed air to the downstream system. The minimum pressure valve helps maintain the required pressure in the separator vessel.

This pressure is important for the operation of oil-injected rotary screw compressors, where oil supports lubrication, cooling, and sealing within the compression element.

If the valve does not close or regulate correctly, the compressor may struggle to establish the required pressure. The result can include low internal pressure, abnormal operating conditions, or related system alarms.

2. Regulating Compressed-Air Discharge

Once the pressure reaches the valve’s opening conditions, the valve permits compressed air to pass toward the outlet system. This supports the transition from startup to normal compressed-air delivery.

The opening pressure and flow characteristics depend on the specific valve design and compressor model. Maintenance personnel should use the applicable service documentation rather than assume that all minimum pressure valves have identical settings.

3. Preventing Reverse Airflow

The check-valve function helps prevent downstream compressed air from flowing backward into the compressor when the operating conditions change or the compressor stops.

If reverse flow occurs because of a faulty valve, it may contribute to abnormal pressure behavior, leakage, or difficulties during shutdown and restart.

A properly serviced valve helps maintain the intended direction of airflow within the compressor system.

4. Supporting Oil Separation and Lubrication

The minimum pressure valve works alongside the oil sump, air-oil separator, and related components. Maintaining suitable internal pressure supports the compressor’s intended oil circulation and separation processes.

The repair kit does not replace the function of the oil separator element, oil filter, or other maintenance parts. These components should be inspected according to the compressor manufacturer’s maintenance schedule.

Role in Industrial Compressed-Air Systems

Compressed air is widely used in manufacturing, material handling, packaging, workshops, and process industries. Stable compressor pressure is important because fluctuations can affect pneumatic equipment and downstream production operations.

The 99289894 repair kit supports maintenance of the minimum pressure valve in compatible compressor systems.

Compressor Startup

The minimum pressure valve helps the compressor establish the internal pressure needed for normal operation. If the valve is faulty, the compressor may experience low sump pressure or take longer than expected to reach normal operating conditions.

Compressed-Air Supply

Once the valve opens under the designed operating conditions, compressed air can flow to downstream piping, air receivers, dryers, filters, and pneumatic equipment.

A correctly functioning valve helps the compressor maintain its intended operating sequence. Overall air-supply performance still depends on compressor capacity, system demand, leakage, and the condition of other components.

Shutdown and Pressure Management

When a compressor stops, pressure conditions change throughout the system. The check-valve function helps control reverse airflow, while other compressor components manage depressurization and unloading.

If pressure remains abnormal after shutdown, technicians should inspect the complete pressure-control arrangement rather than replace the minimum pressure valve without diagnosis.

Industrial Applications

The repair kit is intended for compatible Ingersoll Rand compressor systems. Its practical applications include maintenance work where inspection identifies a problem with the minimum pressure valve assembly.

1. Manufacturing Facilities

Manufacturing plants often depend on compressed air for pneumatic actuators, tooling, conveying equipment, and automated production machinery.

A properly maintained compressor helps provide stable air pressure for these operations. Servicing a faulty minimum pressure valve may help restore the compressor’s intended pressure behavior and reduce unplanned downtime.

2. Packaging and Material Handling

Packaging machines, pneumatic cylinders, and material-handling equipment may rely on a stable compressed-air supply. Pressure irregularities can affect equipment response and production consistency.

The repair kit may be relevant when troubleshooting confirms a minimum pressure valve fault in the compressor supplying these systems.

3. Automotive and Metalworking Workshops

Compressed air is used in workshops for pneumatic tools, cleaning equipment, and selected production processes. A compressor’s pressure-control components must function correctly to support dependable operation.

Routine inspections and timely valve maintenance can help prevent small component faults from developing into more disruptive equipment problems.

4. Industrial Process Operations

Process plants may use compressed air for instrumentation, actuators, and auxiliary equipment. Where compressor availability is important, maintaining pressure-control components is part of an effective maintenance strategy.

The correct repair kit must be matched to the compressor model and valve assembly before use.

Installation and System Integration

The minimum pressure check valve repair kit should be installed by personnel familiar with the applicable Ingersoll Rand compressor and its pressure system.

1. Verify the Part Number

Before ordering or installing the kit, confirm part number 99289894 against the compressor’s parts list, service manual, or approved replacement-parts documentation.

The additional number 47556186001 should also be checked against the supplier’s catalog information to establish its relationship to the kit.

Do not assume that a kit is compatible simply because it is described as an Ingersoll Rand minimum pressure valve repair kit. Different compressor families may use different valve designs and internal components.

2. Isolate the Compressor

Before maintenance, stop the compressor and isolate all relevant energy sources. Allow hot components to cool and follow the manufacturer’s lockout and depressurization procedures.

Never dismantle a pressurized valve assembly. Confirm that pressure has been safely released and that the equipment cannot restart unexpectedly before beginning work.

3. Inspect the Valve Assembly

Inspect the valve body and accessible components for contamination, corrosion, wear, damaged sealing surfaces, or other visible defects.

Check associated piping and connections for signs of leakage or damage. If the valve body or other non-serviceable components are damaged, a repair kit alone may not be sufficient.

4. Replace Components According to the Service Instructions

Use the kit only for the valve assembly it is designed to service. Follow the applicable instructions for disassembly, component replacement, sealing surfaces, fasteners, and reassembly.

Do not reuse damaged seals or substitute components with unverified dimensions or materials. The correct repair procedure and any specified torque values should come from the compressor’s service documentation.

5. Check Related Compressor Components

Minimum pressure valve performance can be affected by other system conditions. During maintenance, consider inspecting the oil level and condition, separator element, oil filter, blowdown valve, pressure transducers, and associated piping where relevant to the reported fault.

This does not mean all these components must be replaced whenever the repair kit is used. Their condition should be assessed according to the maintenance findings and the compressor manufacturer’s recommendations.

6. Test After Reassembly

After completing the repair, restore the system according to the approved startup procedure. Check for leaks, abnormal pressure behavior, unusual noise, and active alarms.

Verify that the compressor establishes internal pressure and delivers compressed air as expected. If the original fault remains, investigate other possible causes rather than repeatedly replacing the same kit.

Compatible System Components

The repair kit works within a broader compressor assembly. Compatibility must be verified for the actual compressor and valve design.

These components are examples of equipment associated with compressed-air systems. They are not necessarily included in the 99289894 repair kit.

Alternative Models and Replacement Considerations

Repair kits should not be selected solely by their general product description. The correct replacement depends on the compressor model, valve assembly, and manufacturer-approved parts references.

Before choosing an alternative, compare the full part number, compressor model, valve dimensions, sealing materials, internal component arrangement, and applicable operating conditions.

A kit that fits one Ingersoll Rand compressor may not fit another. If the original part number has been superseded, obtain confirmation that the replacement is approved for the exact installation.

Key Advantages

Supports Valve Maintenance

The repair kit provides a service option when the minimum pressure valve can be restored by replacing the designated internal components.

Helps Restore Pressure Control

Correctly servicing a faulty valve can help restore the compressor’s intended internal pressure behavior and compressed-air delivery sequence.

Supports Preventive Maintenance

Including valve inspection in a planned maintenance program can help identify wear or leakage before the problem causes a larger operational interruption.

May Reduce Unnecessary Component Replacement

Where the valve body remains serviceable and the manufacturer’s procedure permits repair, a repair kit may avoid replacing the complete valve assembly.

Supports Compressor Reliability

A correctly serviced minimum pressure valve contributes to the overall operation of the compressor’s pressure-management system. Reliability also depends on the condition of the separator, oil system, controls, and other components.

Enables Targeted Troubleshooting

Using the correct kit after confirming a valve fault helps maintenance teams address the identified issue instead of replacing parts without a clear diagnosis.

Technical FAQs

1. What is the Ingersoll Rand 99289894 repair kit?

It is a minimum pressure check valve repair kit used for servicing compatible Ingersoll Rand air compressor valve assemblies.

2. What does a minimum pressure check valve do?

It helps maintain the required internal pressure during compressor startup and permits compressed air to flow downstream once the valve’s opening conditions are reached. Its check-valve function also helps limit reverse airflow.

3. Can the kit be used on every Ingersoll Rand compressor?

No. Compatibility depends on the compressor model and the installed valve assembly. Confirm the full part number using the applicable parts list or service documentation.

4. When should the minimum pressure valve be inspected?

Inspection may be appropriate when troubleshooting identifies low sump pressure, abnormal pressure behavior, leakage, or a related compressor alarm. Follow the manufacturer’s maintenance schedule and diagnostic procedures.

5. Does replacing the kit guarantee that low pressure will be corrected?

No. Low pressure may also result from system leakage, a faulty blowdown valve, control problems, sensor errors, or other compressor faults. Diagnose the cause before replacing parts.

6. Should the complete valve be replaced instead?

If the valve body, seat, or other non-serviceable components are damaged, the repair kit may not be sufficient. The decision should follow the manufacturer’s service instructions and the actual condition of the assembly.

7. What should be checked before installation?

Confirm the part number, compressor model, valve configuration, kit contents, and condition of the valve assembly. Isolate and depressurize the equipment before performing maintenance.

8. Are the listed dimensions and weight manufacturer-confirmed?

The dimensions of 84 × 84 × 202 mm and weight of 1.41 kg are the supplied listing values. Verify them against the actual product or supplier documentation before using them for shipping or inventory purposes.

9. How can buyers reduce the risk of ordering the wrong kit?

Provide the compressor model, serial or equipment identification details where appropriate, existing valve part number, and kit reference to the supplier. Request confirmation of compatibility before placing the order.

Procurement and Maintenance Recommendations

When purchasing the Ingersoll Rand 47556186001 / 99289894 Minimum Pressure Check Valve Repair Kit, begin by identifying the exact compressor and valve assembly. Confirm whether both numbers refer to the same listed kit and whether the kit is approved for the installed equipment.

For industrial maintenance departments, keeping accurate spare-parts records can reduce delays when a valve fault occurs. Records should include the compressor model, component reference, replacement history, and maintenance findings.

Before installation, inspect the supplied parts and compare them with the required service components. Store replacement kits in clean, dry conditions and protect seals and precision components from contamination or damage.

During routine maintenance, investigate abnormal pressure readings and compressor alarms systematically. A faulty minimum pressure valve is one possible cause of low internal pressure, but other parts of the compressor system can produce similar symptoms.

After repair, document the work performed, record any replaced components, and verify operation under the approved startup procedure. This helps establish a maintenance history for future troubleshooting.

Conclusion

The Ingersoll Rand 47556186001 99289894 Minimum Pressure Check Valve Repair Kit is a maintenance component intended for compatible Ingersoll Rand rotary screw air compressors. The minimum pressure check valve helps maintain appropriate internal pressure during startup, regulates compressed-air discharge, and limits reverse airflow under the designed operating conditions.

Correct part identification, safe depressurization, proper installation, and post-repair testing are essential to reliable maintenance. Before purchasing or installing the kit, confirm its compatibility with the exact compressor and valve assembly and verify the supplied product dimensions and weight.
