Product Overview

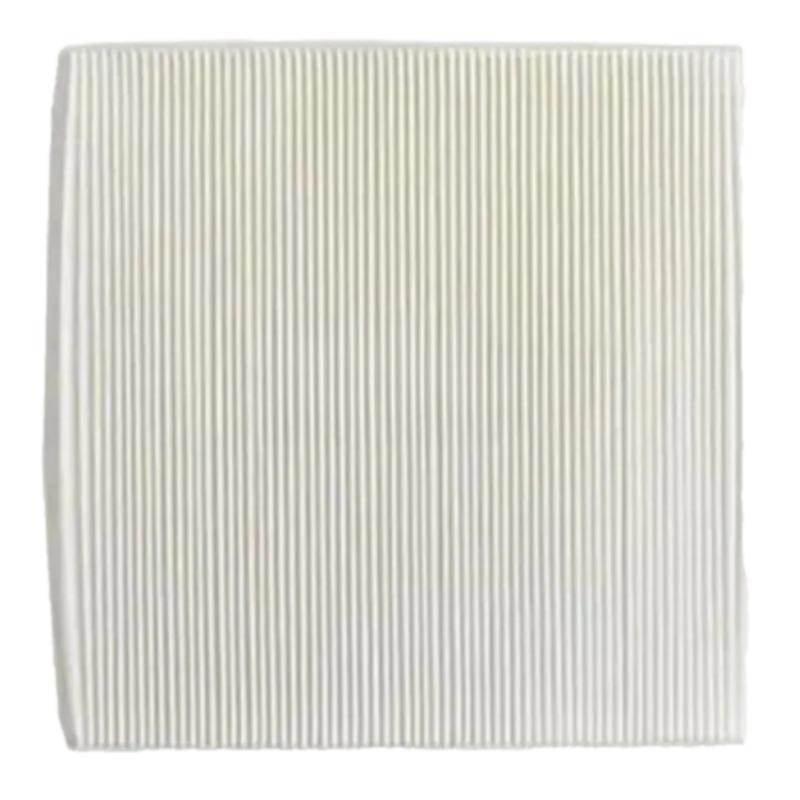

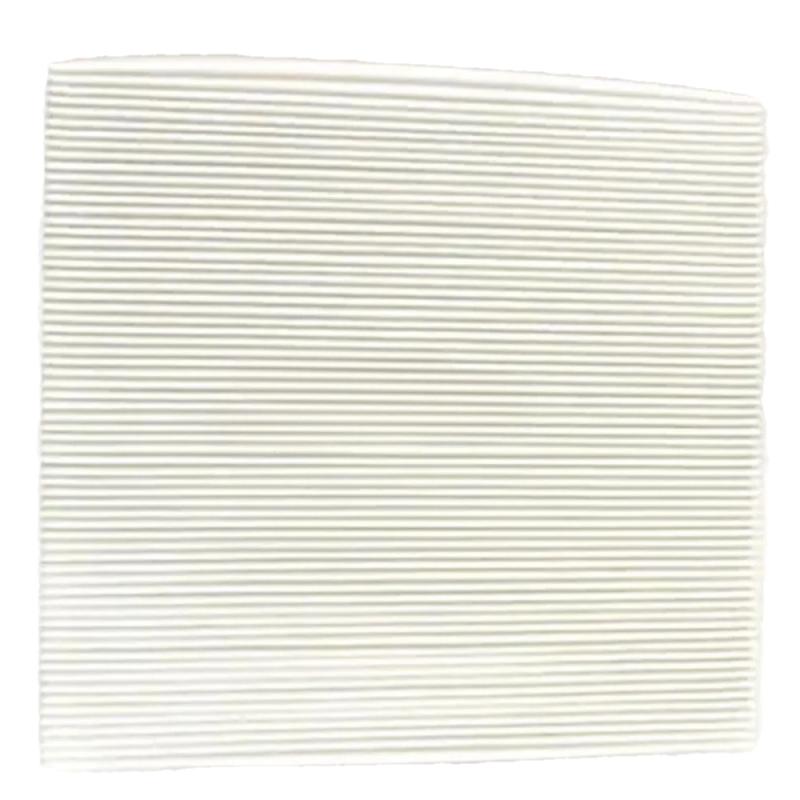

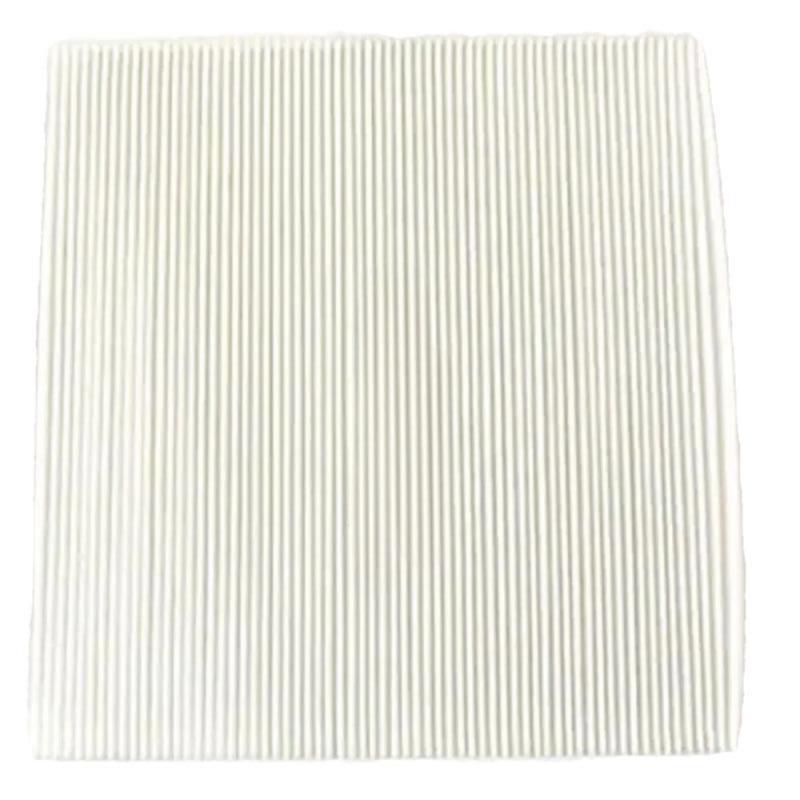

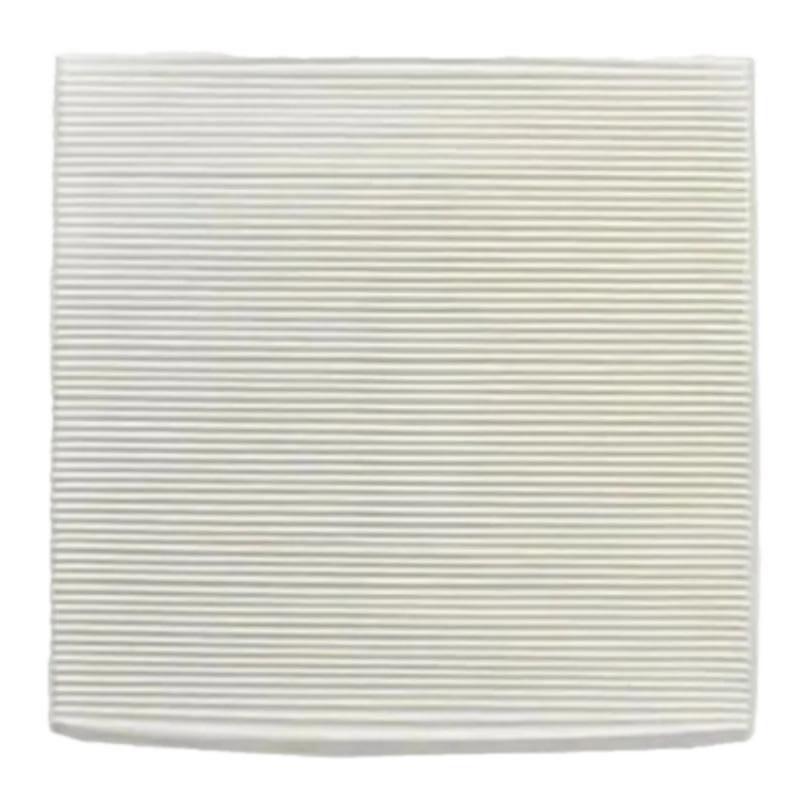

The Ingersoll Rand 47556186001 23564446 Filter Pad is a replacement filtration component associated with industrial air compressor equipment. Filter pads and panel filter elements help control the movement of dust and airborne contaminants into designated equipment compartments, supporting cleaner airflow and protecting sensitive components from environmental contamination.

In industrial compressed-air systems, filtration is an important part of equipment maintenance. Different filters serve different purposes: intake filters help remove contaminants from incoming air, oil filters remove contaminants from compressor lubricant, and cabinet or starter-box filter elements help protect electrical components from dust entering through ventilation openings. Identifying the correct filter type is therefore essential when ordering replacement parts.

Part number 23564446 is identified in available parts listings as a PDM filter element measuring 279 × 268 × 17 mm. It is also listed as a panel or starter-box filter element for compatible Ingersoll Rand rotary screw compressor packages. Its precise application should be verified against the compressor’s model, serial number, and parts documentation before installation.

The supplied product reference includes 47556186001 and 23564446. Buyers should retain both numbers when searching for the replacement component, while confirming which number is shown on the original part or in the equipment parts list.

With its slim, panel-style dimensions, this filter pad is intended for a compatible filter housing or ventilation opening rather than a cylindrical oil-filter or air-oil separator assembly. Correct fit, appropriate filtration media, and proper sealing are important for maintaining the intended airflow and preventing dust from bypassing the filter.

Technical Specifications

Note: The dimensions and weight are the supplied listing specifications. Confirm the exact product configuration and application against the original component and the equipment parts manual.

Function and Working Principle

The primary function of a filter pad is to capture airborne particles as air passes through its filtration media. Its effectiveness depends on the media construction, airflow rate, particle characteristics, sealing arrangement, and condition of the element.

1. Dust Filtration

Air entering an equipment enclosure may carry dust, lint, and other airborne particles. A compatible filter pad intercepts some of these contaminants before they enter the protected compartment.

This is particularly important for electrical cabinets and starter boxes that contain contactors, control components, and drive equipment. Excessive dust accumulation can interfere with heat dissipation and increase maintenance requirements.

2. Airflow Management

A filter must provide suitable filtration while allowing sufficient air to pass through the equipment’s ventilation path. If the media becomes heavily loaded with dust, airflow resistance may increase.

Reduced airflow can contribute to elevated temperatures inside the protected compartment. Regular inspection and replacement help maintain the ventilation performance intended by the equipment design.

3. Protection of Internal Components

Dust entering electrical or mechanical compartments can accumulate on components and surfaces. Depending on the operating environment, this contamination may contribute to overheating, degraded electrical connections, or additional cleaning requirements.

A correctly installed filter pad helps reduce this risk by providing a barrier at the designated air inlet. It should not, however, be treated as a substitute for the enclosure’s other environmental protection measures.

4. Filtration Depends on Correct Fit

A filter pad must match the dimensions and retention method of its intended housing. A poorly fitted element may leave gaps around the frame, allowing air to bypass the media.

For this reason, the 279 × 268 × 17 mm dimensions should be checked against the existing filter and the relevant equipment documentation before ordering.

Role in Industrial Air Compressor Systems

Industrial rotary screw compressors combine mechanical compression, electrical control, cooling, and filtration systems. Different filter elements protect different parts of the package.

Electrical Starter-Box Protection

Some Ingersoll Rand compressor packages use panel-style filter elements to help keep dust out of the electrical starter box. This compartment may contain contactors, variable frequency drive components, and other electrical equipment that require suitable ventilation.

Where part 23564446 is specified for this application, its condition contributes to maintaining the intended balance between ventilation and dust protection.

Supporting Cooling Airflow

Electrical components generate heat during operation. Enclosure ventilation helps remove this heat, provided that the airflow path is correctly designed and maintained.

A clogged or damaged filter can restrict airflow, while an incorrectly fitted element can allow unfiltered air to enter the enclosure. Both conditions may undermine the intended protection of the equipment.

Supporting Maintenance Reliability

Using the correct replacement filter makes it easier to maintain a consistent service routine. Technicians can identify the required part, inspect the filter housing, replace the element, and record the maintenance activity.

The filter pad does not replace the compressor’s main intake filter, oil filter, or air-oil separator. Each component has a different role and must be maintained according to the applicable service instructions.

Industrial Applications

The 23564446 filter element is associated with compatible Ingersoll Rand compressor packages. Actual suitability depends on the model and the installed filter arrangement.

1. Rotary Screw Air Compressors

Rotary screw compressors operate in industrial facilities where reliable compressed-air delivery is essential. Their packages may include separate filtration components for the intake, electrical enclosure, cooling system, and lubricant circuit.

A compatible panel filter helps protect its designated airflow path from dust and other airborne particles.

2. Electrical Starter Cabinets

Electrical starter cabinets contain components that control and distribute electrical power to the compressor. If the design uses filtered ventilation, the filter pad helps reduce the amount of dust entering the enclosure.

Maintaining this filter is particularly relevant in workshops, manufacturing plants, and other environments where airborne dust may accumulate.

3. Variable-Speed Compressor Packages

Variable-speed compressor packages may contain drive electronics that require suitable thermal management. Where a compatible filter pad is installed in the electrical enclosure, keeping it clean helps preserve the designed ventilation path.

The filter should be matched to the specific compressor configuration rather than selected solely because another package uses the same brand.

4. Manufacturing Facilities

Manufacturing environments can contain dust from packaging, material handling, machining, or general production activities. Appropriate filtration helps reduce contamination entering equipment compartments through designated air inlets.

The replacement interval should reflect the environment, operating hours, observed filter condition, and manufacturer guidance.

5. Industrial Utility Rooms

Compressor rooms and utility areas may operate for extended periods. Regular inspection of enclosure filters helps maintenance personnel identify contamination before it becomes severe enough to interfere with airflow.

The surrounding ventilation system and cabinet design should also be inspected when repeated filter blockage occurs.

Installation and System Integration

Correct installation helps preserve filtration performance and prevents unfiltered air from bypassing the media.

1. Verify the Part Number

Before purchasing, compare the existing element with part number 23564446 and the associated reference 47556186001. Check the compressor model, serial number, and parts list.

Do not assume that every Ingersoll Rand compressor uses the same panel filter. Similar dimensions do not guarantee equivalent filtration performance or mechanical fit.

2. Isolate the Equipment Safely

Follow the compressor manufacturer’s shutdown and isolation procedures before accessing the filter housing. If the filter is installed in an electrical starter cabinet, isolate the electrical supply and apply the required lockout/tagout procedures.

Verify that the equipment is in a safe condition before opening the compartment.

3. Remove the Old Filter

Remove the existing filter carefully to avoid dislodging accumulated dust into the protected enclosure. Inspect the filter frame, retaining features, and surrounding surfaces for damage or contamination.

Clean the housing using a method suitable for the equipment and environment. Avoid directing dust or debris onto electrical components.

4. Inspect the Replacement

Before fitting the new element, check its dimensions, media condition, and overall integrity. Do not install a filter that is torn, crushed, wet, or otherwise damaged.

Confirm that the replacement matches the original element’s orientation and retention method.

5. Install and Seal Correctly

Fit the element securely in the designated housing. Make sure the filter is seated evenly and that the surrounding frame or cover closes properly.

Gaps around the filter can allow unfiltered air to bypass the media, reducing its effectiveness even when the filter itself is new.

6. Restore and Inspect Operation

Close the compartment and restore the equipment according to the approved procedure. Check that the ventilation path is unobstructed and that the compressor or electrical enclosure operates normally.

Record the replacement date, part number, and any abnormal dust accumulation. This information can help maintenance teams plan future inspections and identify environmental issues.

Compatible System Components

The filter pad operates as part of a larger compressor package. The following components may be present in compatible installations, but their inclusion and relationship depend on the exact machine configuration.

These components have different functions. The 23564446 filter pad should not be substituted for a main air intake filter, oil filter, or air-oil separator merely because all are described as filters.

Alternative Models and Replacement Considerations

When sourcing a replacement, use the exact part number as the primary reference. Other Ingersoll Rand filter pads may look similar but can differ in dimensions, thickness, media, retention method, and intended application.

Before approving an alternative, check the following:

• Original part number and any secondary reference.
• Compressor model and serial number.
• Filter length, width, and thickness.
• Media type and filtration requirements.
• Housing and retention arrangement.
• Airflow requirements and pressure-drop limitations.
• Environmental conditions and service interval.
• Supplier quality, traceability, and return policy.

A filter that fits physically may not deliver the required filtration performance. Where the filter protects electrical equipment, using an unverified material can also affect enclosure airflow and component cooling.

Key Advantages

Helps Reduce Dust Ingress

A correctly installed filter pad helps capture airborne contaminants before they enter the protected compartment through the designated ventilation opening.

Supports Equipment Cooling

Maintaining a clean filter helps preserve airflow through compatible electrical enclosures and other designated ventilation paths.

Compact Panel-Style Design

The supplied 279 × 268 × 17 mm dimensions describe a slim filter element intended for a compatible housing.

Supports Preventive Maintenance

The filter can be inspected and replaced as part of routine compressor servicing, helping maintenance teams manage contamination and airflow conditions.

Lightweight Replacement Component

The supplied weight is 0.1 kg, making the element relatively easy to handle during routine replacement.

Helps Maintain Equipment Cleanliness

By reducing airborne dust entering the intended compartment, the filter supports a cleaner internal environment and can reduce the frequency of cleaning caused by environmental contamination.

Technical FAQs

1. What is the Ingersoll Rand 47556186001 23564446 Filter Pad?

It is a panel-style filtration component associated with compatible Ingersoll Rand industrial compressor equipment. Part number 23564446 is listed as a PDM filter element.

2. What are the dimensions of the 23564446 filter pad?

The supplied dimensions are 279 × 268 × 17 mm. Verify these measurements against the original component and the equipment documentation before ordering.

3. What is the weight of this filter pad?

The supplied product weight is 0.1 kg. Shipping weight may differ depending on packaging.

4. What does this filter pad do?

It filters airborne particles from a designated airflow path. In compatible applications, it may help protect an electrical starter box or panel compartment from dust.

5. Is this the same as the compressor’s main air intake filter?

Not necessarily. Part 23564446 is listed as a PDM or panel-style filter element. The main compressor intake filter is a separate component in many installations and must be identified independently.

6. Can this filter pad replace an oil filter?

No. An oil filter is designed for the lubricant circuit, whereas a panel filter pad filters air. The components have different designs and cannot be interchanged.

7. How often should the filter pad be replaced?

Follow the service interval specified for the exact compressor model. The interval may also depend on operating hours, ambient dust levels, and observed filter condition. Inspect it more frequently in dusty environments.

8. Can the filter pad be cleaned and reused?

Do not assume that cleaning is permitted. The appropriate method depends on the filter media and the manufacturer’s instructions. Replace the element if it is damaged, heavily loaded, or specified as a disposable filter.

9. What happens if the filter becomes blocked?

A heavily loaded filter can restrict airflow through the protected compartment. This may contribute to increased internal temperature and reduced cooling performance in equipment that relies on filtered ventilation.

10. How can I confirm compatibility before purchasing?

Check the compressor model and serial number against its parts manual, and compare the original filter number, dimensions, and mounting arrangement. Confirm that both the part number and intended filter location match.

Procurement and Maintenance Recommendations

When purchasing the Ingersoll Rand 47556186001 23564446 Filter Pad, verify the exact reference against the original element and the compressor’s parts documentation. Because filter pads, intake filters, oil filters, and separator elements perform different functions, the product description alone should not be used to establish compatibility.

For export procurement, confirm the dimensions, supplied weight, quantity, packaging condition, and part-number marking. If an aftermarket replacement is being considered, request documentation for the media and filtration performance rather than relying solely on external dimensions.

During maintenance, inspect the filter at the interval recommended for the compressor. Replace damaged or excessively contaminated elements, check the housing for gaps, and ensure that the surrounding ventilation path is unobstructed.

Keep records of the installed part number, replacement date, equipment model, and observed contamination level. These records help identify recurring environmental problems and improve maintenance planning.

Conclusion

The Ingersoll Rand 47556186001 23564446 Filter Pad is a compact, panel-style filtration component with supplied dimensions of 279 × 268 × 17 mm and a weight of 0.1 kg. Part number 23564446 is identified in available product listings as a PDM filter element associated with compatible industrial air compressor equipment.

For reliable replacement, verify the exact part number, compressor model, filter location, and media requirements before installation. Correct selection and regular maintenance help preserve airflow and reduce dust contamination in the equipment compartment the filter is designed to protect.
