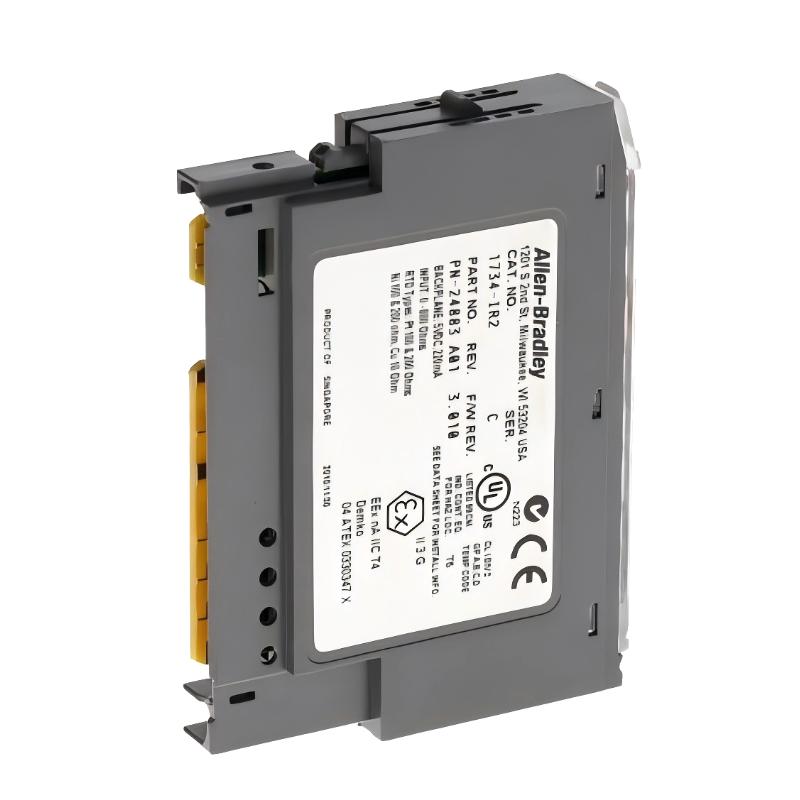

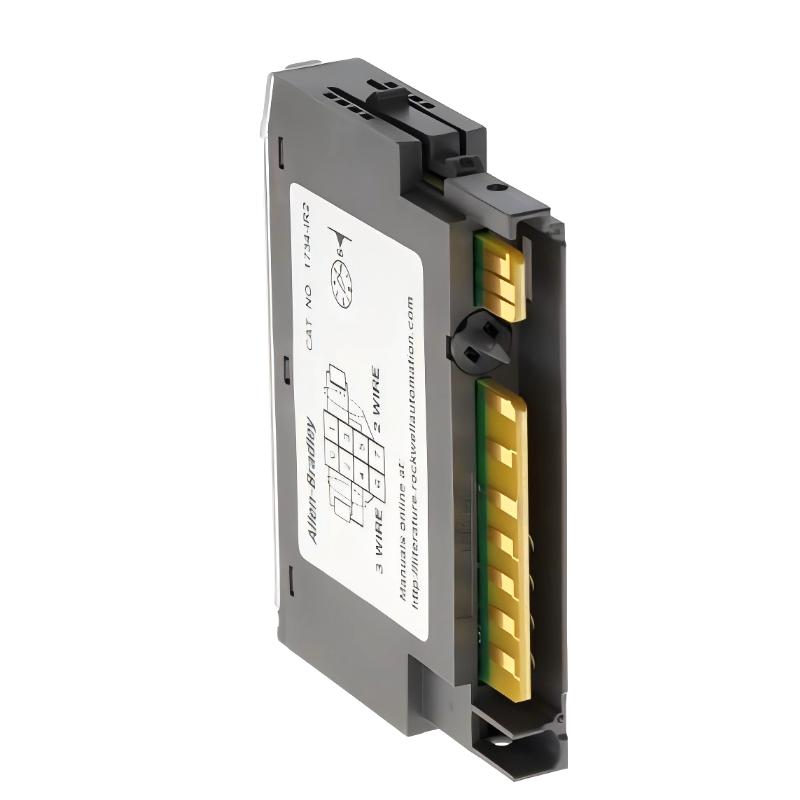

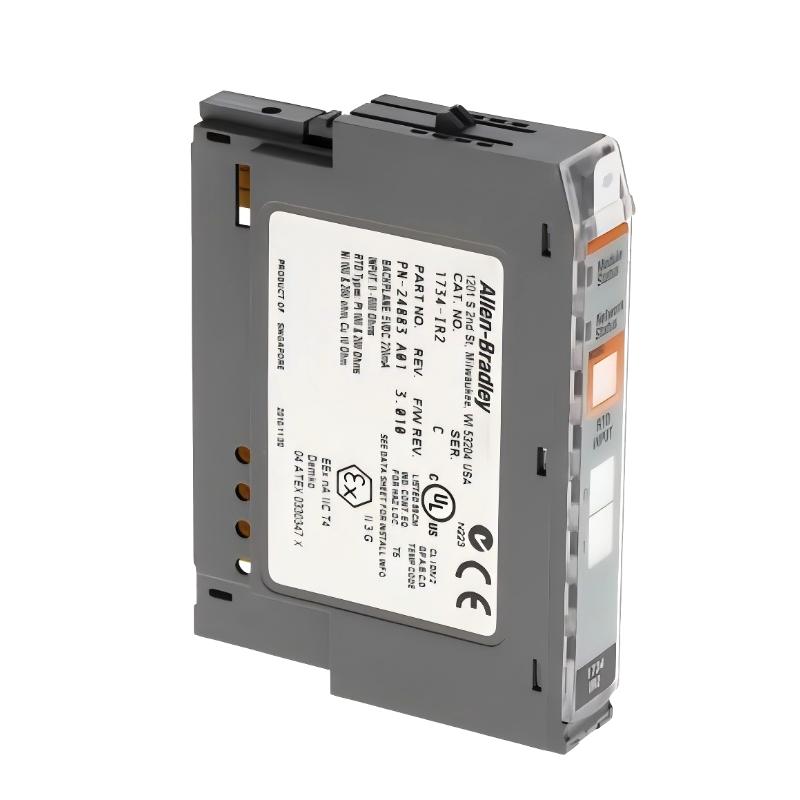

Allen Bradley 1734-IR2K — Detailed Technical Overview (POINT I/O RTD Input Module, Conformal Coated Version)
1. Product Overview
The Allen Bradley 1734-IR2K is a 2-channel RTD (Resistance Temperature Detector) input module designed for accurate temperature measurement in distributed industrial automation systems. This version is typically distinguished by its enhanced environmental protection (conformal coating), making it suitable for harsher industrial environments where humidity, dust, or corrosive elements may be present.
The module is engineered to process resistance-based temperature signals from RTD sensors such as Pt100, Pt200, Pt500, and Pt1000. It converts resistance values into precise temperature readings, supporting applications where thermal stability and measurement accuracy are critical.
Integrated into a POINT I/O system, the module communicates through a backplane and connects to a controller via a network adapter. Its compact design allows it to be installed close to field devices, minimizing signal degradation and improving overall system performance.
2. Brand and Series
- Brand: Allen Bradley
- Series: POINT I/O (1734 Series)
- Product Type: RTD / Resistance Analog Input Module (Conformal Coated)
The POINT I/O series is widely used for distributed automation, offering flexible configuration and reliable performance across a broad range of industrial applications.
3. Technical Parameters
Parameter Table
| Parameter | Specification |
|---|---|
| Model | 1734-IR2K |
| Module Type | Analog Input (RTD / Resistance) |
| Number of Channels | 2 |
| Input Type | RTD / Resistance |
| Supported Sensors | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120 |
| Resistance Range | Approx. 0–600 Ω |
| Temperature Range | Sensor dependent (e.g., Pt100: -200°C to +850°C) |
| Resolution | 16-bit |
| Measurement Resolution | Approx. 0.1°C |
| Accuracy | ±0.1% full scale (typical) |
| Conversion Time | Approx. 50–400 ms per channel |
| Excitation Current | Approx. 0.2–0.3 mA |
| Input Configuration | 2-wire / 3-wire supported |
| Environmental Protection | Conformal coating |
| Backplane Current | Approx. 75 mA @ 5V DC |
| Power Dissipation | Approx. 1 W |
| Isolation | Channel-to-backplane isolation |
| Diagnostics | Open-circuit detection |
| Indicators | Module status LED |
| Mounting | DIN Rail (via terminal base) |
| Enclosure | Open-style |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Dimensions | Approx. 56 × 12 × 75.5 mm |
| Weight (kg) | Approx. 0.04 kg |
4. Product Features
The 1734-IR2K provides two independent RTD input channels, enabling accurate and stable temperature measurement in industrial environments.
It supports multiple RTD sensor types, allowing flexibility across different process requirements.
The conformal coating enhances resistance to environmental factors such as moisture, dust, and corrosive atmospheres.
The module includes built-in excitation current and signal conditioning, ensuring reliable and consistent readings.
It supports multiple wiring configurations, improving measurement accuracy by compensating for lead resistance.
Its compact form factor allows easy installation in distributed I/O systems.
5. Typical Applications
The 1734-IR2K is widely used in environments requiring both precision and durability:
- Chemical and petrochemical processing
- Food and beverage production in humid environments
- Marine and offshore systems
- Power generation facilities
- Industrial furnaces and heat treatment systems
- Environmental monitoring systems
It is especially suitable for applications where environmental conditions may affect standard electronic components.
6. Product Advantages
Enhanced Environmental Protection
Conformal coating improves durability in harsh conditions.
High Measurement Accuracy
Provides precise temperature readings using RTD sensors.
Wide Sensor Compatibility
Supports various RTD types and resistance ranges.
Stable Signal Processing
Integrated excitation and filtering ensure reliable performance.
Compact and Modular Design
Ideal for distributed control systems with limited space.
Reliable Diagnostics
Detects sensor faults such as open circuits.
7. Recommended Models (Same Series or Related)
POINT I/O Series Related Models
| Model | Type | Channels | Signal Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1734-IR2K | Analog Input | 2 | RTD/Resistance | 56×12×75.5 | 0.04 |
| 1734-IR2 | Analog Input | 2 | RTD/Resistance | 56×12×75.5 | 0.04 |
| 1734-IK | Analog Input | 2 | Thermocouple/mV | 56×12×75.5 | 0.05 |
| 1734-IE2C | Analog Input | 2 | Current | 56×12×75.5 | 0.05 |
| 1734-IE2V | Analog Input | 2 | Voltage | 56×12×75.5 | 0.05 |
| 1734-AENT | Adapter | N/A | — | 133×56×79.8 | 0.30 |
