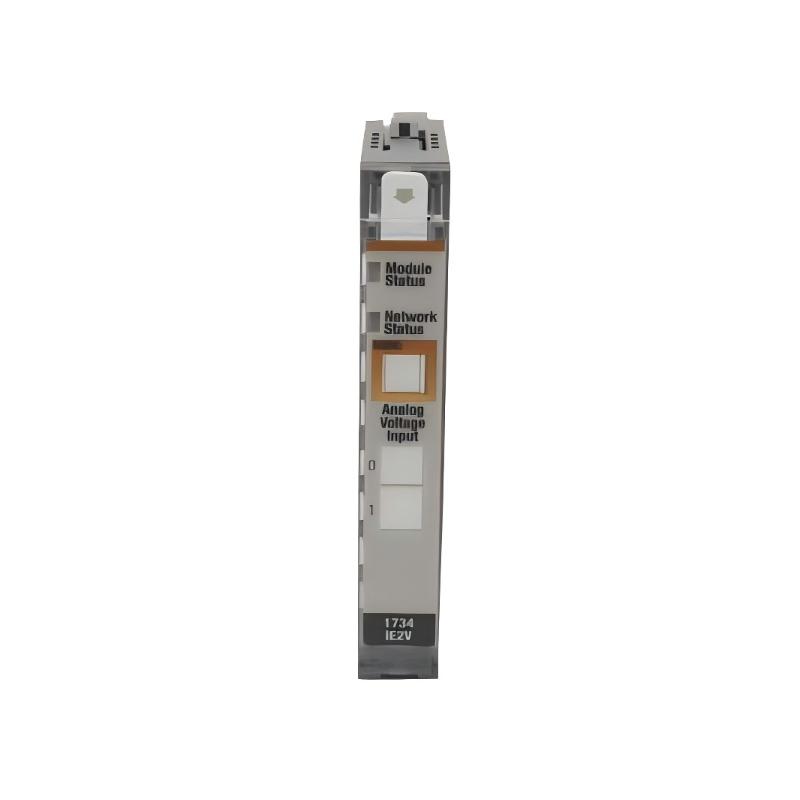

Allen Bradley 1734-IE2V — Detailed Technical Overview (POINT I/O Analog Voltage Input Module)
1. Product Overview
The Allen Bradley 1734-IE2V is a 2-channel analog voltage input module designed for distributed industrial control systems. It belongs to a modular I/O platform that allows signal acquisition close to field devices, improving system efficiency and reducing wiring complexity.
This module is specifically designed to process voltage-based analog signals, typically in ranges such as 0–10V DC or ±10V DC, depending on configuration. It is commonly used to measure variables generated by transmitters, sensors, and instrumentation devices.
The 1734-IE2V operates within a POINT I/O system, communicating through a backplane to a network adapter, which transmits data to the main controller. Its compact design and stable performance make it suitable for precise measurement tasks in distributed environments.
2. Brand and Series
- Brand: Allen Bradley
- Series: POINT I/O (1734 Series)
- Product Type: Analog Voltage Input Module
The POINT I/O series is designed for scalable and flexible automation architectures, allowing users to build customized I/O solutions based on specific application requirements.
3. Technical Parameters
Parameter Table
| Parameter | Specification |
|---|---|
| Model | 1734-IE2V |
| Module Type | Analog Input (Voltage) |
| Number of Channels | 2 |
| Input Signal Range | 0–10V / ±10V DC |
| Input Resolution | 16-bit |
| Input Impedance | >1 MΩ |
| Accuracy | ±0.1% of full scale (typical) |
| Conversion Time | Approx. 5–10 ms |
| Data Representation | Integer / scaled engineering units |
| Backplane Current | Approx. 75 mA @ 5V DC |
| Power Dissipation | Approx. 1.2 W |
| Isolation | Channel-to-backplane isolation |
| Indicators | Module status LED |
| Wiring Category | Analog voltage signals |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Mounting | DIN Rail (via terminal base) |
| Enclosure | Open-style |
| Dimensions | Approx. 56 × 12 × 75.5 mm |
| Weight (kg) | Approx. 0.05 kg |
4. Product Features
The 1734-IE2V provides two high-resolution analog voltage input channels, enabling accurate acquisition of voltage-based signals.
It supports common industrial voltage ranges, ensuring compatibility with a wide variety of sensors and transmitters.
The module features stable signal conversion and high input impedance, minimizing signal distortion and ensuring measurement accuracy.
Its compact size allows installation in distributed control panels and field enclosures with limited space.
The module integrates seamlessly into POINT I/O systems, allowing easy expansion and flexible configuration.
5. Typical Applications
The 1734-IE2V is widely used in applications where voltage-based analog signals are required:
- Monitoring analog sensors and transmitters
- Motion control systems (feedback signals)
- Laboratory and testing equipment
- Process control systems
- Energy monitoring and measurement
- Industrial automation and distributed I/O systems
It is particularly suitable for applications where voltage signals are preferred due to sensor type or system design.
6. Product Advantages
High Accuracy Measurement
Provides precise acquisition of voltage signals with high resolution.
Wide Signal Compatibility
Supports standard voltage ranges used in industrial environments.
High Input Impedance
Reduces signal loading and ensures accurate readings.
Compact and Modular Design
Ideal for distributed installations with limited space.
Reliable Performance
Stable operation in demanding industrial conditions.
Flexible Integration
Easily combined with other modules in the POINT I/O system.
7. Recommended Models (Same Series or Related)
POINT I/O Series Related Models
| Model | Type | Channels | Signal Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1734-IE2V | Analog Input | 2 | Voltage | 56×12×75.5 | 0.05 |
| 1734-IE2C | Analog Input | 2 | Current | 56×12×75.5 | 0.05 |
| 1734-IE4C | Analog Input | 4 | Current | 56×12×75.5 | 0.06 |
| 1734-OE2V | Analog Output | 2 | Voltage | 56×12×75.5 | 0.05 |
| 1734-OE2C | Analog Output | 2 | Current | 56×12×75.5 | 0.05 |
| 1734-AENT | Ethernet Adapter | N/A | — | 133×56×79.8 | 0.30 |
8. Recommended Popular Models (Same Brand)
Popular Models
| Model | Type | Key Function | Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1769-L33ER | PLC Controller | Compact controller | 24V DC | 118×87×87 | 0.50 |
| 1756-L81E | PLC Controller | High-performance controller | 24V DC | 175×90×140 | 0.65 |
| 1756-EN2T | Communication | Ethernet module | 24V DC | 145×35×140 | 0.30 |
| 1734-AENTR | Adapter | Ethernet I/O adapter | 24V DC | 56×12×75.5 | 0.04 |
| 5069-IF8 | Analog Input | 8-channel analog input | 24V DC | 138×42×95 | 0.30 |
