Product Overview

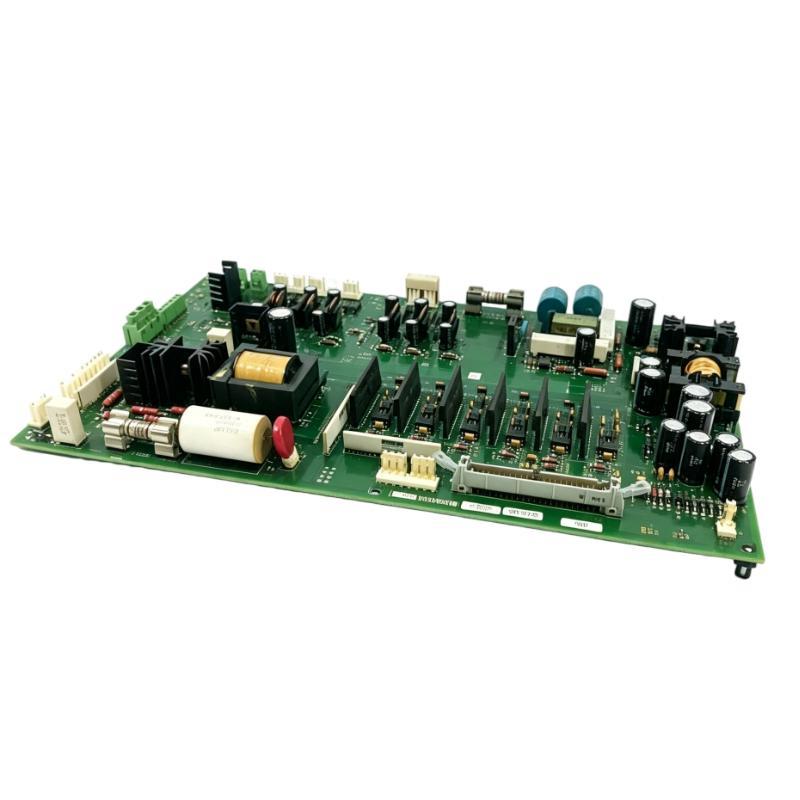

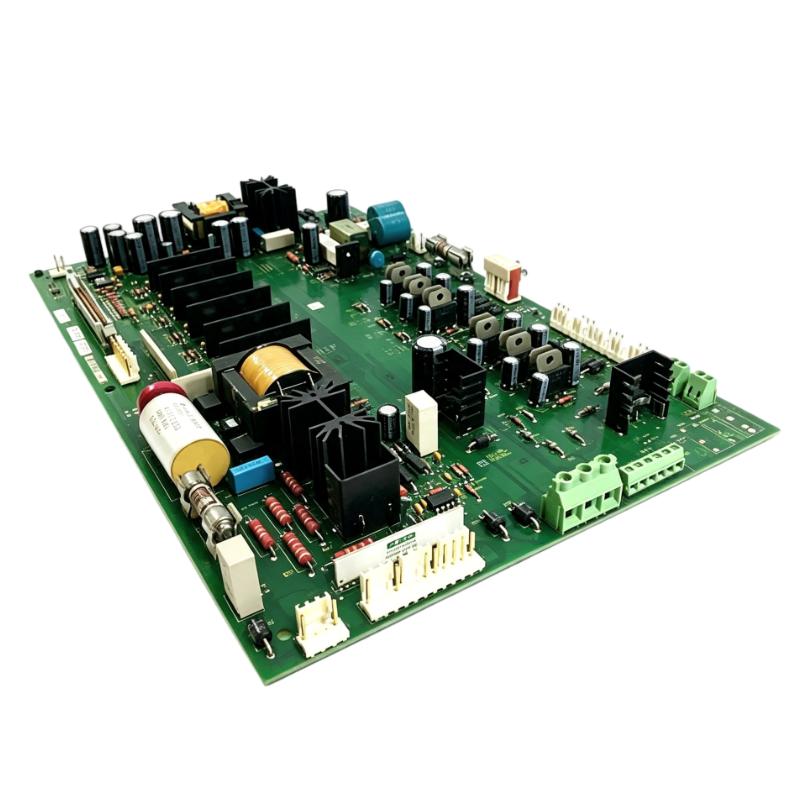

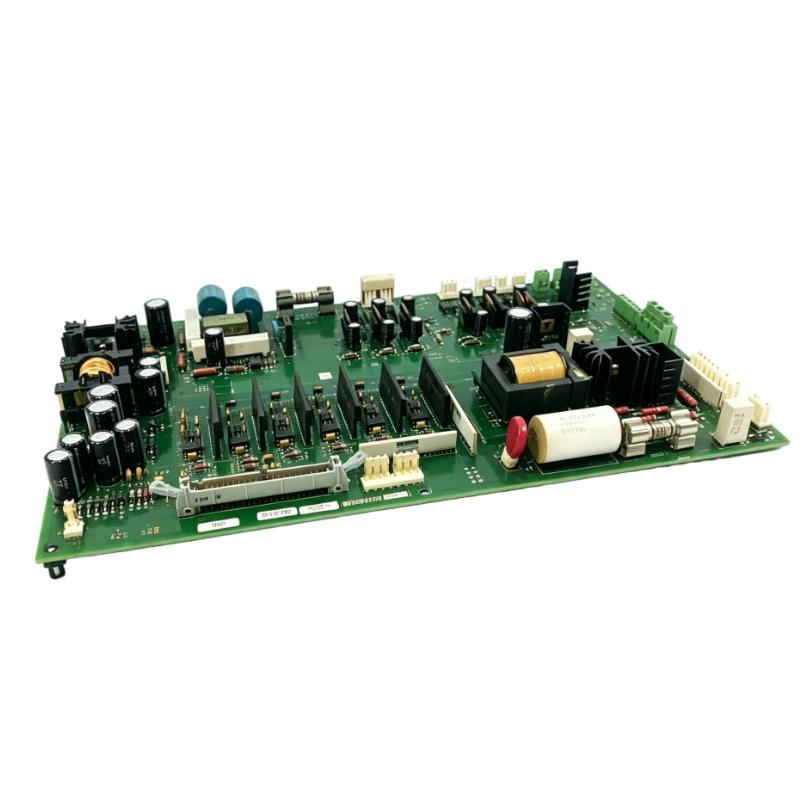

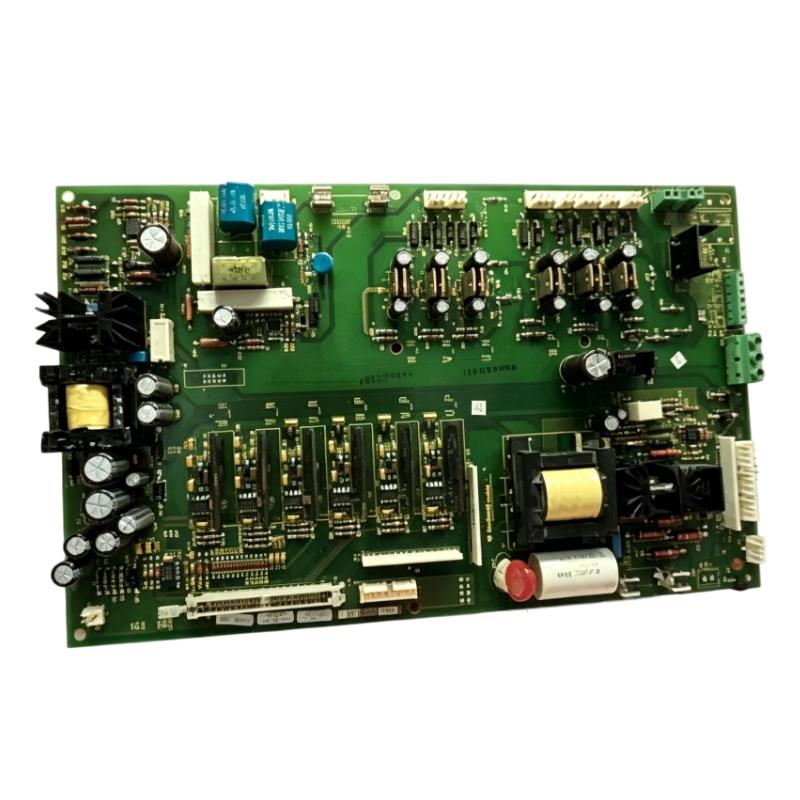

The Allen Bradley 1336-BDB-SP31C Gate Driver is a drive-level electronic component associated with the Allen Bradley 1336 series of industrial motor drives. Its primary function is related to the control and driving of the power switching circuitry used within the drive.
A gate driver is an important part of a power electronics system because the control signals generated by the drive’s control circuitry normally cannot be applied directly to power semiconductor devices. The gate driver provides the appropriate interface between the low-power control electronics and the higher-power switching stage.
In a variable frequency drive, the switching devices are responsible for rapidly controlling electrical energy supplied to the motor. The gate driver therefore plays an important role in ensuring that these devices receive the required drive signals at the appropriate time.
The 1336-BDB-SP31C is intended for use as part of the drive’s internal hardware rather than as a standalone motor controller. Its compatibility is closely related to the specific 1336 drive configuration, power stage, and hardware revision.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1336-BDB-SP31C |
| Product Type | Gate Driver |
| Series | 1336 Series |
| Main Function | Power Semiconductor Gate Drive |
| System Role | Drive Power Stage Interface |
| Application | Industrial Motor Drives |
| Typical Use | Variable Frequency Drive Hardware |
| Dimensions | 150 × 100 × 50 mm |
| Weight | 0.5 kg |
| Application Area | Industrial Motor Control |
Product Features
The 1336-BDB-SP31C is designed to perform the gate-driving function required between drive control electronics and power switching devices.
Key characteristics include:
- Gate driver design for industrial drive hardware
- Associated with Allen Bradley 1336 series drives
- Interfaces control signals with the power switching stage
- Supports switching device control
- Suitable for motor drive applications
- Compact 150 × 100 × 50 mm dimensions
- Stated weight of 0.5 kg
- Intended for integration into drive hardware
- Designed for industrial operating environments
Because the gate driver is part of the power electronics section, correct matching with the associated drive hardware is essential.
Working Principle
The gate driver receives control information from the drive’s control circuitry and converts it into suitable drive signals for the associated power semiconductor devices.
In a typical motor drive, the control system determines when individual switching devices should turn on or off. The gate driver provides the electrical interface needed to control those devices.
A simplified operating path is:
Drive Control Circuit → Gate Driver → Power Switching Devices → Motor
The switching devices then regulate the electrical energy supplied to the motor. By controlling the switching sequence, the drive can regulate motor speed, torque, and other operating characteristics.
The gate driver therefore sits between the low-level control circuitry and the high-power switching stage. Its operation is closely tied to the electrical design of the drive and should not be treated as an independent control module.
Role in Allen Bradley 1336 Drives
The 1336-BDB-SP31C performs a specialized function within the drive’s internal power electronics.
| Function | Description |
| Gate Signal Interface | Transfers control signals toward power switching devices |
| Power Stage Control | Supports operation of the drive switching stage |
| Signal Conditioning | Provides the appropriate interface for gate control |
| Switching Control | Enables controlled switching of power semiconductor devices |
| Drive Integration | Works as part of the overall 1336 drive architecture |
| Motor Control Support | Contributes to controlled electrical power delivery to the motor |
A fault in the gate-driving section can affect the operation of the drive even when the motor and external control signals are otherwise functioning correctly.
Industrial Applications
The 1336-BDB-SP31C is associated with industrial motor drive applications where controlled power conversion is required.
| Application | Typical Use |
| Industrial Motors | Variable-speed motor control |
| Conveyors | Motor speed and acceleration control |
| Pumps | Controlled motor operation |
| Fans | Speed regulation |
| Material Handling | Drive-based motor control |
| Machine Tools | Motor control and process coordination |
| Production Equipment | Variable-speed operation |
| Industrial Automation | Motor drive integration |
The exact application depends on the 1336 drive model in which the gate driver is installed.
Installation and Maintenance
The 1336-BDB-SP31C is not normally treated like a standard plug-in I/O module. Installation or replacement involves working with internal drive electronics and therefore requires appropriate electrical safety procedures.
Before replacement, the drive should be isolated from all relevant power sources and allowed to discharge according to the applicable maintenance procedure.
Recommended checks include:
- Confirm the complete 1336-BDB-SP31C part number.
- Verify that the component matches the drive’s hardware configuration.
- Check the drive model and applicable hardware revision.
- Inspect connectors and mounting points.
- Check for visible damage or signs of overheating.
- Verify the condition of associated power electronics.
- Confirm correct installation before energizing the drive.
- Perform appropriate drive testing after replacement.
Because the component is associated with power switching circuitry, improper installation can result in drive malfunction or damage to other electronic components.
Related Drive Components
The gate driver works together with several other parts of a variable frequency drive.
| Component | Function |
| Control Board | Generates and manages drive control signals |
| Gate Driver | Interfaces control signals with power switching devices |
| Power Semiconductor Devices | Switch electrical power to the motor |
| DC Bus Circuit | Provides the intermediate DC power supply |
| Capacitors | Stabilize and filter the DC bus |
| Current Sensors | Provide motor current feedback |
| Cooling System | Removes heat from power electronics |
| Motor | Converts controlled electrical power into mechanical output |
A fault diagnosis should therefore consider the complete drive power stage rather than automatically attributing a fault to the gate driver.
Recommended Related Models
| Model / Component | Type | Primary Function | Application |
| Allen Bradley 1336-BDB-SP31C | Gate Driver | Power switching control interface | 1336 series drives |
| Allen Bradley 1336 Series Drive Components | Drive Hardware | Drive system maintenance | Industrial motor control |
| Allen Bradley Drive Control Boards | Control Electronics | Drive logic and signal processing | Variable frequency drives |
| Allen Bradley Power Components | Power Electronics | Motor power conversion | Industrial drives |
| Allen Bradley Feedback Components | Feedback Hardware | Motor operating feedback | Closed-loop applications |
When selecting a replacement gate driver, the exact drive model, hardware revision, power rating, board configuration, and complete part number should be checked. A component with similar dimensions is not necessarily electrically compatible.
Key Advantages
- Provides a dedicated gate-driving function
- Supports power switching within industrial drive hardware
- Associated with Allen Bradley 1336 series drives
- Interfaces drive control electronics with the power stage
- Supports controlled motor power conversion
- Suitable for industrial variable frequency drive applications
- Compact 150 × 100 × 50 mm dimensions
- Stated weight of 0.5 kg
- Designed for integration into drive hardware
Technical FAQs
What is the purpose of a gate driver inside a variable frequency drive?
A gate driver provides the electrical interface between the drive’s control circuitry and the power semiconductor switching devices. It allows low-level control signals to operate the power stage safely and appropriately.
What symptoms can indicate a problem in the gate-driving section?
Depending on the failure mode, symptoms may include drive faults, abnormal switching behavior, inability to start the motor, excessive current, unusual power-stage heating, or repeated protective trips. Proper drive diagnostics should be used to determine the actual fault location.
Why must the 1336-BDB-SP31C be matched to the correct drive hardware?
Gate-driver circuitry is closely related to the voltage, switching devices, control signals, and protection design of the drive’s power stage. Using an incompatible driver can cause incorrect switching or damage to associated components.
What should be inspected before replacing a failed gate driver?
The associated power semiconductor devices, control board signals, connectors, DC bus condition, cooling system, and signs of electrical or thermal damage should also be checked. Replacing only the driver without identifying the original cause may result in another failure.
