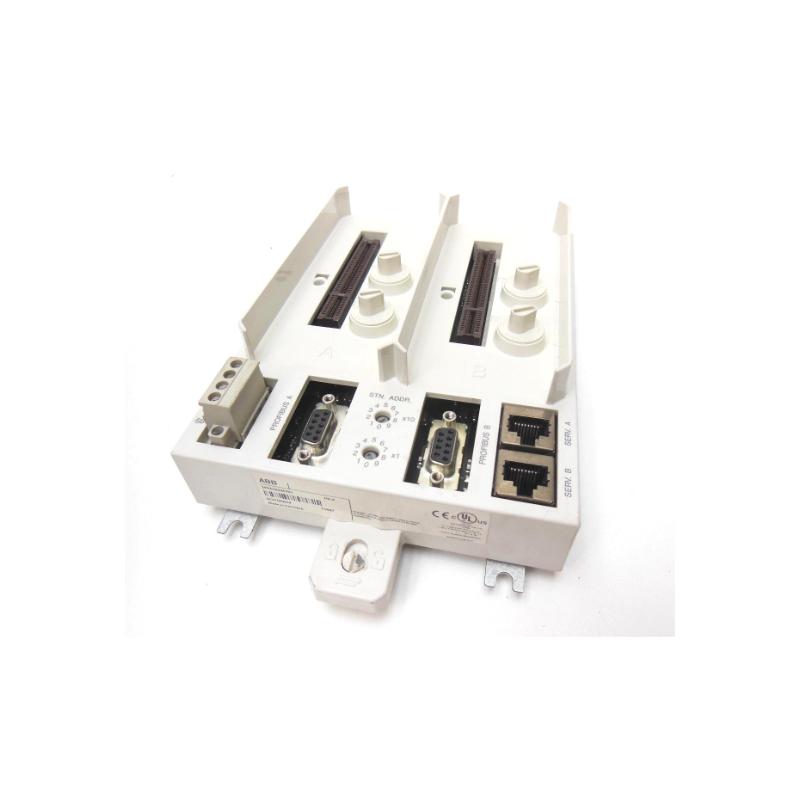

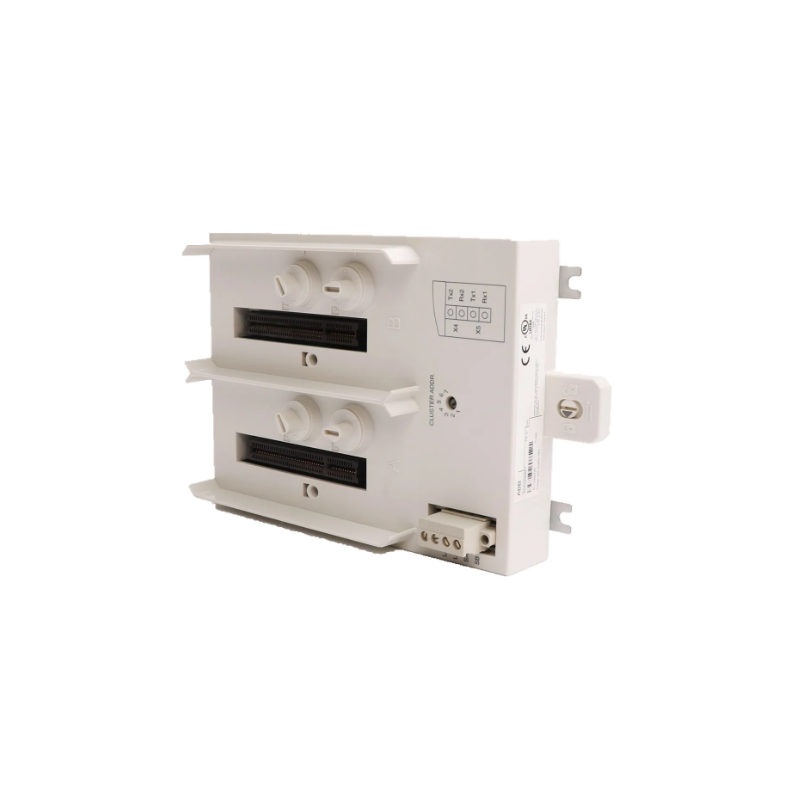

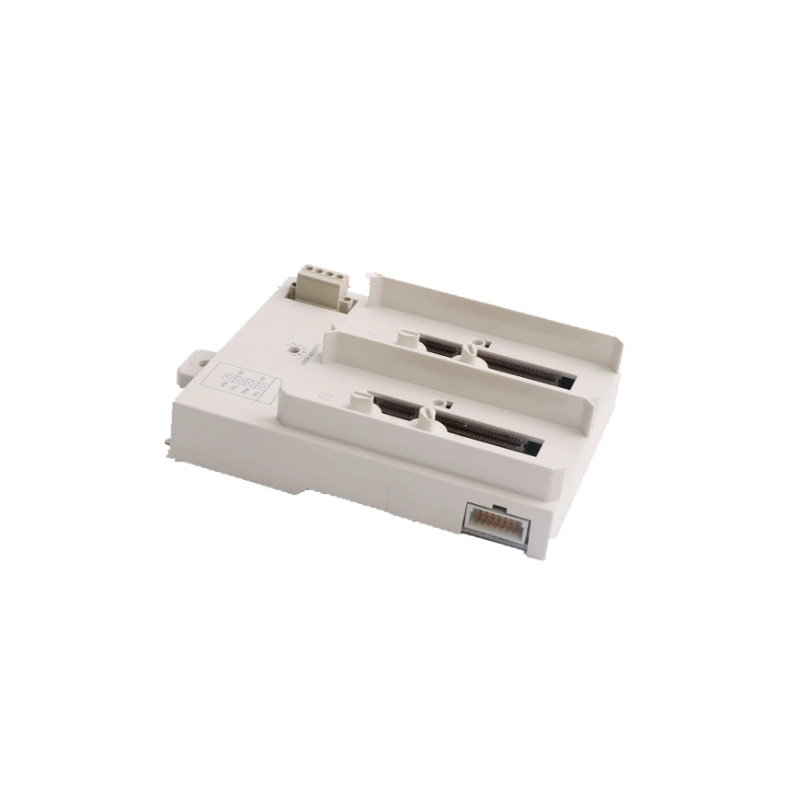

Product Profile – ABB TU847Z (3BSE035338R1)
1. Product Introduction
The TU847Z (3BSE035338R1) is a high‑capacity termination and interface unit designed for organizing large numbers of field connections in industrial automation, distributed I/O, and control applications. It serves as a structured field termination point between external field devices — including sensors, switches, actuators and other signal sources — and internal I/O modules of a programmable logic controller (PLC), distributed control system (DCS), or remote terminal unit (RTU).
This termination unit is built to handle significant signal density while maintaining clear wiring organization and ease of maintenance. It provides reliable electrical contacts, mechanical safeguards to prevent installation errors, and industrial‑grade construction to withstand demanding environments.
2. Brand and Series Information
Brand: ABB Professional Electrical Instruments
Series: S800 I/O – Module Termination Units (MTU)
The S800 I/O series is a modular distributed I/O platform used in industrial automation, process control, machine control, utilities, and infrastructure systems. Termination units like the TU847Z serve as the physical interface where field wiring connects to modular I/O components. The series supports scalable system architectures where additional units and I/O modules can be integrated as needs grow.
3. Product Parameters – TU847Z (3BSE035338R1)
| Parameter | Specification |
|---|---|
| Model | TU847Z (3BSE035338R1) |
| Function | Very High‑Density Module Termination Unit (MTU) |
| Channels | 64 channels (eight groups of 8) |
| Rated Signal Voltage | Up to 50 V |
| Maximum Current per Channel | 2 A |
| Maximum Process Power Current | 16 A |
| Wire Size Supported | Solid: 0.2–4 mm²; Stranded: 0.2–2.5 mm² |
| Mounting | DIN‑Rail (Horizontal or Vertical) |
| Protection Rating | IP20 |
| Operating Temperature | ‑20 °C to +60 °C |
| Storage Temperature | ‑40 °C to +85 °C |
| Housing Material | Industrial‑grade polymer with screw terminals |
| Dimensions (mm) | 140 × 280 × 85 |
| Weight (kg) | 0.75 |
4. Product Applications
The TU847Z termination unit is suited for large‑scale industrial environments requiring orderly termination of many field signals. Typical applications include:
• Industrial automation panels: Large machine control panels where many sensors and actuators must be connected clearly and reliably.
• Process control systems: Chemical, petrochemical, and refining plants with extensive distributed I/O requirements.
• Utility automation: Power generation, electrical distribution, and water/wastewater systems needing structured signal inputs.
• Infrastructure control: Transportation systems, building management, and large facility automation.
• Retrofit modernization: Updating older panels with modular distributed I/O while maintaining orderly wiring.
• Distributed data acquisition: Systems where reliable signal collection from wide‑area field networks is required.
The TU847Z accommodates both high channel count and robust wiring management, making it ideal for complex industrial installations.
5. Product Advantages
The TU847Z offers key benefits that support efficient and reliable installation and long‑term maintenance:
• Extremely High Channel Capacity: With 64 channels, it supports extensive field wiring without bulky hardware.
• Reliable Electrical Termination: Screw‑type terminals provide strong, long‑lasting contact with minimal resistance.
• Mechanical Safeguards: Keying features help prevent incorrect placement and minimize wiring errors.
• DIN‑Rail Compatibility: Standard rail mounting ensures simple integration into control cabinets and panels.
• Organized Channel Grouping: Clear grouping of connections improves documentation, commissioning, and ongoing maintenance.
• Industrial Durability: Designed to operate in a wide temperature range typical of industrial environments.
• Modular Scalability: Integrates seamlessly with other MTUs and I/O modules in the same series for expandable system design.
• Maintenance Efficiency: Structured wiring simplifies troubleshooting, replacement, and future expansion.
6. Related Models in the Same Series
Below are five related termination units or interface modules from the same modular family:
| Model | Channels | Rated Voltage | Mounting | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| TU810V1 (3BSE013230R1) | 16 | Up to 50 V | DIN‑rail | 64 × 170 × 58.5 | 0.20 |
| TU812V1 (3BSE013232R1) | 16 | Up to 50 V | DIN‑rail | 64 × 170 × 58.5 | 0.20 |
| TU814V1 (3BSE013233R1) | 24 | Up to 50 V | DIN‑rail | 80 × 190 × 60 | 0.28 |
| TU835V1 (3BSE013236R1) | 40 | Up to 50 V | DIN‑rail | 100 × 220 × 70 | 0.48 |
| TU836V1 (3BSE013237R1) | 48 | Up to 50 V | DIN‑rail | 110 × 240 × 75 | 0.55 |
These models provide a range of channel counts and physical sizes, allowing selection based on wiring density and cabinet layout.
7. Other Popular Models From the Same Brand
Below are five widely used ABB automation modules that are commonly paired with termination units to build distributed I/O systems:
| Model | Application | Module Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| AI810 | Analog Input Module | I/O Module | 62 × 170 × 58 | 0.22 |
| DI830 | Digital Input Module | I/O Module | 62 × 170 × 58 | 0.22 |
| DO880 | Digital Output Module | I/O Module | 62 × 170 × 58 | 0.23 |
| AO845 | Analog Output Module | I/O Module | 62 × 170 × 58 | 0.22 |
| DP840 | Digital Processing Module | I/O Module | 62 × 170 × 58 | 0.25 |
8. FAQ – TU847Z
Q1: What is the primary purpose of the TU847Z?
A1: The TU847Z is a high‑density termination unit designed to organize and connect multiple field signals to distributed I/O modules in automation systems.
Q2: How many signal channels does this unit support?
A2: The TU847Z supports 64 channels.
Q3: What is the rated signal voltage?
A3: It supports field signal voltages up to 50 V.
Q4: What is the maximum current per channel?
A4: Each channel can handle up to 2 A of current.
Q5: What wiring sizes are supported?
A5: It accepts solid wire sizes from 0.2–4 mm² and stranded wire sizes from 0.2–2.5 mm².
Q6: How is the unit mounted?
A6: The unit mounts on a standard DIN rail inside industrial control cabinets.
Q7: What protection rating does the TU847Z have?
A7: It has an IP20 protection rating, suitable for installation within enclosure panels.
Q8: What temperature range can it operate in?
A8: The termination unit is designed to operate from ‑20 °C to +60 °C.
Q9: Does it include features to prevent incorrect installation?
A9: Yes, mechanical keying and clear terminal group identification help prevent wiring and placement errors.
Q10: Can this unit be combined with other modules?
A10: Yes, it integrates with other termination units and I/O modules in the same series to build modular, scalable systems.
