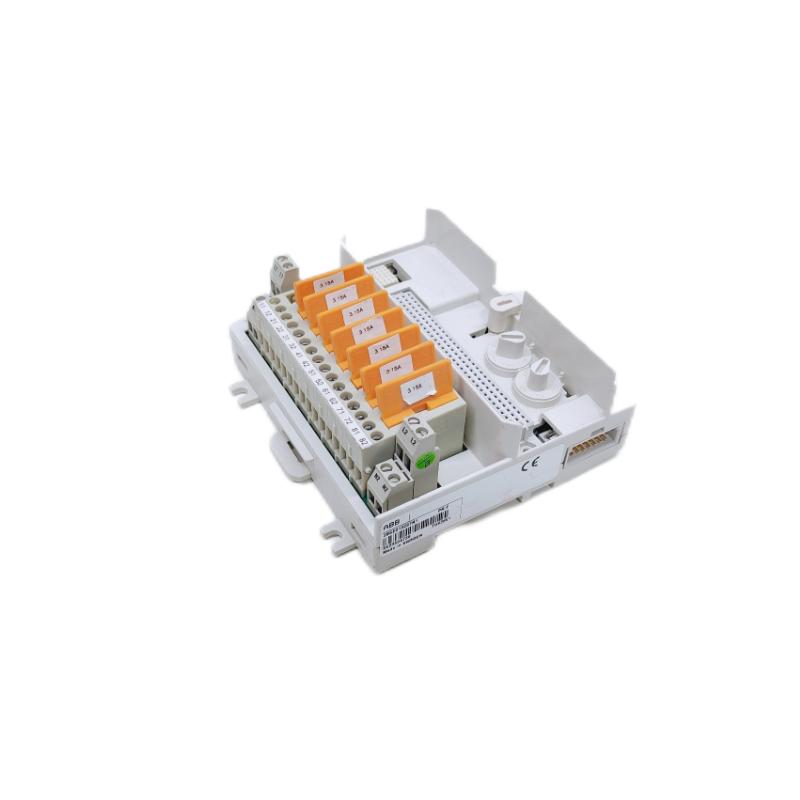

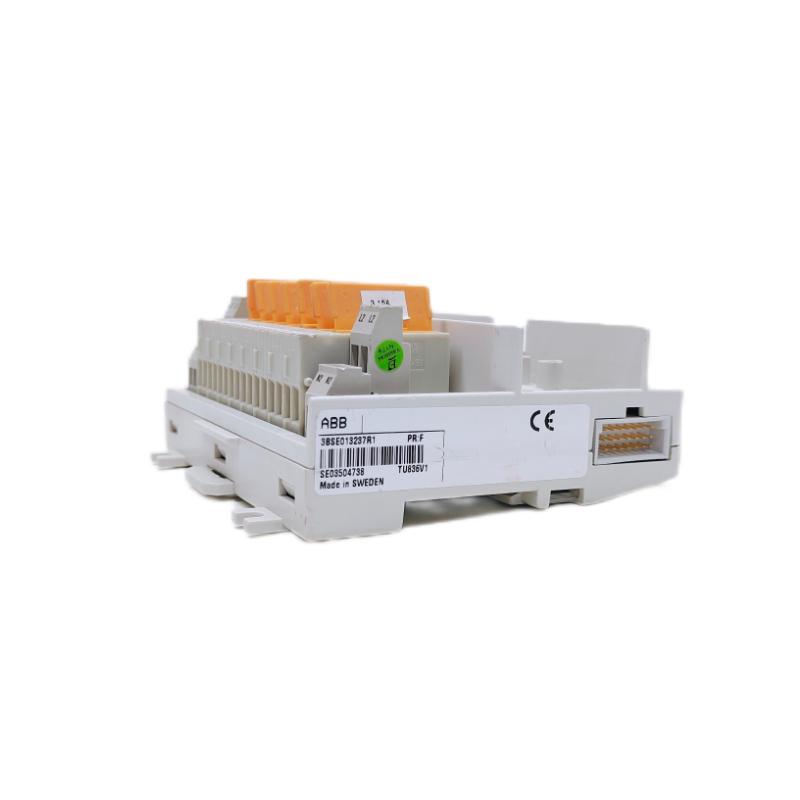

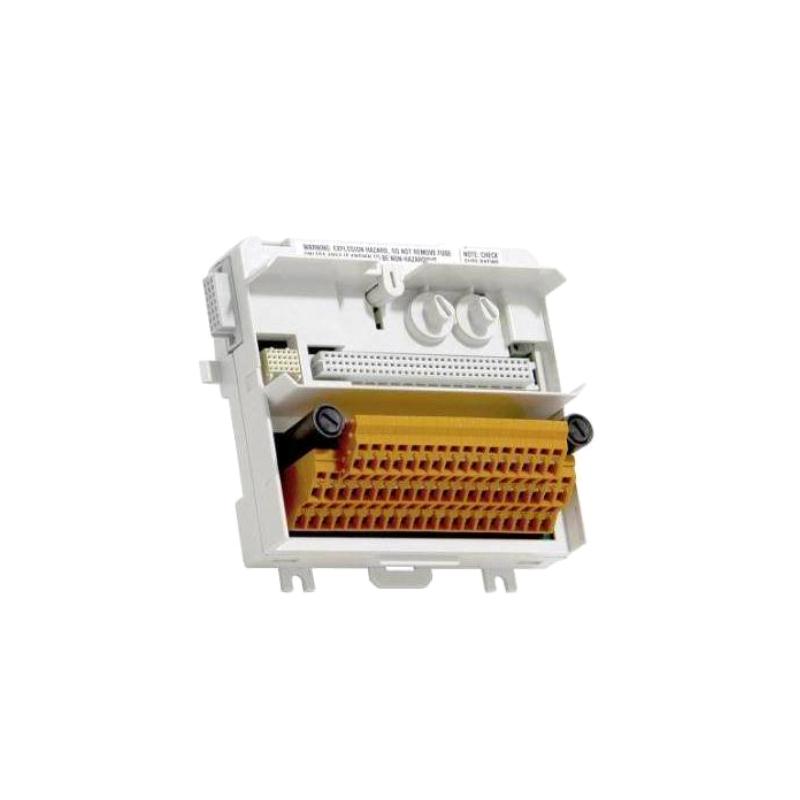

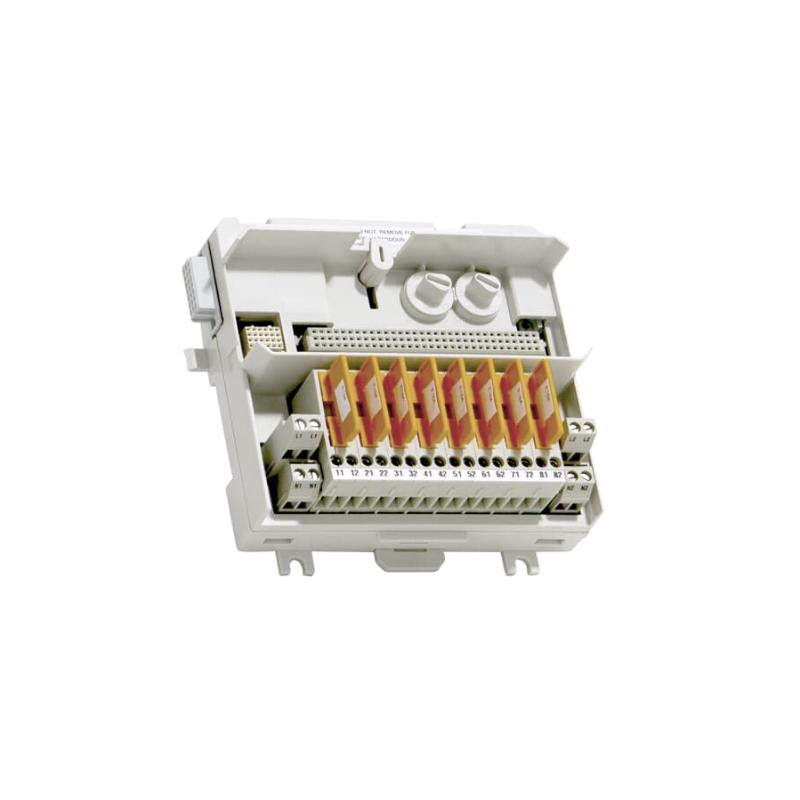

Product Profile – ABB TU836V1 (3BSE013237R1)
1. Product Introduction
The TU836V1 (3BSE013237R1) is a high‑density termination unit designed for structured field wiring in industrial automation and process control systems. It provides a central connection point between numerous field devices — such as sensors, switches, and actuators — and the internal distributed I/O modules of programmable controllers or distributed control systems.
As automation systems grow in complexity, the number of field signals that must be organized and reliably connected also increases. The TU836V1 helps streamline this complexity by offering orderly grouping of up to 48 channels while maintaining a compact and maintainable form factor. Its design emphasizes secure electrical connections, mechanical guidance to prevent incorrect placement, and durable operation in demanding environments.
2. Brand and Series Information
Brand: ABB Professional Electrical Instruments
Series: S800 I/O – High‑Density Module Termination Units (MTU)
The S800 I/O series is a modular distributed I/O platform widely used in industrial automation, machine control, utilities, and infrastructure. Module Termination Units (MTUs) like the TU836V1 serve as bridges between field wiring and functional I/O modules, enabling scalable, flexible, and maintainable system architectures.
3. Product Parameters – TU836V1 (3BSE013237R1)
| Parameter | Specification |
|---|---|
| Model | TU836V1 (3BSE013237R1) |
| Function | High‑Density Module Termination Unit (MTU) |
| Channels | 48 channels (six groups of 8) |
| Rated Signal Voltage | Up to 50 V |
| Maximum Current per Channel | 2 A |
| Maximum Process Power Current | 12 A |
| Wire Size Supported | Solid: 0.2–4 mm²; Stranded: 0.2–2.5 mm² |
| Mounting | DIN‑Rail (Horizontal or Vertical) |
| Protection Rating | IP20 |
| Operating Temperature | ‑20 °C to +60 °C |
| Storage Temperature | ‑40 °C to +85 °C |
| Housing Material | Industrial‑grade polymer with screw terminals |
| Dimensions (mm) | 110 × 240 × 75 |
| Weight (kg) | 0.55 |
4. Product Applications
The TU836V1 termination unit is suited for industrial automation environments where a large number of field signals must be reliably connected and efficiently organized. Typical applications include:
• Distributed I/O systems for PLC, DCS, and RTU control architectures.
• Medium to large‑scale machine control panels requiring high channel capacity.
• Process automation in chemical, manufacturing, and energy distribution systems.
• Field signal consolidation in infrastructure automation such as water treatment, power plants, and transportation control.
• Retrofit and expansion of legacy systems to modular distributed I/O platforms.
• Automated systems where neat wiring and rapid maintenance turnaround is critical.
5. Product Advantages
The TU836V1 delivers several practical advantages for system designers and engineers:
• High Channel Density: With 48 channels, it handles extensive field wiring without requiring excessively large panel space.
• Secure Electrical Termination: Screw‑type terminals provide robust contact and low electrical resistance.
• Mechanical Keying: Helps prevent incorrect module insertion and wiring errors during installation and service.
• DIN‑Rail Compatibility: Standard DIN‑rail mounting supports rapid installation, modification, and replacement.
• Organized Wiring Layout: Grouped channels and clear labeling support documentation, commissioning, and ongoing maintenance.
• Industrial Suitability: Wide operating temperature range and durable materials ensure dependable operation in harsh environments.
• Modular Scalability: Integrates with other termination and I/O modules in the same family for flexible system design.
• Maintenance Friendly: Structured channel layout simplifies fault isolation and future expansion.
6. Related Models in the Same Series
Below are five related termination or interface models from the same S800 I/O modular family:
| Model | Channels | Rated Voltage | Mounting | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| TU810V1 (3BSE013230R1) | 16 | Up to 50 V | DIN‑rail | 64 × 170 × 58.5 | 0.20 |
| TU811V1 (3BSE013231R1) | 8 | Up to 50 V | DIN‑rail | 64 × 170 × 58.5 | 0.15 |
| TU812V1 (3BSE013232R1) | 16 | Up to 50 V | DIN‑rail | 64 × 170 × 58.5 | 0.20 |
| TU814V1 (3BSE013233R1) | 24 | Up to 50 V | DIN‑rail | 80 × 190 × 60 | 0.28 |
| TU835V1 (3BSE013236R1) | 40 | Up to 50 V | DIN‑rail | 100 × 220 × 70 | 0.48 |
These related units vary in channel counts and dimensions, allowing system designers to scale based on physical space and signal quantity.
7. Other Popular Models From the Same Brand
Below are five well‑known ABB modules commonly used in automation systems alongside termination units:
| Model | Application | Module Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| AI810 | Analog Input Module | I/O Module | 62 × 170 × 58 | 0.22 |
| DI830 | Digital Input Module | I/O Module | 62 × 170 × 58 | 0.22 |
| DO880 | Digital Output Module | I/O Module | 62 × 170 × 58 | 0.23 |
| AO845 | Analog Output Module | I/O Module | 62 × 170 × 58 | 0.22 |
| DP840 | Digital Processing Module | I/O Module | 62 × 170 × 58 | 0.25 |
8. FAQ – TU836V1
Q1: What is the primary purpose of the TU836V1?
A1: The TU836V1 is a high‑density module termination unit designed to organize and connect field wiring from sensors and actuators to distributed I/O modules in automation and control systems.
Q2: How many channels does TU836V1 support?
A2: This model supports 48 individual signal channels.
Q3: What is the rated signal voltage for field connections?
A3: The unit is designed to handle field signals with a rated voltage up to 50 V.
Q4: What is the current capacity per channel?
A4: Each channel is rated for up to 2 A, with a total process power capacity of up to 12 A.
Q5: What wire sizes are supported?
A5: It accepts solid wires from 0.2–4 mm² and stranded wires from 0.2–2.5 mm².
Q6: How is the unit installed in a control panel?
A6: TU836V1 mounts securely on a standard DIN rail inside an enclosure or cabinet.
Q7: What protection classification does this module have?
A7: The unit has an IP20 protection rating, suitable for use within protected industrial enclosures.
Q8: In what temperature range can TU836V1 operate?
A8: It is designed to operate reliably from ‑20 °C to +60 °C.
Q9: Does this unit have features to prevent installation errors?
A9: Yes, mechanical keying and clear channel labeling help prevent incorrect placement and wiring mistakes.
Q10: Can TU836V1 be used with other I/O modules?
A10: Yes, it integrates seamlessly with other termination units and functional I/O modules in the same series to build scalable automation systems.
