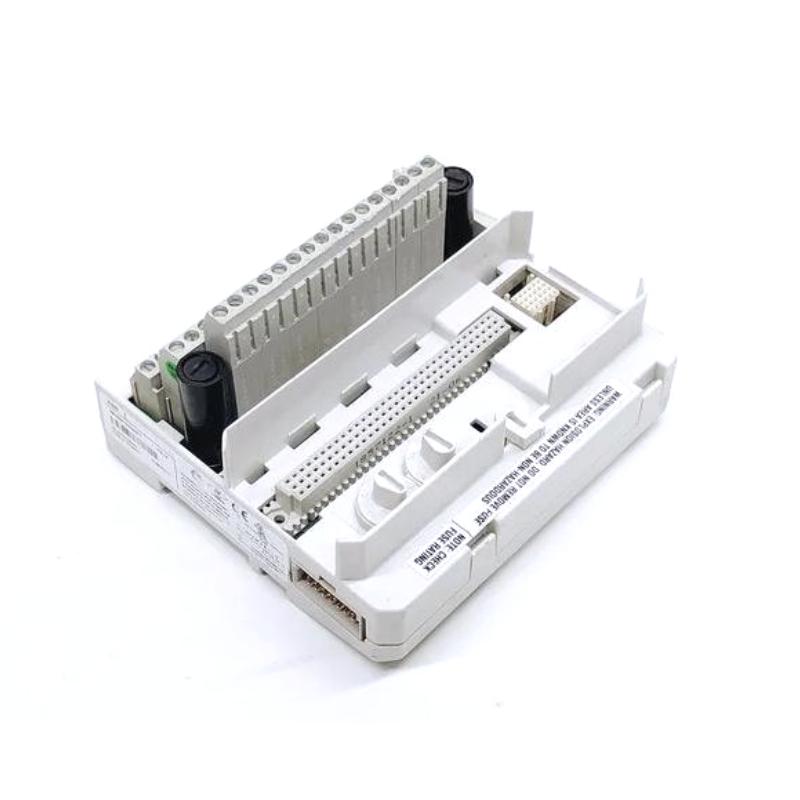

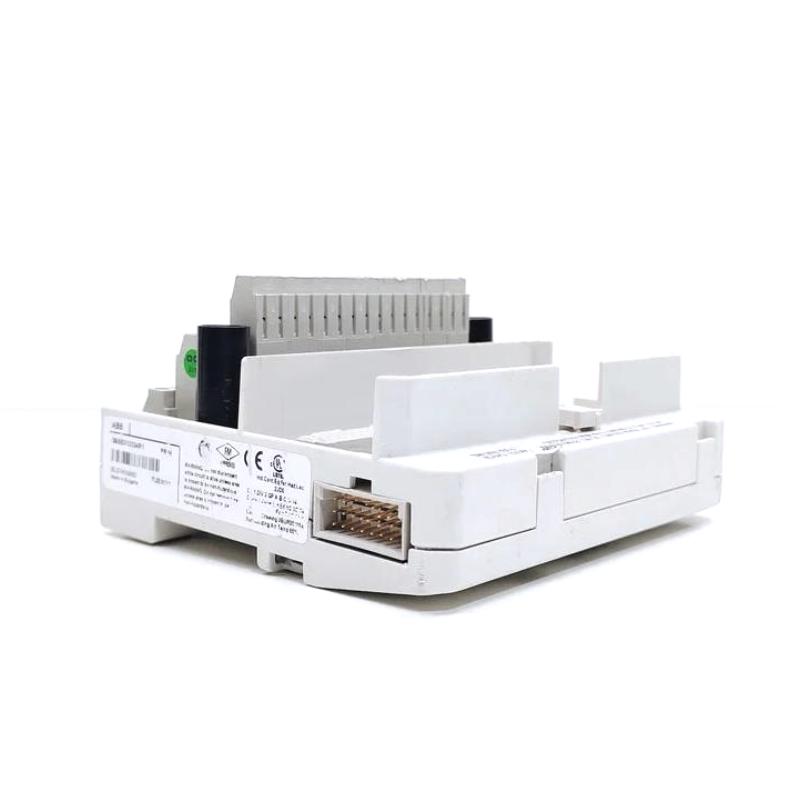

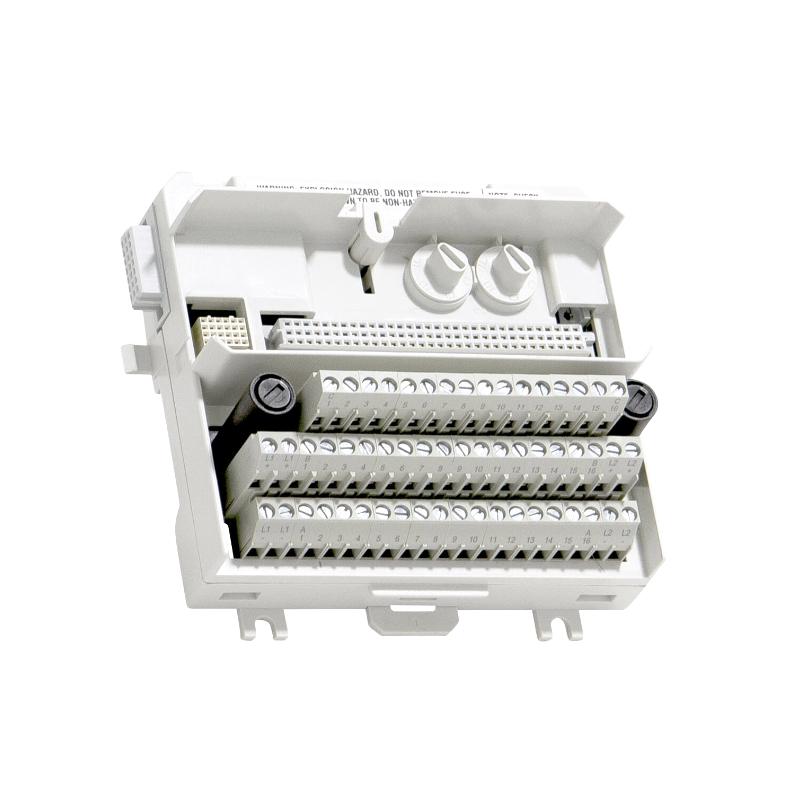

Product Profile – ABB TU830V1 (3BSE013234R1 / 3BSE013234R2)

1. Product Introduction

The TU830V1 (3BSE013234R1 / 3BSE013234R2) is a medium‑density termination and interface unit designed for distributed I/O systems in industrial automation and control environments. It functions as a structured field termination point for wiring from sensors, switches, actuators and other field devices into internal distributed input/output modules of PLC (Programmable Logic Controller) or DCS (Distributed Control System) architectures.

This termination unit is part of the S800 I/O modular platform and addresses the needs of systems requiring a moderate number of I/O connections. It offers well‑organized signal distribution, robust electrical termination, and mechanical keying to reduce errors during installation or maintenance.

2. Brand and Series Information

Brand: ABB Professional Electrical Instruments

Series: S800 I/O – Compact Module Termination Units (MTU)

The S800 I/O series is a flexible modular I/O solution for industrial automation. It includes both termination units and functional I/O modules that can be arranged and expanded based on the system’s needs. The TU series within this platform provides termination units with varying channel counts, enabling effective field wiring management and seamless integration with control and monitoring systems.

3. Product Parameters – TU830V1 (3BSE013234R1 / 3BSE013234R2)

Notes:

• The R1 and R2 suffixes indicate slight revision differences of the same underlying module design, both carrying identical mechanical and electrical characteristics.

• The medium density configuration offers a balanced channel count suited for typical manufacturing, process automation, and infrastructure control panels.

4. Product Applications

The TU830V1 termination unit performs reliably in a wide variety of industrial situations where organized signal connection and system expansion are necessary. Typical applications include:

• Connecting field devices such as sensors, limit switches, pushbuttons, and actuators to distributed I/O racks.

• Integration with PLC, RTU (Remote Terminal Unit), and DCS systems for real‑time monitoring and control.

• Medium‑sized I/O requirements in automation panels for machine control, process control, and factory systems.

• Industrial automation in water/wastewater treatment, manufacturing, packaging systems, and material handling.

• Retrofit projects where new modular I/O platforms are introduced into existing wiring infrastructure.

• Distributed control nodes in energy management, smart facilities, and large equipment automation.

5. Product Advantages

The TU830V1 module offers several important advantages that make it a preferred choice in distributed I/O solutions:

• Medium Channel Capacity: With 24 channels, it provides a practical compromise between space and wiring density.

• Robust Termination: Screw‑type terminals supply secure, low‑resistance electrical connections with solid mechanical reliability.

• Mechanical Keying: Helps prevent incorrect insertion of adjacent modules, reducing installation errors.

• DIN‑Rail Compatibility: Standard mounting simplifies installation and serviceability in electrical cabinets.

• Organized Wiring Layout: Channel grouping improves wiring clarity, simplifies documentation, and eases troubleshooting.

• Industrial Reliability: Designed to withstand typical industrial environments, including temperature fluctuations and mechanical stress.

• Flexible Integration: Fully compatible with other S800 I/O modules, providing scalable automation solutions.

• Improved System Maintenance: Clear terminal labeling and structural organization support quicker fault diagnosis and replacement.

6. Related Models in the Same Series

These models provide choices across different channel counts and physical sizes, allowing designers to select the optimum termination unit based on the quantity of I/O signals and the physical cabinet layout.
