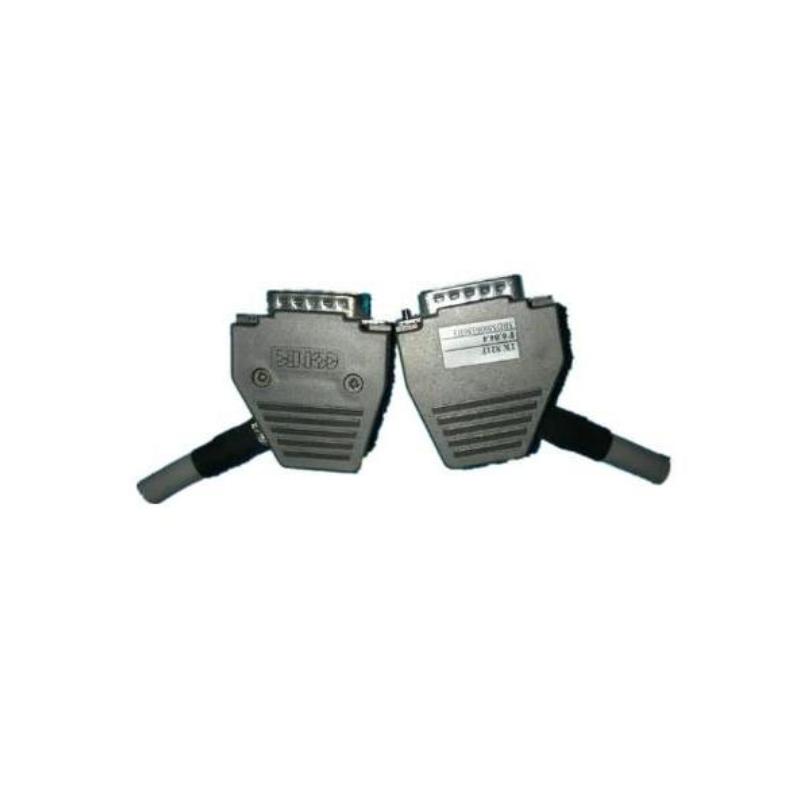

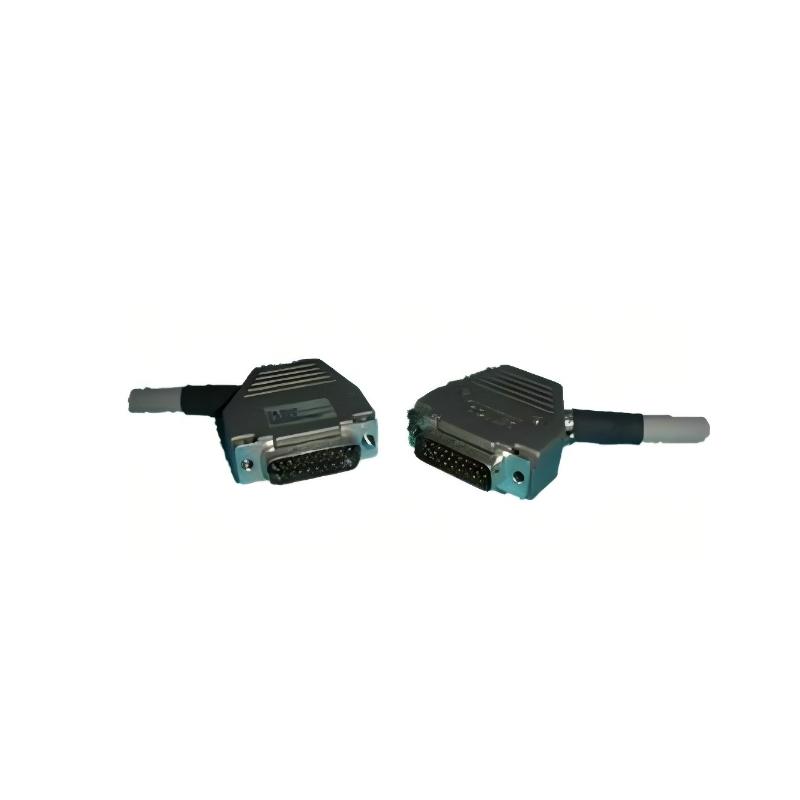

ABB TK850V007 (3BSC950192R1) – Comprehensive Technical Overview
1. Product Overview
The ABB TK850V007 (3BSC950192R1) is an industrial prefabricated fiber optic communication cable designed specifically for use in modular process automation environments.
It belongs to the S800 I/O system, where robust and high‑speed communication between I/O modules and distributed controllers is essential. This cable serves as a communication link enabling optical data transfer in automation racks and control systems.
The TK850V007 is configured with pre‑terminated industrial connectors, allowing quick and reliable installation in industrial cabinets without the need for on‑site fiber termination.
2. Technical Parameters
Core Specifications
| Parameter | Specification |
|---|---|
| Model | TK850V007 |
| Article Number | 3BSC950192R1 |
| Product Type | Prefabricated Fiber Optic Cable |
| Fiber Type | Plastic Optical Fiber (POF) |
| Transmission Mode | Optical Communication |
| Cable Length | 7 m |
| Connector Type | Pre‑terminated industrial latching connectors |
| Signal Type | Digital optical signals |
| Compatible Systems | Modular I/O and automation networks |
| Application | Communication between I/O modules |
Mechanical Parameters
| Parameter | Value |
|---|---|
| Dimensions (L×W×H) | 7000 × 38 × 29 mm |
| Weight (kg) | 0.20 kg |
| Cable Structure | Industrial‑grade fiber optic core |
| Jacket Material | Protective polymer |
Environmental Parameters
| Parameter | Value |
|---|---|
| Operating Temperature | ‑40°C to +85°C |
| Storage Temperature | ‑55°C to +85°C |
| Protection Level | Industrial indoor environment |
| Vibration Resistance | Medium |
| Humidity Resistance | Standard industrial |
3. Product Description
The TK850V007 is designed as a high‑reliability fiber optic communication cable for use in industrial automation systems.
It enables optical data transmission between S800 I/O modules and controllers, ensuring stable signal quality with minimal attenuation over distances up to 7 meters. The pre‑terminated connectors eliminate the need for on‑site termination and simplify installation.
It is suitable for use in environments with electrical noise and interference, where optical transmission provides immunity to electromagnetic interference.
4. Applications
This fiber optic cable is widely used in:
-
Distributed Control Systems (DCS)
-
Process automation applications
-
PLC‑based control systems
-
Manufacturing automation networks
-
Power generation and distribution systems
-
Oil & gas process control
-
Chemical and pharmaceutical production
-
Smart factory infrastructure
It is particularly suitable for internal cabinet communication requiring reliable, interference‑free signal transmission.
5. Product Advantages
-
Stable Optical Transmission – Low signal loss and immunity to electromagnetic interference.
-
Plug‑and‑Play Design – Pre‑terminated connectors simplify installation and reduce wiring errors.
-
Versatile Compatibility – Works with S800 I/O systems and related automation modules.
-
Environmental Durability – Wide operating temperature range and industrial construction.
-
Reduced Maintenance – High reliability and long service life minimize maintenance needs.
6. Brand & Series
| Category | Details |
|---|---|
| Brand | ABB |
| Series | S800 I/O System |
| Product Category | Fiber Optic Communication Cable |
7. Recommended Models (Same Series / Related)
| Model | Description | Key Parameters |
|---|---|---|
| TK812V050 | Short fiber cable | 0.5 m, 0.03 kg |
| TK812V150 | Medium fiber cable | 15 m, 0.065 kg |
| TK821V020 | Fiber cable | 2 m, 0.12 kg |
| TK811V050 | Compact pre‑terminated cable | 0.5 m, 0.025 kg |
| TU841 | Termination unit | Modular DIN rail installation |
8. Recommended Popular Models (Same Brand)
| Model | Type | Key Parameters |
|---|---|---|
| PM866AK01 | Processor module | High‑performance CPU, redundancy |
| PM891K01 | Controller | Modular process controller |
| SD832 | Power supply | 24V DC output, 5A |
| SS823 | Voting unit | Redundant power management |
| SM812K01 | Communication module | Industrial network interface |
9. FAQ (Q&A Format)
Q1: What is the primary function of TK850V007?
A: It provides optical communication links between I/O modules and control systems.
Q2: What is the standard cable length?
A: The cable length is 7 meters.
Q3: What type of fiber does the cable use?
A: It uses plastic optical fiber (POF).
Q4: Is this cable suitable for harsh industrial environments?
A: Yes, it is designed to operate in temperature extremes and withstand vibration.
Q5: Does it require special tools for installation?
A: No, it comes pre‑terminated with connectors for easy plug‑and‑play installation.
Q6: What systems is this cable compatible with?
A: It is compatible with S800 I/O and related modular automation systems.
Q7: What is the weight of the cable?
A: The approximate weight is 0.20 kg.
Q8: Can it be used for long outside‑cabinet runs?
A: It is primarily designed for internal cabinet communication.
Q9: How does it handle electromagnetic interference?
A: Optical transmission provides inherent immunity to EMI and RFI.
Q10: Which industries commonly use this cable?
A: Power generation, manufacturing automation, oil & gas, and process industries.
