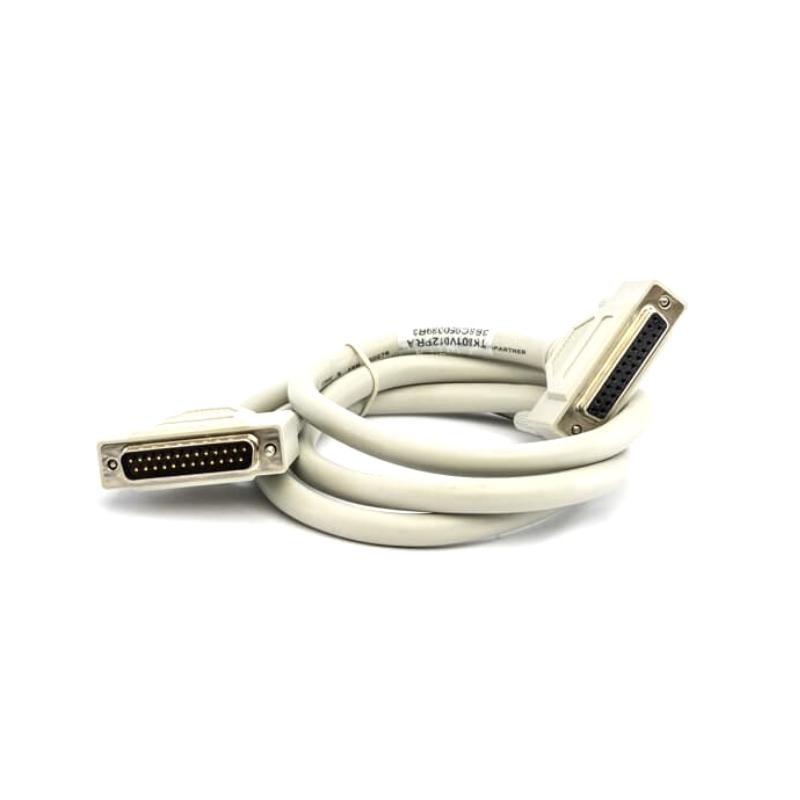

- ModuleBus Extension Cable
- Sweden
- 120 × 80 × 70 mm
- 1.2kg
- 3BSC950089R1
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 6
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
ABB TK801V003 (3BSC950089R1) Technical Overview
Product Introduction
The ABB TK801V003 (part number 3BSC950089R1) is a high-performance industrial motor control and protection device, designed to handle low-power, precise motor operations in industrial environments. Part of the TK Series, this model is engineered to provide reliable control, overload protection, and high efficiency, even in smaller-scale or specialized motor applications.
The TK801V003 is compact, making it ideal for installation in small control panels or machinery cabinets. Despite its small size, it maintains high reliability, energy efficiency, and durability, offering safety and long operational life for sensitive industrial processes.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | TK801V003 |
| Part Number | 3BSC950089R1 |
| Brand | ABB |
| Series | TK Series |
| Rated Voltage | 400 V AC |
| Rated Current | 3 A |
| Frequency | 50/60 Hz |
| Power Rating | 1.5 kW |
| Insulation Class | F |
| Protection Class | IP20 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Dimensions (L × W × H) | 120 × 80 × 70 mm |
| Weight | 1.2 kg |
| Mounting Type | Panel-mounted |
| Connection Type | Screw terminals |
| Mechanical Durability | 10⁶ operations |
| Electrical Durability | 10⁵ operations |
Product Applications
The ABB TK801V003 is suitable for:
-
Motor control in small industrial machines
-
Automation of low-power industrial equipment
-
Precision control in laboratory or production processes
-
HVAC systems with low power requirements
-
Power distribution for small machinery
-
Specialized applications requiring compact motor controllers
Product Advantages
-
Compact Size: Small footprint allows installation in tight spaces.
-
High Reliability: Long operational life even under continuous use.
-
Energy Efficient: Optimized for low-power operations, minimizing losses.
-
Safety Focused: IP20 protection ensures electrical safety in panel installations.
-
Easy Maintenance: Accessible design for quick inspections and servicing.
-
Versatile Use: Can be applied in low-power industrial machinery or specialized equipment.
Related Models in the TK Series
| Model | Rated Voltage | Rated Current | Power Rating | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| TK801V005 | 400 V AC | 5 A | 2.2 kW | 130 × 85 × 75 | 1.5 |
| TK801V010 | 400 V AC | 10 A | 4 kW | 150 × 90 × 80 | 2.0 |
| TK802V003 | 400 V AC | 3 A | 1.5 kW | 120 × 80 × 70 | 1.3 |
| TK802V005 | 400 V AC | 5 A | 2.2 kW | 130 × 85 × 75 | 1.5 |
| TK803V010 | 400 V AC | 10 A | 4 kW | 150 × 90 × 80 | 2.2 |
Popular ABB Models
| Model | Rated Voltage | Rated Current | Power Rating | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| ACS355 | 380–480 V AC | 0.5–32 A | 0.25–15 kW | 240 × 120 × 140 | 5.5 |
| ACS580 | 380–480 V AC | 1–250 A | 0.75–250 kW | 400 × 200 × 180 | 12 |
| DSQC630 | 380–480 V AC | 32–250 A | 15–200 kW | 450 × 220 × 200 | 15 |
| PM550 | 400 V AC | 20–80 A | 7.5–30 kW | 280 × 150 × 120 | 6.8 |
| MNS Low Voltage Panel | 400 V AC | 63–4000 A | N/A | Custom | 50–500 |
Frequently Asked Questions (FAQ)
Q1: What is the main function of TK801V003?
A1: It provides precise control and protection for low-power motors in industrial settings.
Q2: What is the protection rating?
A2: IP20, providing protection against accidental contact with live parts.
Q3: What is the rated voltage and current?
A3: Rated voltage is 400 V AC, and rated current is 3 A.
Q4: What type of motors can it operate?
A4: Standard AC motors, including small induction motors.
Q5: How is it installed?
A5: Panel-mounted using screw terminals.
Q6: What is the operating temperature range?
A6: -20°C to +60°C.
Q7: Does it require regular maintenance?
A7: Minimal maintenance is required; periodic inspection is sufficient.
Q8: Can it handle overloads?
A8: Yes, it is designed to withstand overloads within its rated limits.
Q9: Is it suitable for automation systems?
A9: Yes, it integrates easily into small industrial automation systems.
Q10: What are the advantages of TK801V003?
A10: Compact size, high reliability, energy efficiency, easy maintenance, and versatility for low-power motor control.
