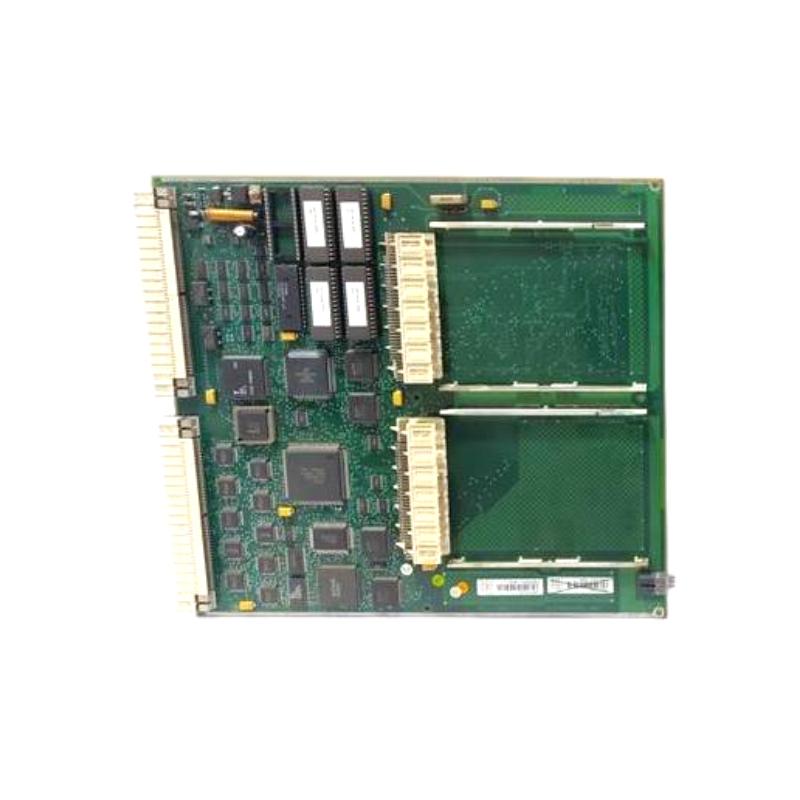

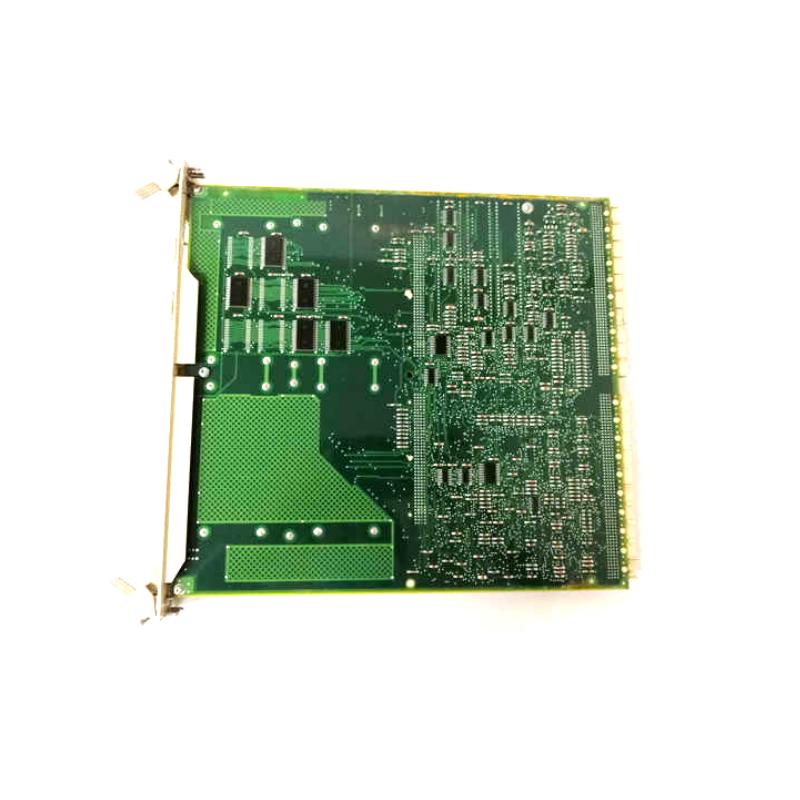

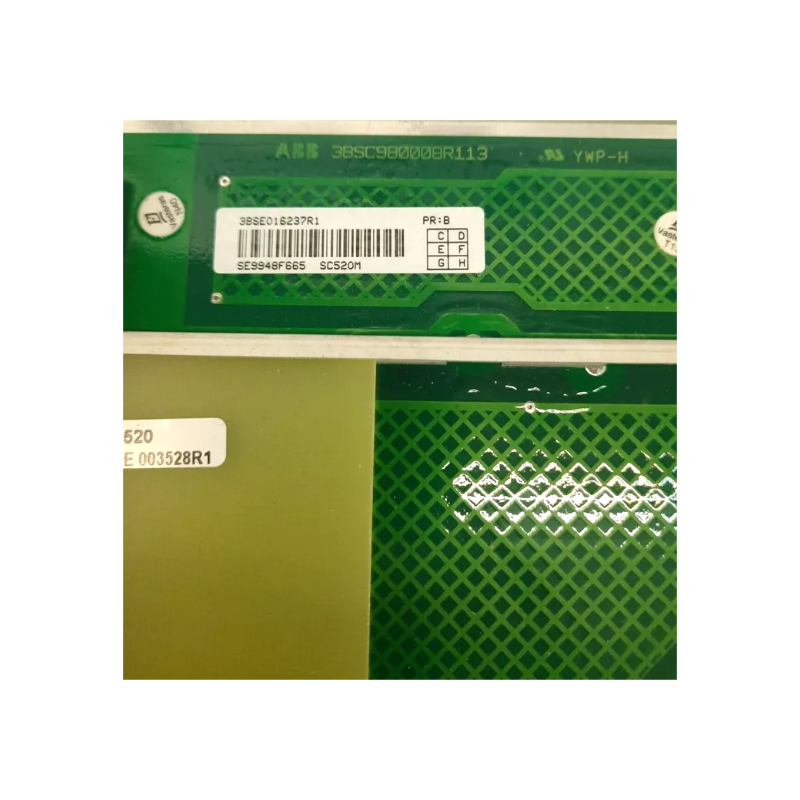

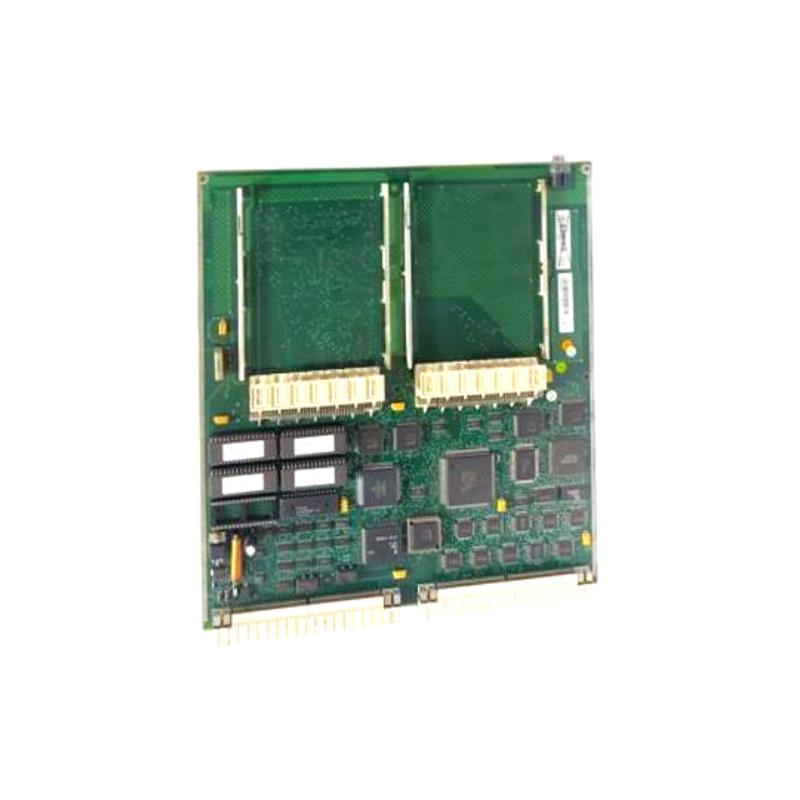

Product: ABB SC520M (3BSE016237R1)
1. Overview
The SC520M is an industrial system controller module designed for automation and control tasks within distributed control systems (DCS), programmable logic controllers (PLC), and complex machine control architectures. It provides processing, communication, and interface functions that support reliable control of machines and processes.
The module integrates processing capability with communication interfaces, allowing it to coordinate signals from I/O modules and field devices. It is suitable for demanding industrial environments where robustness, accuracy, and stable operation are required.
2. Product Parameters (Technical Data)
| Parameter | Value |
|---|---|
| Model | SC520M (3BSE016237R1) |
| Product Type | System Controller Module |
| Processing Unit | Industrial grade CPU unit |
| Communication Interfaces | Bus interface to I/O and other modules |
| Supported Signals | Digital and analog signals via system bus |
| Supply Voltage | 24 V DC (typical control system supply) |
| Power Consumption | Approx. 7–10 W |
| Environmental Protection | IP20 (panel rack or cabinet mounting) |
| Operating Temperature | –10°C to +60°C |
| Storage Temperature | –20°C to +70°C |
| Mounting | Rack or DIN rail adapter chassis mounting |
| Housing Material | Industrial‑grade composite |
| Dimensions | 220 mm × 110 mm × 50 mm |
| Weight (kg) | 0.65 kg |
3. Product Introduction
The SC520M is a controller element designed to serve as the central processing unit within a modular automation platform. Its purpose is to receive, process, and relay signals between input/output (I/O) modules, communication interfaces, and main control software.
This unit performs essential coordination functions in a distributed control environment, acting as a central decision point for logic execution and data exchange. It helps bridge high‑level system logic with lower‑level sensor and actuator interfaces. By supporting robust communication protocols and a rugged design, the SC520M delivers stability in industrial operations.
The module is designed to integrate with compatible automation chassis, connecting via internal bus systems to other system elements such as I/O boards, expansion modules, communication adapters, and power supply units.
4. Product Application Areas
The SC520M module is widely used in:
-
Distributed Control Systems (DCS) — central controller in modular automation architectures
-
Programmable Logic Controllers (PLC) — as a master controller for I/O signal management
-
Manufacturing and Production Lines — coordinating multiple machine operations
-
Process Automation — managing sensors, actuators, and process logic
-
Energy and Utilities — controlling monitoring and safety logic
-
Infrastructure Controls — integrated building systems and transport automation
5. Product Advantages
The SC520M offers several important advantages:
-
Reliable Processing: Industrial CPU designed for continuous operation
-
Flexibility: Interfaces with a range of I/O modules and communication links
-
Robust Design: Built for vibration, electromagnetic interference, and temperature variation
-
Modular Integration: Easy to fit into larger automation chassis and systems
-
Stable Operation: Low failure rate and consistent performance
-
Scalable Architecture: System can expand with additional modules as needed
6. Brand Affiliation
-
Brand: Global industrial automation and control brand
-
Product Series: SC (System Controller) series for distributed automation and controller architectures
7. Recommended Same Series or Related Models (5)
| Model | Key Parameters | Typical Use Case |
|---|---|---|
| SC500M | System controller with mid‑range performance | General automation and control tasks |
| SC540M | Enhanced controller with additional I/O capacity | Larger systems requiring more processing bandwidth |
| SC520C | Controller with extended communication options | Complex networked automation |
| SC510M | Compact processing module | Small machine control |
| SC550M | High‑performance system controller | High throughput automation systems |
8. Recommended Other Popular Models from the Same Brand (5)
| Model | Key Parameters | Typical Use Case |
|---|---|---|
| SB522K01 | 12 V backup battery module | Memory backup and parameter retention |
| SA 801F | 24 V DC power supply module | Base power supply for control racks |
| SA 811F | Higher capacity power supply | Powering larger automation racks |
| RMIO‑01C | I/O interface module | Digital/analog I/O support |
| RRFC‑5521 | Frequency converter | Motor speed control |
9. FAQ – Common Customer Questions (QA Style)
Q1: What is the primary function of the SC520M?
A1: It serves as a central controller module in a modular automation system, coordinating signals between I/O and higher‑level logic.
Q2: What is the operating voltage?
A2: The typical supply voltage is 24 V DC, supplied from the system’s main control bus or power supply module.
Q3: Can the SC520M handle multiple I/O modules?
A3: Yes, it interfaces with various compatible I/O modules through the system bus.
Q4: What is the operating temperature range?
A4: –10°C to +60°C, suitable for most industrial environments.
Q5: How is it mounted?
A5: It is mounted inside a control rack or cabinet via a compatible chassis or adapter.
Q6: Does it support redundancy?
A6: Redundancy depends on the overall system architecture and controller configurations; the module supports integration into redundant systems if designed accordingly.
Q7: Is this module suitable for harsh industrial conditions?
A7: Yes, it is designed with industrial‑grade materials and tolerances for stable performance.
Q8: What kind of communication does it support?
A8: It supports internal bus communication to system modules and can interface with fieldbus networks via adapter modules.
Q9: What is its power consumption?
A9: Approximately 7–10 W, depending on the system configuration.
Q10: What makes it reliable for automation tasks?
A10: Its industrial CPU design, scalable architecture, and integration with system bus interfaces ensure reliable long‑term operation.
