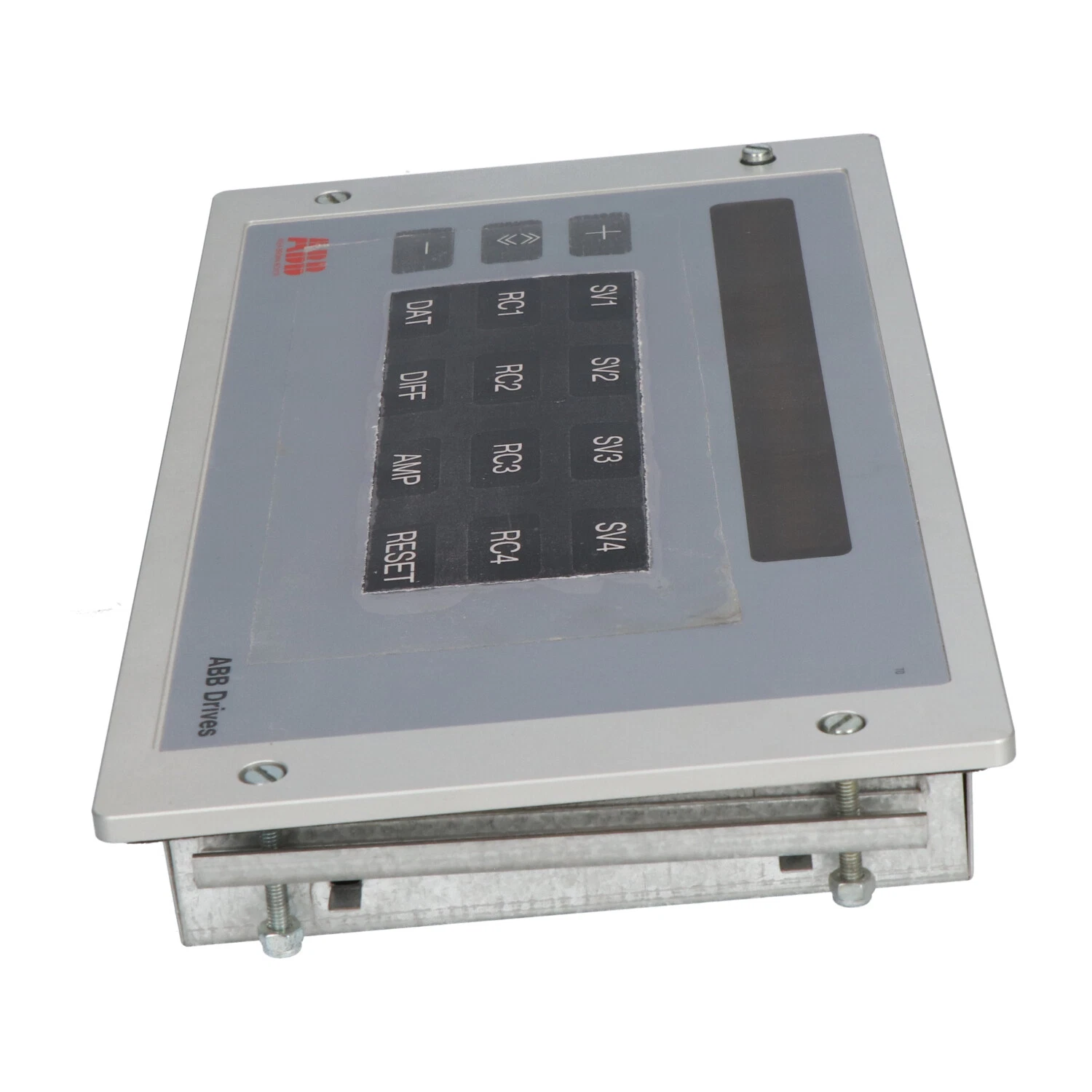

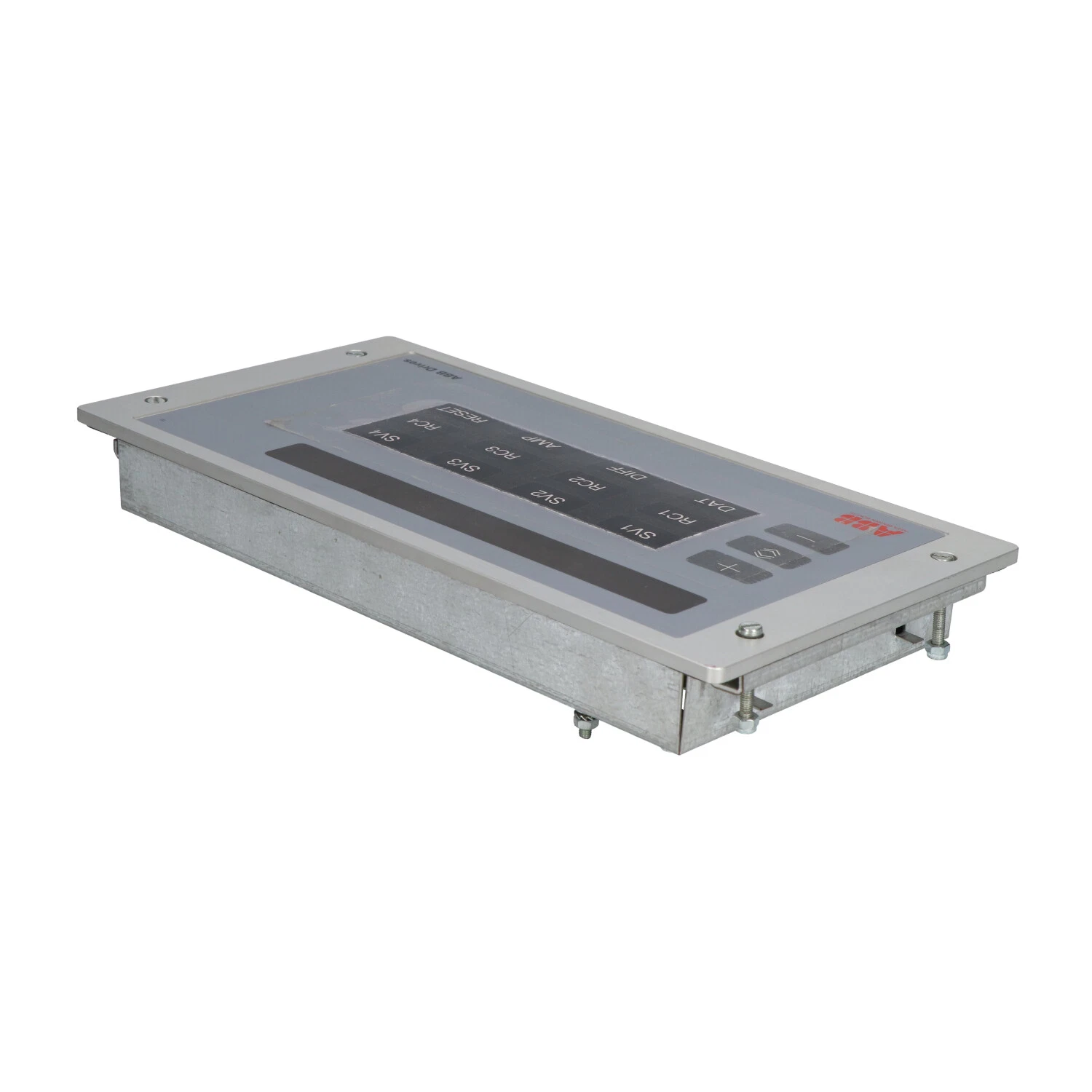

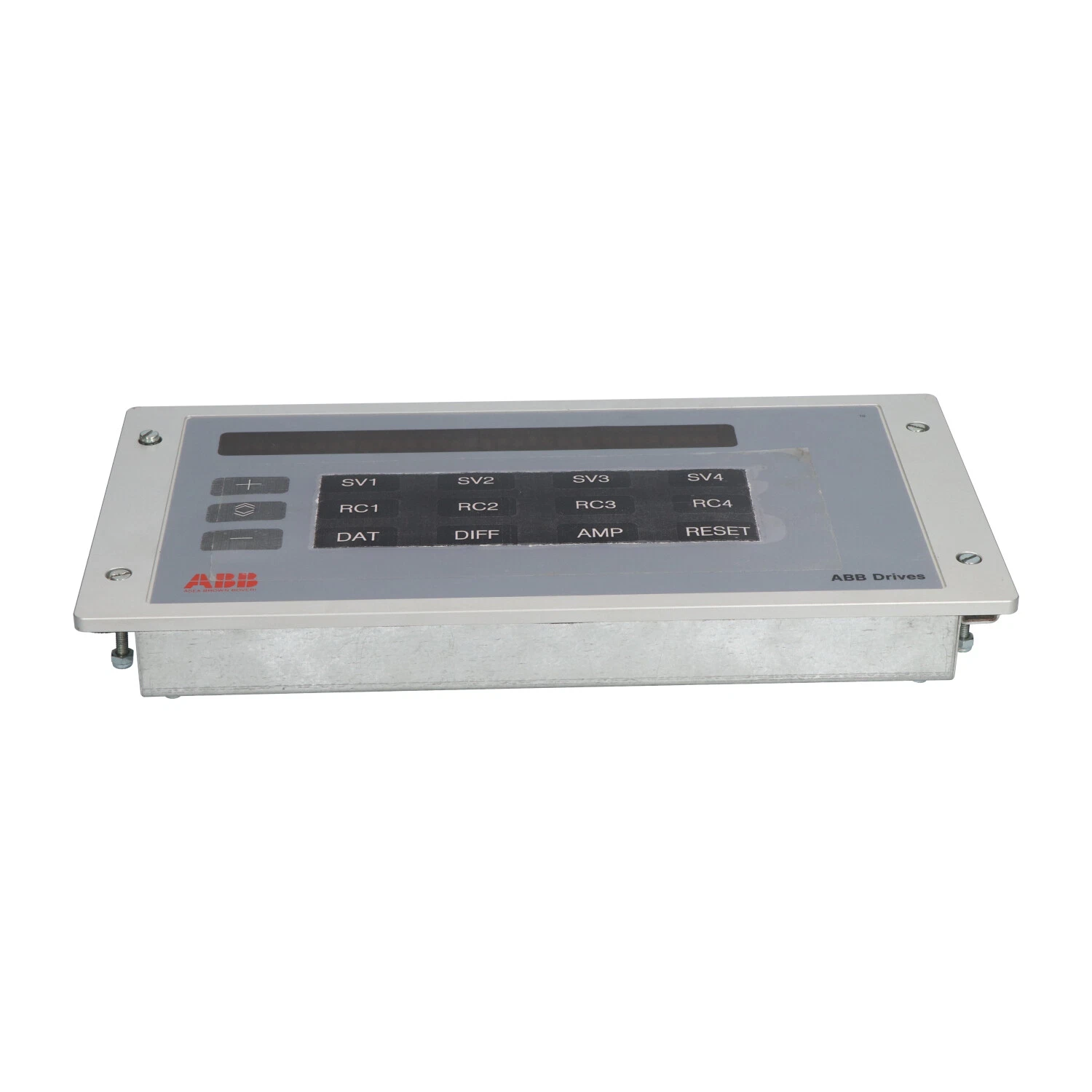

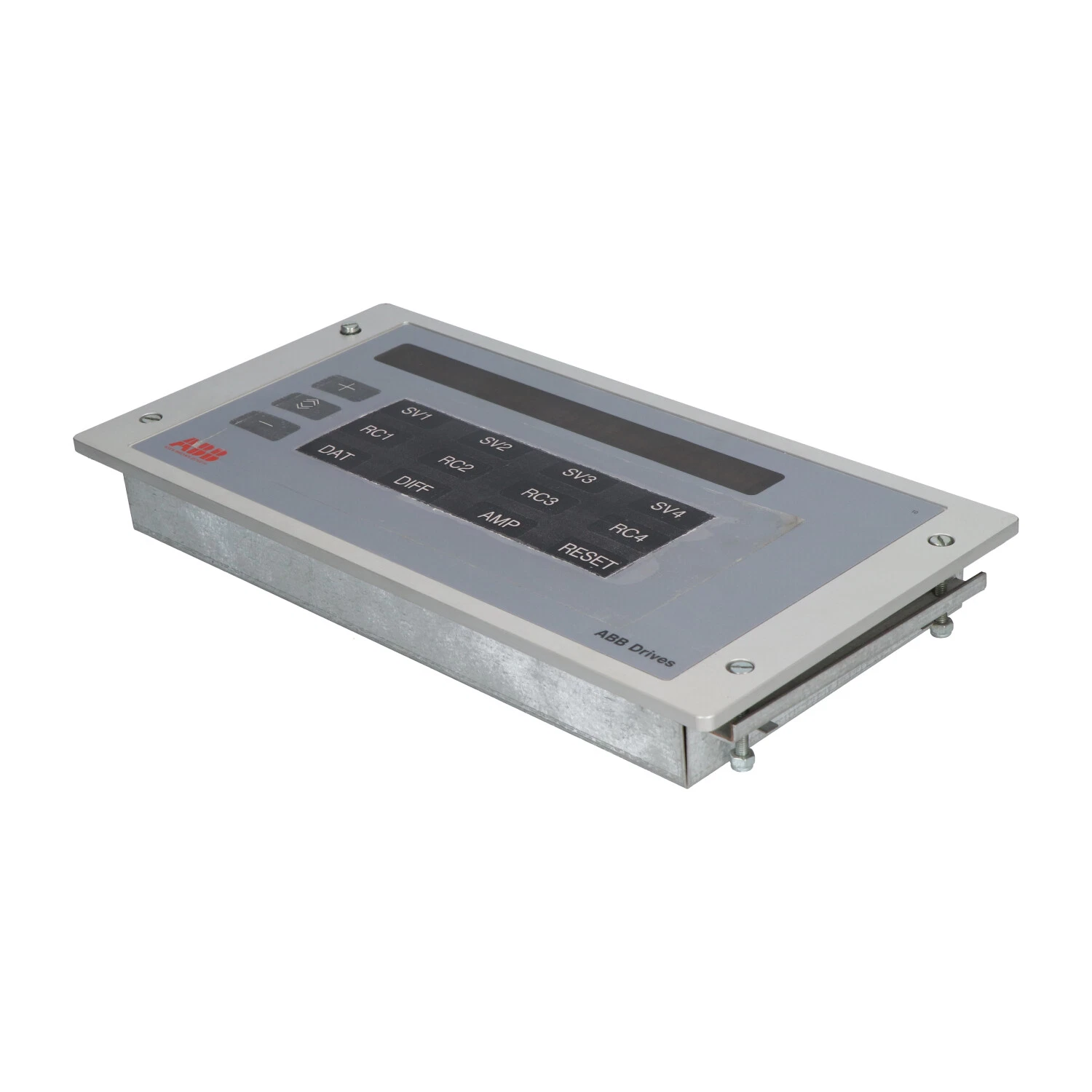

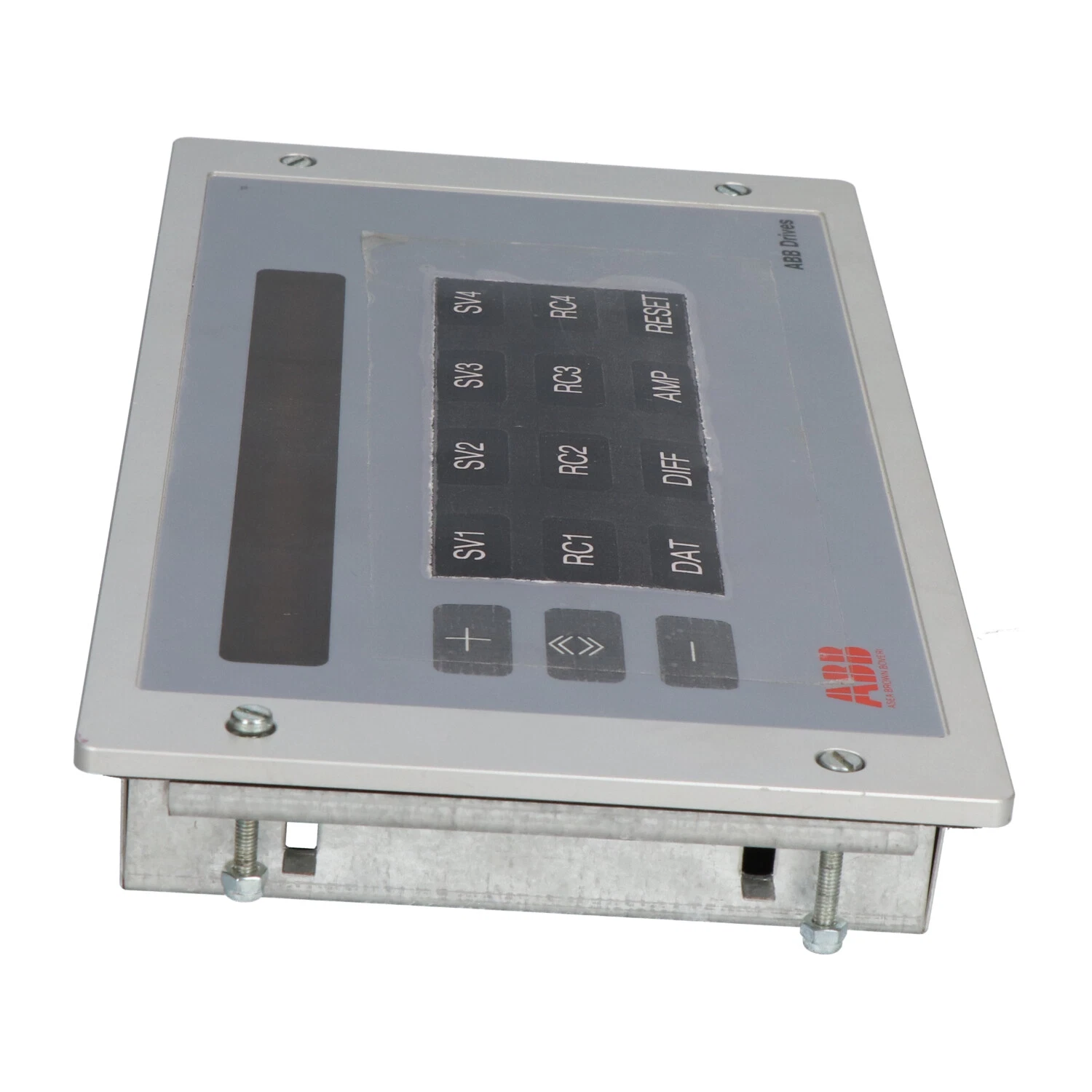

Product: ABB SAFP 25 PAN T / SAFP25PANT (36566442)
1. Overview
The SAFP 25 PAN T is an industrial operator interface panel and control unit, designed for monitoring, signaling, and control within automation and safety systems. It functions as a front-end interface that allows operators to interact with system status, alarms, and control signals in real time.
This module is typically used in environments where clear system visibility and fast response are required. It integrates visual indicators, control inputs, and relay outputs into a compact panel-mounted device. The design emphasizes operational simplicity, reliability, and long-term stability in industrial conditions.
2. Product Parameters (Technical Data)
| Parameter | Value |
|---|---|
| Model | SAFP 25 PAN T (36566442) |
| Product Type | Operator Panel / Control Interface Module |
| Rated Voltage | 24 V DC |
| Rated Current | 2.5 A |
| Power Consumption | ≤ 60 W |
| Number of Monitoring Channels | 2 channels |
| Output Relays | 2 configurable relay outputs |
| Input Signals | Digital control inputs |
| Indication Type | LED status indicators |
| Communication | Local interface / optional expansion |
| Protection Class | IP30 |
| Operating Temperature | –10°C to +55°C |
| Storage Temperature | –20°C to +70°C |
| Mounting Method | Panel mounting |
| Housing Material | Industrial-grade thermoplastic |
| Dimensions | 280 mm × 220 mm × 95 mm |
| Weight (kg) | 0.95 kg |
3. Product Introduction
The SAFP 25 PAN T is designed as a compact and efficient operator interface panel for industrial control and safety systems. It enables real-time monitoring of system conditions through LED indicators and provides manual control capabilities through integrated interface elements.
The unit includes multiple monitoring channels, allowing it to supervise different zones or system sections simultaneously. Its relay outputs can be configured to trigger alarms, activate equipment, or interface with higher-level control systems.
With a focus on reliability and simplicity, the panel minimizes operational complexity while ensuring that critical information is always visible to the operator. Its rugged construction allows it to operate consistently in industrial environments with electrical noise and temperature variation.
4. Product Application Areas
The SAFP 25 PAN T is commonly used in the following areas:
-
Industrial Automation Systems — Operator interface for machine status and control
-
Safety and Alarm Systems — Monitoring alarms and triggering responses
-
Building Management Systems — Integration into centralized control panels
-
Manufacturing Facilities — Monitoring production equipment and system conditions
-
Infrastructure Projects — Control and monitoring in utilities and public systems
-
Retrofit and Upgrade Projects — Replacing older panels with modern compact solutions
5. Product Advantages
The SAFP 25 PAN T offers several practical advantages:
-
Clear Visual Feedback: LED indicators provide immediate system status visibility
-
Compact Design: Saves space in control cabinets and panels
-
Flexible Control: Configurable relay outputs allow customized system responses
-
Reliable Operation: Designed for stable performance in industrial environments
-
Simple Installation: Panel mounting and straightforward wiring reduce setup time
-
Low Maintenance: Durable construction minimizes servicing requirements
6. Brand Affiliation
-
Brand: Global industrial automation and control brand
-
Product Series: Industrial operator panels / control interface modules
7. Recommended Same Series or Related Models (5)
| Model | Key Parameters | Typical Use Case |
|---|---|---|
| SAFP 25 PAN | 24 V DC, 2.5 A, basic interface | Standard control panels |
| SAFP 50 PAN | 24 V DC, 5 A, multi-channel | Medium systems with more signals |
| SAFP 100 PAN | 24 V DC, high capacity, multi-zone | Large monitoring systems |
| SAFP 25 PAN R | Redundant version, 24 V DC | Critical safety systems |
| SAFP 25 PAN C | Communication-enabled panel | Remote monitoring applications |
8. Recommended Other Popular Models from the Same Brand (5)
| Model | Key Parameters | Typical Use Case |
|---|---|---|
| SA 801F | 24 V DC, 5 A, 120 W | Small automation systems |
| SA 811F | 24 V DC, 10 A, 240 W | Medium control systems |
| RMIO-01C | I/O module, 24 V DC | Signal interfacing |
| RRFC-5521 | Frequency converter, 5.5 kW | Motor control |
| RUSB-02 | USB communication module | Configuration and diagnostics |
9. FAQ – Common Customer Questions (QA Style)
Q1: What is the main function of the SAFP 25 PAN T?
A1: It is used as an operator panel for monitoring and controlling industrial systems.
Q2: What voltage does the unit require?
A2: It operates on 24 V DC.
Q3: How many channels does it support?
A3: It supports 2 monitoring channels.
Q4: Does it include relay outputs?
A4: Yes, it has 2 configurable relay outputs.
Q5: Is it suitable for safety systems?
A5: Yes, it is commonly used in alarm and safety monitoring applications.
Q6: What type of indicators does it use?
A6: LED indicators for status and alarms.
Q7: What is the operating temperature range?
A7: –10°C to +55°C.
Q8: How is it installed?
A8: It is mounted on a panel inside a control cabinet.
Q9: Is it easy to maintain?
A9: Yes, its simple design and durable components reduce maintenance needs.
Q10: Can it be integrated with other control systems?
A10: Yes, it can interface with broader automation systems through relay outputs and signal connections.
